  1. Mass spectrometry and the usage @ PITZ Sven Lederer Technisches Seminar 29.05.2007

  2. introduction generation of gas phase ions overview of mass spectrometry systems residual gas analysis (RGA) RGA @ PITZ summary and outlook If not special cited, than the pictures are taken from: “Mass Spectrometry of Inorganic, Coordination and Organometallic Compounds” - W. Henderson and J.S. McIndoe Outline

  3. introduction • Where can one use MS? • biology • chemistry • physics • in this talk Residual Gas Analysis (RGA) • environmental pollution • … 1. introduction

  4. introduction • What does a mass spectrometer (MS)? • generation of gas-phase ions • separation to the mass-to-charge ratio • counting ionization ion optics m/z analysis counting 3 2 1 1. introduction

  5. introduction • generation of gas phase ions • overview of mass spectrometry systems • residual gas analysis (RGA) • RGA @ PITZ 2. generation of gas-phase ions

  6. Electron ionization • typical electron energies below 100 eV • used in most RGA’s 2. generation of gas-phase ions

  7. Electron ionization • strengths • established and very good understood • reproducible mass spectra • fragmentation can provide structural information • weaknesses • sample must in gas phase 2. generation of gas-phase ions

  8. Field ionization 2. generation of gas-phase ions

  9. Field ionization • strengths • very soft ionization • nearly no chemical background • weaknesses • preparation of the emitter • high fields often require use of sector MS 2. generation of gas-phase ions

  10. Fast ion/atom bombardment used for solids ore liquids (matrix assisted) 2. generation of gas-phase ions

  11. Fast ion/atom bombardment • strengths • simple • also cold samples can be studied • high ion currents => good resolution • weaknesses • high background • lower m/z dominated by matrix 2. generation of gas-phase ions

  12. MALDI Matrix Assisted Laser Desorption Ionisation 2. generation of gas-phase ions

  13. MALDI • strengths • soft ionization poor fragmentation • rapid molecular weight determination • weaknesses • MS/MS different • pulsed ionisation • spectra can depend on matrix 2. generation of gas-phase ions

  14. introduction • generation of gas phase ions • overview of mass spectrometry systems • residual gas analysis (RGA) • RGA @ PITZ 2. generation of gas-phase ions

  15. Sector MS ion source directional focusing centrifugal and Lorentz force 3. overview of mass spectrometry systems

  16. Sector MS A magnetic sector will focus ions with same m/z but different kinetic energy to different points. Therefore an electrostatic analyser is used before the magnetic sector. 3. overview of mass spectrometry systems

  17. Sector MS • strengths: • high resolution, sensitivity ,and dynamic range • weaknesses: • very large, expensive 3. overview of mass spectrometry systems

  18. TOF-MS • Time Of Flight MS: ions are accelerated by an electric field to the same kinetic energy • ions with different mass but same Ekin have different velocity v • heavier ions reach the detector after lighter ones 3. overview of mass spectrometry systems

  19. TOF-MS reflection TOF-MS In a TOF-MS nearly all ions have same kin. energy. To ensure that really all ions with the same m/z ratio arrive at the same time at the detector an electronic ion mirror is used. The different kinetic energies are compensated by the different penetration depths. This provides an increase in resolution of the TOF-MS 3. overview of mass spectrometry systems

  20. TOF-MS • strengths • unlimited mass • simplicity • no scanning necessary (detects all at once) • high transmission • weaknesses • requires pulsed ionization or beam switching • high vacuum conditions required 3. overview of mass spectrometry systems

  21. Quadrupole MS V0+V1cos wt For constant w (typically some MHz) a mass scan is performed by changing V1. The precision depends on the ratio V0/V1 so that V0 is changed together with V1. 3. overview of mass spectrometry systems

  22. Quadrupole MS stability diagram (a ~ V0, q~V1) 3. overview of mass spectrometry systems

  23. Quadrupole MS • strengths • compact • simplicity • fast scanning • mass spectra good reproducible • weaknesses • resolution • not suited for pulsed ionization methods 3. overview of mass spectrometry systems

  24. Comparison 3. overview of mass spectrometry systems

  25. introduction • generation of gas phase ions • overview of mass spectrometry systems • residual gas analysis (RGA) • RGA @ PITZ

  26. residual gas analysis (RGA) • RGA’s can provide information on: • residual gasses • air leaks in vacuum systems • Helium leaks especially in Helium leak tests • compositions of processes • impurities in process gasses 4. residual gas analysis (RGA)

  27. residual gas analysis (RGA) A residual gas analyser measures the partial pressures of individual masses in a gas mixture (vacuum). The sum of all partial pressures is the total pressure, which one can also measure with an vacuum gauge or an ion getter pump. Common systems consists of an ion source, a Quadrupole analyser, and an counter (Faraday cup and/or SEE (secondary electron multiplier)). MS Basics M. Mueller 4. residual gas analysis (RGA)

  28. residual gas analysis (RGA) Calculating the partial pressures PA from measured currents IAB: Analyser factors: G: gain of the SEE or 1 for FC S: sensitivity for pure Nitrogen DFAB: detection factor, 1 for FC and for SEE dependent on ion mass and the chemical nature, measured relative to the reference gas (usual Nitrogen) TFB: transmission factor, fractions of ions passing through the quadrupole relative to nitrogen TFB = 28/M Material factors FF: fragmentation factors, FFN28 is the FF XF: ionization probability So the calculation of the partial pressure crucially depends on the chemical element itself and how the analyser can handle this element from INFICON LEYBOLD 4. residual gas analysis (RGA)

  29. residual gas analysis (RGA) H2 leads because of the fragmentation to two peaks 4. residual gas analysis (RGA)

  30. residual gas analysis (RGA) Argon: no fragmentation but two peaks, one for single and one for double ionization 4. residual gas analysis (RGA)

  31. residual gas analysis (RGA) 4. residual gas analysis (RGA)

  32. residual gas analysis (RGA) H2O: main peak at mass 18 but also lines at 17 (HO), 16 (O), 2 (H2), and 1 H 4. residual gas analysis (RGA)

  33. residual gas analysis (RGA) from INFICON LEYBOLD 4. residual gas analysis (RGA)

  34. residual gas analysis (RGA) from INFICON LEYBOLD 4. residual gas analysis (RGA)

  35. introduction • generation of gas phase ions • overview of mass spectrometry systems • residual gas analysis (RGA) • RGA @ PITZ

  36. RGA @ PITZ As RGA a Spectra Satellite LM61 (100 amu) is used. The RGA is located near the PITZ RF-gun. The system needs 5 min. for measuring one spectrum from mass 1 to 50 (gun and coupler: Cu 64 amu). RGA + analyser head power supply + analyser unit terminal server rs232 LAN PITZ tunnel control PC PITZ rack room DESY net 5. RGA @ PITZ

  37. RGA @ PITZ 2 air leak in the RF-coupler during baking of the gun 3 1 5. RGA @ PITZ

  38. RGA @ PITZ 1) before air leak 5. RGA @ PITZ

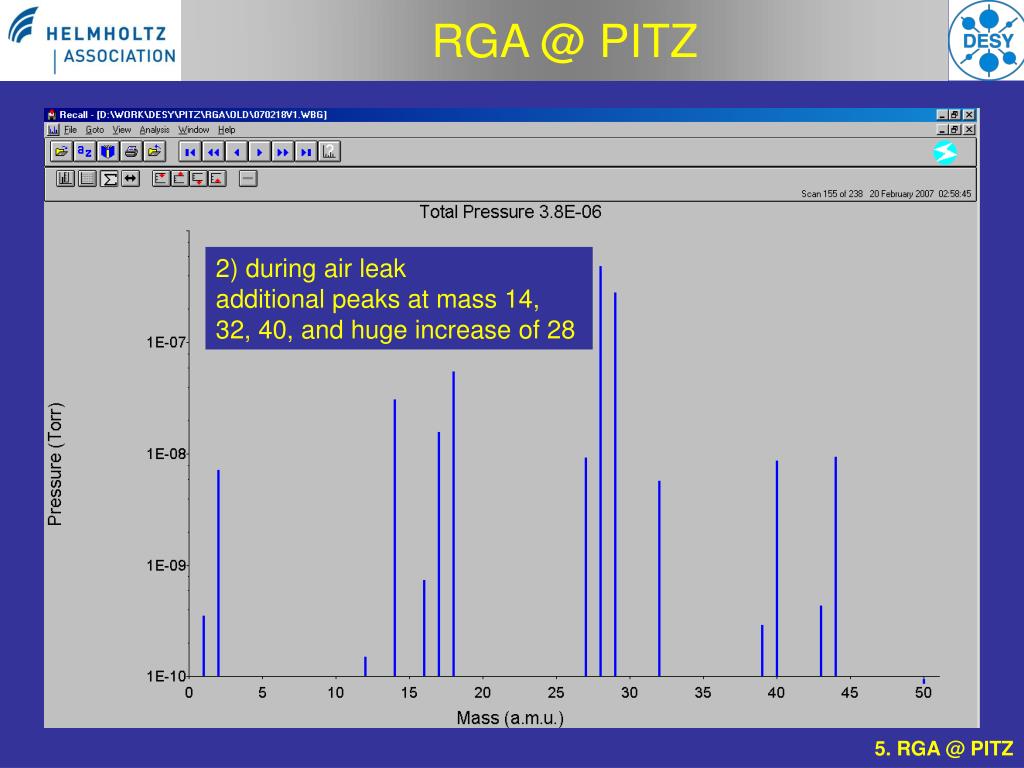

  39. RGA @ PITZ 2) during air leak additional peaks at mass 14, 32, 40, and huge increase of 28 5. RGA @ PITZ

  40. RGA @ PITZ 3) leak “completed” 5. RGA @ PITZ

  41. RGA @ PITZ RGA during conditioning of gun 3.2 strange behaviour 5. RGA @ PITZ

  42. RGA @ PITZ 5. RGA @ PITZ

  43. RGA @ PITZ 5. RGA @ PITZ

  44. summary and outlook • summary • MS systems and ionisation techniques were presented • description of special MS-topic RGA • introduction to the usage of RGA @ PITZ • outlook • understanding of the some times strange behaviour of the RGA @ PITZ • evaluation of the data taken during conditioning • new system • probably Pfeiffer QMS: consistency to system in vacuum lab, no complicate way of communication because of fibre connection
