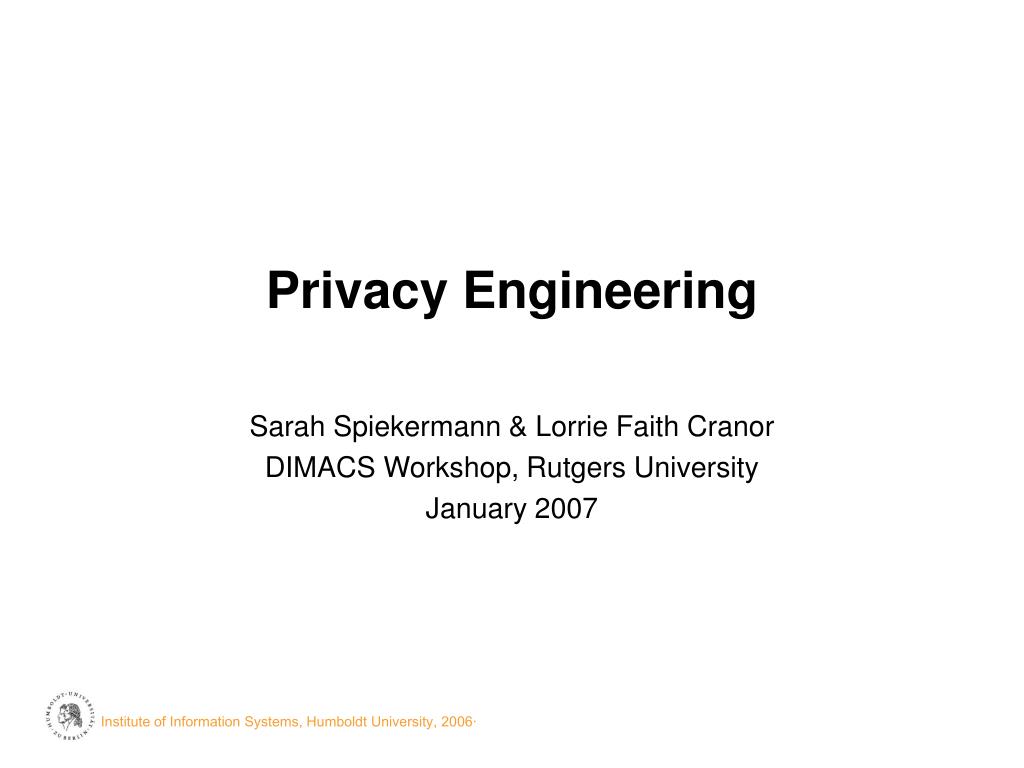

privacy engineering

Privacy Engineering

Sarah Spiekermann & Lorrie Faith Cranor

DIMACS Workshop, Rutgers University

January 2007

privacy engineering2
Privacy Engineering
  • Privacy Threats arising through IS activities
  • User Privacy Concerns and 2 Layers of Responsibility for Privacy Engineers
  • “Privacy by Policy” vs. “Privacy by Architecture”
  • Designing Privacy by Architecture
    • Client centricity
    • Identifiability
  • Forms of Trust created through Fair Information Practices
  • Implementing Fair Information Practices
  • Recognizing Responsibility for Data Sharing Networks
user privacy concerns and 2 layers of responsibility for privacy engineers

2-Layer ResponsibilityFramework

User Privacy Concerns

Data Recipient

IS activities

with regards to

personal data

internalunauthorized2nd use

external

unauthorized2nd use

Controlof personaldata collected

Layer II

improperaccess

errors

Processing

Transfer

reducedjudgments

combiningdata

Storage

Service Edge

1

2

Network Edge

unauthorizedcollection

unauthorizedexecution

Layer I

AccessControl

exposure

Attention/inflow of data

Client Side

User Privacy Concerns and 2 Layers of Responsibility for Privacy Engineers
fair information practices are the typical short cut approach to privacy engineering
Fair Information Practices are the typical short-cut approach to privacy engineering.
  • (1) Notice: Data collectors should provide consumers with clear and conspicuous notice of their information practices, including what information they collect, how they collect it (e.g., directly or through non-obvious means such as cookies), how they use it, how they provide Choice, Access, and Security to consumers, whether they disclose the information collected to other entities, and whether other 3rd entities besides themselves are collecting information about consumers as part of the service.
  • (2) Choice: Data collectors should offer consumers choices as to how their personal identifying information is used beyond the use for which the information was provided (e.g., to consummate a transaction). Such choice would encompass both internal secondary uses (such as marketing back to consumers) and external secondary uses (such as disclosing data to other entities).
  • (3) Access: Data collectors should offer consumers reasonable access to the information which is collected about them, including a reasonable opportunity to review information and to correct inaccuracies or delete information.
  • (4) Security: Data collectors should take reasonable steps to protect the security of the information they collect from consumers.
privacy by policy vs privacy by architecture

non-identifieddata

collection

Privacy byArchitecture

Privacy byPolicy

through

FIPs

increased privacy friendliness

identifieddata

collection

network centricarchitecture

client centricarchitecture

“Privacy by Policy” vs. “Privacy by Architecture”
designing privacy by architecture client centricity
Designing Privacy by Architecture: Client Centricity

Network Centricity

Client Centricity

services

services

requests

Network

Client

Client

requests

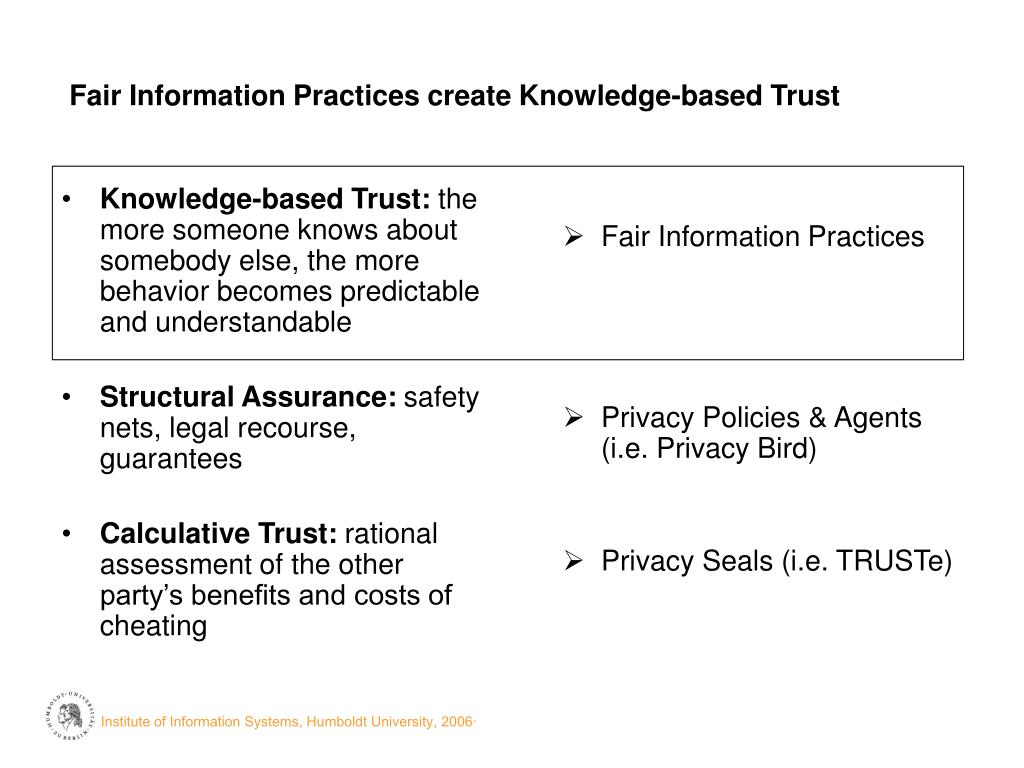

fair information practices create knowledge based trust
Knowledge-based Trust: the more someone knows about somebody else, the more behavior becomes predictable and understandable

Structural Assurance: safety nets, legal recourse, guarantees

Calculative Trust: rational assessment of the other party’s benefits and costs of cheating

Fair Information Practices

Privacy Policies & Agents (i.e. Privacy Bird)

Privacy Seals (i.e. TRUSTe)

Fair Information Practices create Knowledge-based Trust
recognizing responsibility for data sharing networks i

external parties:government/litigation related parties

content/serviceprovider

3rd party

3rd party

Main User

accessprovider

peers

3rd party

secondaryuser

3rd party

application/system provider

Recognizing Responsibility for Data Sharing Networks (I)

data sharingalways exists

data sharingcould exist

slide12

Recognizing Responsibility for Data Sharing Networks (II)

Party X should inform about party Y

Y

X

()

slide13

Thank you for your attention!For more information, please contact the authors:Sarah Spiekermann, Humboldt University Berlin; sspiek@wiwi.hu-berlin.deLorrie Faith Cranor, Carnegie Mellon University; lorrie@cs.cmu.edu
