opcat eam

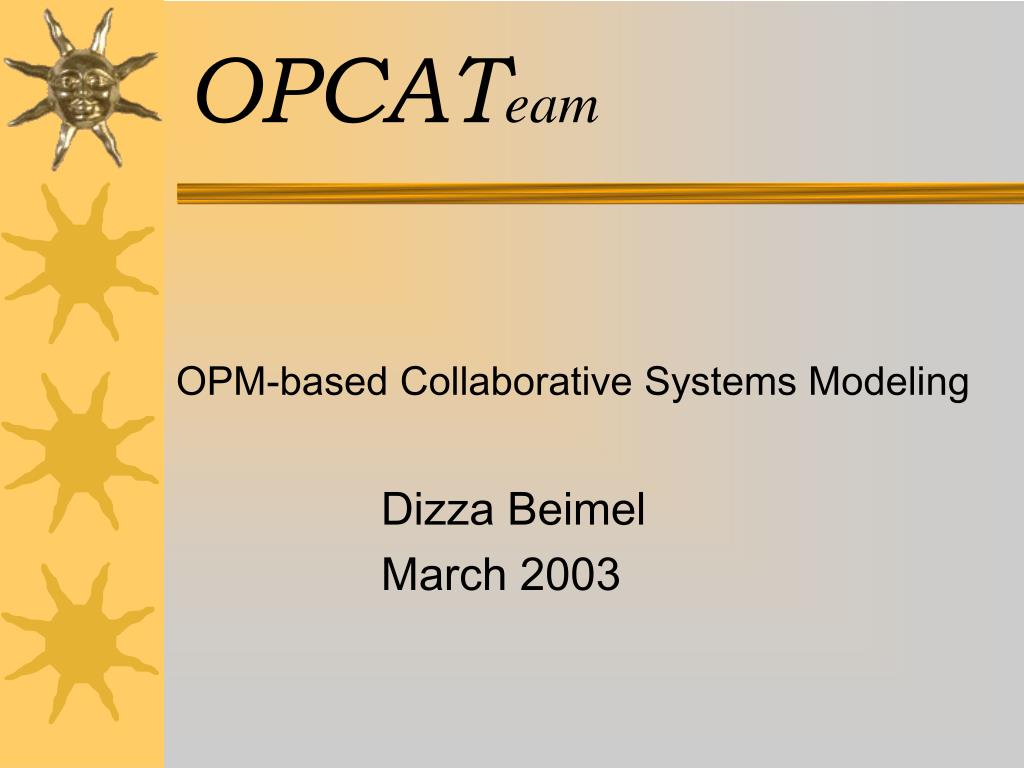

OPCATeam

OPM-based Collaborative Systems Modeling

Dizza Beimel

March 2003

agenda

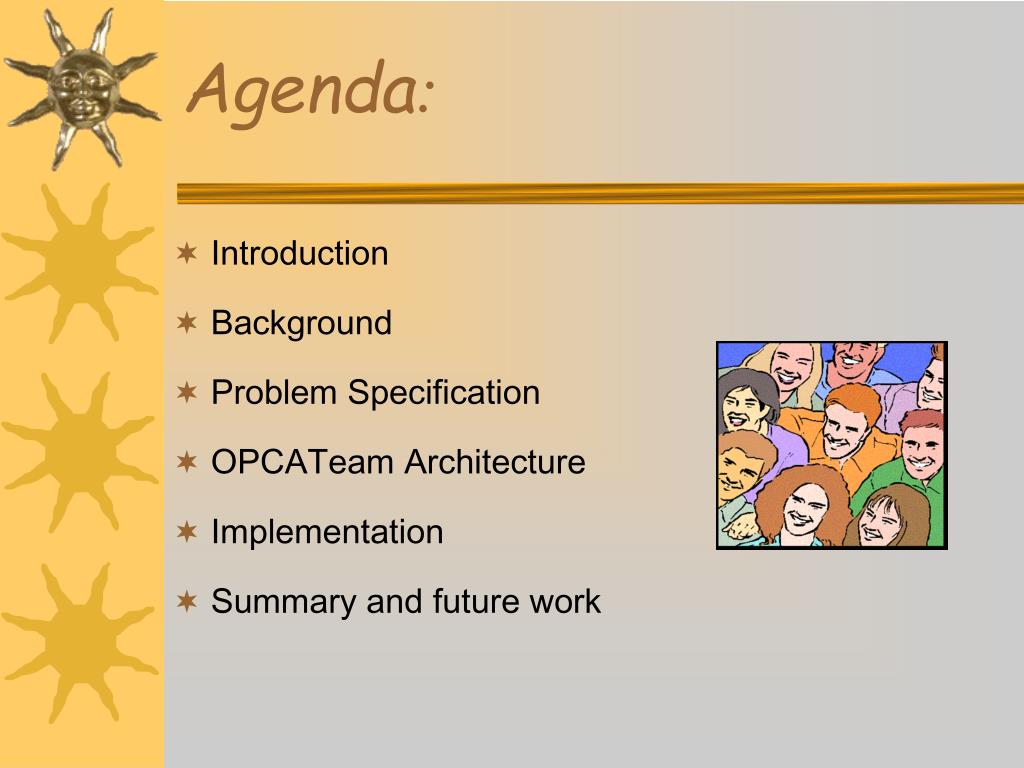

Agenda:
  • Introduction
  • Background
  • Problem Specification
  • OPCATeam Architecture
  • Implementation
  • Summary and future work
introduction project goals and objectives

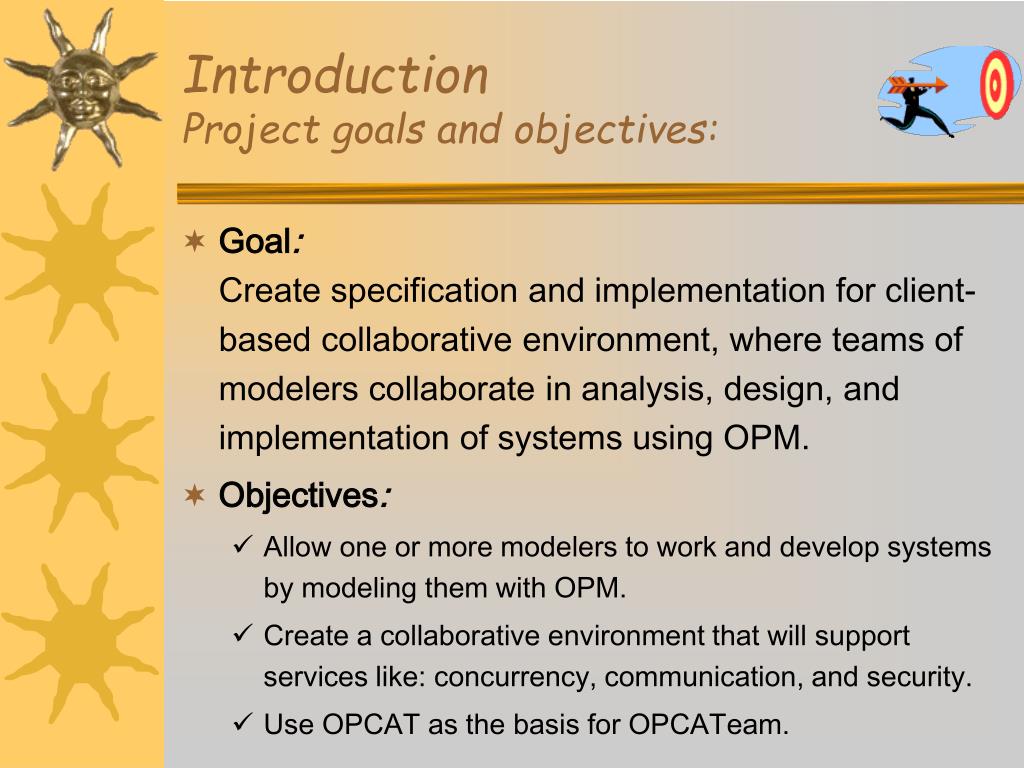

IntroductionProject goals and objectives:
  • Goal:Create specification and implementation for client-based collaborative environment, where teams of modelers collaborate in analysis, design, and implementation of systems using OPM.
  • Objectives:
    • Allow one or more modelers to work and develop systems by modeling them with OPM.
    • Create a collaborative environment that will support services like: concurrency, communication, and security.
    • Use OPCAT as the basis for OPCATeam.
introduction collaborative modeling solutions guidelines

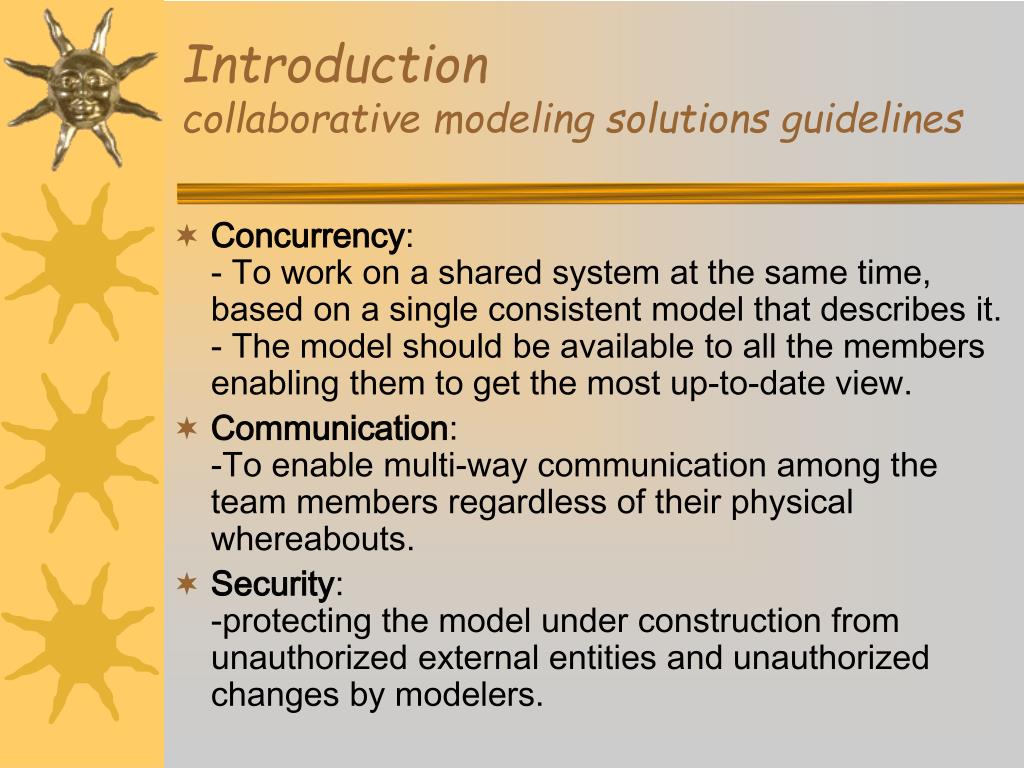

Introductioncollaborative modeling solutions guidelines
  • Concurrency: - To work on a shared system at the same time, based on a single consistent model that describes it.- The model should be available to all the members enabling them to get the most up-to-date view.
  • Communication:-To enable multi-way communication among the team members regardless of their physical whereabouts.
  • Security: -protecting the model under construction from unauthorized external entities and unauthorized changes by modelers.
background what is object process methodology opm

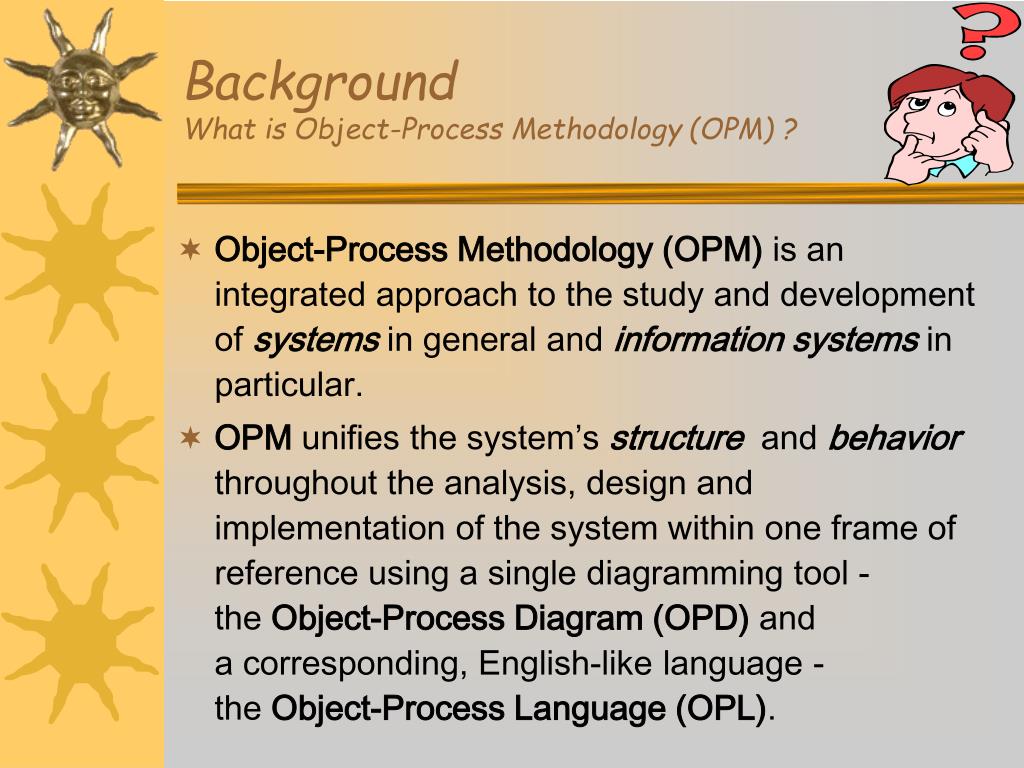

BackgroundWhat is Object-Process Methodology (OPM) ?
  • Object-Process Methodology (OPM) is an integrated approach to the study and development of systems in general and information systems in particular.
  • OPM unifies the system’s structure and behavior throughout the analysis, design and implementation of the system within one frame of reference using a single diagramming tool - the Object-Process Diagram (OPD) and a corresponding, English-like language - the Object-Process Language (OPL).
background what is collaboration

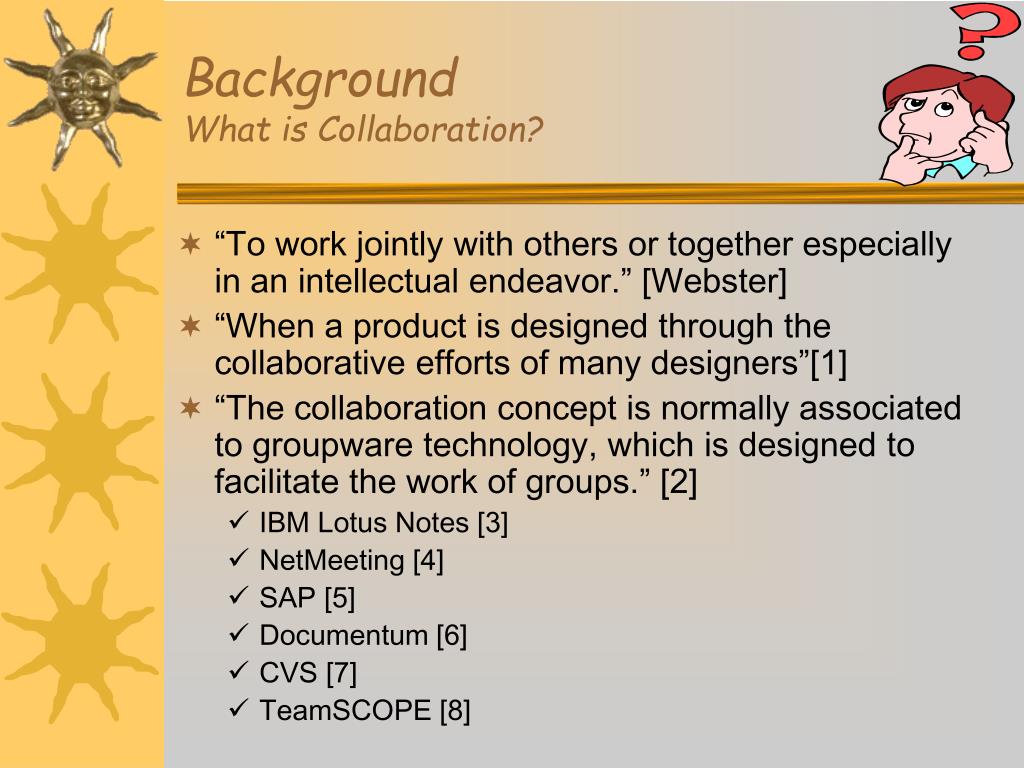

BackgroundWhat is Collaboration?
  • “To work jointly with others or together especially in an intellectual endeavor.” [Webster]
  • “When a product is designed through the collaborative efforts of many designers”[1]
  • “The collaboration concept is normally associated to groupware technology, which is designed to facilitate the work of groups.” [2]
    • IBM Lotus Notes [3]
    • NetMeeting [4]
    • SAP [5]
    • Documentum [6]
    • CVS [7]
    • TeamSCOPE [8]
background opcat single user version

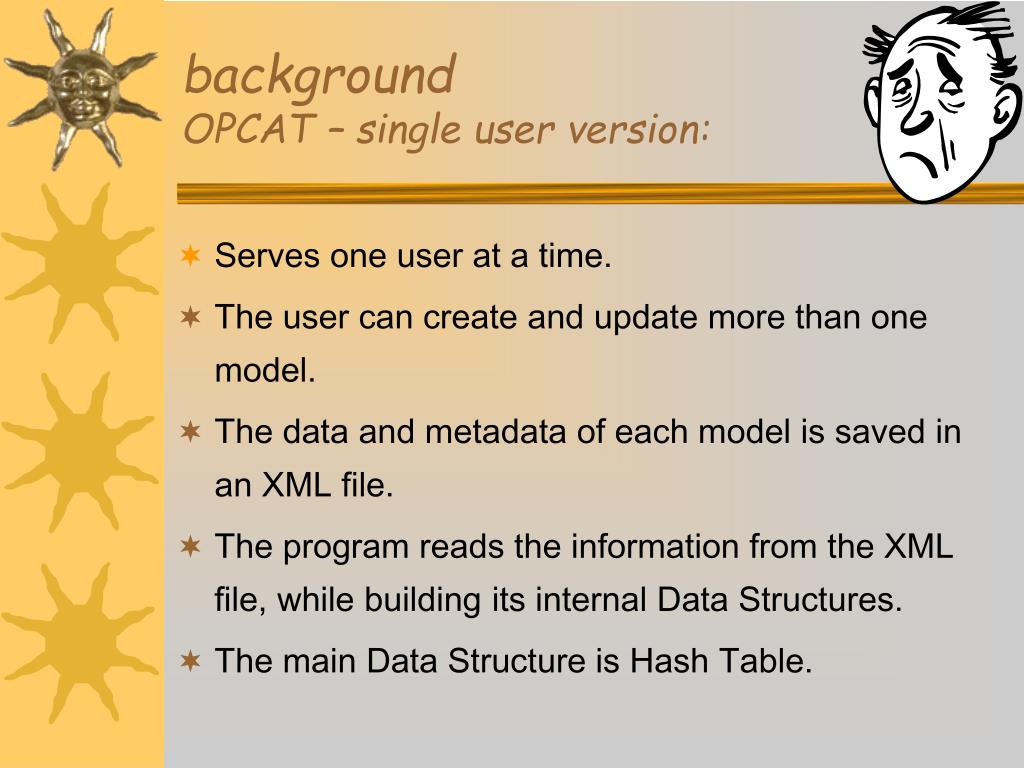

backgroundOPCAT – single user version:
  • Serves one user at a time.
  • The user can create and update more than one model.
  • The data and metadata of each model is saved in an XML file.
  • The program reads the information from the XML file, while building its internal Data Structures.
  • The main Data Structure is Hash Table.
background definitions of key concepts 1

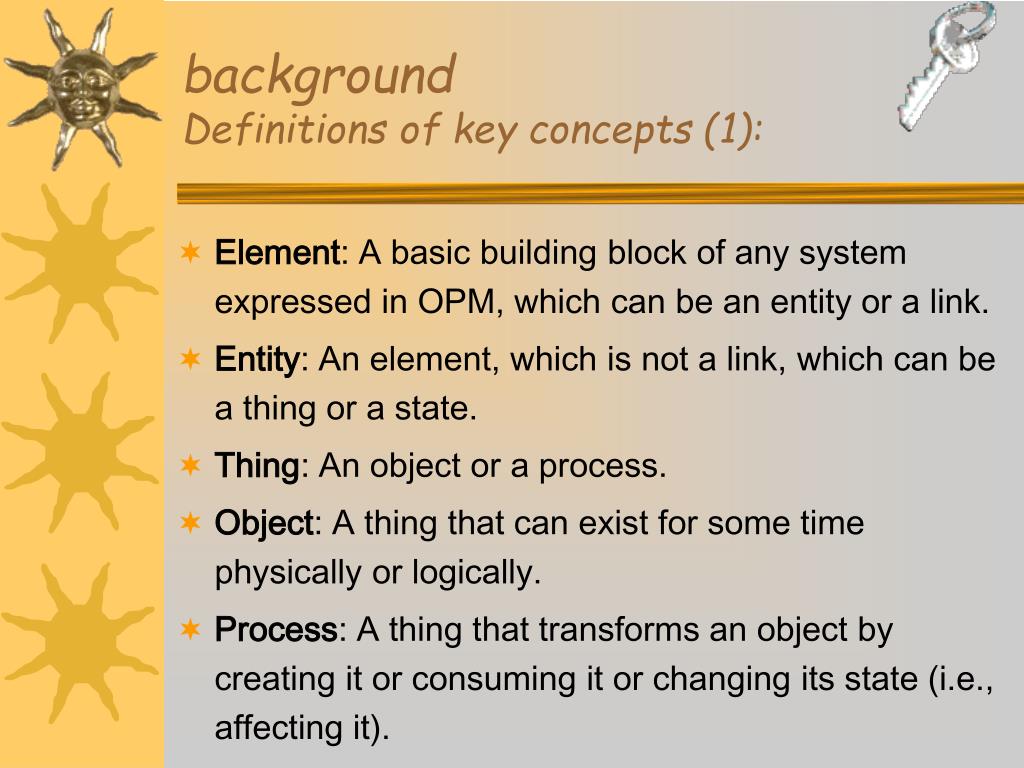

backgroundDefinitions of key concepts (1):
  • Element: A basic building block of any system expressed in OPM, which can be an entity or a link.
  • Entity: An element, which is not a link, which can be a thing or a state.
  • Thing: An object or a process.
  • Object: A thing that can exist for some time physically or logically.
  • Process: A thing that transforms an object by creating it or consuming it or changing its state (i.e., affecting it).
background definitions of key concepts 2

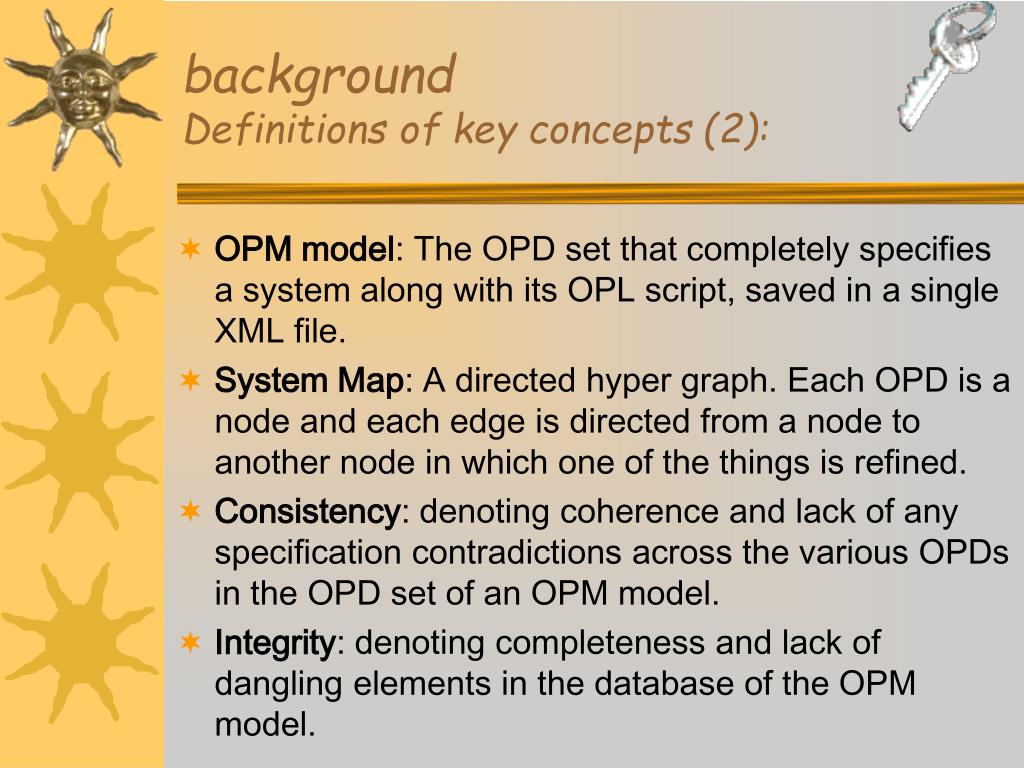

backgroundDefinitions of key concepts (2):
  • OPM model: The OPD set that completely specifies a system along with its OPL script, saved in a single XML file.
  • System Map: A directed hyper graph. Each OPD is a node and each edge is directed from a node to another node in which one of the things is refined.
  • Consistency: denoting coherence and lack of any specification contradictions across the various OPDs in the OPD set of an OPM model.
  • Integrity: denoting completeness and lack of dangling elements in the database of the OPM model.
problem specification opm interconnectivity

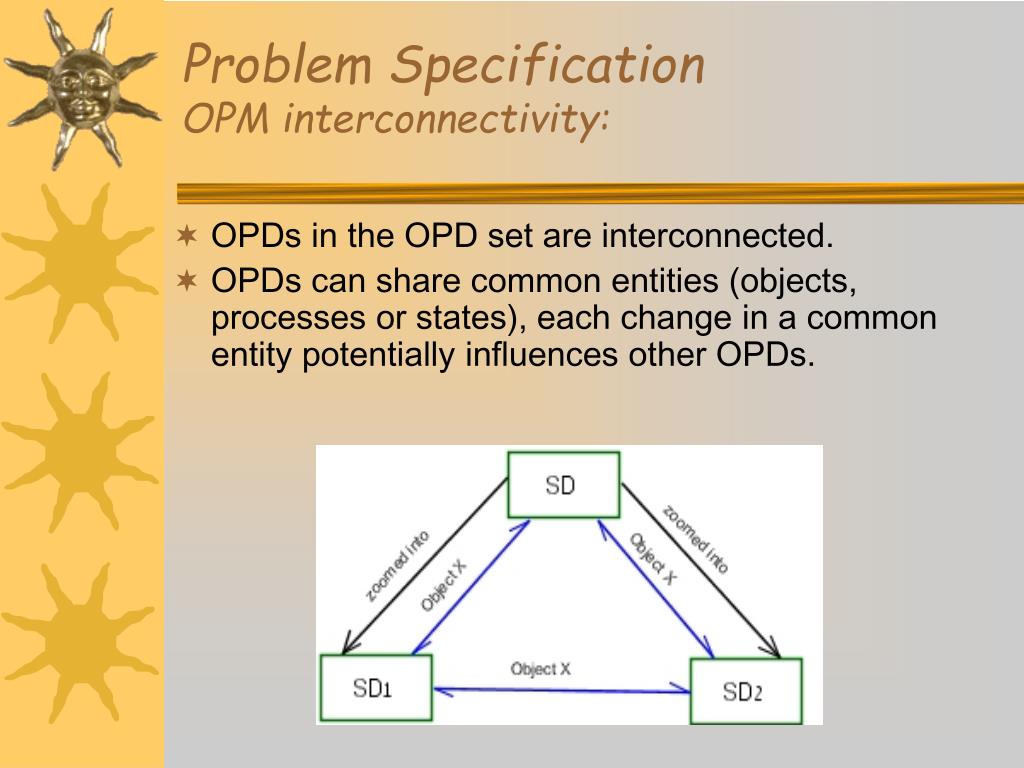

Problem SpecificationOPM interconnectivity:

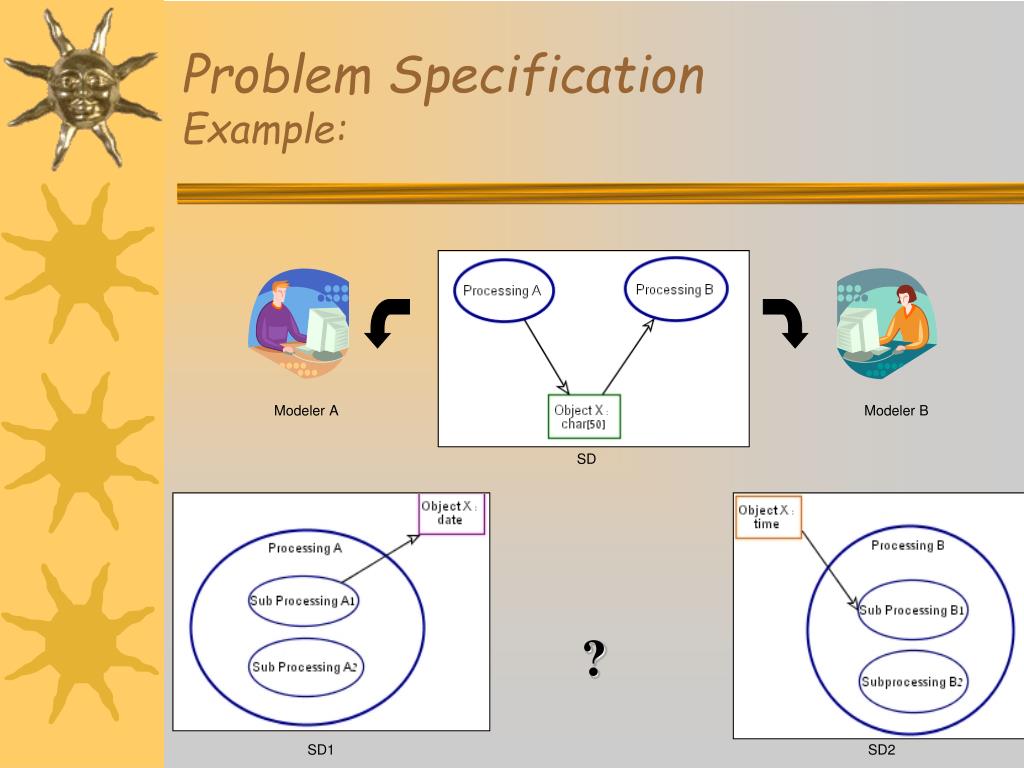

  • OPDs in the OPD set are interconnected.
  • OPDs can share common entities (objects, processes or states), each change in a common entity potentially influences other OPDs.
problem specification problem defining

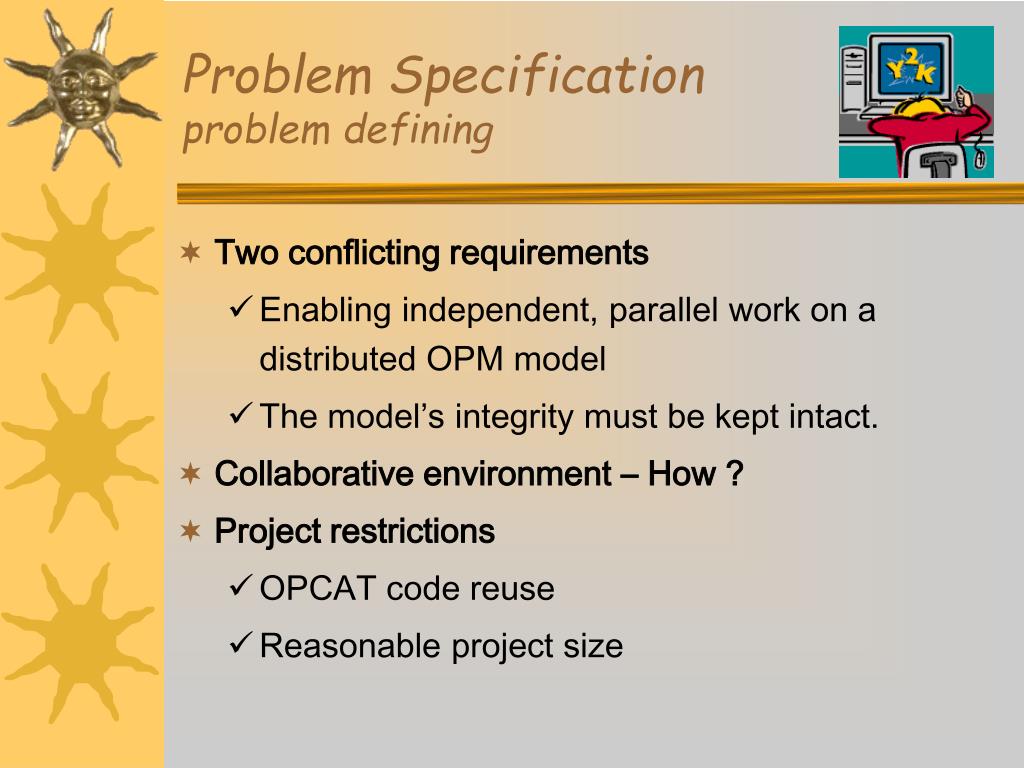

Problem Specificationproblem defining
  • Two conflicting requirements
    • Enabling independent, parallel work on a distributed OPM model
    • The model’s integrity must be kept intact.
  • Collaborative environment – How ?
  • Project restrictions
    • OPCAT code reuse
    • Reasonable project size
opcateam architecture overview 1

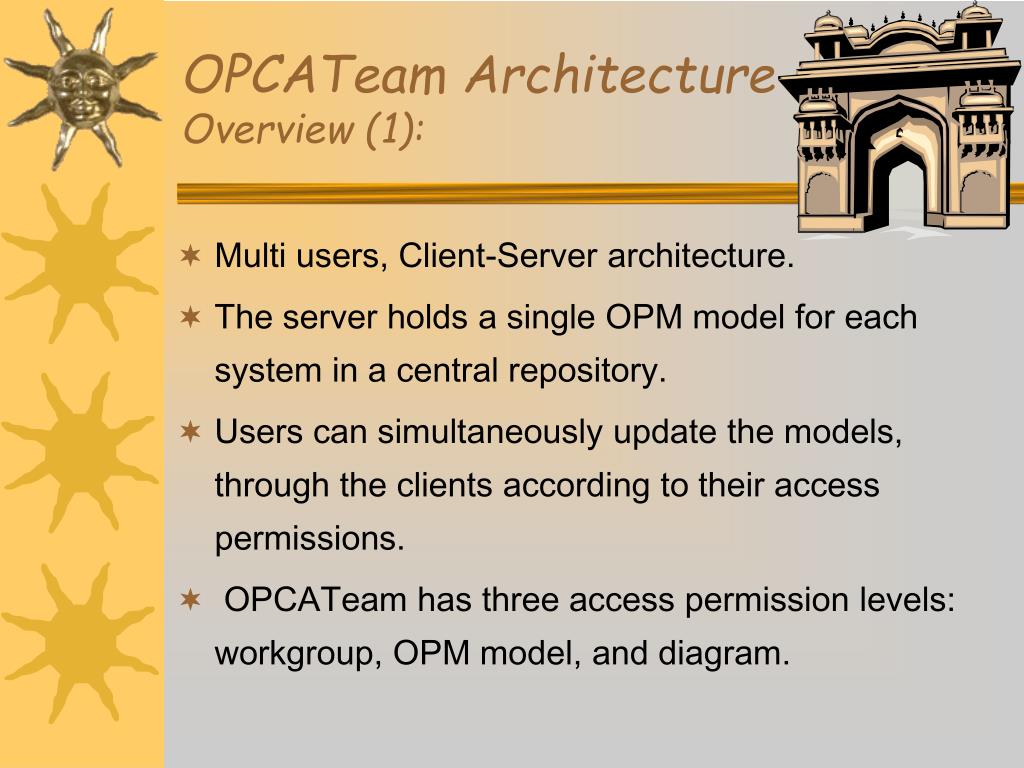

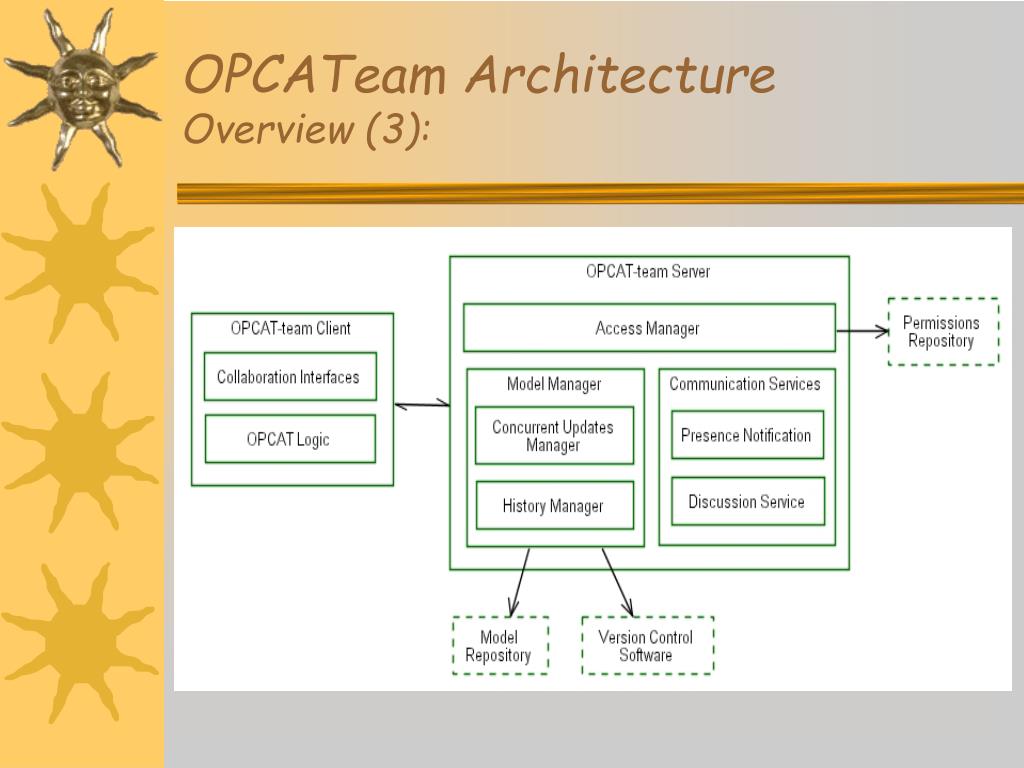

OPCATeam ArchitectureOverview (1):
  • Multi users, Client-Server architecture.
  • The server holds a single OPM model for each system in a central repository.
  • Users can simultaneously update the models, through the clients according to their access permissions.
  • OPCATeam has three access permission levels: workgroup, OPM model, and diagram.
opcateam architecture overview 2
OPCATeam ArchitectureOverview (2):

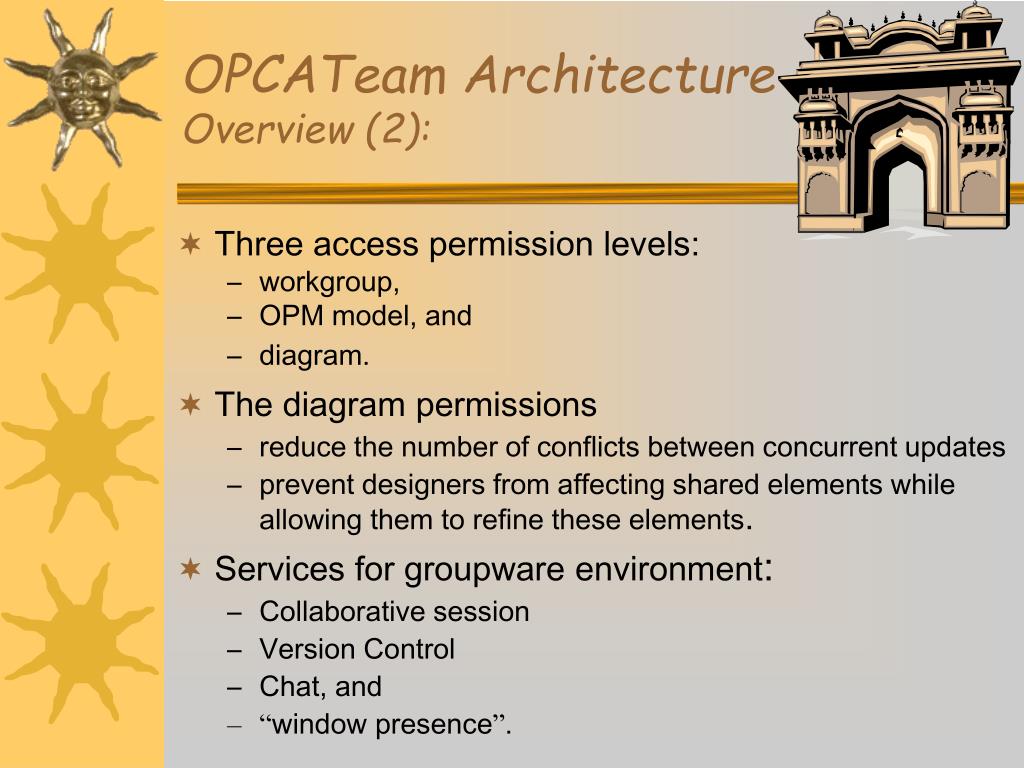

  • Three access permission levels:
    • workgroup,
    • OPM model, and
    • diagram.
  • The diagram permissions
    • reduce the number of conflicts between concurrent updates
    • prevent designers from affecting shared elements while allowing them to refine these elements.
  • Services for groupware environment:
    • Collaborative session
    • Version Control
    • Chat, and
    • “window presence”.

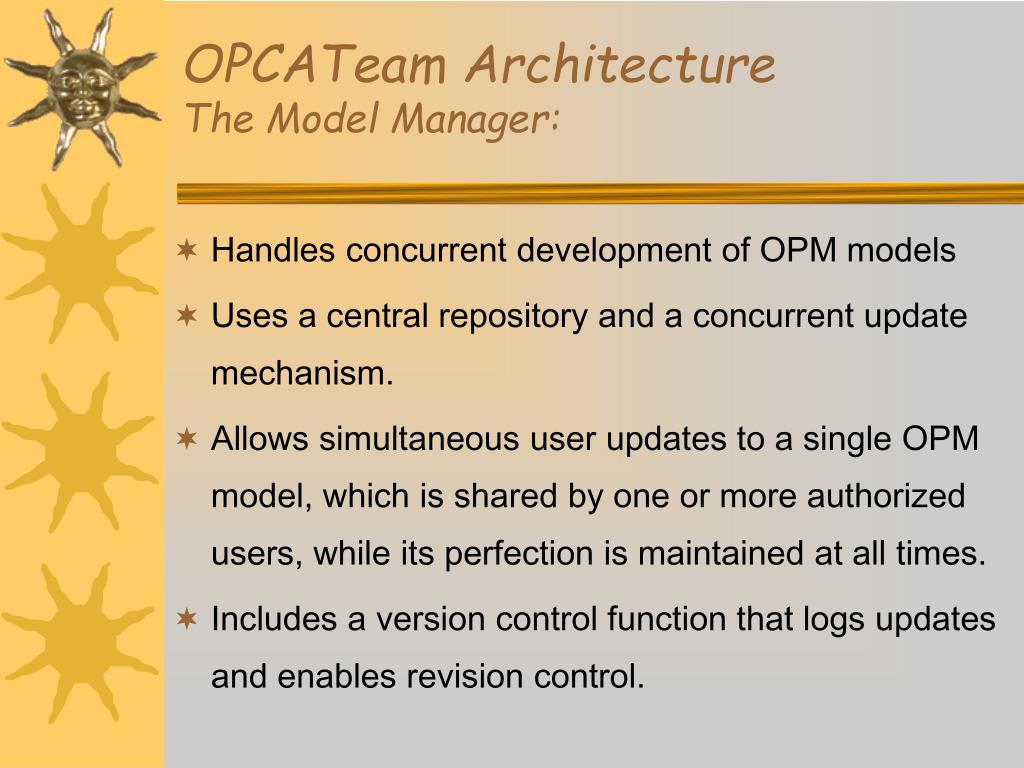

opcateam architecture the model manager
OPCATeam ArchitectureThe Model Manager:
  • Handles concurrent development of OPM models
  • Uses a central repository and a concurrent update mechanism.
  • Allows simultaneous user updates to a single OPM model, which is shared by one or more authorized users, while its perfection is maintained at all times.
  • Includes a version control function that logs updates and enables revision control.
opcateam architecture access control mechanism 1

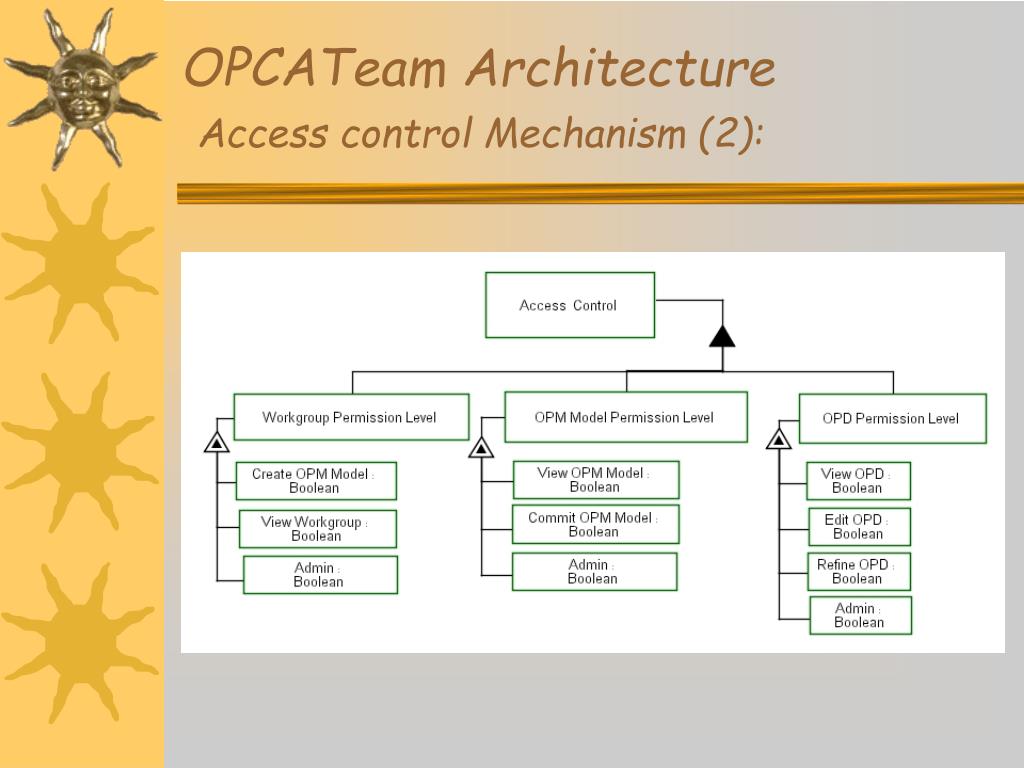

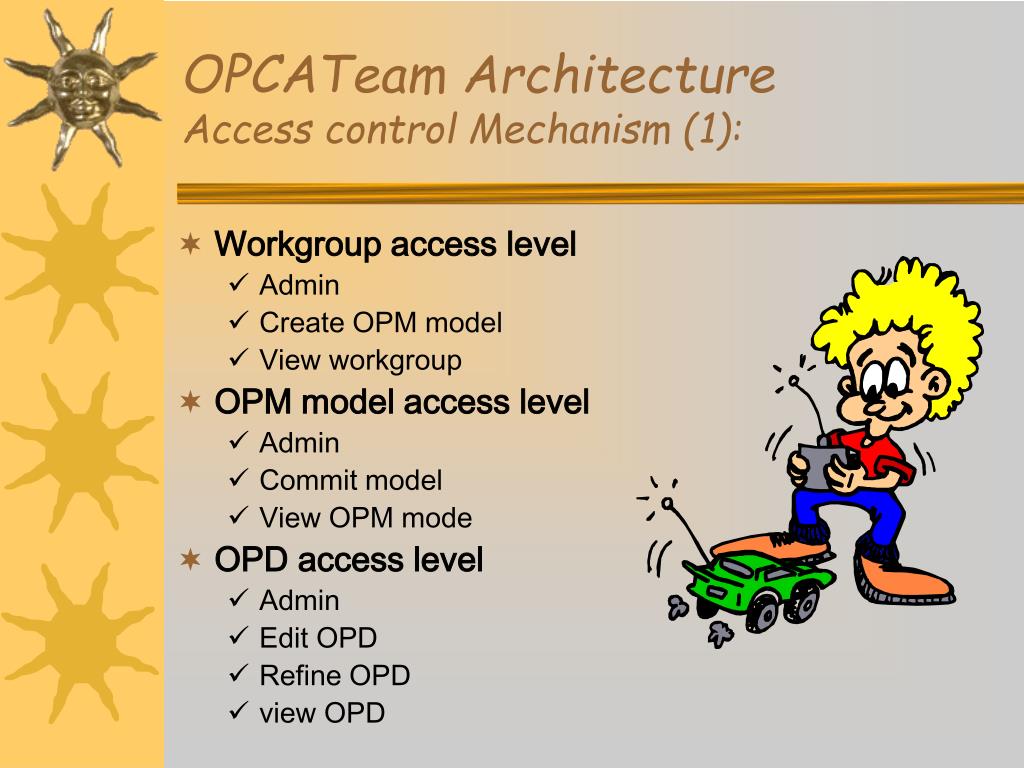

OPCATeam ArchitectureAccess control Mechanism (1):
  • Workgroup access level
    • Admin
    • Create OPM model
    • View workgroup
  • OPM model access level
    • Admin
    • Commit model
    • View OPM mode
  • OPD access level
    • Admin
    • Edit OPD

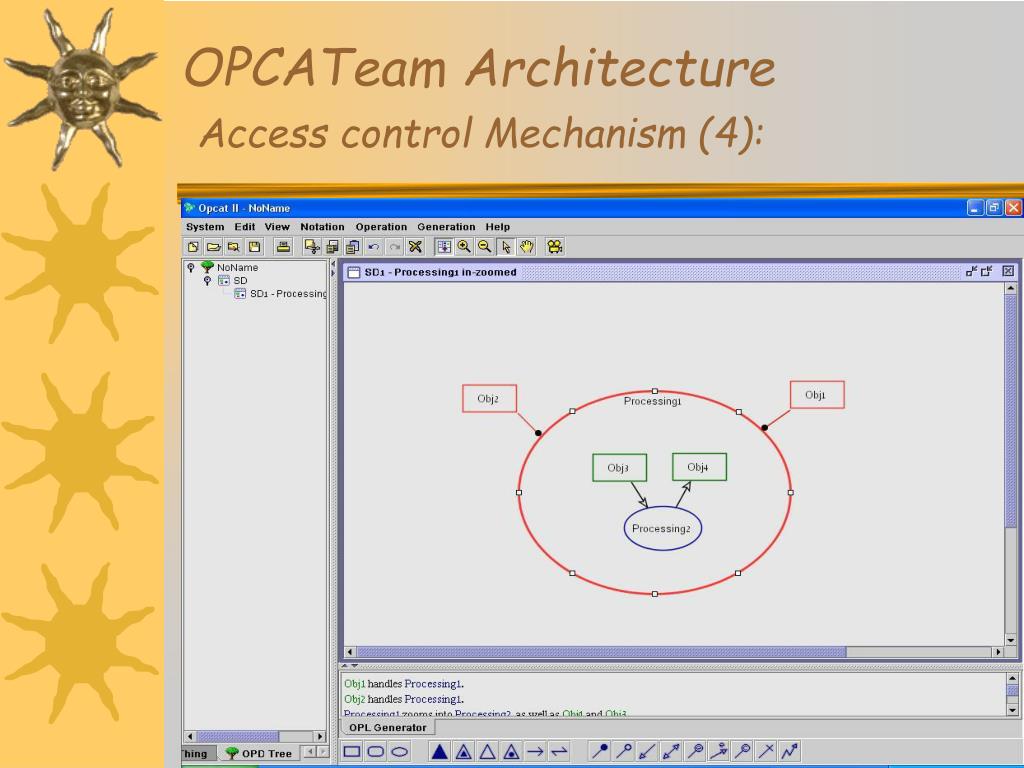

    • Refine OPD
    • view OPD

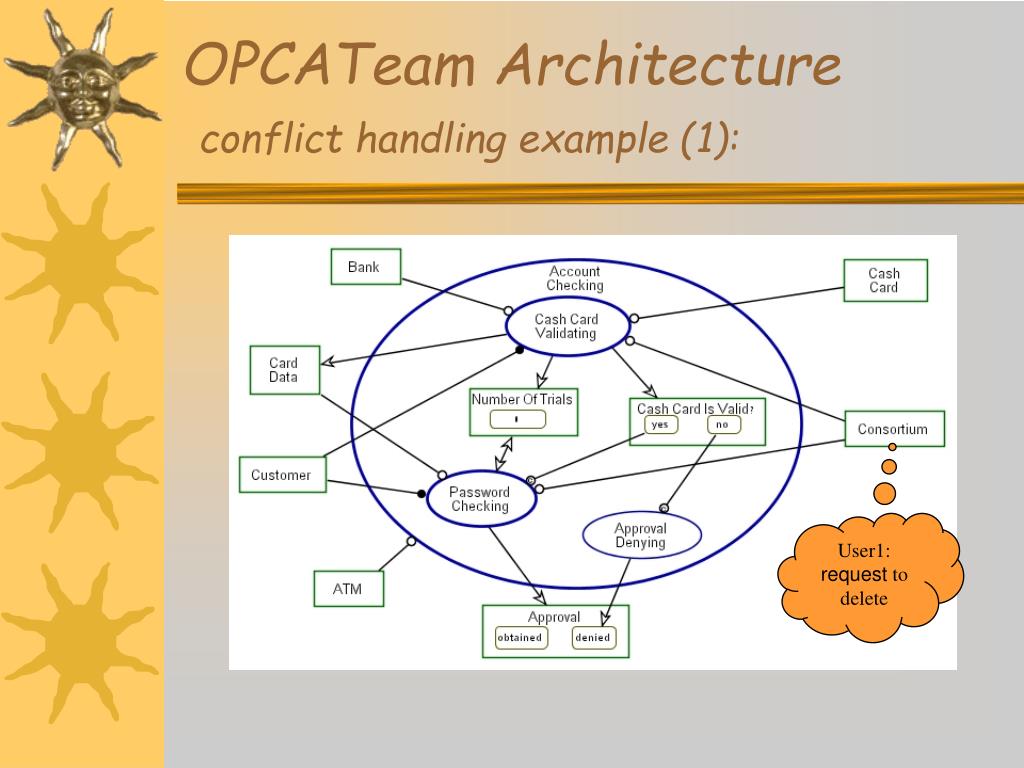

opcateam architecture access control and conflicts handling

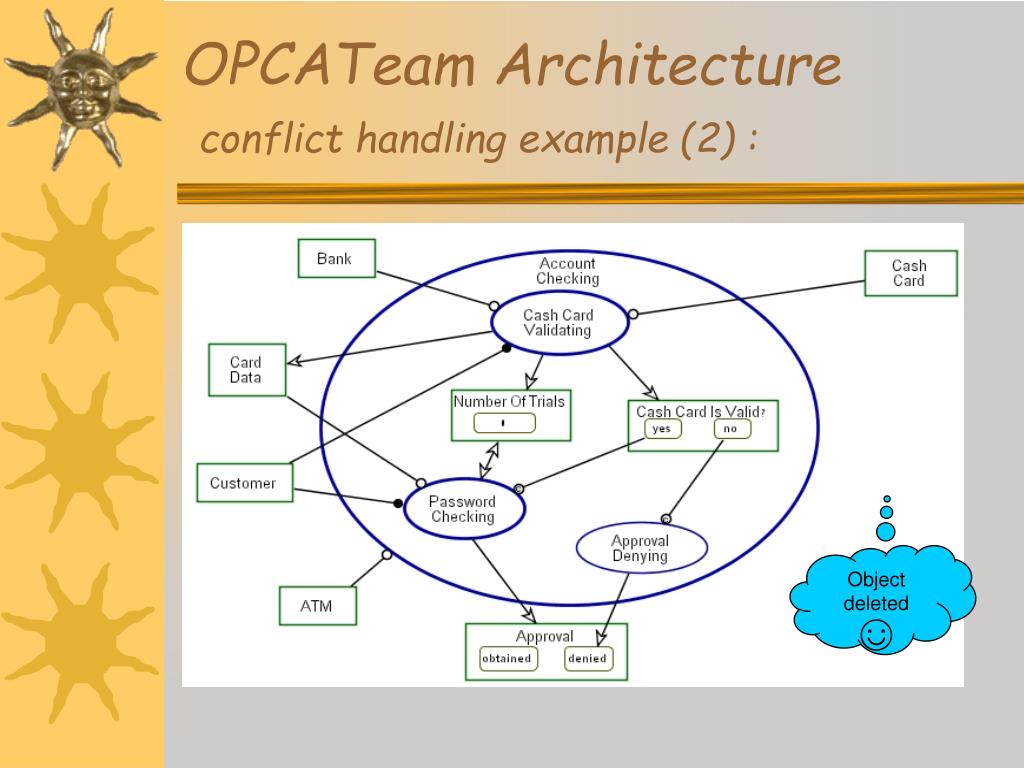

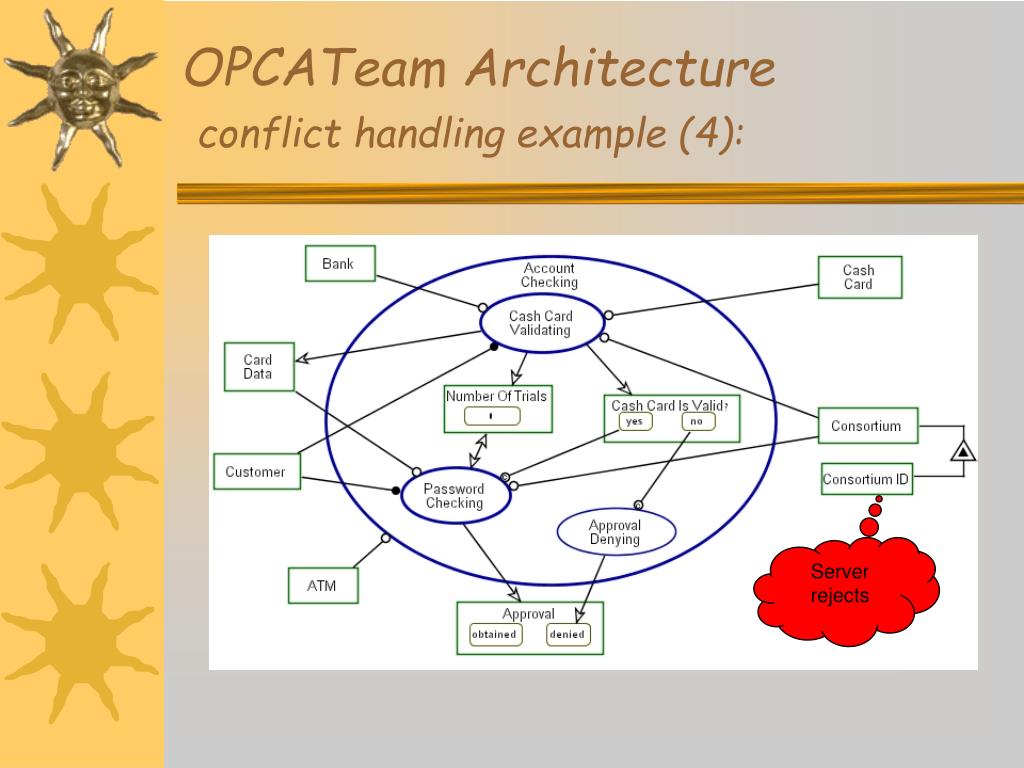

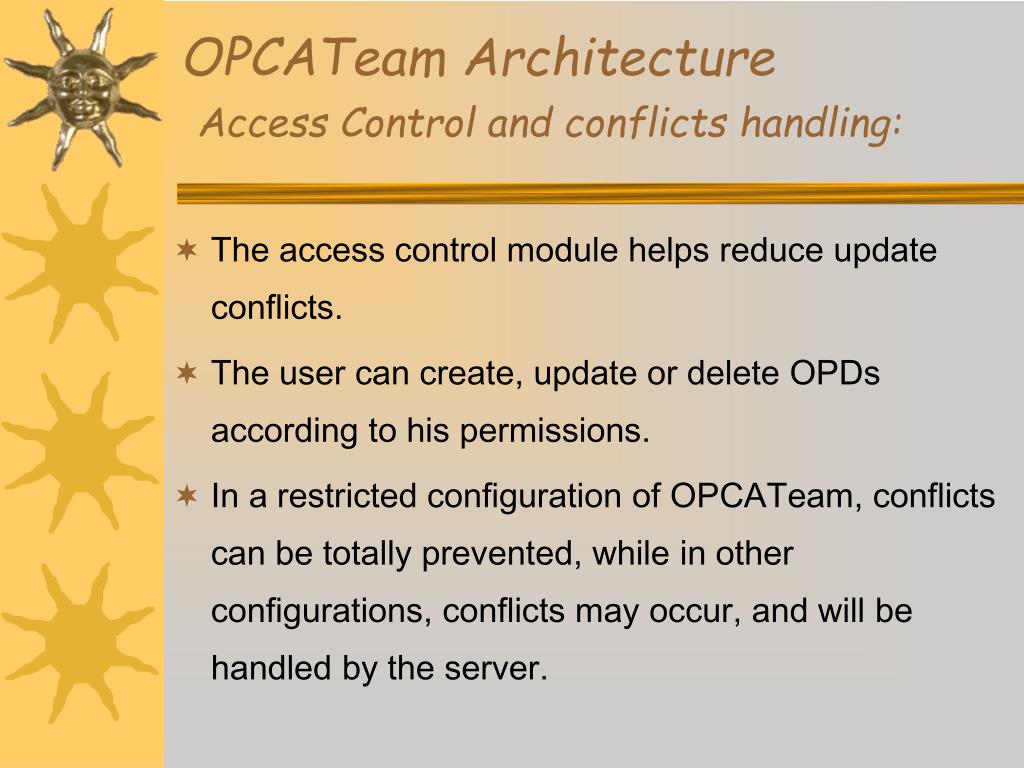

OPCATeam ArchitectureAccess Control and conflicts handling:
  • The access control module helps reduce update conflicts.
  • The user can create, update or delete OPDs according to his permissions.

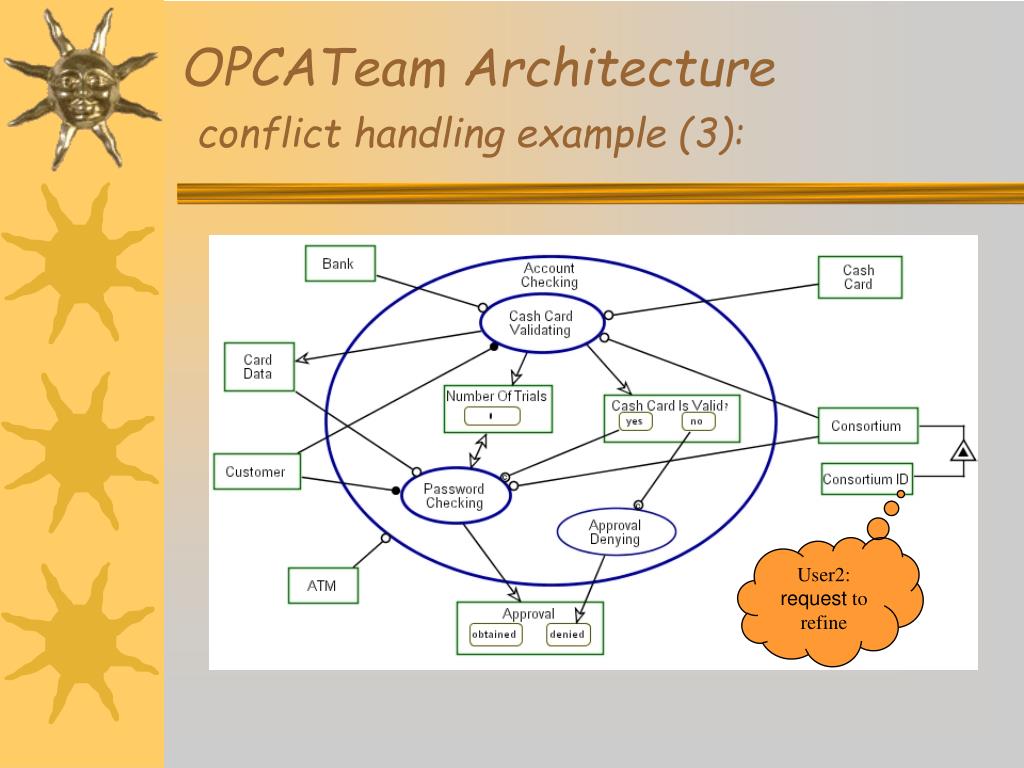

  • In a restricted configuration of OPCATeam, conflicts can be totally prevented, while in other configurations, conflicts may occur, and will be handled by the server.

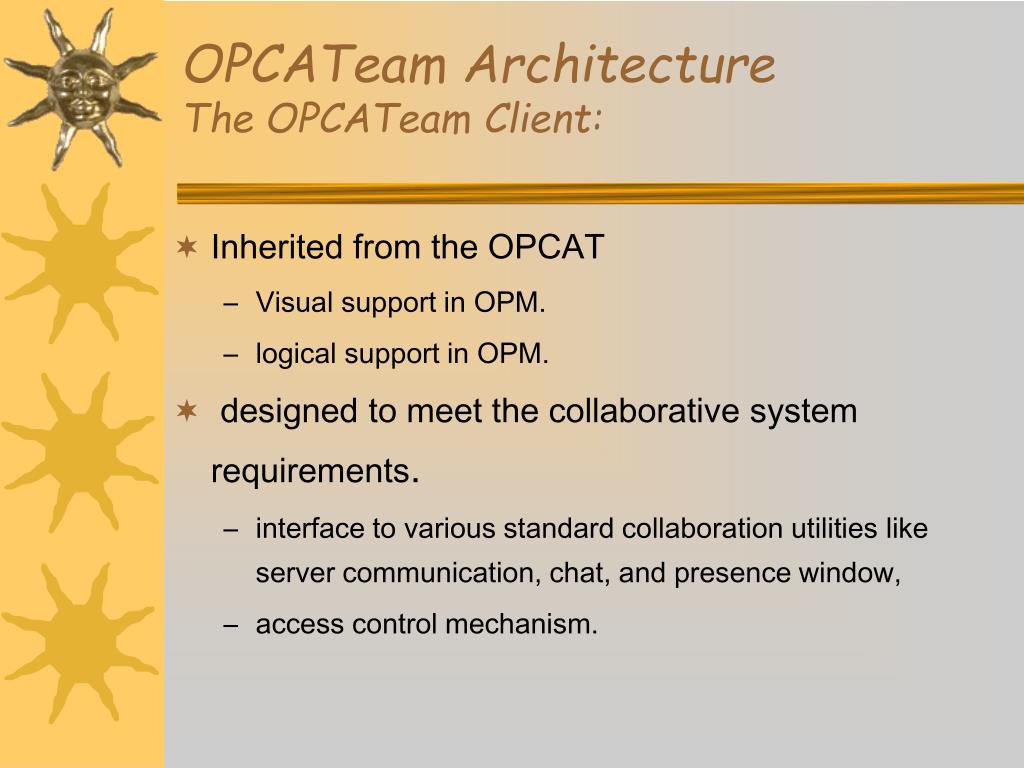

opcateam architecture the opcateam client
OPCATeam ArchitectureThe OPCATeam Client:
  • Inherited from the OPCAT
    • Visual support in OPM.
    • logical support in OPM.
  • designed to meet the collaborative system requirements.
    • interface to various standard collaboration utilities like server communication, chat, and presence window,
    • access control mechanism.

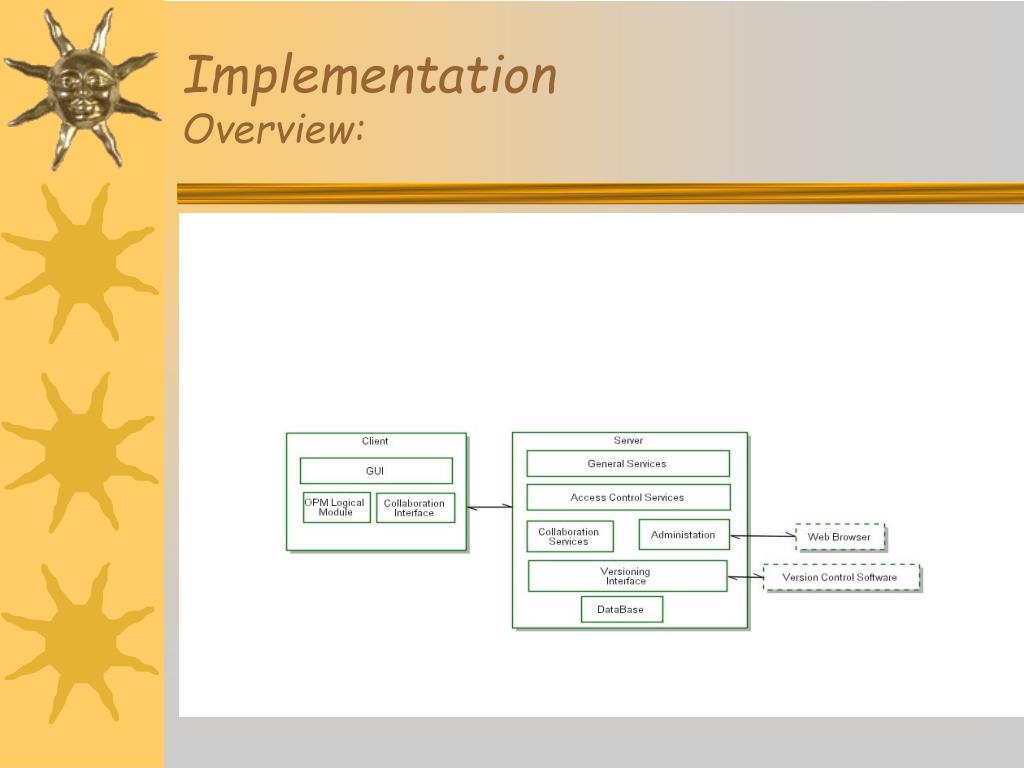

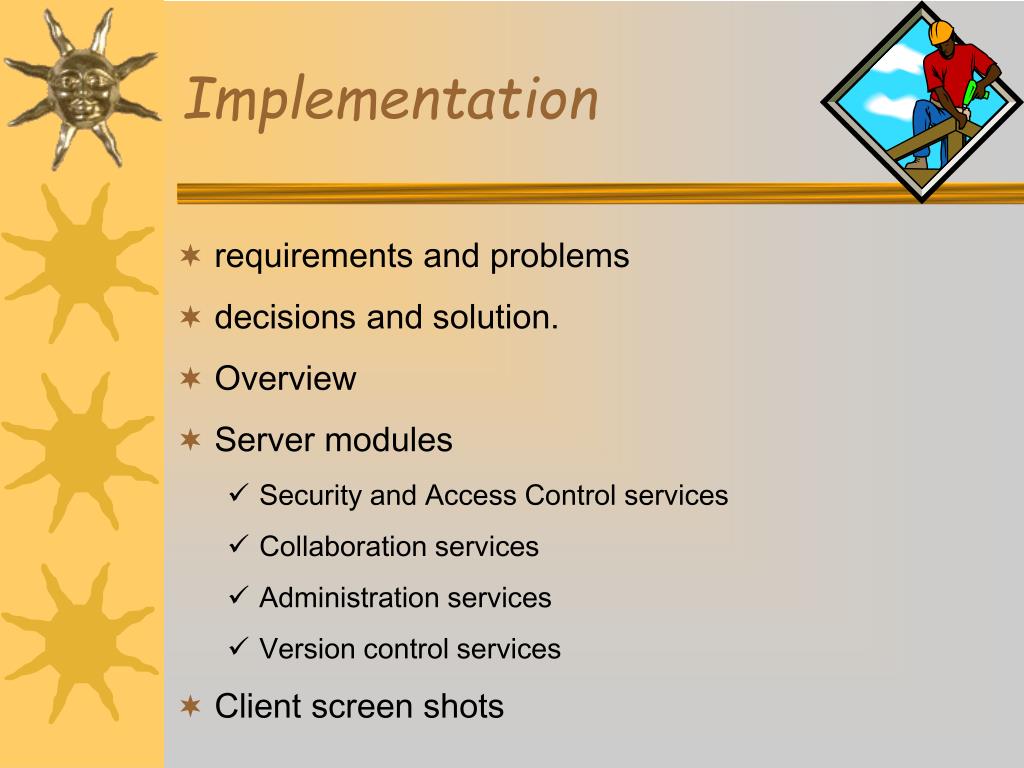

implementation
Implementation
  • requirementsand problems
  • decisions and solution.
  • Overview
  • Server modules
    • Security and Access Control services
    • Collaboration services
    • Administration services
    • Version control services

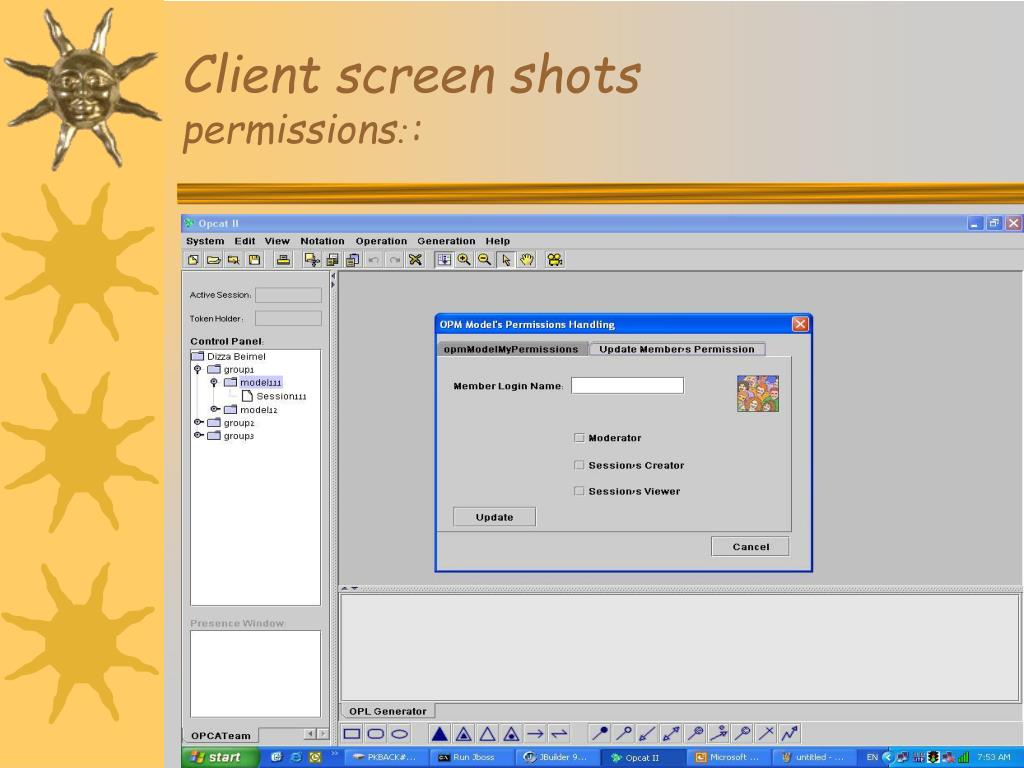

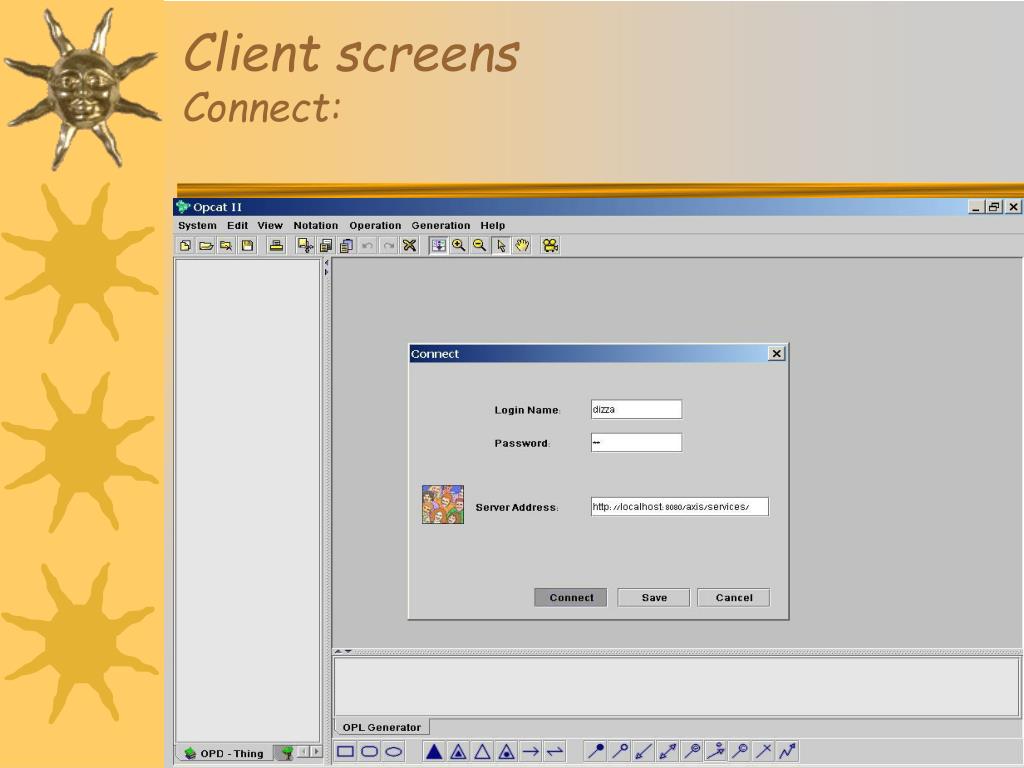

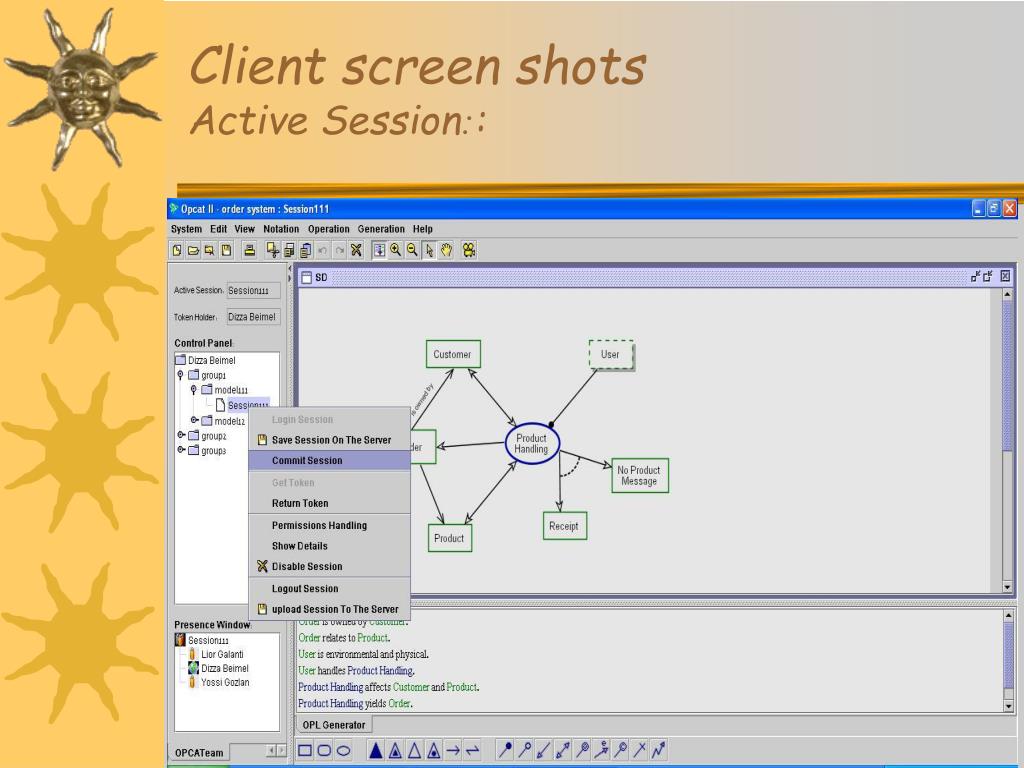

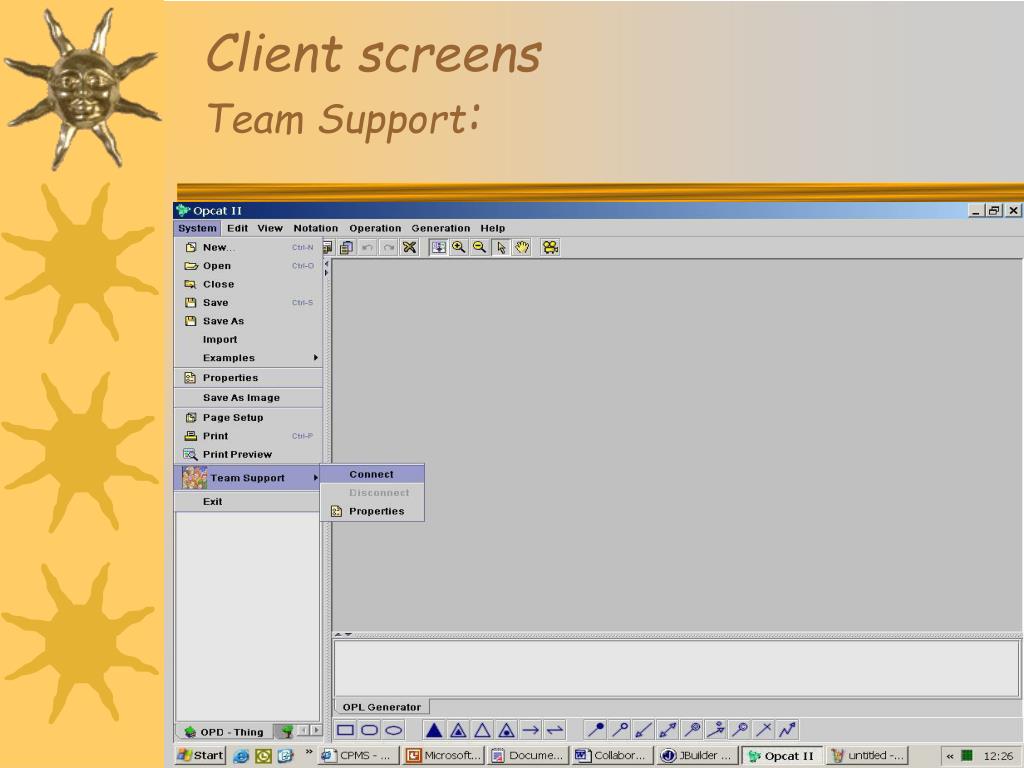

  • Client screen shots
implementation requirements and problems

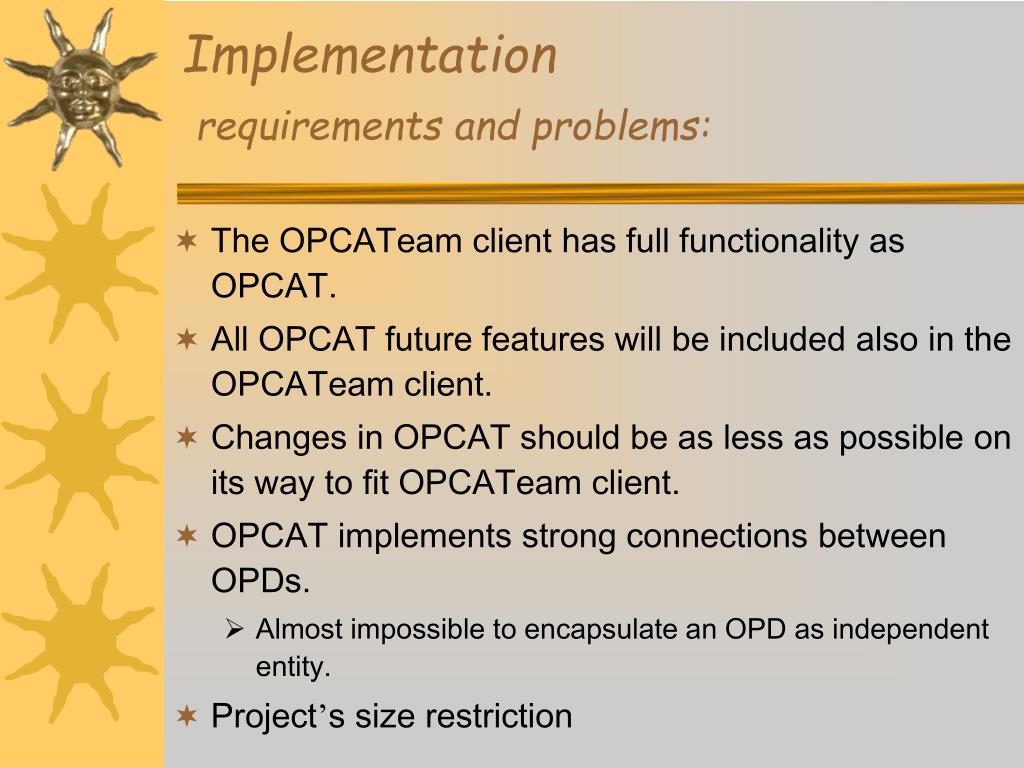

Implementationrequirementsand problems:
  • The OPCATeam client has full functionality as OPCAT.
  • All OPCAT future features will be included also in the OPCATeam client.
  • Changes in OPCAT should be as less as possible on its way to fit OPCATeam client.
  • OPCAT implements strong connections between OPDs.
    • Almost impossible to encapsulate an OPD as independent entity.
  • Project’s size restriction
implementation decisions and solution

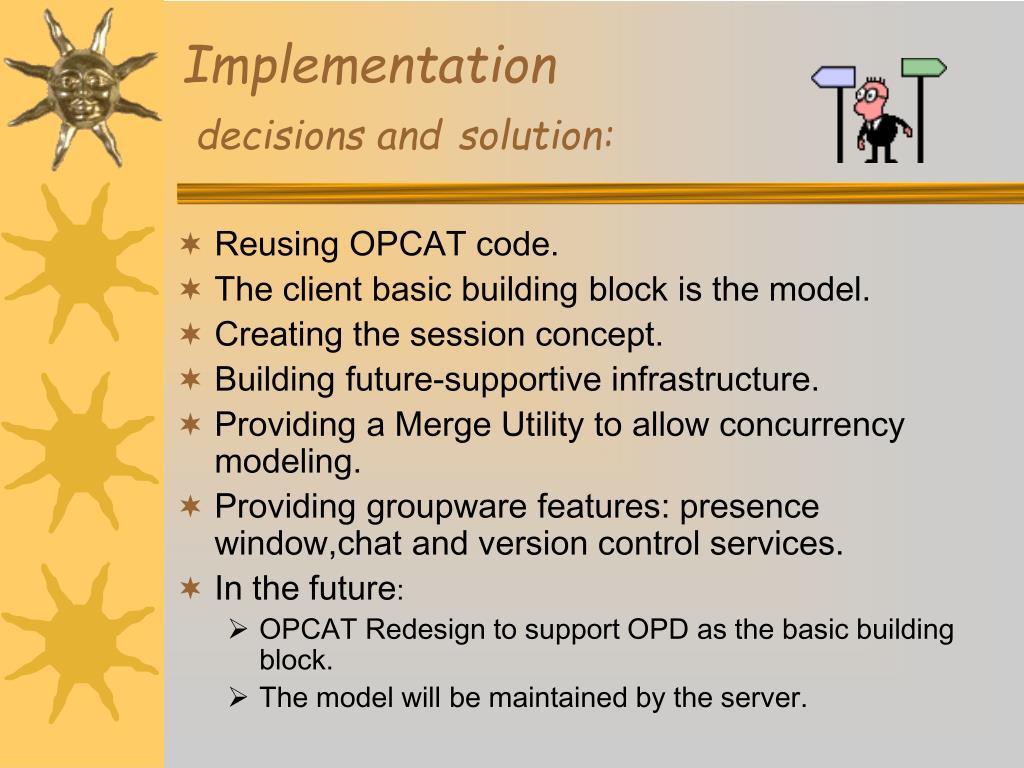

Implementationdecisions andsolution:
  • Reusing OPCAT code.
  • The client basic building block is the model.
  • Creating the session concept.
  • Building future-supportive infrastructure.
  • Providing a Merge Utility to allow concurrency modeling.
  • Providing groupware features: presence window,chat and version control services.
  • In the future:
    • OPCAT Redesign to support OPD as the basic building block.
    • The model will be maintained by the server.

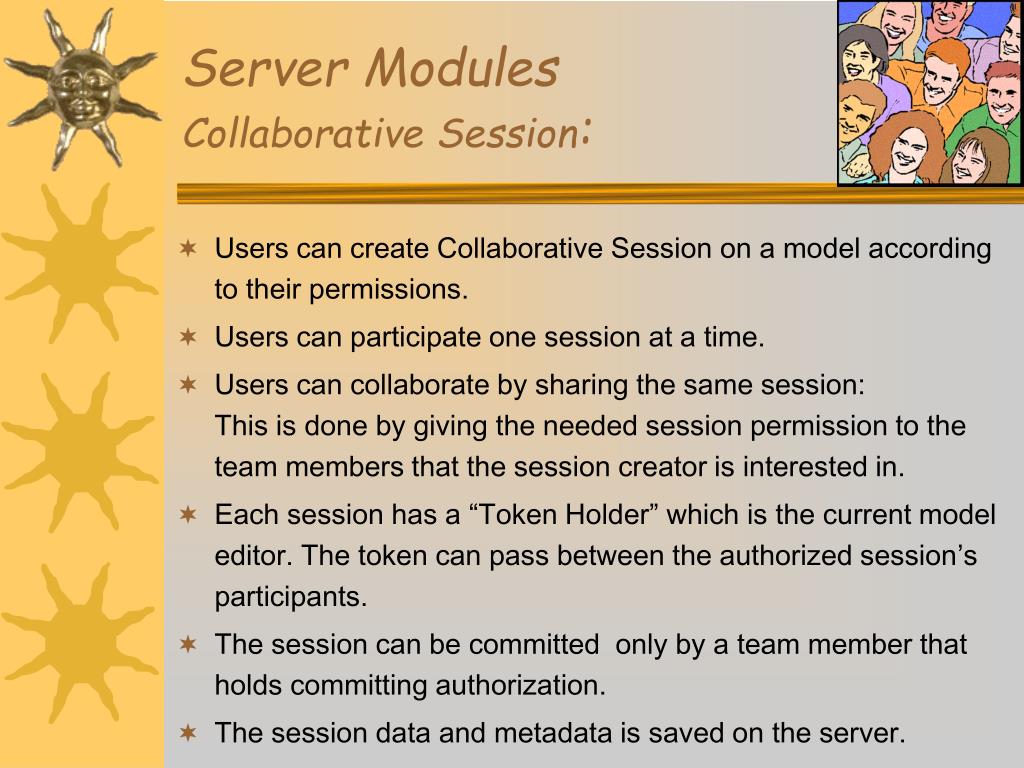

server modules collaborative session
Server ModulesCollaborative Session:
  • Users can create Collaborative Session on a model according to their permissions.
  • Users can participate one session at a time.
  • Users can collaborate by sharing the same session:This is done by giving the needed session permission to the team members that the session creator is interested in.
  • Each session has a “Token Holder” which is the current model editor. The token can pass between the authorized session’s participants.
  • The session can be committed only by a team member that holds committing authorization.
  • The session data and metadata is saved on the server.

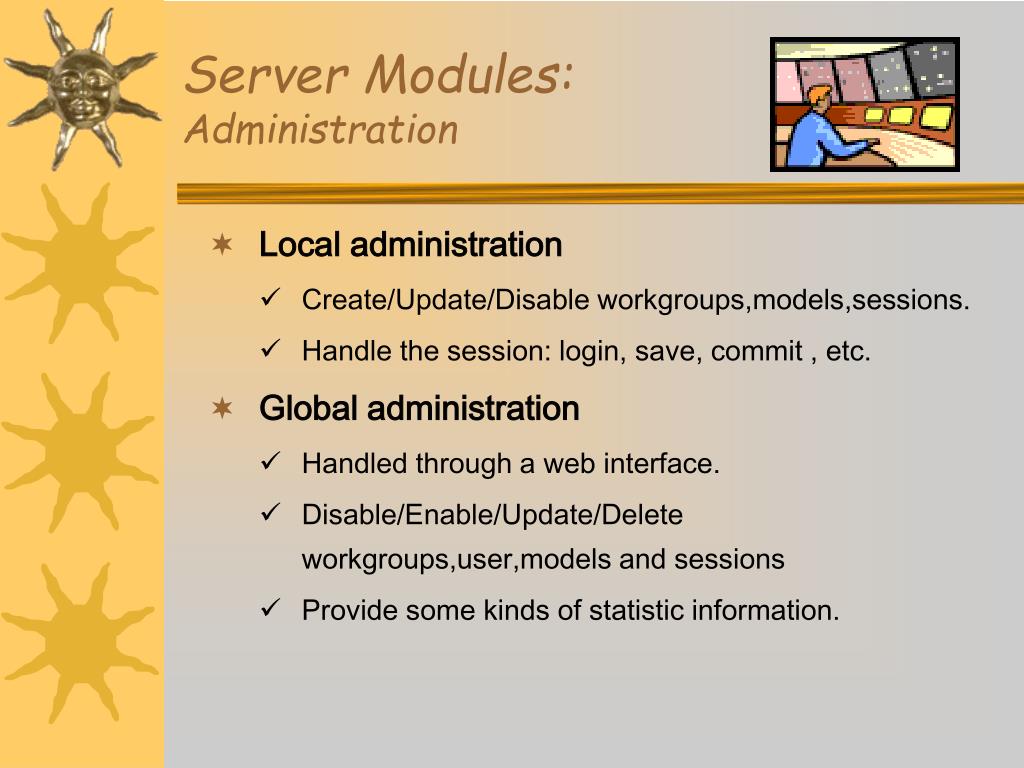

server modules administration
Server Modules:Administration
  • Local administration
    • Create/Update/Disable workgroups,models,sessions.
    • Handle the session: login, save, commit , etc.
  • Global administration
    • Handled through a web interface.
    • Disable/Enable/Update/Delete workgroups,user,models and sessions
    • Provide some kinds of statistic information.
server modules version control

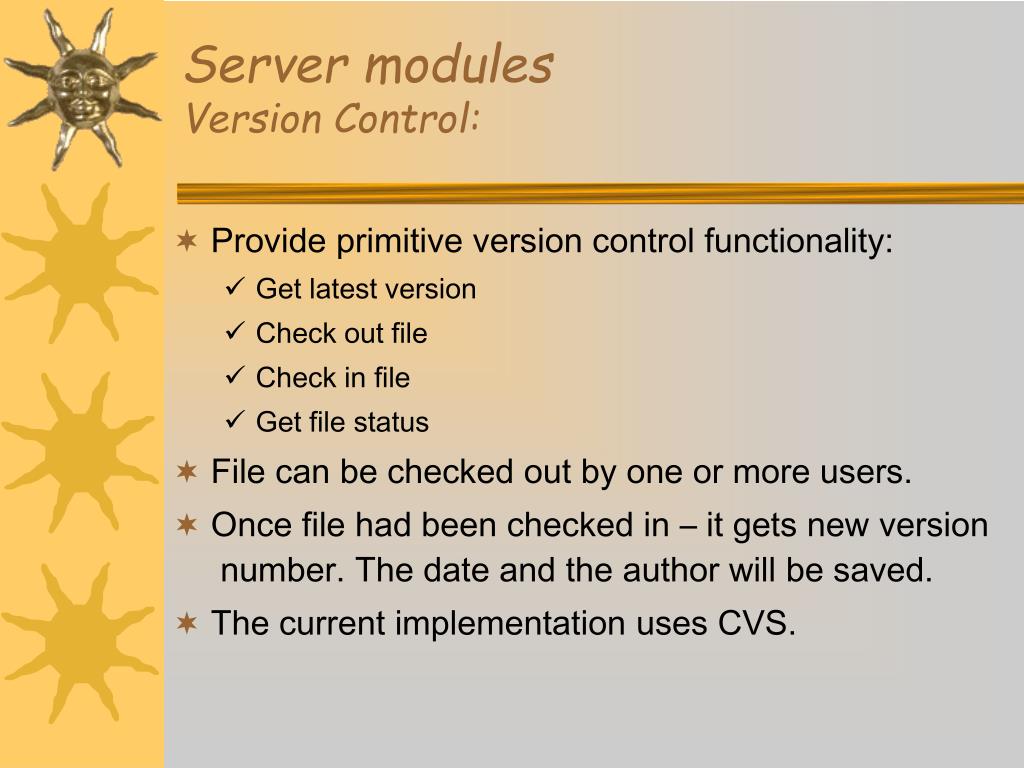

Server modulesVersion Control:
  • Provide primitive version control functionality:
    • Get latest version
    • Check out file
    • Check in file
    • Get file status
  • File can be checked out by one or more users.
  • Once file had been checked in – it gets new version number. The date and the author will be saved.
  • The current implementation uses CVS.

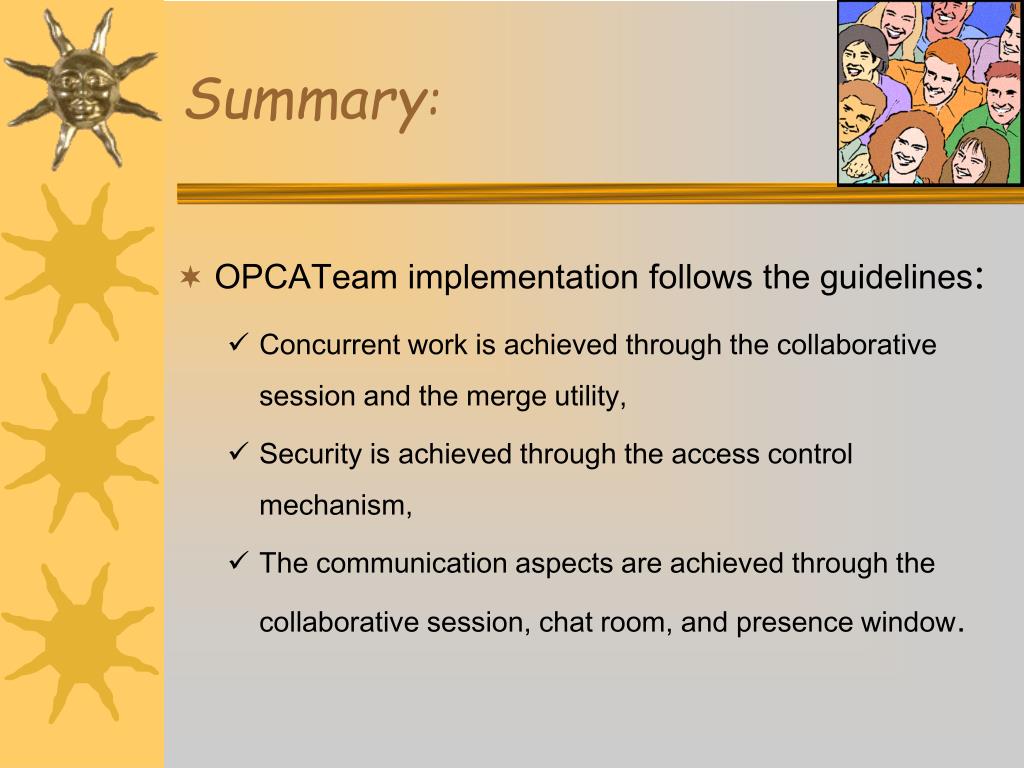

summary
Summary:
  • OPCATeam implementation follows the guidelines:
    • Concurrent work is achieved through the collaborative session and the merge utility,
    • Security is achieved through the access control mechanism,
    • The communication aspects are achieved through the collaborative session, chat room, and presence window.
future work

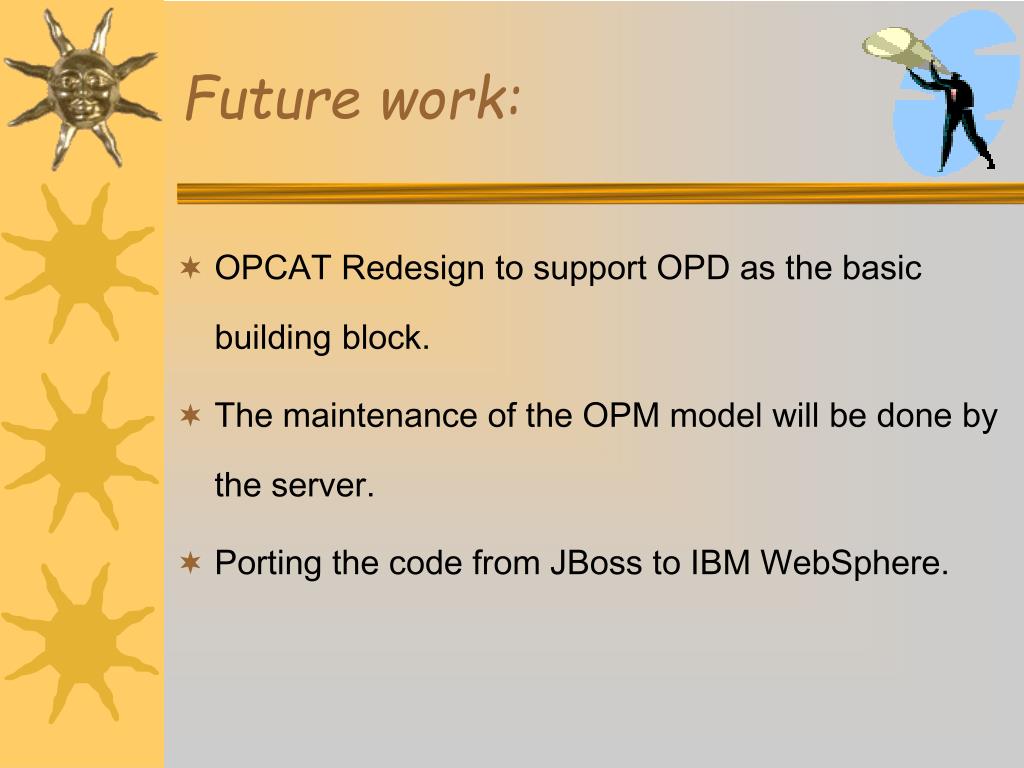

Future work:
  • OPCAT Redesign to support OPD as the basic building block.
  • The maintenance of the OPM model will be done by the server.
  • Porting the code from JBoss to IBM WebSphere.
