Lithology Fluids. Total Porosity. Modeled Stack. AVO Gradient. High porosity. Gas. Event # 1. Event # 2. Sands. Low porosity. Event # 3. Event # 4. Shale. Seismic Petrophysics. Lithology, fluids, porosity. P Stack Inversion. Gathers. Crossplot. S Stack Inversion.

thor-bradshaw
Download Presentation

Lithology Fluids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

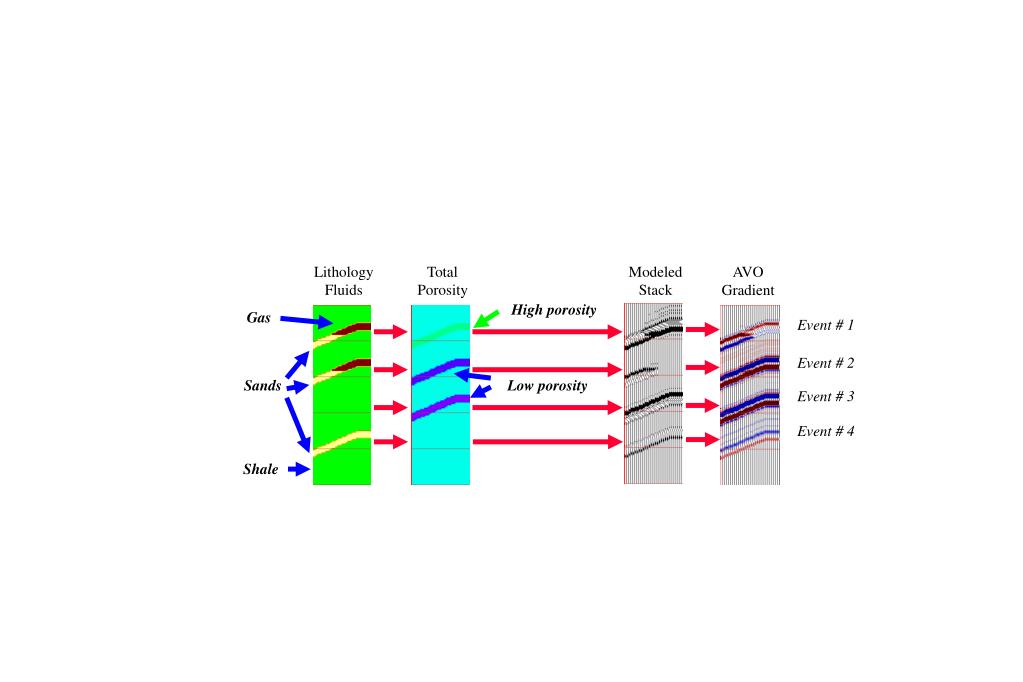

  1. Lithology Fluids Total Porosity Modeled Stack AVO Gradient High porosity Gas Event # 1 Event # 2 Sands Low porosity Event # 3 Event # 4 Shale

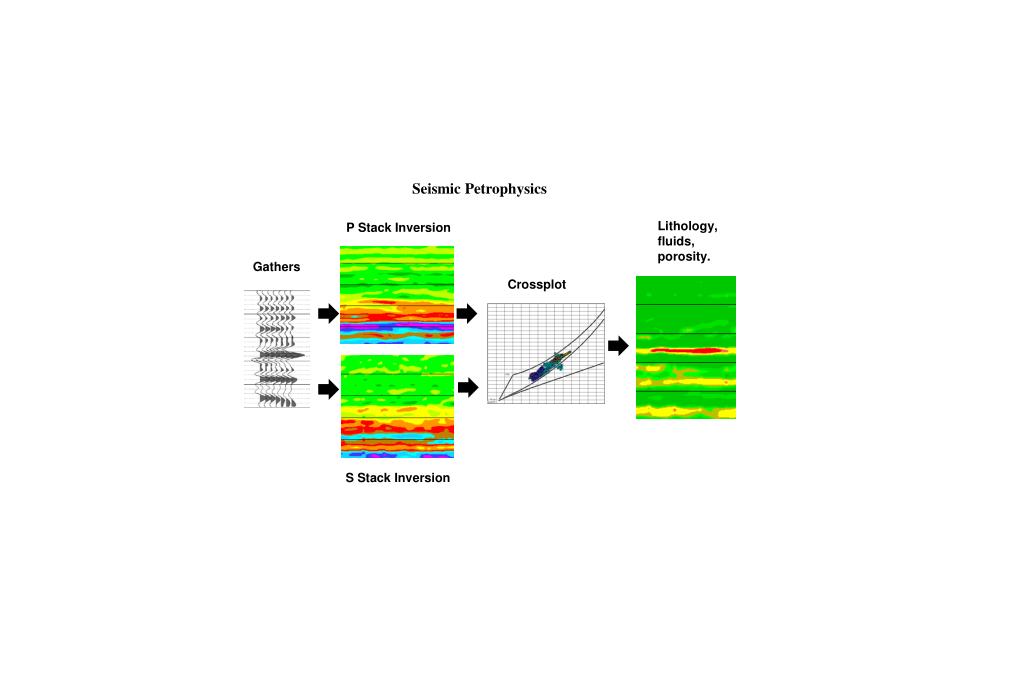

  2. Seismic Petrophysics Lithology, fluids, porosity. P Stack Inversion Gathers Crossplot S Stack Inversion

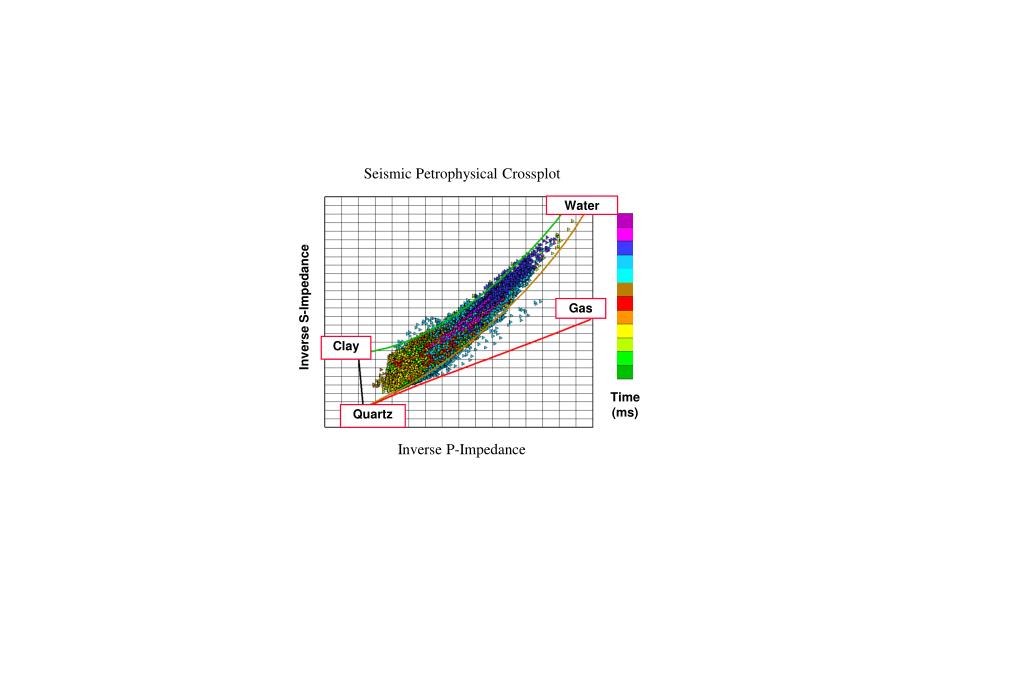

  3. Seismic Petrophysical Crossplot Water Inverse S-Impedance Gas Clay Time (ms) Quartz Inverse P-Impedance

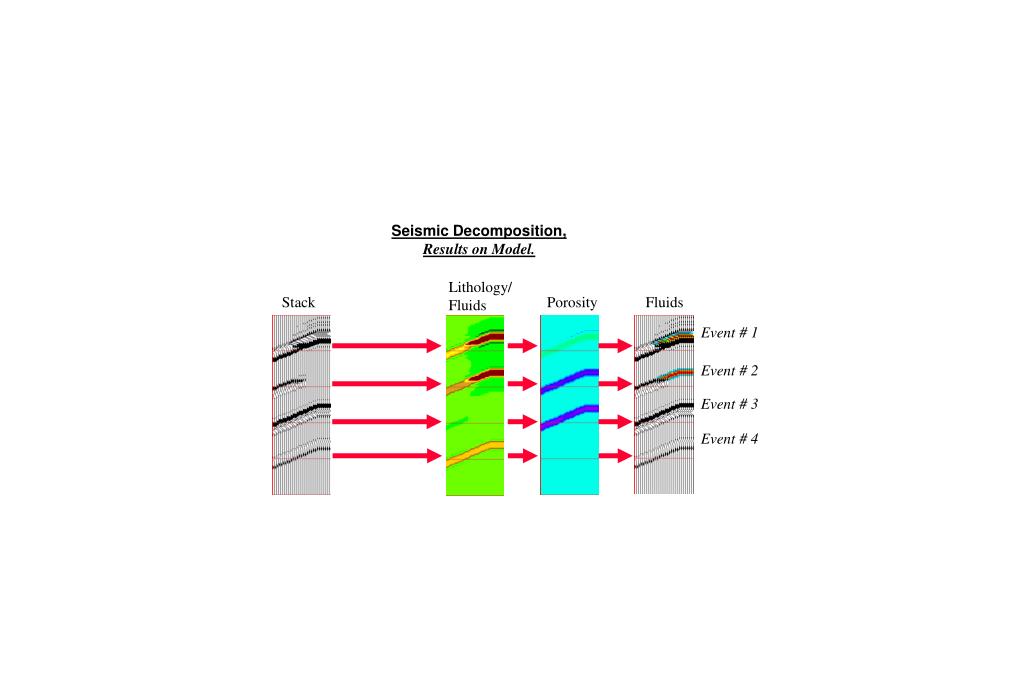

  4. Seismic Decomposition, Results on Model. Lithology/ Fluids Stack Porosity Fluids Event # 1 Event # 2 Event # 3 Event # 4

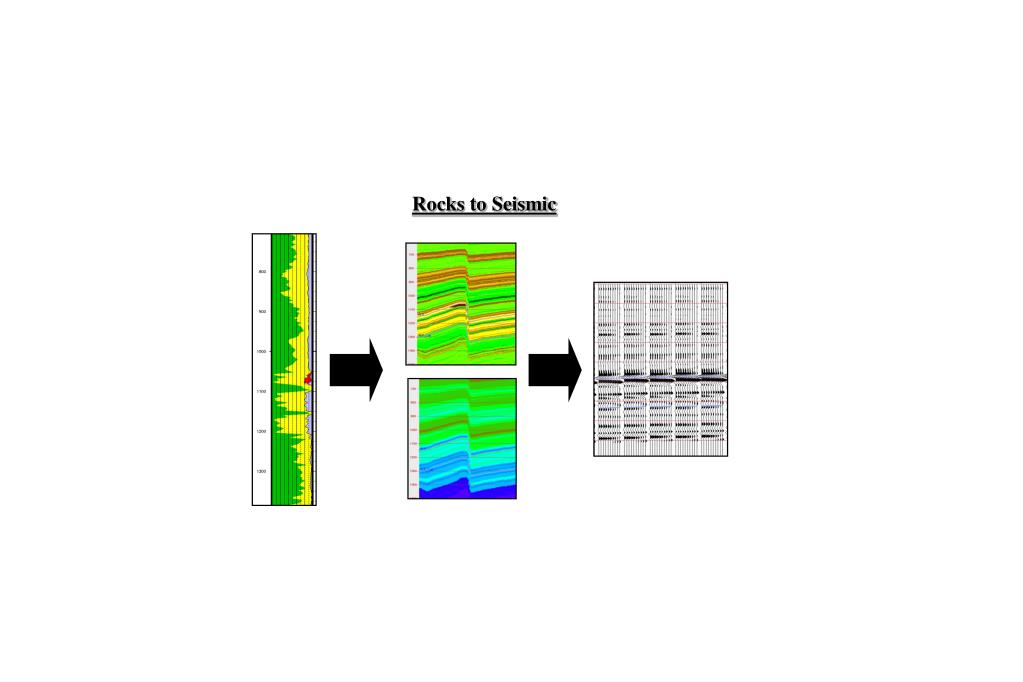

  5. Rocks to Seismic

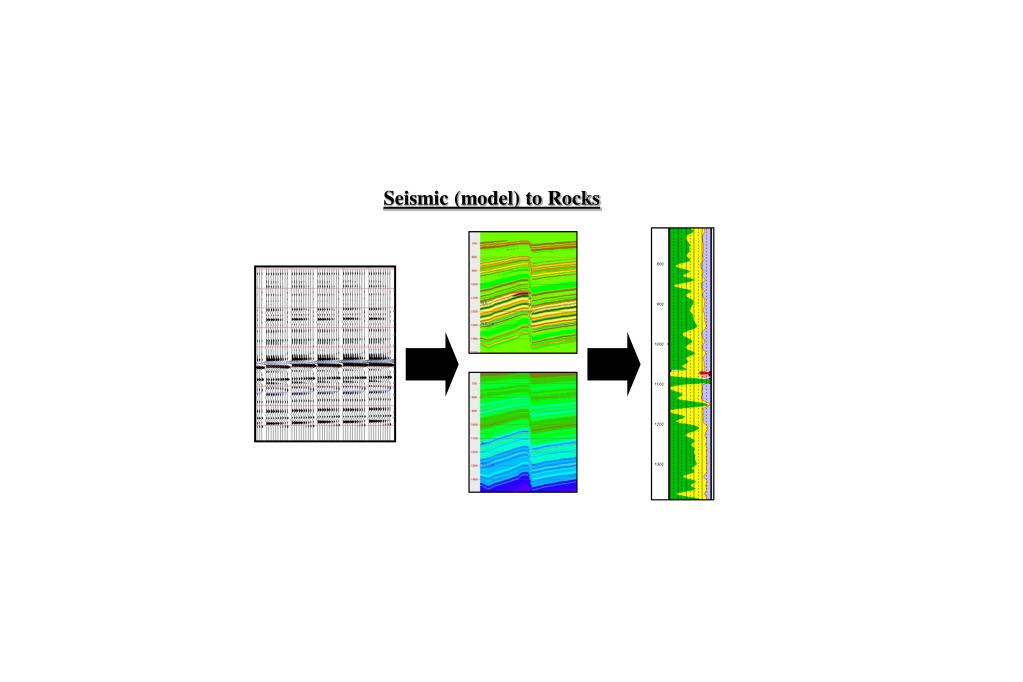

  6. Seismic (model) to Rocks

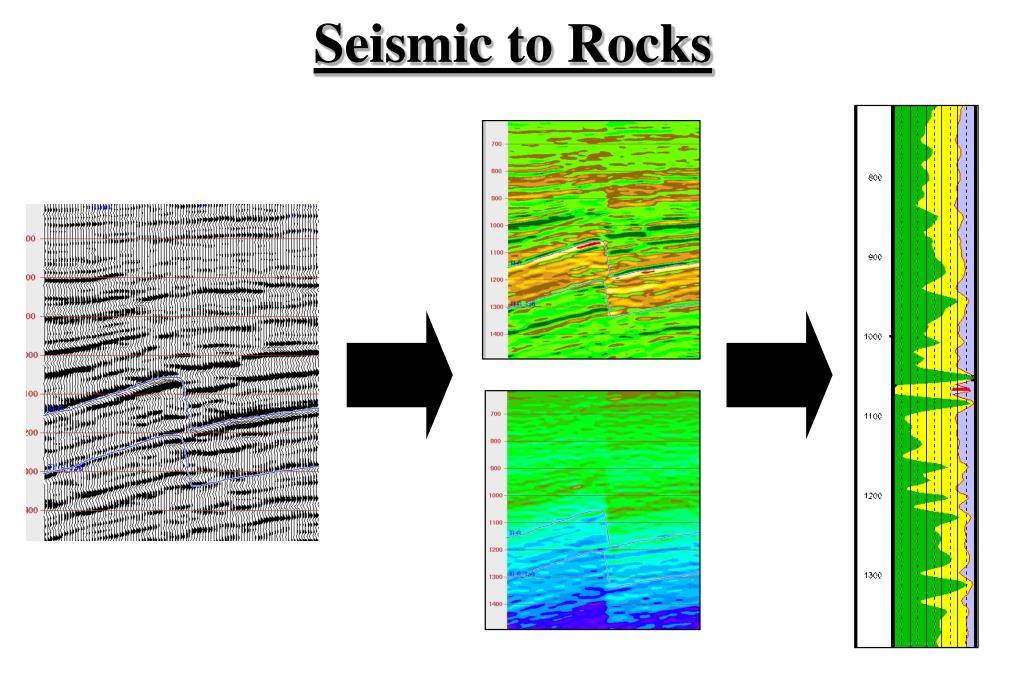

  7. Seismic to Rocks

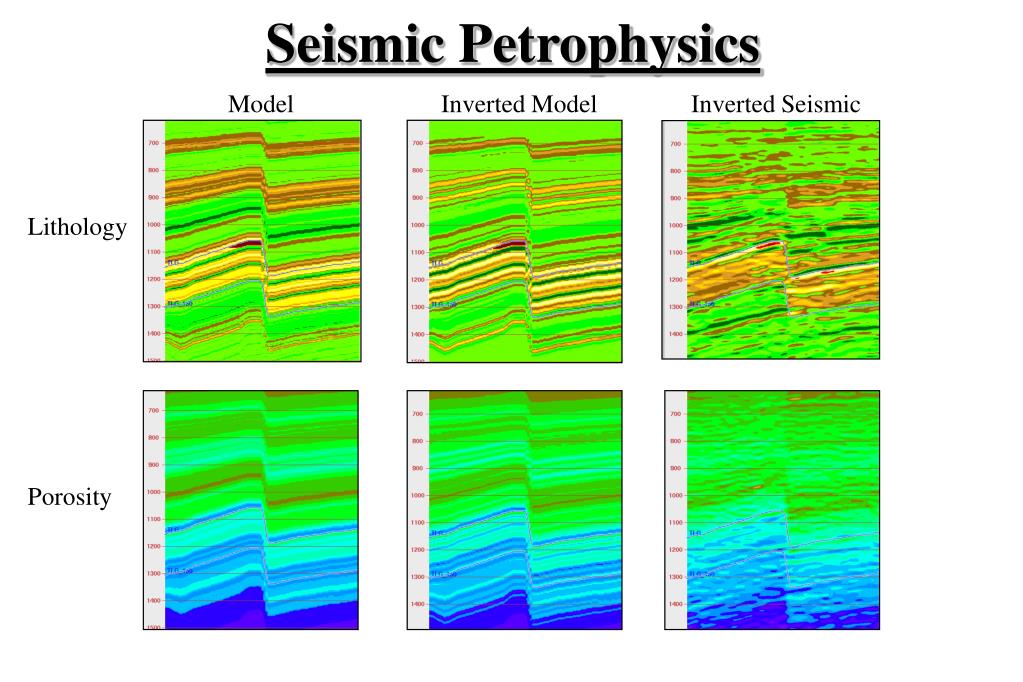

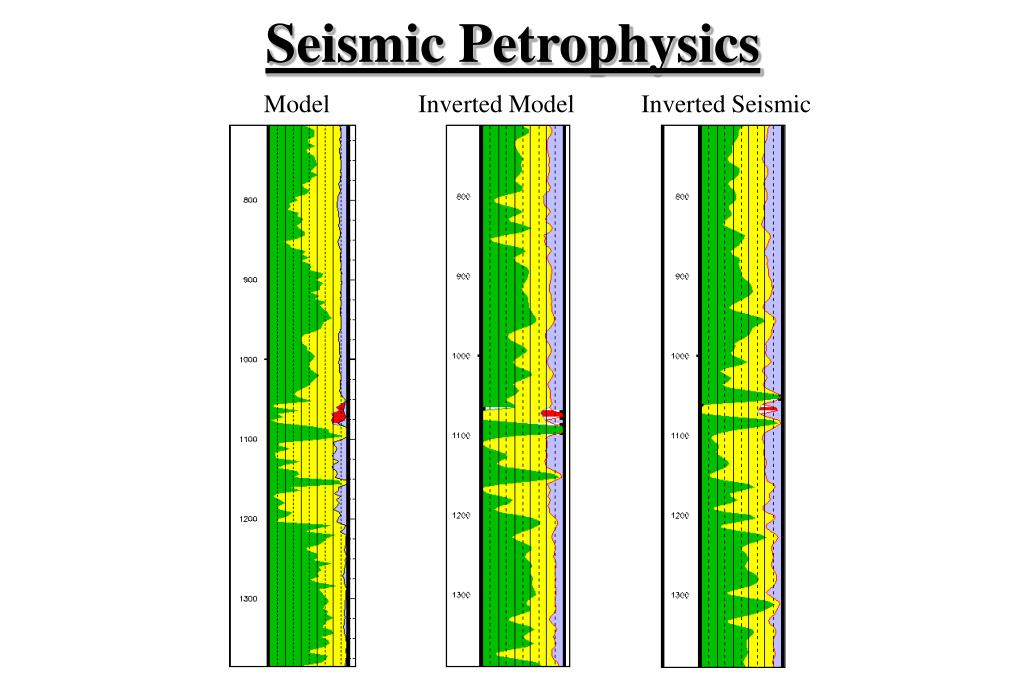

  8. Seismic Petrophysics Model Inverted Model Inverted Seismic Lithology Porosity

  9. Seismic Petrophysics Model Inverted Model Inverted Seismic

  10. Lithology Coherency Cube Porosity Coherency Cube Conventional Coherency Cube

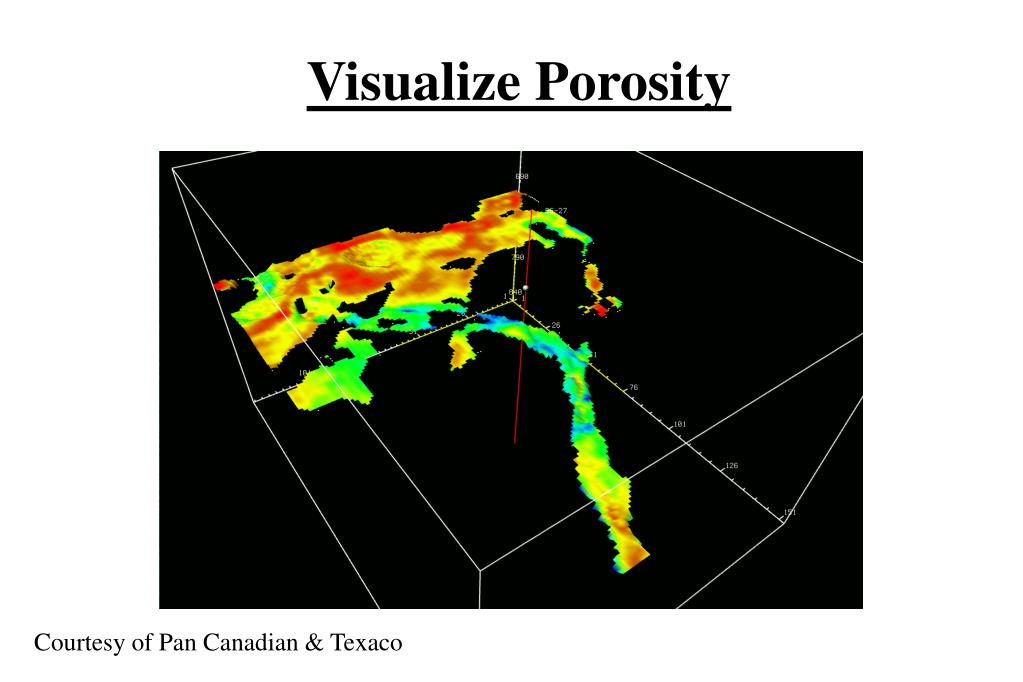

  11. Visualize Porosity Courtesy of Pan Canadian & Texaco

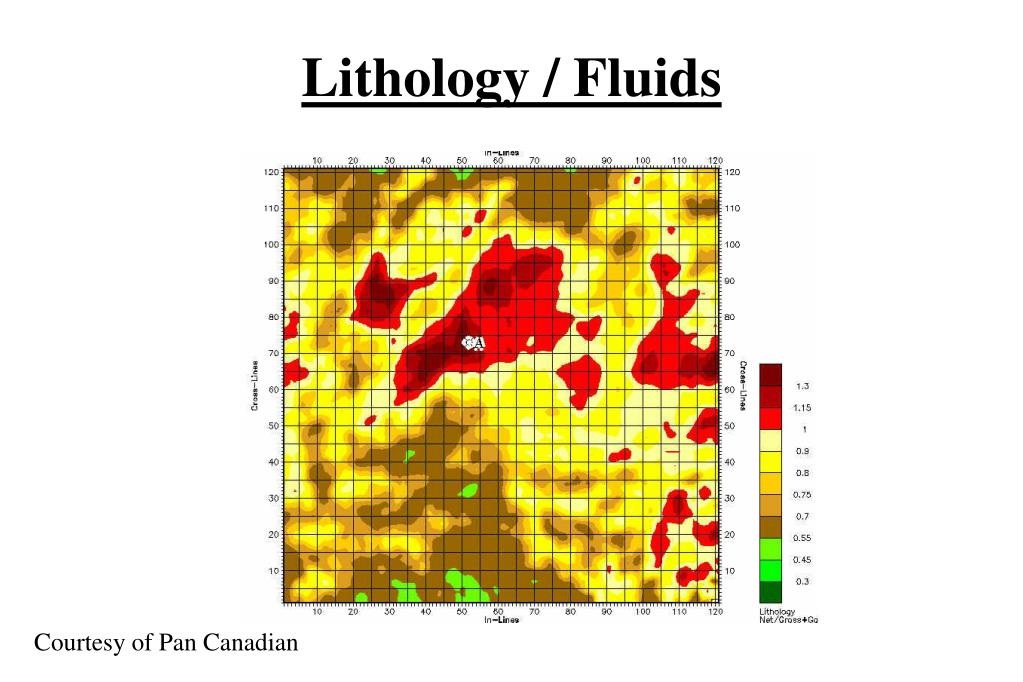

  12. Lithology / Fluids Courtesy of Pan Canadian

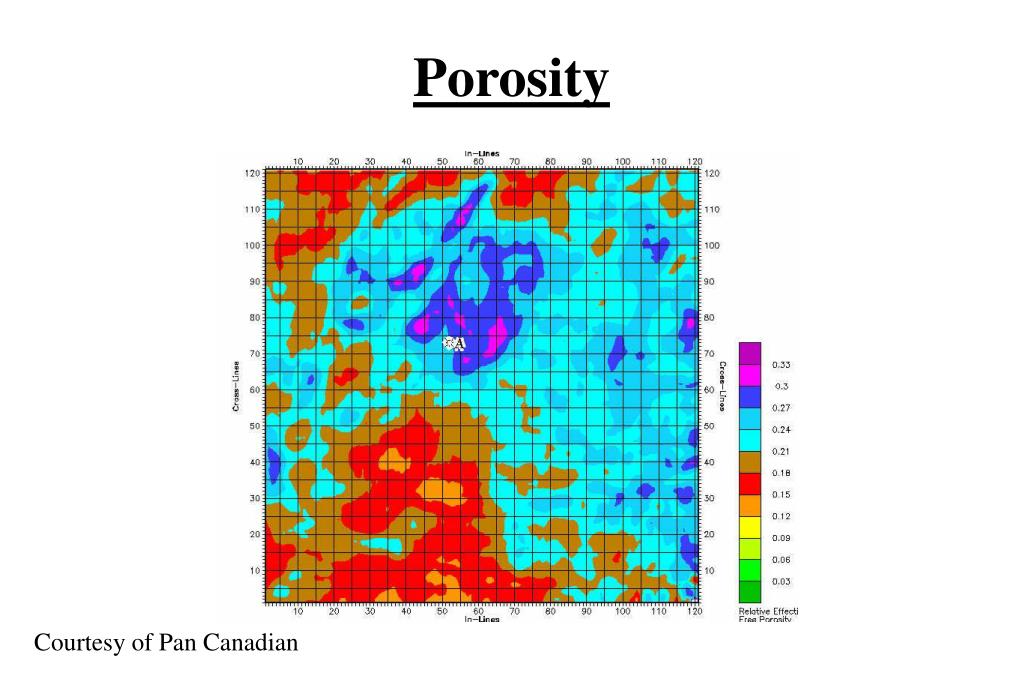

  13. Porosity Courtesy of Pan Canadian
