Presentation Transcript

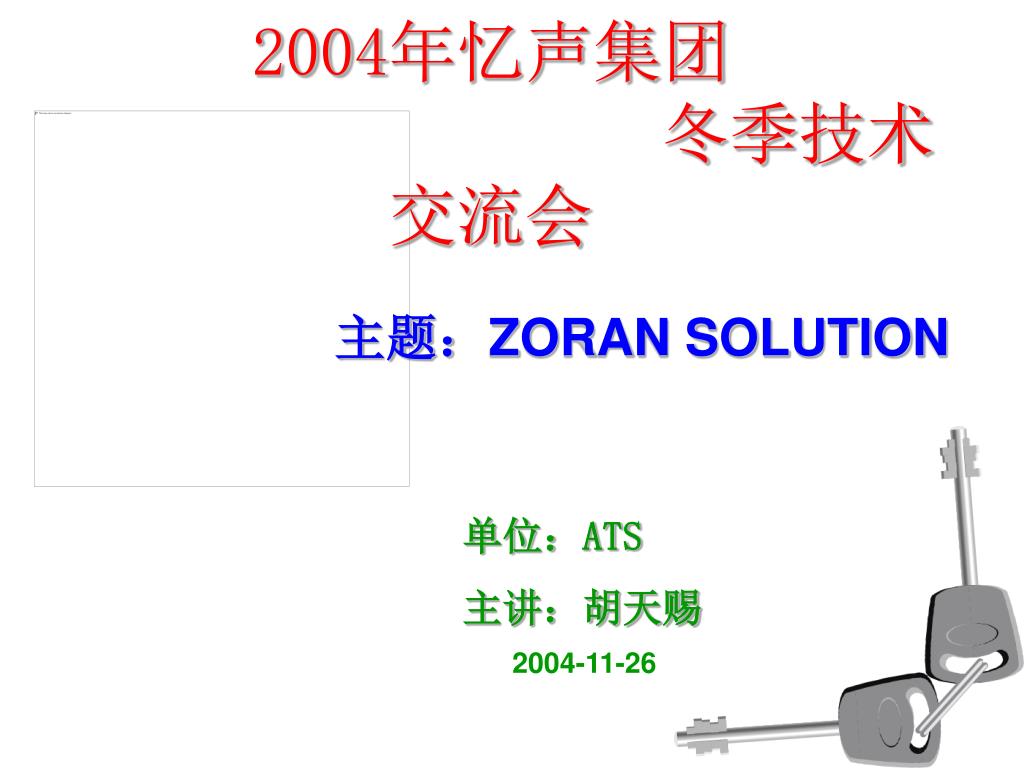

slide1
2004年忆声集团 冬季技术交流会

主题:ZORAN SOLUTION

单位:ATS

主讲:胡天赐

2004-11-26

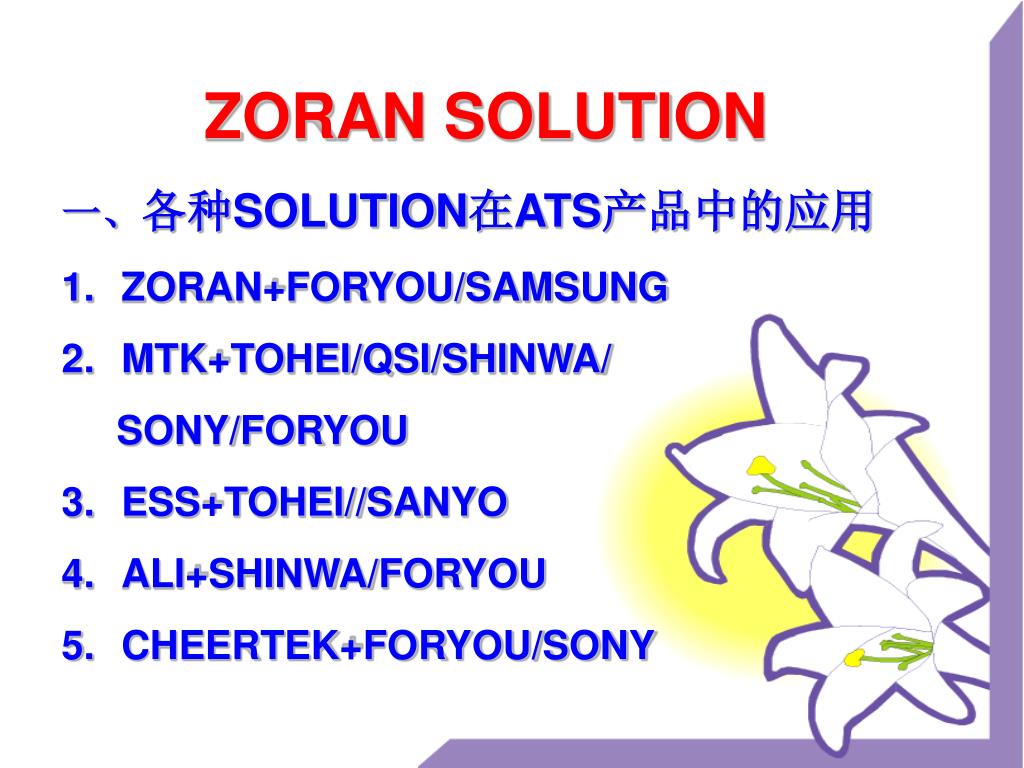

slide2
ZORAN SOLUTION

一、各种SOLUTION在ATS产品中的应用

1. ZORAN+FORYOU/SAMSUNG

  • MTK+TOHEI/QSI/SHINWA/

SONY/FORYOU

3. ESS+TOHEI//SANYO

4. ALI+SHINWA/FORYOU

5. CHEERTEK+FORYOU/SONY

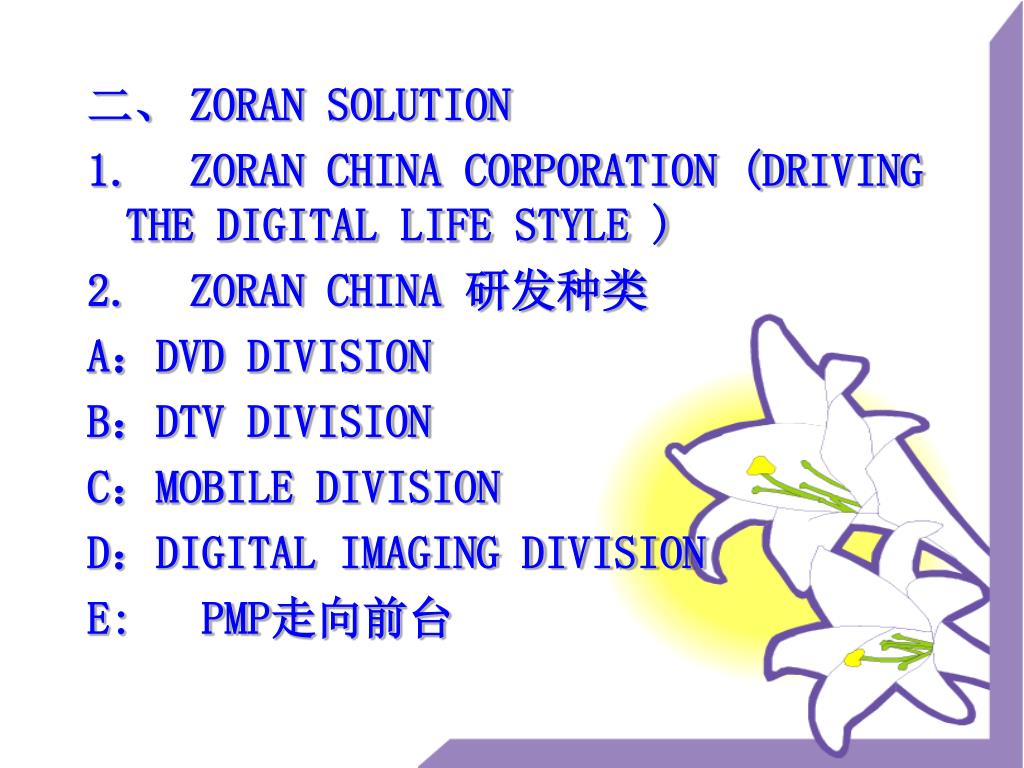

slide3
二、 ZORAN SOLUTION

1. ZORAN CHINA CORPORATION (DRIVING THE DIGITAL LIFE STYLE )

2. ZORAN CHINA 研发种类

A:DVD DIVISION

B:DTV DIVISION

C:MOBILE DIVISION

D:DIGITAL IMAGING DIVISION

E: PMP走向前台

slide4
3. ZORAN DVD PLAYER ROADMAP

A:各种新技术的开发应用

HDMI/DIVX/MEMORY ARD/NETWORK 等

B:MARKET STRONG REQUEST

EU/RUSSIA/JAPAN/ MIDDLE AST/USA等

C:VADDIS8:FULLY DIGITAL DVD SOC,

FIRST IN THE WORLD(后面将会介绍)

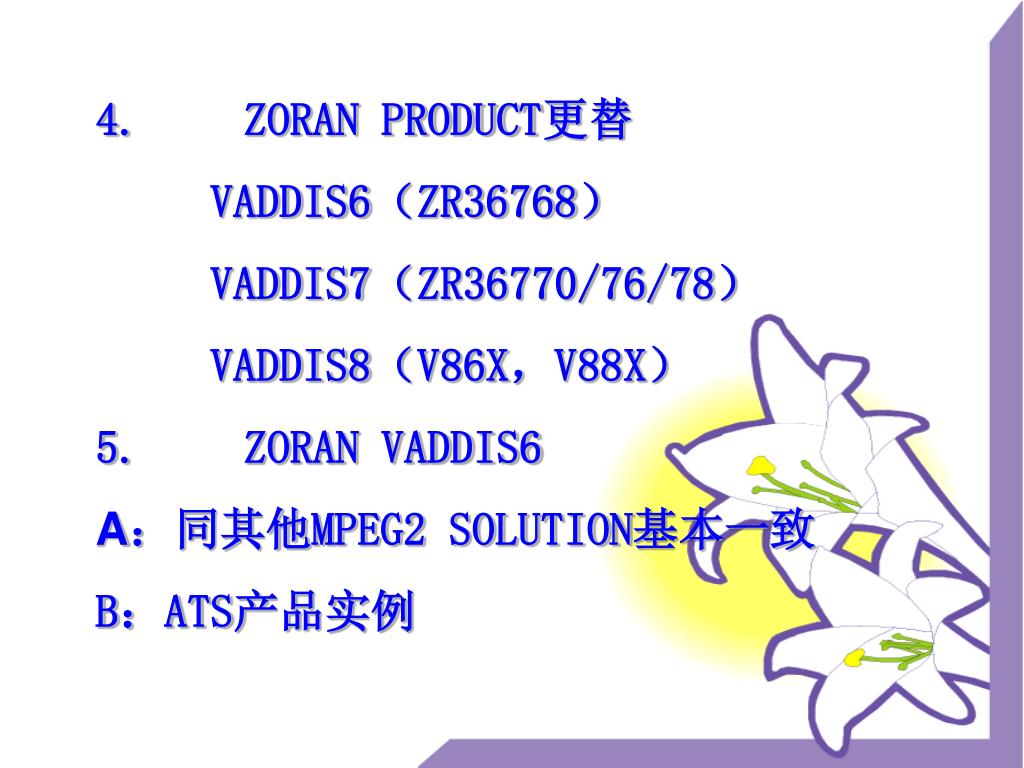

slide5
4. ZORAN PRODUCT更替

VADDIS6(ZR36768)

VADDIS7(ZR36770/76/78)

VADDIS8(V86X,V88X)

5. ZORAN VADDIS6

A:同其他MPEG2 SOLUTION基本一致

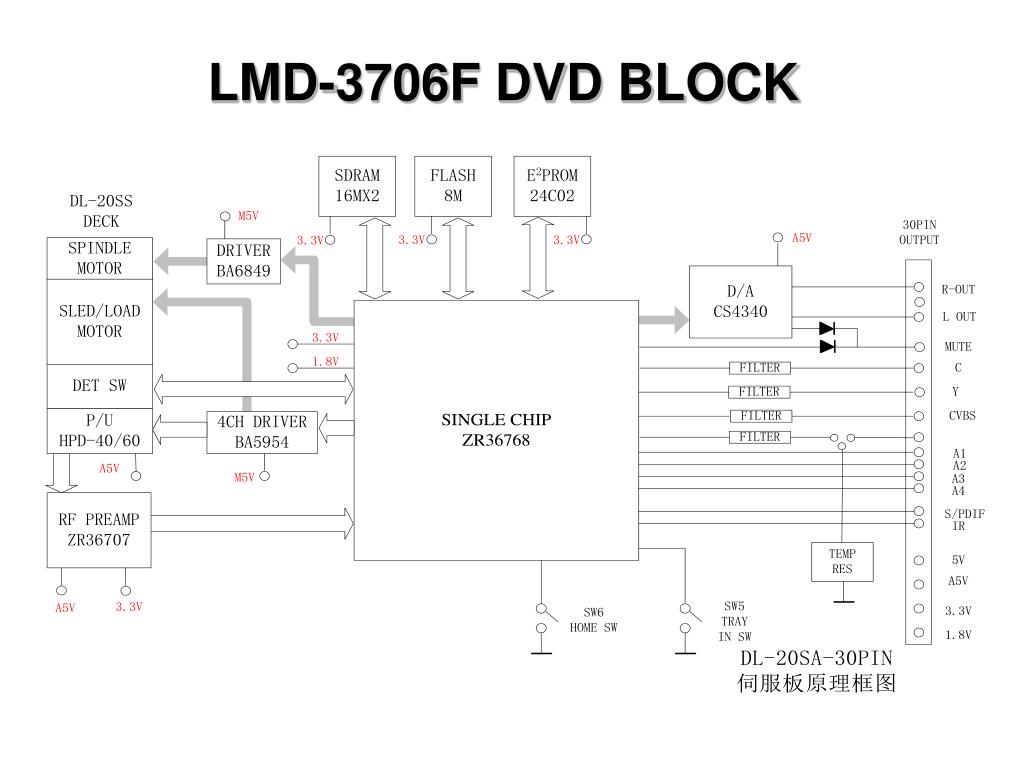

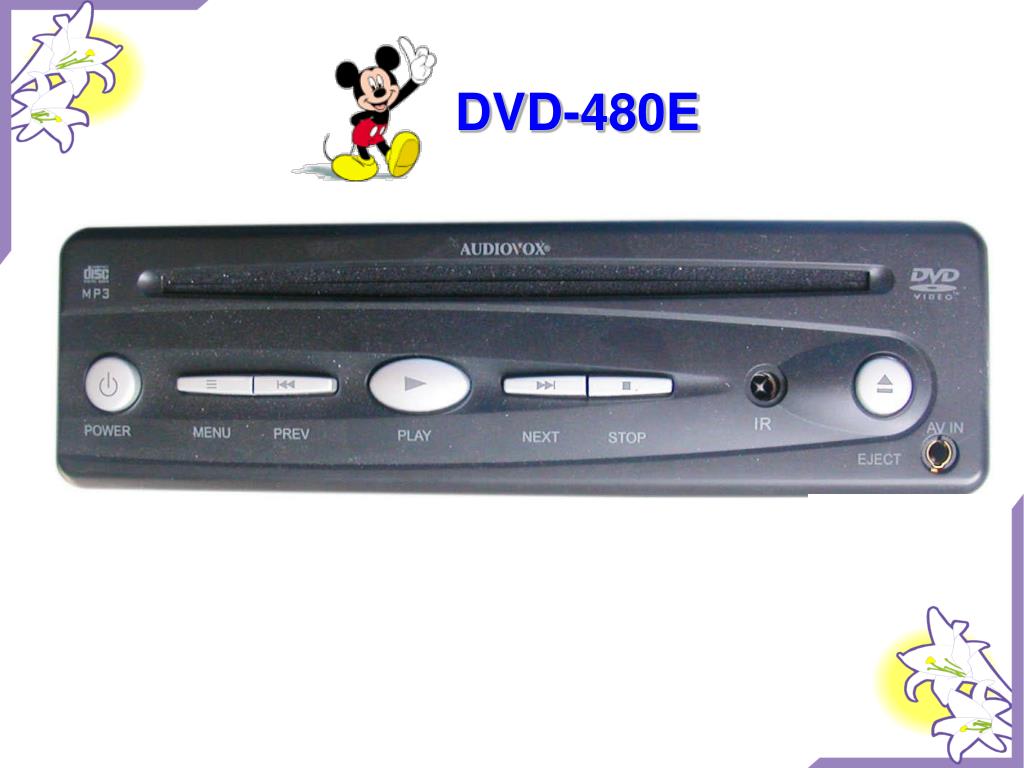

B:ATS产品实例

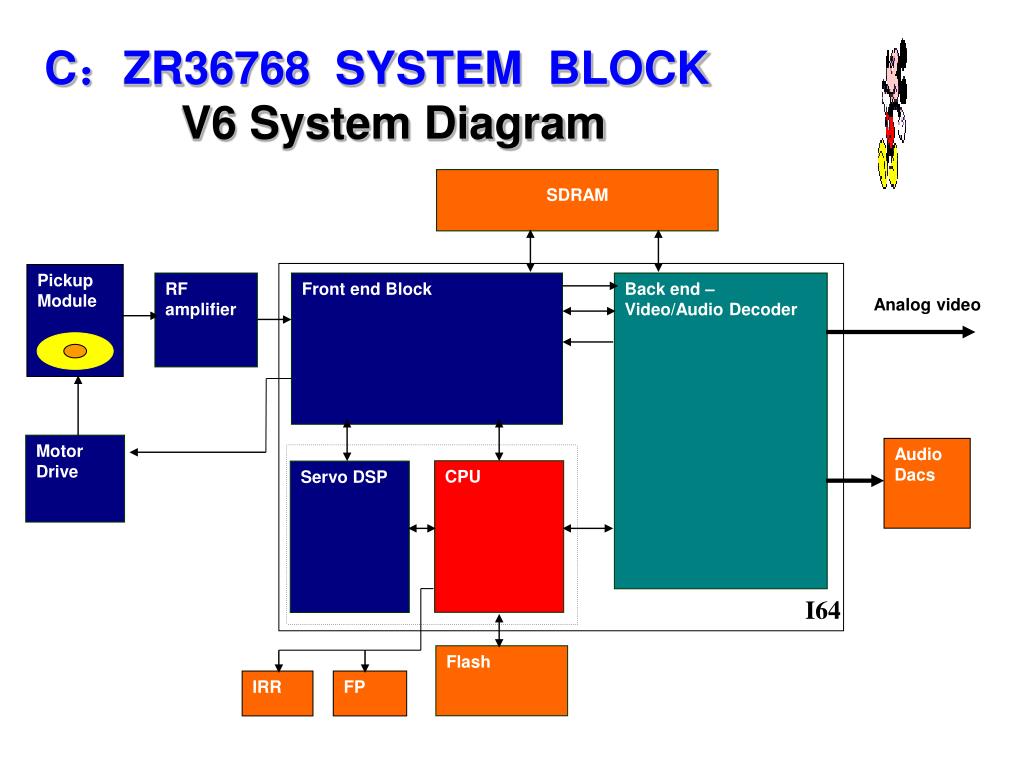

v6 system diagram

C:ZR36768 SYSTEM BLOCK

V6 System Diagram

SDRAM

Pickup

Module

RF amplifier

Front end Block

Back end – Video/Audio Decoder

Analog video

Motor

Drive

Audio

Dacs

CPU

Servo DSP

I64

Flash

IRR

FP

slide12

ZORAN VADDIS7A:MAIN IC: ZR36770/776/778B:优点; ①、ZR770带有HDMI功能(同ZR36721组 合),传输速度更快,图象更为清晰,且 兼容V778②、76/778兼容DIVX系列/MEMORY CARD ( SD/MS/CF/SM/MMC) ③、其它(价格、生产等)

slide13
7. ZORAN VADDIS8功能:

A. FULLY DIGITAL:DIGITAL RF/SERVO/READ CHANNEL

B. PIN COMPATIBLE VERSION:208PIN

C. BUILT IN D/A(AUDIO )

D. SPDIF INPUT

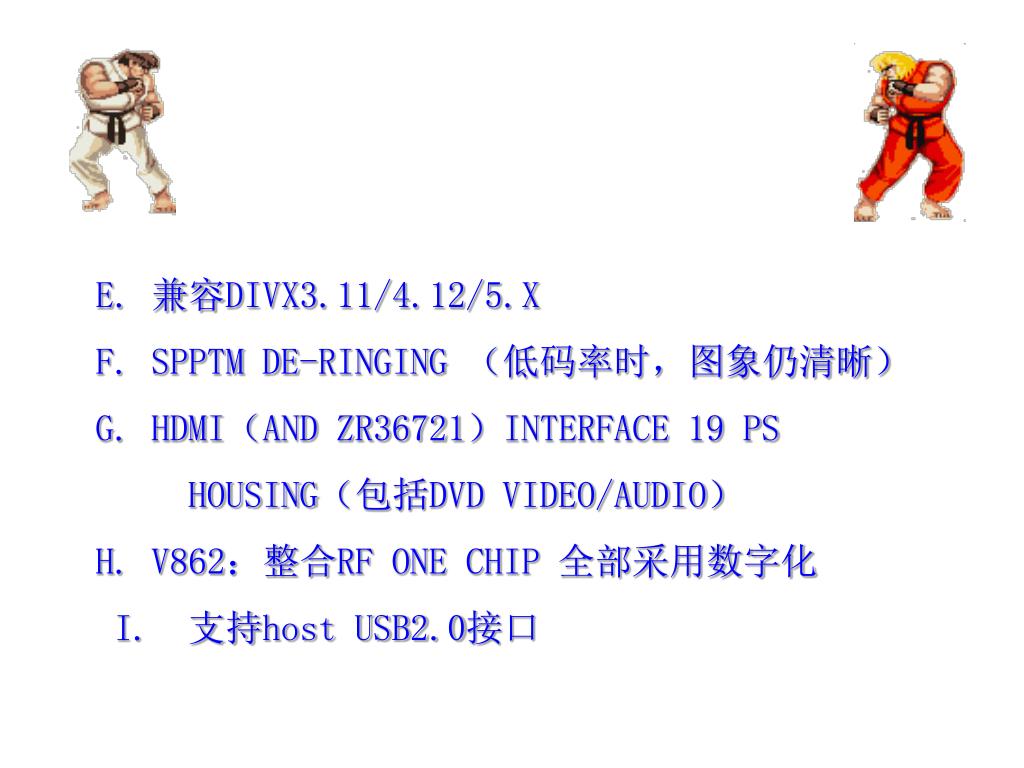

slide14

E. 兼容DIVX3.11/4.12/5.X

F. SPPTM DE-RINGING (低码率时,图象仍清晰)

G. HDMI(AND ZR36721)INTERFACE 19 PS

HOUSING(包括DVD VIDEO/AUDIO)

H. V862:整合RF ONE CHIP 全部采用数字化

I. 支持host USB2.0接口

slide15

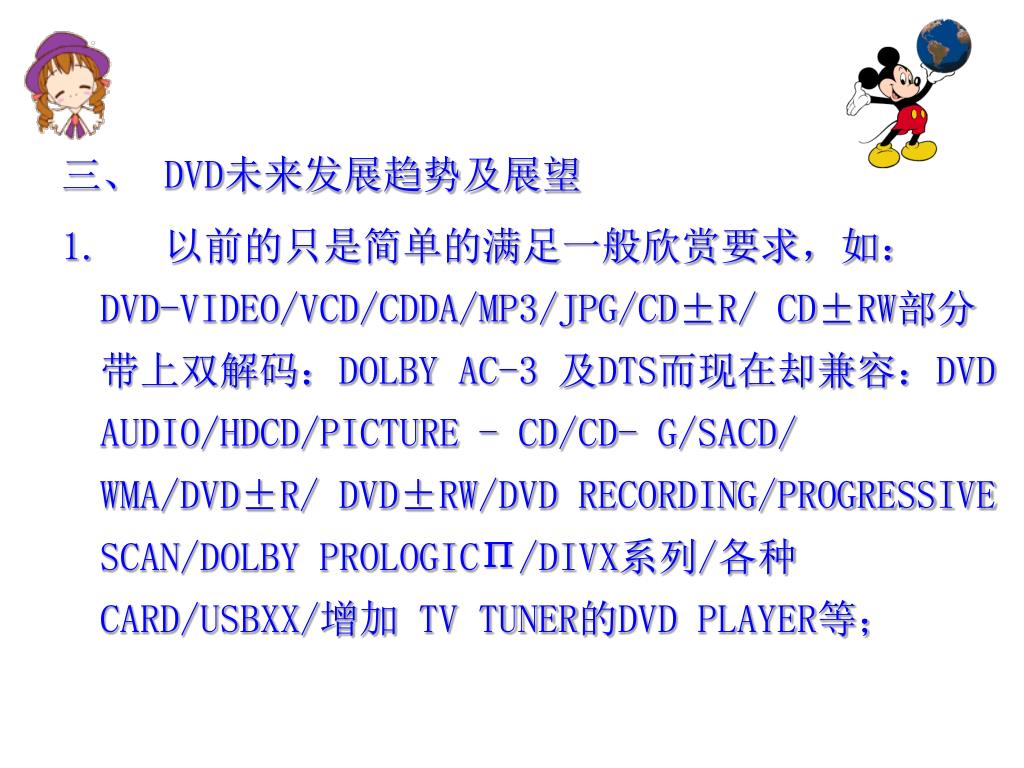

三、 DVD未来发展趋势及展望

1. 以前的只是简单的满足一般欣赏要求,如:DVD-VIDEO/VCD/CDDA/MP3/JPG/CD±R/ CD±RW部分带上双解码:DOLBY AC-3 及DTS而现在却兼容:DVD AUDIO/HDCD/PICTURE - CD/CD- G/SACD/ WMA/DVD±R/ DVD±RW/DVD RECORDING/PROGRESSIVE SCAN/DOLBY PROLOGICП/DIVX系列/各种CARD/USBXX/增加 TV TUNER的DVD PLAYER等;

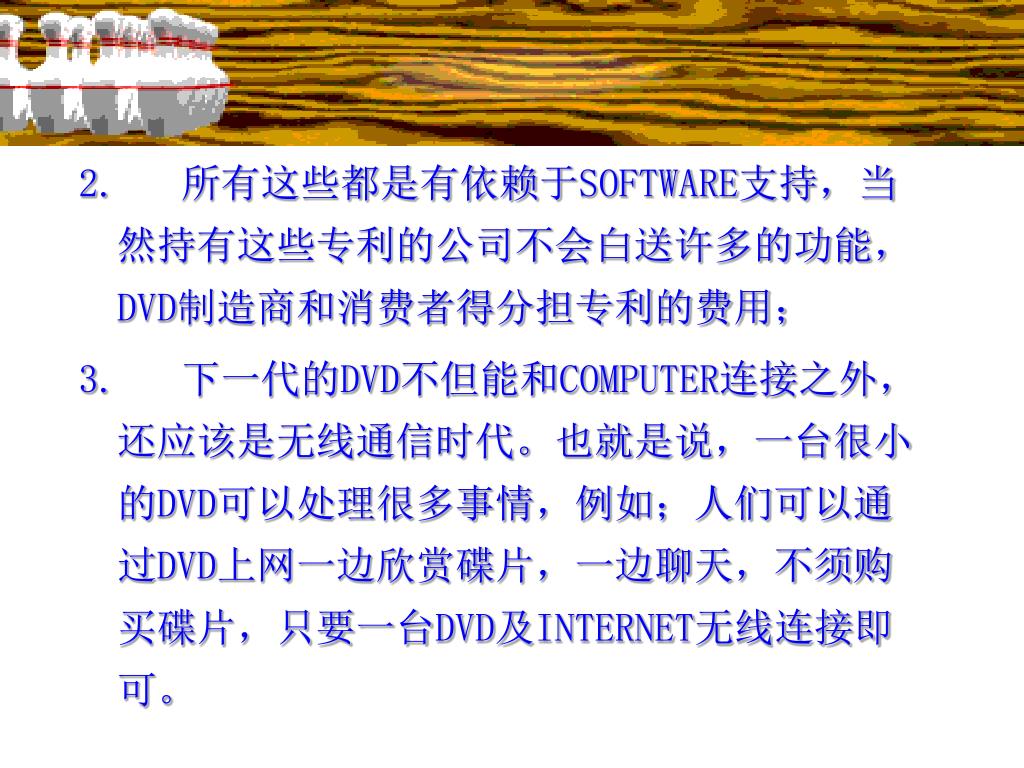

slide16
2. 所有这些都是有依赖于SOFTWARE支持,当然持有这些专利的公司不会白送许多的功能,DVD制造商和消费者得分担专利的费用;2. 所有这些都是有依赖于SOFTWARE支持,当然持有这些专利的公司不会白送许多的功能,DVD制造商和消费者得分担专利的费用;

3. 下一代的DVD不但能和COMPUTER连接之外,还应该是无线通信时代。也就是说,一台很小的DVD可以处理很多事情,例如;人们可以通过DVD上网一边欣赏碟片,一边聊天,不须购买碟片,只要一台DVD及INTERNET无线连接即可。
