  1. CS Scan report at Nagoya 8/Dec/2006@Nagoya

  2. Film samples August run Rock muon events Comic ray events October run Rock muon events 1 event (1 Brick) Cosmic ray (4 min.) 3 Bricks Brick ID # 1000315 # 1000824 # 1001117 k

  3. Prediction in film coordinate (August Rock Muons) event# CSD id X(cm) Y(cm) aX(rad) aY(rad) from edge 124528 06-09 8.05 0.30 -0.071 -0.182 3.0 mm * 174969 02-20 5.45 0.44 -0.134 0.017 4.4 4191558 04-13 0.35 8.02 0.023 0.030 3.5 9507801 13-02 12.25 8.73 0.080 0.069 2.5 * 9516652 08-03 11.05 1.68 0.023 0.101 14.5 * 3874834 12-07 6.38 3.14 -0.054 0.163 31.4 * 4814867 11-19 4.97 5.26 -0.019 0.089 47.4 90834 14-12 10.45 7.12 -0.003 0.165 20.0 Scanning Area is about 5 cm x 5 cm . 8 tried and 4 found. Mark (*) is labeled for found event .

  4. Found event parameters (August Rock Muon events) event# CSD id X(cm) Y(cm) aX(rad) aY(rad) * 174969 02-20 5.19 0.40 -0.134 0.052 * 9516652 08-03 11.05 1.68 0.014 0.108 * 3874834 12-07 7.18 3.07 -0.049 0.165 * 4814867 11-19 4.92 5.86 -0.010 0.082 Found – prediction (pre correction -1.55cm,-0.55cm) event# CSD id dX(cm) dY(cm) daX(rad) daY(rad) * 174969 02-20 -0.26 -0.04 0.000 0.035 * 9516652 08-03 0.00 0.00 -0.009 0.007 * 3874834 12-07 0.80 -0.07 0.005 0.003 * 4814867 11-19 -0.05 0.05 0.009 -0.007

  5. Predicted position for August Rock muonin film coordinate Cross is prediction Box is found

  6. CSD Area acceptance CSD Area acceptance = 12.45*9.98 / (12.80*10.51) = 92.36 %

  7. D(mm) Scanning area efficiency Scanning Area efficiency SA Total D=0mm 100% 92.4% =1mm 96.4% 89.1% =2mm 92.9% 85.8% =3mm 89.5% 82.6% =4mm 86.1% 79.5% =5mm 82.8% 76.4% =7mm 76.3% 70.5%

  8. Prediction in film coordinate (August Cosmic ray events) event# CSD id X(cm) Y(cm) aX(rad) aY(rad) from edge * 114927 11-14 2.45 5.72 0.040 0.436 24.5 mm 53746 11-20 4.17 3.86 -0.307 0.498 38.6 mm * 160928 12-18 8.037.680.429 0.485 23.0 mm * 86199 12-16 8.61 7.79 -0.052 0.476 21.9 mm 7023782 08-17 11.27 3.67 0.207 0.396 12.3mm Scanning Area is about 6 x 6 cm2 Tolerance of micro tracks angle – base angle set to 70 mrad. Allowance of two plate base tracks displacement <50 um. Requesting base angle difference in two plate <0.02 . Requesting TT angular matching < 50 mrad in each projection . Selected tracks for manual scanning is 22, 44, 1, 22, 18 for each event. 5 tried and 3 found. Mark (*) is labeled for found event .

  9. Found event parameters (August comic ray events) event# CSD id X(cm) Y(cm) aX(rad) aY(rad) * 114927 11-14 3.3440 6.2335 0.0535 0.4590 * 160928 12-18 6.9993 7.9723 0.4666 0.5083 * 86199 12-16 9.1723 7.9175 -0.3940 0.5026 Found – prediction (pre correction -1.55cm,-0.55cm) event# CSD id dX(cm) dY(cm) daX(rad) daY(rad) * 114927 11-14 0.89 0.51 0.014 0.023 * 160928 12-18 -1.03 0.29 0.038 0.023 * 86199 12-16 0.56 0.13 0.013 0.027 Residuals is similar to Rock Muon events.

  10. Predicted position for August cosmic ray eventsin film coordinate Cross is prediction Box is found

  11. Rock Muon October Run • event# Brick id# X(cm) Y(cm) Z (cm) aX(rad) aY(rad) • 1064775 370 181.539 -288.029 -401.821 -0.0839 0.0259 • (2.049 ,8.541 )  Film coordinate • Scanning Area is 5.05cm x 4.48cm • Requesting angular cut to TT 50mrad , 50mrad • 1 candidate send to manuacl check and it was confirmed as real . • event# Brick id# X(cm) Y(cm) aX(rad) aY(rad) • 1064775 370 1.4992 8.5825 -0.1005 0.0011 • dX(cm) dY(cm) daX(rad) daY(rad) • residual  (-0.550 0.0415) (-0.0166 -0.0248) • So the accuracy looks similar with August run result .

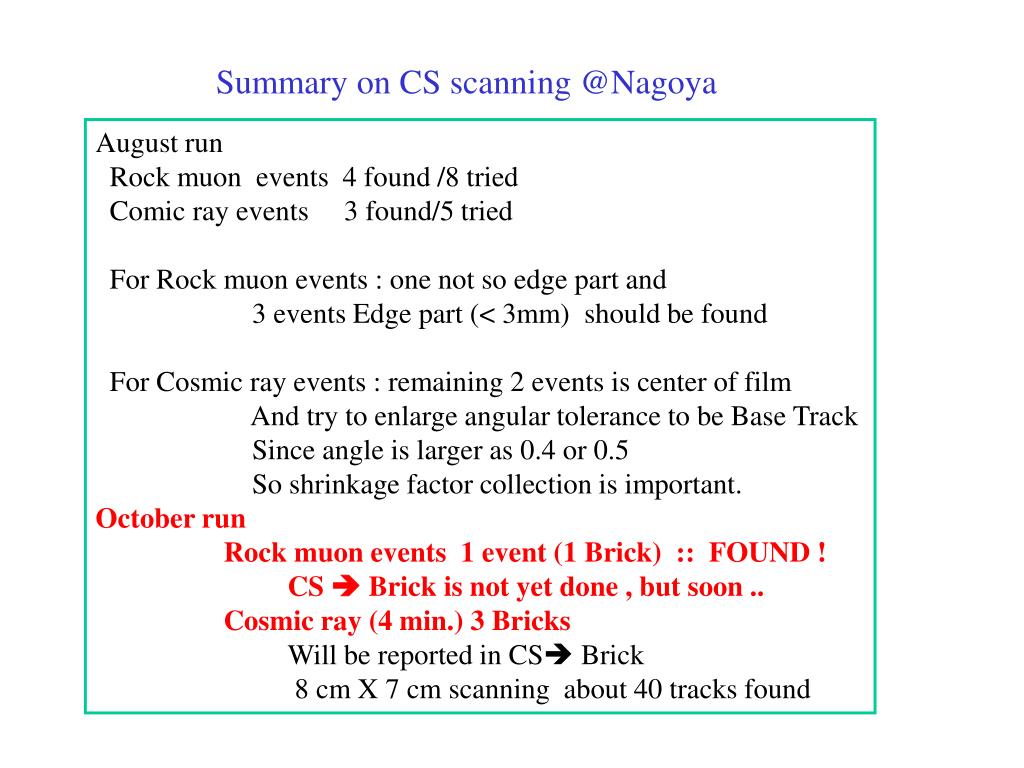

  12. Summary on CS scanning @Nagoya August run Rock muon events 4 found /8 tried Comic ray events 3 found/5 tried For Rock muon events : one not so edge part and 3 events Edge part (< 3mm) should be found For Cosmic ray events : remaining 2 events is center of film And try to enlarge angular tolerance to be Base Track Since angle is larger as 0.4 or 0.5 So shrinkage factor collection is important. October run Rock muon events 1 event (1 Brick) :: FOUND ! CS  Brick is not yet done , but soon .. Cosmic ray (4 min.) 3 Bricks Will be reported in CS Brick 8 cm X 7 cm scanning about 40 tracks found k
