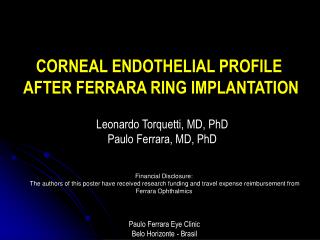

slide1

CORNEAL ENDOTHELIAL PROFILE

AFTER FERRARA RING IMPLANTATION

Leonardo Torquetti, MD, PhD

Paulo Ferrara, MD, PhD

Financial Disclosure:

The authors of this poster have received research funding and travel expense reimbursement from

Ferrara Ophthalmics

Paulo Ferrara Eye Clinic

Belo Horizonte - Brasil

slide2

ABSTRACT

  • Purpose: To evaluate corneal endothelium changes after the implantation of Ferrara intrastromal corneal ring segments (ICRS) (Ferrara Ophthalmics, Belo Horizonte, Brazil).
  • Methods: One-hundred and two eyes of 81 patients with keratoconus, pellucid degeneration and post-LASIK ectasia who had completed at least one year of follow-up (mean follow-up ± SD, 45.7 ± 16.4 months, range 13 to 71 months) were retrospectively studied. One or two Ferrara ring ICRS were inserted in the cornea, embracing the keratoconus/ectasia area. The corneal topography was obtained from EyeMap (Alcon®, USA) and Pentacam (Oculus Pentacam®, USA). Corneal endothelial cell analysis was performed with a non-contact specular microscope (SP-3000, Topcon®, Japan). Endothelial cell images were collected at the central region of the cornea. Statistical analysis included preoperative and postoperative keratometry and endothelial characteristics (cell count, average cell size and coefficient of variation).
  • Results: The mean cell count decreased from (mean ± SD) 2714 ± 372 cells/mm2 to 2562 ± 406 cells/mm2 (p < 0.001). The calculated exponential cell loss rate over the mean interval of follow-up (4 years) was 1.4% per year. The average cell size increased from (mean ± SD) 375 ± 56 µ2 to 399 ± 61 µ2 (p < 0.001). The coefficient of variation increased from (mean ± SD) 0.22 ± 0.075 to 0.26 ± 0.010 (p = 0.001). There was significant corneal flattening as showed by keratometry changes. The mean K decreased from 47.70 ± 2.29 (range 43.70 to 53.80) to 44.86 ± 2.02 (range 41.20 to 51.20) (p = 0.0001) .
  • Conclusion: There are some endothelial changes after Ferrara ICRS implantation, without clinical relevance.
slide3

PURPOSE

To evaluate possible endothelial changes after implantation of the Ferrara intrastromal corneal ring segments (ICRS)

* The Ferrara ICRS has not been approved by the U.S. Food an Drug Admnistration (FDA)

slide4

METHODS

  • - Retrospective study: chart review of 102 eyes of 81 patients, consecutively operated and followed for at least 1 year;
  • - Surgical technique: standard (manual technique);
  • - Studied parameters: endothelial cell count (ECC), endothelial cell size (ECS), coefficient of variation (CV) and keratometry (K);
  • - Follow-up: 45.7 months (mean) (range: 13 to 71 months);
slide5

METHODS

  • -Topography: EyeMap (Alcon®, USA) and Pentacam (Oculus Pentacam®, USA);
  • - Corneal endothelial cell analysis: non-contact specular microscope (SP-3000, Topcon®,Japan)
  • Statistical analysis: preoperative and postoperative anterior e posterior keratometry, endothelial characteristics (cell count, average cell size and coefficient of variation);
  • Student t Test (paired sample) and Pearson’s correlation coefficient: Minitab Software (Minitab Inc.).
slide6

METHODS

Distribution of diagnosis of operated patients

(I, II and III refer to keratoconus classification)

slide7

RESULTS

Endothelial cell parameters and Keratometry (mean)

Preoperative Postoperative p

Cell count (cells/mm2): 2714 ± 372 2562 ± 4060.001

Cell size (µ2 ) 375 ± 56 399 ± 610.001

Coefficient of variation 0.22 ± 0.075 0.26 ± 0.0100.001

Keratometry (anterior) 47.70 ± 2.29 44.86 ± 2.02 0.001

Keratometry (posterior) - 6.76 ± 0.70 - 6.80 ± 0.45 0.667

slide8

FIGURE 2.1 and 2.2 – Preoperative (2.1) and Postoperative (2.2) Scattergram of Keratometry and Endothelial cell count

RESULTS

Pre and Postoperative Cell Count

slide9

Pearson’s correlation coefficient

RESULTS

Pearson’s correlation coefficient

slide10

RESULTS

Calculated exponential cell loss rate over the mean interval of follow-up (4 years):

1.4% per year

slide11

DISCUSSION

  • Consensus: gradual decrease in cell density occurs with increasing age.
  • Abib FC, Barreto Junior J. Behavior of corneal endothelial density over a lifetime. J Cataract Refract Surg. 2001;27(10):1574-8.
  • Endothelial cell loss rate:
  • Patients < 18 years old): 1.1% ± 0.8% per year loss
  • Patients > 18 years old): 0.6% ± 0.5% per year loss
  • Bourne WM, Nelson LR, Hodge DO. Central corneal endothelial cell changes over a ten-year period. Invest Ophthalmol Vis Sci1997;38:779-782
  • After PK, ranging from 4.2% to 9.4% per year, at the long-term follow-up
  • Langenbucher A, Nguyen NX, Seitz B. Predictive donor factors for chronic endothelial cell loss after nonmechanical penetrating keratoplasty in a regression model. Graefe’s Arch Clin Exp Ophtalmol. 2003;241:975-981.
slide12

CONCLUSION

The endothelial cell loss after Ferrara ICRS

implantation is slightly higher than the expected cell loss in normal eyes
