simulazione dettagliata della resistenza ohmica per celle ip sofc

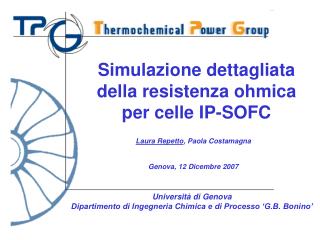

Simulazione dettagliata della resistenza ohmica per celle IP-SOFC

Laura Repetto, Paola Costamagna

Genova, 12 Dicembre 2007

Università di GenovaDipartimento di Ingegneria Chimica e di Processo ‘G.B. Bonino’

slide2

Summary of the work carried out

  • AIM
  • Detailed simulation of the ohmic losses of the IP-SOFC (Integrated Planar-Solid Oxide Fuel Cell) and calculation of the ohmic resistance.
  • HOW
  • Numerical solution of partial differential equations through the commercial software Comsol Multiphisycs.
  • WHAT I DID
  • Development of a physical / matematical model
  • Model validation
  • Use of the model to predict the IP-SOFC performance
slide3

Tubular geometry

Planar geometry

Solid Oxide Fuel Cell (SOFC)

Solid Oxide Fuel Cell (SOFC) is a particular Fuel Cell characterized by the use of a ceramic electrolyte (a solid oxide). The electrochemical reactions are:

Cathodic reaction

Anodic reaction

slide4

IP-SOFC

The IP-SOFC concept is a proprietary SOFC design currently developed by Rolls-Royce Fuel Cell Systems Ltd.

planar geometry

tubular geometry +

IP-SOFC geometry

Mechanical stability of the cell components

Lower manufacturing costs

e-

e-

Simplified IP-SOFC geometry

NOTE: the electrochemical reactions on cathodic and anodic side have not been simulated

slide6

Comsol Multiphysics

  • Comsol Multiphysics is a modelling package able to simulate the physical process described with partial differential equations (PDEs).
  • It is based on the finite elements method (FEM).
  • It is an interactive environment.
  • It provides specialised modules with predefined PDEs for different scientific fields (in my work the Electromagnetics Module and in particular the Conductive Media DC section has been used).
  • These modules use standardized terminology and material libraries. Usually it is not necessary to write the equations since they are included in the modules; it is sufficient to describe the physical/mathematical properties of the problem (materials conductivity, continuity of the solution along the interfaces etc)
slide7

Comsol results (1)

Norma della densità di corrente nell’elettrolita

Femlab

Matlab

slide8

e-

e-

Comsol results (2)

Colour map of the Voltage

slide9

e-

e-

Comsol results (3)

Streamlines and colour map of the current density norm

slide10

Model predictions

Model validation

Model prediction

  • Geometry optimisation
  • Design the optimal geometry in order to increase the performance of the cell and, at the same time, to lower manufacturing costs. Work carried out:
  • study of the current path in the electrolyte
  • study of the current path in the cathodic and anodic collectors

Secondary interconnect (SIC) study

Design the optimal geometry of the secondary interconnect in order to increase the performance of the cell and, at the same time, to lower manufacturing costs.

slide12

Future work

  • Simulation of new geometries.
  • Optimisation study.
  • Complete model including ohmic, activation and concentration losses.
  • Publications
  • Laura Repetto, Gerry Agnew, Adriana Del Borghi, Fabio Di Benedetto, Paola Costamagna. “Detailed Simulation of the Ohmic Resistance of SOFCs”: Journal of Fuel Cell Science and Technology; volume 4, issue 4, pp 413-417.
  • S. Grosso, L. Repetto, P. Costamagna. “IP-SOFC model”, chapter 9 of the book “Modeling Solid Oxide Fuel Cells: Methods, Procedures and Techniques”, editor R. Bove, Springer, in press.
  • Laura Repetto, Paola Costamagna. “FEM Model of the Ohmic Resistance of IP-SOFCs”: Journal of Applied Electrochemistry; submitted.
