exploring the implications of bayesian approach to materials state awareness

Exploring the Implications of Bayesian Approach to Materials State Awareness

R. Bruce Thompson

Director, Center for Nondestructive Evaluation

Professor, Materials Science & Aerospace Engineering,Iowa State University

outline
Outline
  • Interpretation of Current Status of and Future Needs for Prognosis
  • Microstructural Characterization Sensors
  • Integration within Bayesian Framework
  • A Conceptual Illustration
  • Conclusions

AFOSR Prognosis Workshop_February 2008

slide3

L. Christodoulou and J. M. Larsen, “Using Materials Prognosis to Maximize the Utilization Potential of Complex Mechanical Systems,” Materials Damage Prognosis, J. M. Larsen, L. Christodoulou, J. R. Calcaterra, M. L. Dent, M. M. Derriso, J. W. Jones, ad S. M. Russ, Eds. (TMS, 2005).

AFOSR Prognosis Workshop_February 2008

logic for integrated automated prognosis system
Logic for Integrated, Automated Prognosis System

Application

Long term

Advanced Material

State Sensing

Decision Capability for

Legacy Engines

Characterize

Material

Microstructures

Mesomechanical

Damage Models

Lifing Algorithms

Short term

Analytical Stress Model

Full-Authority Digital

Engine Control (FADEC)

Math Model

Mission Simulation

Installed Autonomous

Sensors

Long term

Ready

L. Christodoulou and J. M. Larsen, “Materials Damage Prognosis: A Revolution in Asset Management,” Materials Damage Prognosis, J. M. Larsen, L. Christodoulou, J. R. Calcaterra, M. L. Dent, M. M. Derriso, J. W. Jones, ad S. M. Russ, Eds. (TMS, 2005). (adapted from Cruse)

AFOSR Prognosis Workshop_February 2008

new ingredients

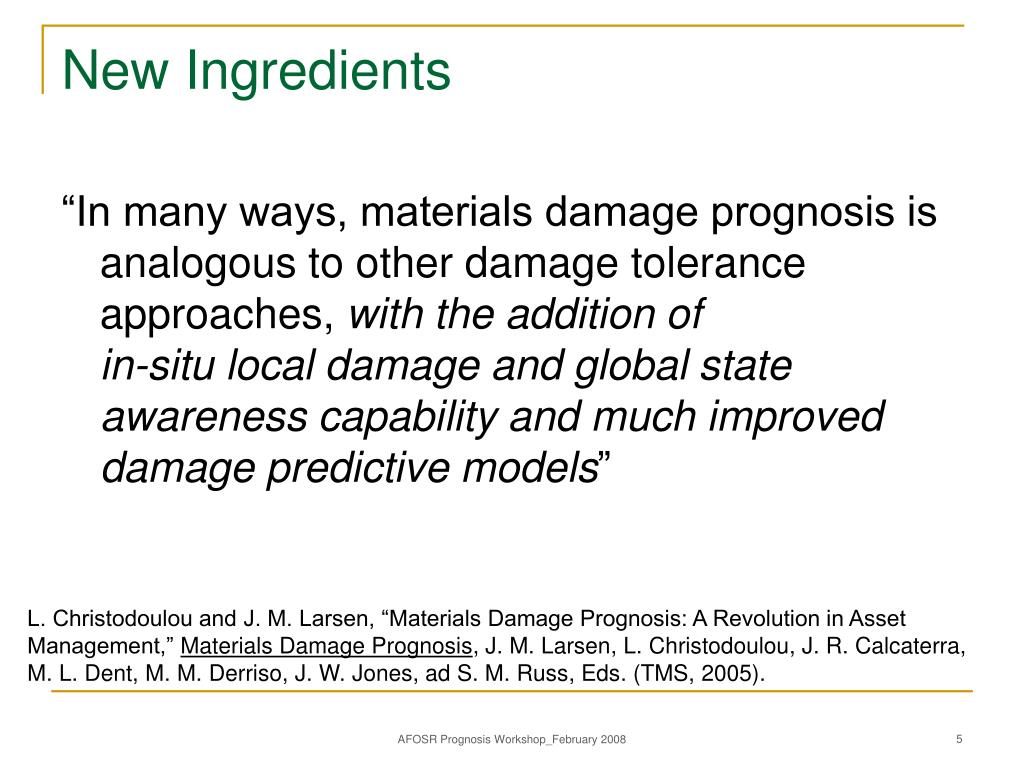

New Ingredients

“In many ways, materials damage prognosis is analogous to other damage tolerance approaches, with the addition of in-situ local damage and global state awareness capability and much improved damage predictive models”

L. Christodoulou and J. M. Larsen, “Materials Damage Prognosis: A Revolution in Asset Management,” Materials Damage Prognosis, J. M. Larsen, L. Christodoulou, J. R. Calcaterra, M. L. Dent, M. M. Derriso, J. W. Jones, ad S. M. Russ, Eds. (TMS, 2005).

AFOSR Prognosis Workshop_February 2008

utopian view
Utopian View

In principle, we simply need to execute the following strategy

This would be a “done deal” if the input data were correct/complete and models were of sufficient accuracy and computationally efficient.

Damage

Progression

Model

Initial

State

Damaged

State

Failure

Model

Expected

Lifetime

Operational

Environment

Failure

Criteria

AFOSR Prognosis Workshop_February 2008

barriers to reaching nirvana
Barriers to Reaching Nirvana
  • Missing information
    • Do not currently determine the initial state of individual components/structures/systems with high precision
    • Have not traditionally monitored the operating environment of individual components
    • Damage progression models have traditionally been empirical (e.g., Paris Law)
      • Difficult to incorporate the missing information if it were available
  • Uncertainty
    • There will always be uncertainty in the input data
  • Variability
    • Even if we eliminate uncertainty, we would have to take variability into account

AFOSR Prognosis Workshop_February 2008

examples of research underway and gaps

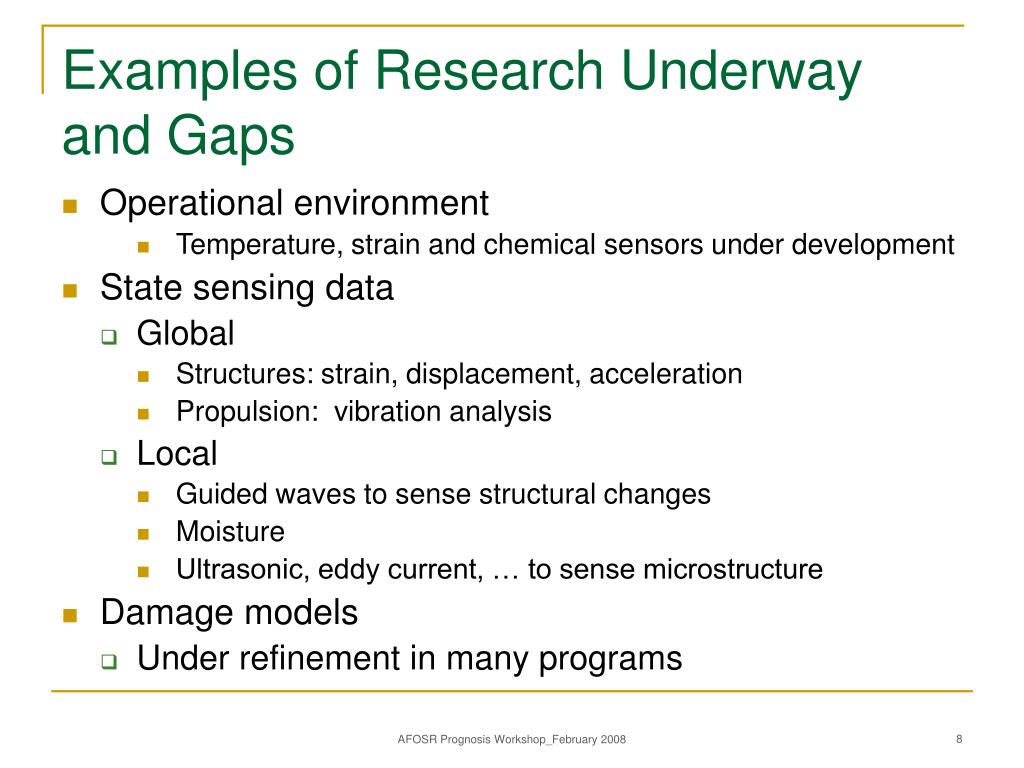

Examples of Research Underway and Gaps
  • Operational environment
      • Temperature, strain and chemical sensors under development
  • State sensing data
    • Global
      • Structures: strain, displacement, acceleration
      • Propulsion: vibration analysis
    • Local
      • Guided waves to sense structural changes
      • Moisture
      • Ultrasonic, eddy current, … to sense microstructure
  • Damage models
    • Under refinement in many programs

AFOSR Prognosis Workshop_February 2008

long term microstructural sensor needs
Long Term Microstructural Sensor Needs
  • Improved sensor and data interpretation procedures to monitor evolution of microstructure during damage
    • A key will be a well-developed, quantitative understanding of relationship of sensor response to microstructural changes
    • Physics-based models of the sensing process
    • Must work subject to practical constraints
      • Access
      • Survivability
      • Simplicity of implementation

AFOSR Prognosis Workshop_February 2008

long term integration needs
Long Term Integration Needs
  • Systems perspective to integrate all of the NDE state data with damage model predictions
    • Depot, field, on board sensors
    • Global, local sensors
    • Measurements of initial state, damage state
  • Must recognize fundamental difference in data structure for traditional (depot and field) and on board NDE measurements

AFOSR Prognosis Workshop_February 2008

outline1
Outline
  • Interpretation of Current Status of and Future Needs for Prognosis
  • Microstructural Characterization Sensors
  • Integration within Bayesian Framework
  • A Conceptual Illustration
  • Conclusions

AFOSR Prognosis Workshop_February 2008

slide12
Detailed Understanding of Microstructure must be a Key Ingredient in Development of State Awareness Strategies
  • An idealized scenario
  • Generally, each link has it challenges
    • Non-uniqueness
    • Inadequate sensitivity to key parameters
    • Limitations of the theory base
  • Force a stochastic approach

AFOSR Prognosis Workshop_February 2008

need for microstructural characterization tools as well as flaw detection tools
Need for Microstructural Characterization Tools as Well as Flaw Detection Tools
  • Need to be able to assess the progression of damage before cracks form
    • Quantification of initial state
    • Check of evolution of damage when possible
  • Validation of prognostic calls

AFOSR Prognosis Workshop_February 2008

characterization of grain morphology
The reflection of sound at grain boundaries results in “noise” seen in UT inspections

Incident

sound

pulse

Grain boundary

echoes

Single crystal (“grain”)

100 mm

Characterization of Grain Morphology

AFOSR Prognosis Workshop_February 2008

time domain waveforms
Time Domain Waveforms

AFOSR Prognosis Workshop_February 2008

characterization of grain structure
Characterization of Grain Structure
  • Grain noise inhomogeneity provides information about microstructure

AFOSR Prognosis Workshop_February 2008

characterization of grain structure1
Characterization of Grain Structure
  • Ultrasonic backscattering controlled by grain size
  • Theoretical base exists to quantify relationship (single scattering assumption)

AFOSR Prognosis Workshop_February 2008

characterization of grain structure2
Characterization of Grain Structure
  • Determining grain size and shape from single sided backscattering measurements

AFOSR Prognosis Workshop_February 2008

characterization of grain structure3
Characterization of Grain Structure
  • Results obtained on rolled and extruded aluminum

AFOSR Prognosis Workshop_February 2008

characterization of fatigue damage

Nf

Nf

Nf

Characterization of Fatigue Damage

AFOSR Prognosis Workshop_February 2008

the way forward
The Way Forward
  • Significant benefits can be obtained from further developing nondestructive microstructural characterization tools
    • Best developed if seek relationship to microstructure rather than properties
    • Need physics-based, rather than empirical understanding
      • Needs collaboration of measurement and materials experts

AFOSR Prognosis Workshop_February 2008

some open questions

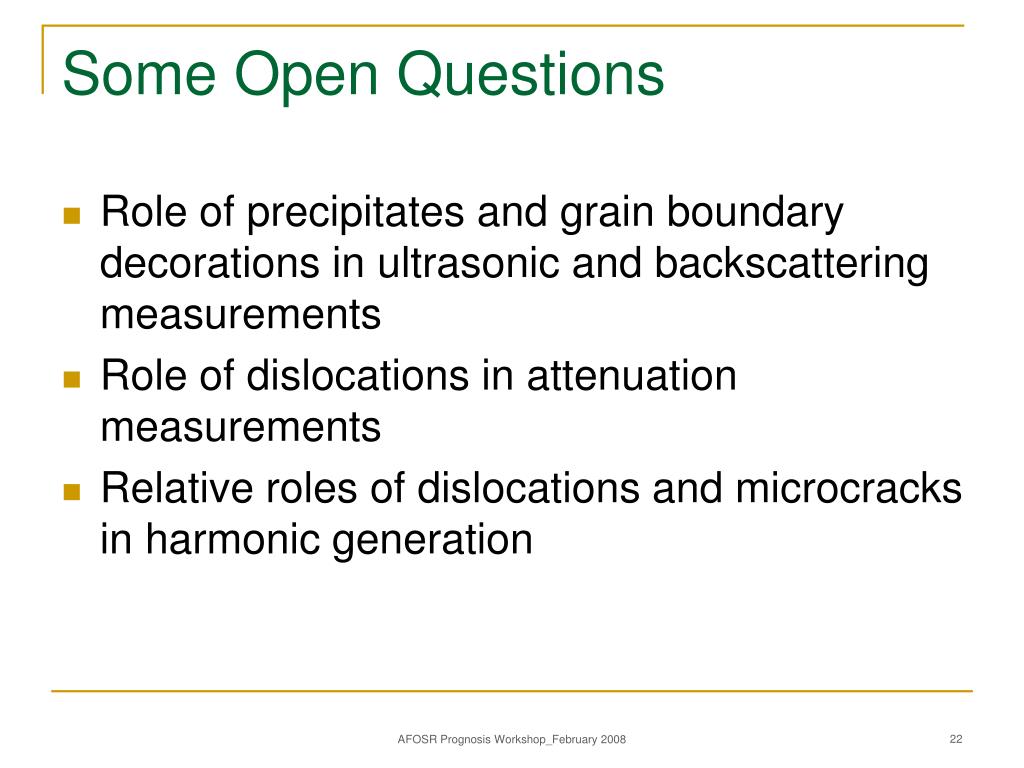

Some Open Questions
  • Role of precipitates and grain boundary decorations in ultrasonic and backscattering measurements
  • Role of dislocations in attenuation measurements
  • Relative roles of dislocations and microcracks in harmonic generation

AFOSR Prognosis Workshop_February 2008

outline2
Outline
  • Interpretation of Current Status of and Future Needs for Prognosis
  • Microstructural Characterization Sensors
  • Integration within Bayesian Framework
  • A Conceptual Illustration
  • Conclusions

AFOSR Prognosis Workshop_February 2008

the bayesian approach
The Bayesian Approach
  • The essence of the Bayesian approach is to provide a mathematical rule explaining how you should
    • combine new data with existing knowledge or expertise
    • From an intuitive perspective, we can consider the “utopian view” that we discussed previously as existing knowledge
    • The new data are the results of NDE measurements about initial state, operational environment, or the state of damage evolution
  • This approach addresses the non-uniqueness problem that plagues the interpretation of many NDE measurements
    • A framework for data inversion
  • Enabling technologies are
    • Physics-based models of the NDE measurement process
    • High speed computational capability that makes implementation practical (not the case a decade ago)

AFOSR Prognosis Workshop_February 2008

traditional data inversion

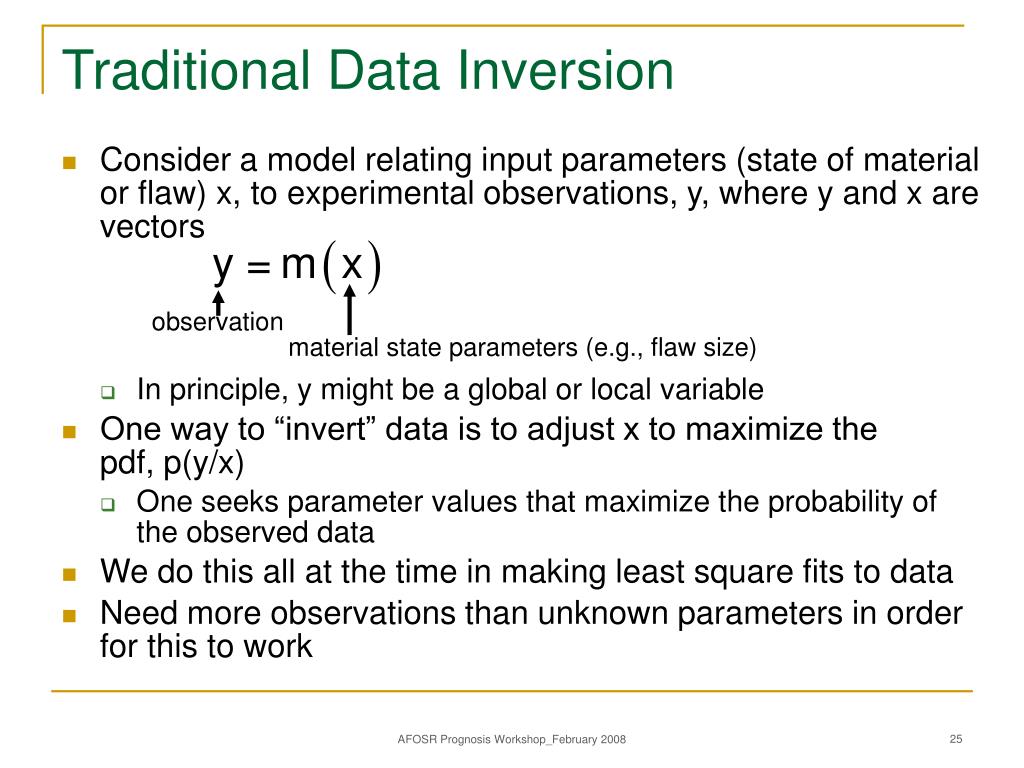

Traditional Data Inversion
  • Consider a model relating input parameters (state of material or flaw) x, to experimental observations, y, where y and x are vectors
    • In principle, y might be a global or local variable
  • One way to “invert” data is to adjust x to maximize the pdf, p(y/x)
    • One seeks parameter values that maximize the probability of the observed data
  • We do this all at the time in making least square fits to data
  • Need more observations than unknown parameters in order for this to work

observation

material state parameters (e.g., flaw size)

AFOSR Prognosis Workshop_February 2008

likelihood direct use in inversion
Likelihood: Direct Use in Inversion
  • In the language of the likelihood approach,
    • is proportional to the likelihood function
      • Sometimes written
    • We seek to choose the values of x such that the likelihood is maximized
    • These values are considered best estimates of x
  • In special cases, this approach is equivalent to the more familiar least squares fitting procedures
    • y normally distributed about mean values
    • No systematic errors in models (model predicts mean values)
    • No truncated or censored data

AFOSR Prognosis Workshop_February 2008

limitations of this approach to inversion
Limitations of this Approach to Inversion
  • This approach (including least squares fitting) breaks down if
    • Data is not sufficient to determine parameters without auxiliary information or assumption (i.e., solutions of inverse problem would not be unique)
    • One wishes to incorporate knowledge from past experience in a systematic way
    • One wishes to estimate probability of parameter values (not just most likely values)
  • Bayes Theorem provides a path forward
    • Allows direct incorporation of physical understanding of processes (e.g., as incorporated in physics-based simulation tools)
    • Significant computations may be required
      • “Computational plenty” is reducing this objection

AFOSR Prognosis Workshop_February 2008

bayes theorem for continuous variables
Bayes Theorem for Continuous Variables

Likelihood of x

 p(y/x)

Prior distribution of x

Note: Physical understanding of the measurement, ideally as captured by a physics-based model, enters through the likelihood  p(y/x). “How likely was the observed state data for possible states in the prior distribution”

Posterior pdf

Normalization

AFOSR Prognosis Workshop_February 2008

summary of bayesian approach
Summary of Bayesian Approach
  • Advantages
    • Framework to utilize “prior” knowledge
      • Update beliefs about probability of state in light of new evidence, the measurement results y
    • Provides “posterior” (probability distribution of state), not just most likely state
    • Depends in a simple way on the “likelihood”, something that can be computed from forward models
  • Issues
    • Significant computations
    • Dependence on the prior
      • Posterior may not be highly sensitive to this
      • Sensitivity studies needed

AFOSR Prognosis Workshop_February 2008

an intuitive description
An Intuitive Description
  • The prior contains our knowledge about the materials state that is expected to be present
    • In one way or the other, we often make such assumptions in a less formalized way
      • “If the defect were a crack, it would have the following size”
  • We use the measurement results to determine which of those possible states are most consistent with the data
    • In essence, ruling out the portions of the prior distribution that are inconsistent with the observations
  • The posterior is the sharpened distribution of states that emerges

AFOSR Prognosis Workshop_February 2008

generalization to failure prediction
Generalization to Failure Prediction
  • Probabilistic model for P(x,y,c)
    • x: state of defect
    • y: measured data
    • c: 1 if piece survives under specified conditions

0 if piece fails under specified conditions

  • From this model, want to infer the probability of failure (c) given the NDE data

failure model NDE data inversion

  • Note: P(x/y) will depend on the accept/reject criterion

Richardson

AFOSR Prognosis Workshop_February 2008

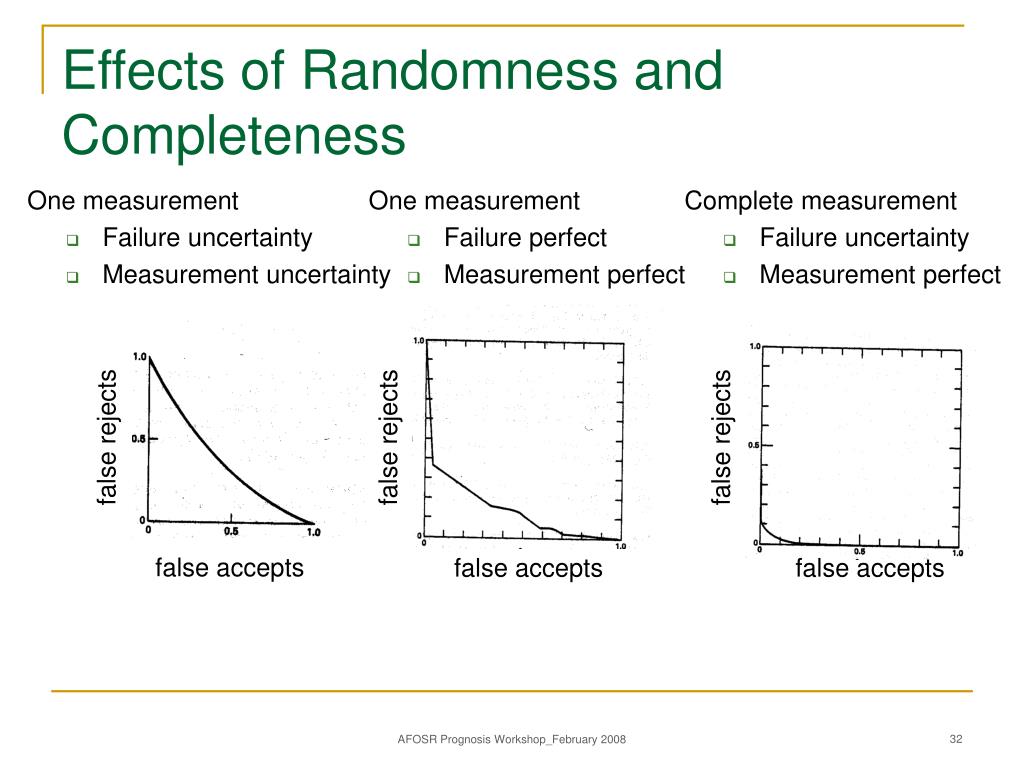

effects of randomness and completeness
Effects of Randomness and Completeness

One measurement

  • Failure uncertainty
  • Measurement uncertainty

One measurement

  • Failure perfect
  • Measurement perfect

Complete measurement

  • Failure uncertainty
  • Measurement perfect

false rejects

false rejects

false rejects

false accepts

false accepts

false accepts

AFOSR Prognosis Workshop_February 2008

outline3
Outline
  • Interpretation of Current Status of and Future Needs for Prognosis
  • Microstructural Characterization Sensors
  • Integration within Bayesian Framework
  • A Conceptual Illustration
  • Conclusions

AFOSR Prognosis Workshop_February 2008

waspalloy disk
Waspalloy Disk

“The scatter in material behavior is attributed to the inhomogeneous microstructure elements with metals.”

L. Nasser and R. Tryon, “Prognostic System for Microstuctural-Based Reliability”, DARPA Prognostics web site(with reference to work at Cowles, P&W)

AFOSR Prognosis Workshop_February 2008

microstructural fatigue model
Microstructural Fatigue Model

AFOSR Prognosis Workshop_February 2008

potential sensor assistance at various stages
Potential Sensor Assistance at Various Stages

AFOSR Prognosis Workshop_February 2008

at the end of the day in this or other applications
At the End of the Day(In this or other applications)
  • When we balance
    • Our improving but incomplete understanding of failure processes
    • The ideal characterization procedures based on understanding of the measurement physics
    • The measurement possibilities as constrained by practical constraints
  • We will be making prognoses based on incomplete information
  • Exact data inversion will not be possible
  • Suggest use of Bayesian statistics to eliminate possible outcomes inconsistent with sensor data

AFOSR Prognosis Workshop_February 2008

outline4
Outline
  • Interpretation of Current Status of and Future Needs for Prognosis
  • Microstructural Characterization Sensors
  • Integration within Bayesian Framework
  • A Conceptual Illustration
  • Conclusions

AFOSR Prognosis Workshop_February 2008

conclusions
Conclusions
  • Realizing a full Materials State Awareness capability will require a wide range of inputs
    • Mesoscopic damage models
    • Sensing of operational parameters of individual components
    • Advanced material state sensing
      • Needs physics-based understanding of relationship to microstructure
      • Constrain by access, survivability, need for simplicity
  • Bayesian statistics provides an attractive framework for integrating these disparate inputs
    • Enabled by physics-based models of the measurement process
  • A conceptual example based on aircraft engine disks was provided

AFOSR Prognosis Workshop_February 2008
