Presentation Transcript
mixing the real and the virtual in a hospital through telepresence

Mixing the Real and the Virtual in a Hospital through Telepresence

Kevin Smith

kevin.smith@sindex.ca

mixing the real and the virtual
Mixing the Real and the Virtual!
  • Can we mix virtual people with real people?
  • Can we mix real people with virtual people?
simulation training using telepresence
Simulation & Training using Telepresence
  • Benefits:
    • Clinicians and other professionals with heavy demands on their time can participate in a simulation from anywhere in the hospital (or outside it)
    • Training can take place anywhere eg a simulation can be run in a patient’s room immediately after a real patient is discharged from that room
is it possible
Is it possible?
  • Light Field capture and display
    • Perceptually the same as an optical wavefront
    • Based on Integral Photography invented by Lippmann in 1908!
  • Acoustic Wave Field capture and generation
data rate
Data Rate
  • 128 cameras each operating at 30 fps
  • 640 x 480 8 bit pixels
  • Total data rate of over 9 Gbps

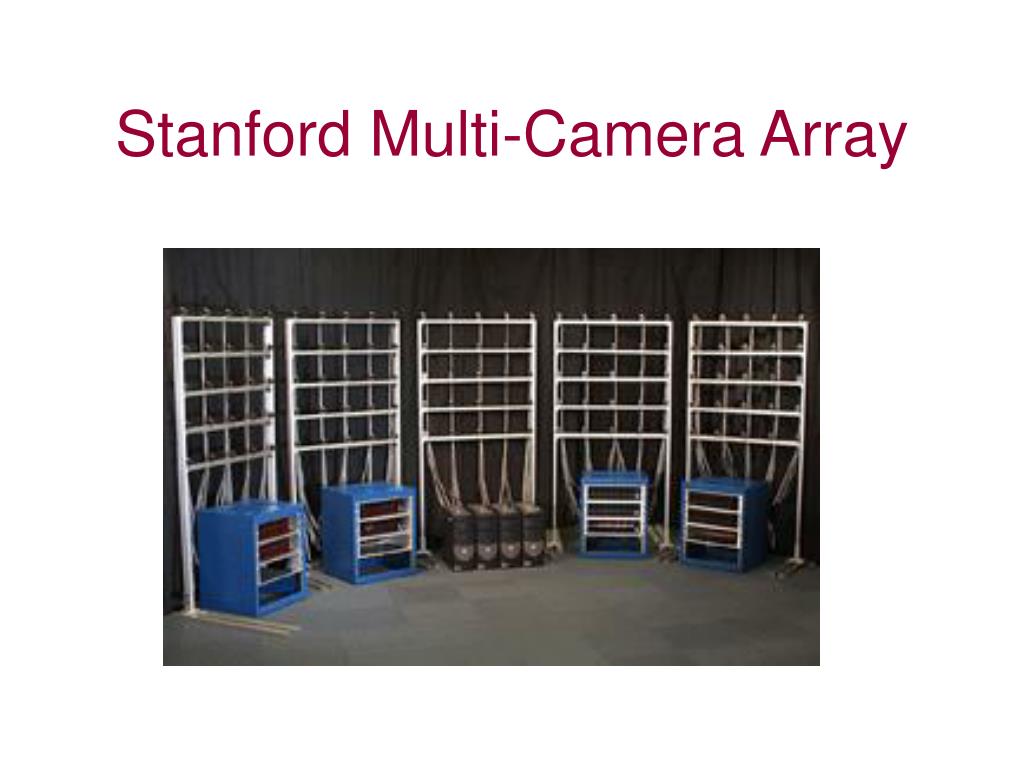

  • http://graphics.stanford.edu/papers/CameraArray/
autostereoscopic displays available today
Autostereoscopic Displays Available Today
  • QinetiQ

http://www.qinetiq.com/home/technologies/technologies/optronics/pad/hpv/3d.html

  • Holografika

http://www.holografika.com/markets/ts640rc.shtml

  • Deep Light

http://www.deeplight.com/products_displays_designer.html

data rate14
Data Rate
  • 1020 microphones each sampling at 16 KHz
  • 24 bits per sample
  • Total data rate of 393 Mbps
  • http://cag.csail.mit.edu/mic-array/
iosono wavefield generation
IOSONO: Wavefield Generation
  • Wave Field Generation
    • Large array of speakers – uses Huygens’ Principle
  • http://www.idmt.fraunhofer.de/eng/research_topics/wave_field_synthesis.htm
merl 3d tv
MERL: 3D TV
  • Lightfield capture and display
  • 16 cameras at 30 fps
  • 1300 x 1030 pixels, 24 bits
  • Total data rate is over 14 Gbps
  • http://www.merl.com/projects/3dtv/
technology requirements
Technology Requirements
  • At least Tbps data connections as standard!
  • At least 100 fold increase in embedded computing power

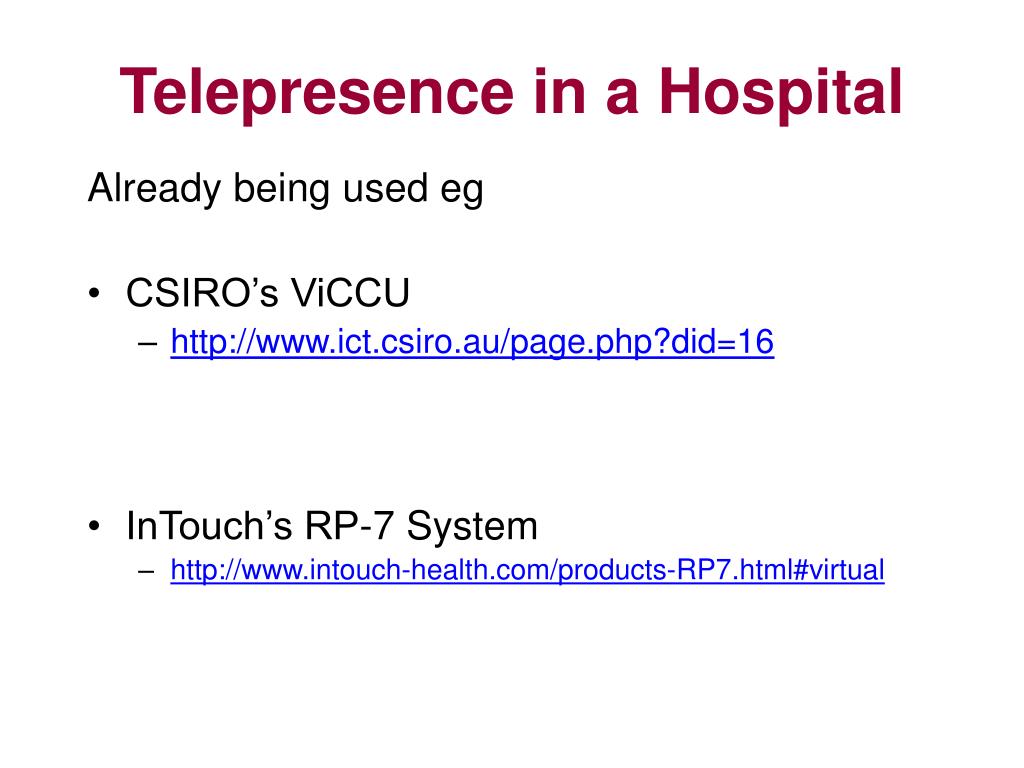

telepresence in a hospital
Telepresence in a Hospital

Already being used eg

  • CSIRO’s ViCCU
    • http://www.ict.csiro.au/page.php?did=16
  • InTouch’s RP-7 System
    • http://www.intouch-health.com/products-RP7.html#virtual

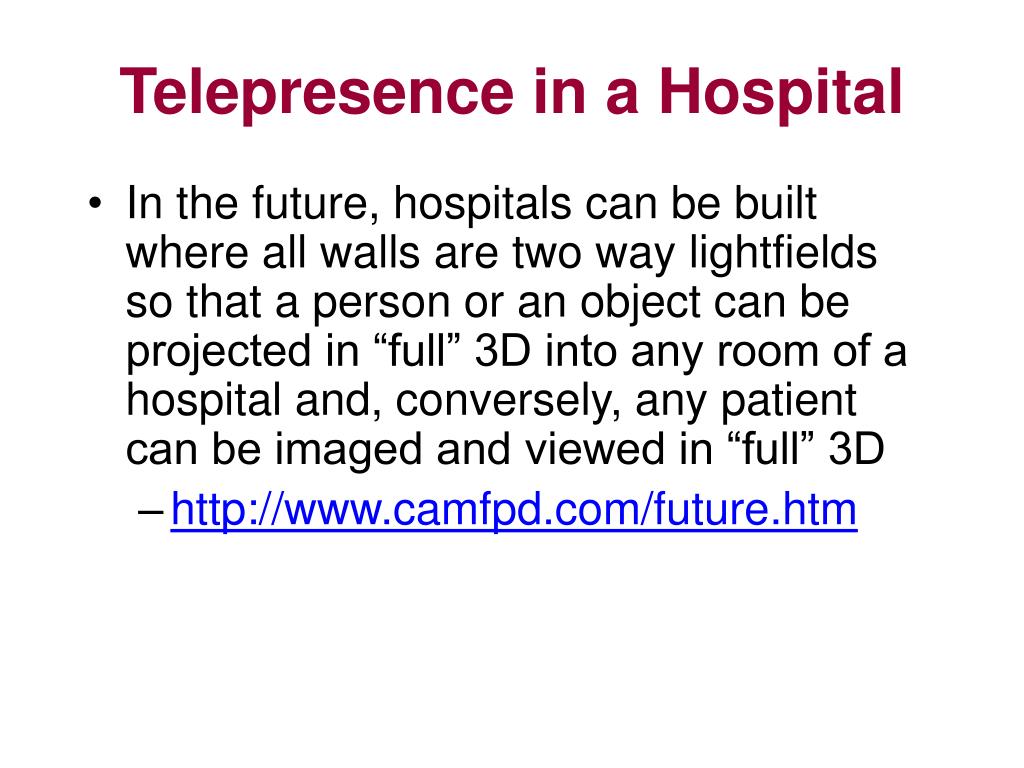

telepresence in a hospital24
Telepresence in a Hospital
  • In the future, hospitals can be built where all walls are two way lightfields so that a person or an object can be projected in “full” 3D into any room of a hospital and, conversely, any patient can be imaged and viewed in “full” 3D
    • http://www.camfpd.com/future.htm
examples of the operational use of telepresence in a hospital
Examples of the Operational Use of Telepresence in a Hospital
  • Specialists can attend a “code blue” as well as the crash team
  • Nursing staff can respond through telepresence to a patient’s “call button” and assess whether have to go physically
  • A patient can be triaged in an ambulance by a trauma specialist
