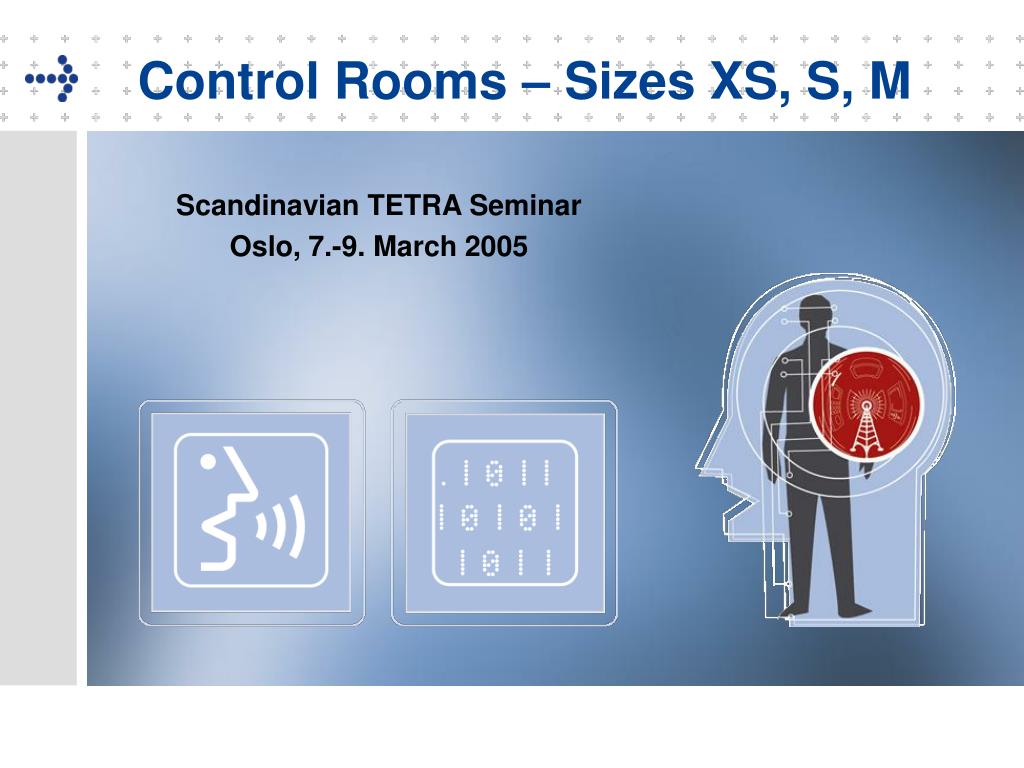

  1. Control Rooms – Sizes XS, S, M Scandinavian TETRA Seminar Oslo, 7.-9. March 2005

  2. „real“ Control Room Why different sizes ? AMK Lendsman Size: L Size: M Size: S

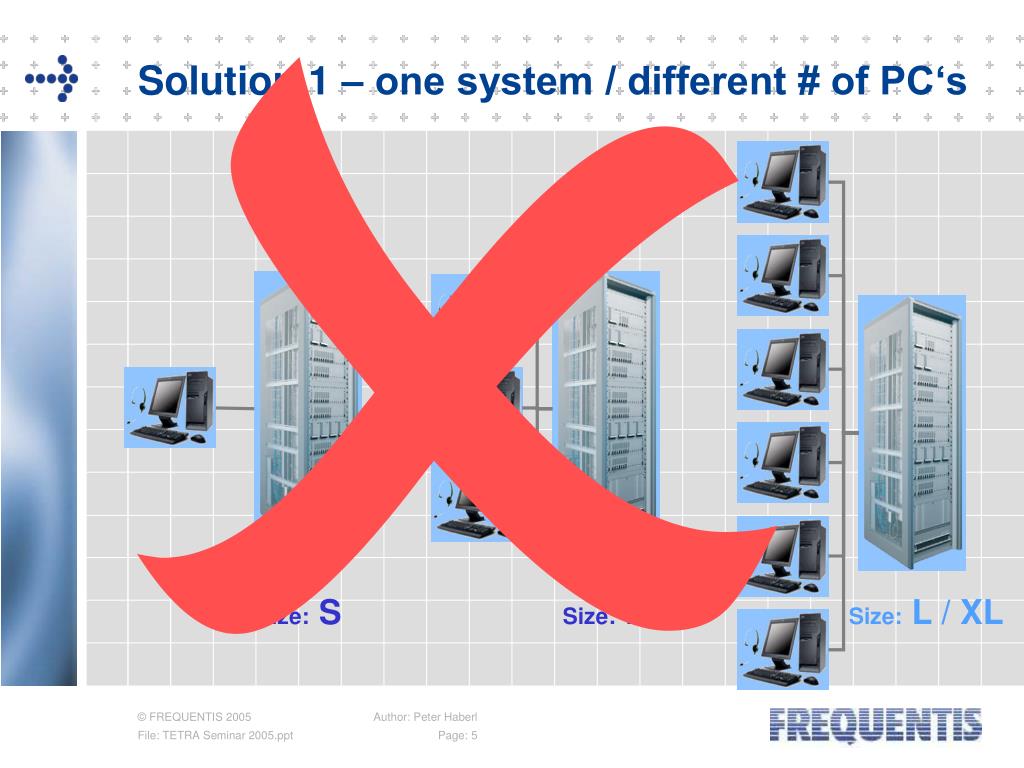

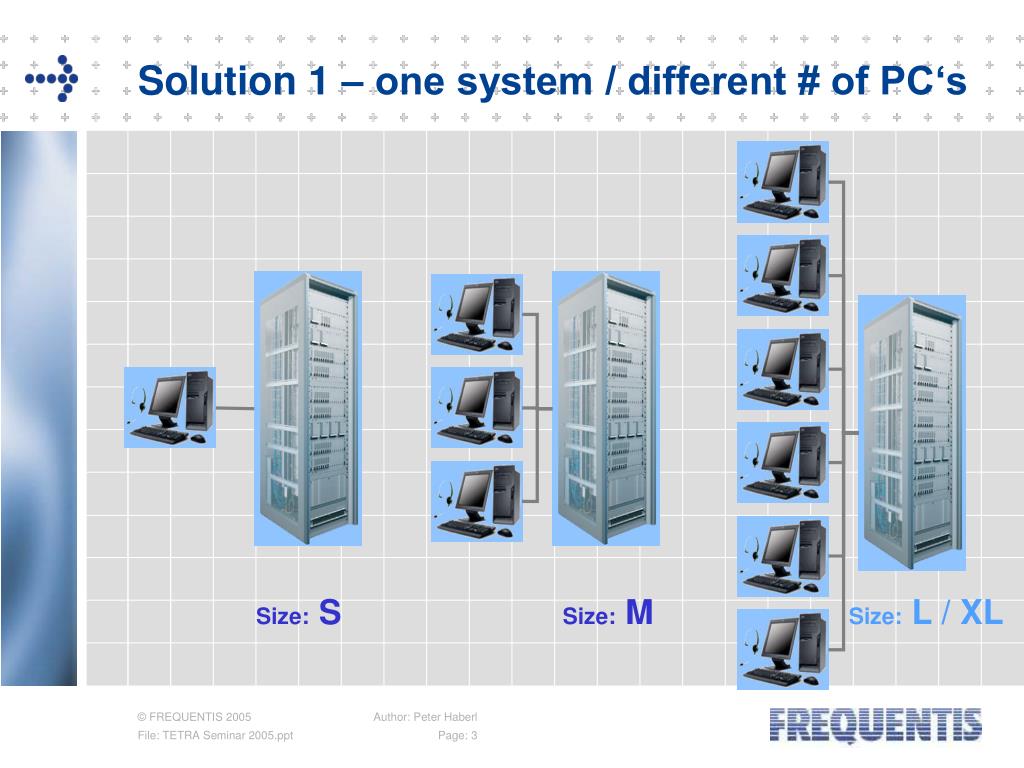

  3. Solution 1 – one system / different # of PC‘s Size: S Size: M Size: L / XL

  4. One Size fits all ?

  5. O Solution 1 – one system / different # of PC‘s Size: S Size: M Size: L / XL

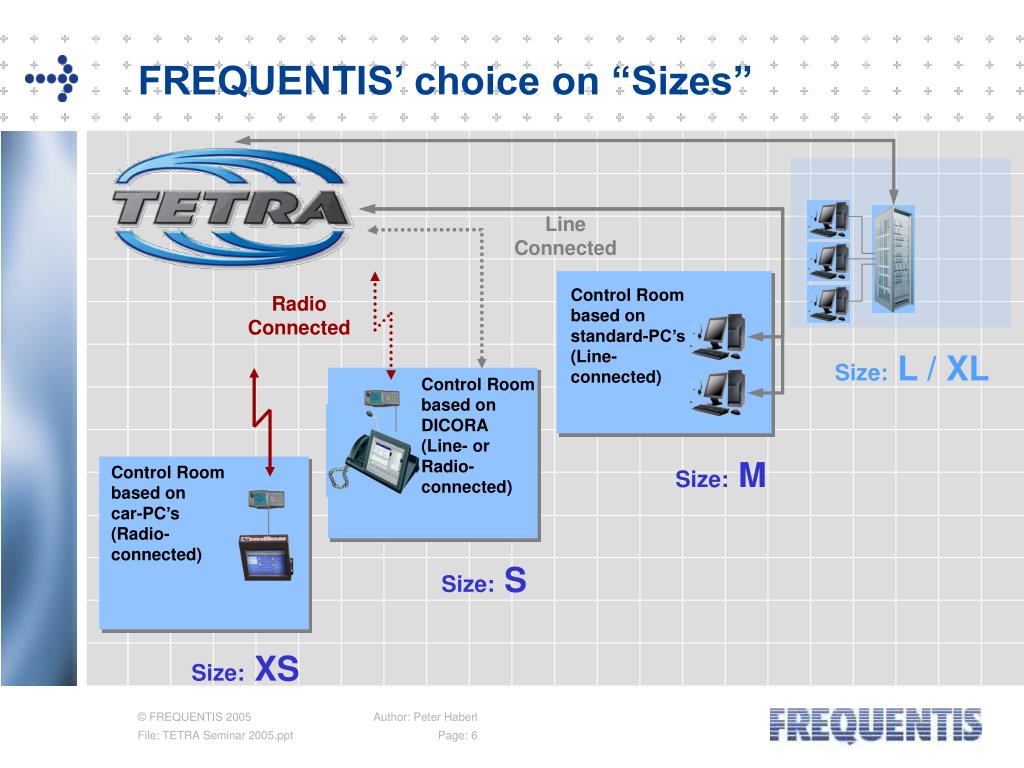

  6. FREQUENTIS’ choice on “Sizes” Line Connected Control Room based on standard-PC’s (Line-connected) Radio Connected Size: L / XL Control Room based on DICORA (Line- or Radio-connected) Size: M Control Room based on car-PC’s (Radio-connected) Size: S Size: XS

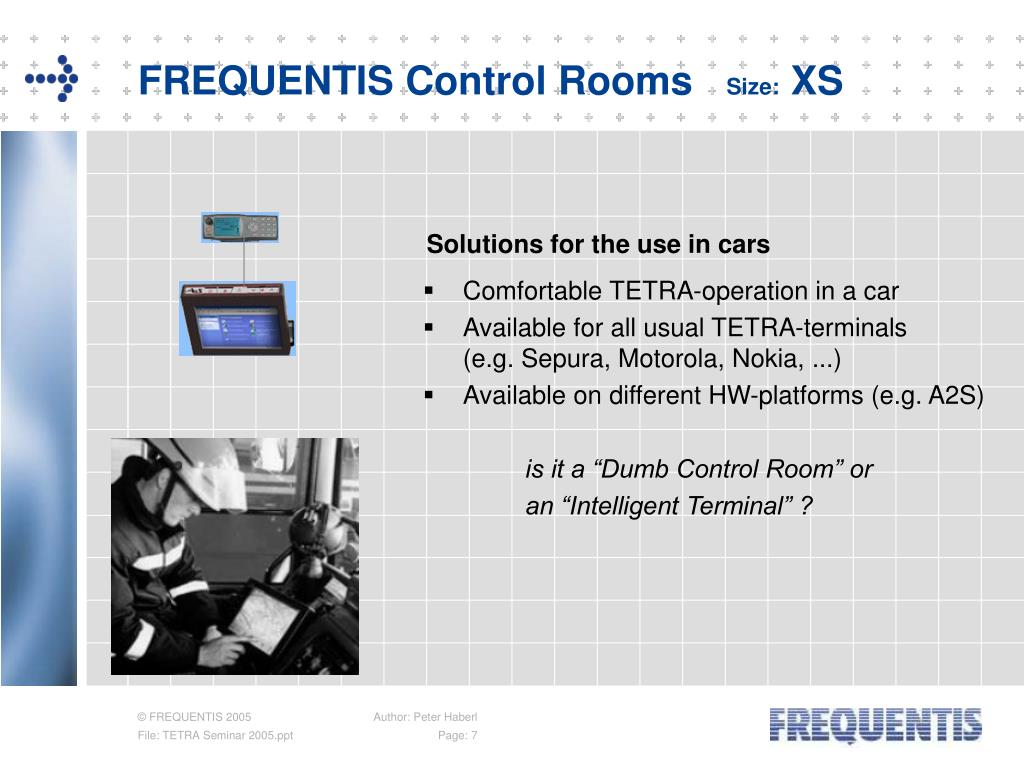

  7. FREQUENTIS Control Rooms Size: XS Solutions for the use in cars • Comfortable TETRA-operation in a car • Available for all usual TETRA-terminals (e.g. Sepura, Motorola, Nokia, ...) • Available on different HW-platforms (e.g. A2S) is it a “Dumb Control Room” or an “Intelligent Terminal” ?

  8. FREQUENTIS Control Rooms Size: S Solutions for small fire- or police stations, MD on duty stations or for command-vehicles. • Comfortable TETRA-operation • Available for all usual TETRA-networks (e.g. Motorola, Nokia, FREQUENTIS,...) • Optional telephone-integration • No parallel operation of several groups • Very simple to use • if running on DICORA easy to be operated by untrained personal / people • available an standard-PC‘s and DICORA

  9. FREQUENTIS Control Rooms Size: M Solution for Radio-centers (e.g. large fire-stations without being alarm-centers) or for small Control Rooms (or spare Control Rooms) • Comfortable TETRA-operation • Available for all usual TETRA-networks (e.g. Motorola, Nokia, FREQUENTIS,...) • Optional telephone-integration • Parallel operation of several groups • Network enabled (centralized administration) • Interfaces for CAD-integration (Control Room Support Systems) • Connection for (long-time) recording- and logging systems • Available on standard-PC’s and on DICORA

  10. FREQUENTIS Control Rooms Size: L Fully integrated Control Room Solutions for Emergency Call Centers and Control Rooms for the Police, Fire and Ambulance Services • Unified operation for telephone, analogue radio and digital radio • Hugh number of additional features (e.g. facility management, CCTV-systems,...) • Role-concepts for task-oriented functions • Interfaces for CAD-integration (Control Room Support Systems) • Connection for (long-time) recording- and logging systems • Highest Reliability and Availability • Networked Control Rooms

  11. Features - Overview TETRA-features • Direct Call • Group call • Call Lists • Direct Dial • Directory • Monitoring (one channel) • Short Data Service • Status Massages • Phone Call (via TETRA) Telephone-features • Phone Call • CLIP • Direct Dial • Directory • Dial Pad • Hold, Transfer, switch between calls • Call-List Analogue Radio-features • Radio-Call (one channel) • Group Call • Monitoring (one channel) • Monitoring (several ch.) • Repeater Mode • Status Messages • 5-Tone Alarming • Conferences • Call-Monitoring • Monitor, Suggest, Intervene • Automatic Call Distribution (ACD) Additional features • Replay (short time recording) • Monitoring (several Ch.) • Multi-Group Call • Dyn. Group Mngmt. • Network-specific features • Recording • CAD-Integration • Voice Messages • Role-concept • Facility Management • Traffic Light Control • CCTV-Control • all solutions • only S,M, L Inter-NW features • Conferences • Call Transfer • only M, L • only L

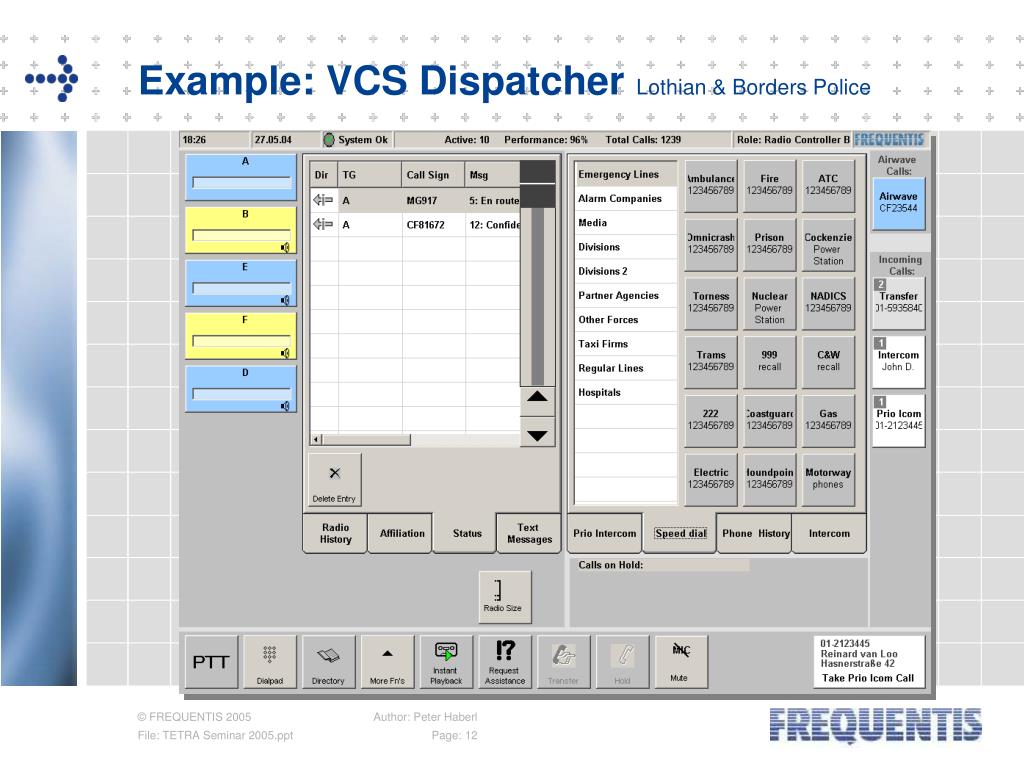

  12. Example: VCS Dispatcher Lothian & Borders Police

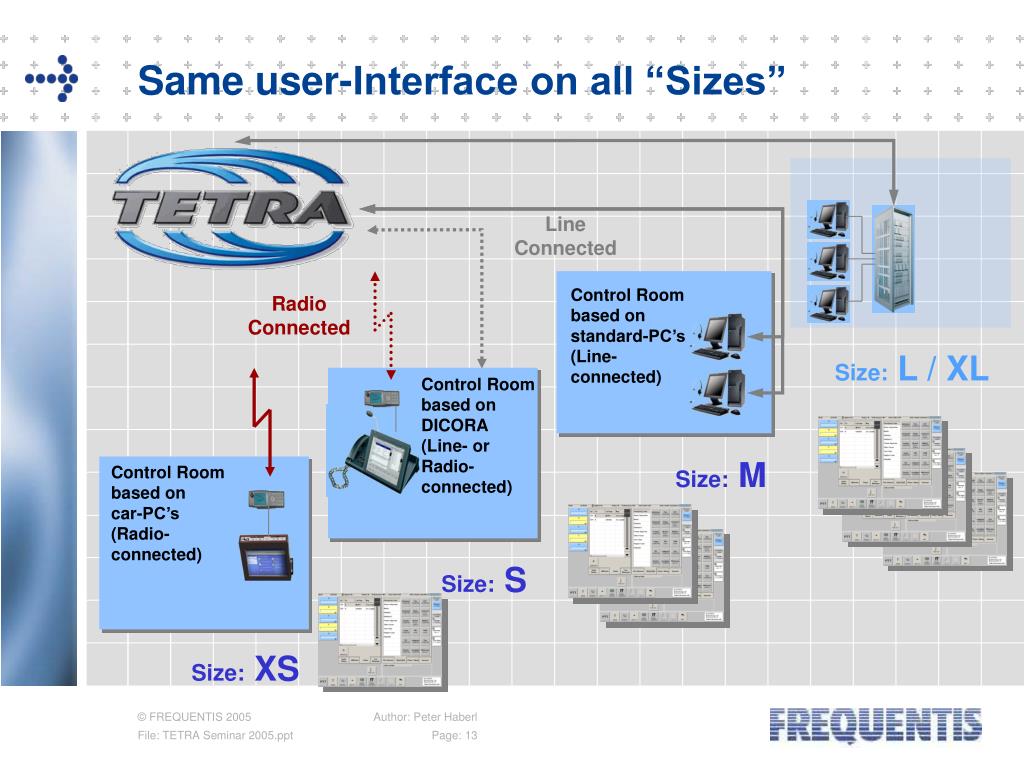

  13. Same user-Interface on all “Sizes” Line Connected Control Room based on standard-PC’s (Line-connected) Radio Connected Size: L / XL Control Room based on DICORA (Line- or Radio-connected) Size: M Control Room based on car-PC’s (Radio-connected) Size: S Size: XS

  14. DICORA • best solution for small or spare control rooms or command cars • „All-in-One-Terminal“ from FREQUENTIS • Touch Screen-operation Laptop • monitoring from home or “på hytten” • mouse & keyboard operation Standard-PC Car-PC • best solution to use in cars (fits in DIN-radio slot) • different vendors • Touch Screen-operation • best solution for small Control Rooms or large Radio Centers • with FREQUENTIS plug-in cards • Touch Screen or mouse & keyboard operation Hardware-Platforms

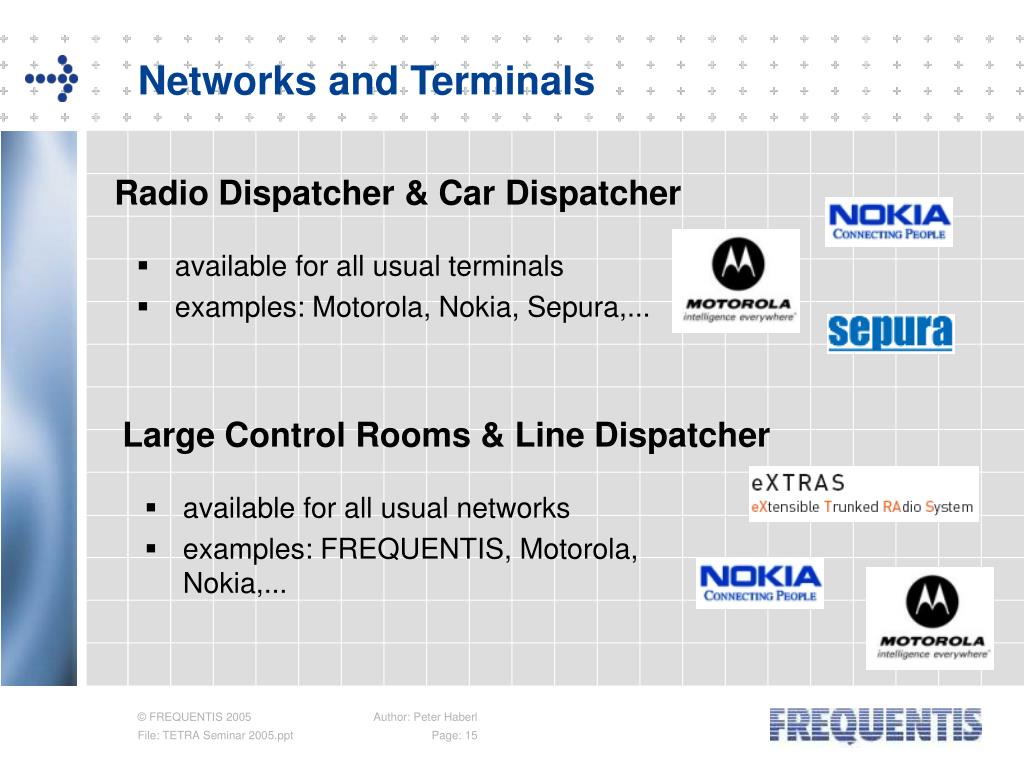

  15. Large Control Rooms & Line Dispatcher • available for all usual networks • examples: FREQUENTIS, Motorola, Nokia,... Radio Dispatcher & Car Dispatcher • available for all usual terminals • examples: Motorola, Nokia, Sepura,... Networks and Terminals

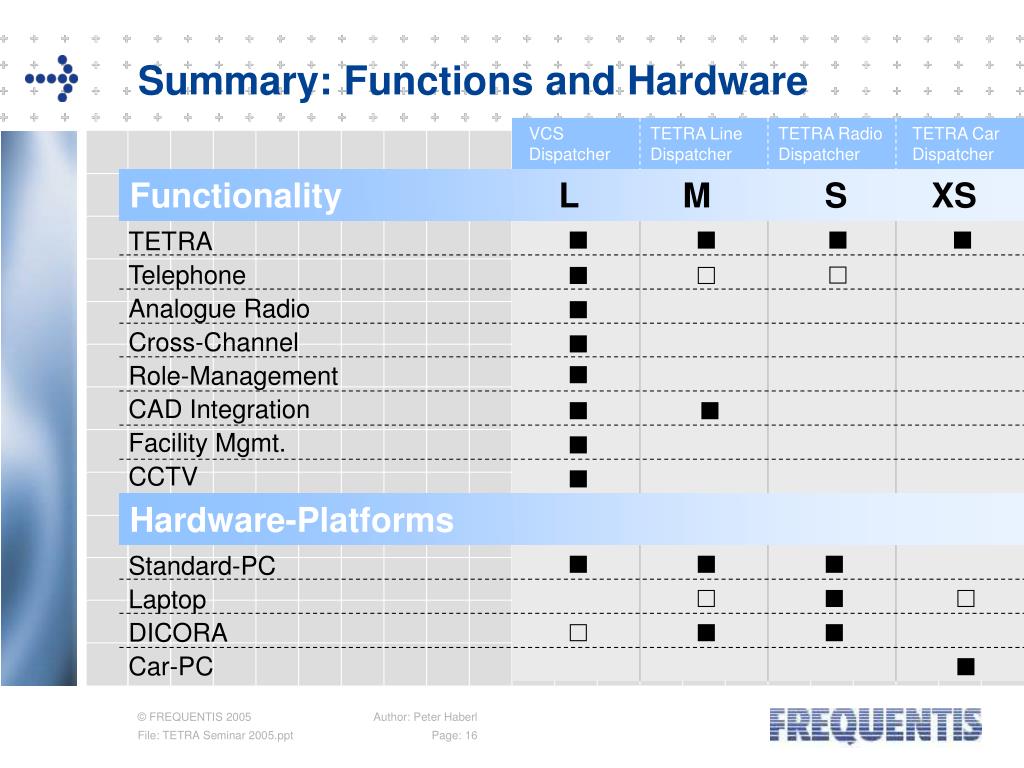

  16. VCS Dispatcher TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher Functionality L M SXS TETRA Telephone Analogue Radio Cross-Channel Role-Management CAD Integration Facility Mgmt. CCTV               Hardware-Platforms Standard-PC Laptop DICORA Car-PC           Summary: Functions and Hardware

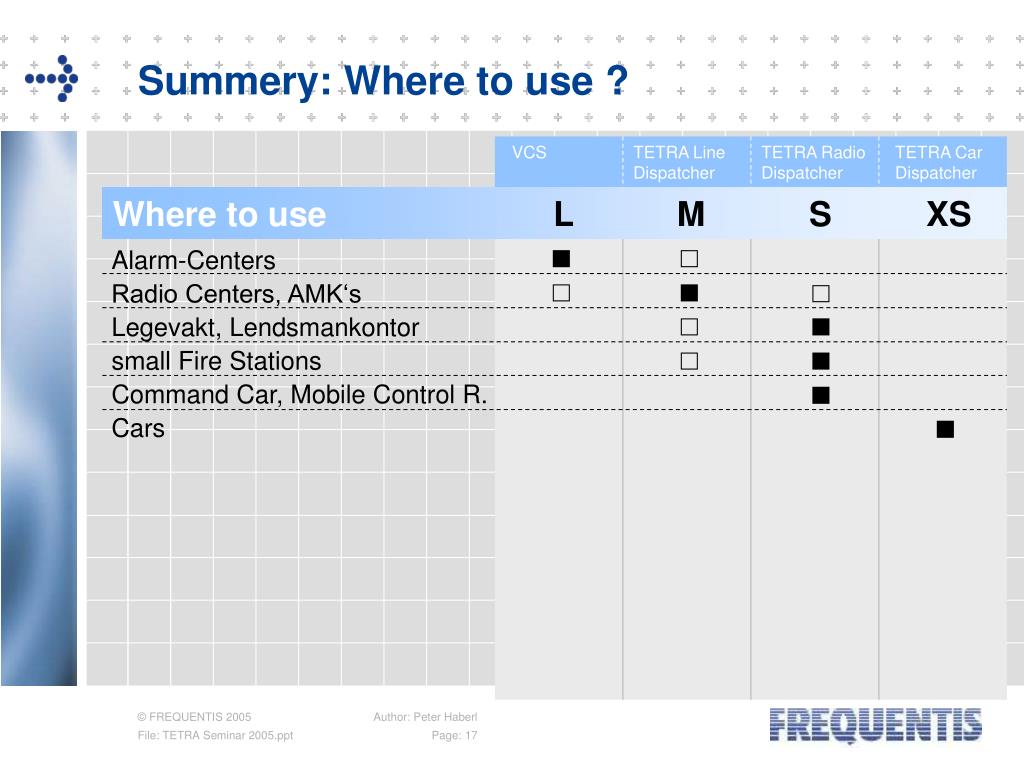

  17. VCS TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher Where to use L M S XS Alarm-Centers Radio Centers, AMK‘s Legevakt, Lendsmankontor small Fire Stations Command Car, Mobile Control R. Cars            Summery: Where to use ?

  18. Dedicated solutions for different sizes „real“ Control Room Tunnel Control Room Legevakt Radio-Dispatcher Line-Dispatcher

  19. Thank you for your attention ! Peter Haberl FREQUENTIS GmbH +43.664.608 50 2189 peter.haberl@frequentis.com

  20. VCS Dispatcher TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher TETRA-functions L M S XS direct call group call multi-group call call-lists direct dial phonebook monitoring (one channel) monitoring (different channels) Short Data Service Status messages telephone call (via TETRA) dynamic group management network-specific functions                                               Overview I

  21. VCS Dispatcher TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher Telephone-functions L M S XS telephone call CLIP prioritized queues call hold, transfer, switch between monitor, suggest, intervene conferencing call list call monitoring direct dial phone book dialing block automatic call distribution (ACD) tracing                                Overview II

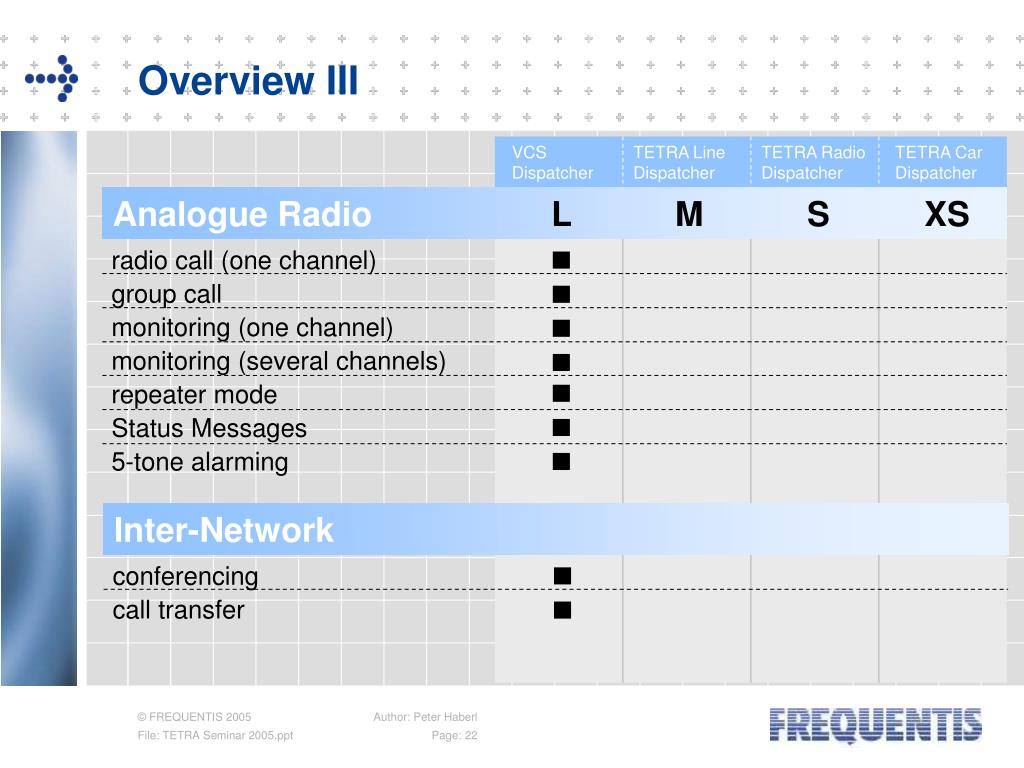

  22. VCS Dispatcher TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher Analogue Radio L M S XS radio call (one channel) group call monitoring (one channel) monitoring (several channels) repeater mode Status Messages 5-tone alarming        Inter-Network conferencing call transfer   Overview III

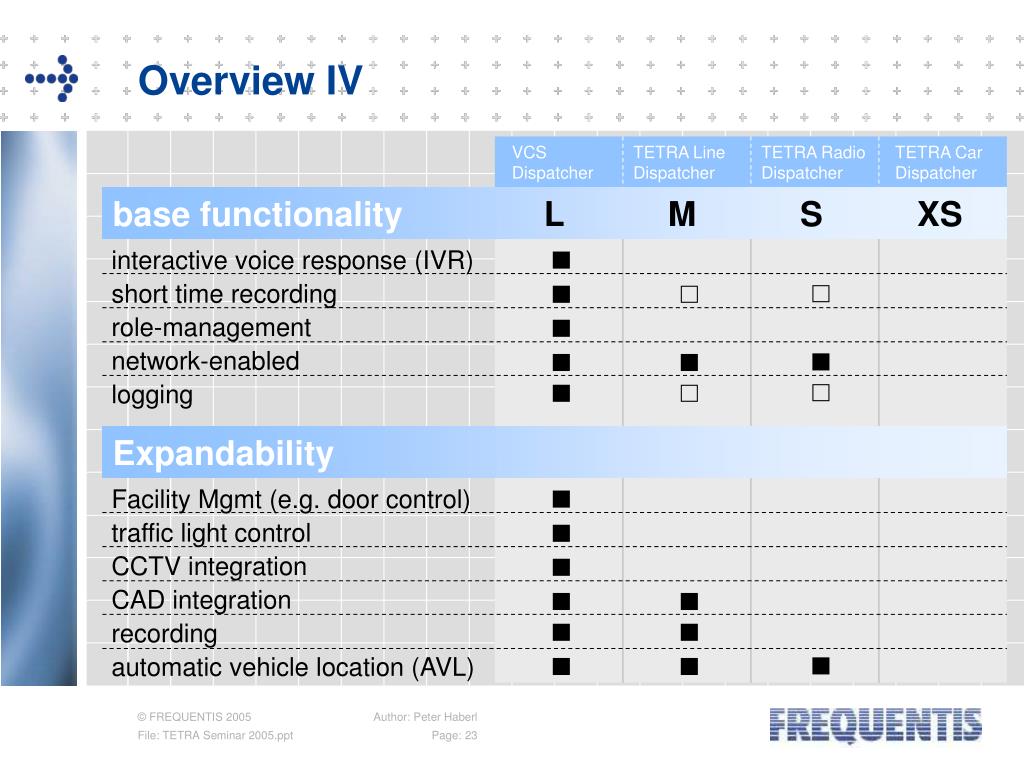

  23. VCS Dispatcher TETRA Line Dispatcher TETRA Radio Dispatcher TETRA Car Dispatcher base functionality L M S XS interactive voice response (IVR) short time recording role-management network-enabled logging            Expandability Facility Mgmt (e.g. door control) traffic light control CCTV integration CAD integration recording automatic vehicle location (AVL)           Overview IV
