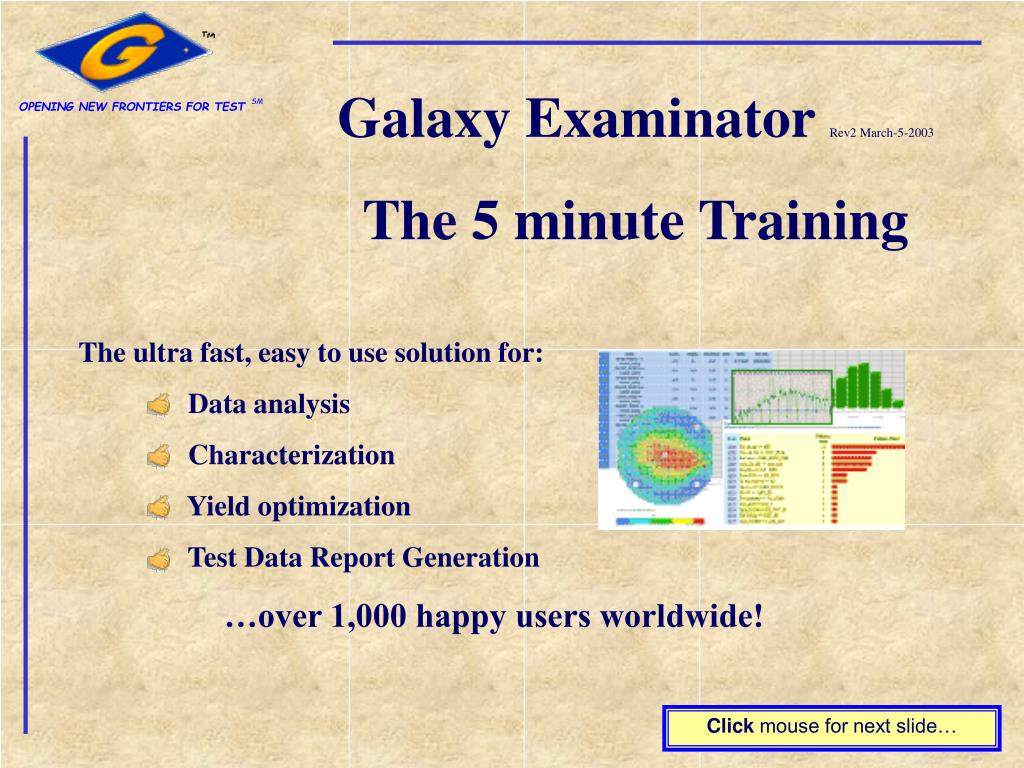

  1. …over 1,000 happy users worldwide! Galaxy Examinator Rev2 March-5-2003 The 5 minute Training The ultra fast, easy to use solution for: Data analysis Characterization Yield optimization Test Data Report Generation Click mouse for next slide…

  2. Toolbar: • Browse pages: Easily revisit any page • ‘Copy’ icon to capture reports into the clipboard • Print report pages (Printer, PDF,…) • Get Contextual Help at any time! Tutorials and ‘HOW TO…’: > Click ‘Neptus’ to review Case Studies > See how to filter parts, bins, tester site > See how to merge lots, compare data > And much more! Examinator Startup page • Examinator Environment: • Ultra Easy To Use: click icons and action links • Immediate access: no server setup, no database • Directly reads test data files (STDF,ATDF,…): no converter needed Click mouse for next slide…

  3. To Analyze one file…(see test statistics, histograms, wafer map, trends,…) For correlation studies: Compare files, testers, test sites,…Get Instant correlation report with drifts alarms highlighted! Advanced merge/compare tasks To analyze multiple files or production data over a given time period is a snap: filter on dates, lot names, testers, etc… Step#1: Select Your Mission… Click mouse for next slide…

  4. This page comes automatically after you click your mission link from the Examinator Home page… First: Select your files. For quick & easy merge of complete lots, use the ‘Smart Import’ calendar icon… …or pick your files one by one Then: Double click any file to define its data filter: filter specific parts, binning, or tester site. You’re ready to select the reports to build! Step#2: Select your data files Click mouse for next slide…

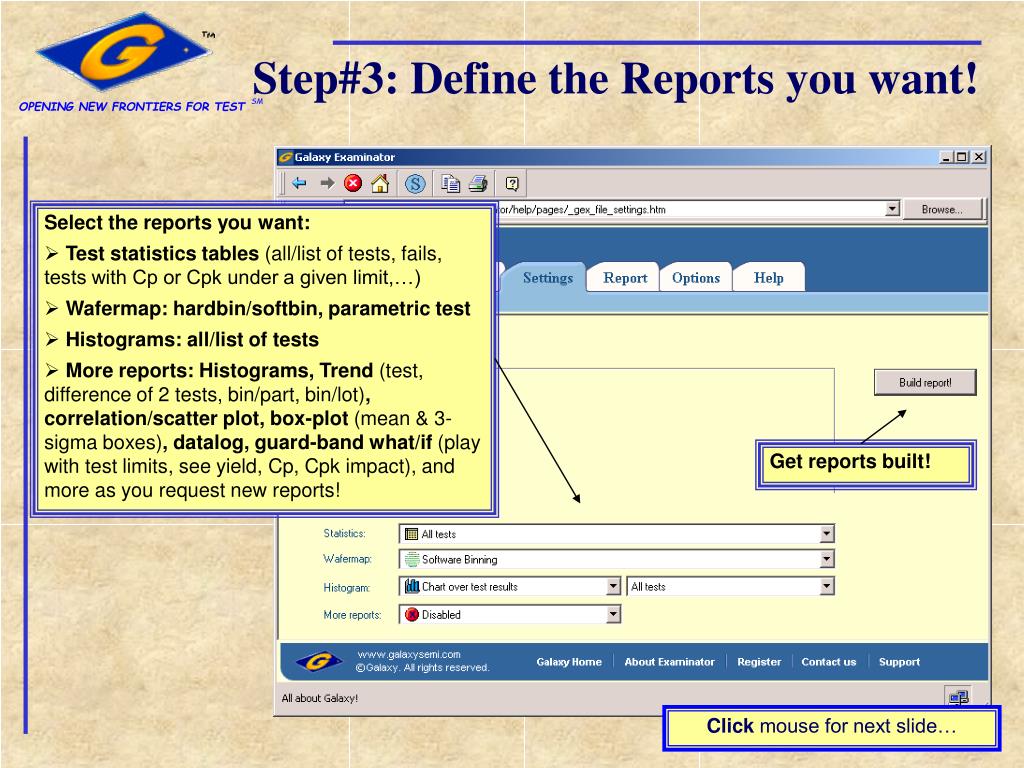

  5. Select the reports you want: • Test statistics tables (all/list of tests, fails, tests with Cp or Cpk under a given limit,…) • Wafermap: hardbin/softbin, parametric test • Histograms: all/list of tests • More reports: Histograms, Trend (test, difference of 2 tests, bin/part, bin/lot), correlation/scatter plot, box-plot (mean & 3-sigma boxes), datalog, guard-band what/if (play with test limits, see yield, Cp, Cpk impact), and more as you request new reports! Get reports built! Step#3: Define the Reports you want! Click mouse for next slide…

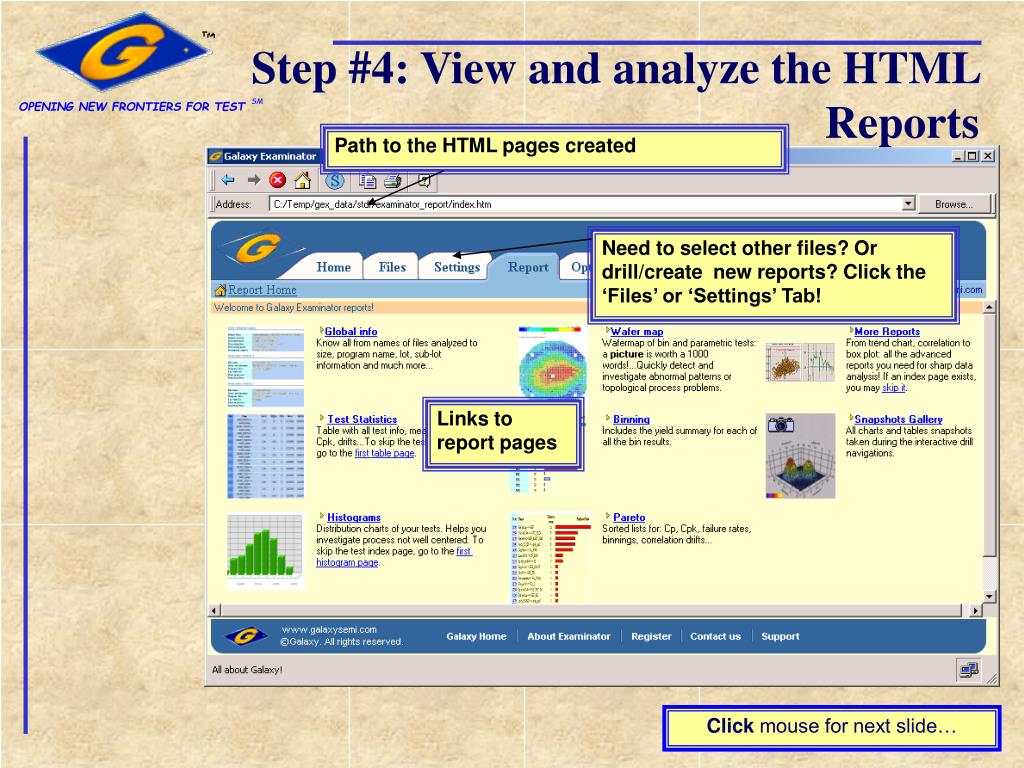

  6. Path to the HTML pages created Need to select other files? Or drill/create new reports? Click the ‘Files’ or ‘Settings’ Tab! Step #4: View and analyze the HTML Reports Links to report pages Click mouse for next slide…

  7. Customize Examinator and its reports in only a few mouse clicks! • Change report generation from HTML to Excel/CSV • Set outlier policy • Set reports markers, fields to display, plots types & size • And much more! Customize: The ‘Options’ tab Click mouse for next slide…

  8. Examinator: It’s That Simple! This 6-slide Training is over! You’ve learned all the basics…in only 5 minutes. And after 30minutes of practice, you’ll feel at home! Any question? Check the ‘Help’ tab, or send your question to the support team: support.examinator@galaxysemi.com Click mouse to Exit…
