  1. SICB under CMT • Why? • What is CMT? • Package layout • manager • working area and release area • How to work with CMT? • Analysis work • Developer work F.Ranjard / EP-ALE

  2. Why ? • When moving from CMZ to CVS we tried to create 3 independent programs: • simulation, reconstruction and analysis • We did not succeed : • there is one program SICB which does everything and several specific executables. • SICB can be seen as a collection of packages: • utility to handle data structures and I/O shared by Gaudi • events to handle initialization, data cards, event loop. • detdesa detector description package • detector specific packages for simulation, reconstruction, trigger • analysis packages F.Ranjard / EP-ALE

  3. Why? (2) • The evolution in time of theses packages is quite different: • utility and events are stable • detector description is rather stable: changes are put in the geometry database. • detector specific evolve at different speed. • analysis is independent of the other. • ==> Let packages evolve independently. • ==> each package carries its own version number and can be released at any time. • At a given time the librarian releases a new SICB version made of a list of packages/versions. F.Ranjard / EP-ALE

  4. An Example • SICB v118 is not fully debugged • Is it feasible to make a SICB v??? based on the SICB v116 geometry but linked with Pythia and QQ • The event generator should not depend on detector geometry and response. • In the same way it should be possible to link a new Calorimeter simulation with an old vertex simulation. F.Ranjard / EP-ALE

  5. List of packages • Utility packages • Finclude contains all include files needed by Gaudi • Futio contains all routines used by Gaudi • Futil contains utility routines but geometry • Detector description package • detdes contains the old utgeom files • it makes use of utility packages • Event loop package • events manages the initialization and the event loop • it makes use of detdes package F.Ranjard / EP-ALE

  6. List of packages(2) • Simulation packages • simecal, simhcal, simmuon, simrich, simvdet, simwtra, • simguse,simskel, simgeom, simpgen • Reconstruction packages • rececal, recmuon, recvdet, recwtra, rechcal, recrich • Trigger packages • trielec, trihadr, trimuon, trivert, trilvl2, trit1tr, triskel, trit0v • they make use of eventspackage F.Ranjard / EP-ALE

  7. List of packages(3) • Analysis packages • axreclib, axacc, axtrkfit • General packages • kalman • They make use of detdes and utility packages • SICB contains the main program • makes use of all packages • contains • the main program, various tasks, data cards, job file • ===> We end up with 35 packages!!!!! F.Ranjard / EP-ALE

  8. How to handle 35 packages? • We need a Configuration Management Tool (CMT) • Several such a tool exist in the HEP community: • SoftRelTool / BaBar, SoftRelTool / Fermilab, SRT /ATLAS • CMT / LAL written by C.Arnault • We recommend CMT until a better or CERN-wide solution is found. F.Ranjard / EP-ALE

  9. What is CMT? • CMT handles a package or a collection of packages. • It has some knowledge about : • compiler • link editor • conditional code • this knowledge can be customized by the user. • It builds makefiles to build libraries or executables. • each package has a manager which tells CMT what to do (a library or/and application) and how to do it. F.Ranjard / EP-ALE

  10. mgr Package layout Package name Version number packA $PACKAROOT manager v1 v1r1 v2 doc hp-ux102 hp-ux102 inc rs-aix42 src i386 binary F.Ranjard / EP-ALE

  11. Working area / release area • This package layout can reside in yourworking areaor/andin theLHCb release area. • To modify a package you need to get it in yourworkingarea:$HOME/mycmt • when a package becomes public it is installed in theLHCb release area:$LHCBSOFT. • To tell CMT where to find various packages you need for your application you should set the $CMTPATH environment variable:setenv CMTPATH$HOME/mycmt:$LHCBSOFT F.Ranjard / EP-ALE

  12. mgr/ • mgr contains a requirements file provided by the user and all files built by CMT • makefile • configuration files • the requirements file contains everything CMT should know about the package to build a library or an application. F.Ranjard / EP-ALE

  13. Comment line Package name version number subdirectory list include directory path use package-name version what to build binary library link options specific compiler options # package Futio version v1 branchesdoc src mgr utio include_dirs${FUTIOROOT} useFinclude v1 libraryFutio ../src/*.F macro Futio_linkopts \“${FUTIOROOT}/$(Futio_tag)/libFutio.a” macro Futio_fflags \“ any options specific to this package” Futio/v1/mgr/requirements F.Ranjard / EP-ALE

  14. SICB manager • package SICB • version v118 • branches src mgr doc task1 task2 • use simecal v1 • use simhcal v1 • use simrich v2 • ---- • application sicb.exe ../src/sicb.F ../task1/*.F • macro SICB_linkopts “ ${GUSER} “ • macro+ SICB_linkopts “”\HP-UX “ -Wl,+n”\ HPdbx “ -g -Wl,+n”\ OSF1 “ ${SICBROOT}/$(sicb_tag)/libSICB.a”\ OSFdbx “ -g ${SICBROOT}/$(sicb_tag)/libSICB.a” F.Ranjard / EP-ALE

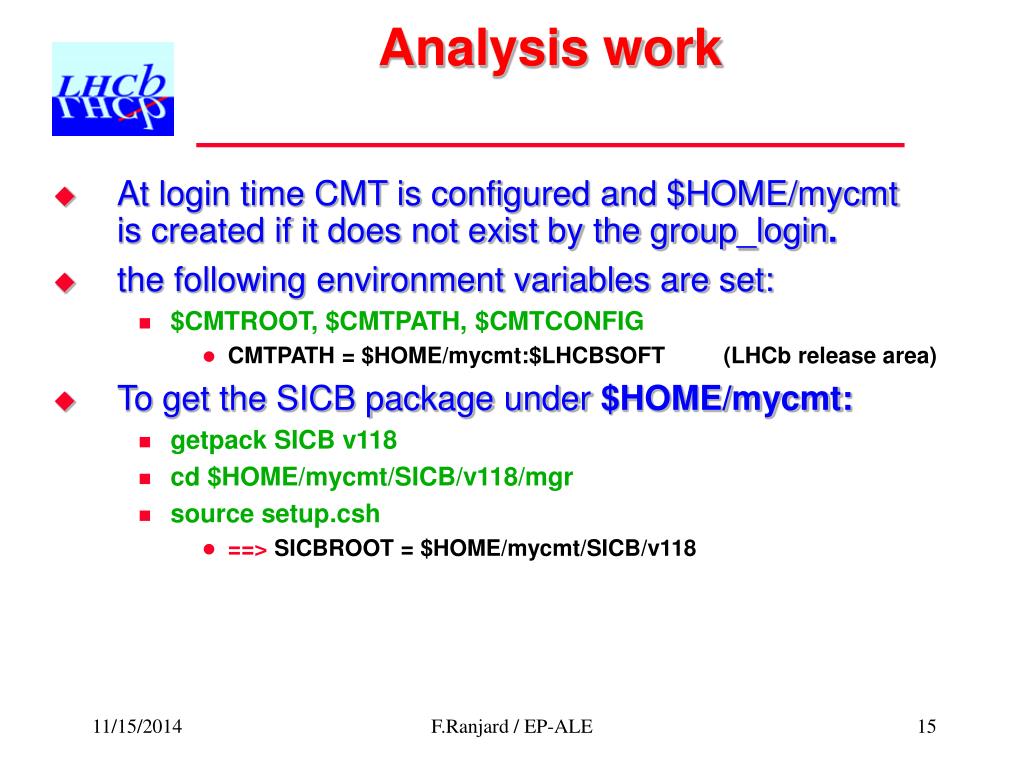

  15. Analysis work • At login time CMT is configured and $HOME/mycmtis created if it does not exist by the group_login. • the following environment variables are set: • $CMTROOT, $CMTPATH, $CMTCONFIG • CMTPATH = $HOME/mycmt:$LHCBSOFT (LHCb release area) • To get the SICB package under $HOME/mycmt: • getpack SICB v118 • cd $HOME/mycmt/SICB/v118/mgr • source setup.csh • ==> SICBROOT = $HOME/mycmt/SICB/v118 F.Ranjard / EP-ALE

  16. Analysis work(2) • The physicist will link SICB with libraries from the release area. • cd $SICBROOT/mgr • edit requirements to select task1 or task2 or your own code • gmake • ../$CMTCONFIG/sicb.exe is built • cd .. • edit sicb.dat or sicb.cards or sicb_lsf.job • $CMTCONFIG/sicb.exe • everytime you modify the code • gmake F.Ranjard / EP-ALE

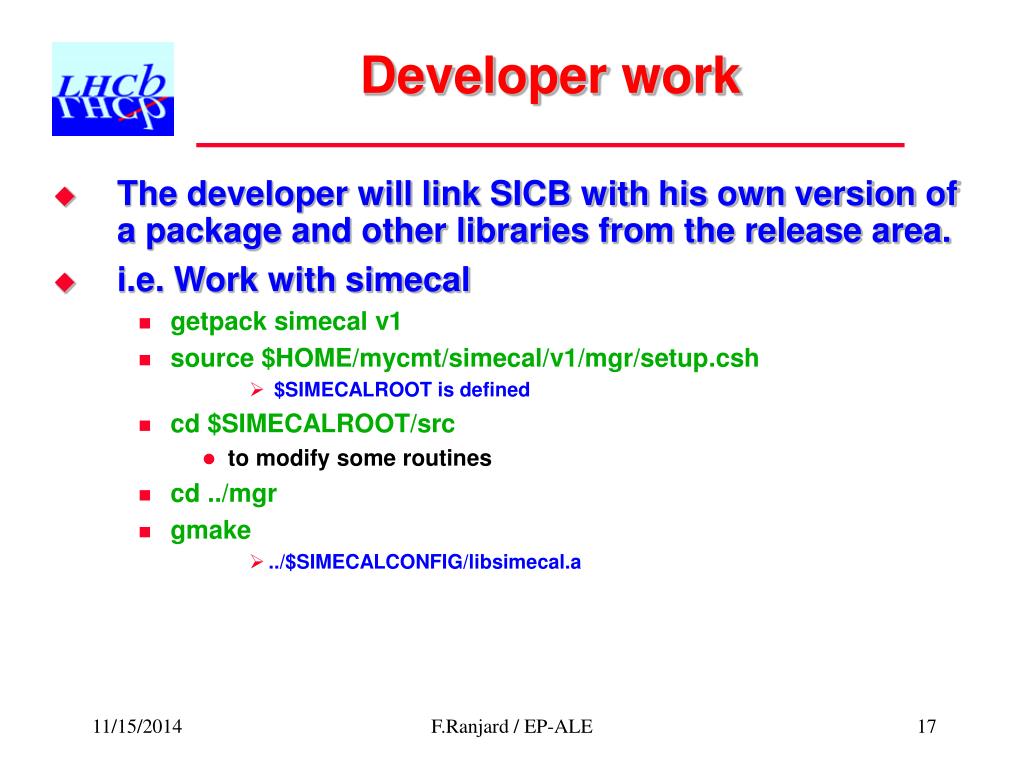

  17. Developer work • The developer will link SICB with his own version of a package and other libraries from the release area. • i.e. Work with simecal • getpack simecal v1 • source $HOME/mycmt/simecal/v1/mgr/setup.csh • $SIMECALROOT is defined • cd $SIMECALROOT/src • to modify some routines • cd ../mgr • gmake • ../$SIMECALCONFIG/libsimecal.a F.Ranjard / EP-ALE

  18. Developer work (2) • Tell CMT to use packages from your working area when they exist: • setenv CMTPATH $HOME/mycmt:$LHCBSOFT • build an application with new simecal library • cd $SICBROOT/mgr • cmt show uses • to check that the new simecal library is used • gmake • cd .. • Edit data cards if necessary • $CMTCONFIG/sicb.exe F.Ranjard / EP-ALE

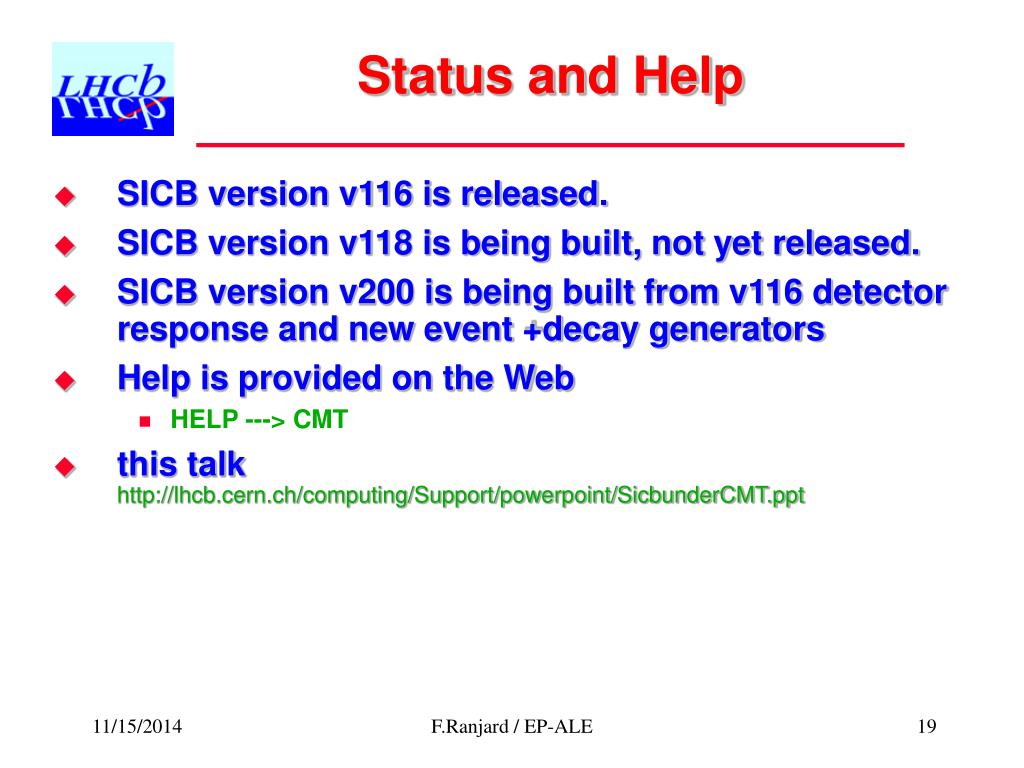

  19. Status and Help • SICB version v116 is released. • SICB version v118 is being built, not yet released. • SICB version v200 is being built from v116 detector response and new event +decay generators • Help is provided on the Web • HELP ---> CMT • this talkhttp://lhcb.cern.ch/computing/Support/powerpoint/SicbunderCMT.ppt F.Ranjard / EP-ALE
