Introduction to Petroleum Industry

Introduction to Petroleum Industry. Structured around major activities:. Up Stream: Exploration Drilling Production Reservoir. Structured around major activities:. Down Stream: Transportation Refining Petrochemicals Marketing

Download Presentation

Introduction to Petroleum Industry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Introduction to Petroleum Industry

  2. Structured around major activities: Up Stream: • Exploration • Drilling • Production • Reservoir

  3. Structured around major activities: Down Stream: • Transportation • Refining • Petrochemicals • Marketing Division of work may change: time, location, size, policies, laws

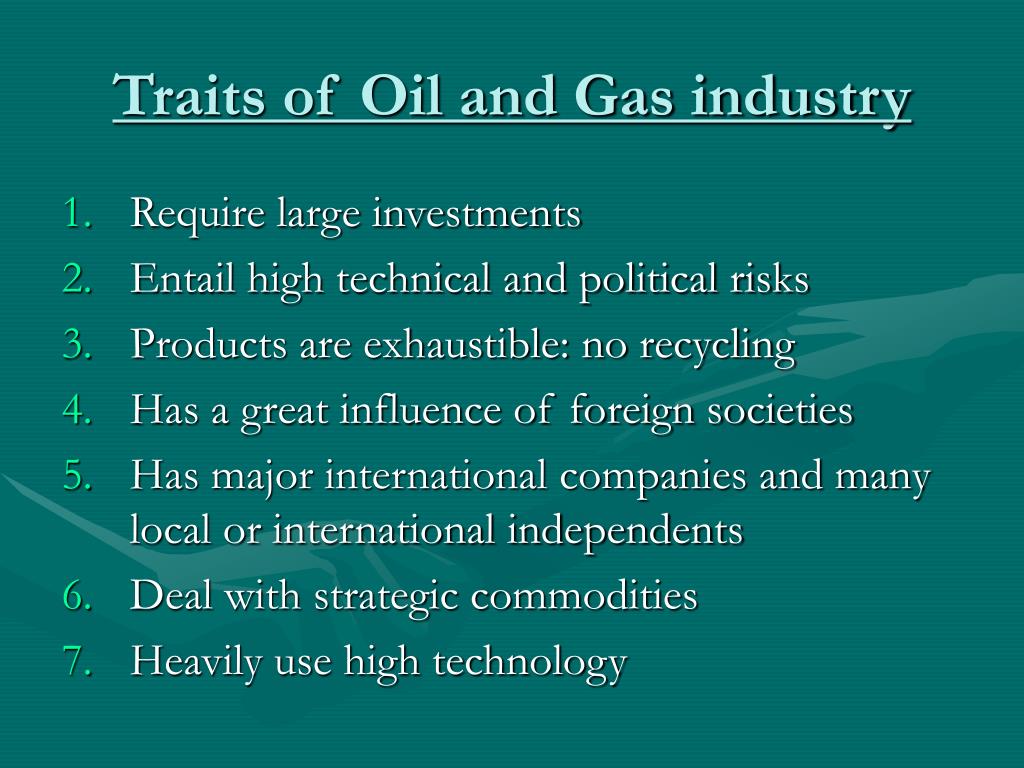

  4. Traits of Oil and Gas industry • Require large investments • Entail high technical and political risks • Products are exhaustible: no recycling • Has a great influence of foreign societies • Has major international companies and many local or international independents • Deal with strategic commodities • Heavily use high technology

  5. Weight of the ME in World’s Energy • Share of production in 30% ( 22 MMB/D ) • Low regional consumption • Big share of reserves: oil 65% , Gas 30% • Low production cost • Strategic location • Surplus refined products ( 23% from their production )

  6. The Future : Weight of ME • World will still depend on oil and gas • ME lead will continue • Major reserves will remain in the ME

  7. Main Market of Middle East Oil

  8. Major ME exporters of LNG

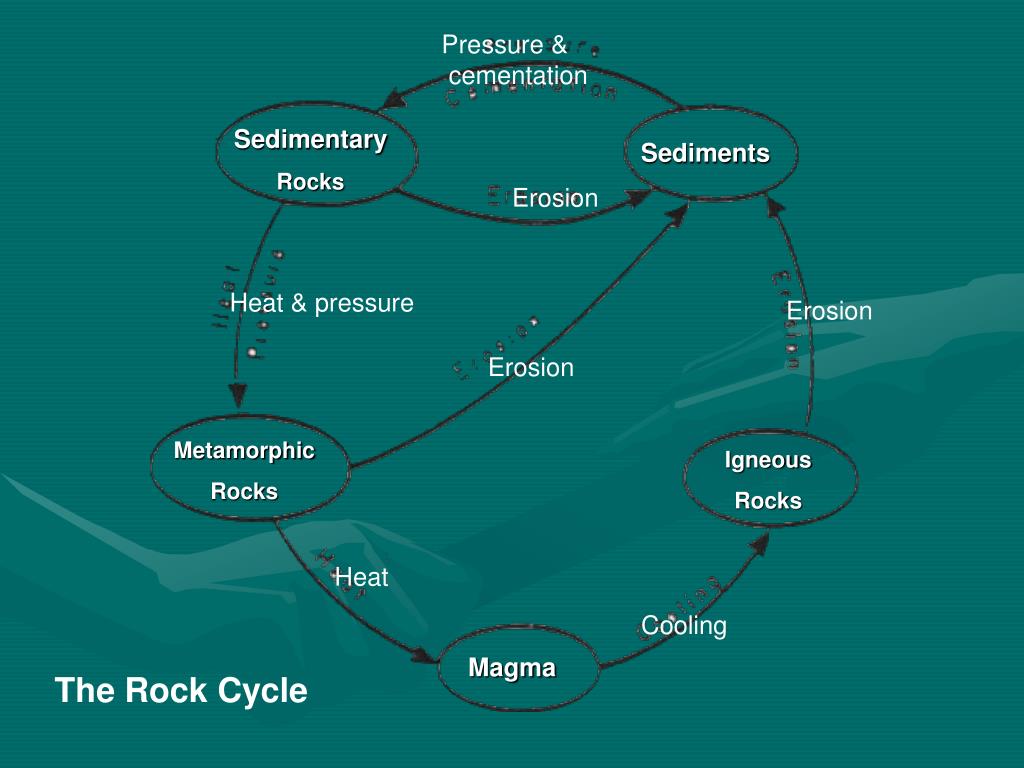

  9. Pressure & cementation Sedimentary Rocks Sediments Erosion Heat & pressure Erosion Erosion Metamorphic Rocks Igneous Rocks Heat Cooling Magma The Rock Cycle

  10. مصيدة متكونة نتيجة لقبة ملحية خارقة

  11. مصيدة تركيبة: أثر الفوالق على انفصال تجمعات النفط في مصايد منفصلة من الكتلة المتصدعة .

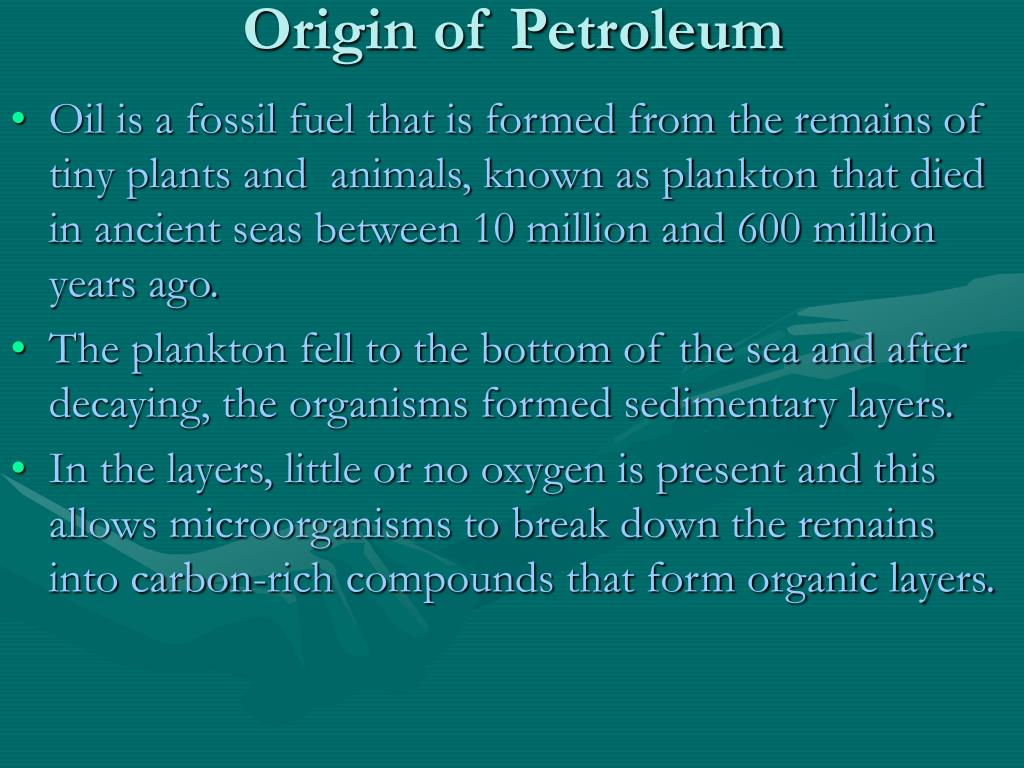

  12. Origin of Petroleum • Oil is a fossil fuel that is formed from the remains of tiny plants and animals, known as plankton that died in ancient seas between 10 million and 600 million years ago. • The plankton fell to the bottom of the sea and after decaying, the organisms formed sedimentary layers. • In the layers, little or no oxygen is present and this allows microorganisms to break down the remains into carbon-rich compounds that form organic layers.

  13. Origin of Petroleum • The organic material mix with the sediments to form fine-grained shale, or source rock. • As the sedimentary rocks layer, they exert extreme heat and pressure to distill the organic material into crude oil and natural gas.

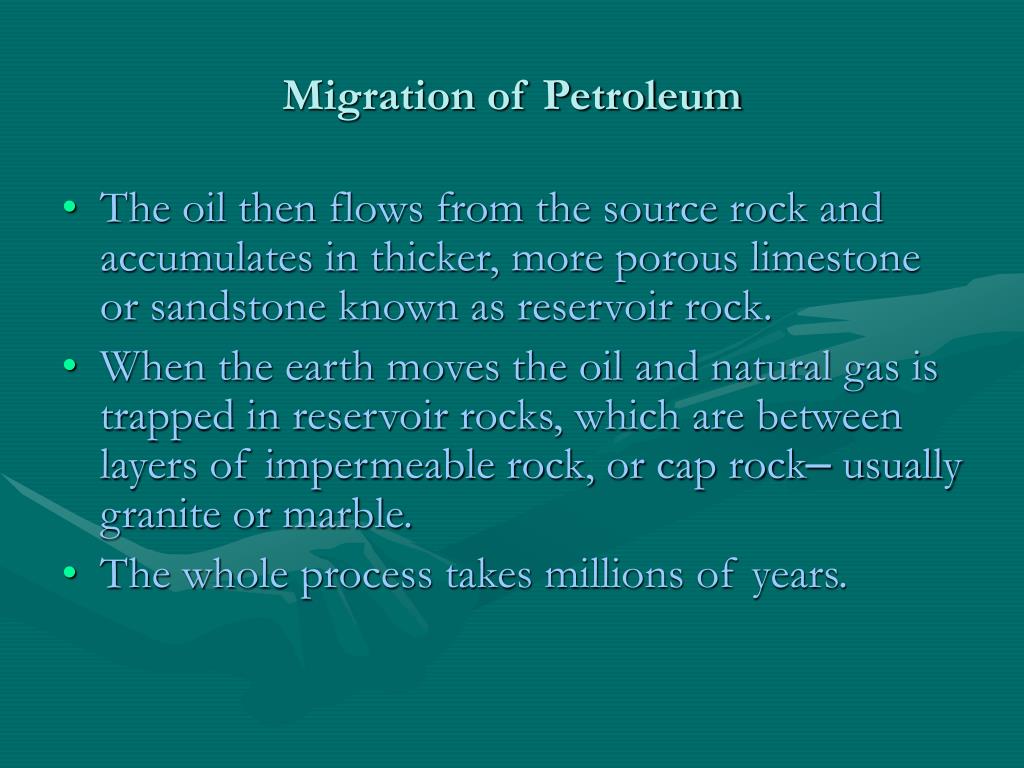

  14. Migration of Petroleum • The oil then flows from the source rock and accumulates in thicker, more porous limestone or sandstone known as reservoir rock. • When the earth moves the oil and natural gas is trapped in reservoir rocks, which are between layers of impermeable rock, or cap rock– usually granite or marble. • The whole process takes millions of years.

  15. Geophysical Prospecting Methods 1) Magnetic Surveying : Where : F - magnetic Force. A – constant generally unity. M1 & M2 – strength of the respective poles. r – distance between poles. M1 M2 r F = a 2

  16. M1 M2 d F = G 2 2) Gravity Surveying : Where : F – Gravitational force between two point masses M1 & M2 d – Distance between M1 & M2 G – Gravitational constant ( 6.67 × 10 m / kg S ) -11 2 3

  17. 3) Seismic Surveying .

  18. 3) Seismic Surveying • Oil geologists examine surface features, surface rock, reservoir rock, entrapment, satellite images, sensitive gravity meters and manometers. • The most common technique for finding reserves is seismology which uses shock waves that interpret waves reflected back to the surface. • Despite all the technologies, modern oil exploration methods are only 10 percent successful.

  19. 4) Remote Sensing: • Collection of data without the actual contact of the object . ( aeromagnetic & gravity ) . • Useful for topographic mapping specially in desert areas • When used in conjunction with other techniques such as gravity & magnetic , it may delineate anomalies that deserve further attention on the ground

  20. The Government and Oil companies usually assign finding oil to contracted geologists.
