  1. Coax21_18 Match to TE01 coaxial DLG Filter 3 cm--- 1 cm--- Inner conductor vg/c=3 % BW=150 MHz S11 filter S12

  2. Coaxial TE01 DLG Load Coax50.180 Vg/c=3 % BW=180 MHz Inner conductor .5m f_im=5.71 MHz =8.0 MHz Bw=90 MHz filter attenuator

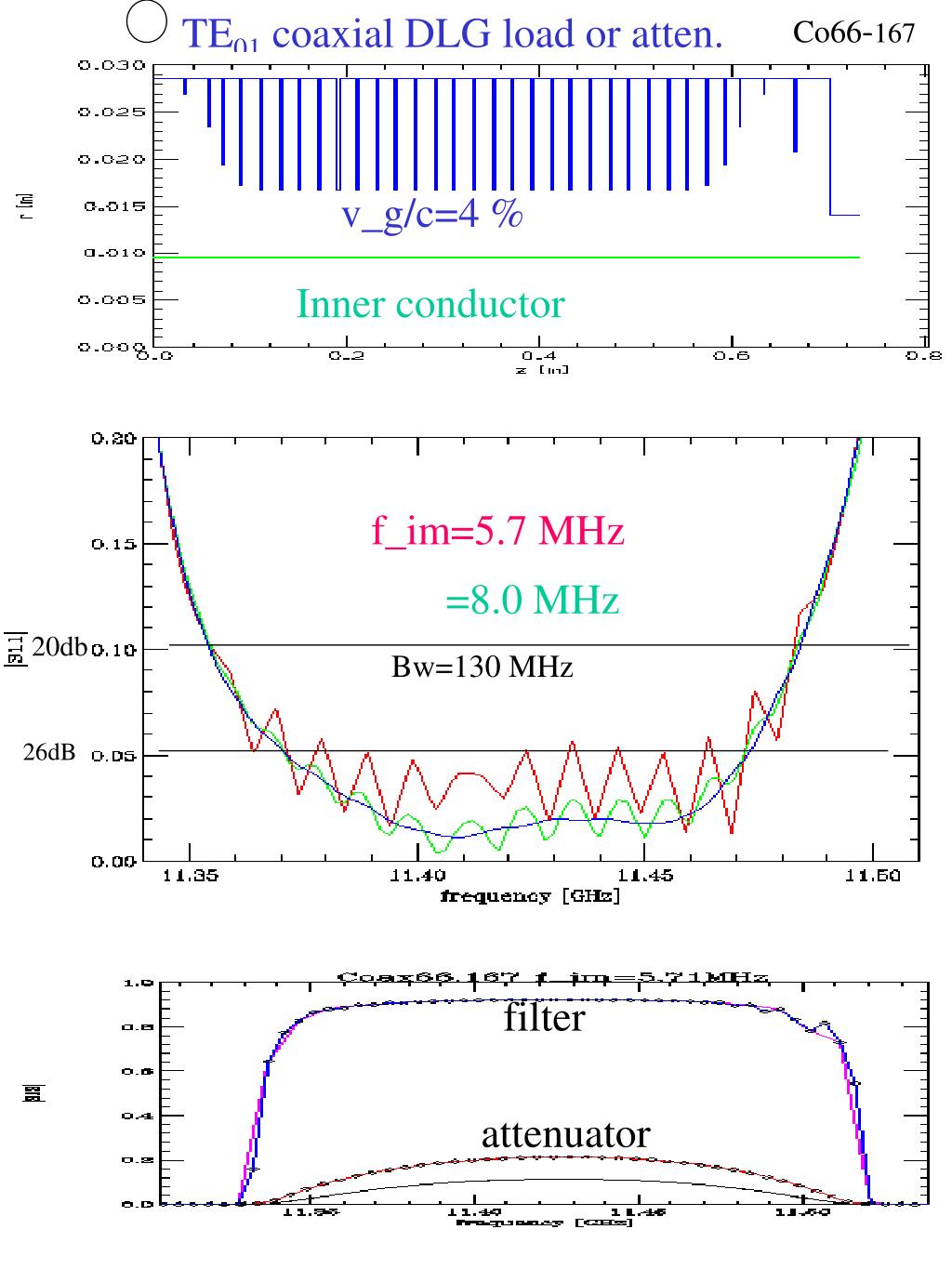

  3. TE01 coaxial DLG load or atten. Co66-167 v_g/c=4 % Inner conductor f_im=5.7 MHz =8.0 MHz 20db Bw=130 MHz 26dB filter attenuator

  4. TE01 coaxial DLG load or attenuator co66-167 v_g/c = 4 % Inner conductor Load f_im=5.7 MHz =8.0 MHz 26dB Attenuator 14 dB

  5. Coax50_167 TE01 coaxial DLG load or attenuator V_g/c = 4 % Inner conductor f_im=5.7 MHz =8 MHz Bw=130 MHz 26 dB Attenuator 14dB

  6. cova150 TE01 coaxial DLG load or attenuator Inner conductor Bw=250 MHz Fim=5.7 MHz and 8.0 MHz Vg=5 [%c] Bw=150 MHz 20dB

  7. Co44-167 Coaxial TE01 DLG load Vg= 4 [%c] Inner conductor Fim=5.71 MHz =8.5 MHz

  8. Coaxial TE01 DLG load or attenuator Co54.167 Vg= 4 [%c] Inner conductor Load Fim=5.71 MHz=8.0 MHz 12 dB attenuator

  9. zdf/match3 TE01 circular to coax match Inner conductor

  10. co150 TE01 coax load Fim=5.7 MHz =8.5 MHz Inner conductor
