SIP Call Flow

SIP Call Flow. Speaker: Hz-Ping Huang; Huan-Yao Kang Date: 2007.10.24. Outline. Observation of Call Flow SIP Registration SIP Call. Observation of Call Flow. SIP Registration. Registration Registration Update Contact List Request Un-Registration Unsuccessful Registration.

thad
Download Presentation

SIP Call Flow

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. SIPCall Flow Speaker: Hz-PingHuang; Huan-Yao Kang Date: 2007.10.24

  2. Outline • Observation of Call Flow • SIP Registration • SIP Call

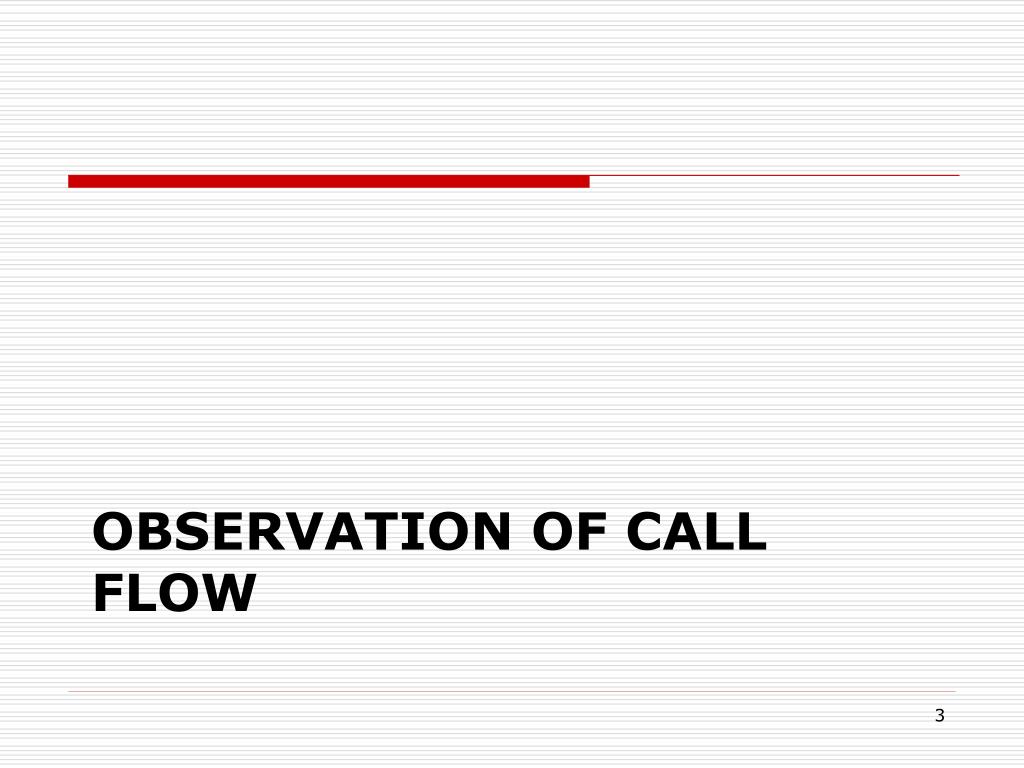

  3. Observation of Call Flow

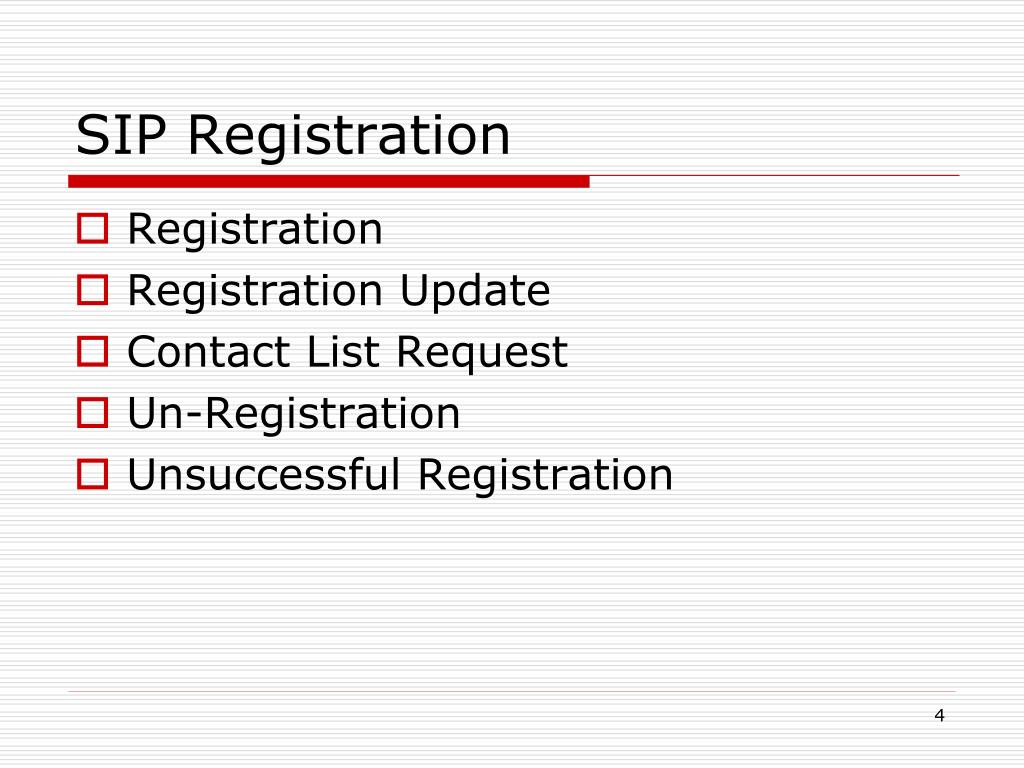

  4. SIP Registration • Registration • Registration Update • Contact List Request • Un-Registration • Unsuccessful Registration

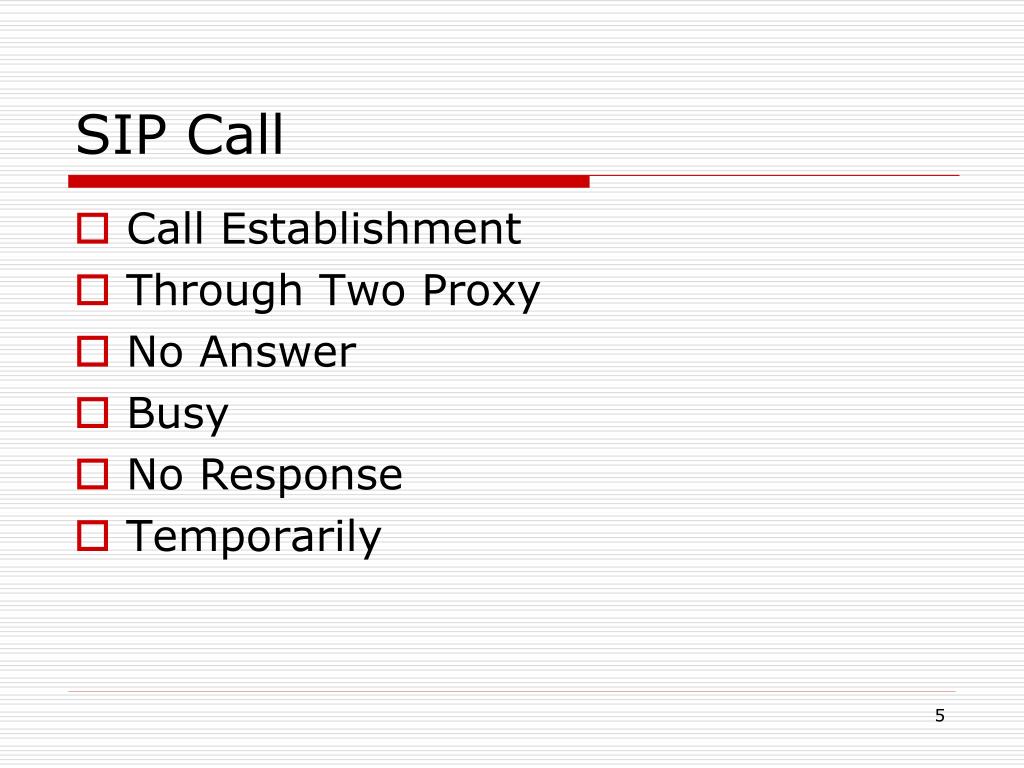

  5. SIP Call • Call Establishment • Through Two Proxy • No Answer • Busy • No Response • Temporarily

  6. SIP Registration

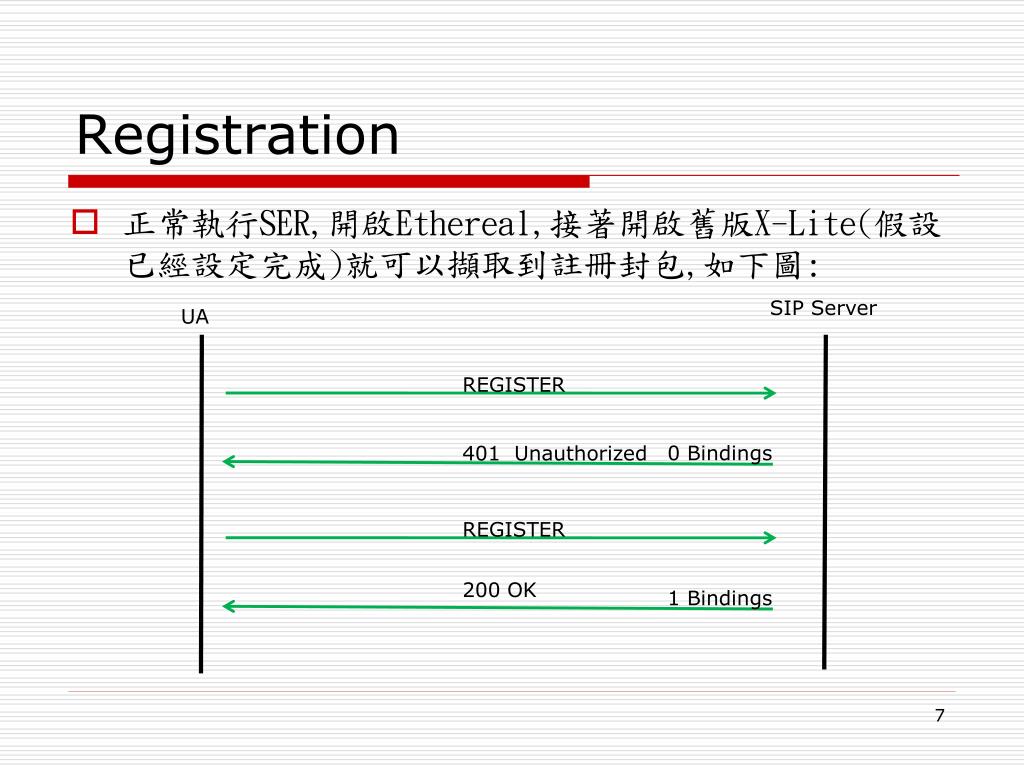

  7. 正常執行SER,開啟Ethereal,接著開啟舊版X-Lite(假設已經設定完成)就可以擷取到註冊封包,如下圖:正常執行SER,開啟Ethereal,接著開啟舊版X-Lite(假設已經設定完成)就可以擷取到註冊封包,如下圖: Registration SIP Server UA REGISTER 0 Bindings 401 Unauthorized REGISTER 200 OK 1 Bindings

  8. Bindings • O Bindings代表不帶Contact header的封包。 • 1 Bindings代表帶Contact header的封包。 Un-Register  0 bindings  no contact Register  1 bindings  contact

  9. Registration Update (1/3) • 在正常X-Lite and SER 已開啟情形下: • 每隔180sec會重新要求REGISTER一次

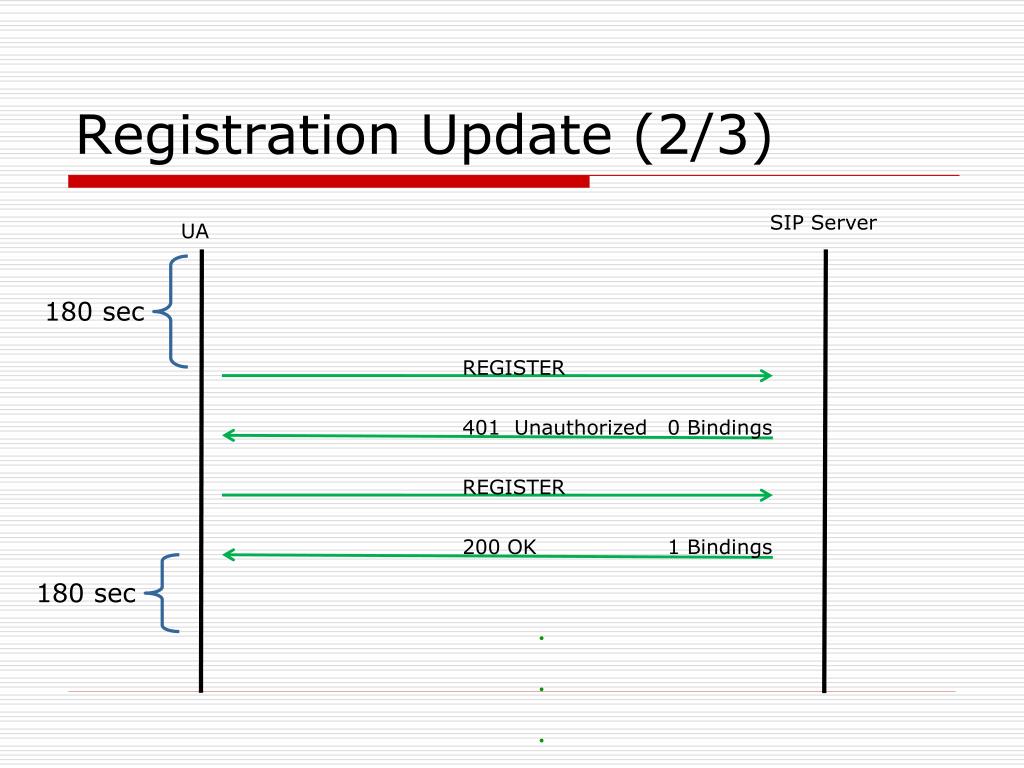

  10. Registration Update (2/3) SIP Server UA 180 sec REGISTER 401 Unauthorized 0 Bindings REGISTER 200 OK 1 Bindings 180 sec . . .

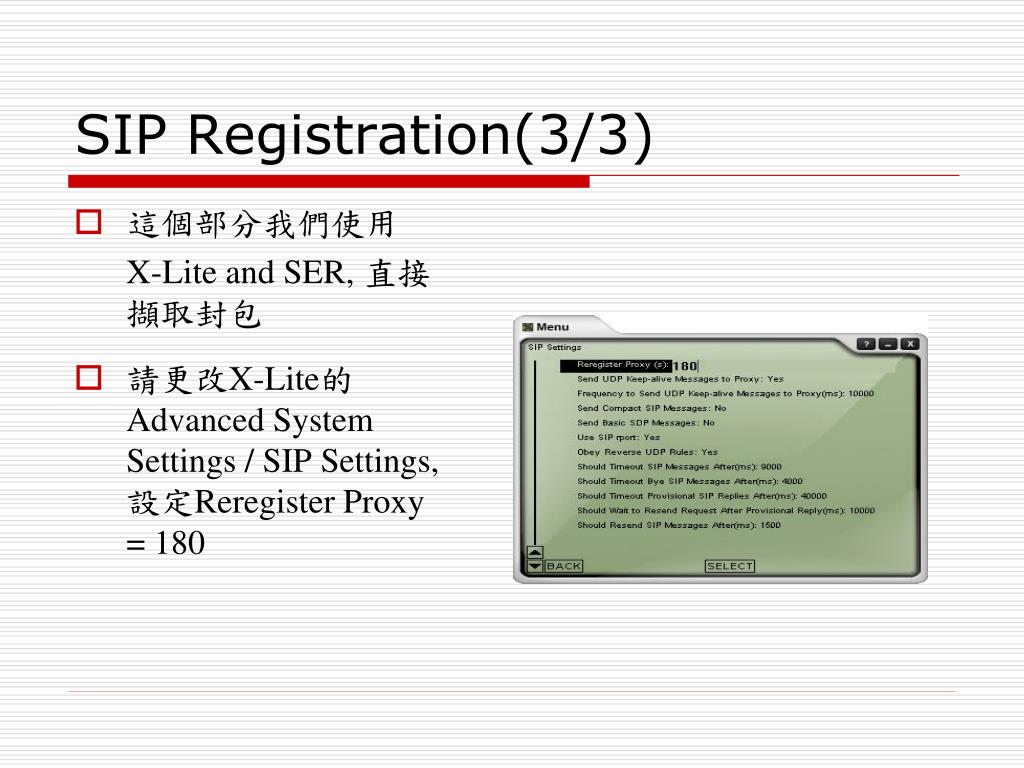

  11. SIP Registration(3/3) • 這個部分我們使用 X-Lite and SER, 直接擷取封包 • 請更改X-Lite的Advanced System Settings / SIP Settings, 設定Reregister Proxy = 180

  12. Contact List Request (1/2) • 進入System settings/ SIP Proxy/Default • 設定 • Display Name:2000 • Username:2000 • Authorization User:2000 • Password:2000

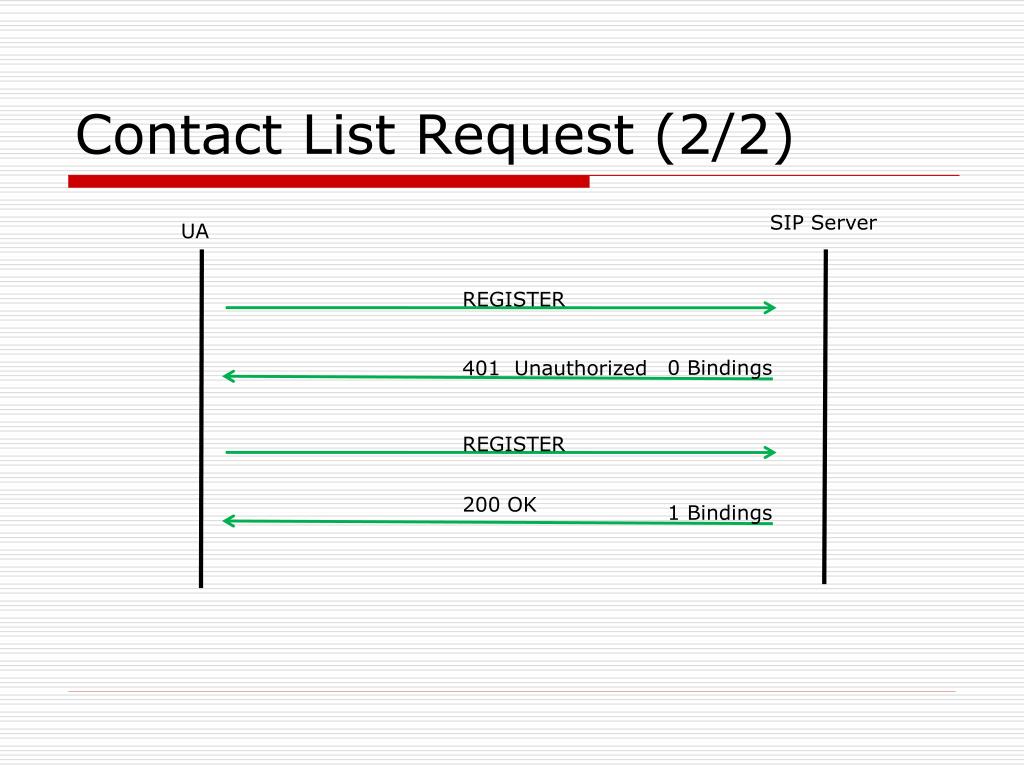

  13. Contact List Request (2/2) SIP Server UA REGISTER 0 Bindings 401 Unauthorized REGISTER 200 OK 1 Bindings

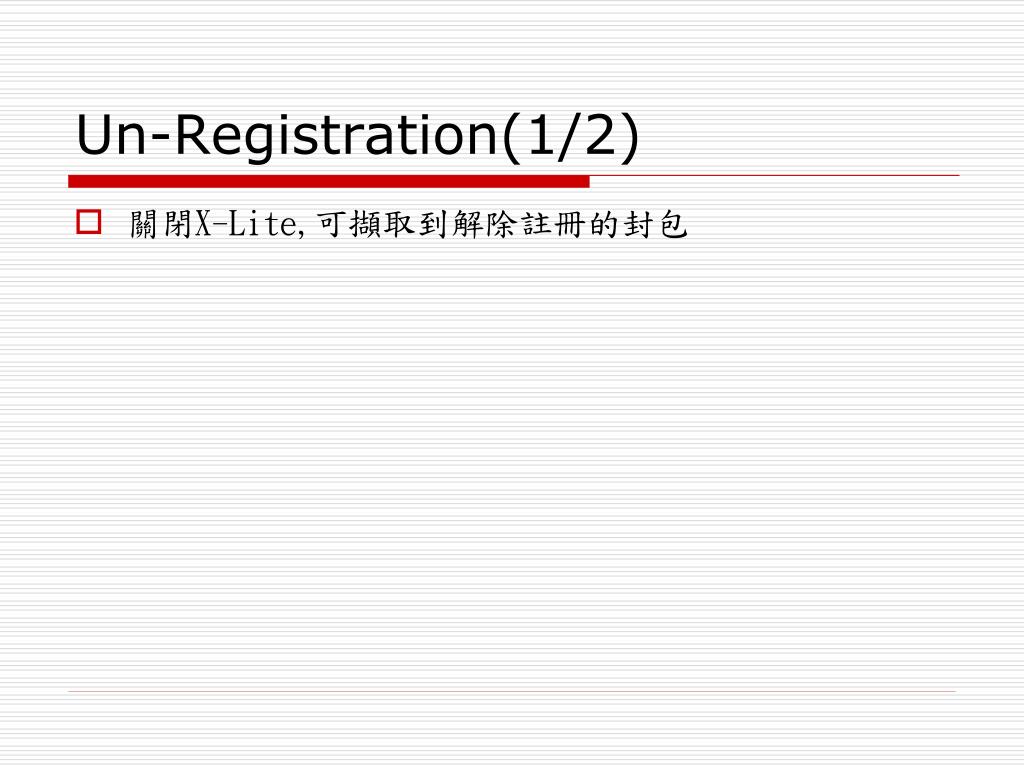

  14. Un-Registration(1/2) • 關閉X-Lite,可擷取到解除註冊的封包

  15. Un-Registration(2/2) SIP Server UA REGISTER 0 Bindings 401 Unauthorized REGISTER 200 OK 0 Bindings Un-Register  0 bindings  no contact Register  1 bindings  contact

  16. Difference • Contact List Request(轉換Number使用) • 新版X-Lite • 有做下線的動作(Expires=0) • 舊版X-Lite • 沒有下線的動作,直接要求註冊 • Un-Registration(關閉X-Lite) • 新版X-Lite • 只需做兩個動作(封包有夾帶認證資訊) • 舊版X-Lite • 需要做四個動作(沒有夾帶認證資訊,所以需重覆夾帶一次)

  17. Unsuccessful Registration(1/2) • 把X-Lite向SIP server註冊的帳號及密碼故意填錯,可以擷取到註冊失敗的封包。 • 每20秒會傳送一次(default=20) • 進入System settings/ SIP Proxy/Default • 設定(隨便填) • Display Name • Username • Authorization User • Password

  18. Unsuccessful Registration(2/2) SIP Server UA REGISTER 0 Bindings 401 Unauthorized REGISTER 401 Unauthorized 0 Bindings

  19. SIP Call

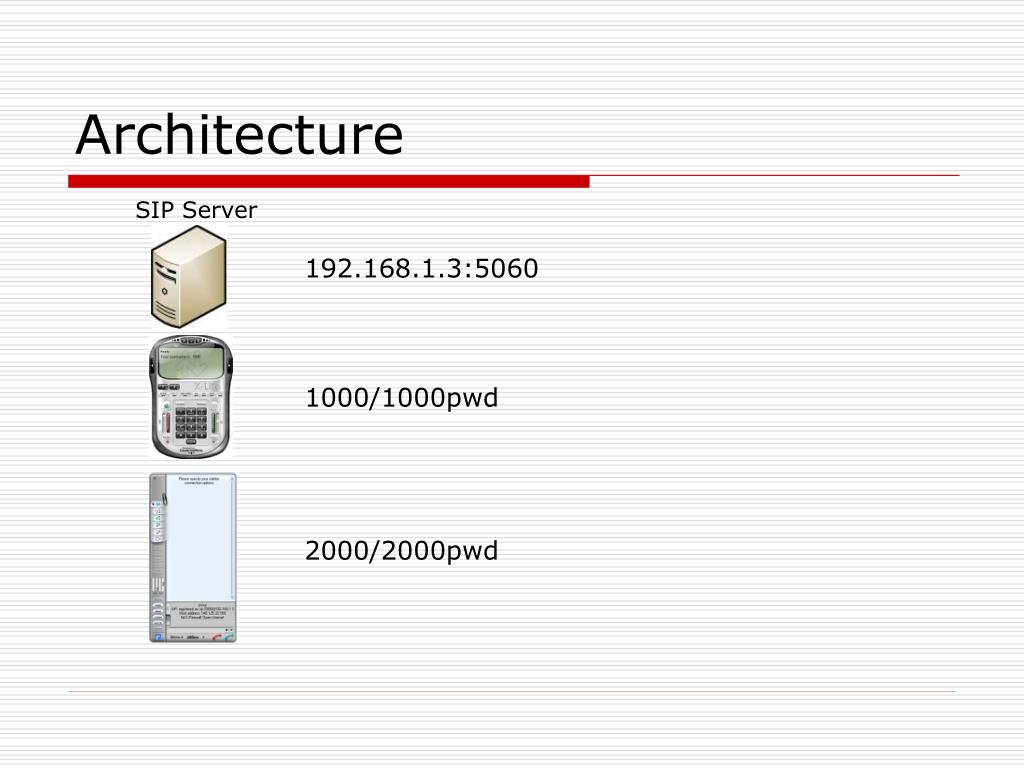

  20. SIP Server Architecture 192.168.1.3:5060 1000/1000pwd 2000/2000pwd

  21. Request: REGISTER 401:Unauthorized Request: REGISTER 200 OK REGISTER – X-LITE SIP Proxy X-lite

  22. Request: REGISTER Request: REGISTER Request: REGISTER 401:Unauthorized 401:Unauthorized 401:Unauthorized Register Unsuccessful SIP Proxy X-lite

  23. Request: REGISTER 200 OK Unregister SIP Proxy X-lite

  24. Request: REGISTER 401:Unauthorized Request: REGISTER 200 OK Register – SJPHONE SIP Proxy X-lite

  25. INVITE ACK ACK INVITE 100 trying 100 trying 200 OK 200 OK 180 Ring 180 Ring X-LITE CALL SJPHONECall Establishment X-LITE SIP PROXY SJPHONE

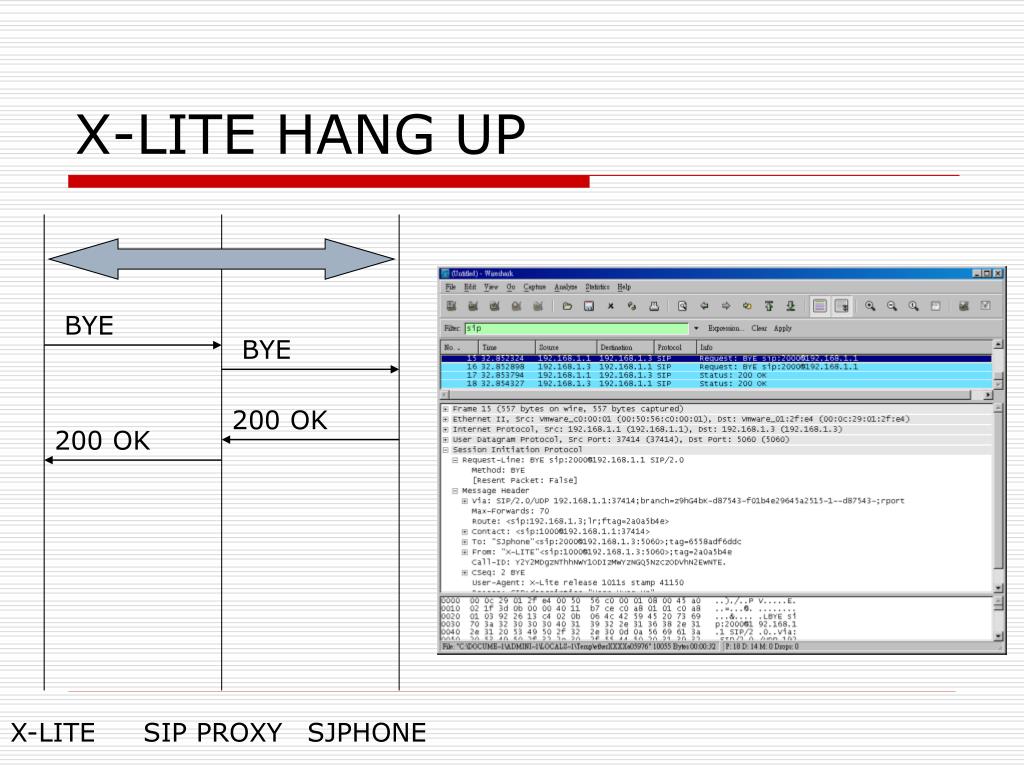

  26. BYE BYE 200 OK 200 OK X-LITE HANG UP X-LITE SIP PROXY SJPHONE

  27. INVITE INVITE 100 trying 100 trying 183 183 183 183 180 Ring 180 Ring X-LITE CALL SJPHONENo Answer . . . X-LITE SIP PROXY SJPHONE

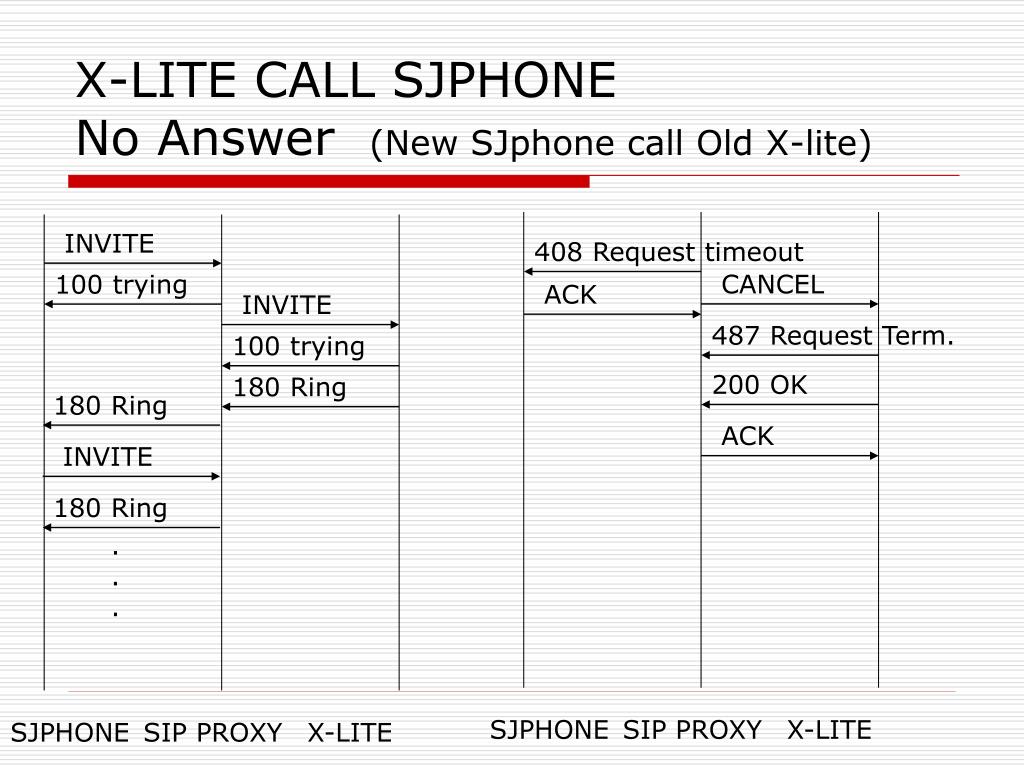

  28. INVITE ACK CANCEL INVITE ACK INVITE 408 Request timeout 180 Ring 200 OK 180 Ring 487 Request Term. 100 trying 100 trying 180 Ring X-LITE CALL SJPHONENo Answer (New SJphone call Old X-lite) . . . SJPHONE SIP PROXY X-LITE SJPHONE SIP PROXY X-LITE

  29. INVITE INVITE ACK ACK 100 trying 100 trying 486 Busy 486 Busy 180 Ring 180 Ring X-LITE CALL SJPHONEIgnore X-LITE SIP PROXY SJPHONE

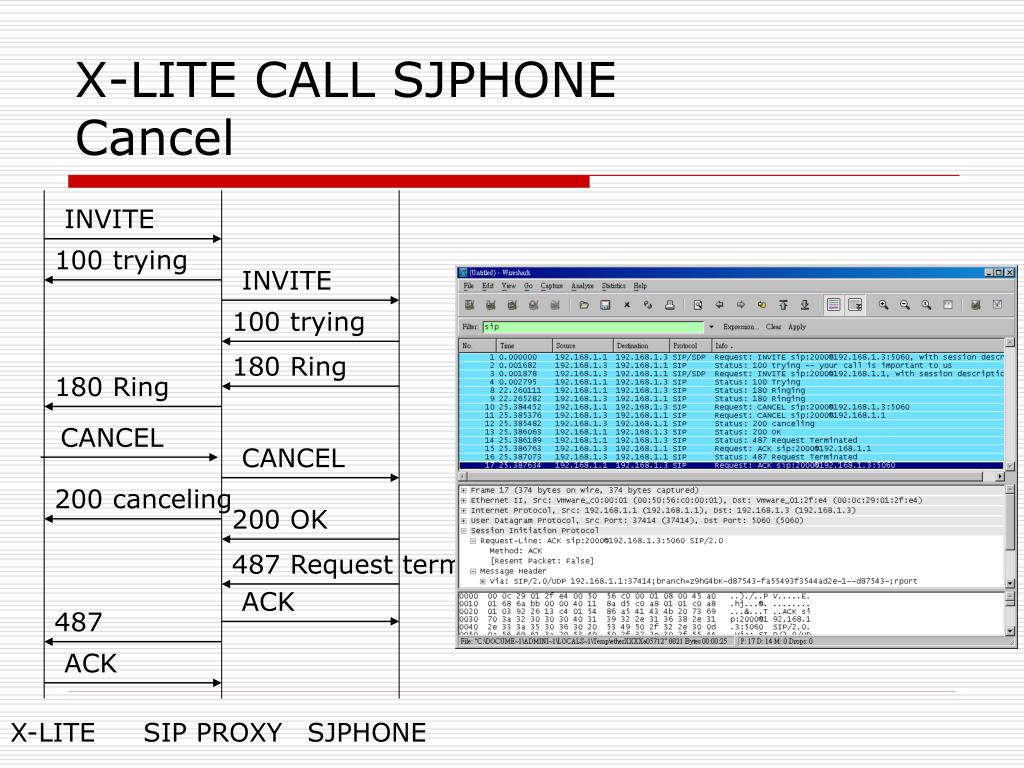

  30. CANCEL INVITE ACK INVITE ACK CANCEL 180 Ring 100 trying 100 trying 180 Ring 200 OK 487 Request term. 487 200 canceling X-LITE CALL SJPHONECancel X-LITE SIP PROXY SJPHONE

  31. INVITE INVITE ACK 100 trying 408 Request timeout X-LITE CALL SJPHONENo Responsible X-LITE SIP PROXY SJPHONE

  32. INVITE 404 not found X-LITE CALL SJPHONE Temporarily Unavailable X-LITE SIP PROXY SJPHONE

  33. SIP CALL THROUGH 2 PROXIES PROXY 5060 PROXY 5061 192.168.1.3 REGISTER REGISTER 192.168.1.1 1000 (PORT=50600) 2000 (PORT=5060)

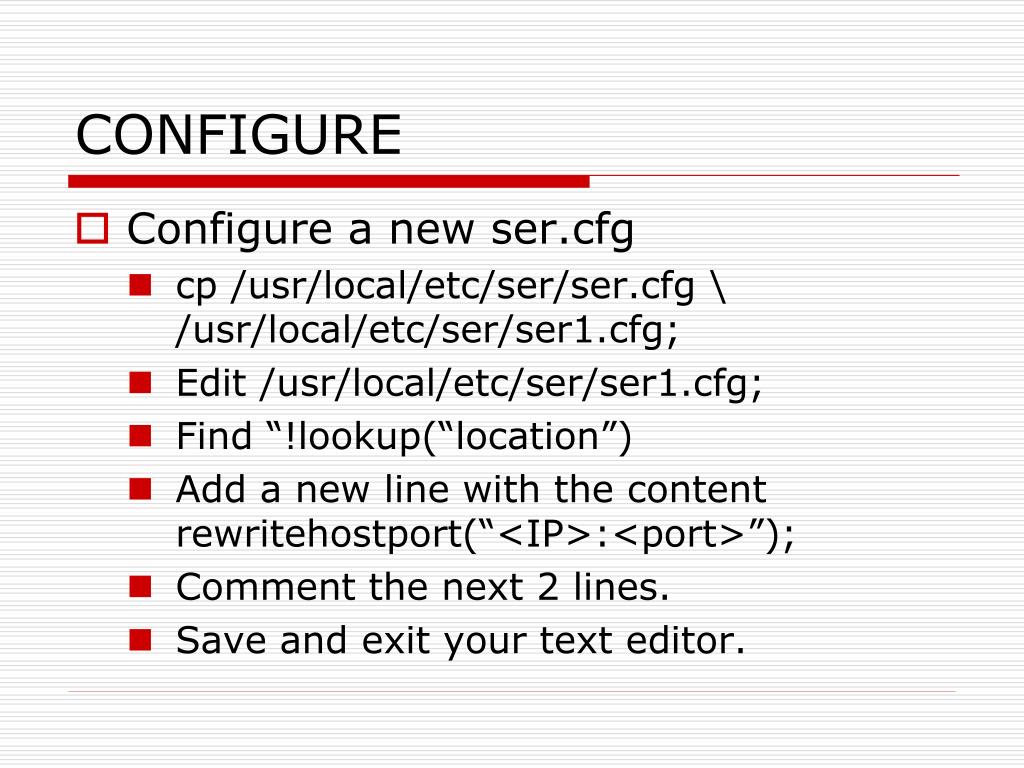

  34. CONFIGURE • Configure a new ser.cfg • cp /usr/local/etc/ser/ser.cfg \/usr/local/etc/ser/ser1.cfg; • Edit /usr/local/etc/ser/ser1.cfg; • Find “!lookup(“location”) • Add a new line with the contentrewritehostport(“<IP>:<port>”); • Comment the next 2 lines. • Save and exit your text editor.

  35. CONFIGURE (cont.) • Execute the ser with default conf. file. • ser • Execute the ser with modified conf. file. • ser –f <your configure file>; • Check your ser proxies is in running & listening. • ps aux |grep ser; • netstat –ntdl;

  36. INVITE INVITE 100 TRYING 100 TRYING 180 RINGING 180 RINGING 200 OK 200 OK INVITE 180 RINGING 200 OK SJPHONE CALL X-LITE SJPHONE PROXY 5061 PROXY 5060 X-LITE
