What is PTFE Gasket Materials

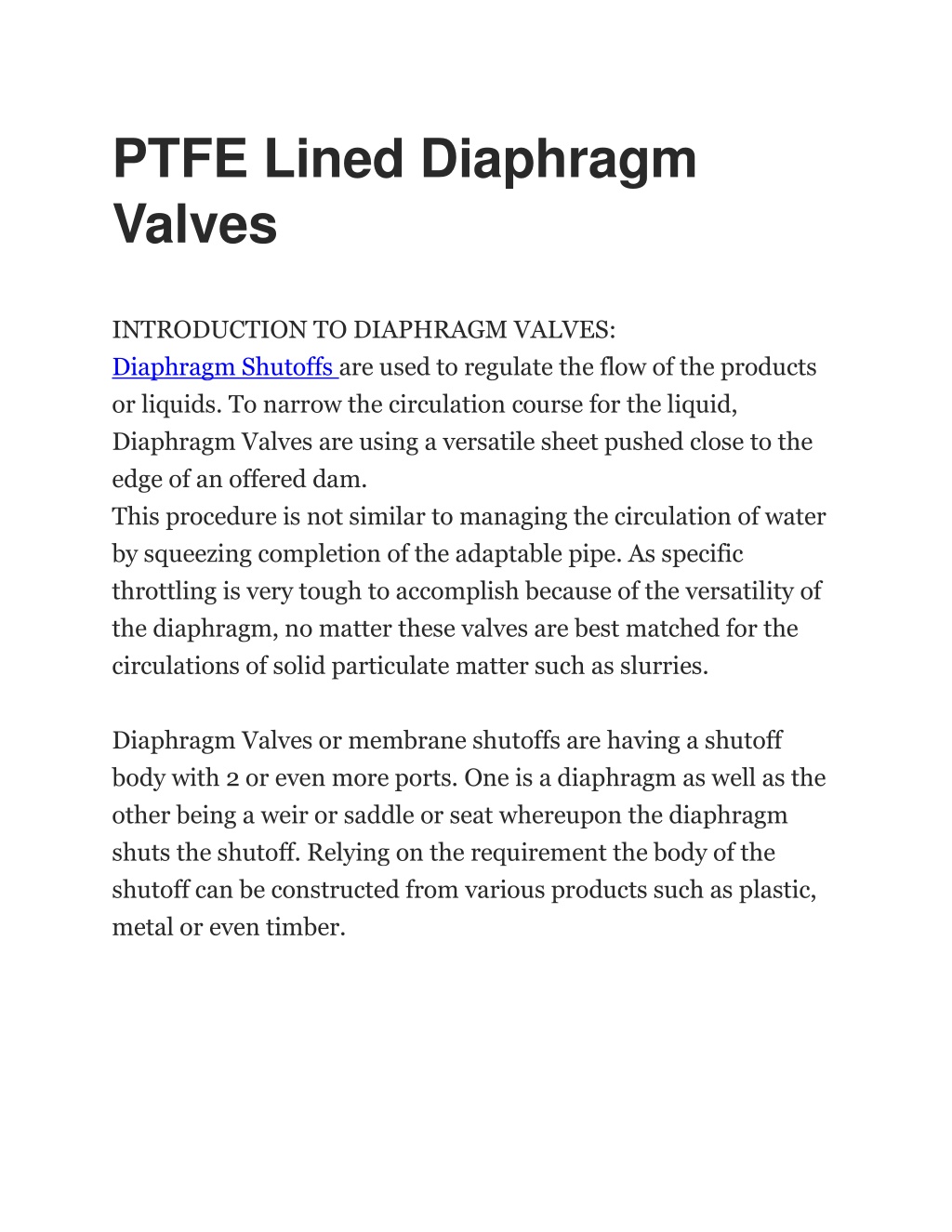

1. PTFE Lined Diaphragm Valves INTRODUCTION TO DIAPHRAGM VALVES: Diaphragm Shutoffs are used to regulate the flow of the products or liquids. To narrow the circulation course for the liquid, Diaphragm Valves are using a versatile sheet pushed close to the edge of an offered dam. This procedure is not similar to managing the circulation of water by squeezing completion of the adaptable pipe. As specific throttling is very tough to accomplish because of the versatility of the diaphragm, no matter these valves are best matched for the circulations of solid particulate matter such as slurries. Diaphragm Valves or membrane shutoffs are having a shutoff body with 2 or even more ports. One is a diaphragm as well as the other being a weir or saddle or seat whereupon the diaphragm shuts the shutoff. Relying on the requirement the body of the shutoff can be constructed from various products such as plastic, metal or even timber.

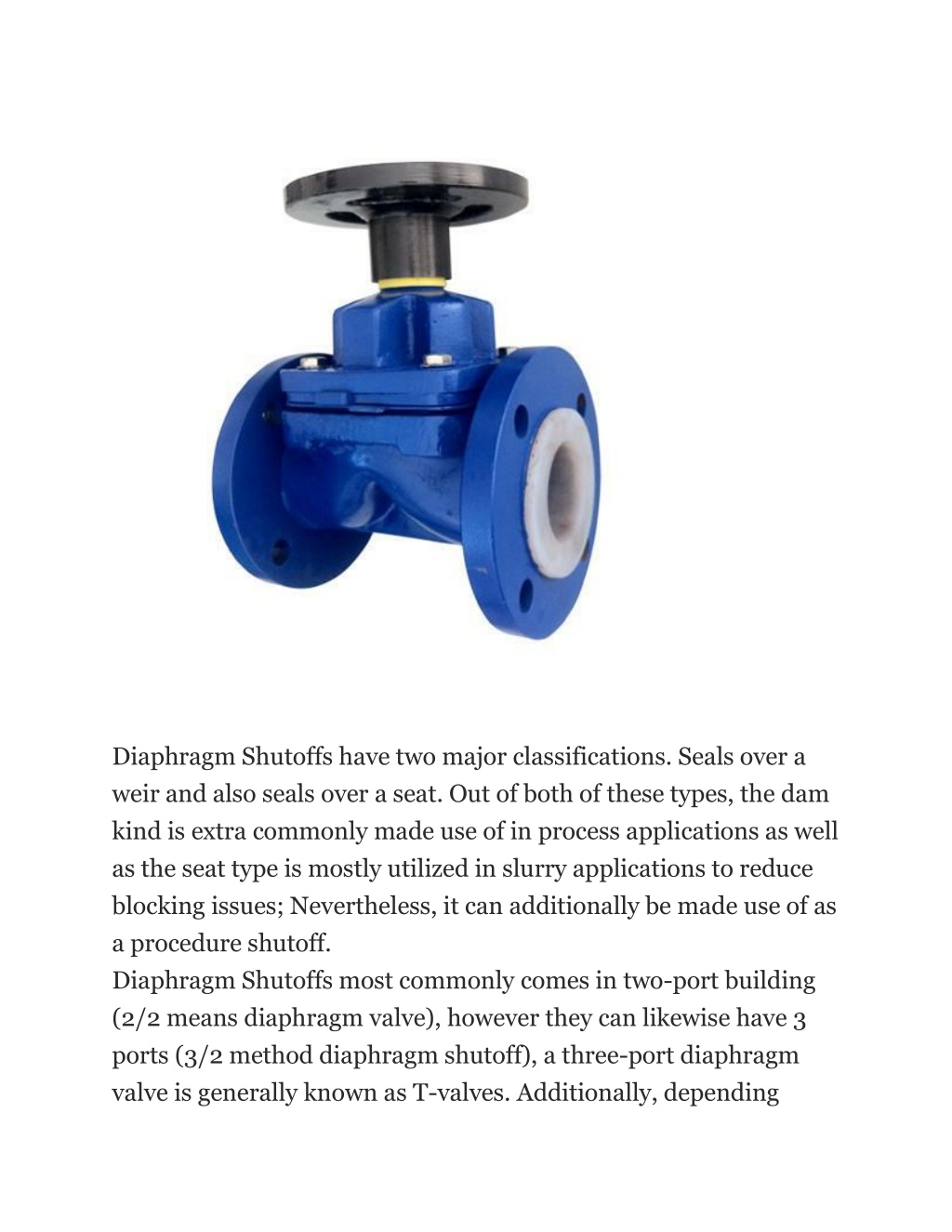

2. Diaphragm Shutoffs have two major classifications. Seals over a weir and also seals over a seat. Out of both of these types, the dam kind is extra commonly made use of in process applications as well as the seat type is mostly utilized in slurry applications to reduce blocking issues; Nevertheless, it can additionally be made use of as a procedure shutoff. Diaphragm Shutoffs most commonly comes in two-port building (2/2 means diaphragm valve), however they can likewise have 3 ports (3/2 method diaphragm shutoff), a three-port diaphragm valve is generally known as T-valves. Additionally, depending

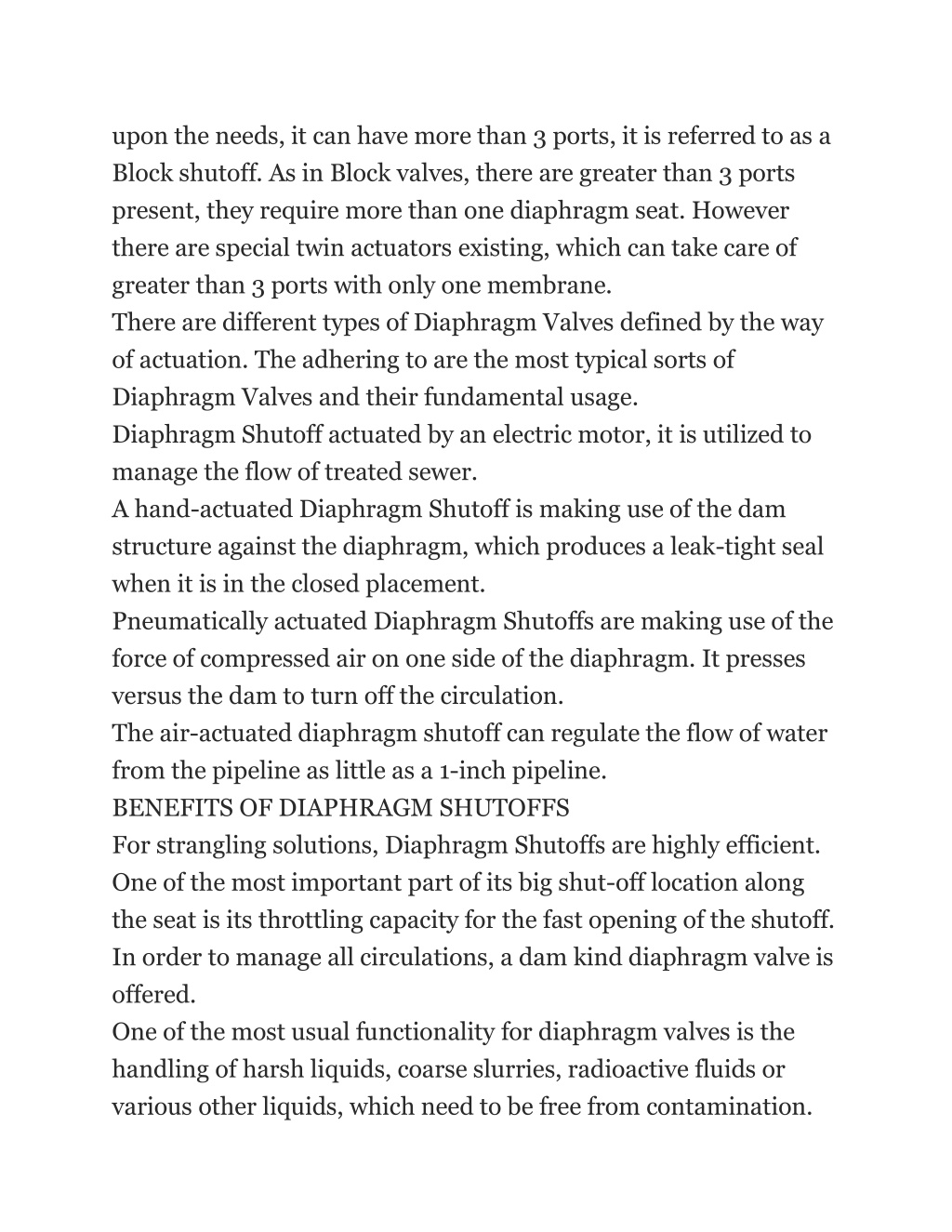

3. upon the needs, it can have more than 3 ports, it is referred to as a Block shutoff. As in Block valves, there are greater than 3 ports present, they require more than one diaphragm seat. However there are special twin actuators existing, which can take care of greater than 3 ports with only one membrane. There are different types of Diaphragm Valves defined by the way of actuation. The adhering to are the most typical sorts of Diaphragm Valves and their fundamental usage. Diaphragm Shutoff actuated by an electric motor, it is utilized to manage the flow of treated sewer. A hand-actuated Diaphragm Shutoff is making use of the dam structure against the diaphragm, which produces a leak-tight seal when it is in the closed placement. Pneumatically actuated Diaphragm Shutoffs are making use of the force of compressed air on one side of the diaphragm. It presses versus the dam to turn off the circulation. The air-actuated diaphragm shutoff can regulate the flow of water from the pipeline as little as a 1-inch pipeline. BENEFITS OF DIAPHRAGM SHUTOFFS For strangling solutions, Diaphragm Shutoffs are highly efficient. One of the most important part of its big shut-off location along the seat is its throttling capacity for the fast opening of the shutoff. In order to manage all circulations, a dam kind diaphragm valve is offered. One of the most usual functionality for diaphragm valves is the handling of harsh liquids, coarse slurries, radioactive fluids or various other liquids, which need to be free from contamination.

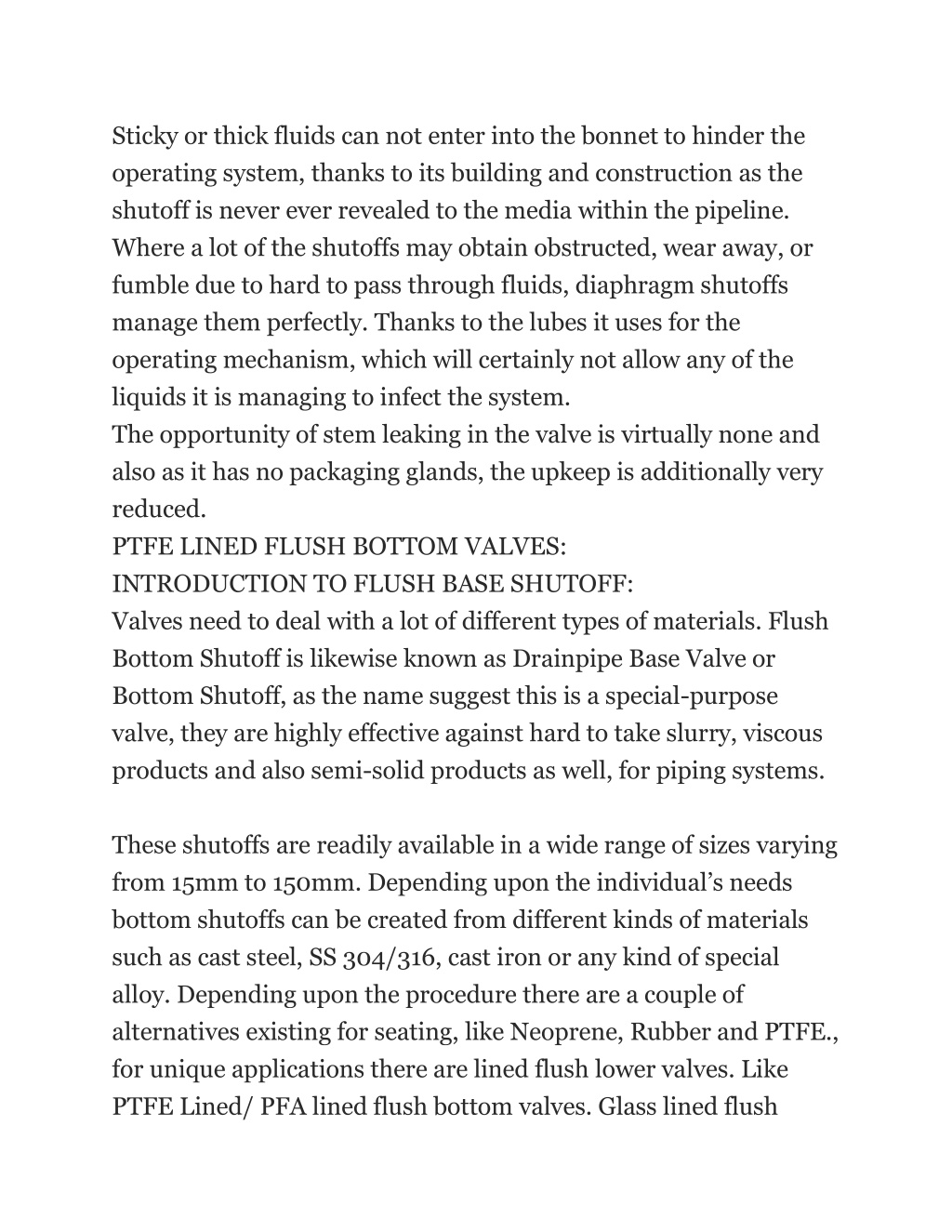

4. Sticky or thick fluids can not enter into the bonnet to hinder the operating system, thanks to its building and construction as the shutoff is never ever revealed to the media within the pipeline. Where a lot of the shutoffs may obtain obstructed, wear away, or fumble due to hard to pass through fluids, diaphragm shutoffs manage them perfectly. Thanks to the lubes it uses for the operating mechanism, which will certainly not allow any of the liquids it is managing to infect the system. The opportunity of stem leaking in the valve is virtually none and also as it has no packaging glands, the upkeep is additionally very reduced. PTFE LINED FLUSH BOTTOM VALVES: INTRODUCTION TO FLUSH BASE SHUTOFF: Valves need to deal with a lot of different types of materials. Flush Bottom Shutoff is likewise known as Drainpipe Base Valve or Bottom Shutoff, as the name suggest this is a special-purpose valve, they are highly effective against hard to take slurry, viscous products and also semi-solid products as well, for piping systems. These shutoffs are readily available in a wide range of sizes varying from 15mm to 150mm. Depending upon the individual’s needs bottom shutoffs can be created from different kinds of materials such as cast steel, SS 304/316, cast iron or any kind of special alloy. Depending upon the procedure there are a couple of alternatives existing for seating, like Neoprene, Rubber and PTFE., for unique applications there are lined flush lower valves. Like PTFE Lined/ PFA lined flush bottom valves. Glass lined flush

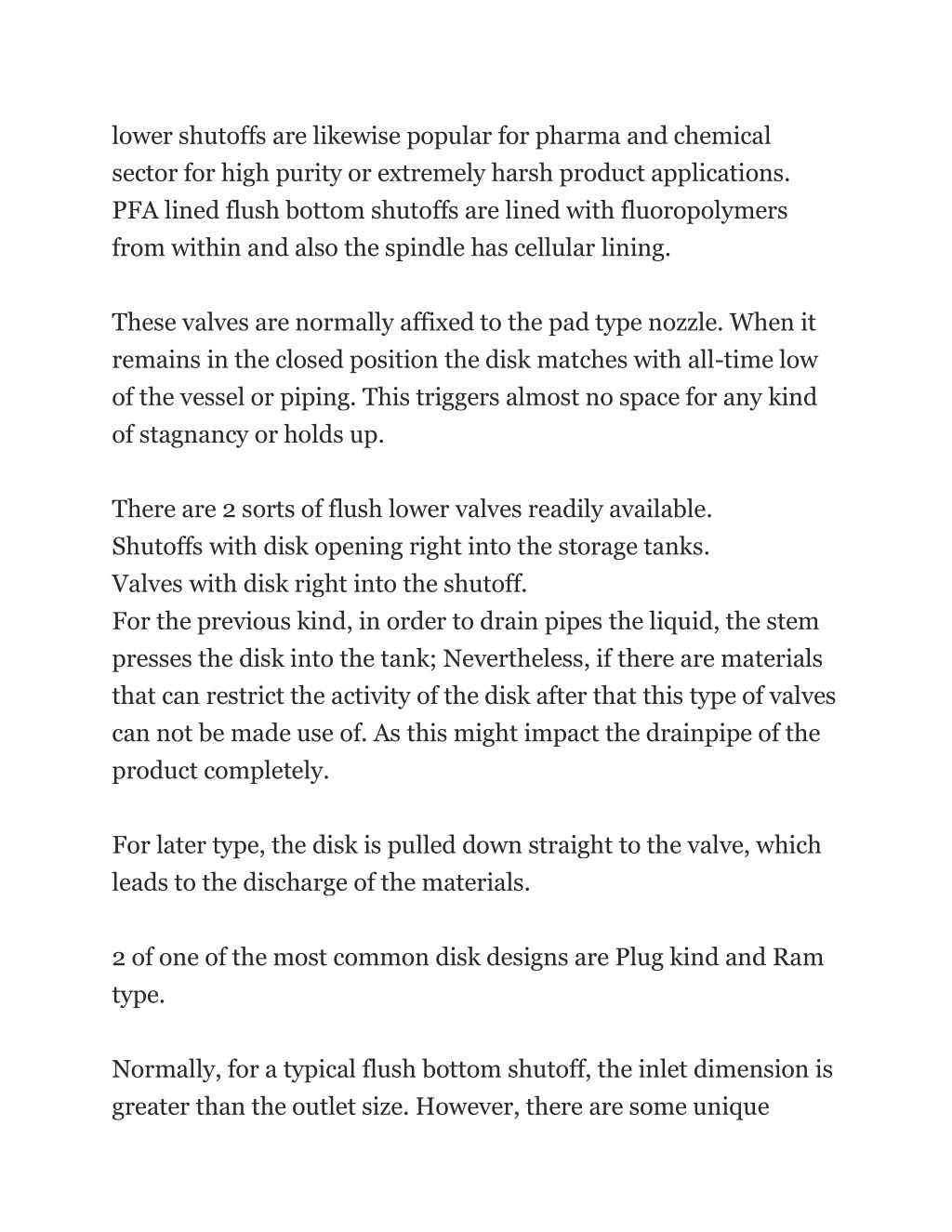

5. lower shutoffs are likewise popular for pharma and chemical sector for high purity or extremely harsh product applications. PFA lined flush bottom shutoffs are lined with fluoropolymers from within and also the spindle has cellular lining. These valves are normally affixed to the pad type nozzle. When it remains in the closed position the disk matches with all-time low of the vessel or piping. This triggers almost no space for any kind of stagnancy or holds up. There are 2 sorts of flush lower valves readily available. Shutoffs with disk opening right into the storage tanks. Valves with disk right into the shutoff. For the previous kind, in order to drain pipes the liquid, the stem presses the disk into the tank; Nevertheless, if there are materials that can restrict the activity of the disk after that this type of valves can not be made use of. As this might impact the drainpipe of the product completely. For later type, the disk is pulled down straight to the valve, which leads to the discharge of the materials. 2 of one of the most common disk designs are Plug kind and Ram type. Normally, for a typical flush bottom shutoff, the inlet dimension is greater than the outlet size. However, there are some unique

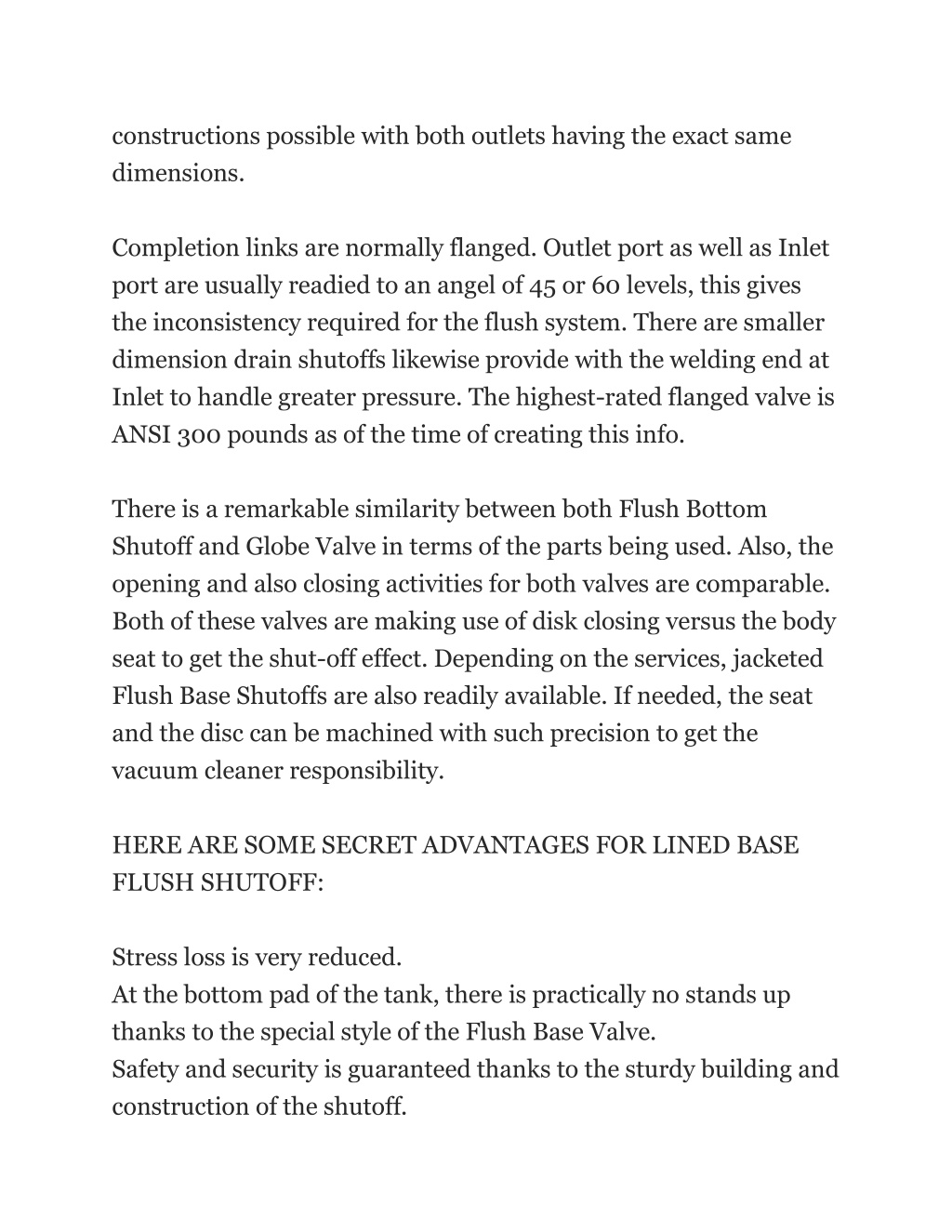

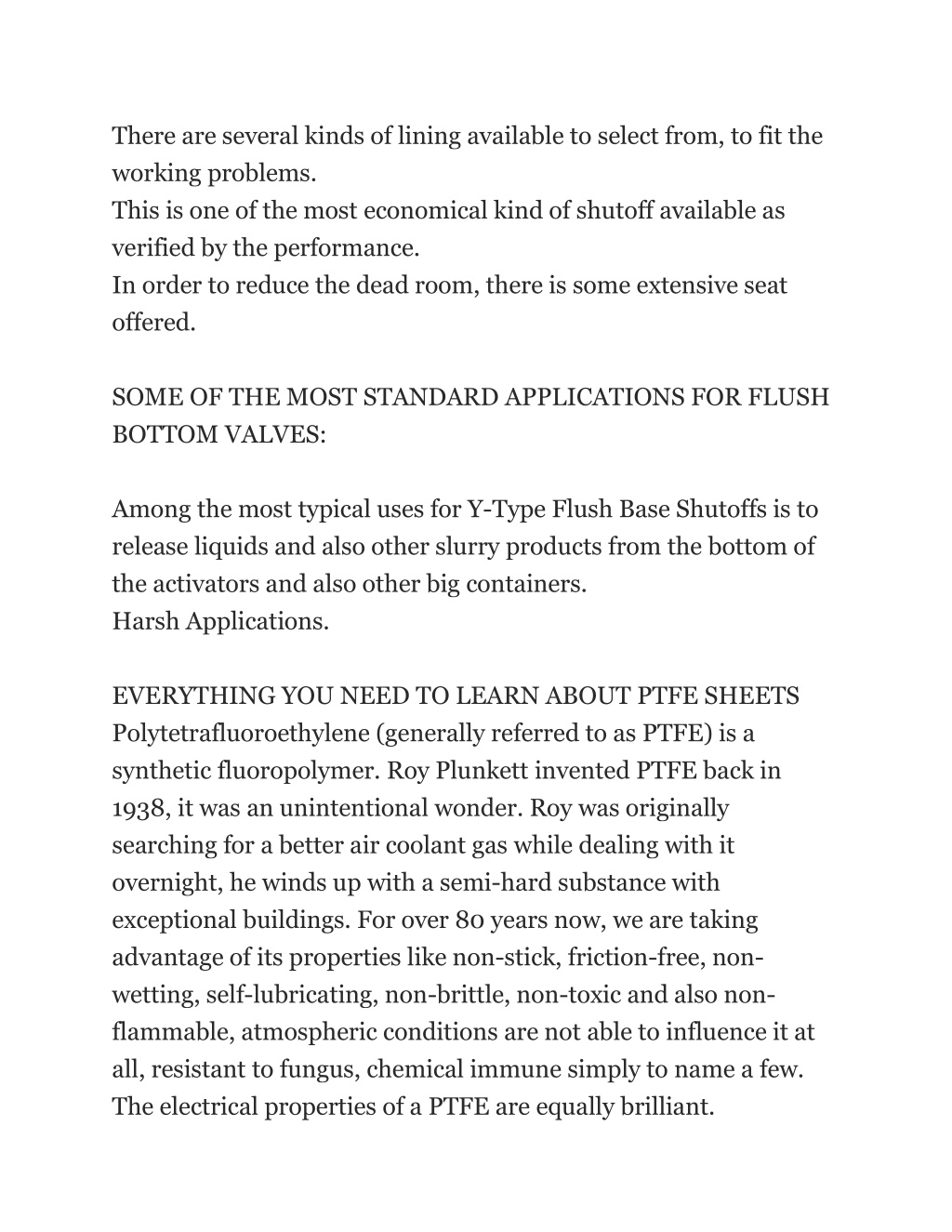

6. constructions possible with both outlets having the exact same dimensions. Completion links are normally flanged. Outlet port as well as Inlet port are usually readied to an angel of 45 or 60 levels, this gives the inconsistency required for the flush system. There are smaller dimension drain shutoffs likewise provide with the welding end at Inlet to handle greater pressure. The highest-rated flanged valve is ANSI 300 pounds as of the time of creating this info. There is a remarkable similarity between both Flush Bottom Shutoff and Globe Valve in terms of the parts being used. Also, the opening and also closing activities for both valves are comparable. Both of these valves are making use of disk closing versus the body seat to get the shut-off effect. Depending on the services, jacketed Flush Base Shutoffs are also readily available. If needed, the seat and the disc can be machined with such precision to get the vacuum cleaner responsibility. HERE ARE SOME SECRET ADVANTAGES FOR LINED BASE FLUSH SHUTOFF: Stress loss is very reduced. At the bottom pad of the tank, there is practically no stands up thanks to the special style of the Flush Base Valve. Safety and security is guaranteed thanks to the sturdy building and construction of the shutoff.

7. There are several kinds of lining available to select from, to fit the working problems. This is one of the most economical kind of shutoff available as verified by the performance. In order to reduce the dead room, there is some extensive seat offered. SOME OF THE MOST STANDARD APPLICATIONS FOR FLUSH BOTTOM VALVES: Among the most typical uses for Y-Type Flush Base Shutoffs is to release liquids and also other slurry products from the bottom of the activators and also other big containers. Harsh Applications. EVERYTHING YOU NEED TO LEARN ABOUT PTFE SHEETS Polytetrafluoroethylene (generally referred to as PTFE) is a synthetic fluoropolymer. Roy Plunkett invented PTFE back in 1938, it was an unintentional wonder. Roy was originally searching for a better air coolant gas while dealing with it overnight, he winds up with a semi-hard substance with exceptional buildings. For over 80 years now, we are taking advantage of its properties like non-stick, friction-free, non- wetting, self-lubricating, non-brittle, non-toxic and also non- flammable, atmospheric conditions are not able to influence it at all, resistant to fungus, chemical immune simply to name a few. The electrical properties of a PTFE are equally brilliant.

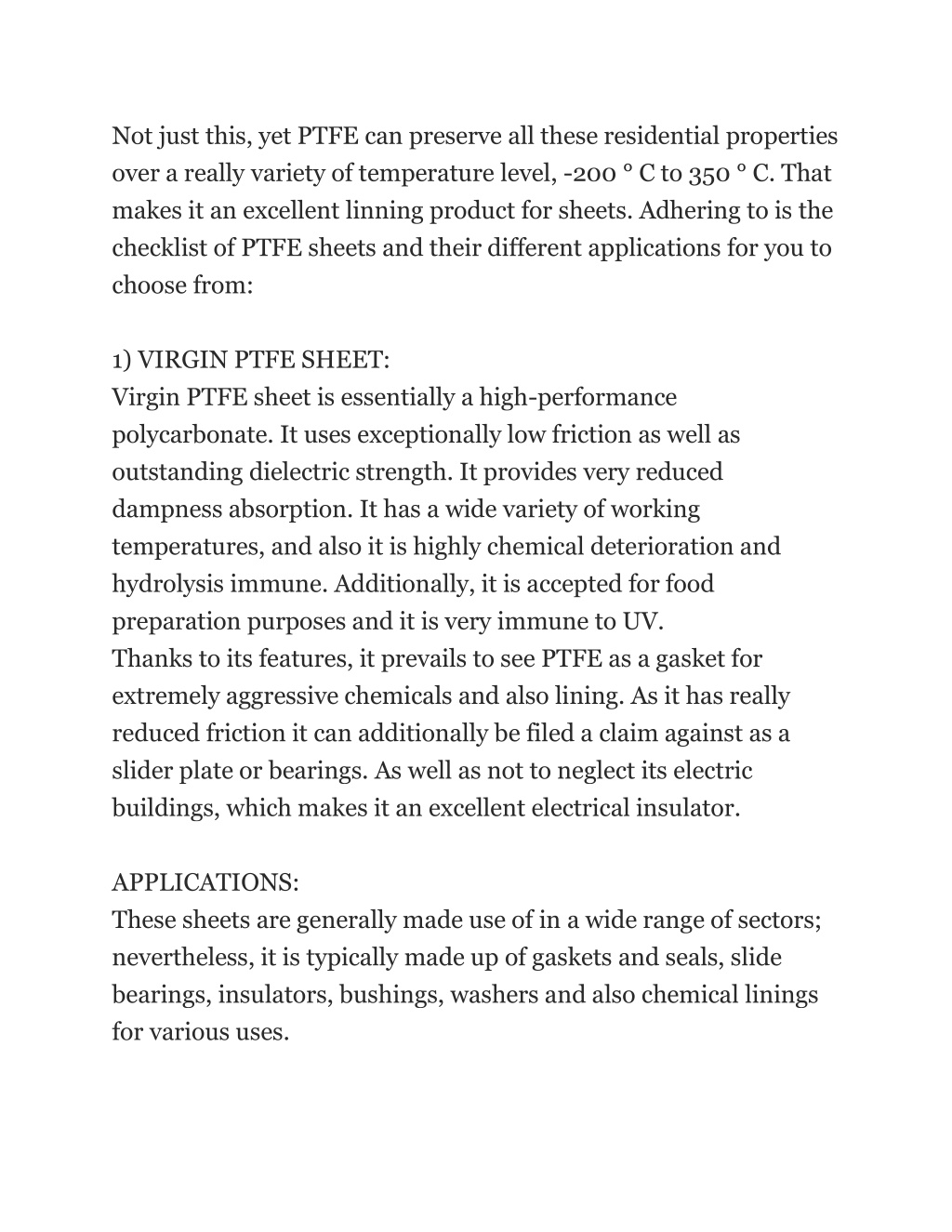

8. Not just this, yet PTFE can preserve all these residential properties over a really variety of temperature level, -200 ° C to 350 ° C. That makes it an excellent linning product for sheets. Adhering to is the checklist of PTFE sheets and their different applications for you to choose from: 1) VIRGIN PTFE SHEET: Virgin PTFE sheet is essentially a high-performance polycarbonate. It uses exceptionally low friction as well as outstanding dielectric strength. It provides very reduced dampness absorption. It has a wide variety of working temperatures, and also it is highly chemical deterioration and hydrolysis immune. Additionally, it is accepted for food preparation purposes and it is very immune to UV. Thanks to its features, it prevails to see PTFE as a gasket for extremely aggressive chemicals and also lining. As it has really reduced friction it can additionally be filed a claim against as a slider plate or bearings. As well as not to neglect its electric buildings, which makes it an excellent electrical insulator. APPLICATIONS: These sheets are generally made use of in a wide range of sectors; nevertheless, it is typically made up of gaskets and seals, slide bearings, insulators, bushings, washers and also chemical linings for various uses.

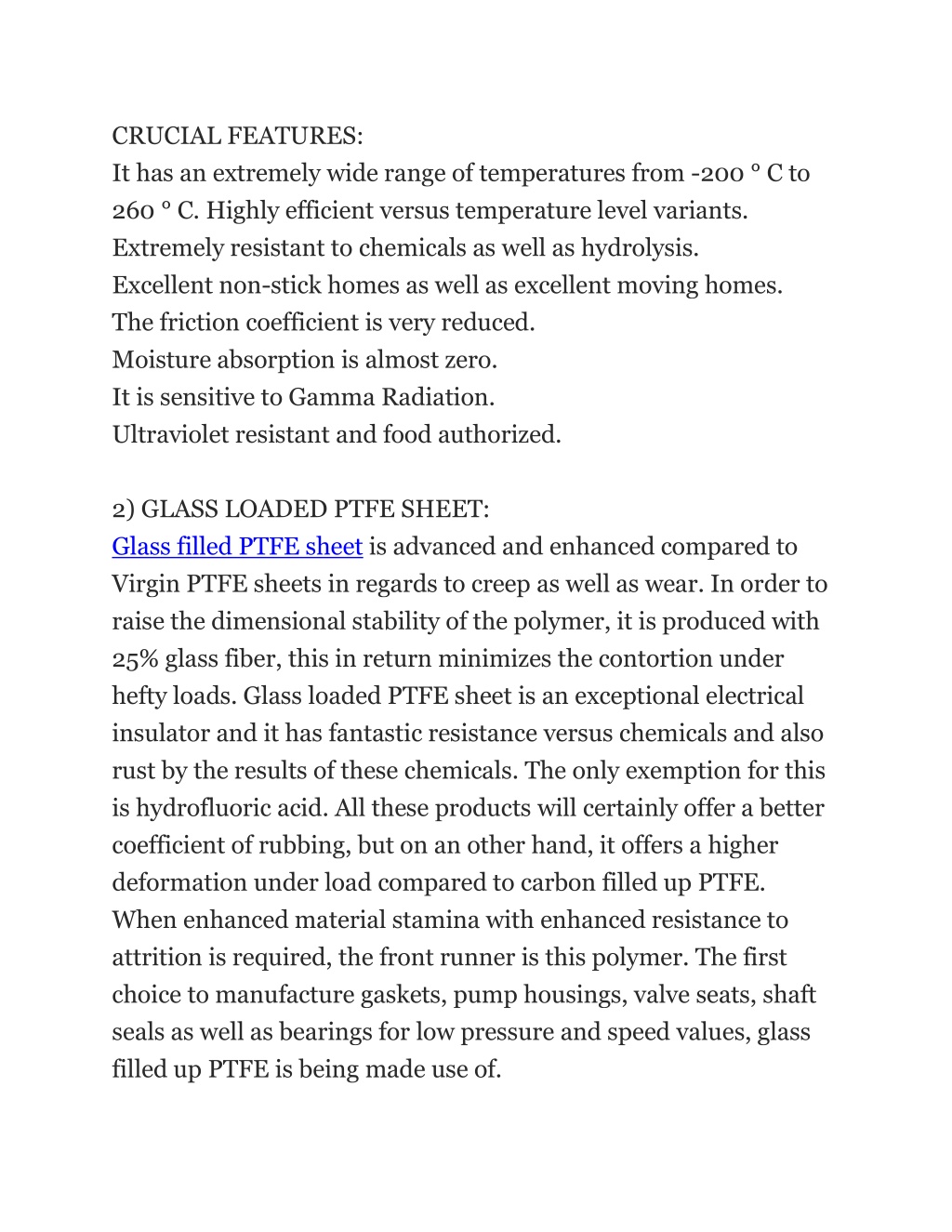

9. CRUCIAL FEATURES: It has an extremely wide range of temperatures from -200 ° C to 260 ° C. Highly efficient versus temperature level variants. Extremely resistant to chemicals as well as hydrolysis. Excellent non-stick homes as well as excellent moving homes. The friction coefficient is very reduced. Moisture absorption is almost zero. It is sensitive to Gamma Radiation. Ultraviolet resistant and food authorized. 2) GLASS LOADED PTFE SHEET: Glass filled PTFE sheet is advanced and enhanced compared to Virgin PTFE sheets in regards to creep as well as wear. In order to raise the dimensional stability of the polymer, it is produced with 25% glass fiber, this in return minimizes the contortion under hefty loads. Glass loaded PTFE sheet is an exceptional electrical insulator and it has fantastic resistance versus chemicals and also rust by the results of these chemicals. The only exemption for this is hydrofluoric acid. All these products will certainly offer a better coefficient of rubbing, but on an other hand, it offers a higher deformation under load compared to carbon filled up PTFE. When enhanced material stamina with enhanced resistance to attrition is required, the front runner is this polymer. The first choice to manufacture gaskets, pump housings, valve seats, shaft seals as well as bearings for low pressure and speed values, glass filled up PTFE is being made use of.

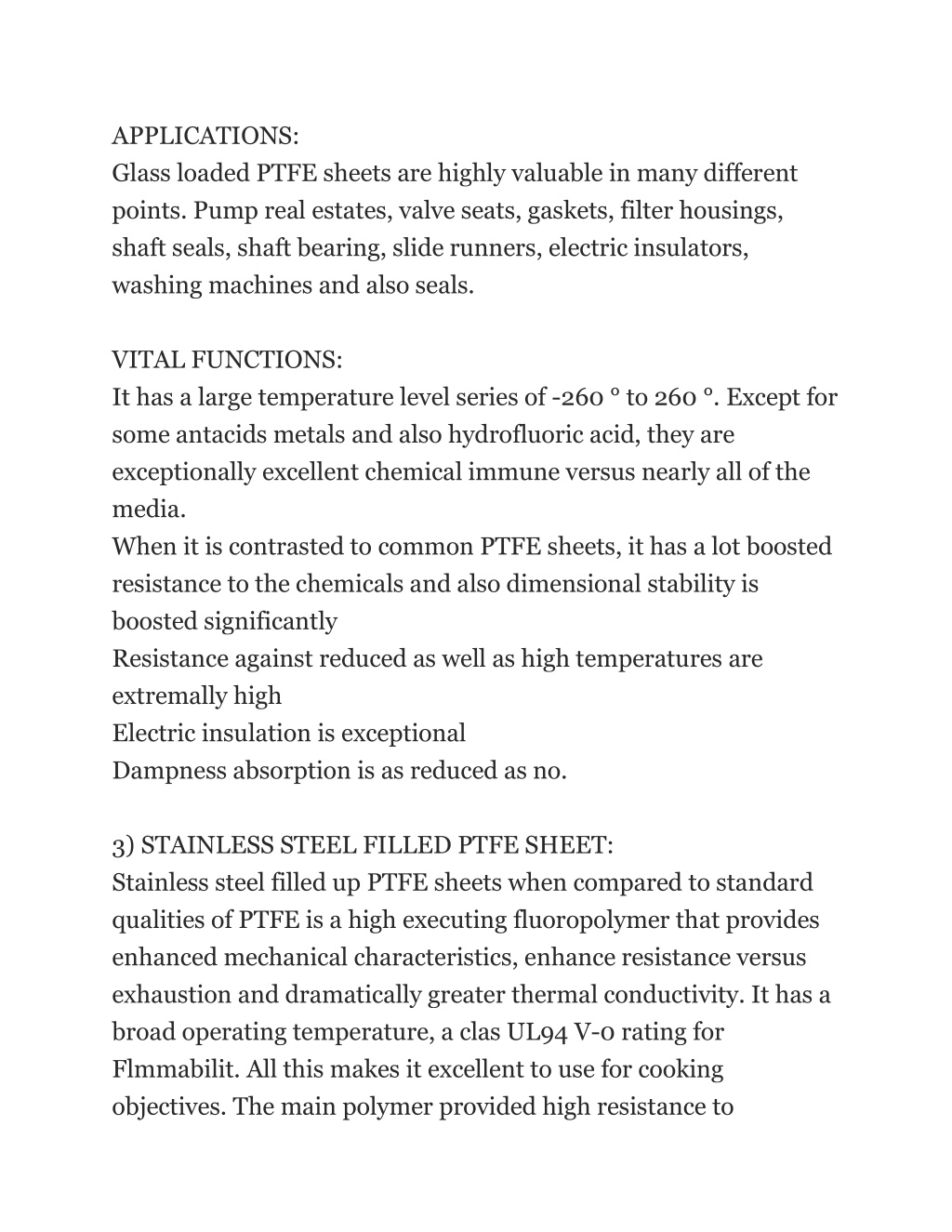

11. APPLICATIONS: Glass loaded PTFE sheets are highly valuable in many different points. Pump real estates, valve seats, gaskets, filter housings, shaft seals, shaft bearing, slide runners, electric insulators, washing machines and also seals. VITAL FUNCTIONS: It has a large temperature level series of -260 ° to 260 °. Except for some antacids metals and also hydrofluoric acid, they are exceptionally excellent chemical immune versus nearly all of the media. When it is contrasted to common PTFE sheets, it has a lot boosted resistance to the chemicals and also dimensional stability is boosted significantly Resistance against reduced as well as high temperatures are extremally high Electric insulation is exceptional Dampness absorption is as reduced as no. 3) STAINLESS STEEL FILLED PTFE SHEET: Stainless steel filled up PTFE sheets when compared to standard qualities of PTFE is a high executing fluoropolymer that provides enhanced mechanical characteristics, enhance resistance versus exhaustion and dramatically greater thermal conductivity. It has a broad operating temperature, a clas UL94 V-0 rating for Flmmabilit. All this makes it excellent to use for cooking objectives. The main polymer provided high resistance to

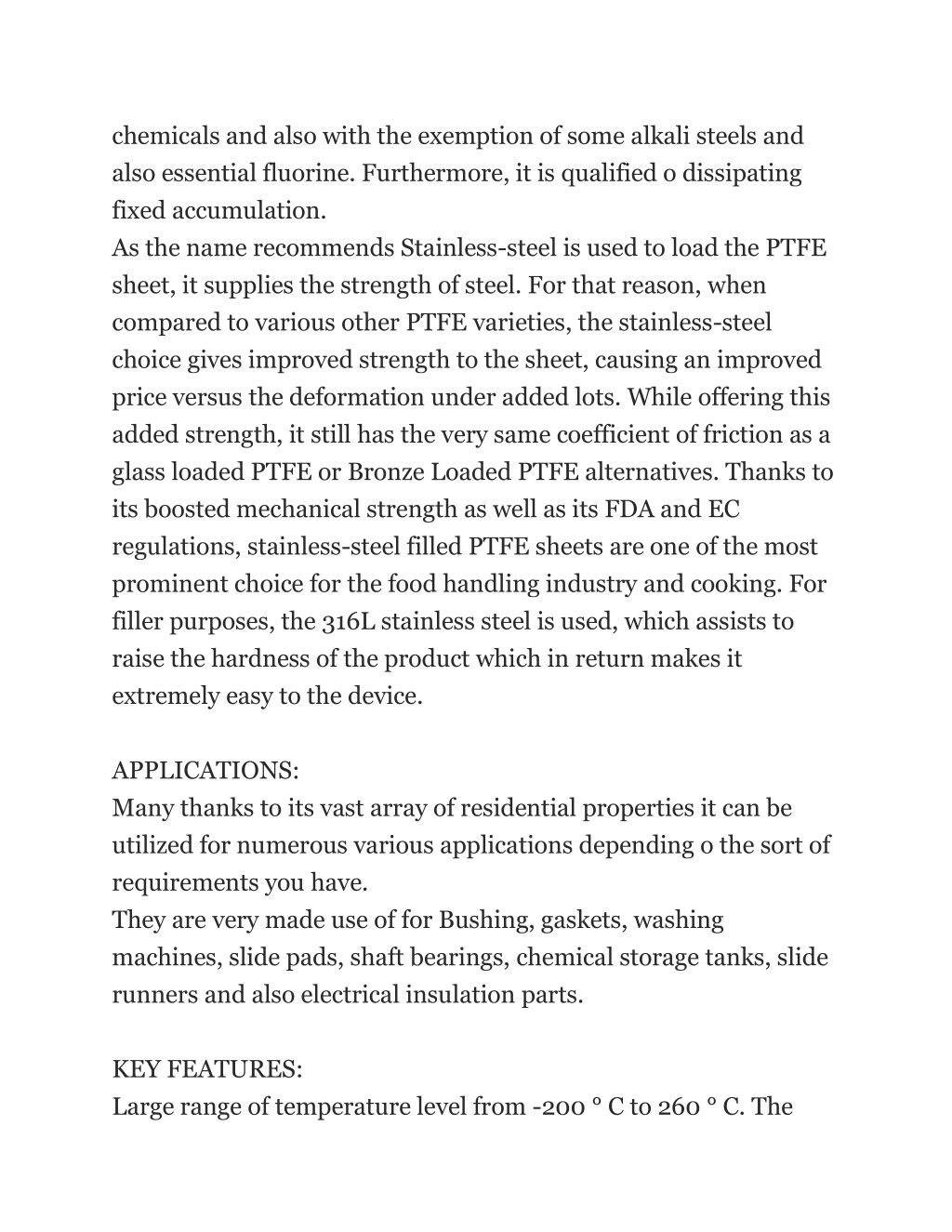

12. chemicals and also with the exemption of some alkali steels and also essential fluorine. Furthermore, it is qualified o dissipating fixed accumulation. As the name recommends Stainless-steel is used to load the PTFE sheet, it supplies the strength of steel. For that reason, when compared to various other PTFE varieties, the stainless-steel choice gives improved strength to the sheet, causing an improved price versus the deformation under added lots. While offering this added strength, it still has the very same coefficient of friction as a glass loaded PTFE or Bronze Loaded PTFE alternatives. Thanks to its boosted mechanical strength as well as its FDA and EC regulations, stainless-steel filled PTFE sheets are one of the most prominent choice for the food handling industry and cooking. For filler purposes, the 316L stainless steel is used, which assists to raise the hardness of the product which in return makes it extremely easy to the device. APPLICATIONS: Many thanks to its vast array of residential properties it can be utilized for numerous various applications depending o the sort of requirements you have. They are very made use of for Bushing, gaskets, washing machines, slide pads, shaft bearings, chemical storage tanks, slide runners and also electrical insulation parts. KEY FEATURES: Large range of temperature level from -200 ° C to 260 ° C. The

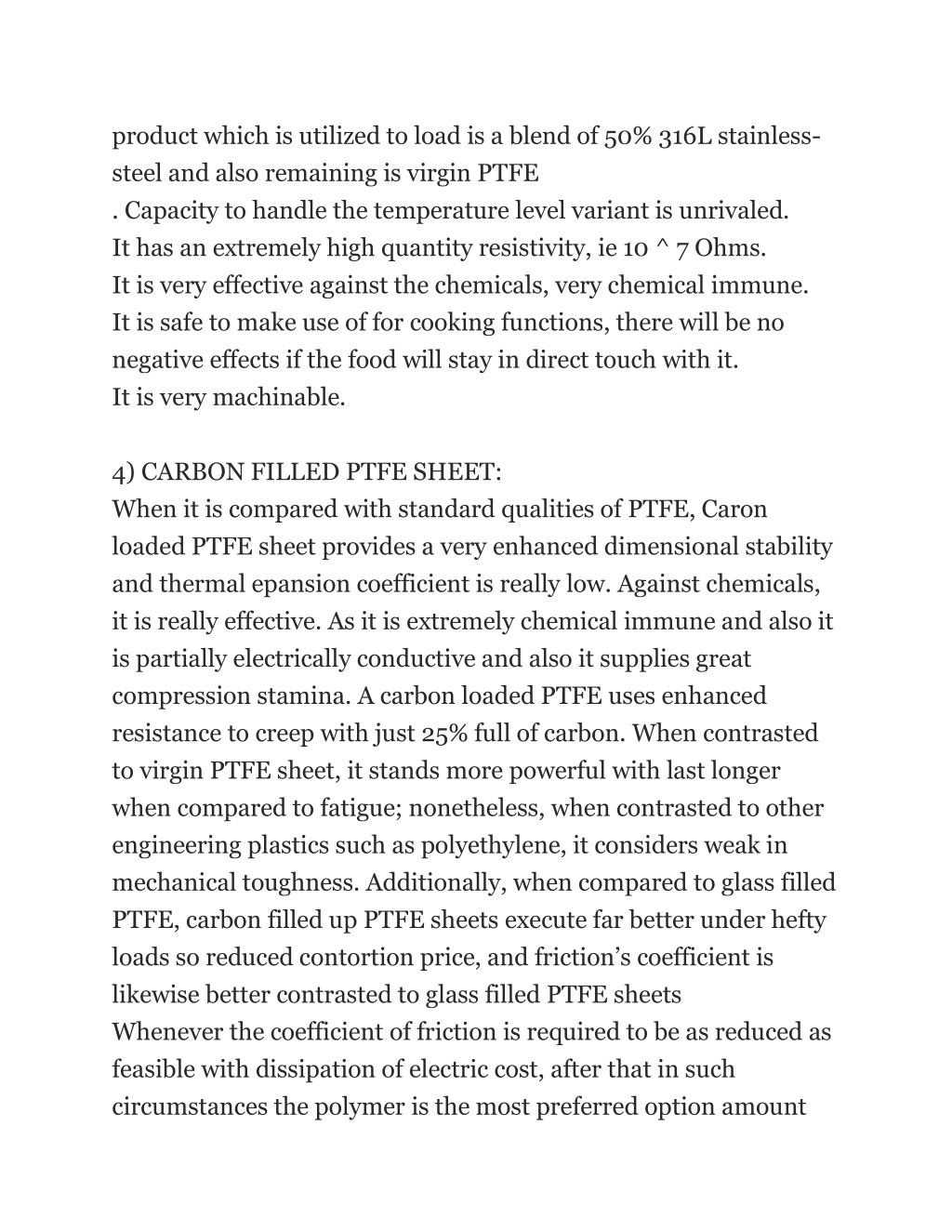

13. product which is utilized to load is a blend of 50% 316L stainless- steel and also remaining is virgin PTFE . Capacity to handle the temperature level variant is unrivaled. It has an extremely high quantity resistivity, ie 10 ^ 7 Ohms. It is very effective against the chemicals, very chemical immune. It is safe to make use of for cooking functions, there will be no negative effects if the food will stay in direct touch with it. It is very machinable. 4) CARBON FILLED PTFE SHEET: When it is compared with standard qualities of PTFE, Caron loaded PTFE sheet provides a very enhanced dimensional stability and thermal epansion coefficient is really low. Against chemicals, it is really effective. As it is extremely chemical immune and also it is partially electrically conductive and also it supplies great compression stamina. A carbon loaded PTFE uses enhanced resistance to creep with just 25% full of carbon. When contrasted to virgin PTFE sheet, it stands more powerful with last longer when compared to fatigue; nonetheless, when contrasted to other engineering plastics such as polyethylene, it considers weak in mechanical toughness. Additionally, when compared to glass filled PTFE, carbon filled up PTFE sheets execute far better under hefty loads so reduced contortion price, and friction’s coefficient is likewise better contrasted to glass filled PTFE sheets Whenever the coefficient of friction is required to be as reduced as feasible with dissipation of electric cost, after that in such circumstances the polymer is the most preferred option amount

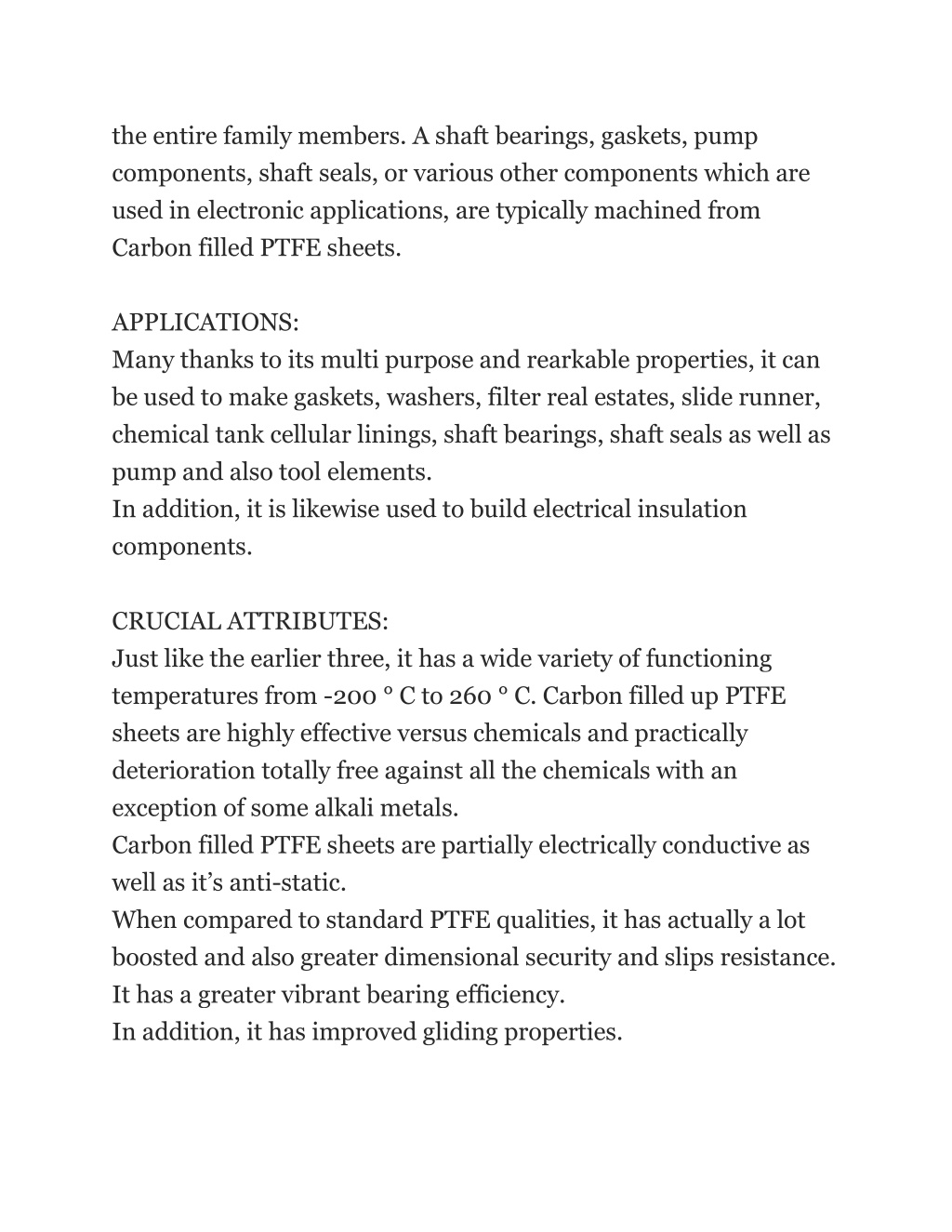

14. the entire family members. A shaft bearings, gaskets, pump components, shaft seals, or various other components which are used in electronic applications, are typically machined from Carbon filled PTFE sheets. APPLICATIONS: Many thanks to its multi purpose and rearkable properties, it can be used to make gaskets, washers, filter real estates, slide runner, chemical tank cellular linings, shaft bearings, shaft seals as well as pump and also tool elements. In addition, it is likewise used to build electrical insulation components. CRUCIAL ATTRIBUTES: Just like the earlier three, it has a wide variety of functioning temperatures from -200 ° C to 260 ° C. Carbon filled up PTFE sheets are highly effective versus chemicals and practically deterioration totally free against all the chemicals with an exception of some alkali metals. Carbon filled PTFE sheets are partially electrically conductive as well as it’s anti-static. When compared to standard PTFE qualities, it has actually a lot boosted and also greater dimensional security and slips resistance. It has a greater vibrant bearing efficiency. In addition, it has improved gliding properties.

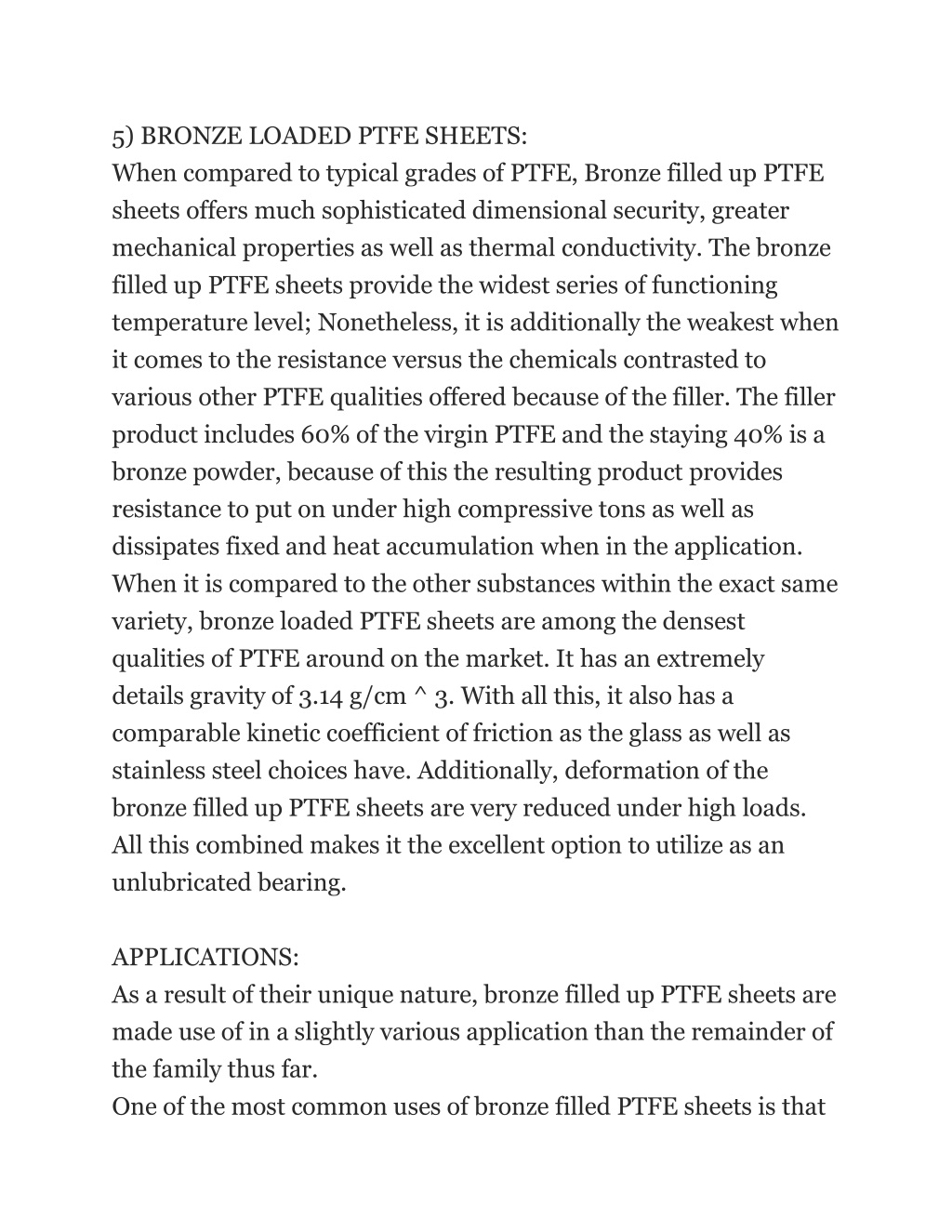

15. 5) BRONZE LOADED PTFE SHEETS: When compared to typical grades of PTFE, Bronze filled up PTFE sheets offers much sophisticated dimensional security, greater mechanical properties as well as thermal conductivity. The bronze filled up PTFE sheets provide the widest series of functioning temperature level; Nonetheless, it is additionally the weakest when it comes to the resistance versus the chemicals contrasted to various other PTFE qualities offered because of the filler. The filler product includes 60% of the virgin PTFE and the staying 40% is a bronze powder, because of this the resulting product provides resistance to put on under high compressive tons as well as dissipates fixed and heat accumulation when in the application. When it is compared to the other substances within the exact same variety, bronze loaded PTFE sheets are among the densest qualities of PTFE around on the market. It has an extremely details gravity of 3.14 g/cm ^ 3. With all this, it also has a comparable kinetic coefficient of friction as the glass as well as stainless steel choices have. Additionally, deformation of the bronze filled up PTFE sheets are very reduced under high loads. All this combined makes it the excellent option to utilize as an unlubricated bearing. APPLICATIONS: As a result of their unique nature, bronze filled up PTFE sheets are made use of in a slightly various application than the remainder of the family thus far. One of the most common uses of bronze filled PTFE sheets is that

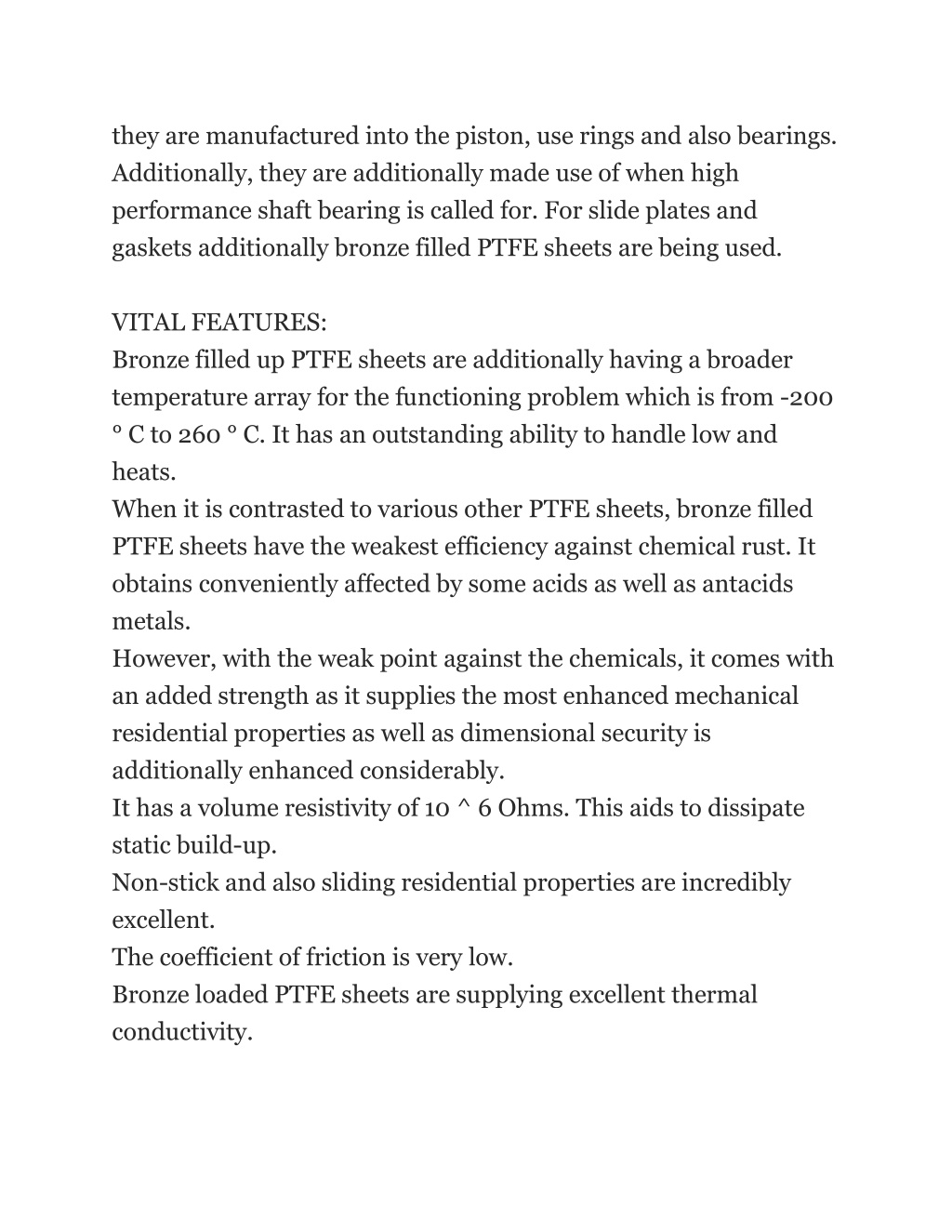

16. they are manufactured into the piston, use rings and also bearings. Additionally, they are additionally made use of when high performance shaft bearing is called for. For slide plates and gaskets additionally bronze filled PTFE sheets are being used. VITAL FEATURES: Bronze filled up PTFE sheets are additionally having a broader temperature array for the functioning problem which is from -200 ° C to 260 ° C. It has an outstanding ability to handle low and heats. When it is contrasted to various other PTFE sheets, bronze filled PTFE sheets have the weakest efficiency against chemical rust. It obtains conveniently affected by some acids as well as antacids metals. However, with the weak point against the chemicals, it comes with an added strength as it supplies the most enhanced mechanical residential properties as well as dimensional security is additionally enhanced considerably. It has a volume resistivity of 10 ^ 6 Ohms. This aids to dissipate static build-up. Non-stick and also sliding residential properties are incredibly excellent. The coefficient of friction is very low. Bronze loaded PTFE sheets are supplying excellent thermal conductivity.

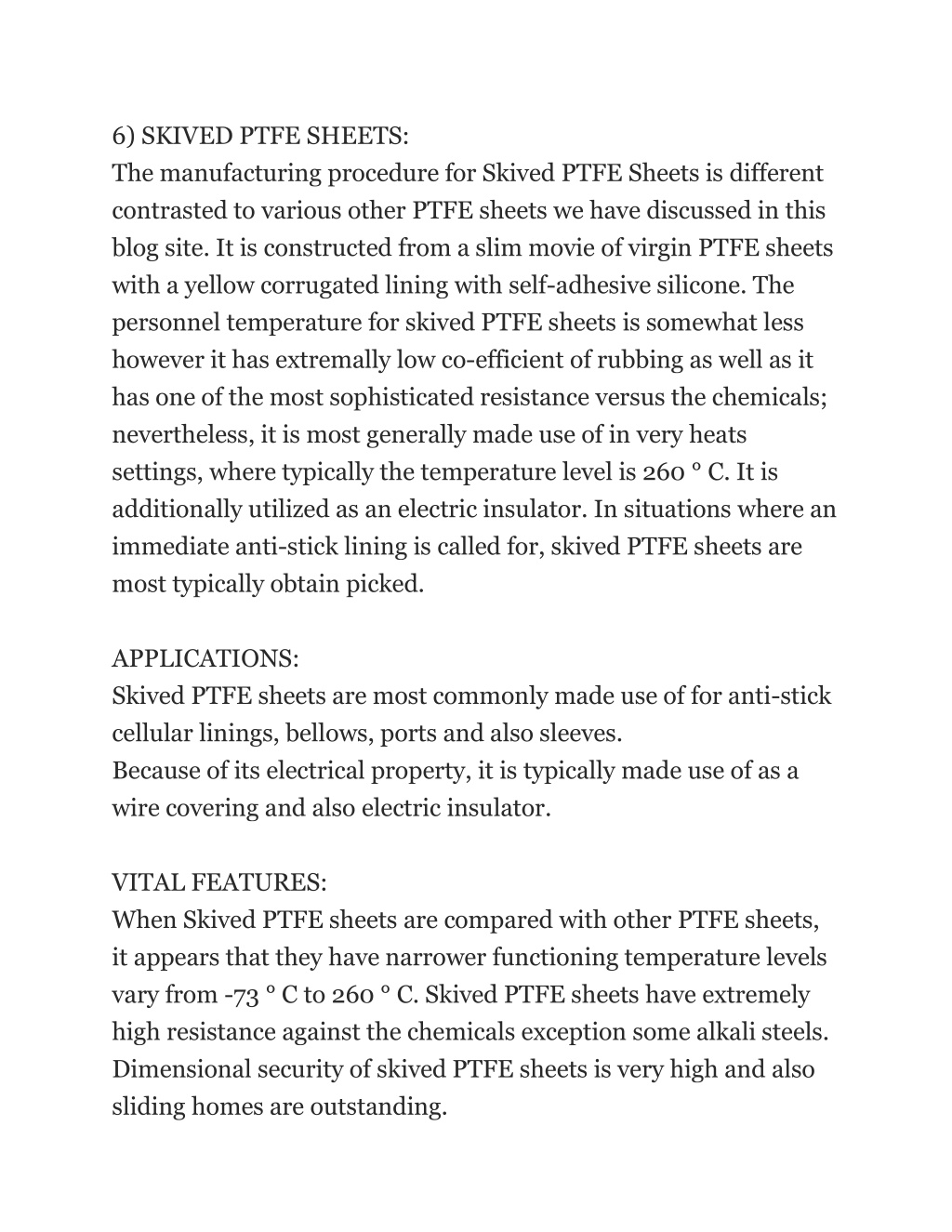

17. 6) SKIVED PTFE SHEETS: The manufacturing procedure for Skived PTFE Sheets is different contrasted to various other PTFE sheets we have discussed in this blog site. It is constructed from a slim movie of virgin PTFE sheets with a yellow corrugated lining with self-adhesive silicone. The personnel temperature for skived PTFE sheets is somewhat less however it has extremally low co-efficient of rubbing as well as it has one of the most sophisticated resistance versus the chemicals; nevertheless, it is most generally made use of in very heats settings, where typically the temperature level is 260 ° C. It is additionally utilized as an electric insulator. In situations where an immediate anti-stick lining is called for, skived PTFE sheets are most typically obtain picked. APPLICATIONS: Skived PTFE sheets are most commonly made use of for anti-stick cellular linings, bellows, ports and also sleeves. Because of its electrical property, it is typically made use of as a wire covering and also electric insulator. VITAL FEATURES: When Skived PTFE sheets are compared with other PTFE sheets, it appears that they have narrower functioning temperature levels vary from -73 ° C to 260 ° C. Skived PTFE sheets have extremely high resistance against the chemicals exception some alkali steels. Dimensional security of skived PTFE sheets is very high and also sliding homes are outstanding.

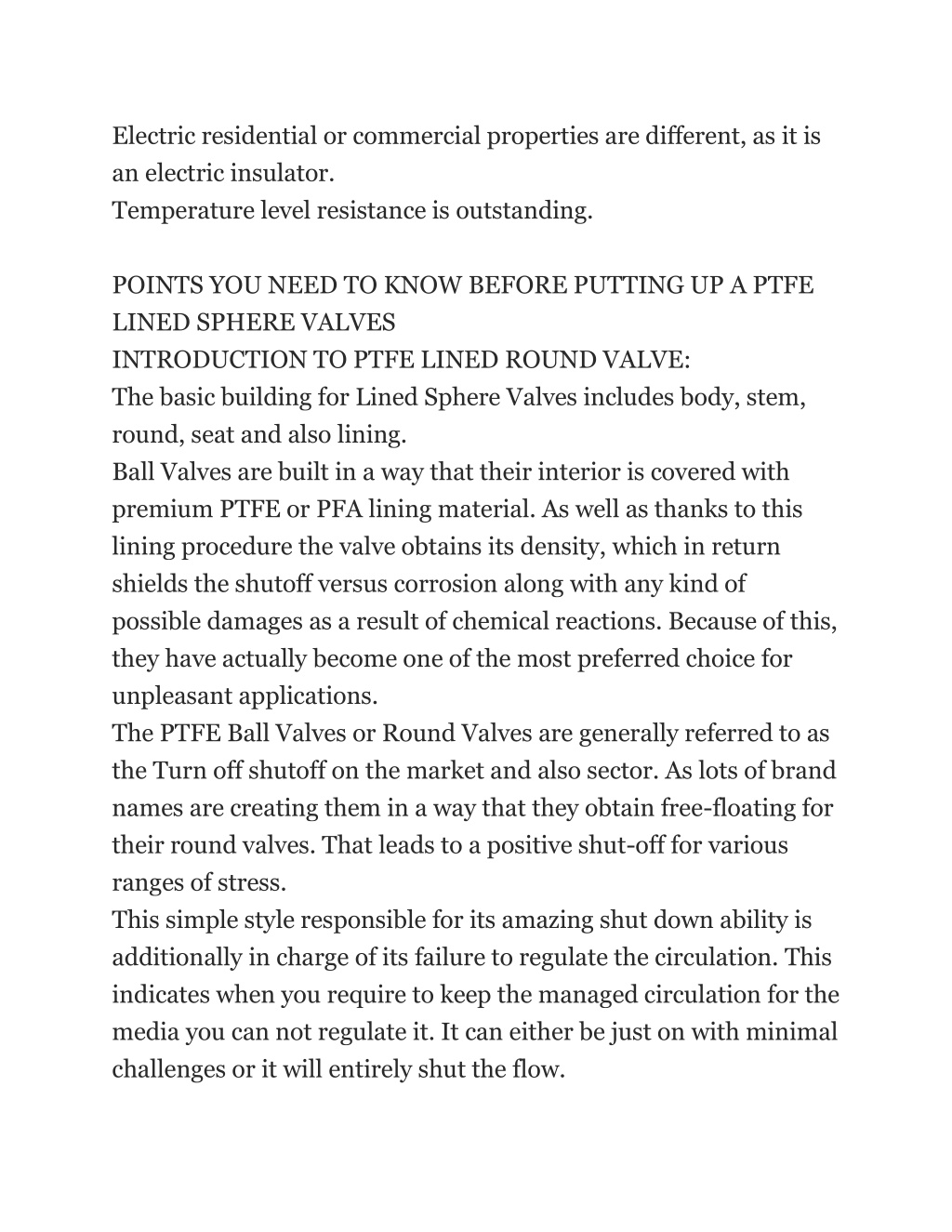

18. Electric residential or commercial properties are different, as it is an electric insulator. Temperature level resistance is outstanding. POINTS YOU NEED TO KNOW BEFORE PUTTING UP A PTFE LINED SPHERE VALVES INTRODUCTION TO PTFE LINED ROUND VALVE: The basic building for Lined Sphere Valves includes body, stem, round, seat and also lining. Ball Valves are built in a way that their interior is covered with premium PTFE or PFA lining material. As well as thanks to this lining procedure the valve obtains its density, which in return shields the shutoff versus corrosion along with any kind of possible damages as a result of chemical reactions. Because of this, they have actually become one of the most preferred choice for unpleasant applications. The PTFE Ball Valves or Round Valves are generally referred to as the Turn off shutoff on the market and also sector. As lots of brand names are creating them in a way that they obtain free-floating for their round valves. That leads to a positive shut-off for various ranges of stress. This simple style responsible for its amazing shut down ability is additionally in charge of its failure to regulate the circulation. This indicates when you require to keep the managed circulation for the media you can not regulate it. It can either be just on with minimal challenges or it will entirely shut the flow.

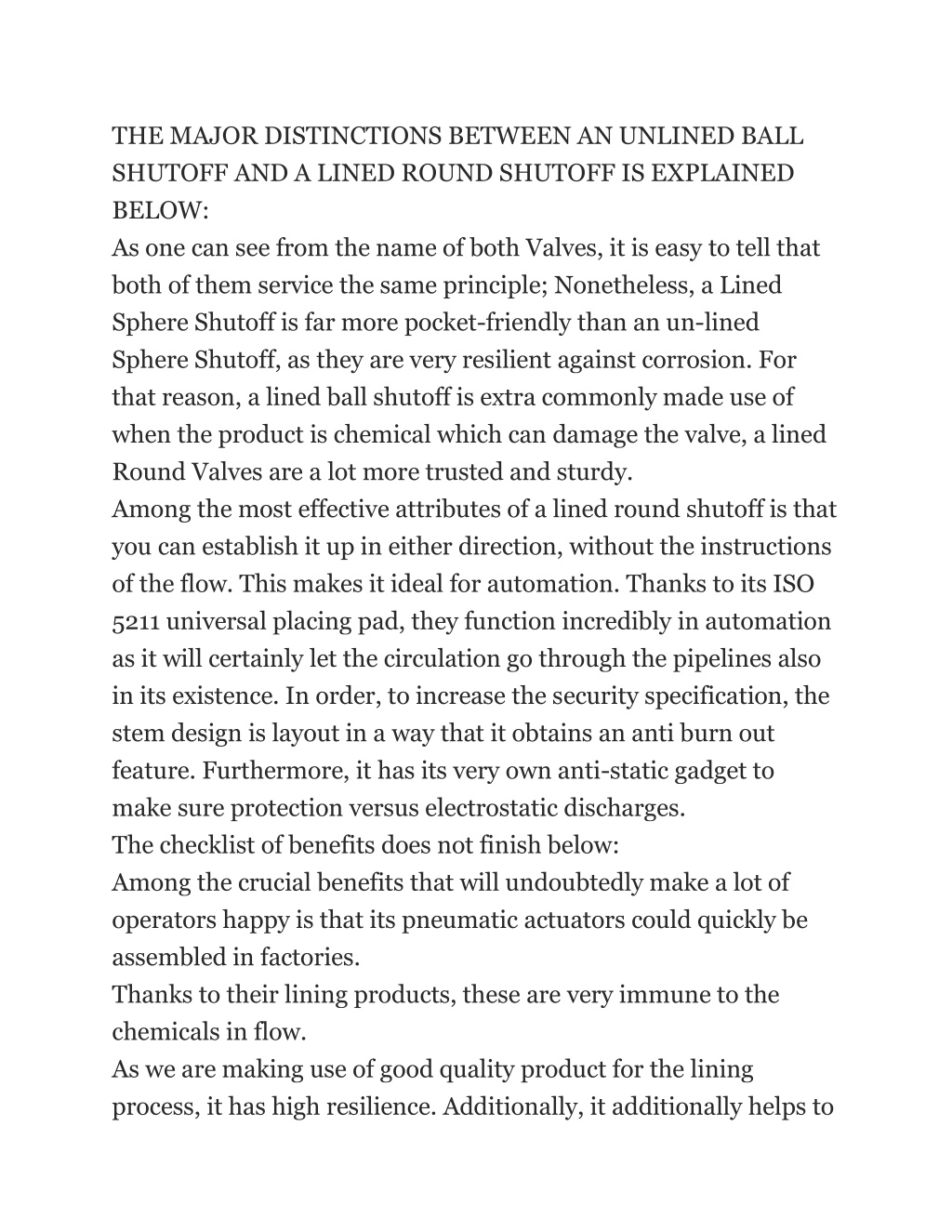

19. THE MAJOR DISTINCTIONS BETWEEN AN UNLINED BALL SHUTOFF AND A LINED ROUND SHUTOFF IS EXPLAINED BELOW: As one can see from the name of both Valves, it is easy to tell that both of them service the same principle; Nonetheless, a Lined Sphere Shutoff is far more pocket-friendly than an un-lined Sphere Shutoff, as they are very resilient against corrosion. For that reason, a lined ball shutoff is extra commonly made use of when the product is chemical which can damage the valve, a lined Round Valves are a lot more trusted and sturdy. Among the most effective attributes of a lined round shutoff is that you can establish it up in either direction, without the instructions of the flow. This makes it ideal for automation. Thanks to its ISO 5211 universal placing pad, they function incredibly in automation as it will certainly let the circulation go through the pipelines also in its existence. In order, to increase the security specification, the stem design is layout in a way that it obtains an anti burn out feature. Furthermore, it has its very own anti-static gadget to make sure protection versus electrostatic discharges. The checklist of benefits does not finish below: Among the crucial benefits that will undoubtedly make a lot of operators happy is that its pneumatic actuators could quickly be assembled in factories. Thanks to their lining products, these are very immune to the chemicals in flow. As we are making use of good quality product for the lining process, it has high resilience. Additionally, it additionally helps to

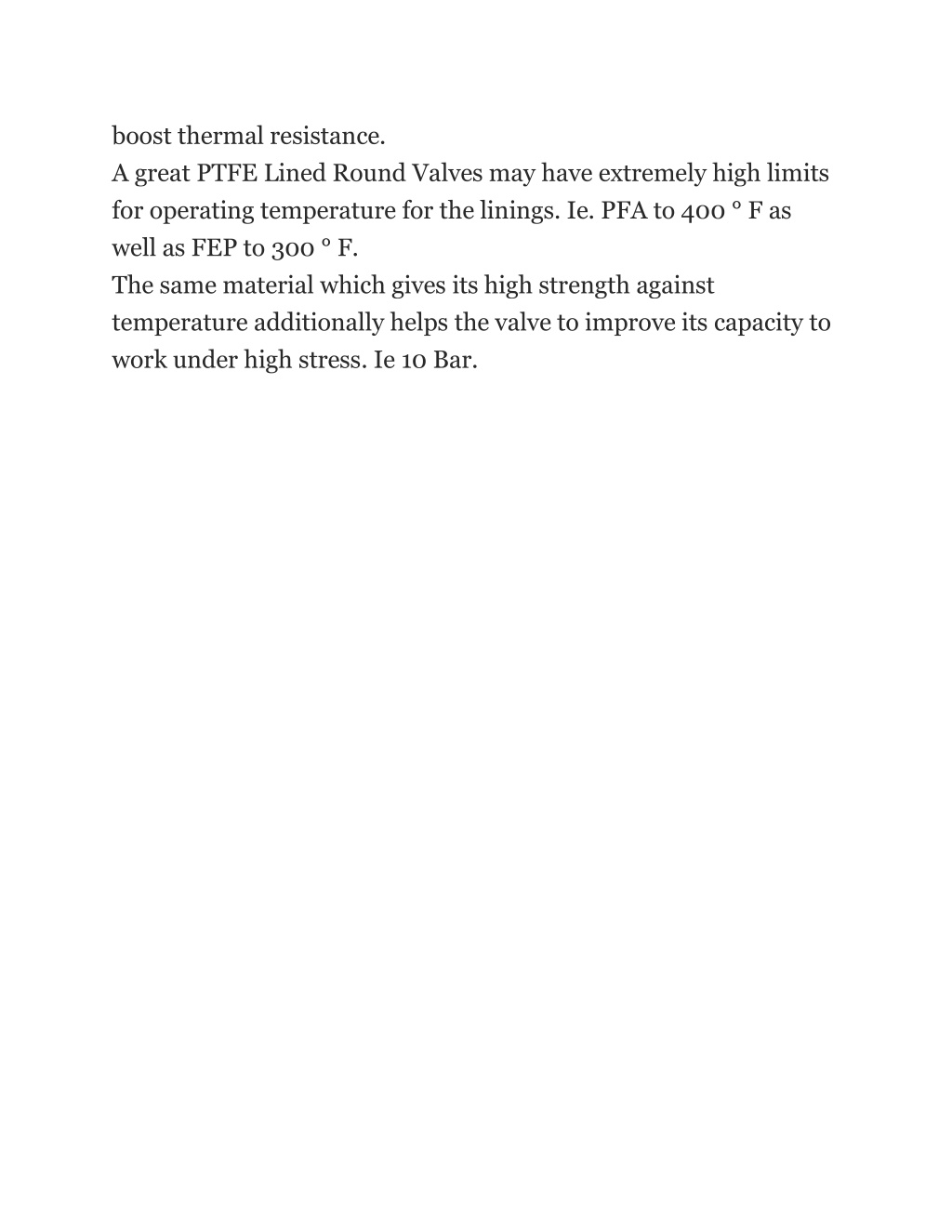

20. boost thermal resistance. A great PTFE Lined Round Valves may have extremely high limits for operating temperature for the linings. Ie. PFA to 400 ° F as well as FEP to 300 ° F. The same material which gives its high strength against temperature additionally helps the valve to improve its capacity to work under high stress. Ie 10 Bar.
