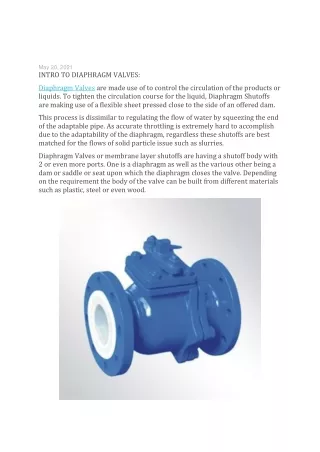

1. PTFE Lined Diaphragm Valves May 20, 2021 INTRO TO DIAPHRAGM VALVES: Diaphragm Valves are made use of to control the circulation of the products or liquids. To tighten the circulation course for the liquid, Diaphragm Shutoffs are making use of a flexible sheet pressed close to the side of an offered dam. This process is dissimilar to regulating the flow of water by squeezing the end of the adaptable pipe. As accurate throttling is extremely hard to accomplish due to the adaptability of the diaphragm, regardless these shutoffs are best matched for the flows of solid particle issue such as slurries. Diaphragm Valves or membrane layer shutoffs are having a shutoff body with 2 or even more ports. One is a diaphragm as well as the various other being a dam or saddle or seat upon which the diaphragm closes the valve. Depending on the requirement the body of the valve can be built from different materials such as plastic, steel or even wood.

2. Diaphragm Shutoffs have 2 major classifications. Seals over a weir as well as seals over a seat. Out of both of these kinds, the weir kind is extra frequently utilized in process applications and also the seat kind is mostly utilized in slurry applications to minimize obstructing concerns; However, it can also be made use of as a process valve. Diaphragm Shutoffs most frequently can be found in two-port construction (2/2 method diaphragm valve), however they can likewise have three ports (3/2 way diaphragm shutoff), a three-port diaphragm valve is commonly known as T-valves. Furthermore, relying on the needs, it can have greater than 3 ports, it is referred to as a Block valve. As in Block shutoffs, there are more than 3 ports existing, they require greater than one diaphragm seat. However there are special dual actuators present, which can manage greater than 3 ports with only one membrane. There are various kinds of Diaphragm Valves specified incidentally of actuation. The following are one of the most typical kinds of Diaphragm Valves and their standard usage. Diaphragm Valve activated by an electrical motor, it is utilized to control the circulation of dealt with sewer. A hand-actuated Diaphragm Valve is utilizing the dam framework against the diaphragm, which creates a leak-tight seal when it remains in the shut setting. Pneumatically activated Diaphragm Shutoffs are utilizing the pressure of pressed air on one side of the diaphragm. It presses against the dam to turn off the flow. The air-actuated diaphragm shutoff can manage the circulation of water from the pipe as tiny as a 1-inch pipeline. ADVANTAGES OF DIAPHRAGM SHUTOFFS For throttling solutions, Diaphragm Shutoffs are extremely effective. One of the most important part of its large shut-off location along the seat is its throttling capacity for the fast opening of the shutoff. In order to control all flows, a weir type diaphragm valve is available. One of the most common capability for diaphragm valves is the handling of corrosive liquids, coarse slurries, radioactive liquids or various other fluids, which require to be without contamination. Sticky or viscous fluids can not enter the hood to hinder the operating system, thanks to its building and construction as the valve is never exposed to the media within the pipeline.

3. Where much of the shutoffs may obtain blocked, wear away, or mess up due to tough to pass through fluids, diaphragm shutoffs handle them flawlessly. Thanks to the lubricants it utilizes for the operating device, which will certainly not permit any of the liquids it is handling to infect the system. The opportunity of stem dripping in the shutoff is almost none and as it has no packing glands, the maintenance is likewise really low. PTFE LINED FLUSH BOTTOM VALVES: INTRODUCTION TO FLUSH BASE SHUTOFF: Shutoffs need to handle a great deal of various types of products. Flush Bottom Valve is also called Drain Bottom Valve or Bottom Shutoff, as the name suggest this is a special-purpose shutoff, they are extremely reliable against hard to take slurry, viscous products as well as semi-solid materials too, for piping systems. These shutoffs are offered in a wide variety of dimensions varying from 15mm to 150mm. Depending upon the user's demands bottom shutoffs can be constructed from different type of products such as cast steel, SS 304/316, cast iron or any kind of unique alloy. Depending upon the procedure there are a number of alternatives existing for seating, like Neoprene, Rubber as well as PTFE., for unique applications there are lined flush bottom shutoffs. Like PTFE Lined/ PFA lined flush bottom valves. Glass lined flush lower valves are also preferred for pharma and also chemical industry for high purity or highly corrosive material applications. PFA lined flush bottom shutoffs are lined with fluoropolymers from inside and the spindle has lining. These valves are generally attached to the pad kind nozzle. When it is in the shut setting the disk matches with the bottom of the vessel or piping. This causes nearly no space for any type of kind of stagnation or holds up. There are 2 sorts of flush lower shutoffs available. Valves with disk opening into the storage tanks. Shutoffs with disk right into the shutoff.

4. For the former type, in order to drain the fluid, the stem pushes the disk right into the tank; Nevertheless, if there are products that can limit the activity of the disk after that this sort of valves can not be used. As this might influence the drainpipe of the product totally. For later kind, the disk is taken down straight to the valve, which causes the discharge of the materials. 2 of one of the most usual disk layouts are Plug kind as well as Ram type. Normally, for a conventional flush bottom valve, the inlet dimension is higher than the outlet size. Nevertheless, there are some unique constructions possible with both electrical outlets having the very same dimensions. Completion links are normally flanged. Outlet port as well as Inlet port are usually set to an angel of 45 or 60 degrees, this provides the variance needed for the flush system. There are smaller sized size drain shutoffs likewise present with the welding end at Inlet to deal with greater stress. The highest- rated flanged shutoff is ANSI 300 lbs as of the time of writing this info. There is an uncanny similarity between both Flush Bottom Shutoff and also Globe Valve in regards to the parts being used. Likewise, the opening and also closing actions for both shutoffs are similar. Both of these valves are making use of disk closing versus the body seat so as to get the shut-off result. Depending upon the solutions, jacketed Flush Bottom Valves are additionally readily available. If required, the seat and also the disc can be machined with such precision to get the vacuum responsibility. HERE ARE SOME SECRET BENEFITS FOR LINED BASE FLUSH SHUTOFF:

5. Pressure loss is really low. Near the bottom pad of the container, there is practically absolutely no stands up thanks to the special design of the Flush Base Valve. Safety is ensured thanks to the tough construction of the shutoff. There are various sorts of lining available to select from, to match the working problems. This is one of the most affordable sort of shutoff readily available as proved by the performance. In order to decrease the dead area, there is some extended seat readily available. SEVERAL OF THE MOST STANDARD APPLICATIONS FOR FLUSH BASE VALVES: Among the most common uses for Y-Type Flush Bottom Valves is to discharge fluids and also various other slurry products from the bottom of the activators and also other huge containers. Corrosive Applications. EVERYTHING YOU REQUIRED TO KNOW ABOUT PTFE SHEETS Polytetrafluoroethylene (frequently called PTFE) is a synthetic fluoropolymer. Roy Plunkett developed PTFE back in 1938, it was an accidental wonder. Roy was initially looking for a far better air coolant gas while working on it overnight, he winds up with a semi-hard material with impressive properties. For over 80 years now, we are capitalizing on its residential or commercial properties like non-stick, friction-free, non-wetting, self-lubricating, non- brittle, safe and also non-flammable, weather are unable to impact it

6. whatsoever, immune to fungi, chemical immune just among others. The electrical residential properties of a PTFE are equally great. Not only this, but PTFE can keep all these residential or commercial properties over a very wide range of temperature level, -200 ° C to 350 ° C. Which makes it an ideal linning material for sheets. Following is the list of PTFE sheets and their various applications for you to choose from: 1) VIRGIN PTFE SHEET: Virgin PTFE sheet is essentially a high-performance polycarbonate. It provides very reduced friction and also outstanding dielectric toughness. It offers exceptionally reduced wetness absorption. It has a wide variety of working temperature levels, and it is extremely chemical deterioration as well as hydrolysis resistant. Furthermore, it is authorized for cooking functions and it is very immune to UV. Thanks to its qualities, it prevails to see PTFE as a gasket for extremely aggressive chemicals as well as cellular lining. As it has very reduced rubbing it can additionally be taken legal action against as a slider plate or bearings. And not to forget its electric residential or commercial properties, which makes it an excellent electric insulator. APPLICATIONS: These sheets are commonly utilized in a wide range of markets; nonetheless, it is commonly composed of gaskets and also seals, slide bearings, insulators, bushings, washers and also chemical cellular linings for different usages. KEY FUNCTIONS: It has an extremely large range of temperatures from -200 ° C to 260 ° C. Highly reliable against temperature level variations. Highly immune to chemicals and hydrolysis. Superb non-stick residential properties and also remarkable gliding buildings. The friction coefficient is extremely low.

7. Moisture absorption is virtually no. It is delicate to Gamma Radiation. Ultraviolet immune and also food approved. 2) GLASS FILLED PTFE SHEET: Glass filled up PTFE sheet is more advanced as well as improved contrasted to Virgin PTFE sheets in terms of creep and also wear. In order to enhance the dimensional stability of the polymer, it is made with 25% glass fibre, this in return reduces the contortion under hefty lots. Glass loaded PTFE sheet is an impressive electrical insulator and also it has remarkable resistance versus chemicals and also deterioration by the impacts of these chemicals. The only exemption for this is hydrofluoric acid. All these materials will certainly supply an enhanced coefficient of rubbing, but on a flip side, it provides a higher contortion under load compared to carbon filled up PTFE. When improved product stamina with enhanced resistance to attrition is required, the first choice is this polymer. The front runner to make gaskets, pump housings, valve seats, shaft seals and bearings for reduced pressure and velocity worths, glass filled up PTFE is being made use of. APPLICATIONS: Glass loaded PTFE sheets are very useful in several things. Pump real estates, shutoff seats, gaskets, filter real estates, shaft seals, shaft bearing, slide joggers, electric insulators, washing machines as well as seals. KEY ATTRIBUTES: It has a broad temperature level range of -260 ° to 260 °. Besides some alkali steels and hydrofluoric acid, they are exceptionally wonderful chemical immune versus nearly all of the media. When it is contrasted to standard PTFE sheets, it has much enhanced resistance to the chemicals and dimensional security is boosted dramatically Resistance against low as well as high temperatures are extremally high Electric insulation is unparalleled

8. Wetness absorption is as low as zero. 3) STAINLESS STEEL FILLED PTFE SHEET: Stainless steel filled PTFE sheets when contrasted to common qualities of PTFE is a high carrying out fluoropolymer that offers increased mechanical qualities, boost resistance versus weariness as well as considerably higher thermal conductivity. It has a vast operating temperature, a clas UL94 V-0 rating for Flmmabilit. All this makes it perfect to use for cooking purposes. The major polymer supplied high resistance to chemicals and with the exemption of some antacids steels and important fluorine. Furthermore, it is capable o dissipating fixed build-up. As the name recommends Stainless-steel is made use of to load the PTFE sheet, it supplies the toughness of steel. As a result, when contrasted to other PTFE arrays, the stainless-steel alternative gives enhanced toughness to the sheet, causing an enhanced rate against the contortion under extra load. While offering this added strength, it still has the same coefficient of friction as a glass filled up PTFE or Bronze Filled PTFE alternatives. Many thanks to its enhanced mechanical strength and its FDA as well as EC regulations, stainless steel filled PTFE sheets are one of the most popular selection for the food processing sector as well as cooking. For filler purposes, the 316L stainless steel is made use of, and that aids to boost the hardness of the product which in return makes it very easy to the device. APPLICATIONS: Many thanks to its wide variety of residential or commercial properties it can be utilized for many various applications depending o the type of demands you have. They are extremely used for Bushing, gaskets, washing machines, slide pads, shaft bearings, chemical tanks, slide runners and also electrical insulation parts. CRUCIAL FUNCTIONS:

9. Variety of temperature level from -200 ° C to 260 ° C. The product which is utilized to fill up is a mix of 50% 316L stainless steel and remaining is virgin PTFE . Capability to take care of the temperature variation is unrivaled. It has a really high quantity resistivity, ie 10 ^ 7 Ohms. It is very reliable versus the chemicals, very chemical immune. It is risk-free to use for cooking purposes, there will certainly be no adverse effects if the food will certainly remain in direct touch with it. It is very machinable. 4) CARBON FILLED PTFE SHEET: When it is compared to typical qualities of PTFE, Caron loaded PTFE sheet offers an extremely boosted dimensional stability as well as thermal epansion coefficient is extremely low. Against chemicals, it is very efficient. As it is highly chemical immune and also it is partially electrically conductive as well as it uses great compression toughness. A carbon filled PTFE provides enhanced resistance to creep with only 25% full of carbon. When compared to virgin PTFE sheet, it stands stronger with last much longer when compared to exhaustion; nevertheless, when compared to other engineering plastics such as polyethylene, it deems weak in mechanical stamina. Additionally, when contrasted to glass loaded PTFE, carbon loaded PTFE sheets perform better under heavy loads so reduced deformation rate, and friction's coefficient is additionally better contrasted to glass filled up PTFE sheets Whenever the coefficient of friction is needed to be as reduced as possible with dissipation of electric fee, after that in such situations the polymer is one of the most prominent option amount the whole household. A shaft bearings, gaskets, pump parts, shaft seals, or other components which are utilized in electronic applications, are generally machined from Carbon filled up PTFE sheets. APPLICATIONS: Thanks to its multi purpose as well as rearkable residential or commercial properties, it can be utilized to make gaskets, washing machines, filter real estates, slide runner, chemical tank linings, shaft bearings, shaft seals and pump and instrument components.

10. In addition, it is additionally used to develop electric insulation parts. KEY FUNCTIONS: Just like the earlier three, it has a variety of functioning temperatures from - 200 ° C to 260 ° C. Carbon filled PTFE sheets are very reliable against chemicals as well as basically deterioration complimentary versus all the chemicals with an exception of some antacids steels. Carbon filled PTFE sheets are partially electrically conductive and it's anti- static. When contrasted to basic PTFE qualities, it has actually a lot improved as well as greater dimensional security as well as creeps resistance. It has a greater vibrant bearing efficiency. Furthermore, it has actually boosted moving buildings. 5) BRONZE FILLED PTFE SHEETS: When contrasted to basic grades of PTFE, Bronze filled up PTFE sheets offers much sophisticated dimensional security, greater mechanical residential properties and also thermal conductivity. The bronze filled PTFE sheets provide the best variety of working temperature level; Nevertheless, it is also the weakest when it comes to the resistance against the chemicals contrasted to various other PTFE grades offered as a result of the filler. The filler material contains 60% of the virgin PTFE as well as the continuing to be 40% is a bronze powder, as a result of this the resulting material provides resistance to use under high compressive tons and dissipates static and heat build-up when in the application. When it is compared to the other substances within the same variety, bronze filled up PTFE sheets are among the densest grades of PTFE out there out there. It has a really certain gravity of 3.14 g/cm ^ 3. With all this, it also has a similar kinetic coefficient of rubbing as the glass as well as stainless-steel options have. In addition, deformation of the bronze filled up PTFE sheets are very reduced under high tons. All this combined makes it the perfect option to use as an unlubricated bearing. APPLICATIONS:

11. Because of their unique nature, bronze filled up PTFE sheets are utilized in a somewhat different application than the remainder of the family members until now. Among one of the most common uses bronze filled up PTFE sheets is that they are made right into the piston, put on rings and bearings. In addition, they are additionally utilized when high performance shaft bearing is called for. For slide plates and gaskets additionally bronze filled up PTFE sheets are being used. CRUCIAL FEATURES: Bronze filled up PTFE sheets are also having a bigger temperature range for the functioning problem which is from -200 ° C to 260 ° C. It has an exceptional ability to handle reduced as well as heats. When it is contrasted to various other PTFE sheets, bronze filled up PTFE sheets have the weakest efficiency versus chemical corrosion. It obtains easily impacted by some acids as well as alkali metals. Nonetheless, with the weakness versus the chemicals, it features an extra stamina as it gives the most improved mechanical properties and dimensional security is additionally improved dramatically. It has a quantity resistivity of 10 ^ 6 Ohms. This assists to dissipate static accumulation. Non-stick as well as moving residential or commercial properties are incredibly good. The coefficient of rubbing is extremely reduced. Bronze loaded PTFE sheets are offering great thermal conductivity. 6) SKIVED PTFE SHEETS: The manufacturing process for Skived PTFE Sheets is various contrasted to other PTFE sheets we have actually talked about in this blog. It is created from a thin movie of virgin PTFE sheets with a yellow corrugated lining with self- adhesive silicone. The operative temperature level for skived PTFE sheets is relatively less yet it has extremally reduced co-efficient of rubbing and it has

12. one of the most advanced resistance versus the chemicals; however, it is most typically made use of in exceptionally high temperatures atmospheres, where normally the temperature is 260 ° C. It is likewise utilized as an electrical insulator. In scenarios where an instantaneous anti-stick cellular lining is called for, skived PTFE sheets are most typically get chosen. APPLICATIONS: Skived PTFE sheets are most typically utilized for anti-stick cellular linings, bellows, adapters and also sleeves. Because of its electric building, it is usually made use of as a cord covering as well as electrical insulator. ESSENTIAL FUNCTIONS:

13. When Skived PTFE sheets are compared to various other PTFE sheets, it is evident that they have narrower working temperatures range from -73 ° C to 260 ° C. Skived PTFE sheets have really high resistance versus the chemicals exception some alkali metals. Dimensional security of skived PTFE sheets is incredibly high and also moving properties are outstanding. Electrical residential properties are various, as it is an electrical insulator. Temperature level resistance is superb. THINGS YOU REQUIRED TO KNOW BEFORE INSTALLING A PTFE LINED ROUND SHUTOFFS INTRO TO PTFE LINED ROUND SHUTOFF: The fundamental building and construction for Lined Ball Valves includes body, stem, round, seat and lining. Round Valves are constructed in a manner that their inside is covered with high-end PTFE or PFA lining product. As well as thanks to this lining process the shutoff gets its density, which in return protects the valve against rust in addition to any kind of possible damages because of chemical reactions. Consequently, they have emerged as the most prominent choice for nasty applications. The PTFE Round Valves or Round Valves are commonly known as the Turn off valve in the marketplace as well as industry. As numerous brands are making them in a manner that they obtain free-floating for their round shutoffs. That results in a positive shut-off for different ranges of stress. This direct style responsible for its fantastic shut down capacity is likewise responsible for its inability to control the circulation. This implies when you require to maintain the managed circulation for the media you can not control it. It can either be only on with minimal challenges or it will entirely close the flow. THE MAJOR DISTINCTIONS IN BETWEEN AN UNLINED BALL SHUTOFF AND A LINED SPHERE VALVE IS EXPLAINED HERE: As one can see from the name of both Shutoffs, it is easy to inform that both of them work on the same principle; Nonetheless, a Lined Sphere Valve is a lot
