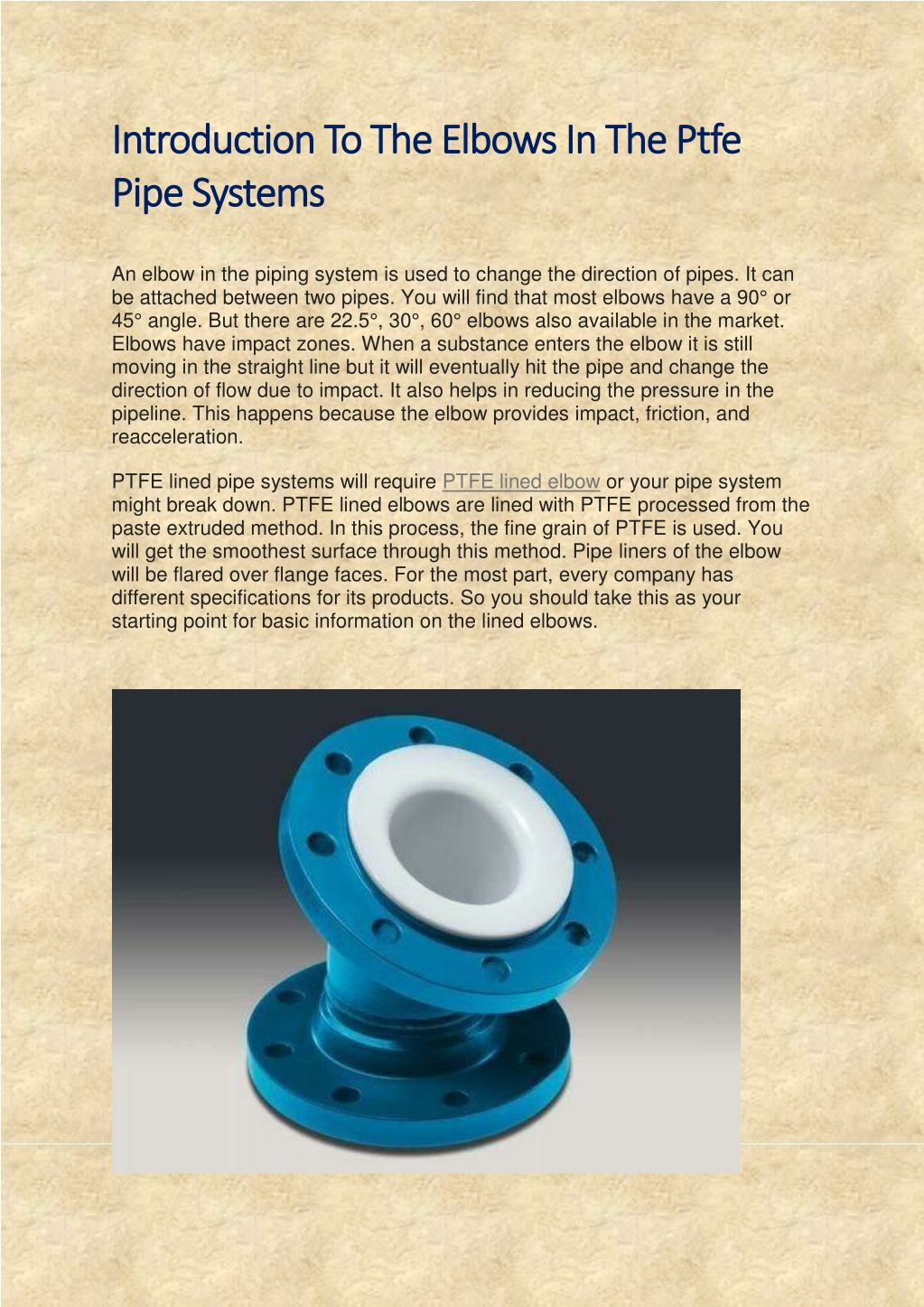

1. Introduction To The Elbows In The Ptfe Introduction To The Elbows In The Ptfe Pipe Systems Pipe Systems An elbow in the piping system is used to change the direction of pipes. It can be attached between two pipes. You will find that most elbows have a 90° or 45° angle. But there are 22.5°, 30°, 60° elbows also available in the market. Elbows have impact zones. When a substance enters the elbow it is still moving in the straight line but it will eventually hit the pipe and change the direction of flow due to impact. It also helps in reducing the pressure in the pipeline. This happens because the elbow provides impact, friction, and reacceleration. PTFE lined pipe systems will require PTFE lined elbow or your pipe system might break down. PTFE lined elbows are lined with PTFE processed from the paste extruded method. In this process, the fine grain of PTFE is used. You will get the smoothest surface through this method. Pipe liners of the elbow will be flared over flange faces. For the most part, every company has different specifications for its products. So you should take this as your starting point for basic information on the lined elbows.

2. Here we are going to discuss the two types of elbows. 90 Degree PTFE lined elbow 45 Degree PTFE lined elbow 90° Elbows: 90-degree elbows are used when we have to change the direction of pipes. You will be able to change direction perpendicular to the pipe length. It is really helpful to use the elbow when we need to connect the valve or drains. You will find that one end of these elbows is fixed while the other is a loose flange. This is similar to the flanges of the pipe spools. There are also elbows with rotating flanges available. It gives maximum capability on the site. There are many options available to you for choosing metals. As stainless steel and carbon steel are most common. The determining segment is the thickness of the PTFE lining. This determines the quality and the weight factors of the pipe fittings. 45° Elbows: 45-degree elbows are used when you need to change the direction of flow at a 45° angle. What does change in the direction of flow? This means we are producing an elbow which in itself is not angled at 45° but it is designed in such a way that when fluid enters the elbow it will come out at an angle of 45. Some calculations need to be made so that fluid will go in the precise direction we want it to go. PTFE lined elbows of 45° are also made from many materials. You will find these elbows with a long radius. They are longer than 90° elbows. These elbows are used when you have plenty of space to change the direction of flow. You might want to use them even when the space is tight. When changing of direction takes a front seat to any other issues there are, these elbows are used. Conclusion: It is possible to customize the angle of the elbows. But you will need to give some time to the manufacturer. It takes time to make changes to the calculations and produce the product that satisfies the standard of the company and client. There are many different sub-categories of the elbows but it is not relevant now.
