slide1

…A World Of Ultimate Piping Solutions.

Tube Products Incorporate

Vadodara, India

---ISO 9001 & PED

slide3

…The Organization – At a Glance

  • Made a positive start in the year 1982.
  • First plant in GIDC, Makarpura, Vadodara to manufacture Industrial Flanges.
  • Expanded for providing comprehensive end – to – end engineering solutions in Piping, Forging
  • &Heat Transfer.
  • ISO certification in the year 1998, PED certification in the year 2007.
  • Five Hi – Tech manufacturing units in Vadodara, at present.
  • Total combined spread area of more than 15 Lac Sq.Ft.
  • Plants equipped with latest Hot & Cold Pipe Forming, Induction Bending, Forging, Heat
  • Treatment, Machining,Profile Cutting, Welding, Material Testing & Handling Equipments.

---ISO 9001 & PED

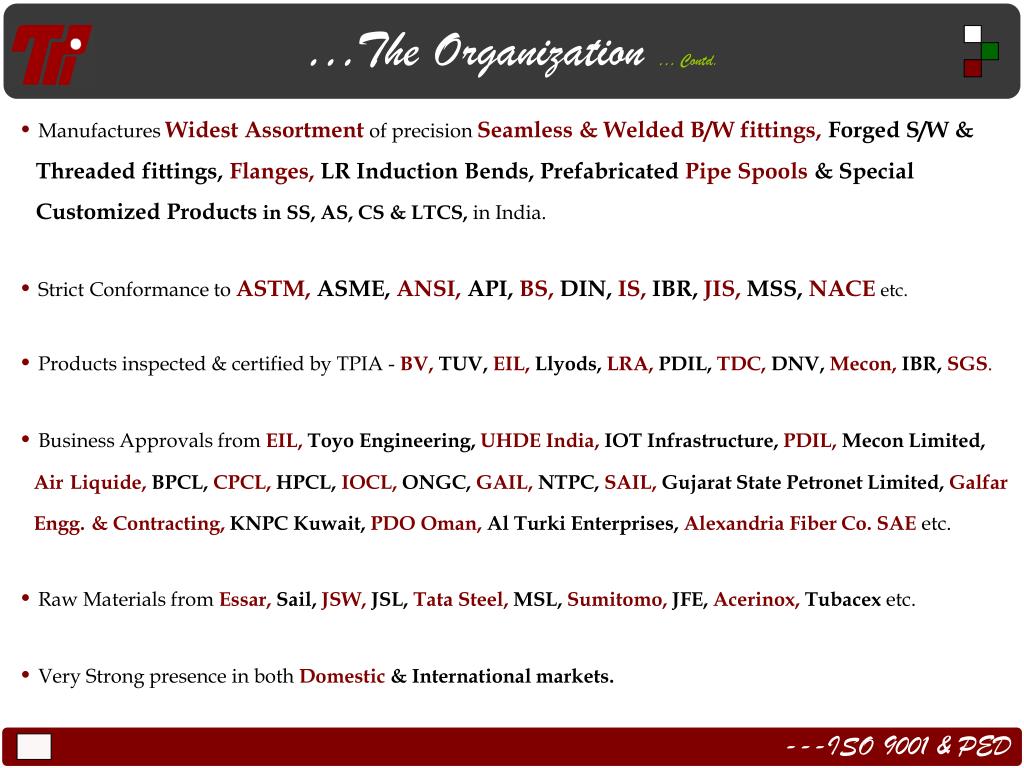

slide4

…The Organization … Contd.

  • ManufacturesWidest Assortmentof precisionSeamless & Welded B/W fittings, Forged S/W &
  • Threadedfittings, Flanges, LR Induction Bends, Prefabricated Pipe Spools & Special
  • Customized Products in SS, AS, CS & LTCS, in India.
  • Strict Conformance toASTM, ASME, ANSI, API, BS, DIN, IS, IBR, JIS, MSS, NACE etc.
  • Products inspected & certified by TPIA - BV, TUV, EIL, Llyods, LRA, PDIL, TDC, DNV, Mecon, IBR, SGS.
  • Business Approvals from EIL, Toyo Engineering, UHDE India, IOT Infrastructure, PDIL, Mecon Limited,
  • AirLiquide, BPCL, CPCL, HPCL, IOCL, ONGC, GAIL, NTPC, SAIL, Gujarat State Petronet Limited, Galfar
  • Engg.& Contracting, KNPC Kuwait, PDO Oman, Al Turki Enterprises, Alexandria Fiber Co. SAE etc.
  • Raw Materials from Essar, Sail, JSW, JSL, Tata Steel, MSL, Sumitomo, JFE, Acerinox, Tubacex etc.
  • Very Strong presence in bothDomestic & International markets.

---ISO 9001 & PED

slide5

Our Mission -------------

Westrive to be an integral, irreplaceable part of our customers’ business, in the core areas of Piping & Tubing, Forging and Heat Transfer.

We exist for

You !

---ISO 9001 & PED

slide6

Our Vision --------------

We must endeavor to be the most preferred & valued business partner of our customers, through the application of our core value system.

We exist for

You !

---ISO 9001 & PED

slide7

Our Core Value System ------

Teamwork with Trust.

Performance with Passion for Excellence.

Interface with Integrity.

2 x TPI

We exist for

You !

---ISO 9001 & PED

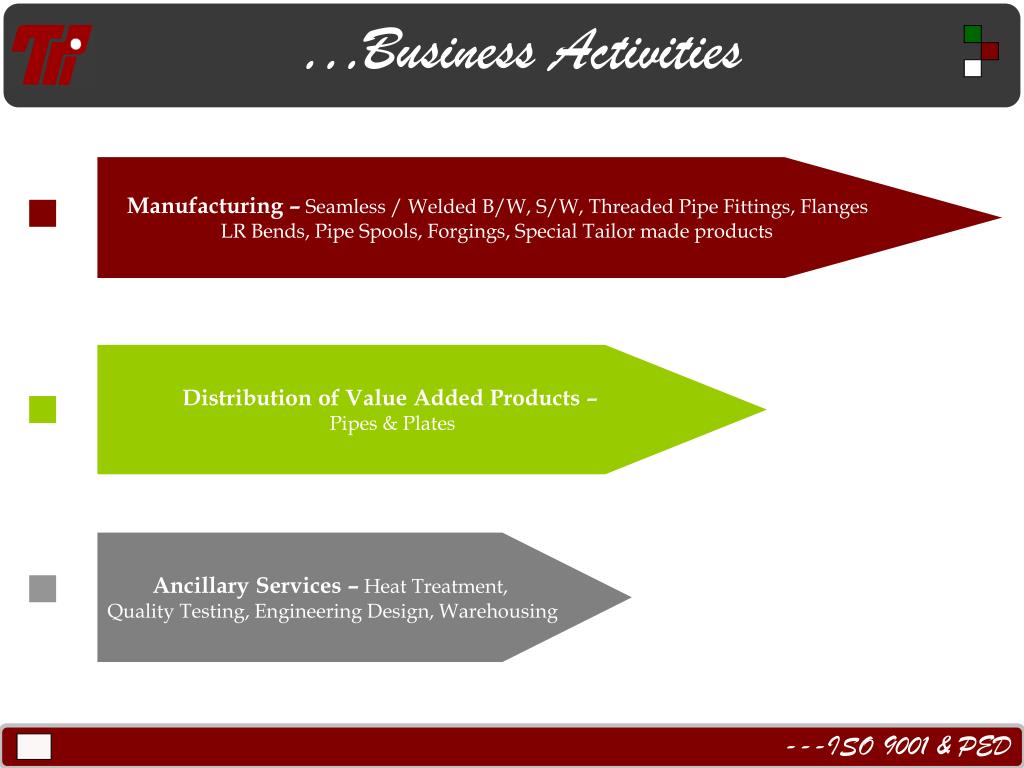

slide8

…Business Activities

Manufacturing – Seamless / Welded B/W, S/W, Threaded Pipe Fittings, Flanges

LR Bends, Pipe Spools, Forgings, Special Tailor made products

Distribution of Value Added Products –

Pipes & Plates

Ancillary Services – Heat Treatment,

Quality Testing, Engineering Design, Warehousing

---ISO 9001 & PED

slide9

…TPI – A World Of Ultimate Piping Solutions

Pipes

Pipe

Fittings

Heat Treatment

Quality Lab

Plates &

Profiles

Flanges

We exist for

You !

Forgings

LR

Induction

Bends

Tailor Made

Products

Pipe

Spools

Engineering

Design

Warehousing

ISO 9001 & PED

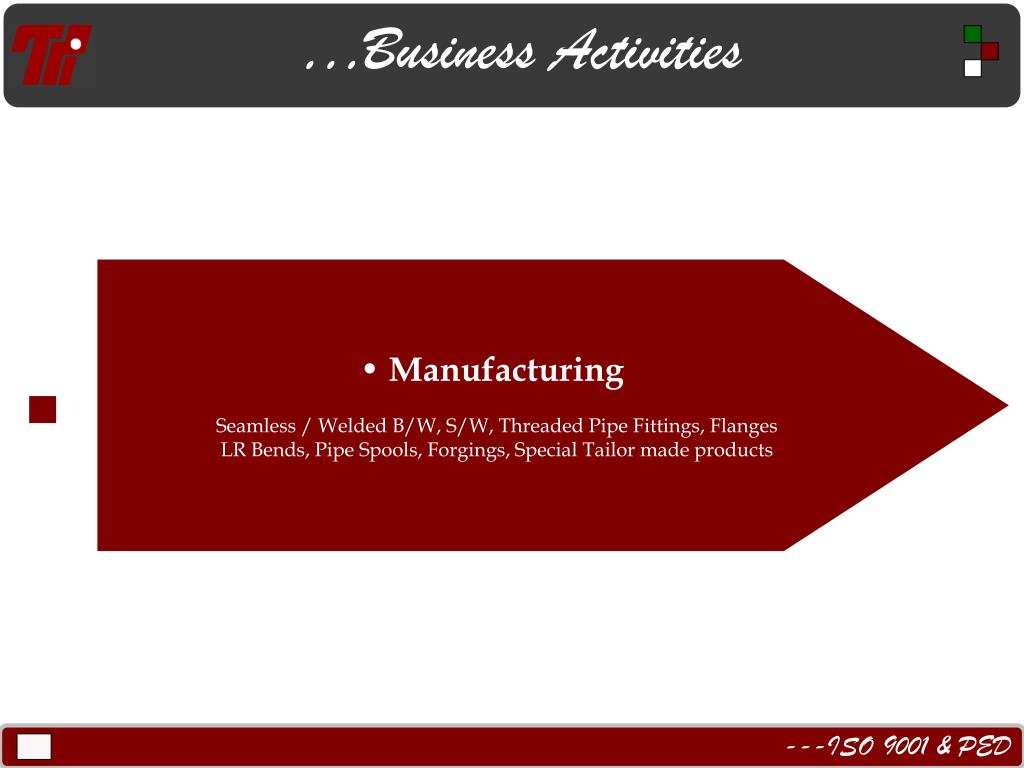

slide10

…Business Activities

  • Manufacturing
  • Seamless / Welded B/W, S/W, Threaded Pipe Fittings, Flanges
  • LR Bends, Pipe Spools, Forgings, Special Tailor made products

---ISO 9001 & PED

pipe fittings
… Pipe Fittings

---ISO 9001 & PED

slide12

… Pipe Fittings

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

  • Seamless B/W Fittings
  • Material Standards : ASTM A234, A403, A420, A860, B366, MSS SP – 75, IS 1239 etc.
  • Dimensional Standards : ASME/ANSI B16.9, B16.28, MSS SP – 43, SP – 75, DIN 2605, 2606 etc.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

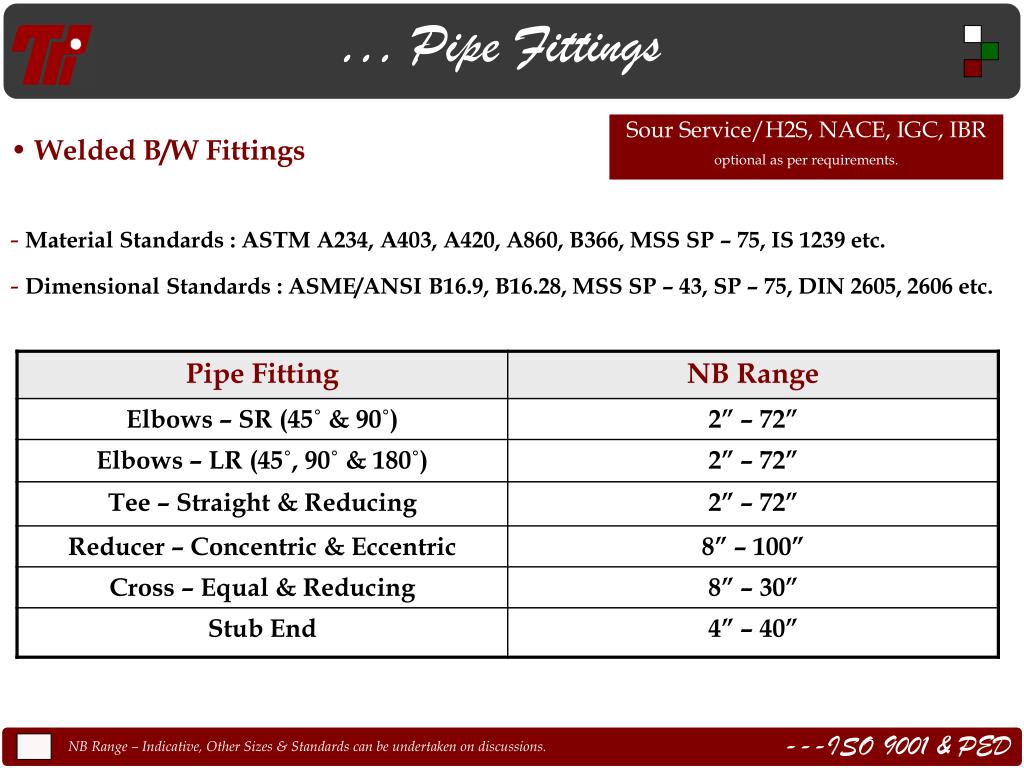

slide13

… Pipe Fittings

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

  • Welded B/W Fittings
  • Material Standards : ASTM A234, A403, A420, A860, B366, MSS SP – 75, IS 1239 etc.
  • Dimensional Standards : ASME/ANSI B16.9, B16.28, MSS SP – 43, SP – 75, DIN 2605, 2606 etc.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

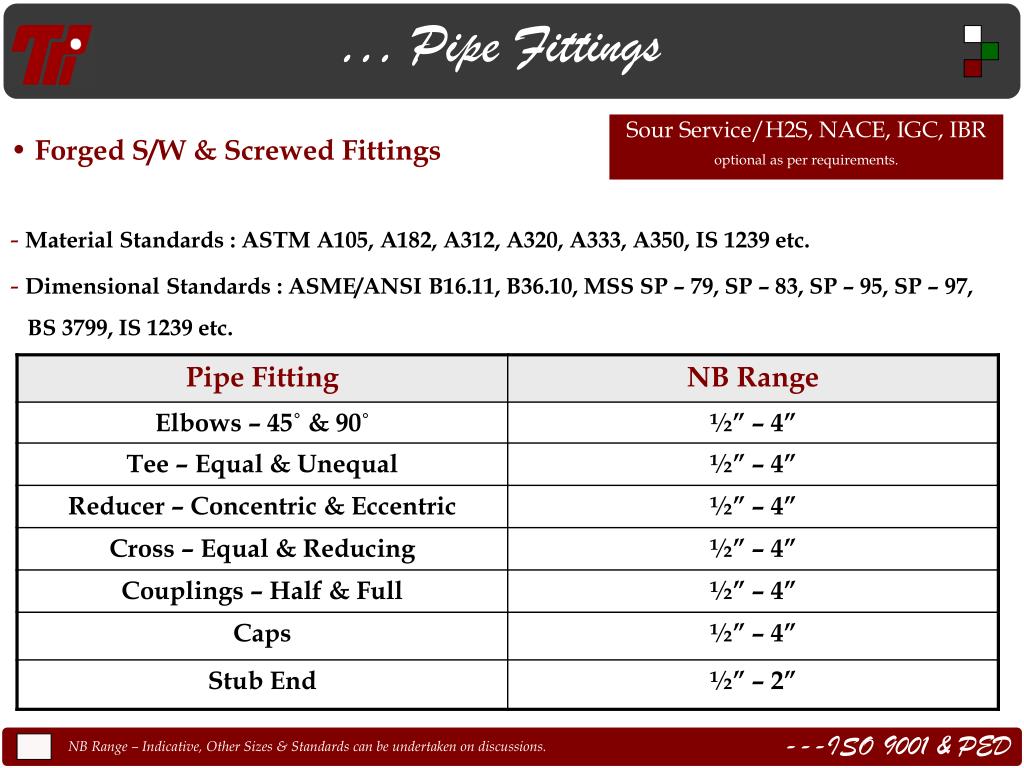

slide14

… Pipe Fittings

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

  • Forged S/W & Screwed Fittings
  • Material Standards : ASTM A105, A182, A312, A320, A333, A350, IS 1239 etc.
  • Dimensional Standards : ASME/ANSI B16.11, B36.10, MSS SP – 79, SP – 83, SP – 95, SP – 97,
  • BS 3799, IS 1239 etc.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

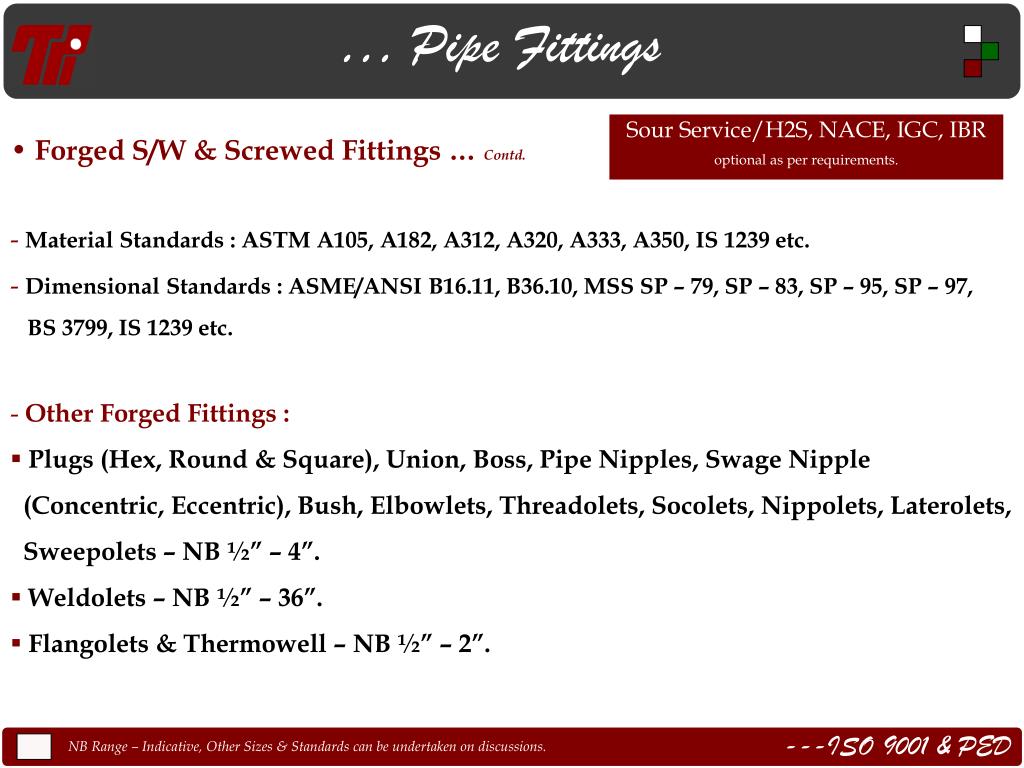

slide15

… Pipe Fittings

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

  • Forged S/W & Screwed Fittings … Contd.
  • Material Standards : ASTM A105, A182, A312, A320, A333, A350, IS 1239 etc.
  • Dimensional Standards : ASME/ANSI B16.11, B36.10, MSS SP – 79, SP – 83, SP – 95, SP – 97,
  • BS 3799, IS 1239 etc.
  • Other Forged Fittings :
  • Plugs (Hex, Round & Square), Union, Boss, Pipe Nipples, Swage Nipple

(Concentric, Eccentric), Bush, Elbowlets, Threadolets, Socolets, Nippolets, Laterolets,

Sweepolets – NB ½” – 4”.

  • Weldolets – NB ½” – 36”.
  • Flangolets & Thermowell – NB ½” – 2”.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

flanges

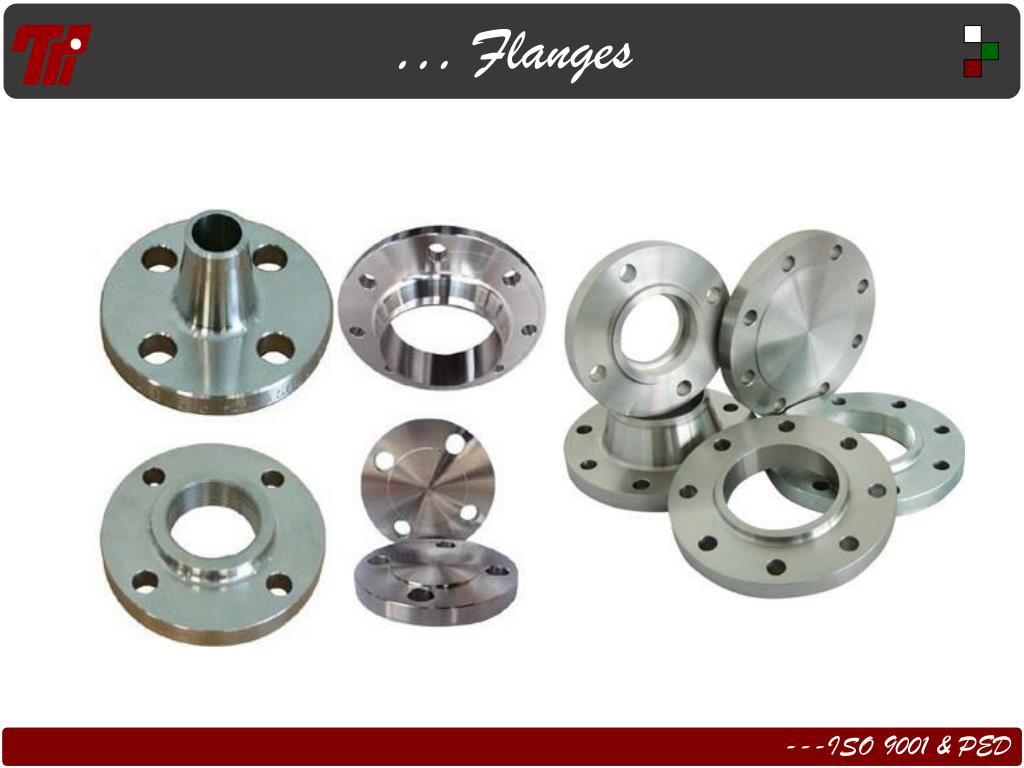

… Flanges

---ISO 9001 & PED

slide17

… Flanges

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

  • Forged & Plate Flange
  • Material Standards : ASTM A105, A182, A203, A350, A694, IS 2062 etc.
  • Dimensional Standards : ASME/ANSI B16.5, B16.47, B16.48, MSS SP – 44, API 590, API 605,
  • AWWA C207, BS 10, DIN 2633 etc.

Slip On (SORF) – NB ½” – 120” Blind – NB ½” – 120”

Threaded – NB ½” – 24” Single Blind – NB ½” – 24”

Socket Weld (SWRF) – NB ½” – 4” Spectacle (Blind) – NB ½” – 24”

Weld Neck (WNRF) – NB ½” – 60” Orifice – As per drawing

Lap Joint (LJFF) – NB ½” – 24” Spacer – NB ½” – 24”

* Please refer to standards for details.

Flat Face, Raised Face, Ring Type Joint

as per requirements.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide19

… Tailor Made Special Products

  • Special Radius & Angle Bends & Elbows
  • Flow Tee
  • Y – Piece
  • Bar Tee
  • Hot Tap Sleeve Tee
  • Jacketed Fittings
  • Lateral Tee
  • Miter
  • Plate Profiles… etc.

Especially tailor made to your designs.

Sour Service/H2S, NACE, IGC, IBR optional as per requirements.

---ISO 9001 & PED

Call us to explore more !!!

slide20

… Major Projects Serviced …Flow Tee

---ISO 9001 & PED

GSPL – Gujarat State Petronet Ltd., GAIL – Gas Authority of India Ltd.

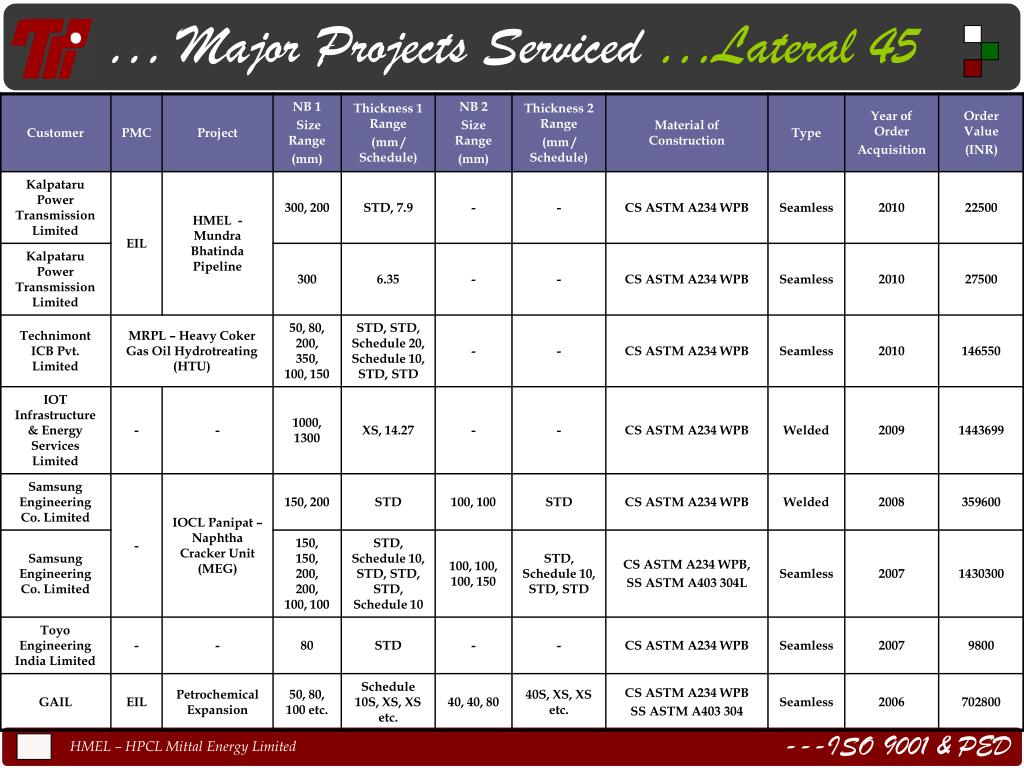

slide21

… Major Projects Serviced …Lateral 45

---ISO 9001 & PED

HMEL – HPCL Mittal Energy Limited

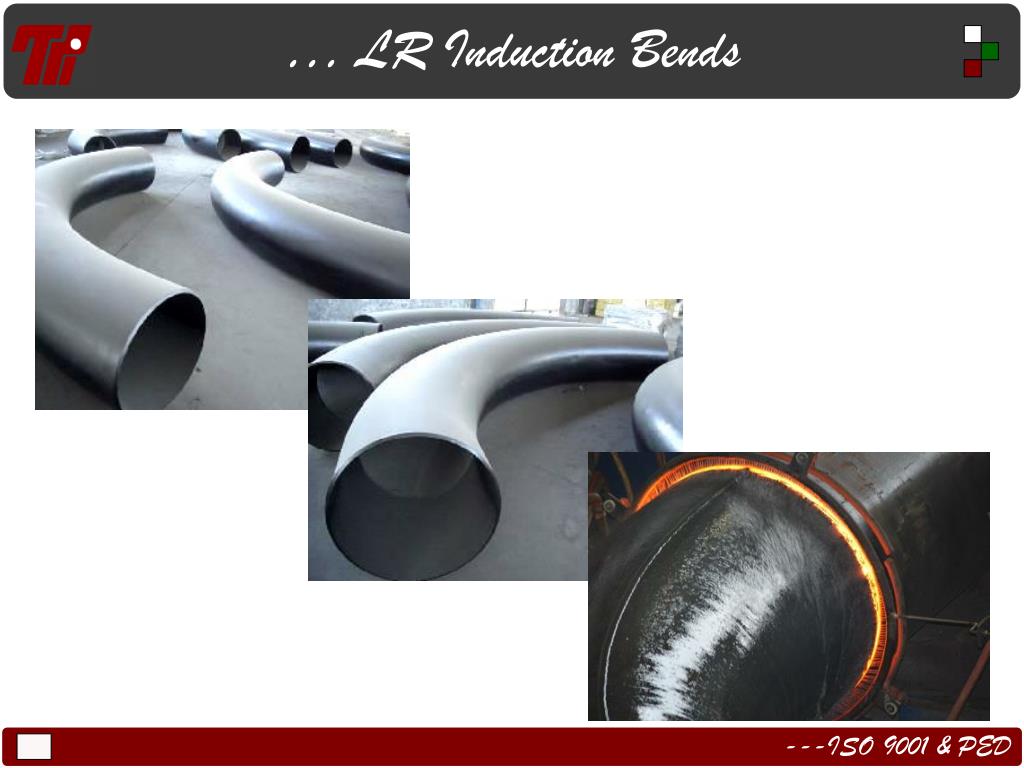

slide24

… LR Induction Bends

---ISO 9001 & PED

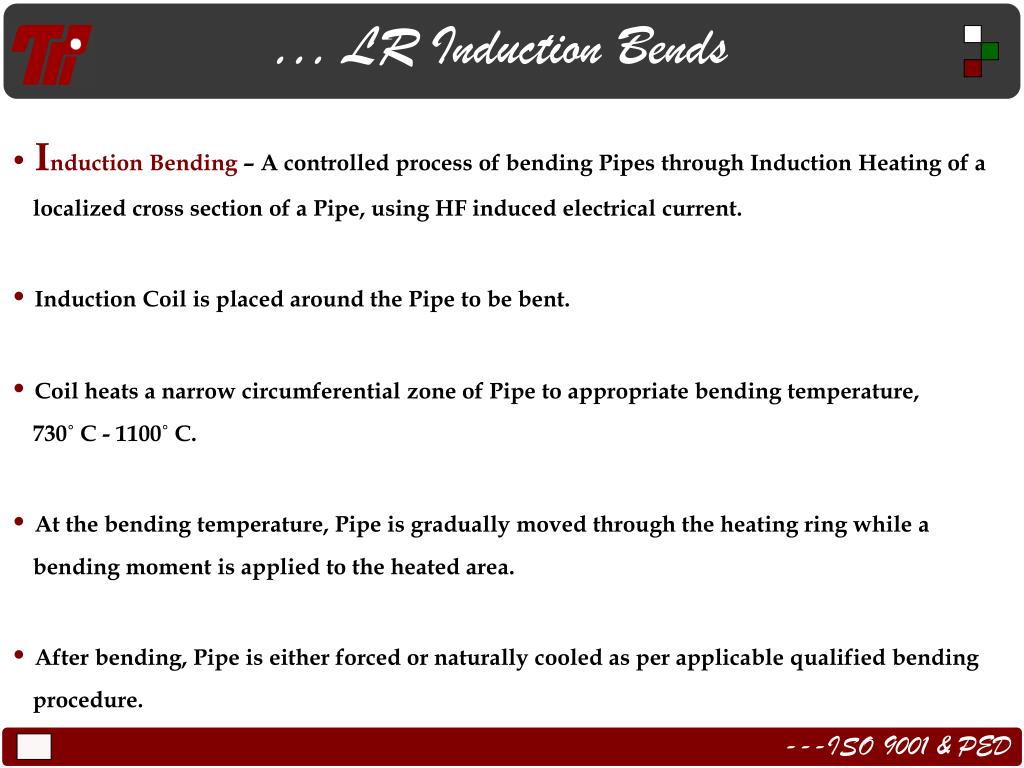

slide25

… LR Induction Bends

  • Induction Bending– A controlled process of bending Pipes through Induction Heating of a
  • localized cross section of a Pipe, using HF induced electrical current.
  • Induction Coil is placed around the Pipe to be bent.
  • Coil heats a narrow circumferential zone of Pipe to appropriate bending temperature,
  • 730˚ C - 1100˚ C.
  • At the bending temperature, Pipe is gradually moved through the heating ring while a
  • bending moment is applied to the heated area.
  • After bending, Pipe is either forced or naturally cooled as per applicable qualified bending
  • procedure.

---ISO 9001 & PED

slide26

… LR Induction Bends

… LR Induction Bends

INDUCTION BENDING

LINE DIAGRAM

---ISO 9001 & PED

slide27

… LR Induction Bends

… LR Induction Bends

PROCESS FLOW CHART

RECEIVING OF BARE PIPE

END PREPARATION

INSPECTION OF BARE PIPE

NON DESTRUCTIVE TEST

HOT PULLED INDUCTION BEND

MARKING

END PROTECTION

HEAT TREATMENT (OPTIONAL)

HYDROSTATIC TEST

PACKING

DISPATCH

DIMENSIONAL INSPECTION

---ISO 9001 & PED

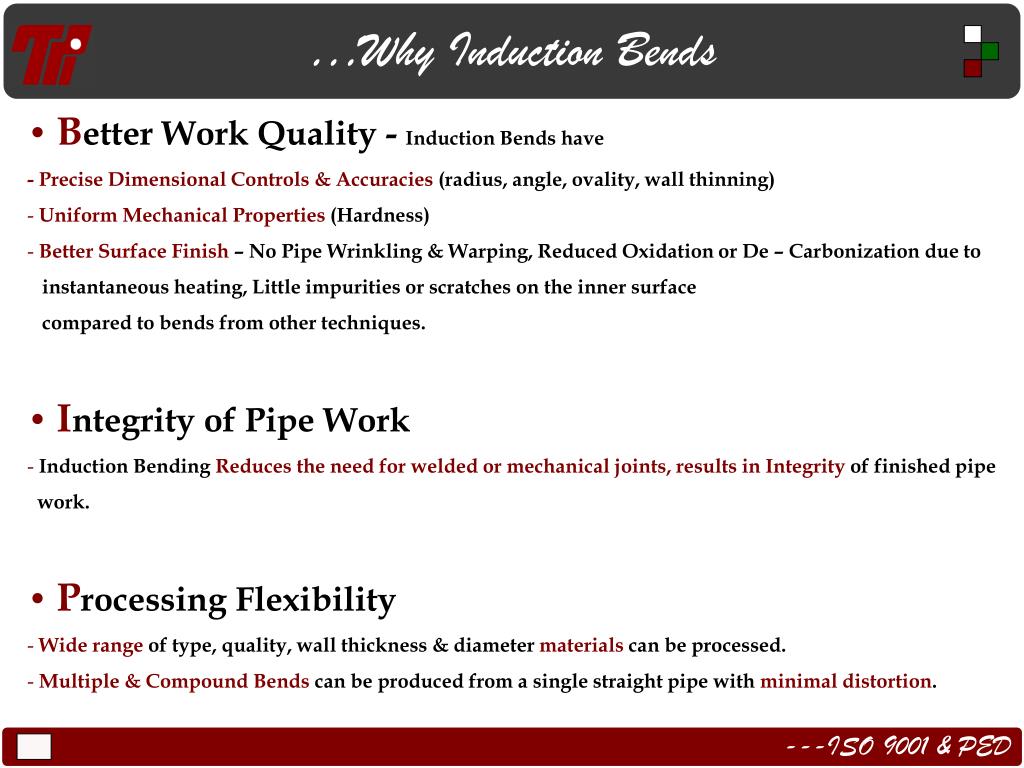

slide28

…Why Induction Bends

  • Better Work Quality - Induction Bends have
  • - Precise Dimensional Controls & Accuracies (radius, angle, ovality, wall thinning)
  • Uniform Mechanical Properties (Hardness)
  • Better Surface Finish – No Pipe Wrinkling & Warping, Reduced Oxidation or De – Carbonization due to
  • instantaneous heating, Little impurities or scratches on the inner surface
  • compared to bends from other techniques.
  • Integrity of Pipe Work
  • Induction Bending Reduces the need for welded or mechanical joints, results in Integrity of finished pipe
  • work.
  • Processing Flexibility
  • Wide range of type, quality, wall thickness & diameter materials can be processed.
  • Multiple & Compound Bends can be produced from a single straight pipe with minimal distortion.

---ISO 9001 & PED

slide29

…Why Induction Bends … Contd.

  • Tight & Long radii bends can be produced with ease, without any sectional & metallurgical effects.
  • No significant special tooling required for customized bends.
  • Pipe Work Design Optimization
  • Induction bends enable pipe work systems design using optimum bend construction resultingin long
  • term energy savings in operating the system.
  • Time Saving
  • Induction bending does not require any sand filling or inner mandrel insertion. Bending & product
  • Inspection times are considerably lesser, making the process cost effective.

---ISO 9001 & PED

slide30

…TPI’s Inductavantage

  • TPI’sInductavantage Induction Bending capabilities offer array of possibilities
  • toprecisely bend (single & multiple) many input pipe materials in CS, AS & SS.
  • High Quality Bends are produced in strict conformance to international specifications
  • API – 5L, MSS – SP – 75, ASME B – 31.1, ASME B – 31.3, ASME B – 31.4, ASME B – 16.9,
  • ASTM – A – 234, PFI – ES – 24, ISO – 15590 – 1, DNV – 2000, EIL Specifications.
  • Strong emphasis on usage of best raw materials & controlling process parameters, result in
  • production of dimensionally accurate & mechanically sound bends with high
  • repeatability.
  • Multiple quality checks & tests guarantee shipments of 100% defects less materials to
  • customers. Each & every bend is ‘Pig’ tested.
  • In house Hydro testing for bends, as per customers’ requirements.

---ISO 9001 & PED

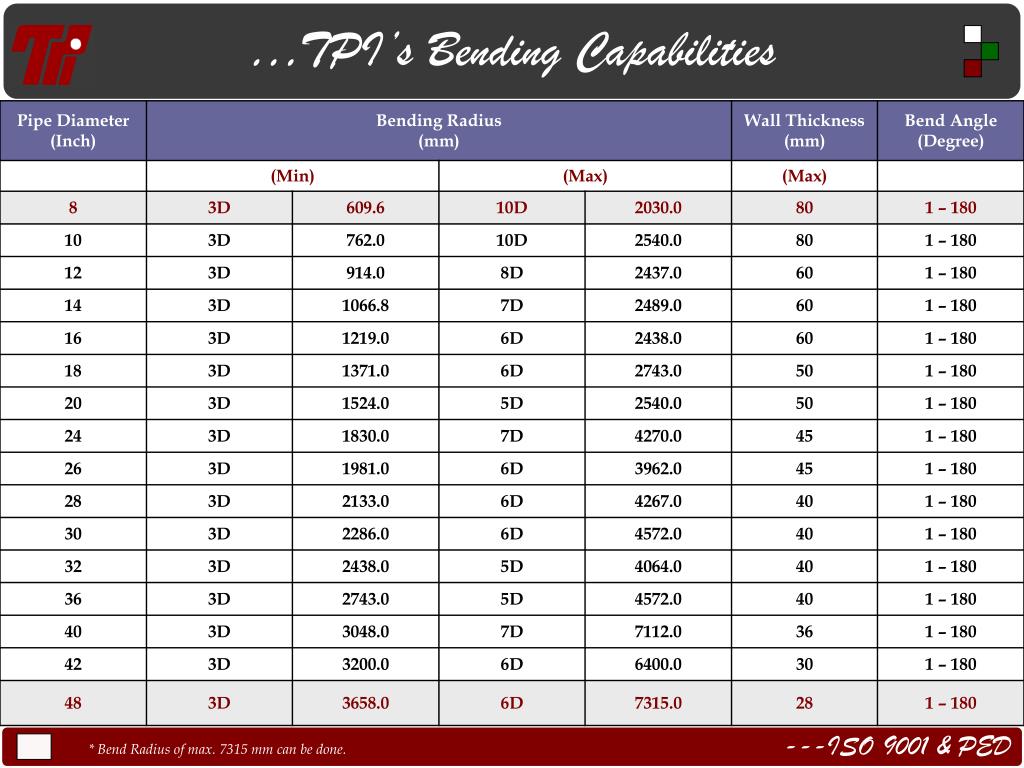

slide31

…TPI’s Bending Capabilities

---ISO 9001 & PED

* Bend Radius of max. 7315 mm can be done.

slide36

… Major Projects Serviced …Bends

---ISO 9001 & PED

The List goes on… Please Visit our Website www.tubeproducts.in for more experience details.

pipe spools
…Pipe Spools

---ISO 9001 & PED

slide38

…Pipe Spools

  • Pipe Spool is an assimilation of piping components, joined together.
  • Often spools are flanged to facilitate connection to other spools.
  • On – Site Fabricated Spools V/S Off – Site Fabricated (in controlled environment).
  • Off Site Fabrication by Specialists in Advanced Countries V/S predominantly On
  • Site Fabrication in India.
  • Specialists work with defined Quality Management Criteria to ensure adherence to
  • required technical parameters.
  • Users increasingly benefit / gain from Off – Site Pre - Fabricated Spools.

---ISO 9001 & PED

slide39

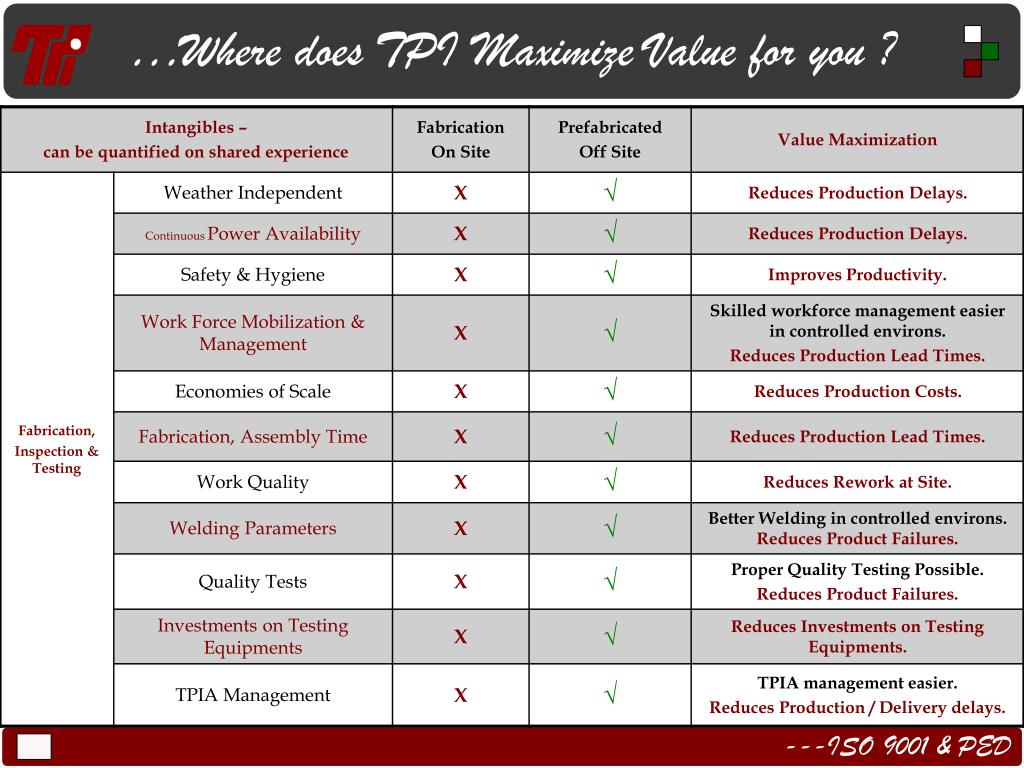

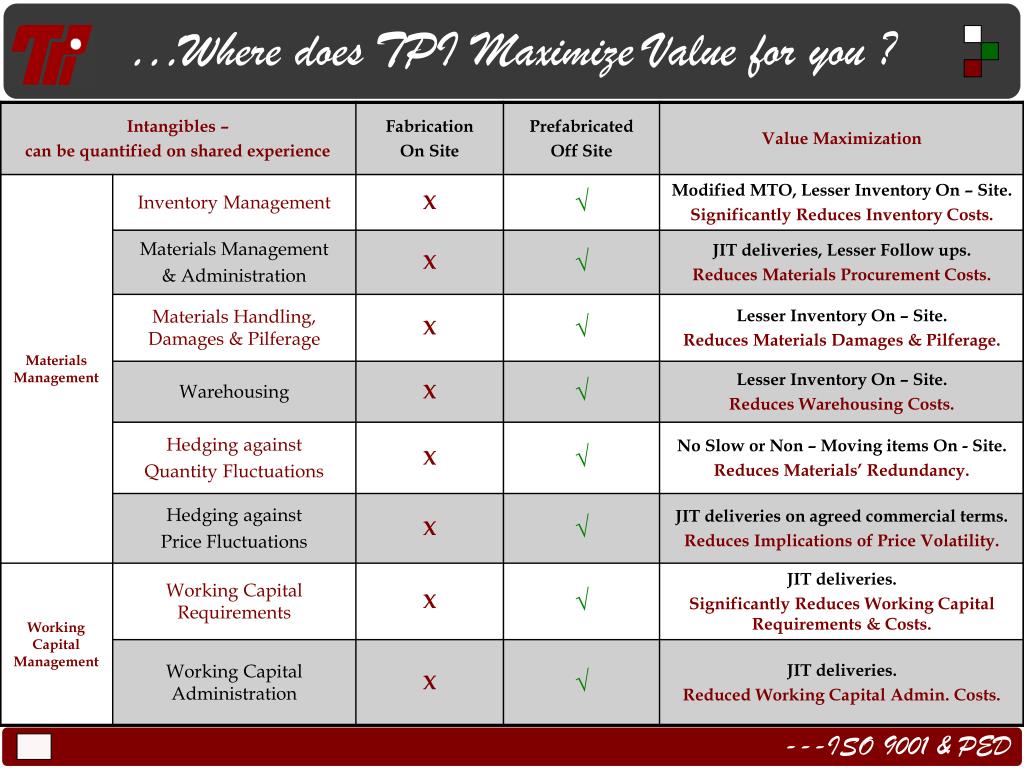

…Why Prefabricated Spools

  • Cost Savings in Fabrication, Inspection & Testing
  • Weather Independent Fabrication Minimizes Production Delays.
  • Lesser dependency on power availability, Avoiding unnecessary Time Delays.
  • Improved Safety in better manufacturing conditions than on – site.
  • Off site means less slag, abrasive dust, smoke & contaminants, unacceptable in hygienic industries.
  • Perfect answer to severe Skill & Labor shortage. Easier Workforce Management.
  • Economies of Scale Reduces Fabrication Cost in Mass Production, off – site.
  • Lesser Fabrication / Assembly Time, avoiding time & cost overruns.
  • Easier Management of Work Quality in controlled environments, Lesser Rework at site.
  • Better control on welding parameters, Lesser probability of Rework at site.
  • Very Little Investment in Fabrication & Testing Equipments for users. Radiography, MPI, UT, PMI, Hydro testsare
  • performed effectively in controlled workshop environment.
  • - Spools serviced under TPIA, ensuring 100% adherence to Quality Standards.
  • Weld less Induction Bends entail complete avoiding of welding pipe sections, Significant Cost Savings in
  • welding, radiography & material requirements.
  • Induction Bends have better quality. Reduces Product Failures.
  • Use of Induction Bends means lesser welding. Results in Piping System Soundness & reduces Product Failures.
  • Use of Induction Bends enable Pipe System Design Optimization. Results in Cost Savings in Energy used.

---ISO 9001 & PED

slide40

…Why Prefabricated Spools … Contd.

  • Cost Savings in Materials Management
  • JIT deliveries of ready – to – fit spools to Save on Inventory Costs.
  • Cost Savings on Materials Management & Administration expenses.
  • Cost Savings on Material Handling, Damages, Pilferage.
  • Efficient & Better use of Limited Space at congested sites.
  • Savings in Warehousing Costs.
  • On time deliveries in full (OTIF) means lesser Follow Ups.
  • Hedging against Quantity Fluctuations. Quantity fluctuations may lead to saddling with slow or non –
  • moving items.
  • Cost Savings in Working Capital Management
  • Efficient material procurement to result in lesser Inventories & Working Capital requirements.
  • JIT deliveries to help in Hedging against Price Volatility.

---ISO 9001 & PED

slide41

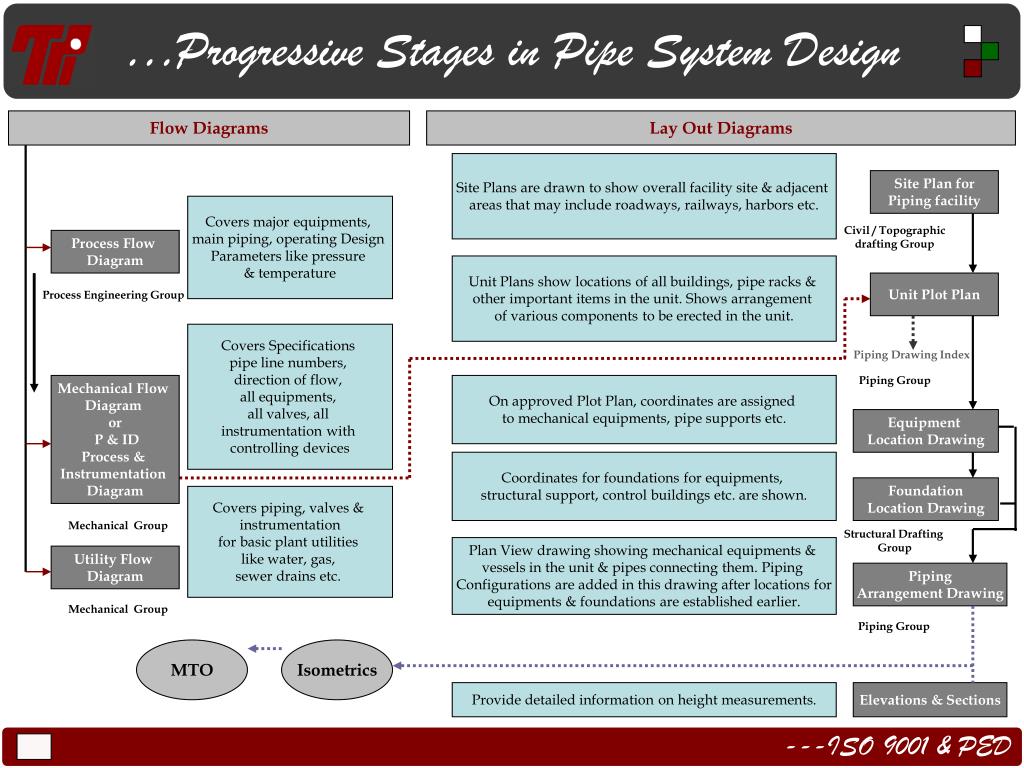

…Progressive Stages in Pipe System Design

Flow Diagrams

Lay Out Diagrams

Site Plans are drawn to show overall facility site & adjacent

areas that may include roadways, railways, harbors etc.

Site Plan for

Piping facility

Covers major equipments,

main piping, operating Design

Parameters like pressure

& temperature

Civil / Topographic

drafting Group

Process Flow

Diagram

Unit Plans show locations of all buildings, pipe racks &

other important items in the unit. Shows arrangement

of various components to be erected in the unit.

Unit Plot Plan

Process Engineering Group

Covers Specifications

pipe line numbers,

direction of flow,

all equipments,

all valves, all

instrumentation with

controlling devices

Piping Drawing Index

Piping Group

Mechanical Flow

Diagram

or

P & ID

Process &

Instrumentation

Diagram

On approved Plot Plan, coordinates are assigned

to mechanical equipments, pipe supports etc.

Equipment

Location Drawing

Coordinates for foundations for equipments,

structural support, control buildings etc. are shown.

Foundation

Location Drawing

Covers piping, valves &

instrumentation

for basic plant utilities

like water, gas,

sewer drains etc.

Mechanical Group

Structural Drafting

Group

Plan View drawing showing mechanical equipments &

vessels in the unit & pipes connecting them. Piping

Configurations are added in this drawing after locations for

equipments & foundations are established earlier.

Utility Flow

Diagram

Piping

Arrangement Drawing

Mechanical Group

Piping Group

MTO

Isometrics

Provide detailed information on height measurements.

Elevations & Sections

---ISO 9001 & PED

slide42

…Where does TPI come in ?

Site Plan

Isometrics combine three dimensions

of the object

(height, width & depth)

into a single view.

Unit Plot Plan

Eq. Loc. Drawing

Found. Loc. Drawing

Pipng Arange. Draw.

Sections & Elevations

Isometrics

PFD

P & ID

UFD

MTO

Give us your Isometrics & Get your Pre Fabricated Pipe Spools to have maximum costs savings.

Procurement

---ISO 9001 & PED

slide43

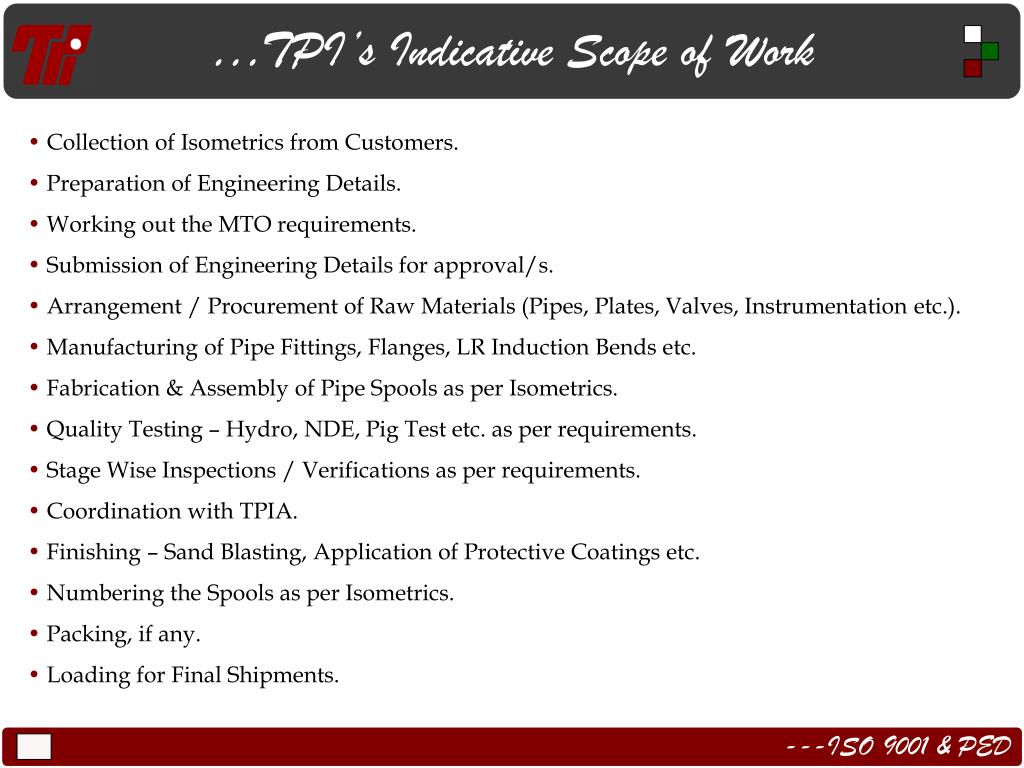

…TPI’s Indicative Scope of Work

  • Collection of Isometrics from Customers.
  • Preparation of Engineering Details.
  • Working out the MTO requirements.
  • Submission of Engineering Details for approval/s.
  • Arrangement / Procurement of Raw Materials (Pipes, Plates, Valves, Instrumentation etc.).
  • Manufacturing of Pipe Fittings, Flanges, LR Induction Bends etc.
  • Fabrication & Assembly of Pipe Spools as per Isometrics.
  • Quality Testing – Hydro, NDE, Pig Test etc. as per requirements.
  • Stage Wise Inspections / Verifications as per requirements.
  • Coordination with TPIA.
  • Finishing – Sand Blasting, Application of Protective Coatings etc.
  • Numbering the Spools as per Isometrics.
  • Packing, if any.
  • Loading for Final Shipments.

---ISO 9001 & PED

slide51

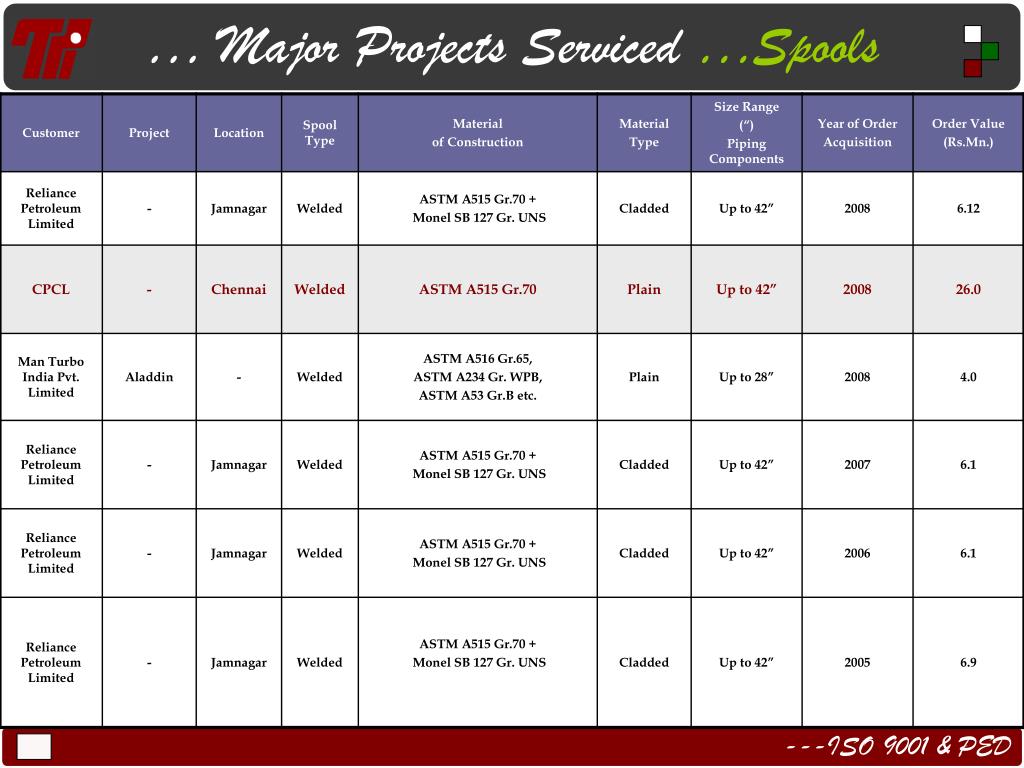

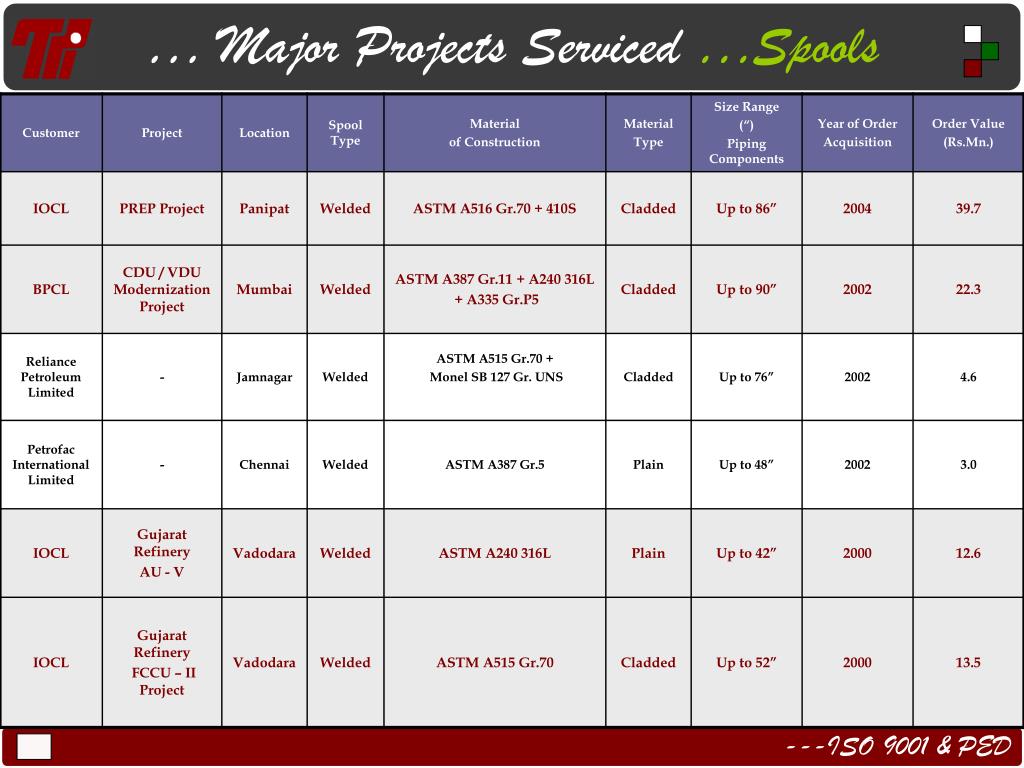

… Major Projects Serviced …Spools

---ISO 9001 & PED

The List goes on… Please Visit our Website www.tubeproducts.in for more experience details.

slide53

…Surge Ahead with TPI’s Forgings

  • TPI’s forging facilities equipped with multiple Hammers & Power Presses of different
  • ratings.
  • Supplemented with Material Handling, Heat Treatment, Machining & Quality testing
  • equipments.
  • Major Products manufactured :
  • - Forgings for Pipe Fittings, Forged Rings, Blinds, Shafts, Rolls, Gears, Couplings,
  • Blanks, Blocks, Squares,Crank Shafts & all types of heavy free forgings.
  • Products serviced in ‘as Forged’ & ‘Rough or Semi Machined’ conditions.
  • Key Industry Sectors Addressed :
  • - Oil & Gas, Steel, Power, Cement, Sugar, Wind Energy, Marine, Railways etc.
  • Individual Product Weight Range :
  • - 0.5 – 2000 Kgs

---ISO 9001 & PED

slide54

… Manufacturing Locations

India

Gujarat

Vadodara

Group TPI

  • Tube Products Incorporate – Unit 1 & 2, GIDC Por
  • Tekno Steels & Forgings (P) Ltd. – GIDC Por
  • Tube Products Incorporate – GIDC Makarpura
  • Topaz Piping Industry – GIDC Por
  • Trinity Piping Industries – GIDC Por

---ISO 9001 & PED

slide55

… Manufacturing Process

Seamless B/W Fittings

  • Mandrel Process (Hot Forming)
  • Cold Hydro Forming Process
  • Conventional Sand Filling Process

Welded B/W Fittings

  • Welded in Two Halves

Forged Fittings – S/W & Screwed

  • Forging Process

Flanges

  • Flanges from Plates
  • Flanges from Forging Process

LR Bends & Weld Less Spools

  • Induction Bending Process

---ISO 9001 & PED

Plants are equipped with many other Material Handling, Quality Testing, Plates & Pipe Cutting & Profiling Equipments also.

slide56

… LR Induction Bends

… Seamless BW Fittings (Mandrel)

Elbows

PROCESS FLOW CHART

RM (Pipes) Inspection, Storage & Coding

Beveling

RM Cutting

Heat Treatment

Cut Pipes Feeding in Mandrel

Shot Blasting (CS,AS), Pickling (SS)

NDE, DT

Hot Forming

Die Pressing

Punching, TPIA, Painting, Marking, Color Coding

Packing & Shipment

Rough Edge Cutting

---ISO 9001 & PED

slide57

… LR Induction Bends

… Seamless BW Fittings (Cold Hydro forming)

Tee & Cross

PROCESS FLOW CHART

RM (Pipes) Inspection, Storage & Coding

Shot Blasting (CS/AS), Pickling (SS)

RM Cutting

NDE & DT

Die Pressing (Cold Hydro Forming)

Final Product Punching

Third Party Inspection

Rough Edge Cutting

Beveling

Painting, Marking, Color Coding

Shipment

Heat Treatment

---ISO 9001 & PED

slide58

… LR Induction Bends

… Seamless BW Fittings (Conventional / Sand Filling)

Elbow, Reducer, Tee, Cross, Cap & Stub End

PROCESS FLOW CHART

RM (Pipes) Inspection, Storage & Coding

Rough Edge Cutting & Beveling

RM Cutting & Flattening

Heat Treatment

Sand Filling

Shot Blasting (CS,AS), Pickling (SS)

NDE, DT

Hot Forming

Die Pressing

Punching, TPIA, Painting, Marking, Color Coding

Packing & Shipment

Sand Removal

---ISO 9001 & PED

slide59

… LR Induction Bends

… Welded BW Fittings (Welding)

Elbow, Reducer, Tee, Cross, & Stub End

PROCESS FLOW CHART

RM (Plates) Inspection, Storage & Coding

Heat Treatment

RM Marking & Cutting

Shot Blasting (CS,AS), Pickling (SS)

Die Pressing

NDE & DT

Final Product Punching

Welding of Two Halves

Radiography

TPIA, Painting, Marking, Color Coding

Packing & Shipment

Beveling

---ISO 9001 & PED

slide60

… LR Induction Bends

… Forged Fittings & Flanges (Forging)

Nipples, Elbows, Tee, Olets, Cap, Bush, Union, Reducer, Boss, Stub End, Cross & Flanges

PROCESS FLOW CHART

RM (Billets, Rounds) Inspection, Storage & Coding

Drilling

RM Cutting

Final Product Punching

Forging

Third Party Inspection

Painting, Marking, Color Coding

Heat Treatment (Optional)

NDE & DT

Packing

Shipment

Machining

---ISO 9001 & PED

slide61

… LR Induction Bends

… Flanges (From Plates)

Flanges

PROCESS FLOW CHART

RM (Plates) Inspection, Storage & Coding

NDE & DT

RM Marking & Cutting

Final Product Punching

Drilling

Third Party Inspection

Painting, Marking, Color Coding

Machining

Heat Treatment

Packing

Shipment

Shot Blasting (CS,AS) or Pickling (SS)

---ISO 9001 & PED

slide62

…Manufacturing Capacities MT per annum

… LR Induction Bends

---ISO 9001 & PED

slide63
Furnace # TPS : 2100mm W X 3200mm L X 1100mm H – Oil Fired

Furnace # TPI : 2550mm W X 5650mm L X 2350mm H – Oil Fired

Furnace # TPI : 830mm W X 1130mm L X 650mm H – Electric Charged

Furnace # TPM : 2330mm W X 3150mm L X 1540mm H – Oil Fired

Furnace # TOP : 2600mm W X 3650mm L X 1550mm H – Oil Fired

Furnace # TES : 450mm W X 450mm L X 400mm H – Oil Fired

Furnace # WCF : Continuous Furnace – Oil Fired (WCF : Below 24 “ – Elbow Fittings Only)

… Heat Treatment

TPI has more than Seven Heat Treatment Furnace In - House.

WE ALSO HAVE TIE - UP WITH GPEL - BARODA FOR THEIR FURNACE OF SIZE 5M WIDE X 12.5M LENGTH X 5M HEIGHT.

---ISO 9001 & PED

slide64

… Quality Lab

Non Destructive Examination (NDE)

Ultrasonic Testing

Die Penetrant Test

Magnetic Particle Inspection

Hydro / Leak Proof Test

Radiography Testing

Destructive Examination

Chemical (Spectro Analysis)

PMI

Moly Test

Tensile

Hardness

Impact Test : V - Notch & Charpy

IGC

Macro Test

Ferrite Test

Grain Size Test

---ISO 9001 & PED

State of the art, Fully Equipped, In – House Quality Lab.

slide65

…Business Activities

  • Distribution of Value Added Products
  • Pipes & Plates

---ISO 9001 & PED

slide66

… Pipes

---ISO 9001 & PED

slide67

… Pipes

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide68

… Pipes … Contd.

---ISO 9001 & PED

NB Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide69

… Plates

---ISO 9001 & PED

slide70

… Plates

---ISO 9001 & PED

Size Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide71

… Plates … Contd.

---ISO 9001 & PED

Size Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide72

… Industries We Serve

Oil & Gas Specialty Chemicals

Petrochemicals Pharmaceuticals

Power Sugar

Steel Food Processing

Cement

Fertilizers & Pesticides

Water

Marine

Miscellaneous Engineering Services …etc.

---ISO 9001 & PED

slide73

… Customers in India

IOCL Chambal Fertilizers & Chemicals Ltd. Hindustan Dorr Oliver Ltd.

Reliance Petroleum Ltd. Alstom Projects India Ltd. Samsung Engineering

HPCL Hindalco Industries Ltd. Punj Llyod Ltd.

HPCL Mittal Energy Ltd. Gujarat Flourochemicals Ltd. Larsen & Toubro Ltd.

Reliance Industries Ltd. Essar Offshore Subsea Ltd. NaftoGaz India Pvt. Ltd.

Bharat Oman Refineries Ltd. Ace Pipeline Contracts Pvt. Ltd. Jord Engineers (I) Ltd.

BPCL Essar Steel Limited Technip KT (I) Ltd.

Chennai Petrochemicals Ltd. Aker Kvaerner Powergas (P) Ltd. NOCL

BHEL Heurtey Petrochem India (P) Ltd. BOC India Ltd.

MRPL Air Liquide Engineering (P) Ltd. Bridge & Roof Co. (I) Ltd.

Haldia Petrochemicals Ltd. National Fertilizers Ltd. Toyo Engineering (I) Ltd.

Essar Constructions Ltd. Kazstroy Service Infrastructure (I) (P) Ltd. ISGEC

Gail India Ltd. Petron Engineering Construction Ltd. GSFC

NRL Fabtech Projects & Engineers Ltd. ONGC

BRPL Nuclear Power Corp. Stewarts & Llyods (I) Ltd.

VA Tech Wabag Ltd. Alfa Laval (I) Ltd. Gujarat State Petronet Ltd.

Technimont ICB (P) Ltd. IOT Infrastructure & Energy Services Ltd. Cairn Energy (I) (P) Ltd.

---ISO 9001 & PED

Please visit our website www.tubeproducts.in for more names.

slide74

… Customers outside India

  • Oman – Galfar Engineering & Contracting, Al Turki Enterprises LLC, Purshottam Kanji Trading Co. LLC,
  • Technofit Trading LLC, Gulf Petrochemical Services & Trading LLC, Oman Oil Industry Supplies
  • & Services, International Oil & Gas Services LLC.
  • Kuwait – Khalid E Alraqum General Trading & Construction Est., Kuwait Pipe Industries & Oil Services
  • KNPC, Esco Kuwait Est. Equip. & Petroleum Appl., Al – Sabi Engineering & Trading Co. Ltd.
  • Saudi Arabia – Abdul Azis Y Al Essa & Co., Bellei Saudi Heavy Industries Ltd., Econosto Mideast BV.
  • UAE – Petrofac International Ltd., Kalhour Trading Co. LLC, Gulf Marine Maintenance & Offshore Services Co.
  • Petronash, AAI International, Technimont ICB – Takreer.
  • Egypt – Alexandria Fiber Co. SAE, Alexandria Carbon Black Co. SAE, Alexandria Engineering Works.

Mid East

  • Spain – Tecnicas Reunidas SA, Kingdom Technologies, Saycalsa.
  • Italy – Trouvay & Cauvin International SA.
  • UK – Jaguar Overseas Limited.
  • Switzerland – Santrade Limited.

Europe

  • USA – Norca Industrial Company, Norca Corp., Universal Imports Inc., Global Products Inc.,
  • Silbo Industries Inc., Universal Southern Corp., Mannesmann Handel SEA.

USA

  • Indonesia –PT Punj Lloyd.
  • Korea –Hyundai Heavy Industries Co. Ltd.
  • Singapore –YS Supplies, Rima Gas PTE Ltd.

SE Asia

---ISO 9001 & PED

Please visit our website www.tubeproducts.in for more names.

slide75

… Raw Materials Source

---ISO 9001 & PED

Source is Indicative only. Other Source/s are possible as per their capabilities.

slide76

… Raw Materials Source … Contd.

---ISO 9001 & PED

Source is Indicative only. Other Source/s are possible as per their capabilities.

slide77

… Raw Materials Source

---ISO 9001 & PED

Size Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide78

… Raw Materials Source … Contd.

---ISO 9001 & PED

Size Range – Indicative, Other Sizes & Standards can be undertaken on discussions.

slide79

Robust Setup

Technical

Prowess

1

Stop Shop

Eye for

Detailing in

Designing

We exist for

You !

Excellent

Track Record

Conformance to

International

Standards

Decades of

Experience

Delivery

Compliance

…TPI – Your Valued Business Partner

---ISO 9001 & PED

slide80

…TPI – The Exact Fit

… Fittingly Yours

  • Exact Dimensions
  • Exact Shape
  • Exact Material of Construction
  • Exact Manufacturing
  • Exact Quality Specification
  • Exact Quantity
  • Exact Time
  • Last but definitely not the least
  • Exact Price

Exact Fit from the

Exact Source !

ISO 9001 & PED

slide81

…Contact Us

… Fittingly Yours

Mailing Address

748/7, GIDC, Makarpura, Vadodara - 390 010, Gujarat, India

Phone: 0091 265 6545211 - 213 / 2830190

Fax: 0091 265 2831031 / 2831610

E-mail:tpi@tubeproducts.in & tpi@tubepro.com

Works

460, GIDC, Por - Ramangamdi, Dist. Vadodara - 391 243, Gujarat, India

Head Office

205, Swastik Chambers, Sion - Trombay Road, Chembur, Mumbai - 400 071

Maharashtra, India

Phone: 0091 22 67973121 - 22, Fax: 0091 22 67030206

Visit us @ www.tubeproducts.in

ISO 9001 & PED
