Computerized Box Compression Tester for Precise Packaging Testing

The Box Compression Tester is an advanced computerized model designed to measure the compressive strength of packaging materials. Ideal for testing the durability of corrugated boxes, cartons, and other packaging products, it offers precise data and analysis to ensure optimal product performance. This tester simulates real-world conditions to evaluate how packages withstand pressure during storage and transportation. <br>Visit : https://www.testing-instruments.com/box-compression-tester-computerized-model/t<br>

testing10
Download Presentation

Computerized Box Compression Tester for Precise Packaging Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

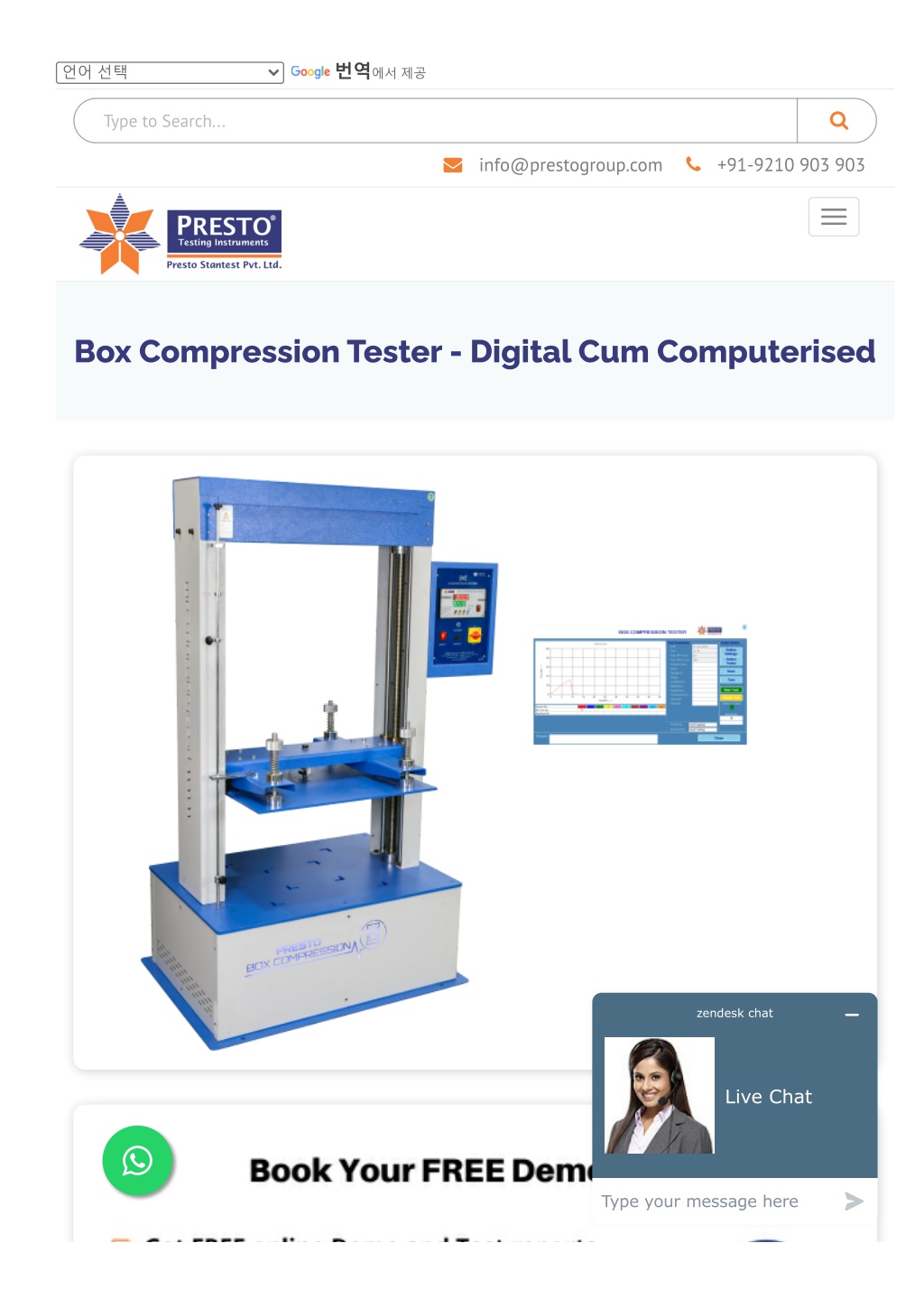

  1. 번역에서제공 언어선택 Type to Search...   info@prestogroup.com  +91-9210 903 903 Box Compression Tester - Digital Cum Computerised zendesk chat Live Chat  Type your message here

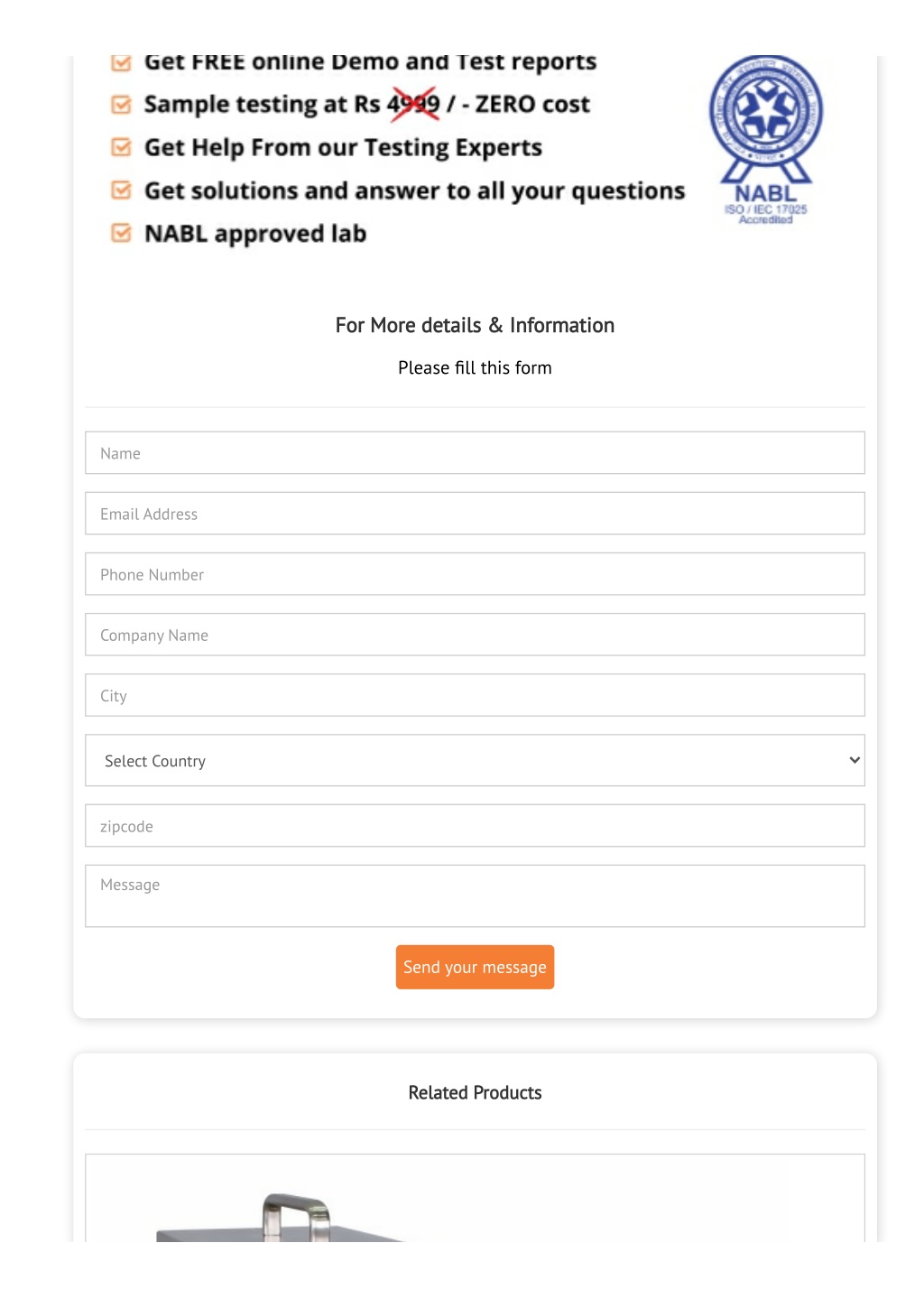

  2. For More details & Information Please ?ll this form Name Email Address Phone Number Company Name City Select Country zipcode Message Send your message Related Products

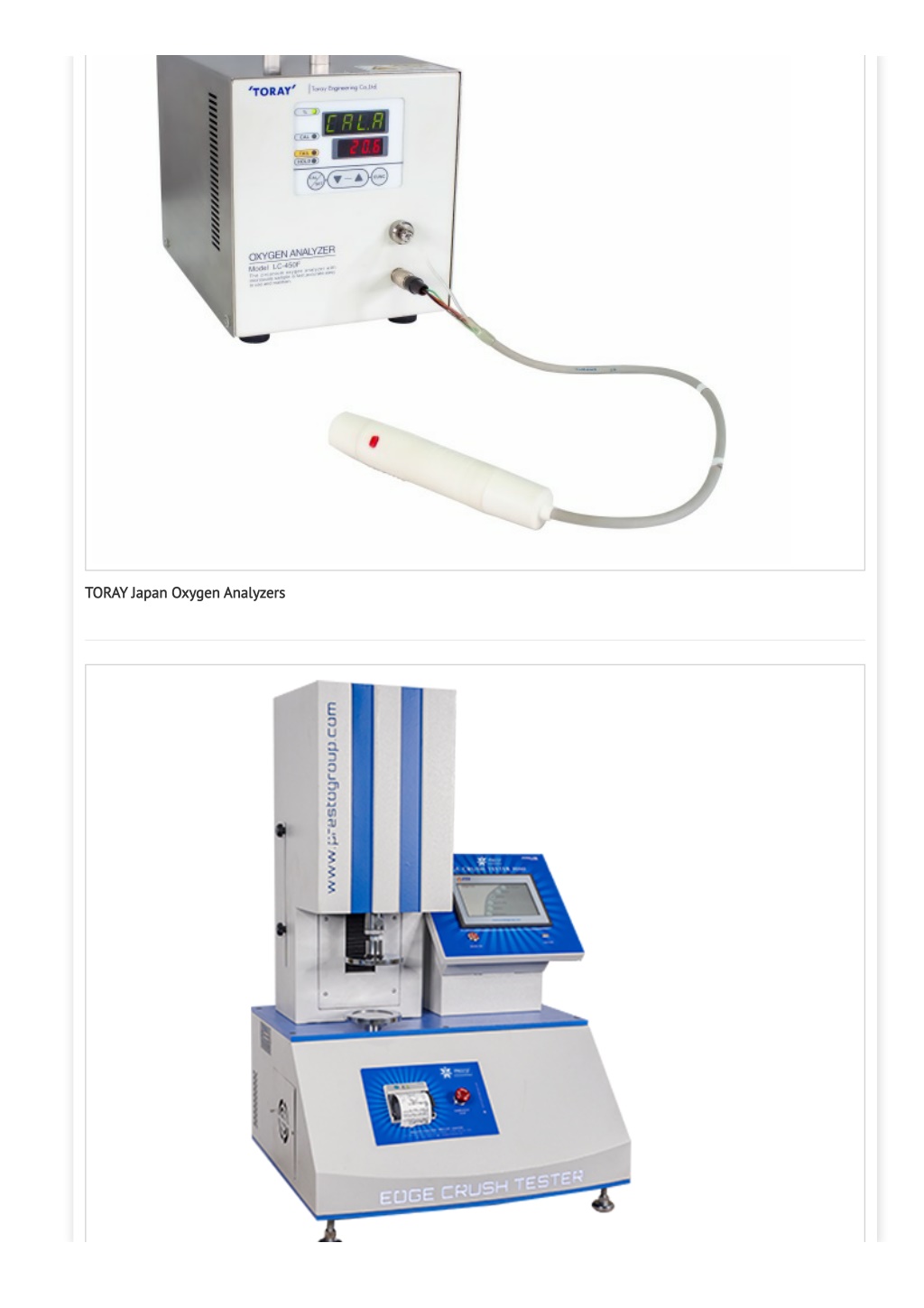

  3. TORAY Japan Oxygen Analyzers

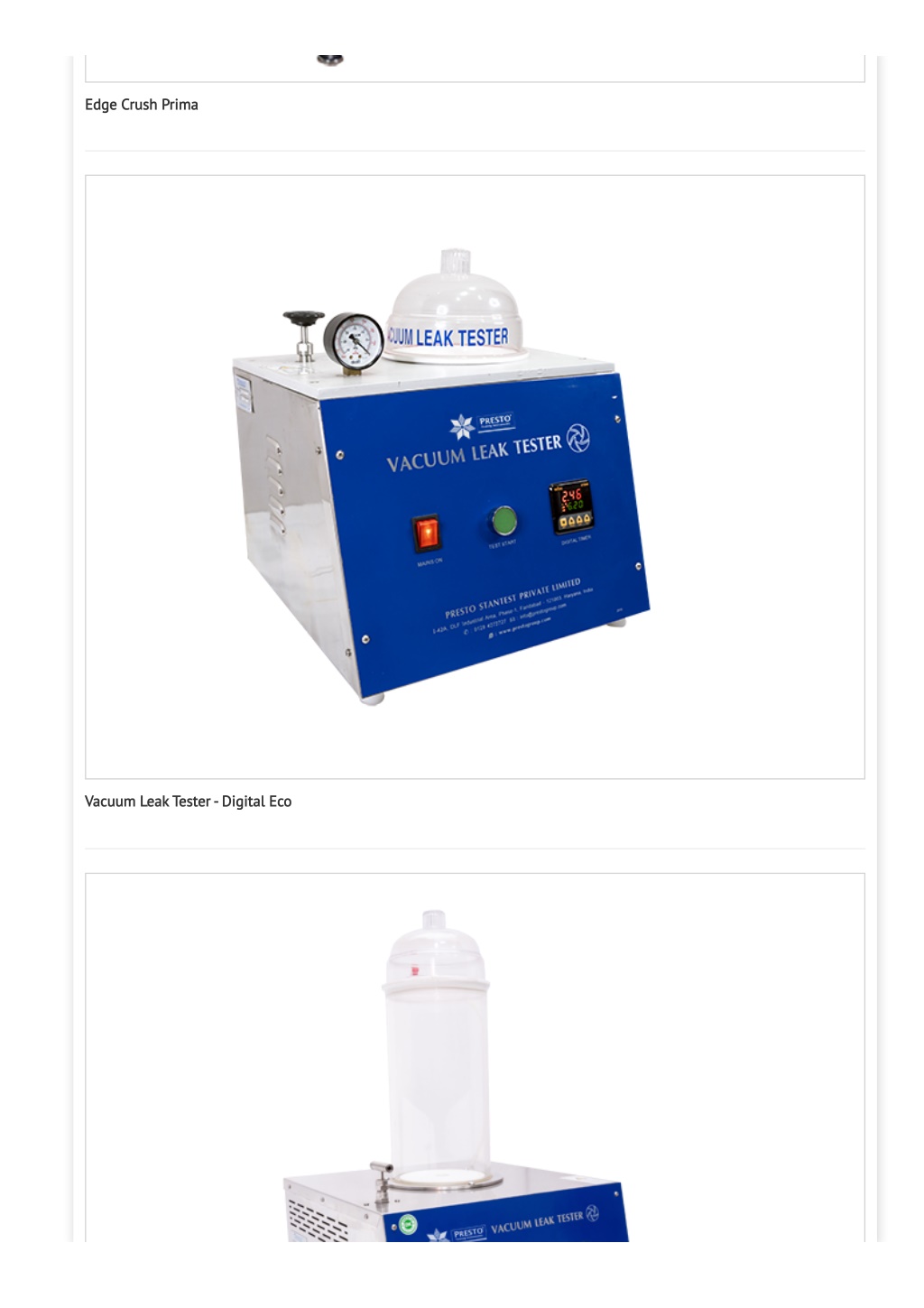

  4. Edge Crush Prima Vacuum Leak Tester - Digital Eco

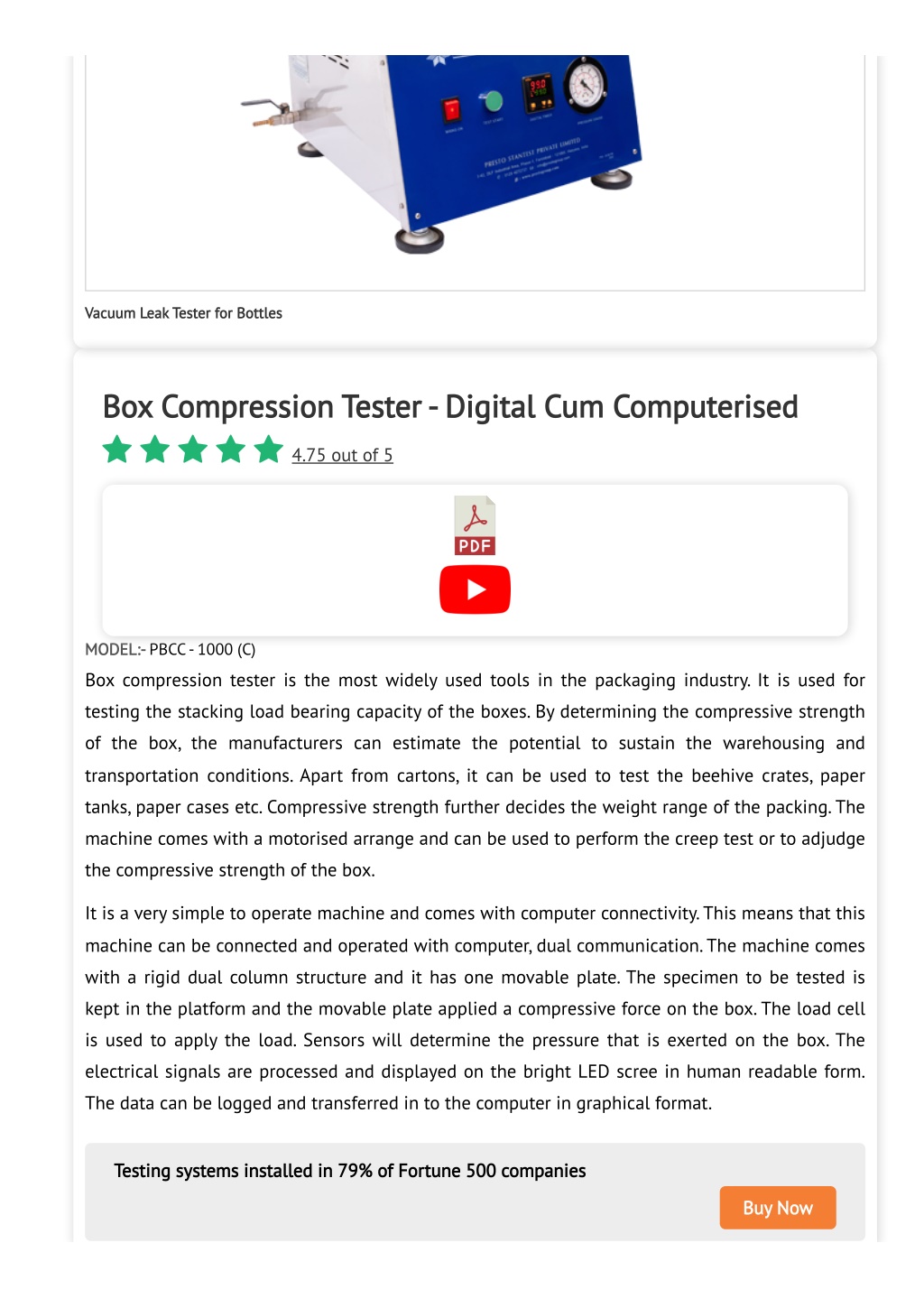

  5. Vacuum Leak Tester for Bottles Box Compression Tester - Digital Cum Computerised 4.75 out of 5 MODEL:- PBCC - 1000 (C) Box compression tester is the most widely used tools in the packaging industry. It is used for testing the stacking load bearing capacity of the boxes. By determining the compressive strength of the box, the manufacturers can estimate the potential to sustain the warehousing and transportation conditions. Apart from cartons, it can be used to test the beehive crates, paper tanks, paper cases etc. Compressive strength further decides the weight range of the packing. The machine comes with a motorised arrange and can be used to perform the creep test or to adjudge the compressive strength of the box. It is a very simple to operate machine and comes with computer connectivity. This means that this machine can be connected and operated with computer, dual communication. The machine comes with a rigid dual column structure and it has one movable plate. The specimen to be tested is kept in the platform and the movable plate applied a compressive force on the box. The load cell is used to apply the load. Sensors will determine the pressure that is exerted on the box. The electrical signals are processed and displayed on the bright LED scree in human readable form. The data can be logged and transferred in to the computer in graphical format. Testing systems installed in 79% of Fortune 500 companies Buy Now

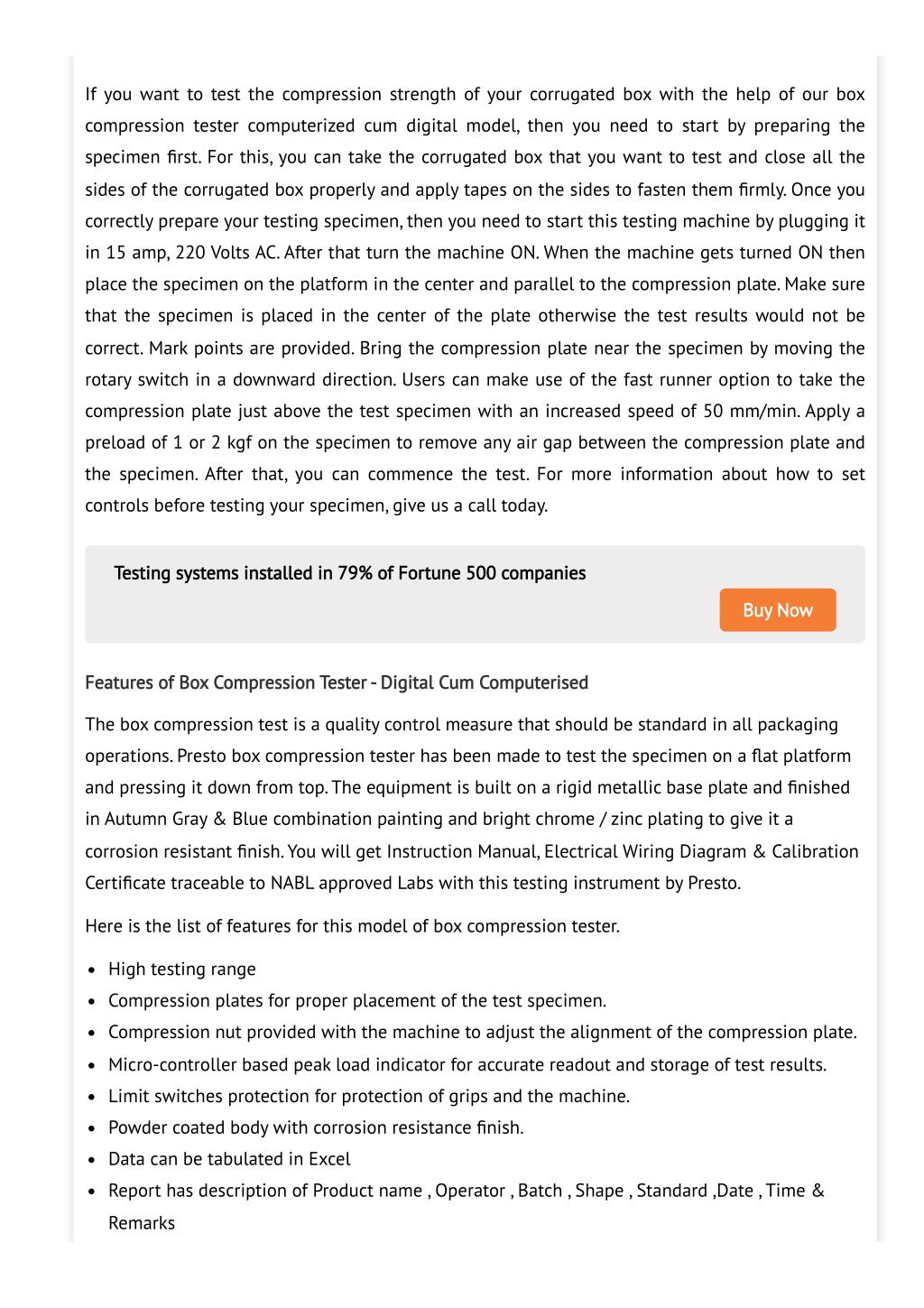

  6. If you want to test the compression strength of your corrugated box with the help of our box compression tester computerized cum digital model, then you need to start by preparing the specimen ?rst. For this, you can take the corrugated box that you want to test and close all the sides of the corrugated box properly and apply tapes on the sides to fasten them ?rmly. Once you correctly prepare your testing specimen, then you need to start this testing machine by plugging it in 15 amp, 220 Volts AC. After that turn the machine ON. When the machine gets turned ON then place the specimen on the platform in the center and parallel to the compression plate. Make sure that the specimen is placed in the center of the plate otherwise the test results would not be correct. Mark points are provided. Bring the compression plate near the specimen by moving the rotary switch in a downward direction. Users can make use of the fast runner option to take the compression plate just above the test specimen with an increased speed of 50 mm/min. Apply a preload of 1 or 2 kgf on the specimen to remove any air gap between the compression plate and the specimen. After that, you can commence the test. For more information about how to set controls before testing your specimen, give us a call today. Testing systems installed in 79% of Fortune 500 companies Buy Now Features of Box Compression Tester - Digital Cum Computerised The box compression test is a quality control measure that should be standard in all packaging operations. Presto box compression tester has been made to test the specimen on a ?at platform and pressing it down from top. The equipment is built on a rigid metallic base plate and ?nished in Autumn Gray & Blue combination painting and bright chrome / zinc plating to give it a corrosion resistant ?nish. You will get Instruction Manual, Electrical Wiring Diagram & Calibration Certi?cate traceable to NABL approved Labs with this testing instrument by Presto. Here is the list of features for this model of box compression tester. High testing range Compression plates for proper placement of the test specimen. Compression nut provided with the machine to adjust the alignment of the compression plate. Micro-controller based peak load indicator for accurate readout and storage of test results. Limit switches protection for protection of grips and the machine. Powder coated body with corrosion resistance ?nish. Data can be tabulated in Excel Report has description of Product name , Operator , Batch , Shape , Standard ,Date , Time & Remarks

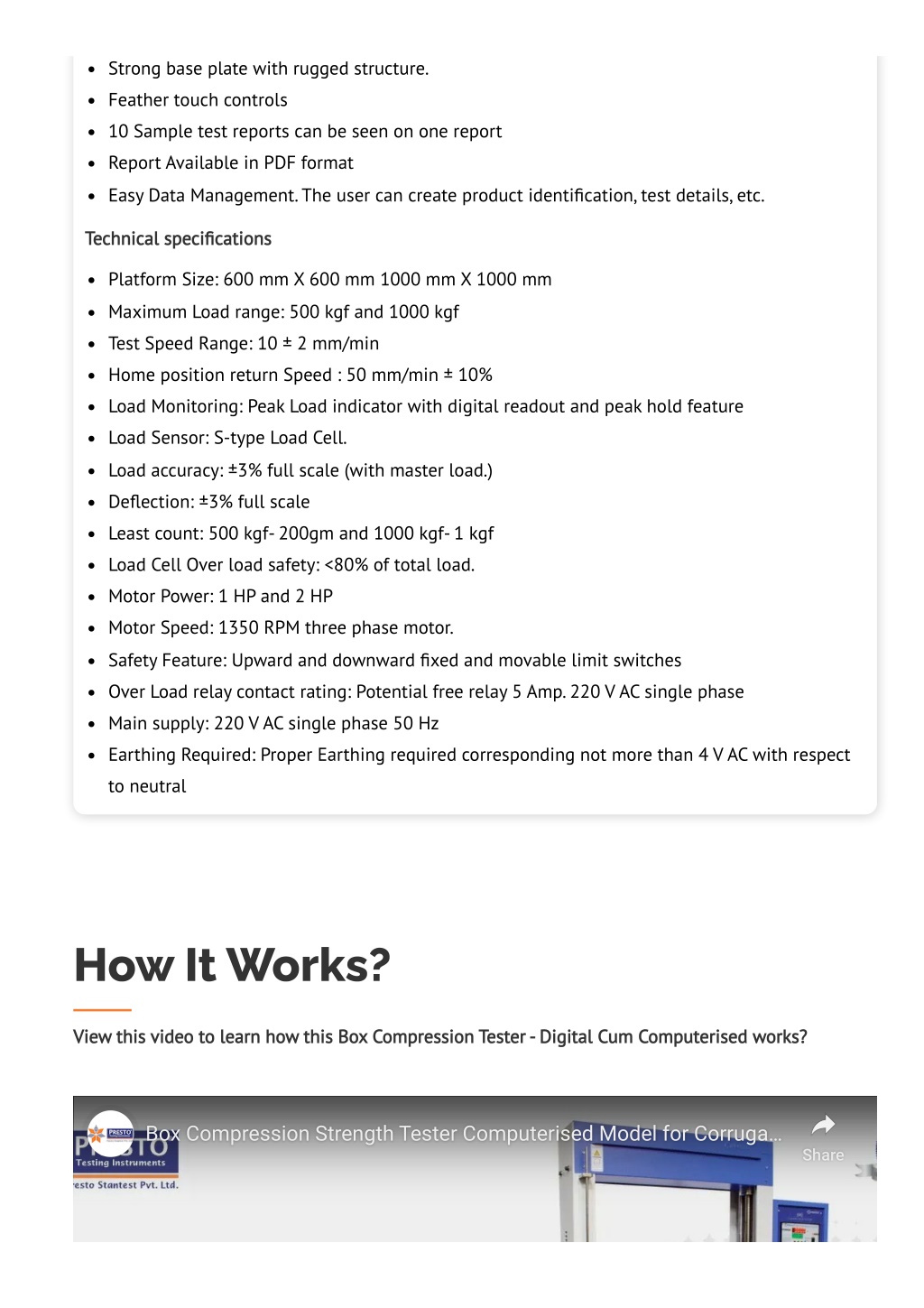

  7. Strong base plate with rugged structure. Feather touch controls 10 Sample test reports can be seen on one report Report Available in PDF format Easy Data Management. The user can create product identi?cation, test details, etc. Technical speci?cations Platform Size: 600 mm X 600 mm 1000 mm X 1000 mm Maximum Load range: 500 kgf and 1000 kgf Test Speed Range: 10 ± 2 mm/min Home position return Speed : 50 mm/min ± 10% Load Monitoring: Peak Load indicator with digital readout and peak hold feature Load Sensor: S-type Load Cell. Load accuracy: ±3% full scale (with master load.) De?ection: ±3% full scale Least count: 500 kgf- 200gm and 1000 kgf- 1 kgf Load Cell Over load safety: <80% of total load. Motor Power: 1 HP and 2 HP Motor Speed: 1350 RPM three phase motor. Safety Feature: Upward and downward ?xed and movable limit switches Over Load relay contact rating: Potential free relay 5 Amp. 220 V AC single phase Main supply: 220 V AC single phase 50 Hz Earthing Required: Proper Earthing required corresponding not more than 4 V AC with respect to neutral How It Works? View this video to learn how this Box Compression Tester - Digital Cum Computerised works? Box Compression Strength Tester Computerised Model for Corruga Box Compression Strength Tester Computerised Model for Corruga… … Share Share

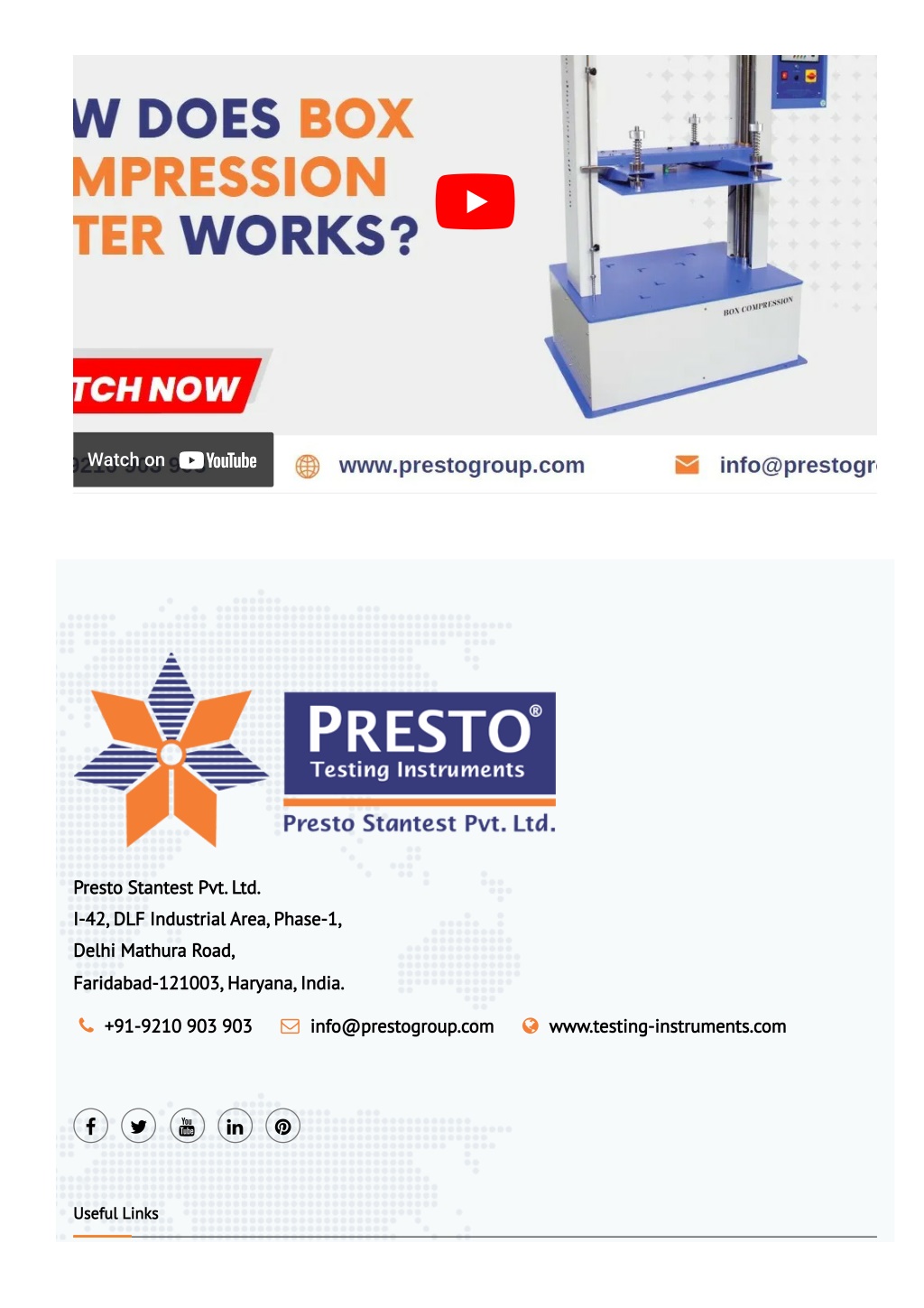

  8. Watch on Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area, Phase-1, Delhi Mathura Road, Faridabad-121003, Haryana, India.  +91-9210 903 903  info@prestogroup.com  www.testing-instruments.com      Useful Links

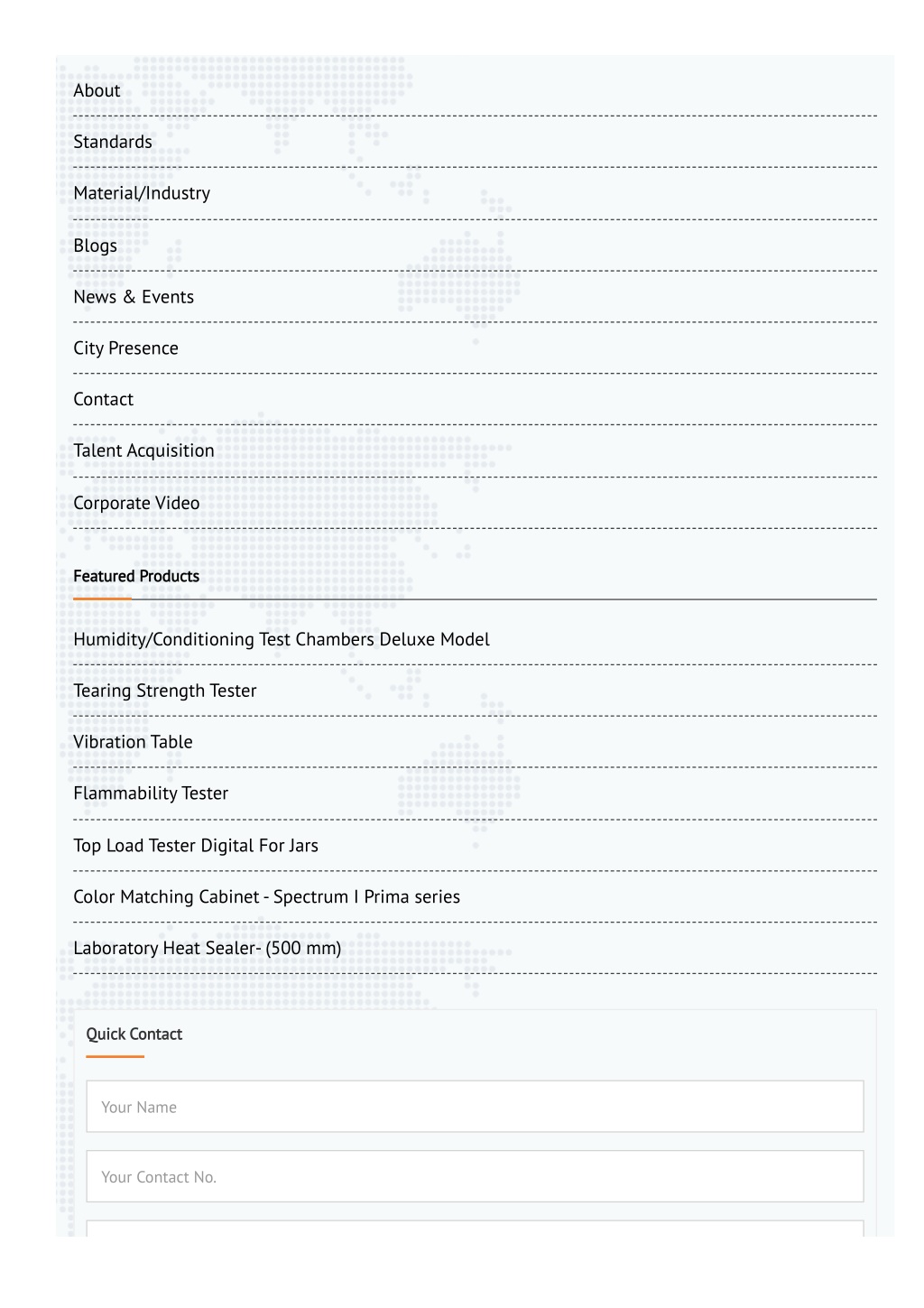

  9. About Standards Material/Industry Blogs News & Events City Presence Contact Talent Acquisition Corporate Video Featured Products Humidity/Conditioning Test Chambers Deluxe Model Tearing Strength Tester Vibration Table Flammability Tester Top Load Tester Digital For Jars Color Matching Cabinet - Spectrum I Prima series Laboratory Heat Sealer- (500 mm) Quick Contact Your Name Your Contact No.

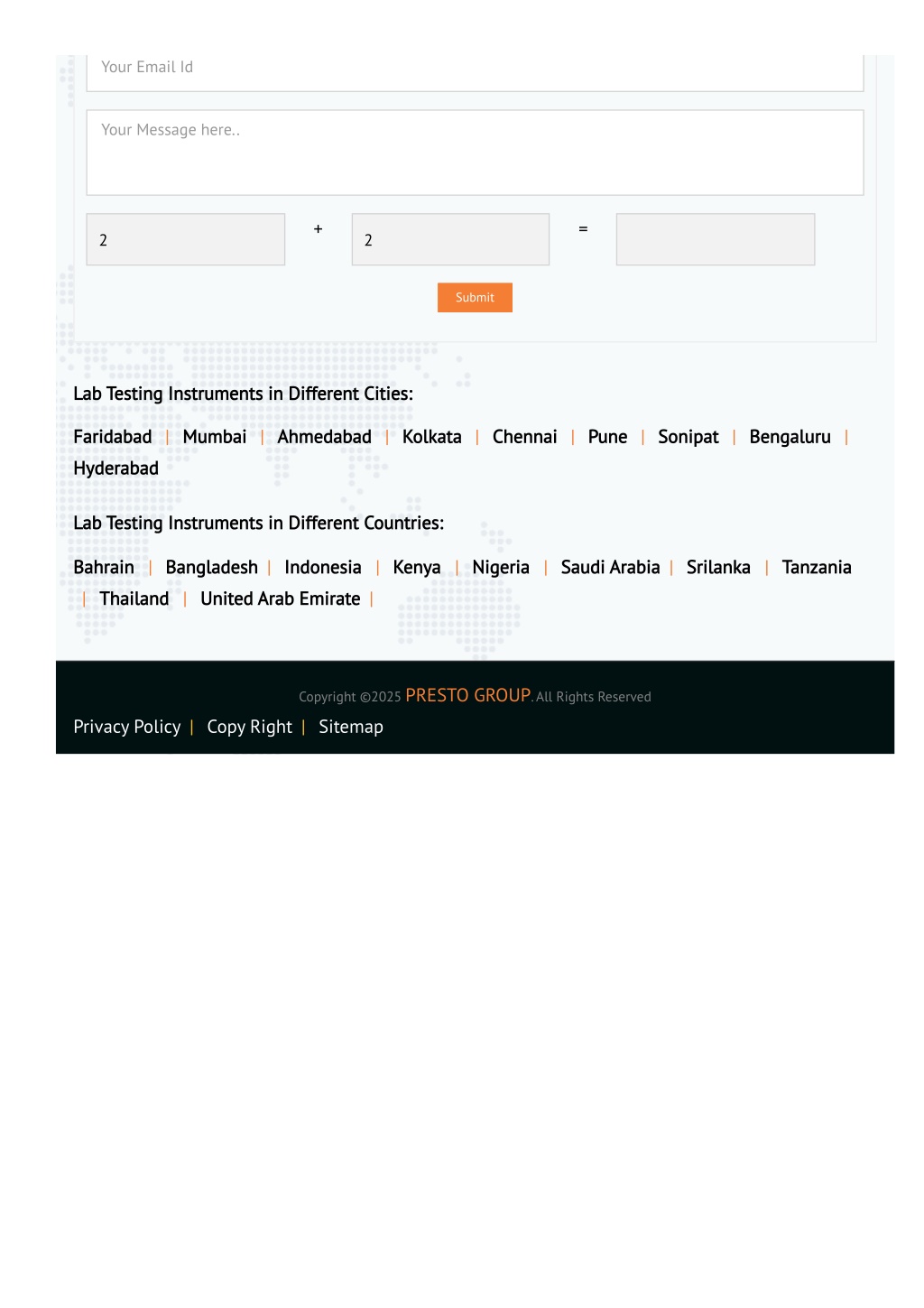

  10. Your Email Id Your Message here.. + = 2 2 Submit Lab Testing Instruments in Different Cities: Faridabad   |   Mumbai   |   Ahmedabad   |   Kolkata   |   Chennai   |   Pune   |   Sonipat   |   Bengaluru   |   Hyderabad Lab Testing Instruments in Different Countries: Bahrain   |   Bangladesh  |   Indonesia   |   Kenya   |   Nigeria   |   Saudi Arabia  |   Srilanka   |   Tanzania   |   Thailand   |   United Arab Emirate  |   Copyright ©2025 PRESTO GROUP. All Rights Reserved Privacy Policy  |   Copy Right  |   Sitemap
