A humidity chamber is essential for testing material durability under varying environmental conditions. It helps manufacturers ensure product quality by simulating humidity and temperature variations. Industries like pharmaceuticals, electronics, and packaging use humidity test chambers to analyze the impact of moisture on their products. Advanced humidity chambers come with precise control settings, ensuring accurate and reliable test results. Investing in a high-quality humidity chamber improves product performance and longevity.

testing10
Download Presentation

Best Humidity Chamber for Precise Environmental Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

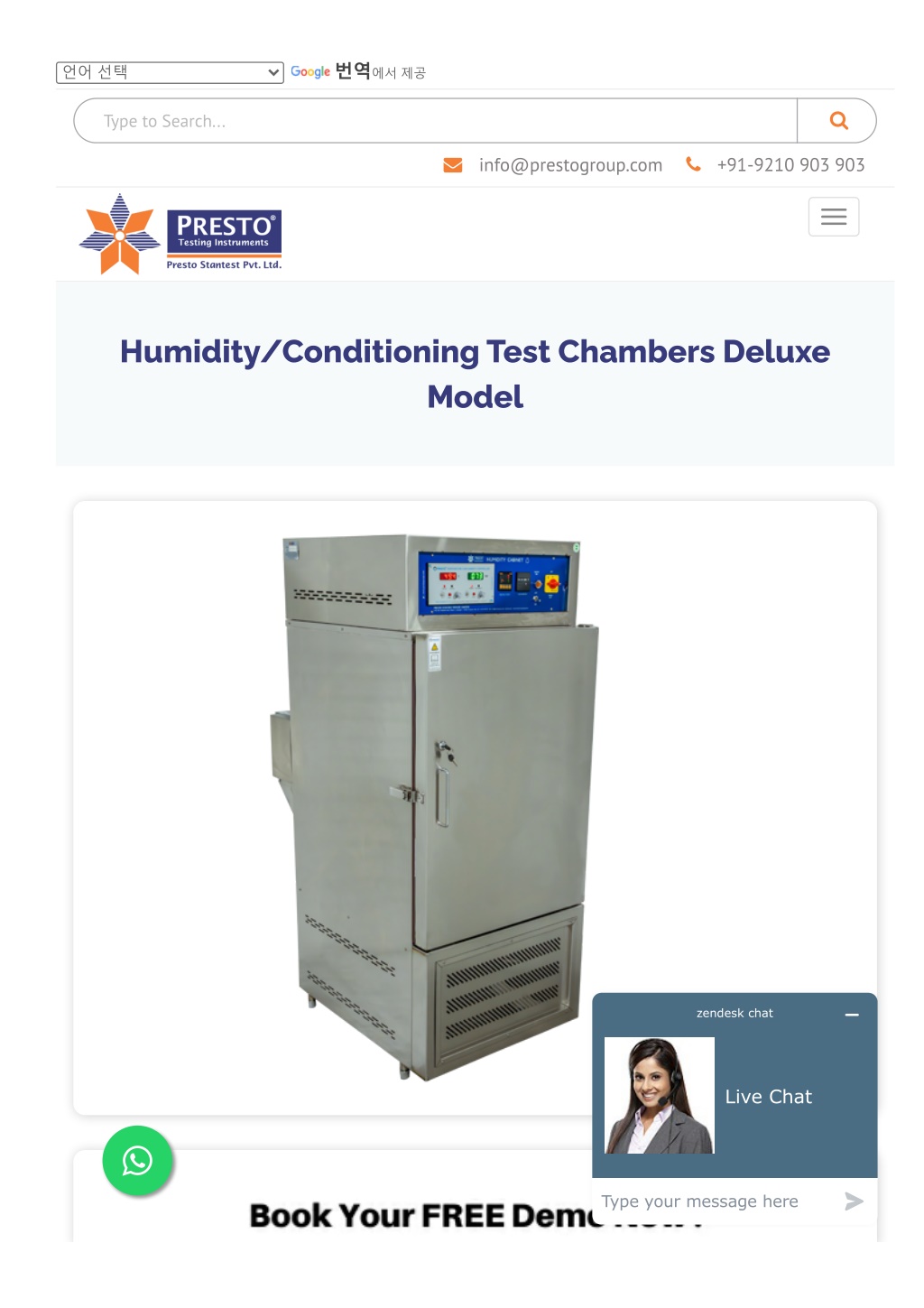

  1. 번역에서제공 언어선택 Type to Search...   info@prestogroup.com  +91-9210 903 903 Humidity/Conditioning Test Chambers Deluxe Model zendesk chat Live Chat  Type your message here

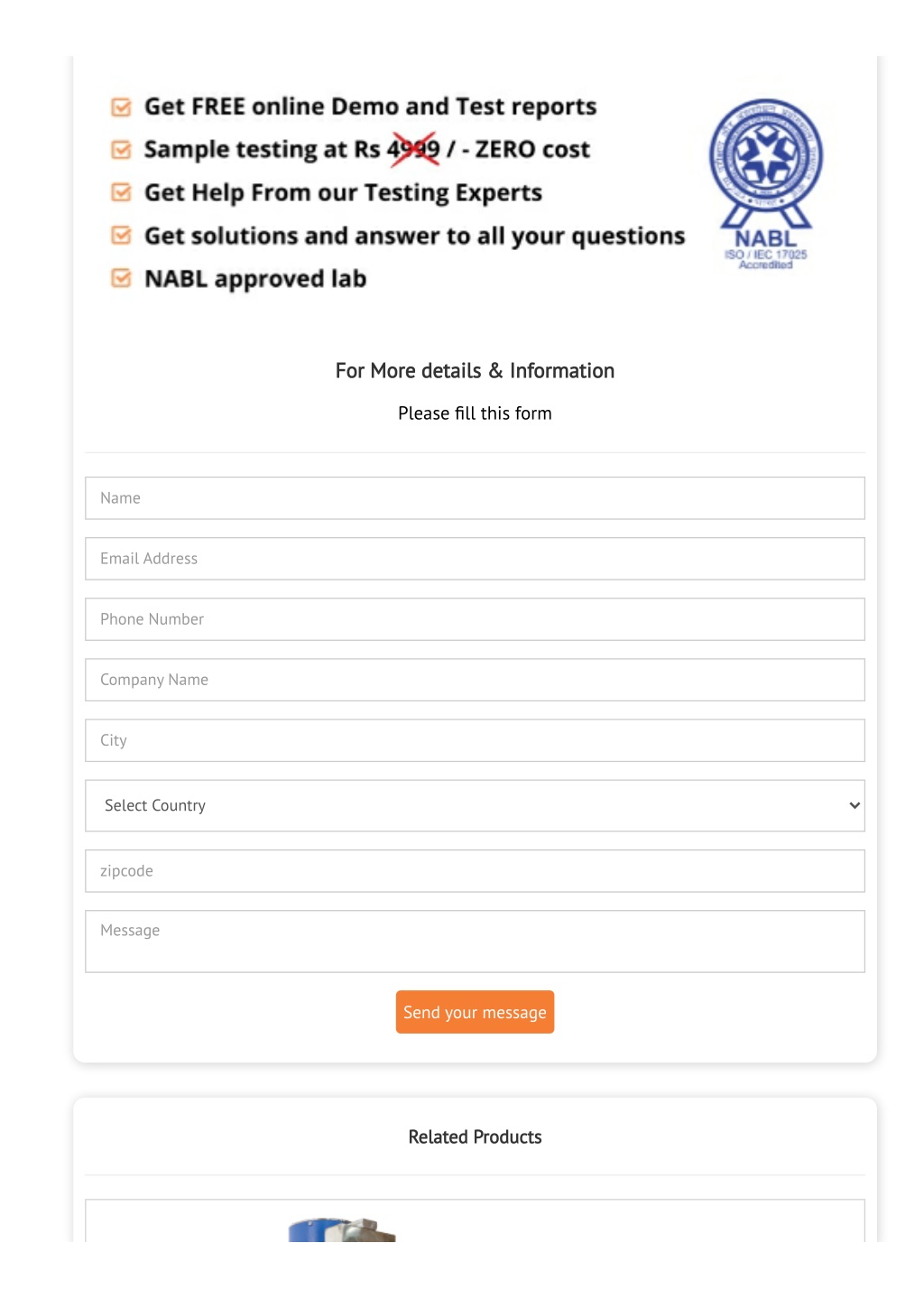

  2. For More details & Information Please ?ll this form Name Email Address Phone Number Company Name City Select Country zipcode Message Send your message Related Products

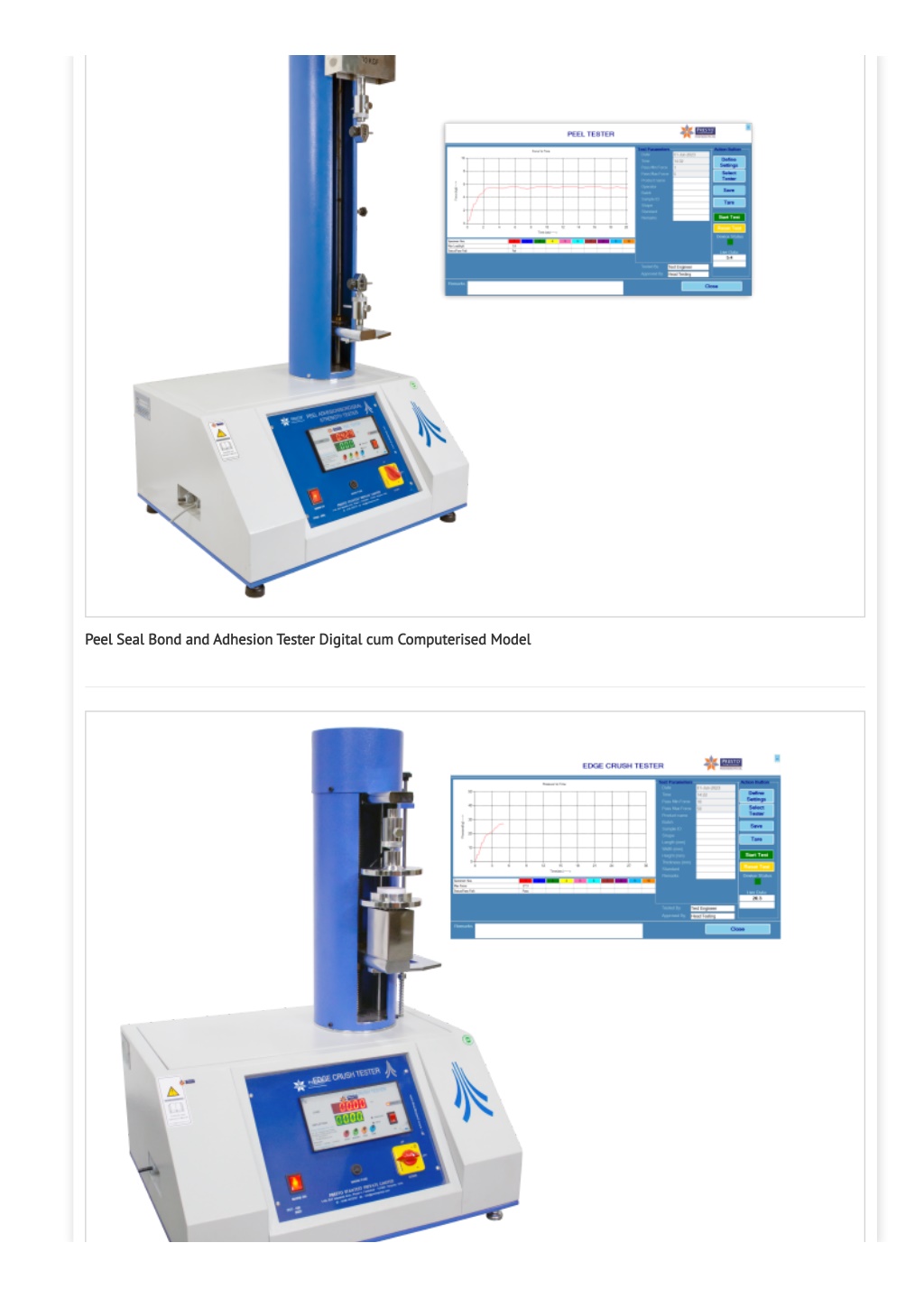

  3. Peel Seal Bond and Adhesion Tester Digital cum Computerised Model

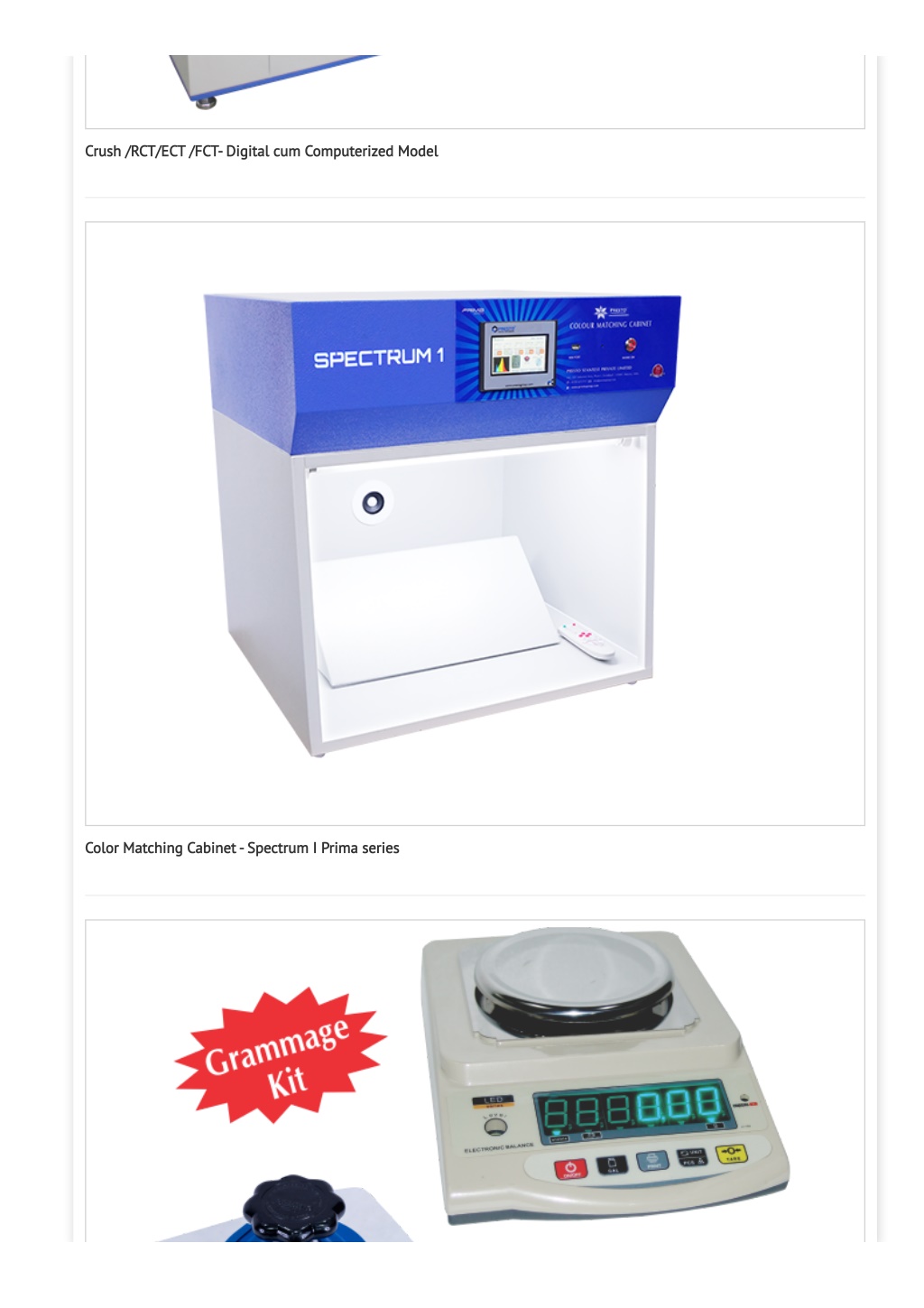

  4. Crush /RCT/ECT /FCT- Digital cum Computerized Model Color Matching Cabinet - Spectrum I Prima series

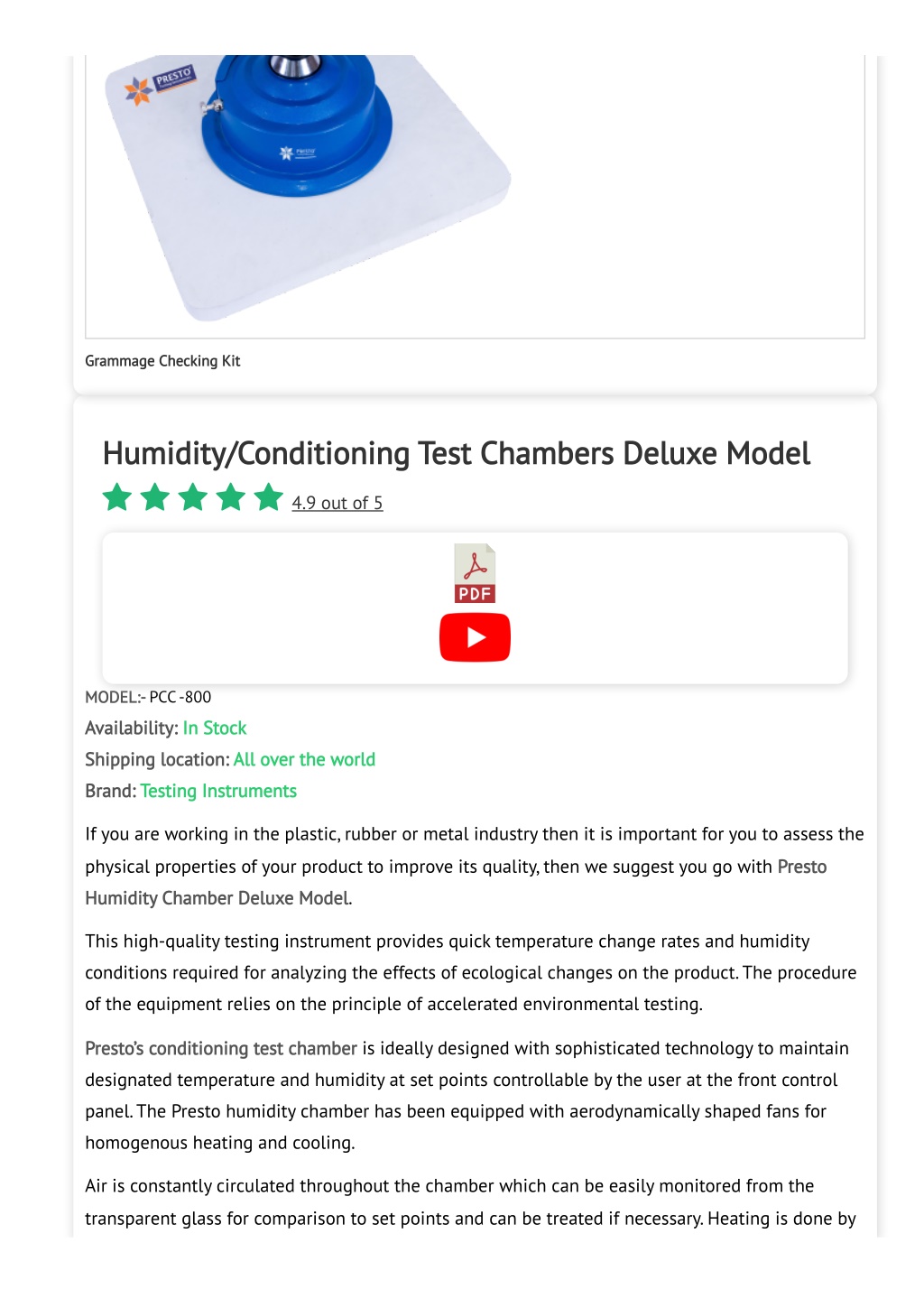

  5. Grammage Checking Kit Humidity/Conditioning Test Chambers Deluxe Model 4.9 out of 5 MODEL:- PCC -800 Availability: In Stock Shipping location: All over the world Brand: Testing Instruments If you are working in the plastic, rubber or metal industry then it is important for you to assess the physical properties of your product to improve its quality, then we suggest you go with Presto Humidity Chamber Deluxe Model. This high-quality testing instrument provides quick temperature change rates and humidity conditions required for analyzing the effects of ecological changes on the product. The procedure of the equipment relies on the principle of accelerated environmental testing. Presto’s conditioning test chamber is ideally designed with sophisticated technology to maintain designated temperature and humidity at set points controllable by the user at the front control panel. The Presto humidity chamber has been equipped with aerodynamically shaped fans for homogenous heating and cooling. Air is constantly circulated throughout the chamber which can be easily monitored from the transparent glass for comparison to set points and can be treated if necessary. Heating is done by

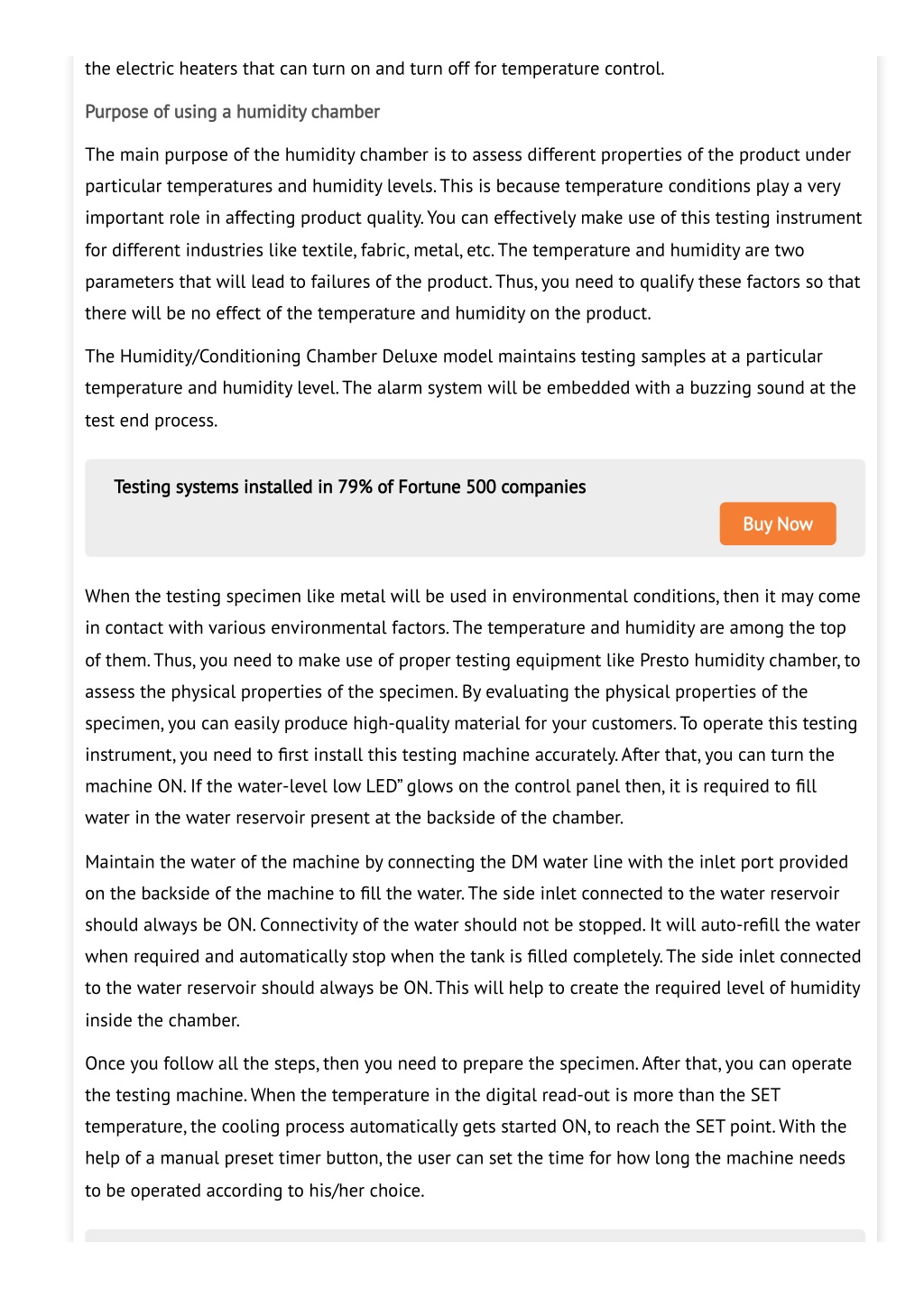

  6. the electric heaters that can turn on and turn off for temperature control. Purpose of using a humidity chamber The main purpose of the humidity chamber is to assess different properties of the product under particular temperatures and humidity levels. This is because temperature conditions play a very important role in affecting product quality. You can effectively make use of this testing instrument for different industries like textile, fabric, metal, etc. The temperature and humidity are two parameters that will lead to failures of the product. Thus, you need to qualify these factors so that there will be no effect of the temperature and humidity on the product. The Humidity/Conditioning Chamber Deluxe model maintains testing samples at a particular temperature and humidity level. The alarm system will be embedded with a buzzing sound at the test end process. Testing systems installed in 79% of Fortune 500 companies Buy Now When the testing specimen like metal will be used in environmental conditions, then it may come in contact with various environmental factors. The temperature and humidity are among the top of them. Thus, you need to make use of proper testing equipment like Presto humidity chamber, to assess the physical properties of the specimen. By evaluating the physical properties of the specimen, you can easily produce high-quality material for your customers. To operate this testing instrument, you need to ?rst install this testing machine accurately. After that, you can turn the machine ON. If the water-level low LED” glows on the control panel then, it is required to ?ll water in the water reservoir present at the backside of the chamber. Maintain the water of the machine by connecting the DM water line with the inlet port provided on the backside of the machine to ?ll the water. The side inlet connected to the water reservoir should always be ON. Connectivity of the water should not be stopped. It will auto-re?ll the water when required and automatically stop when the tank is ?lled completely. The side inlet connected to the water reservoir should always be ON. This will help to create the required level of humidity inside the chamber. Once you follow all the steps, then you need to prepare the specimen. After that, you can operate the testing machine. When the temperature in the digital read-out is more than the SET temperature, the cooling process automatically gets started ON, to reach the SET point. With the help of a manual preset timer button, the user can set the time for how long the machine needs to be operated according to his/her choice.

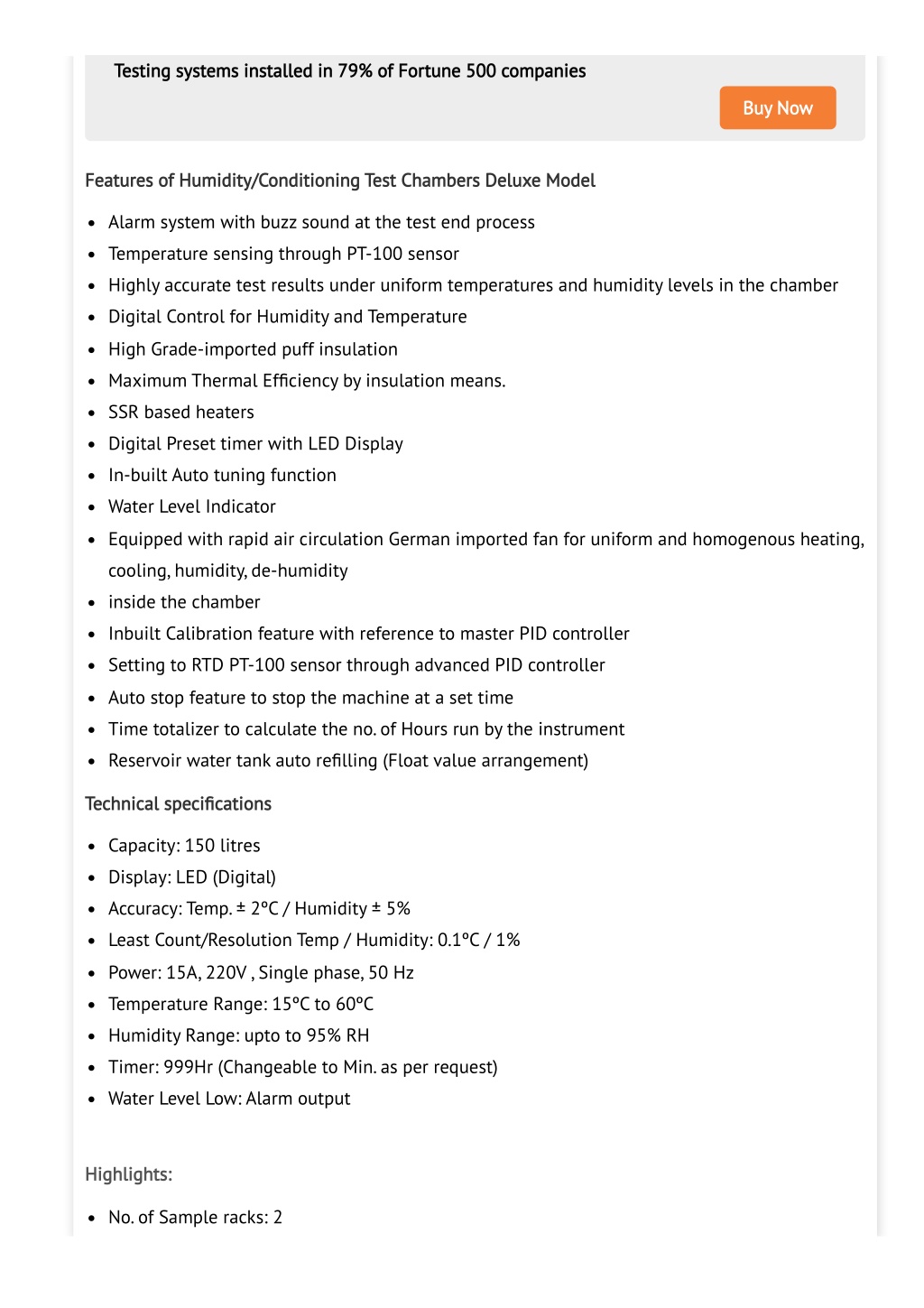

  7. Testing systems installed in 79% of Fortune 500 companies Buy Now Features of Humidity/Conditioning Test Chambers Deluxe Model Alarm system with buzz sound at the test end process Temperature sensing through PT-100 sensor Highly accurate test results under uniform temperatures and humidity levels in the chamber Digital Control for Humidity and Temperature High Grade-imported puff insulation Maximum Thermal Ef?ciency by insulation means. SSR based heaters Digital Preset timer with LED Display In-built Auto tuning function Water Level Indicator Equipped with rapid air circulation German imported fan for uniform and homogenous heating, cooling, humidity, de-humidity inside the chamber Inbuilt Calibration feature with reference to master PID controller Setting to RTD PT-100 sensor through advanced PID controller Auto stop feature to stop the machine at a set time Time totalizer to calculate the no. of Hours run by the instrument Reservoir water tank auto re?lling (Float value arrangement) Technical speci?cations Capacity: 150 litres Display: LED (Digital) Accuracy: Temp. ± 2ºC / Humidity ± 5% Least Count/Resolution Temp / Humidity: 0.1ºC / 1% Power: 15A, 220V , Single phase, 50 Hz Temperature Range: 15ºC to 60ºC Humidity Range: upto to 95% RH Timer: 999Hr (Changeable to Min. as per request) Water Level Low: Alarm output   Highlights: No. of Sample racks: 2

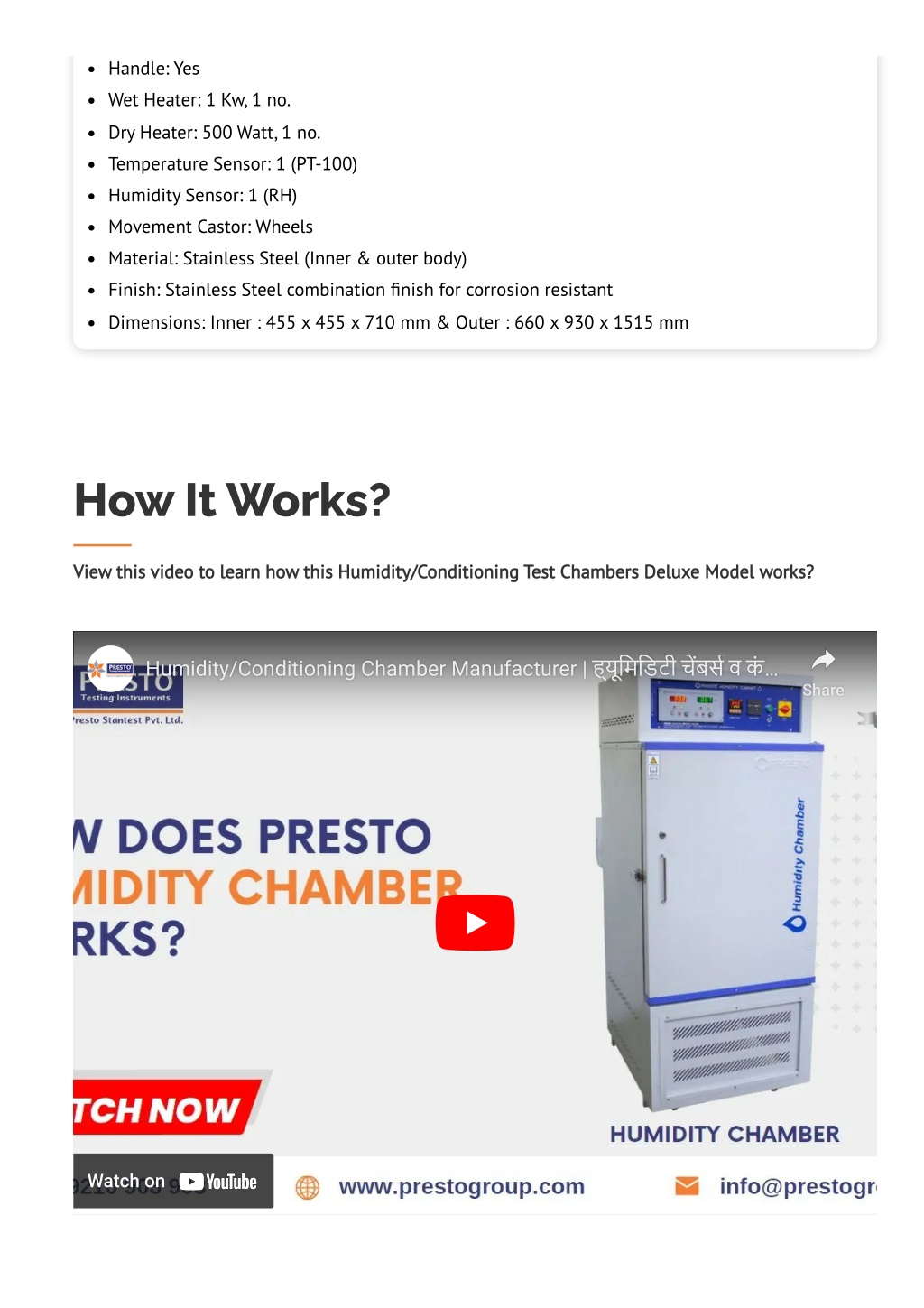

  8. Handle: Yes Wet Heater: 1 Kw, 1 no. Dry Heater: 500 Watt, 1 no. Temperature Sensor: 1 (PT-100) Humidity Sensor: 1 (RH) Movement Castor: Wheels Material: Stainless Steel (Inner & outer body) Finish: Stainless Steel combination ?nish for corrosion resistant Dimensions: Inner : 455 x 455 x 710 mm & Outer : 660 x 930 x 1515 mm How It Works? View this video to learn how this Humidity/Conditioning Test Chambers Deluxe Model works? Humidity/Conditioning Chamber Manufacturer | ह्यूिमिडटीच?बस?वक ं Humidity/Conditioning Chamber Manufacturer | ह्यूिमिडटीच?बस?वक ं … … Share Share Watch on

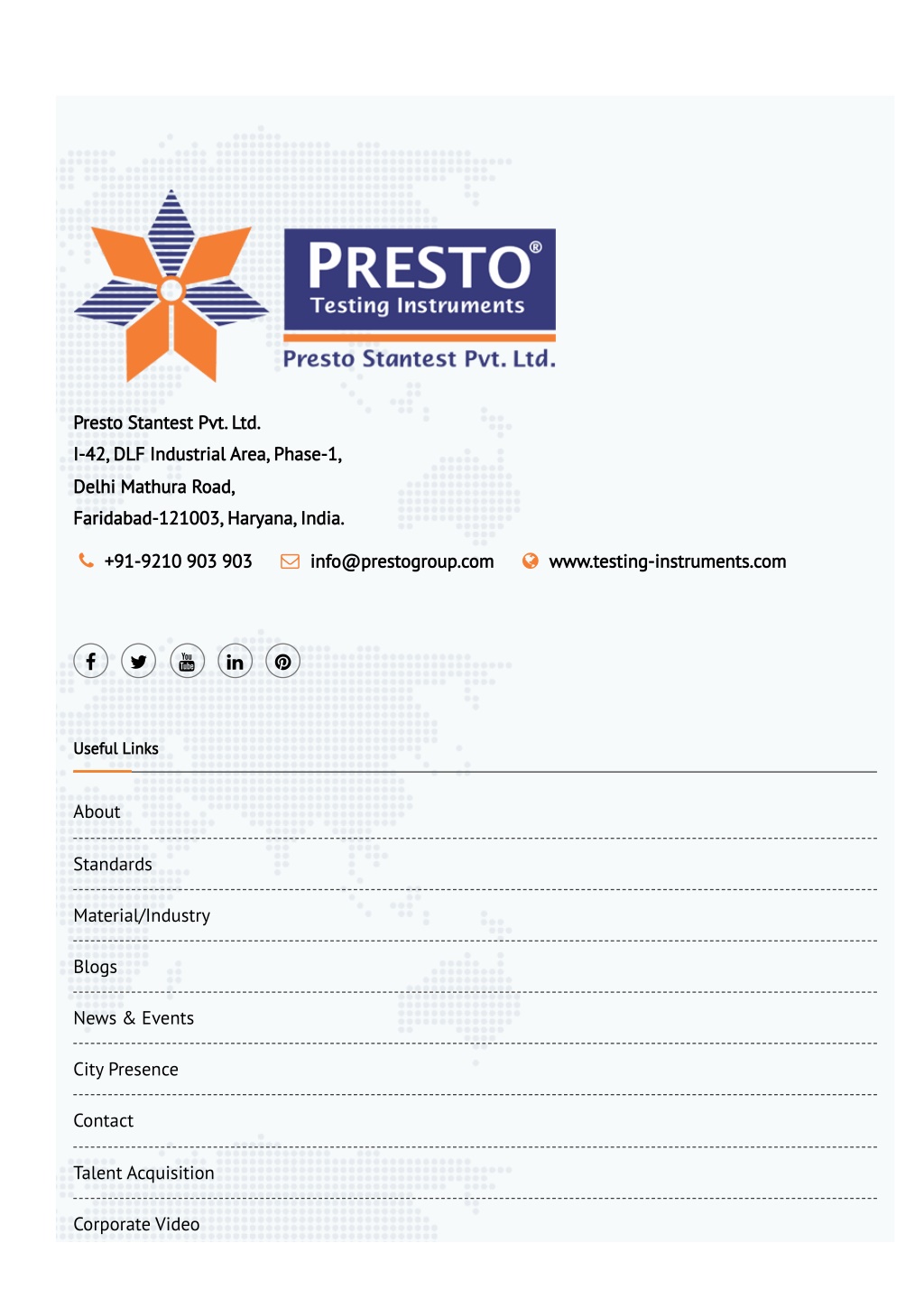

  9. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area, Phase-1, Delhi Mathura Road, Faridabad-121003, Haryana, India.  +91-9210 903 903  info@prestogroup.com  www.testing-instruments.com      Useful Links About Standards Material/Industry Blogs News & Events City Presence Contact Talent Acquisition Corporate Video

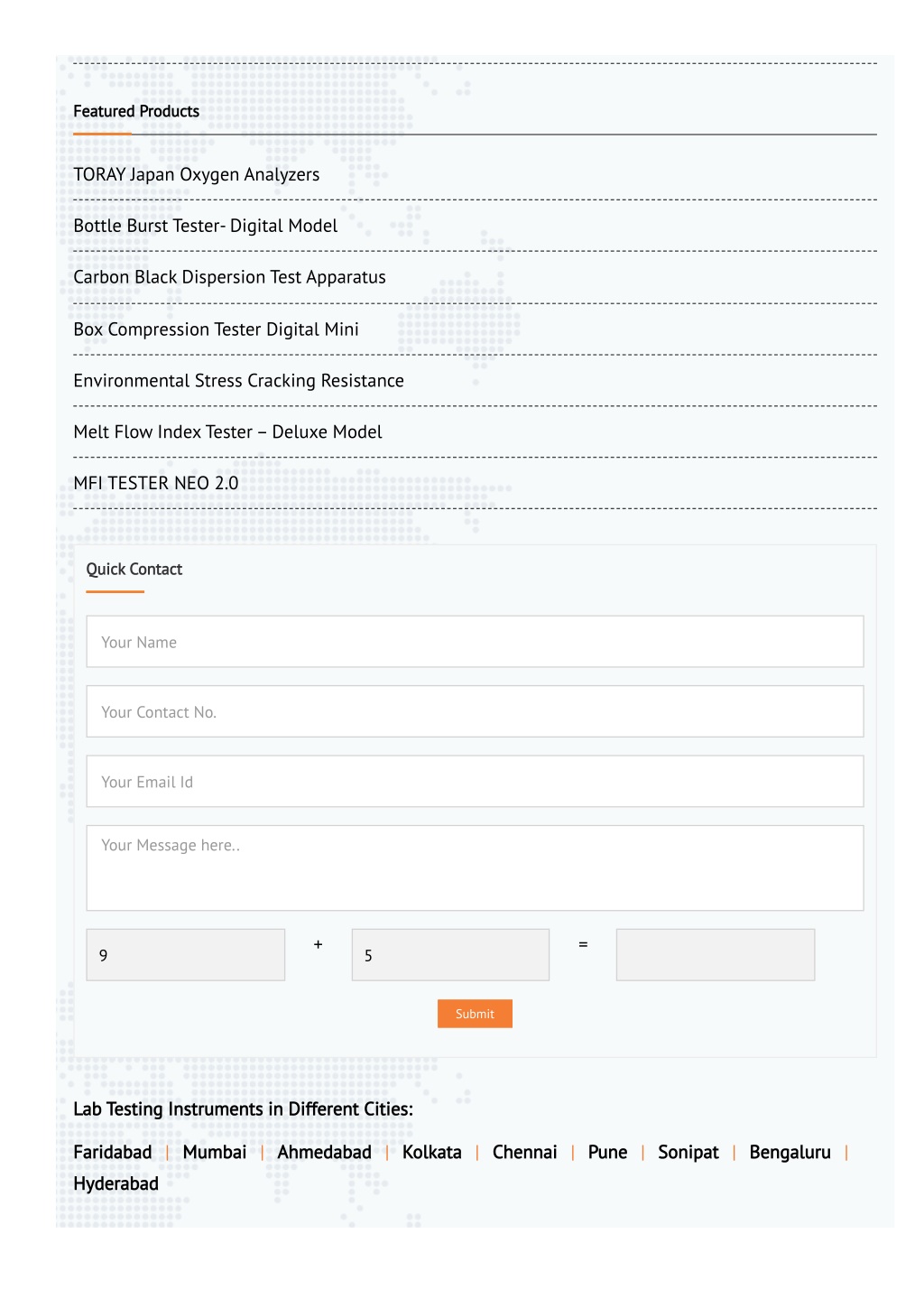

  10. Featured Products TORAY Japan Oxygen Analyzers Bottle Burst Tester- Digital Model Carbon Black Dispersion Test Apparatus Box Compression Tester Digital Mini Environmental Stress Cracking Resistance Melt Flow Index Tester – Deluxe Model MFI TESTER NEO 2.0 Quick Contact Your Name Your Contact No. Your Email Id Your Message here.. + = 9 5 Submit Lab Testing Instruments in Different Cities: Faridabad   |   Mumbai   |   Ahmedabad   |   Kolkata   |   Chennai   |   Pune   |   Sonipat   |   Bengaluru   |   Hyderabad

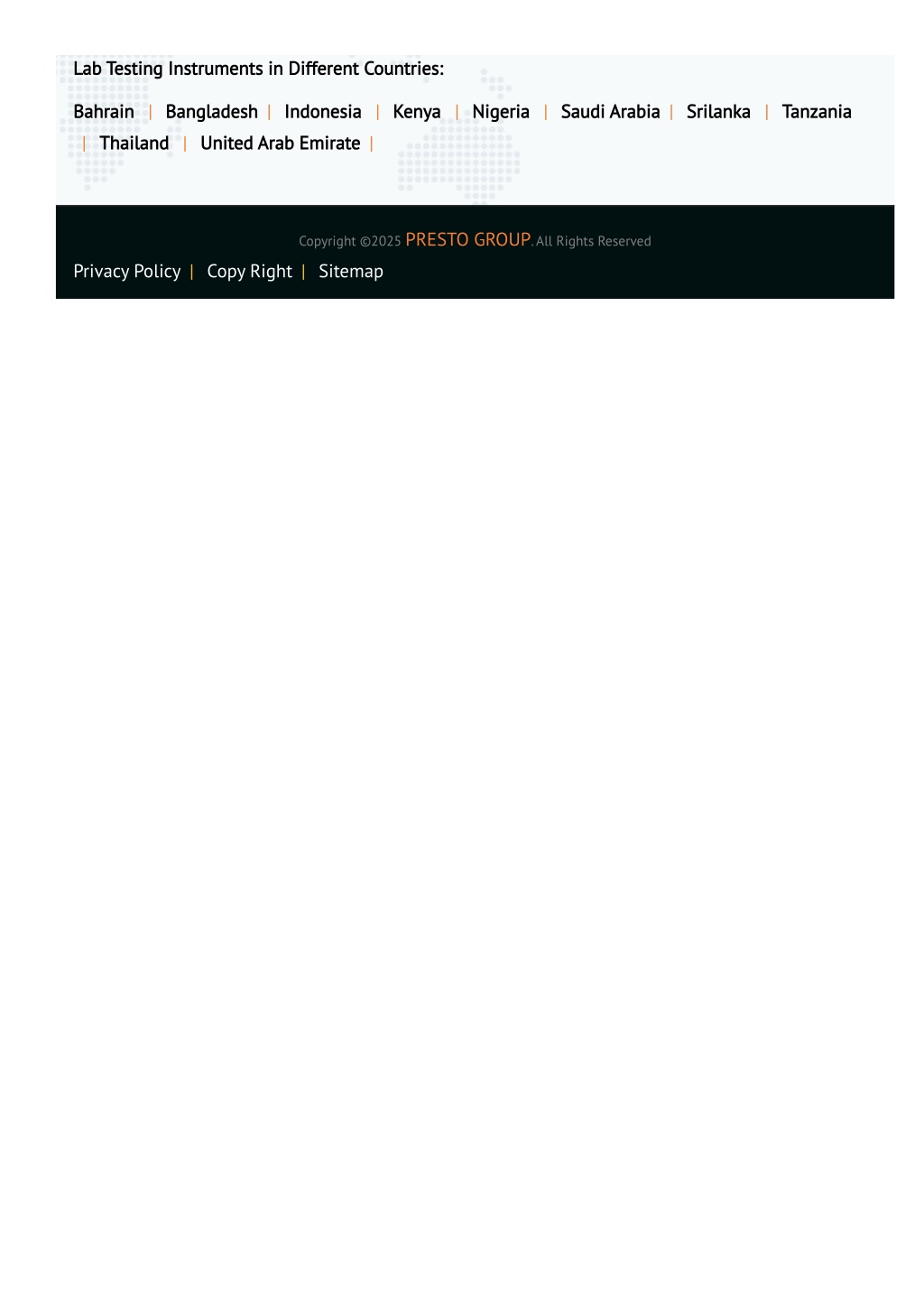

  11. Lab Testing Instruments in Different Countries: Bahrain   |   Bangladesh  |   Indonesia   |   Kenya   |   Nigeria   |   Saudi Arabia  |   Srilanka   |   Tanzania   |   Thailand   |   United Arab Emirate  |   Copyright ©2025 PRESTO GROUP. All Rights Reserved Privacy Policy  |   Copy Right  |   Sitemap
