client hosted virtualization with microsoft enterprise desktop virtualization med v

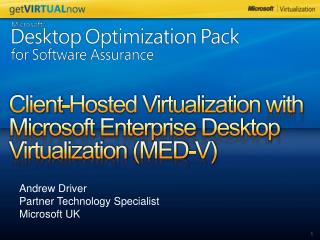

Client-Hosted Virtualization with Microsoft Enterprise Desktop Virtualization(MED-V)

Andrew Driver

Partner Technology Specialist

Microsoft UK

session objectives
Session Objectives
  • Desktop Virtualization overview
    • What are the different flavors for virtualization?
  • Introducing Microsoft Enterprise Desktop Virtualization (MED-V)
      • What is it good for?
      • Architecture
  • Demo
  • MED-V Availability and Features
  • The future of MED-V
slide3

Microsoft Virtualization Products

A comprehensive set of virtualization products, from the data center to the desktop.

Assets – both virtual and physical – are managed from a single platform.

User State

Virtualization

Folder Redirection

Offline files

Server Virtualization

Presentation Virtualization

Desktop Virtualization

Application Virtualization

3

desktop virtualization overview
Desktop Virtualization Overview

Desktop Virtualization

Server-Based Virtualization

Runs virtual images on a server, and provides remote access from any endpoint (with zero-touch deployment)

  • Client-Hosted Virtualization
  • Creates a local copy of the virtual image, available to work offline, and with no servers

ServerClient

Client

VDI (Windows VECD – Windows Vista Enterprise Centralized Desktop), Terminal Services

Microsoft® Enterprise Desktop Virtualization based on Microsoft Virtual PC 2007

desktop vs application virtualization
Desktop vs. Application Virtualization
  • What it does
  • Creates a package with a full OS
  • What it is good for
  • Resolve incompatibility between applications and a new OS
  • Run two environments on a single PC
  • What it does
  • Creates a package of a single application
  • Eliminates software install
  • What it is good for
  • Resolve conflicts between applications
  • Simplify application delivery and testing

Applications

Operating System

®

Hardware

key usage scenarios for desktop virtualization
Key usage scenarios for Desktop Virtualization

Current focus: Accelerate upgrade to Windows Vista®:

  • Enable legacy applications that requires (Windows XP/2000) to run on the new OS platform
  • Jumpstart to future OS deployments

Future focus: Deliver a corporate-managed virtual desktop to unmanaged PCs

  • Increase manageability and usability of employee laptops
  • Drive business continuity and migration of new subsidiaries
  • Increase productivity for contractors, offshore, branch offices
  • Enable work-at-home and increased mobility
slide7

Enhances deployment, management and user experience for Virtual PC images in an enterprise environment

windows vista migration
Windows Vista®Migration

Typical upgrade path to a new operating system

First upgrade – then migrate!

Test

Migrate

Upgrade

Test compatibility of all applications with the new OS

Migrate or replace incompatible applications

Upgrade the organization to the new OS

accelerate upgrade to windows vista
Accelerate upgrade to Windows Vista®

Application-to-OS Compatibility Solution:Run legacy applications in a Windows® XP/2000 environment

  • Applications
  • OS
  • Virtual PC

Applications

Operating System

Hardware

what does med v add to vpc
What Does MED-V Add To VPC?

MED-V upgrades an industry-standard virtual machine…

… to an enterprise-managed workspace:

End-user Experience and Usability

Usage Policy and Data Transfer Control

Centralized Management and Monitoring

Image Creation, Delivery and Update

Virtual Machine (residing and operating on the endpoint)

user experience with virtual pc
User experience with Virtual PC
  • Introduction of “Virtual Machine” concepts
  • An additional desktop (start menu, taskbar…)
with med v
…with MED-V
  • Applications installed in the VM, appear on the desktop as if they were running natively.
med v architecture
MED-V Architecture
  • Applications
  • OS
  • Virtual PC

Applications

Operating System

med v v1 availability
MED-V v1 Availability

Kidaro is no longer available to evaluate/purchase

Available through Microsoft Desktop Optimization

Pack (MDOP) – v1 expected in H1 CalendarYear2009

  • No change to MDOP pricing for managed desktops
med v v1 server requirements
MED-V v1 Server Requirements

OS:Windows Server 2008 (Standard/Enterprise)

Recommended HW: Dual Processor (2.8ghz), 4GBRAM

Active-directory: Joined to domain for user authentication

Image repository: IIS web server

Reporting database (optional): MS SQL Server (2005 SP2 Enterprise or 2008 Express/Standard/Enterprise)

Scale:

  • Up to 5000 users for the management server
  • Use IIS web proxies to off-load image delivery from the management server
med v v1 client requirements
MED-V v1 Client Requirements

Host:

  • Windows Vista SP1 – 32-bit (2GB RAM Recommended)
  • Windows XP SP2/3 - 32bit (1GB RAM Recommended)

Guest: Windows XP Pro SP2/3 , Win2000 SP4

Virtualization engine: VPC 2007 SP1

Languages: EnglishUI (with support for other Western-EU OS)

Browsers:

  • Host – Internet Explorer 7 or 8
  • Guest – Internet Explorer 7 or 6 SP2
med v v1 features
MED-V v1 – Features

Virtual images repository and deployment

  • Centralized virtual images repository for image creation/testing
  • Standard MSI for corporate software distribution
  • Auto-install package for self deploymentvia removable media (e.g. DVD) or from a website
  • Efficient image delivery and updates over LAN or WAN(using TrimTransfer de-duplication technology based on IIS)

Centralized management and monitoring

  • Centralized management server to control deployed VMs
  • Image provisioning based on Microsoft Active Directory®users/groups
  • User authentication (online over SSL or offline based on local cache)
  • Support heterogeneous environments
  • Automate first-time virtual machine setups (e.g. initial network setup, unique computer name, domain join)
  • Adjust VPC memory allocation based on available RAM on host
  • Centralized database for client activity and events
med v v1 features cont
MED-V v1 – Features (cont.)

Usage policy and data transfer control

  • Per user/group usage policies (e.g. expiration, time limits for offline work)
  • Host-guest data transfer control (e.g. copy-paste, file transfer, printing)
  • Automatic redirection of predefined websites (e.g. corporate intranet) to the virtual environment

End-user experience

  • Background VM management - hide the Virtual PC session from the user, and automatically troubleshoot
  • “Publish” applications from VPC image to host Start Menu
  • Single desktop experience – applications that run in the VPC seamlessly appear side-by-side with native applications (including task-bar, tray-icons)
  • File transfer tool – share files between host and guest
observed tension between users it
Observed Tension Between Users & IT
  • Anywhere/Anytime Access
  • Device Independence
  • Personal Data/Applications
  • Flexible Configurations
  • Controlled Network Access
  • Device Lockdown
  • Data Security
  • Predictable Configurations

End Users Want Freedom, Flexibility

IT Pros Want Control

increase desktop computing flexibility
Increase desktop computing flexibility

Home

non–company PC

Contract/ Offshore

Mobile

increase desktop computing flexibility24

Deliver corporate-managed desktops to unmanaged PCs

Increase productivity for contractors, offshore, branch offices

Enable work-at-home and increased mobility

Drive business continuity

Rapidly reconstitute corporate desktops on any PC in case of emergency

Increase manageability and usability of corporate laptops

Eliminate historic trade off between IT control and user flexibility

Enable employee-owned model, using a virtual corporate desktop

Increase desktop computing flexibility
corporate os licensing on unmanaged pcs
Corporate OS licensing on unmanaged PCs

OS licensing changes are expected

  • Work from home PC (for employees with corporate desktops that are licensed with SA)– purchase a Windows Vista Enterprise Centralized Desktop (VECD) license for $23/yr
  • For employee-owned and contractor PCs (do not have a corporate desktop) – purchase a Windows Vista Enterprise Centralized Desktop (VECD) license at $110/yr
  • Expected on January 2009. Details are TBD.
    • Read announcement at http://blogs.technet.com/mdop/
    • Updated licensing information:http://www.microsoftvolumelicensing.com/userights/PUR.aspx
slide26

App

App

App

App

App

App

App

App

App

App

App

Translating software inventory

into business intelligence

Enhancing group policy through

change management

Dynamically streaming software as a centrally managed service

Simplifying deployment and management of Virtual PCs

Proactively managing application and operating system failures

Powerful tools to accelerate desktop repair

windows optimized desktop
Windows Optimized Desktop

Flexible offerings to fit your needs

For All Customers

For Software Assurance Customers

Includes all features ofWindows Vista Business plus:

Windows Vista Optimized Desktop

Flexible Client Computing Scenarios to Meet Unique Customer Needs

Windows BitLocker™ Drive Encryption

Four Virtual Operating Systems

Multi-lingual User Interface (MUI)

Subsystem for Unix-Based Apps

Available By Subscription to Software Assurance Customers

Microsoft Application Virtualization

Asset Inventory Services

Advanced Diagnostic andRecovery Toolset

Advanced Group Policy Management

System Center Desktop Error Monitoring

Microsoft Enterprise Desktop Virtualization

how to update patch virtual images
How to update/patch virtual images?

Initial delivery (using TrimTransfer)

Alt. II: connect to Active Directory domain and use standard software delivery

Alt. I: update the “Master” image onceand deliver image differences to endpoints

Standard! (use WSUS, SCCM, etc)

Easy to manage

User data and settings must be saved on the network

slide30
