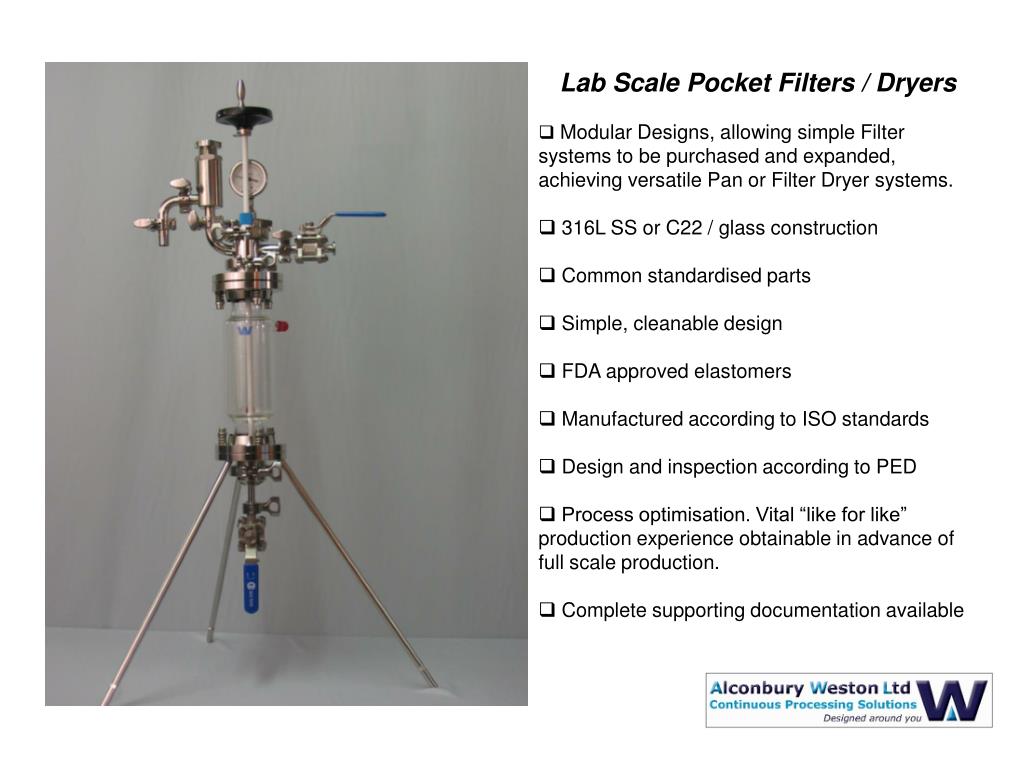

  1. Lab Scale Pocket Filters / Dryers • Modular Designs, allowing simple Filter systems to be purchased and expanded, achieving versatile Pan or Filter Dryer systems. • 316L SS or C22 / glass construction • Common standardised parts • Simple, cleanable design • FDA approved elastomers • Manufactured according to ISO standards • Design and inspection according to PED • Process optimisation. Vital “like for like” production experience obtainable in advance of full scale production. • Complete supporting documentation available • Timer

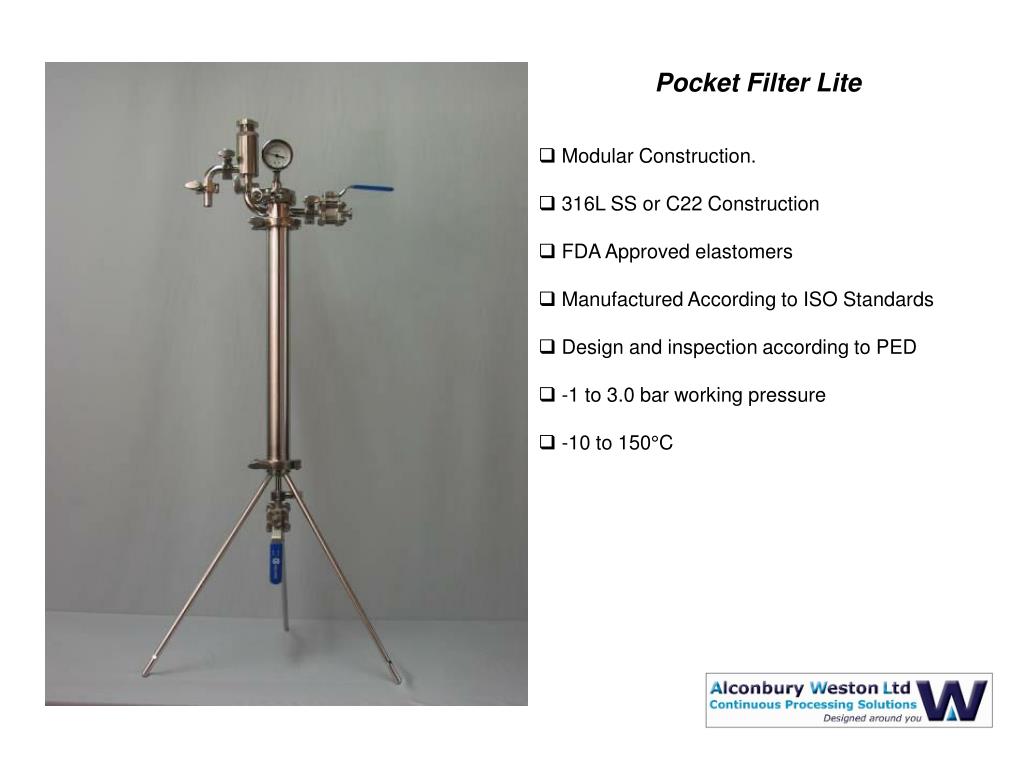

  2. Pocket Filter Lite • Modular Construction. • 316L SS or C22 Construction • FDA Approved elastomers • Manufactured According to ISO Standards • Design and inspection according to PED • -1 to 3.0 bar working pressure • -10 to 150°C timer

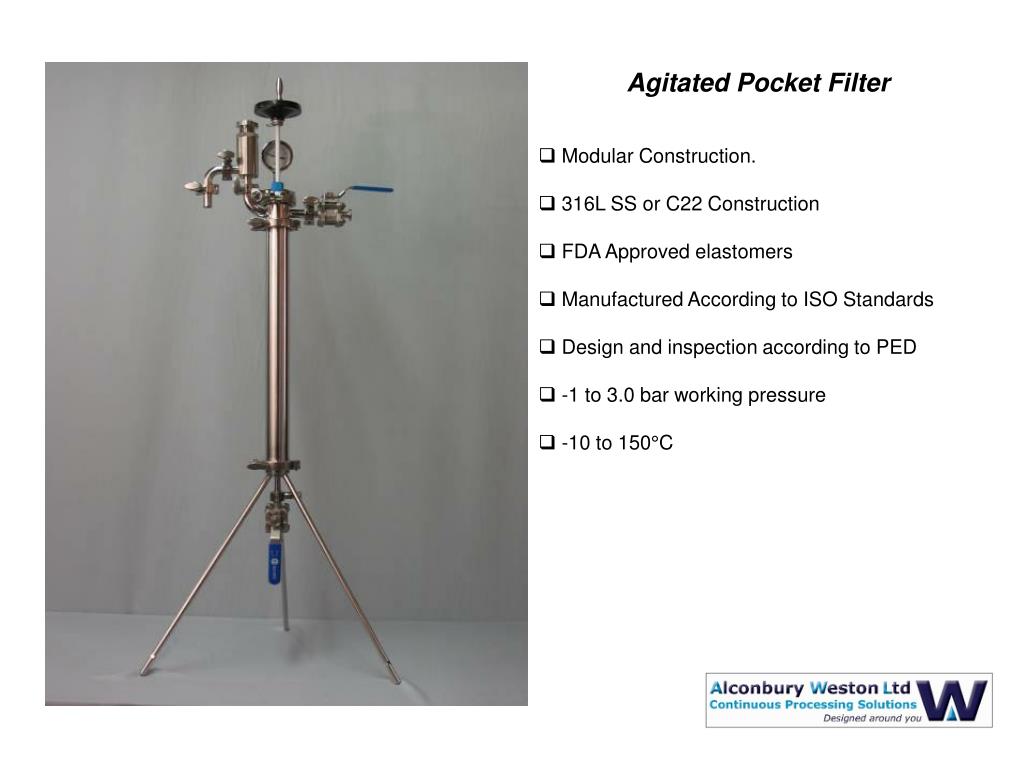

  3. Agitated Pocket Filter • Modular Construction. • 316L SS or C22 Construction • FDA Approved elastomers • Manufactured According to ISO Standards • Design and inspection according to PED • -1 to 3.0 bar working pressure • -10 to 150°C timer

  4. Agitated Pocket Filter / Dryer • Glass Vessel • Process Visualisation. • Modular Construction. • 316L SS or C22 Construction • FDA Approved elastomers • Manufactured According to ISO Standards • Design and inspection according to PED • -1 to 3.0 bar working pressure • -10 to 150°C timer

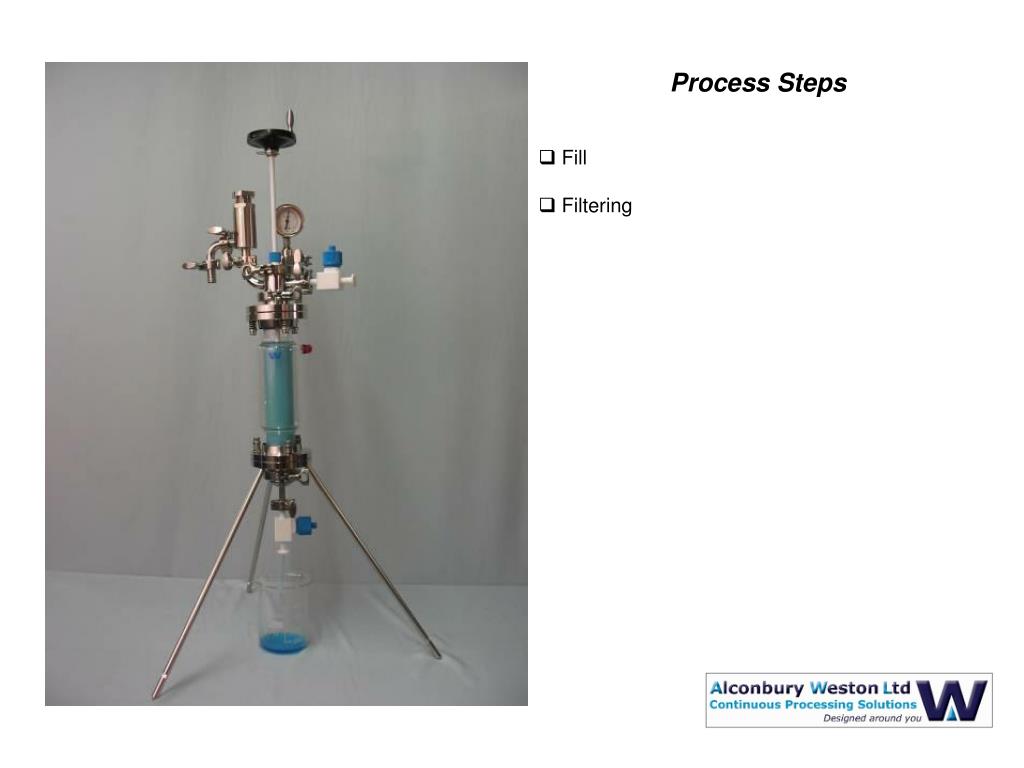

  5. Process Steps • Fill • Filtering timer

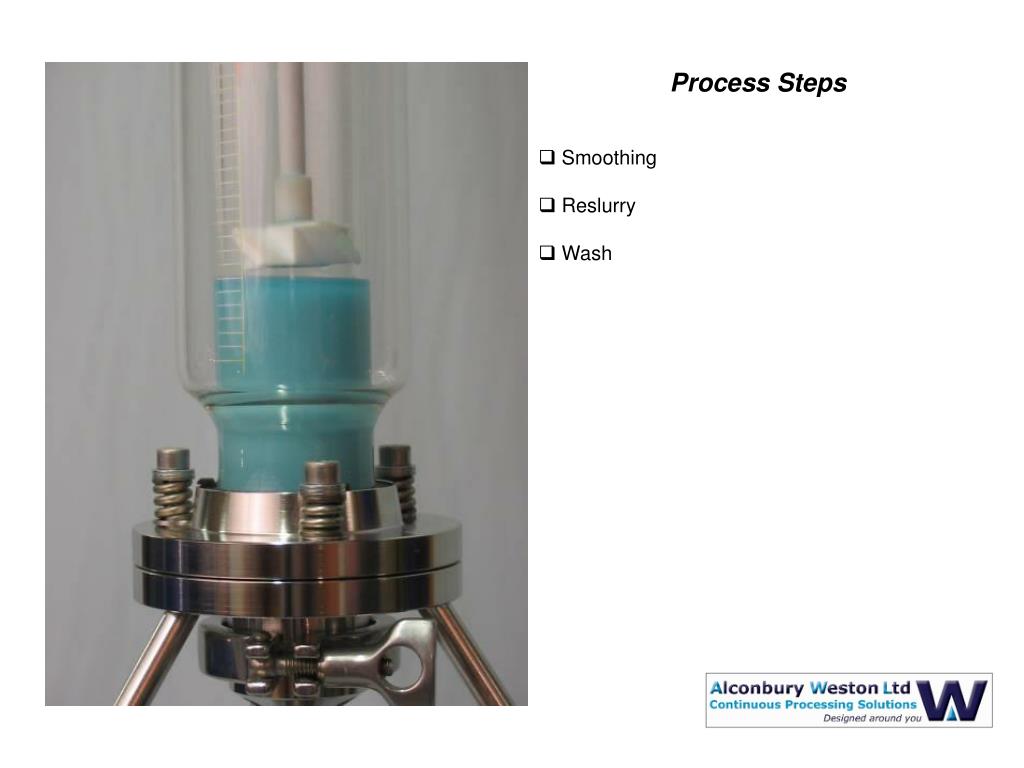

  6. Process Steps • Smoothing • Reslurry • Wash timer

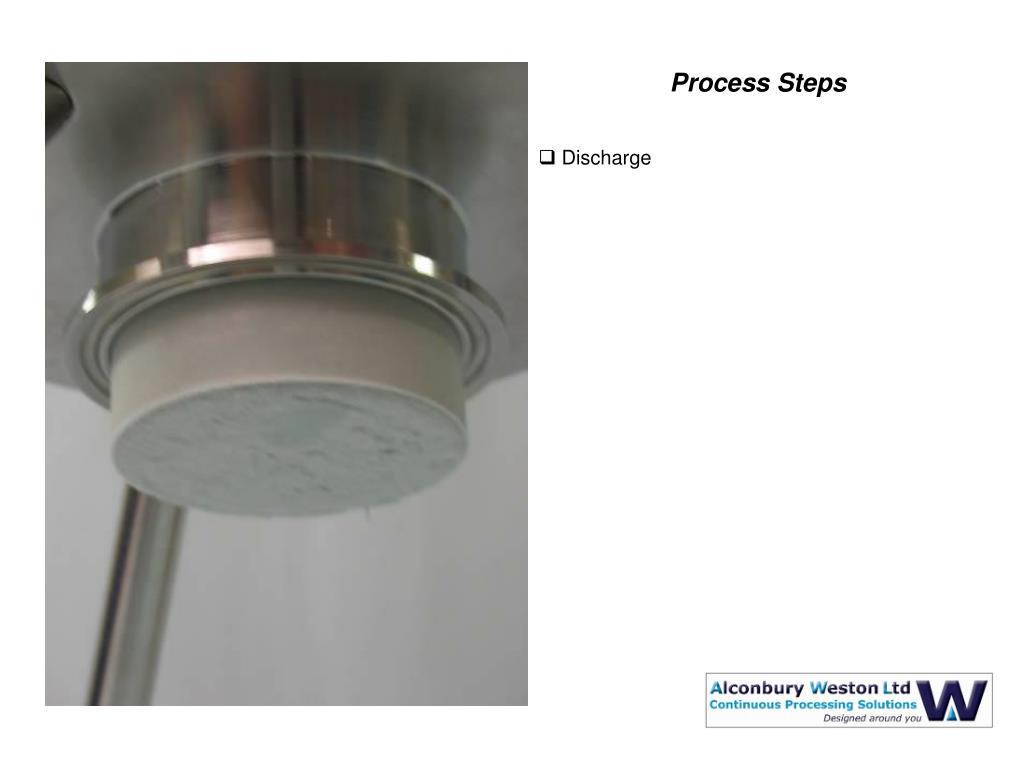

  7. Process Steps • Discharge timer

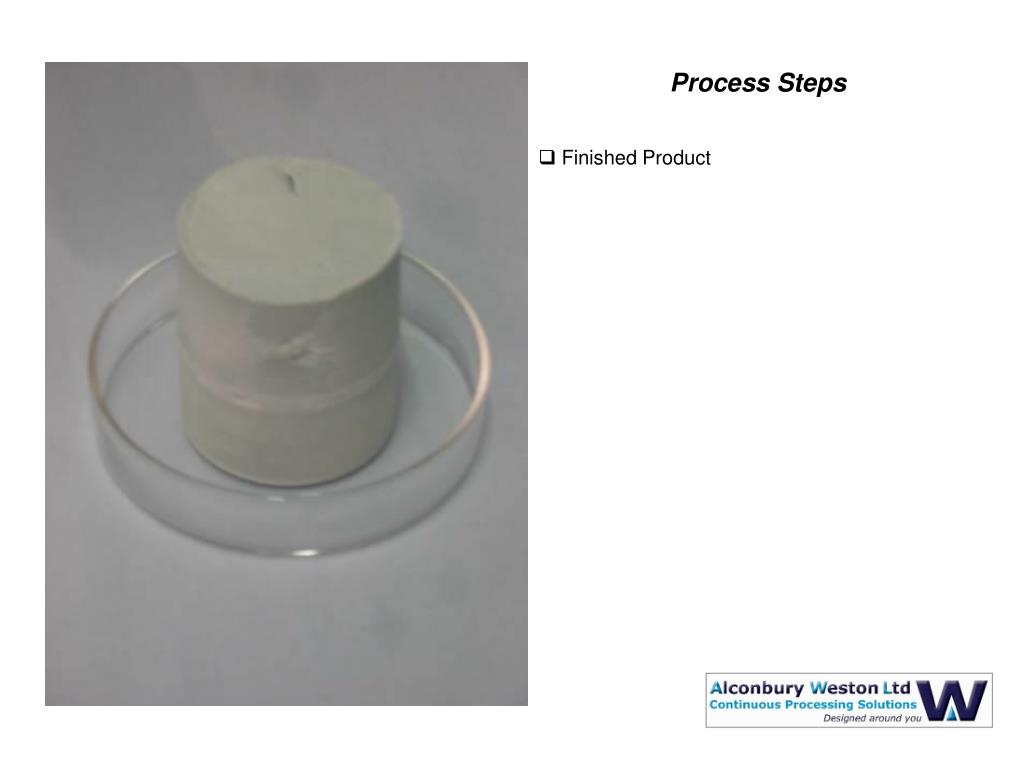

  8. Process Steps • Finished Product timer
