  1. Heuristics for Internet Map Discovery R. Govindan, H. Tangmunarunkit Presented by Zach Schneirov

  2. Mercator • Infers a topological Internet map through • Hop-limited probes • Informed random address probing • Resolution of aliases

  3. Why build router-level maps? • It is the first step in understanding the large-scale physical structure of the Internet • It can be used in input simulations • It can directly determine network scaling limits

  4. What exactly is an Internet map? • A map in this case is a graph with nodes as routers and links as indications of adjacency, where adjacent routers have one IP hop between them

  5. Previous work • All previous maps have built router adjacencies using probes from a single node • Obtained destination addresses from BGP routing tables and generated addresses with random prefixes • Used routing activity between autonomous systems, with links representing inter-ISP peering • Used router-level support, such as SNMP and multicast IGMP queries to find neighbor lists

  6. Goals • Map the Internet from any single arbitrary node • Use only hop-limited probes (implies an absence of a database) • Map must be complete • Not impose significant overhead • At least as fast as previous methods

  7. Methods • Informed random address probing • Source-routed path probing • Alias resolution

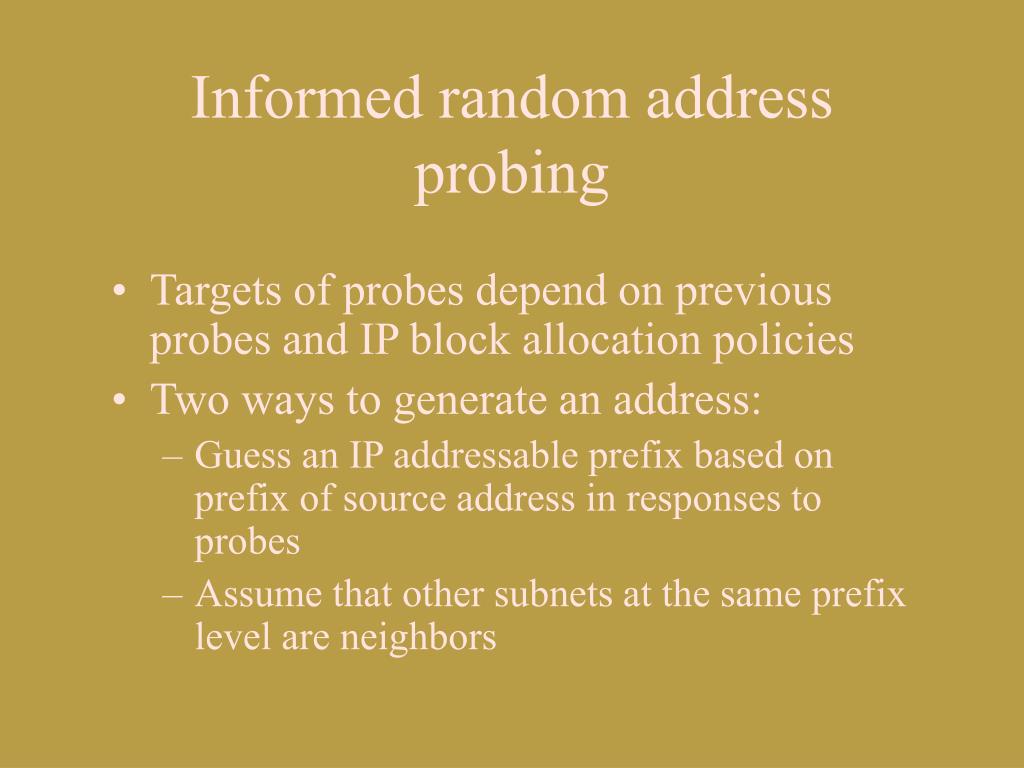

  8. Informed random address probing • Targets of probes depend on previous probes and IP block allocation policies • Two ways to generate an address: • Guess an IP addressable prefix based on prefix of source address in responses to probes • Assume that other subnets at the same prefix level are neighbors

  9. IRAP Procedure • Start with an IP prefix (taken from the host machine by default) • Repeating these two methods will gradually build a population of IP address prefixes • 1st method ensures that addressable prefixes are explored first • 2nd ensures that all possible addresses are explored

  10. IRAP Procedure (continued) • Terminates when one of the following occurs: • Subsequent ICMP-time-exceeded packets are not received • Mercator detects a loop • Chosen destination address is reached • Sequence of routers is inserted into the map of links: • (R1, R2, R3) becomes R1->R2, R2->R3

  11. Reducing Overhead for IRAP • Avoids probing known routers multiple times by adjusting the TTL to skip the furthest known router in the map

  12. Speeding up map discovery • Uses lottery scheduling algorithm to select prefixes • Each prefix is assigned a lottery tick • Probability of that prefix’s ticket “winning” is proportional to the faction of successful probes to the prefix • Results in a bias towards densely-addressed prefixes

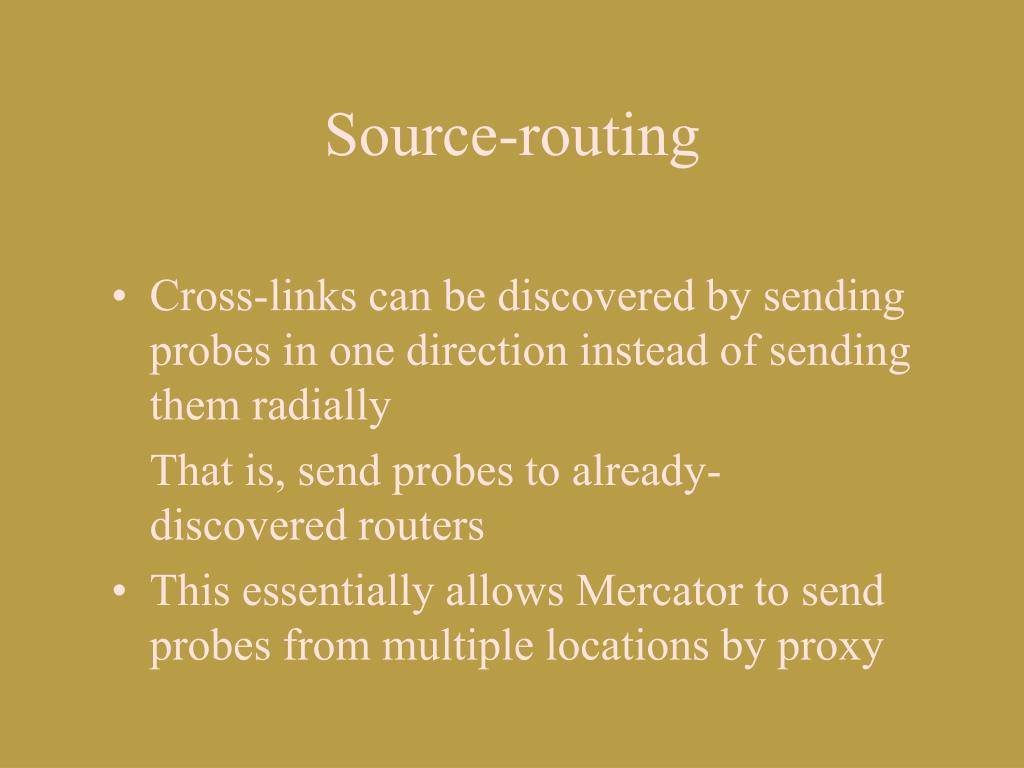

  13. Source-routing • Cross-links can be discovered by sending probes in one direction instead of sending them radially That is, send probes to already-discovered routers • This essentially allows Mercator to send probes from multiple locations by proxy

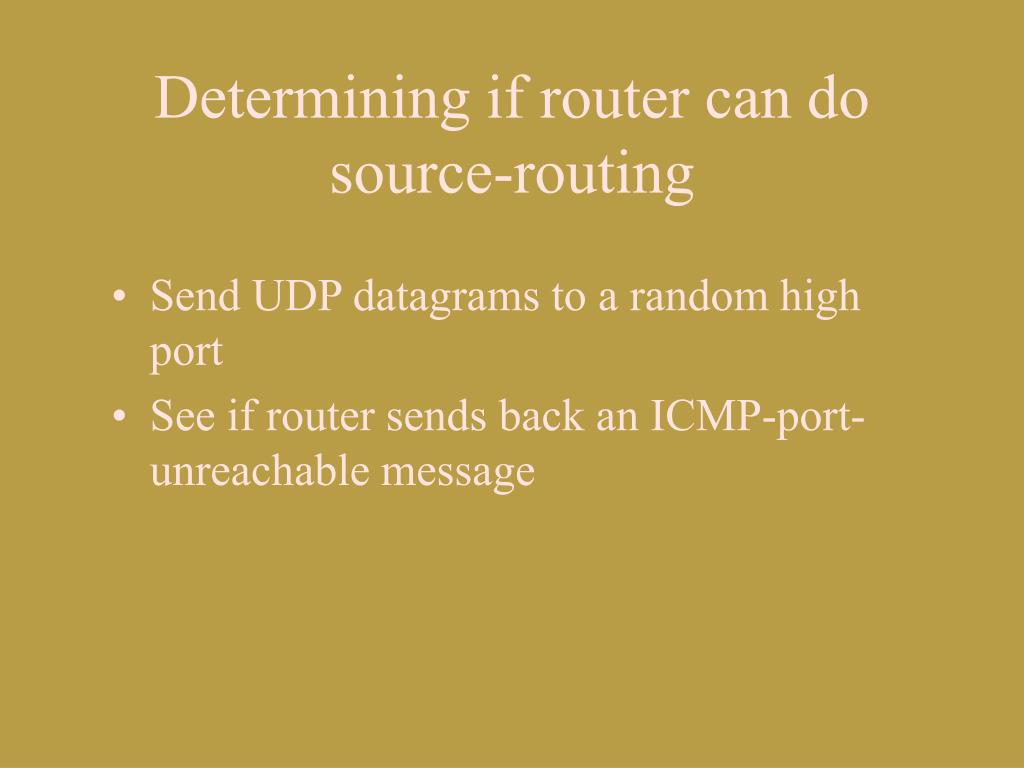

  14. Determining if router can do source-routing • Send UDP datagrams to a random high port • See if router sends back an ICMP-port-unreachable message

  15. Alias resolution • Problem: a single host can have multiple IP aliases. Probes technically discover router interfaces--not routers themselves • Solution: paths from Mercator to destination host can overlap in the cases of: • Policy differences • Primary and backup paths • Source-routed paths probing from different perspectives

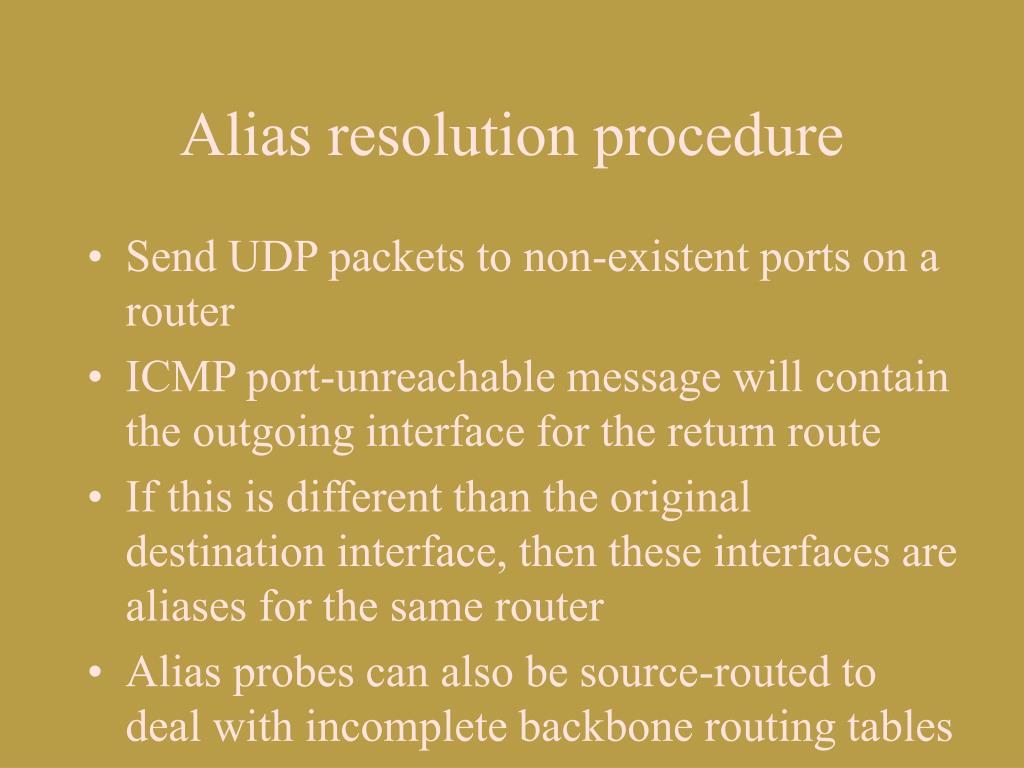

  16. Alias resolution procedure • Send UDP packets to non-existent ports on a router • ICMP port-unreachable message will contain the outgoing interface for the return route • If this is different than the original destination interface, then these interfaces are aliases for the same router • Alias probes can also be source-routed to deal with incomplete backbone routing tables

  17. Mercator Software Design • Implemented from scratch for greater experimental flexibility • Implemented with Libserv • Allows non-blocking network and file system access • So simultaneous independent path probes, source-routed path probes, and alias probes are possible • Periodically saves map for reverting to and resumption from previous states

  18. Theoretical Results • How well do these methods satisfy the goals? • Cannot guarantee discovery of all aliases due to finite perspectives • Cannot find shared media • Map is not instantaneous • Unable to find adjacencies between physical neighbors who aren’t on speaking terms

  19. More results-Map is incomplete • Can’t discover details of networks that do not route traffic to other autonomous systems • It is however complete with respect to the portion of the Internet over which packets tend to travel between hosts

  20. Real world results • Ran Mercator on a Linux PC with 15 simultaneous probes • Found 150,000 interfaces and 200,000 links in 3 weeks • Could only discover 20,000 router interfaces due to unroutable addresses • Source-routed paths discovered only 3,000 paths

  21. Internet map validation • Compared subgraphs against published ISP maps using DNS names of routers • All but one link was discovered for an ISP and an educational/research network • More complexly-meshed ISPs have not been tested • Will improve with more widespread use of ICMP-time-exceeded messages and source-routing

  22. Measuring ISP Topologies with Rocketfuel N. Spring, R. Mahajan, D. Wetherall

  23. Rocketfuel • Directly measure router-level ISP topologies more efficiently than brute-force • Uses BGP routing tables • Eliminates redundant measurement • Better alias resolution • DNS for identifying ISPs

  24. Goals • Infer high quality ISP topological maps • Use as few measurements as possible • An ISP will consist of multiple POPs (point-of-presence) connected by backbones

  25. Methods • Uses only traceroute for measuring paths • Merges traceroute paths from multiple sources to multiple destinations • Choose traceroutes that contribute the most information (directed probing and path reductions) • Alias resolution through “personality” • Identifying routers through DNS

  26. Directed probing • Use BGP routing information to choose only the traceroutes likely to transit the target ISP • Traceroutes will transit the ISP if they are: • Sent to dependent prefixes (sent to a destination within the ISP) • Sent from within a dependent prefix (traceroute server is within the ISP) • Either may be true depending on several different destination prefixes in BGP table

  27. Expected problems with directed probing • Incomplete routing tables or non-determinism in the routing tables will cause: • False positives: when traceroutes are performed on paths that don’t traverse ISP • False negatives: when removing traceroutes results in less information

  28. Path reductions • Don’t do traceroutes that enter and/or leave the ISP through the same points; they will probably take the same path through the ISP • Ingress reduction • Egress reduction • Next-hop AS reduction

  29. Egress reduction Next-hop AS reduction Ingress reduction

  30. Alias resolution • Improves Mercator’s UDP-port-unreachable triggering • Assumes that router aliases will have some set of characteristics that is constant between its aliases • Tests one pair of addresses at a time

  31. Alias resolution methods • Compare TTLs in responses to UDP requests • Test ICMP rate limiting • If two probes to two addresses are sent right away with only one response returned, then it is a single router • Assume that packets sent consecutively will have incrementing IP ID in the response

  32. Identifying routers • How to determine • Which routers correspond to the ISP in question • What are the routers’ physical locations? • Which other routers they connect to? • Use DNS names • Support of BGP on routers is irrelevant • Can identify network edges by changes in names • Customer nodes (cable, DSL, dialup) are named differently • Can guess location through naming convention

  33. Rocketfuel Results Statistics for 10 mapped ISPs using 294 publicly available traceroute servers

  34. Traceroute reduction results
