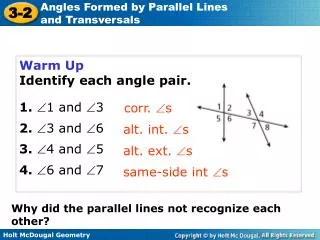

Warm Up Identify each angle pair. 1. 1 and 3 2. 3 and 6 3. 4 and 5 4. 6 and 7

Warm Up Identify each angle pair. 1. 1 and 3 2. 3 and 6 3. 4 and 5 4. 6 and 7. corr. s. alt. int. s. alt. ext. s. same-side int s. Why did the parallel lines not recognize each other?. Because they had never met . Objective.

terrence-quinones
Download Presentation

Warm Up Identify each angle pair. 1. 1 and 3 2. 3 and 6 3. 4 and 5 4. 6 and 7

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm Up Identify each angle pair. 1.1 and 3 2. 3 and 6 3. 4 and 5 4. 6 and 7 corr. s alt. int. s alt. ext. s same-side int s Why did the parallel lines not recognize each other?

  2. Because they had never met Objective Prove and use theorems about the angles formed by parallel lines and a transversal.

  3. Example 1: Using the Corresponding Angles Postulate Find each angle measure. A. mECF mECF = 70° B. mDCE 5x = 4x + 22 x = 22 mDCE = 5x = 5(22) = 110°

  4. Check It Out! Example 1 Find mQRS. x = 118 mQRS + 118 = 180° Def. of Linear Pair 62° mQRS =

  5. Find the measure of angles 1, 2, 3, and 4.

  6. Check It Out! Example 2 Find mABD. x = 25 mABD = 2(25) + 10 = 60°

  7. Example 3: Music Application Find x and y in the diagram. By the Alternate Interior Angles Theorem, (5x + 4y)° = 55°. By the Corresponding Angles Postulate, (5x + 5y)° = 60°. 5x + 5y = 60 –(5x + 4y = 55) y = 5 Subtract the first equation from the second equation. 5x + 5(5) = 60 x = 7, y = 5

  8. Check It Out! Example 3 Find x and y in the diagram. By the Alternate Exterior Angles Theorem, (25x + 5y)° = 125°. By the Corresponding Angles Postulate, (25x + 4y)° = 120°. X = 4, y = 5
