Presentation Transcript

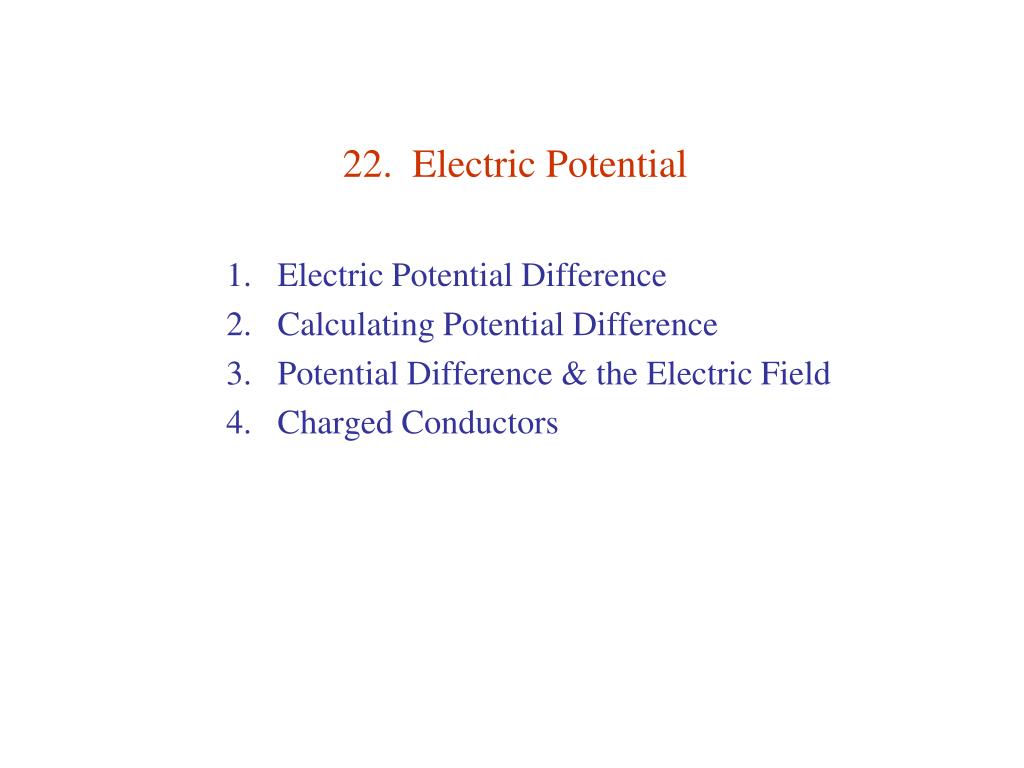

  1. 22. Electric Potential Electric Potential Difference Calculating Potential Difference Potential Difference & the Electric Field Charged Conductors

  2. This parasailer landed on a 138,000-volt power line. Why didn’t he get electrocuted? He touches only 1 line – there’s no potential differences & hence no energy transfer involved.

  3. 22.1. Electric Potential Difference Conservative force: ( path independent ) Electric potential difference electric potential energy difference per unit charge [ V ] = J/C = Volt = V if reference potential VA = 0. For a uniform field: rAB E

  4. Table 22.1. Force & Field, Potential Energy & Electric Potential Force F N Electric field E = F / q N/C or V/m Potential energy difference J J/C or V Electric potential difference

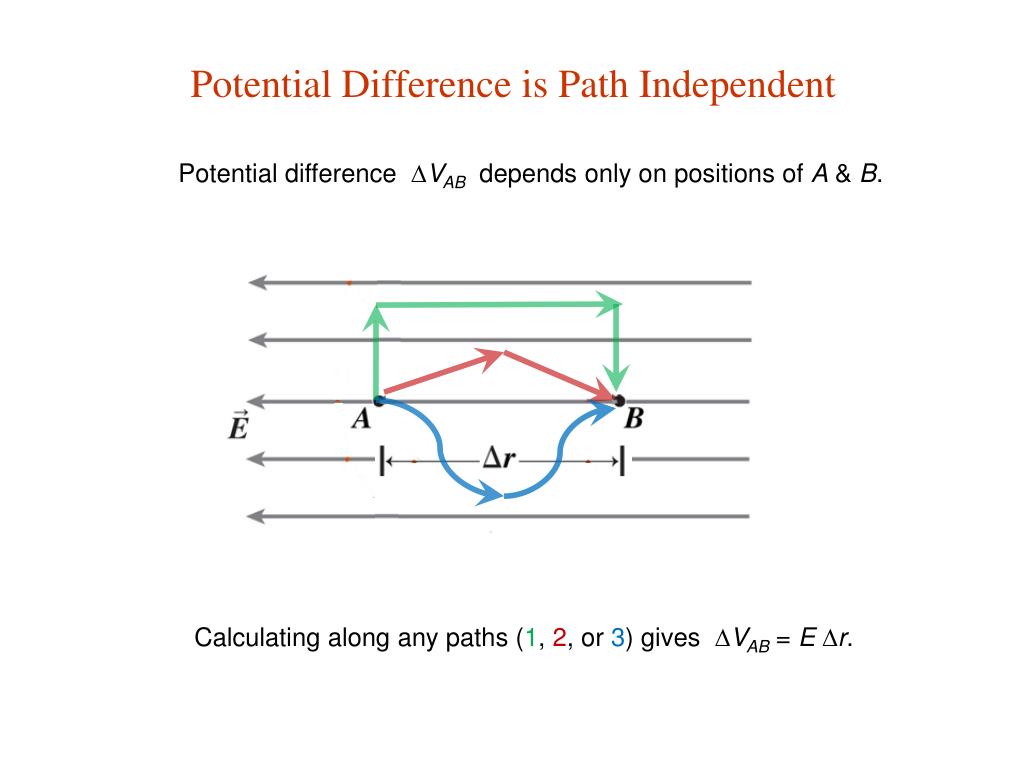

  5. Potential Difference is Path Independent Potential difference VAB depends only on positions of A & B. Calculating along any paths (1, 2, or 3) gives VAB = E r.

  6. GOT IT? 22.1 • What would happen to VAB in the figure if • E were doubled; • r were doubled; • the points were moved so the path lay at right angles to E; • the positions of A & B are interchanged. doubles doubles becomes 0 reverses sign

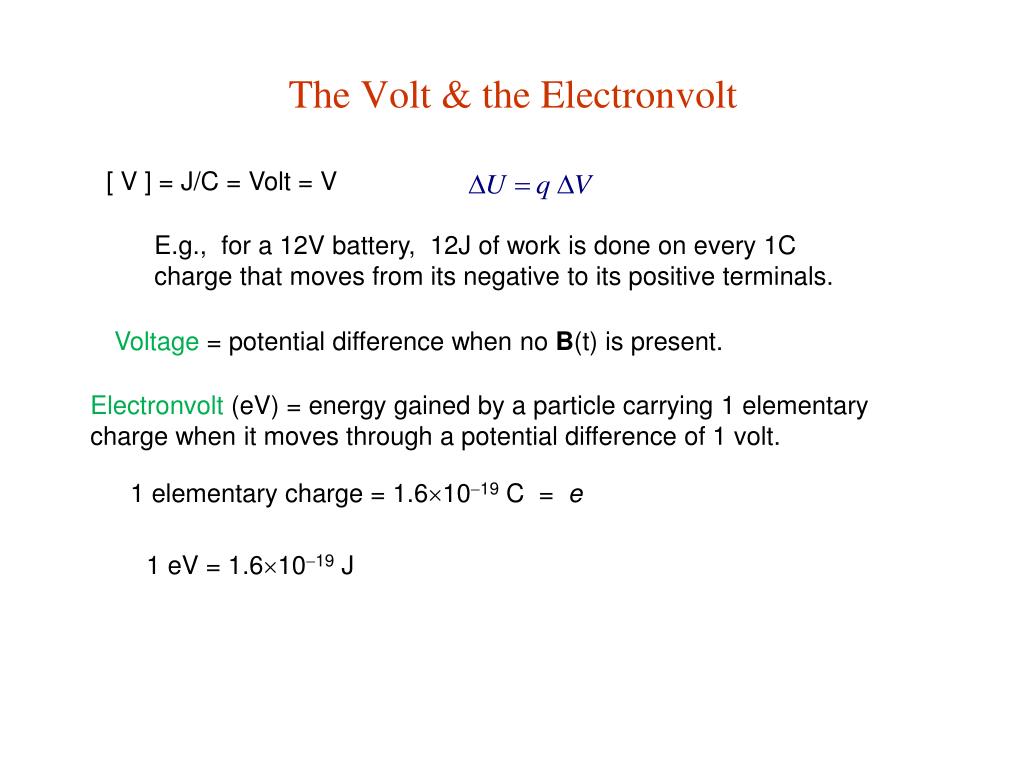

  7. The Volt & the Electronvolt [ V ] = J/C = Volt = V E.g., for a 12V battery, 12J of work is done on every 1C charge that moves from its negative to its positive terminals. Voltage = potential difference when no B(t) is present. Electronvolt (eV) = energy gained by a particle carrying 1 elementary charge when it moves through a potential difference of 1 volt. 1 elementary charge = 1.61019 C = e 1 eV = 1.61019 J

  8. Table 22.2. Typical Potential Differences Between human arm & leq due to 1 mV heart’s electrical activity Across biological cell membrane 80 mV Between terminals of flashlight battery 1.5 V Car battery 12 V Electric outlet (depends on country) 100-240 V Between lon-distance electric 365 kV transmission line & ground Between base of thunderstorm cloud & ground 100 MV

  9. INTERNATIONAL VOLTAGE Afghanistan 220 V Australia 240 V Bahamas 120 V Brazil 120/220 V Canada 120 V China 220 V Finland 230 V Guam 110 V HongKong 220 V Japan 100 V Mexico 127 V Spain 230 V United Kingdom 230 V United States 120 V Vietnam 127/220 V

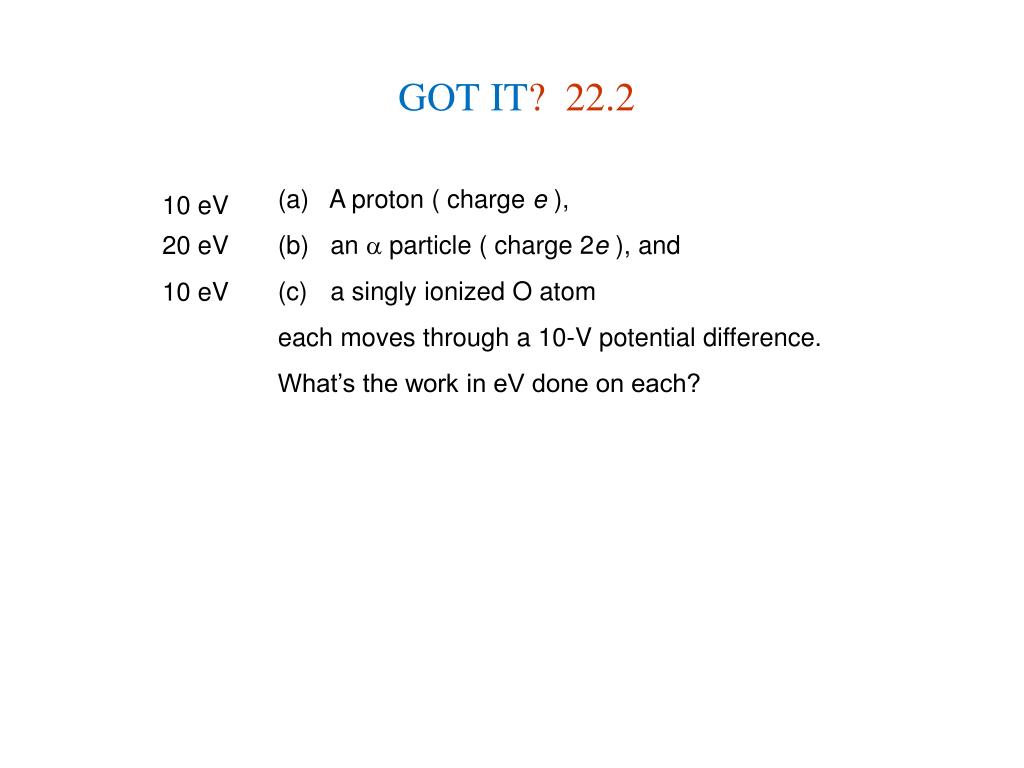

  10. GOT IT? 22.2 • A proton ( charge e ), • an  particle ( charge 2e ), and • a singly ionized O atom • each moves through a 10-V potential difference. • What’s the work in eV done on each? 10 eV 20 eV 10 eV

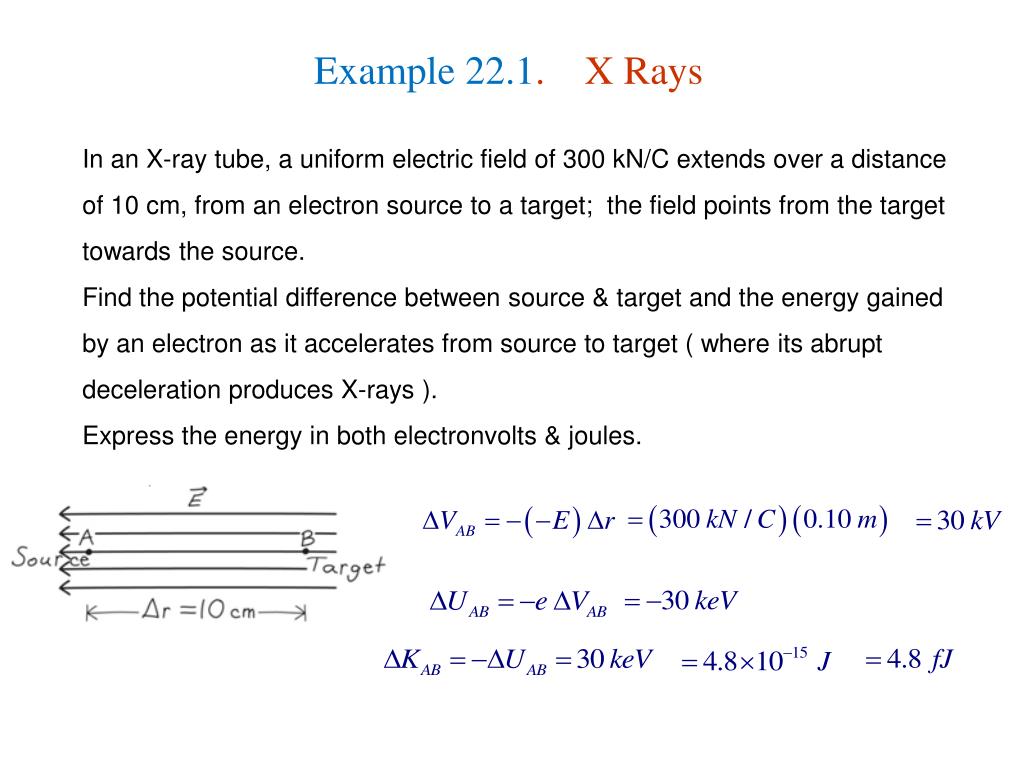

  11. Example 22.1. X Rays In an X-ray tube, a uniform electric field of 300 kN/C extends over a distance of 10 cm, from an electron source to a target; the field points from the target towards the source. Find the potential difference between source & target and the energy gained by an electron as it accelerates from source to target ( where its abrupt deceleration produces X-rays ). Express the energy in both electronvolts & joules.

  12. Example 22.2. Charged Sheet An isolated, infinite charged sheet carries a uniform surface charge density . Find an expression for the potential difference from the sheet to a point a perpendicular distance x from the sheet. E

  13. Curved Paths & Nonuniform Fields Staight path, uniform field: Curved path, nonuniform field:

  14. GOT IT? 22.3 The figure shows three straight paths AB of the same length, each in a different electric field. The field at A is the same in each. Rank the potential differences ΔVAB. Smallest ΔVAB . Largest ΔVAB .

  15. 22.2. Calculating Potential Difference Potential of a Point Charge For A,B on the same radial For A,B not on the same radial, break the path into 2 parts, 1st along the radial & then along the arc. Since, V = 0 along the arc, the above equation holds.

  16. The Zero of Potential Only potential differences have physical significance. Simplified notation: R = point of zero potential VA = potential at A. Power systems / Circuits Earth ( Ground ) Automobile electric systems Car’s body Isolated charges Infinity

  17. GOT IT? 22.4 • You measure a potential difference of 50 V between two points a distance 10 cm apart in the field of a point charge. • If you move closer to the charge and measure the potential difference over another 10-cm interval, will it be • greater, • less, or • the same?

  18. Example 22.3. Science Museum • The Hall of Electricity at the Boston Museum of Science contains a large Van de Graaff generator, a device that builds up charge on a metal sphere. • The sphere has radius R = 2.30 m and develops a charge Q = 640 C. • Considering this to be a single isolate sphere, find • the potential at its surface, • the work needed to bring a proton from infinity to the sphere’s surface, • the potential difference between the sphere’s surface & a point 2R from its center. (a) (b) (c)

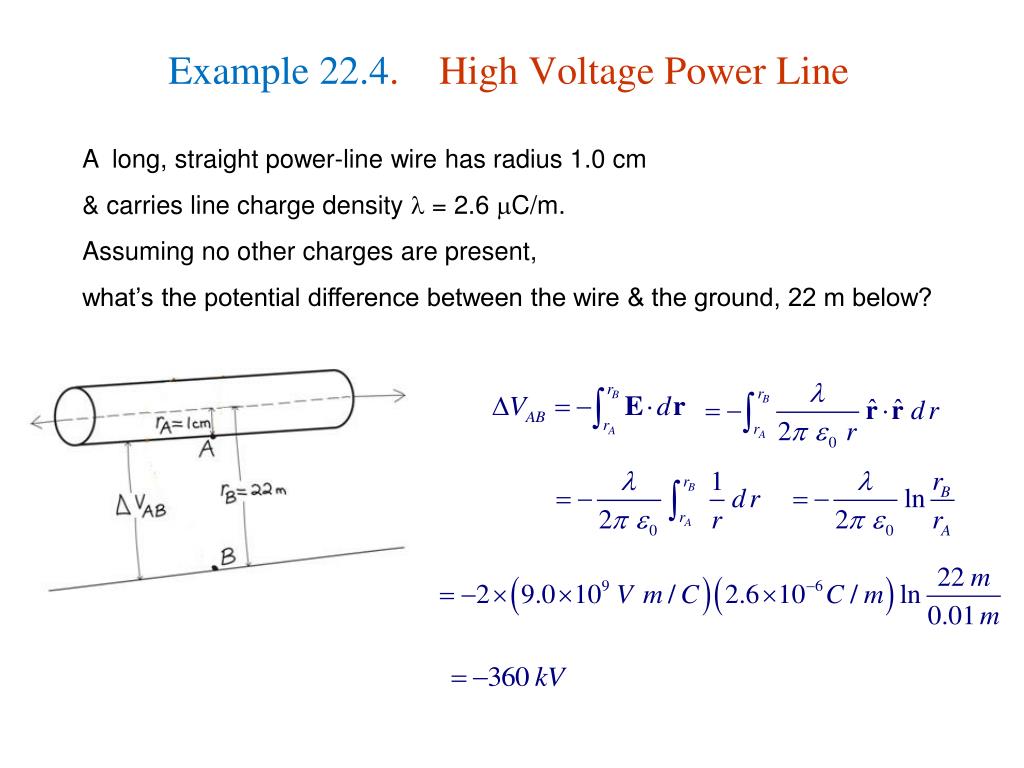

  19. Example 22.4. High Voltage Power Line A long, straight power-line wire has radius 1.0 cm & carries line charge density  = 2.6 C/m. Assuming no other charges are present, what’s the potential difference between the wire & the ground, 22 m below?

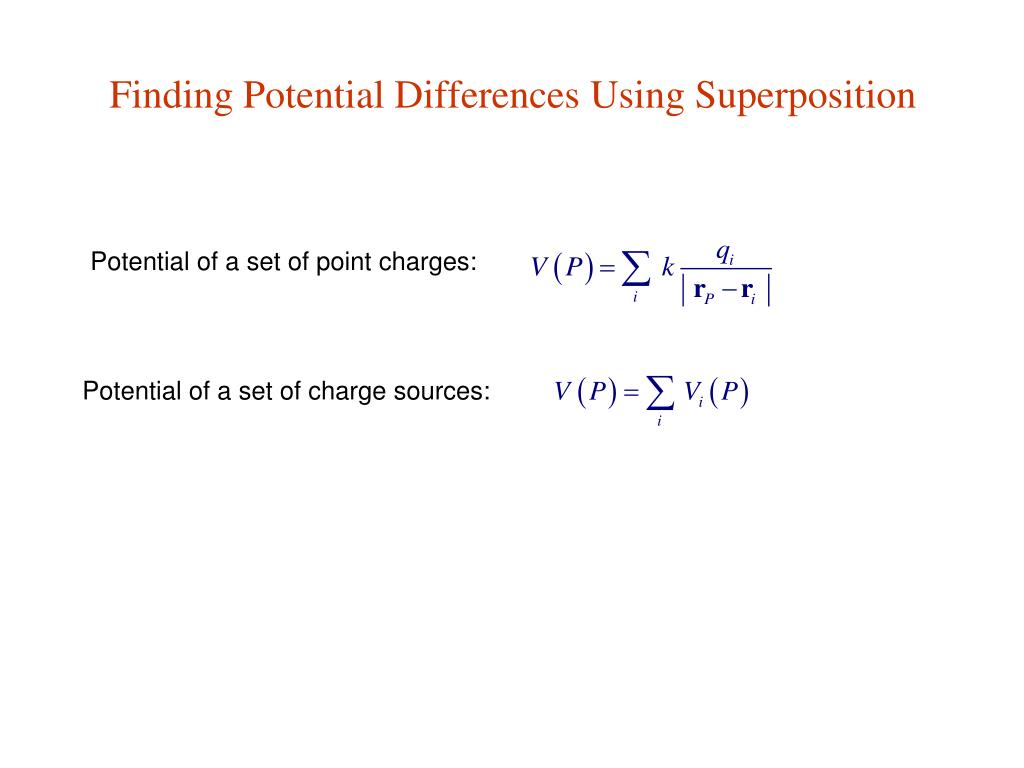

  20. Finding Potential Differences Using Superposition Potential of a set of point charges: Potential of a set of charge sources:

  21. Example 22.5. Dipole Potential An electric dipole consists of point charges q a distance 2a apart. Find the potential at an arbitrary point P, and approximate for the casewhere the distance to P is large compared with the charge separation. +q: hill V = 0 r >> a q: hole p = 2qa = dipole moment

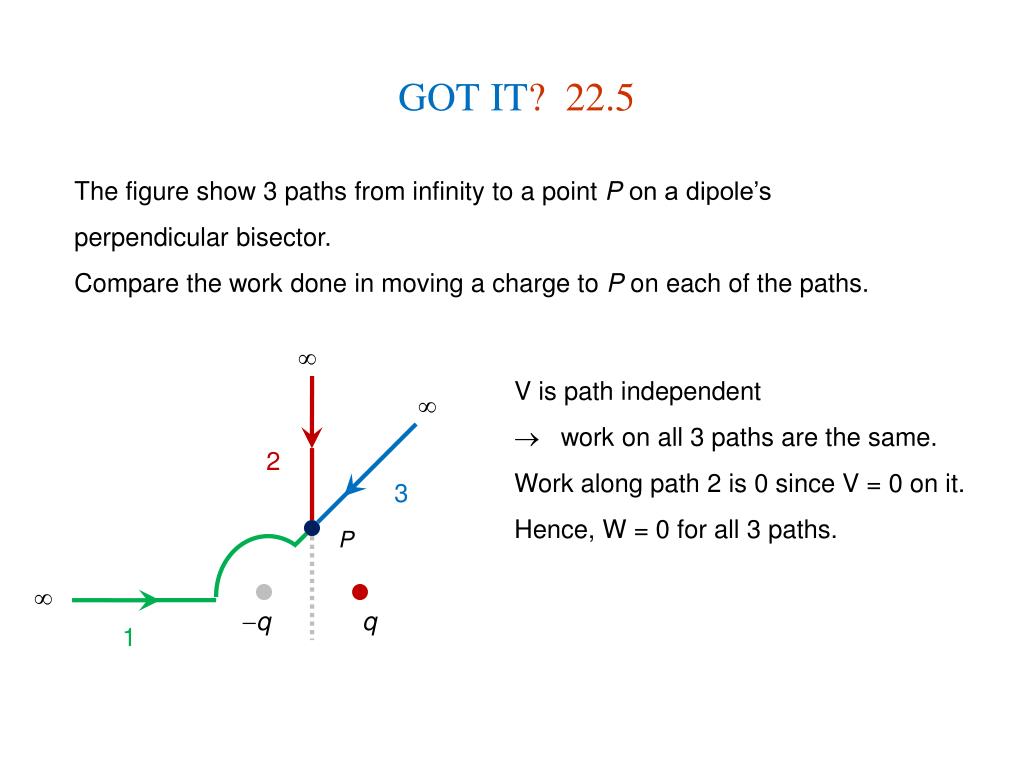

  22. GOT IT? 22.5 The figure show 3 paths from infinity to a point P on a dipole’s perpendicular bisector. Compare the work done in moving a charge to P on each of the paths.  • V is path independent • work on all 3 paths are the same. • Work along path 2 is 0 since V = 0 on it. • Hence, W = 0 for all 3 paths.  2 3 P  q q 1

  23. Continuous Charge Distributions Superposition:

  24. Example 22.6. Charged Ring A total charge Q is distributed uniformly around a thin ring of radius a. Find the potential on the ring’s axis. Same r for all dq

  25. Example 22.7. Charged Disk A charged disk of radius a carries a charge Q distributed uniformly over its surface. Find the potential at a point P on the disk axis, a distance x from the disk. point charge disk sheet

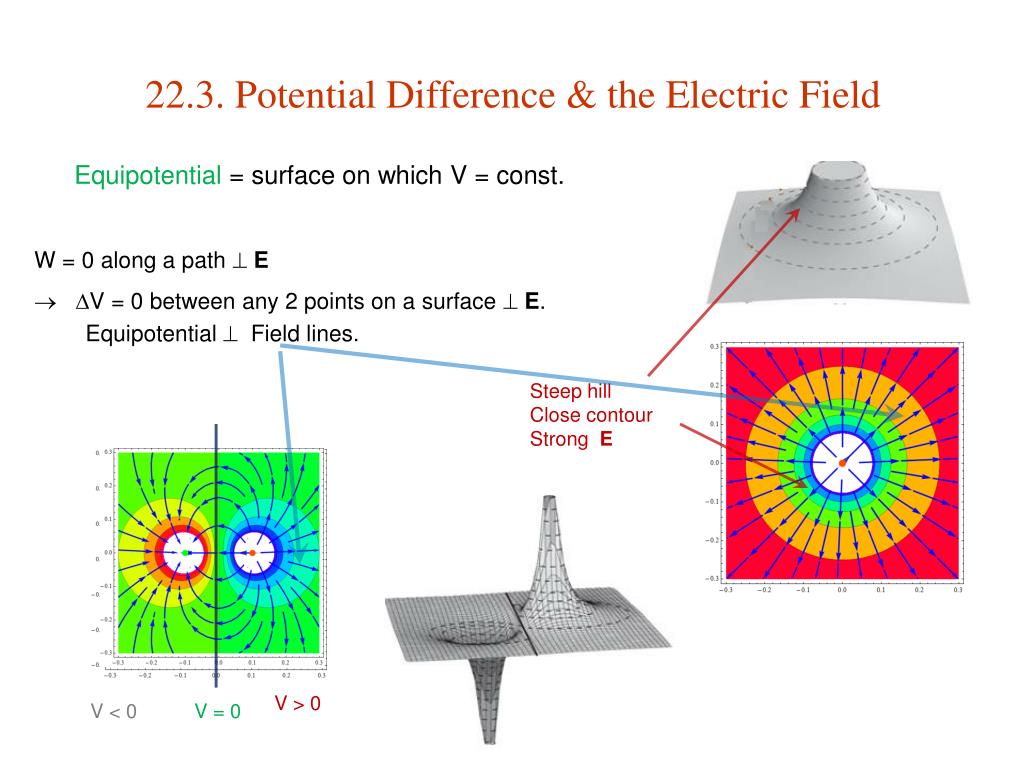

  26. 22.3. Potential Difference & the Electric Field Equipotential = surface on which V = const. • W = 0 along a path  E • V = 0 between any 2 points on a surface  E. • Equipotential  Field lines. Steep hill Close contour Strong E V > 0 V < 0 V = 0

  27. GOT IT? 22.6 The figure show cross sections through 2 equipotential surfaces. In both diagrams, the potential difference between adjacent equipotentials is the same. Which could represent the field of a point charge? Explain. (a). Potential decreases as r1 , so the spacings between equipotentials should increase with r.

  28. Calculating Field from Potential   =  ( Gradient of V ) E is strong where V changes rapidly ( equipotentials dense ).

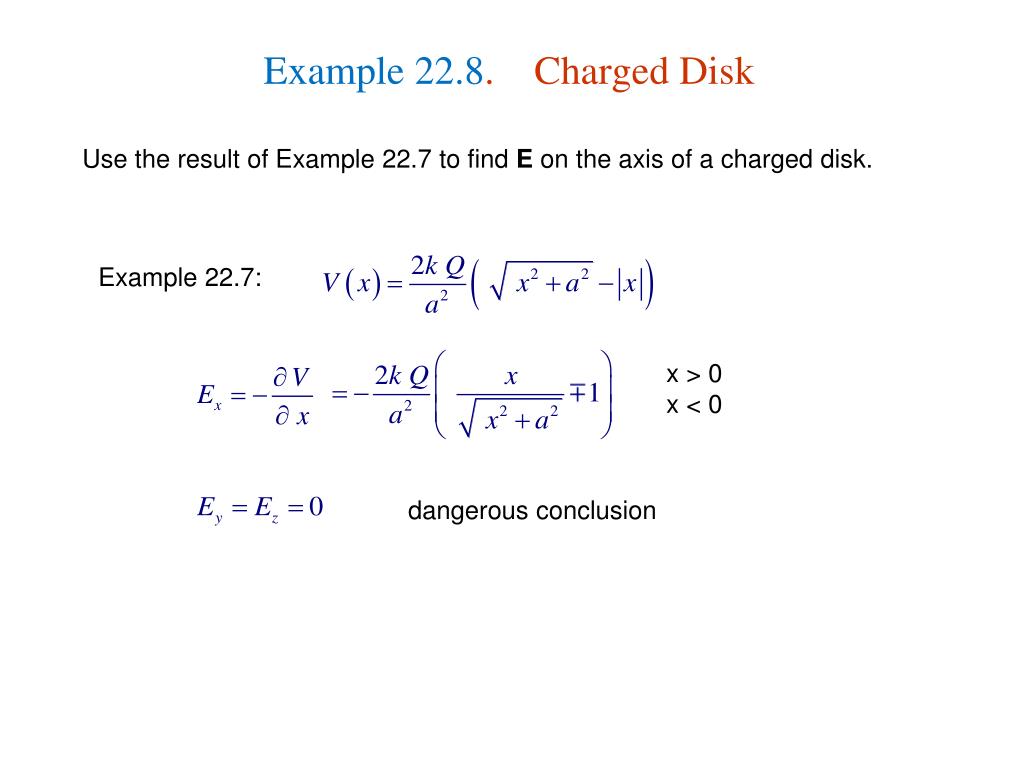

  29. Example 22.8. Charged Disk Use the result of Example 22.7 to find E on the axis of a charged disk. Example 22.7: x > 0 x < 0 dangerous conclusion

  30. Tip: Field & Potential Values of E and V aren’t directly related. V flat, Ex = 0 V falling, Ex > 0 V rising, Ex < 0

  31. 22.4. Charged Conductors In electrostatic equilibrium, E = 0 inside a conductor. E// = 0 on surface of conductor.  W = 0 for moving charges on / inside conductor.  The entire conductor is an equipotential. • Consider an isolated, spherical conductor of radius R and charge Q. • Q is uniformly distributed on the surface • E outside is that of a point charge Q. • V(r) = k Q / R. for r  R.

  32. Consider 2 widely separated, charged conducting spheres. Their potentials are Same V If we connect them with a thin wire, there’ll be charge transfer until V1 = V2 , i.e., In terms of the surface charge densities we have   Smaller sphere has higher field at surface.

  33. Conceptual Example 22.1. An Irregular Condutor Sketch some equipotentials & electric field lines for an isolated egg-shaped conductor. • Ans. • Surface is equipotential  | E | is larger where curvature of surface is large. • More field lines emerging from sharply curved regions. • From afar, conductor is like a point charge.

  34. Conductor in the Presence of Another Charge

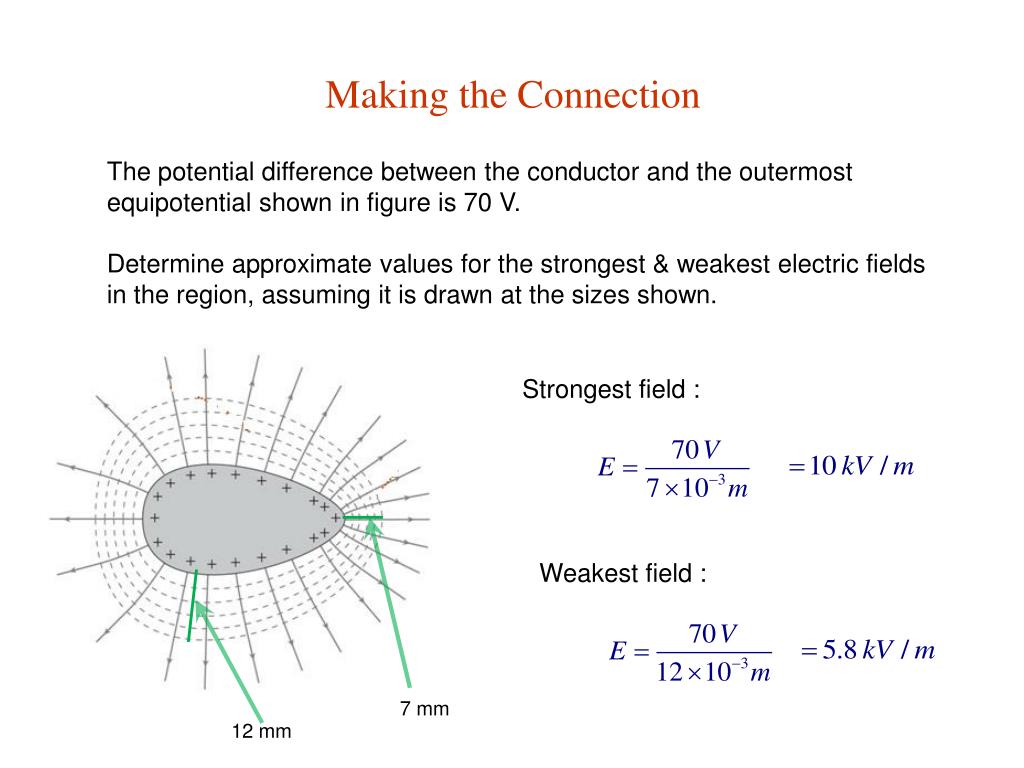

  35. Making the Connection The potential difference between the conductor and the outermost equipotential shown in figure is 70 V. Determine approximate values for the strongest & weakest electric fields in the region, assuming it is drawn at the sizes shown. Strongest field : Weakest field : 7 mm 12 mm

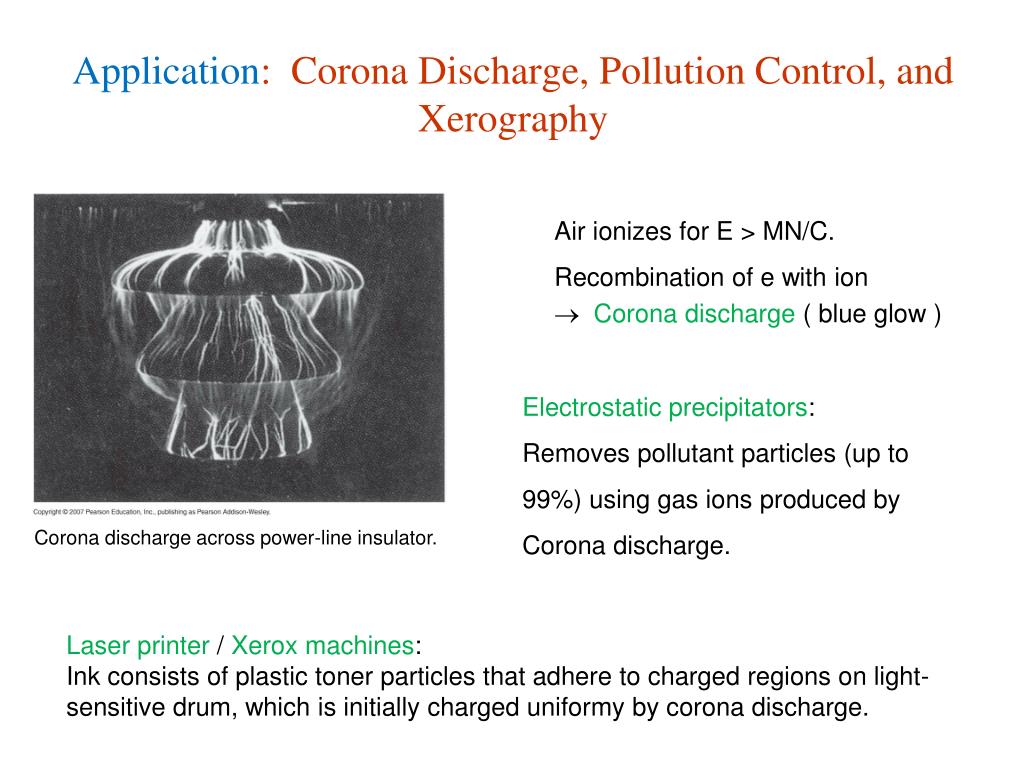

  36. Application: Corona Discharge, Pollution Control, and Xerography Air ionizes for E > MN/C. Recombination of e with ion  Corona discharge ( blue glow ) Electrostatic precipitators: Removes pollutant particles (up to 99%) using gas ions produced by Corona discharge. Corona discharge across power-line insulator. Laser printer / Xerox machines: Ink consists of plastic toner particles that adhere to charged regions on light-sensitive drum, which is initially charged uniformy by corona discharge.
