  1. Internet Gateway Device (IGD) Philip Poulidis Director, Home Networking GlobespanVirata

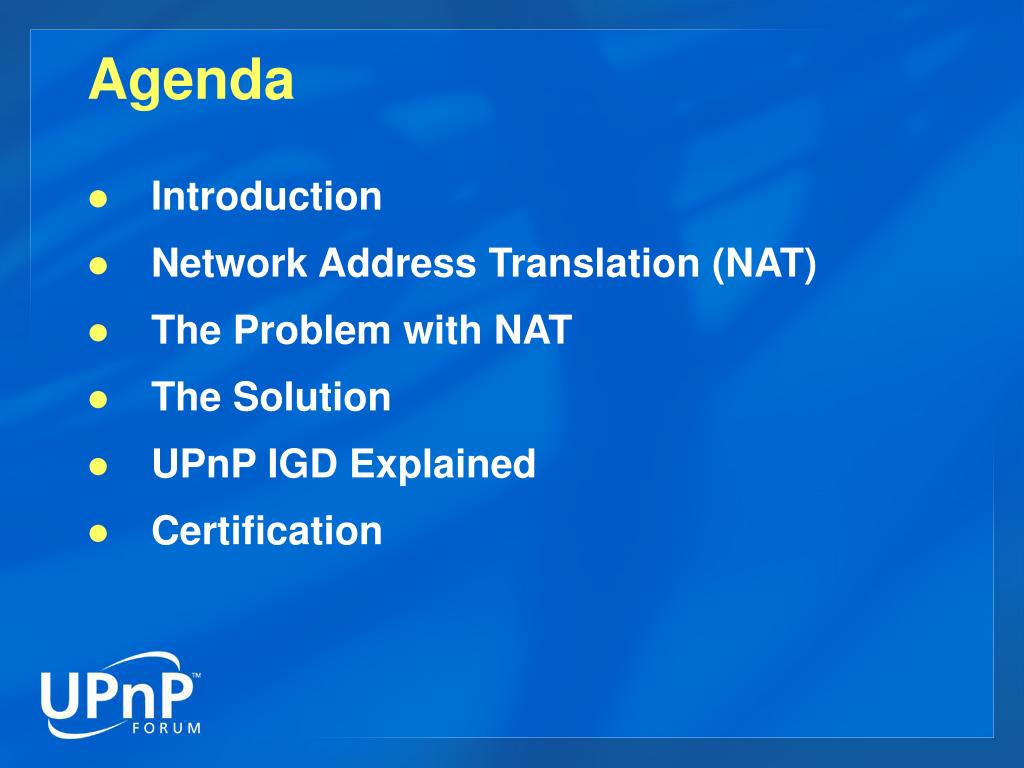

  2. Agenda • Introduction • Network Address Translation (NAT) • The Problem with NAT • The Solution • UPnP IGD Explained • Certification

  3. Introduction • Ubiquitous broadband access creates demand for Internet connectivity among multiple PCs and devices inside the home. • As more nodes connect to the “network” they each require an IP address. • Today, IP addresses are limited so Network Address Translation (NAT) is used.

  4. What is NAT? • Network Address Translation (NAT) is a widely used technique to allow multiple systems on a Local Area Network (LAN) to share a single, globally routable IP address. 192.168.0.2 External IP Address xxx.xxx.xxx.xxx 192.168.0.3 192.168.0.4

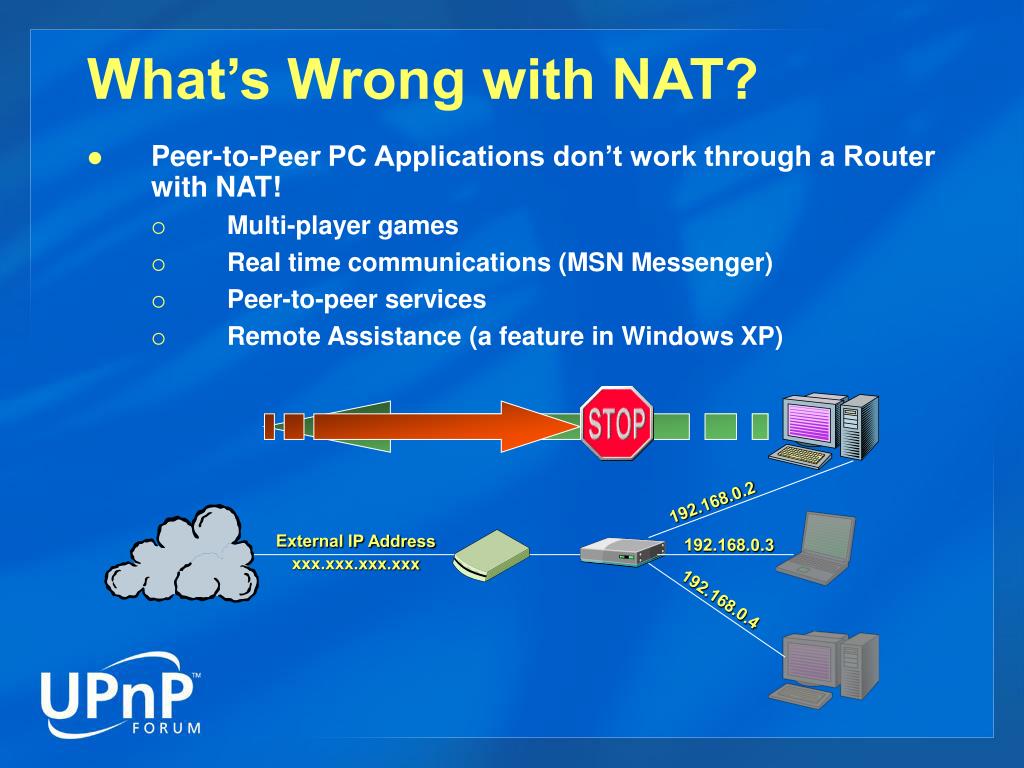

  5. What’s Wrong with NAT? • Peer-to-Peer PC Applications don’t work through a Router with NAT! • Multi-player games • Real time communications (MSN Messenger) • Peer-to-peer services • Remote Assistance (a feature in Windows XP) 192.168.0.2 External IP Address xxx.xxx.xxx.xxx 192.168.0.3 192.168.0.4

  6. The Problem • Manual configuration of the home gateway or router required by end-user. • This problem results in: • Increased tech support calls to Service Providers, CPE device vendors and gaming vendors • Frustrated end-users • Ports left open resulting in security hazard

  7. Out With the Old… • The most common method of dealing with this problem was the programming of Application Level Gateways (ALGs) in home routers. • “ALG’s are application specific translation agents that allow an application on a host in one address realm to connect to its counterpart running on a host in different realm transparently.” (RFC2663) • This resulted in constant updates to already deployed routers in order to handle new applications.

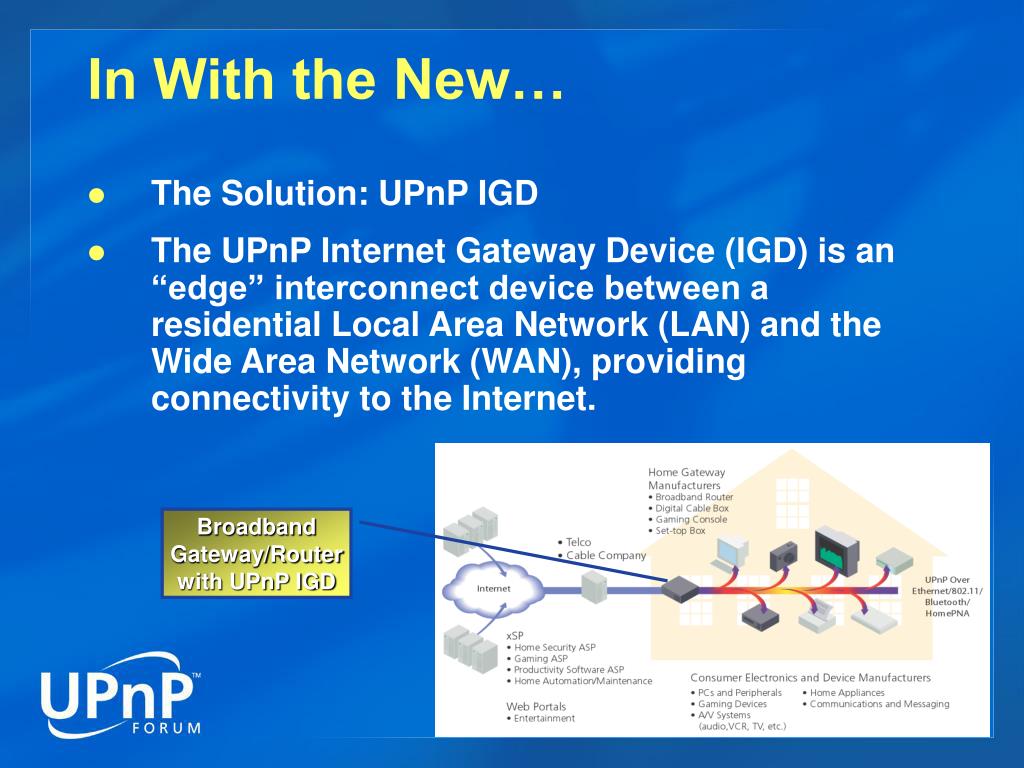

  8. In With the New… • The Solution: UPnP IGD • The UPnP Internet Gateway Device (IGD) is an “edge” interconnect device between a residential Local Area Network (LAN) and the Wide Area Network (WAN), providing connectivity to the Internet. Broadband Gateway/Router with UPnP IGD

  9. UPnP IGD Defined • It provides: • automatic and seamless sharing and configuration of Internet data access among networked devices in the residential network • richer end-user experience for UPnP enabled devices • status and events on connections • control of initiation and termination of connections • UPnP Internet Gateway Device (IGD) has been approved as a Standardized Device Control Protocol (DCP)

  10. The Magic of NAT Traversal • UPnP IGD NAT Traversal is enabled by: • Ability to “learn” public IP address • Enumerating existing port mappings • Adding and removing port mappings • Assigning lease times to mappings • Key Benefits of UPnP IGD NAT Traversal • No More Application Level Gateways (ALGs) • Windows XP Supports UPnP NAT Traversal Today! • .NET Windows Messenger / Instant Messenger • WinXP Remote Assistance • Direct Play 8 Supports UPnP NAT Traversal Today! • UPnP Aware Internet Games Available in Stores Now

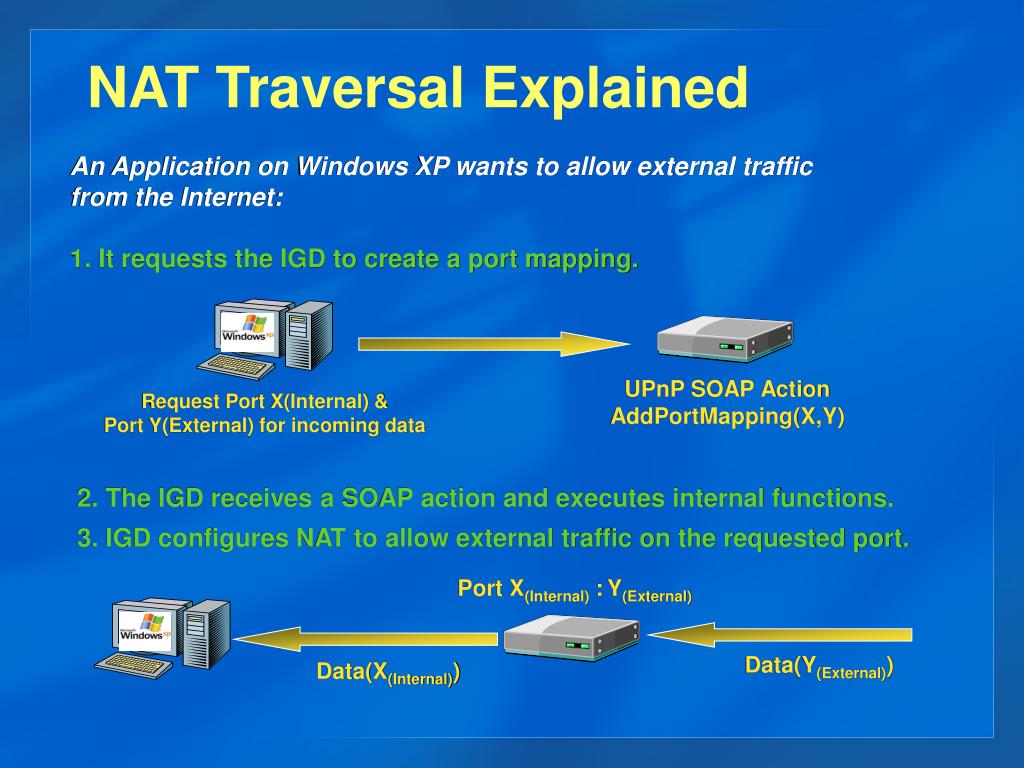

  11. UPnP SOAP Action AddPortMapping(X,Y) Request Port X(Internal) & Port Y(External) for incoming data Port X(Internal) :Y(External) Data(Y(External)) Data(X(Internal)) NAT Traversal Explained An Application on Windows XP wants to allow external traffic from the Internet: 1. It requests the IGD to create a port mapping. 2. The IGD receives a SOAP action and executes internal functions. 3. IGD configures NAT to allow external traffic on the requested port.

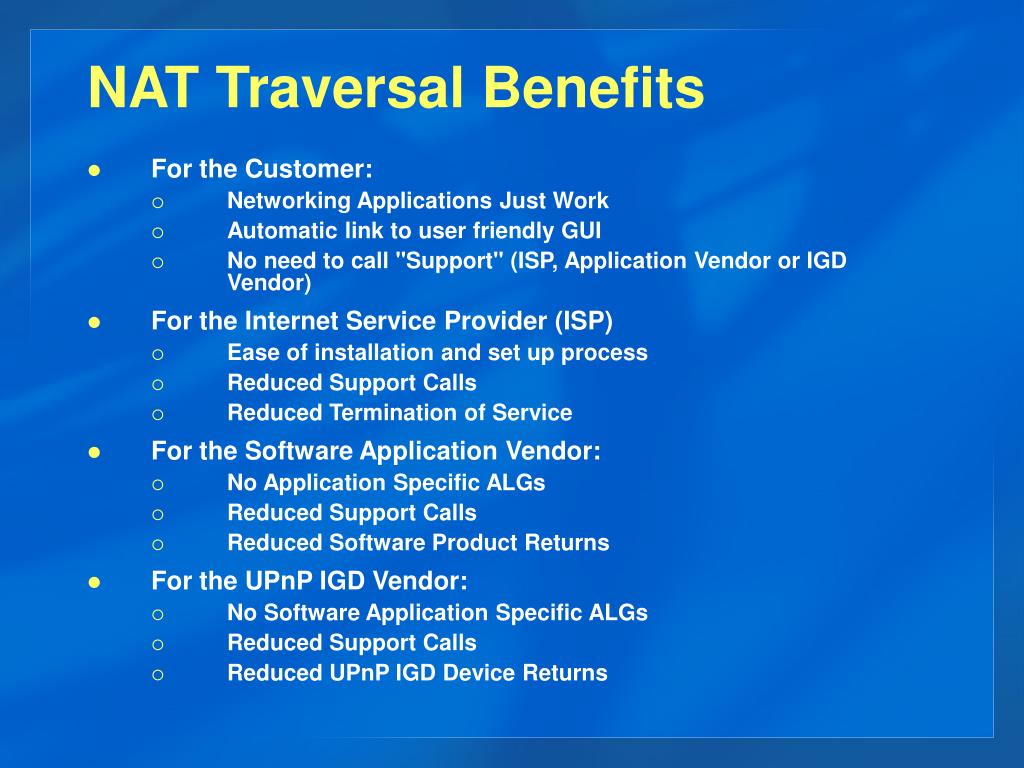

  12. NAT Traversal Benefits • For the Customer: • Networking Applications Just Work • Automatic link to user friendly GUI • No need to call "Support" (ISP, Application Vendor or IGD Vendor) • For the Internet Service Provider (ISP) • Ease of installation and set up process • Reduced Support Calls • Reduced Termination of Service • For the Software Application Vendor: • No Application Specific ALGs • Reduced Support Calls • Reduced Software Product Returns • For the UPnP IGD Vendor: • No Software Application Specific ALGs • Reduced Support Calls • Reduced UPnP IGD Device Returns

  13. Certified Products

  14. Getting Certified First, you must be a member of both the UPnP Forum and the UIC. The 5 steps to certifying your gateway or router: • Obtain access to the test tool on the UIC web site in the Members Only area. • Run the test tool either at a third-party lab or in-house. • Submit the test logs, device registration form, and $2000 device registration fee to the Test Reviewer. Once these steps have been taken, the following occurs: • The Test Reviewer reviews the test logs and provides feedback within 2-5 working days. • If the device passed the test, you are notified and receive a certificate

  15. Using the UPnP Logo • Once you certify your device, you may use the certification mark on the certified device and associated marketing material. • Note: If the device incorporates UPnP firmware that is identical to that of a previously certified device, the device registration fee is waived.

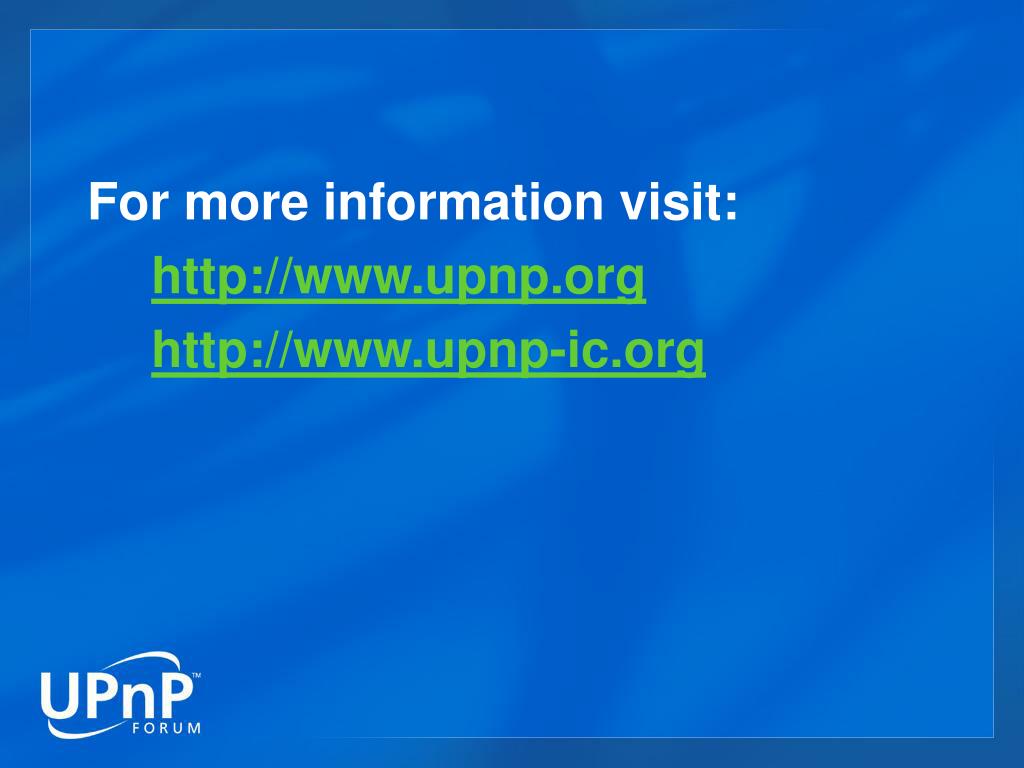

  16. For more information visit: http://www.upnp.org http://www.upnp-ic.org

  17. For the interconnected lifestyle
