  1. Overview of the MIT Exokernel Operating System James Madison University CS 450 Abzug MWF 10:10-11:00 12/2/02 Steven Petzinger Billy Lehner

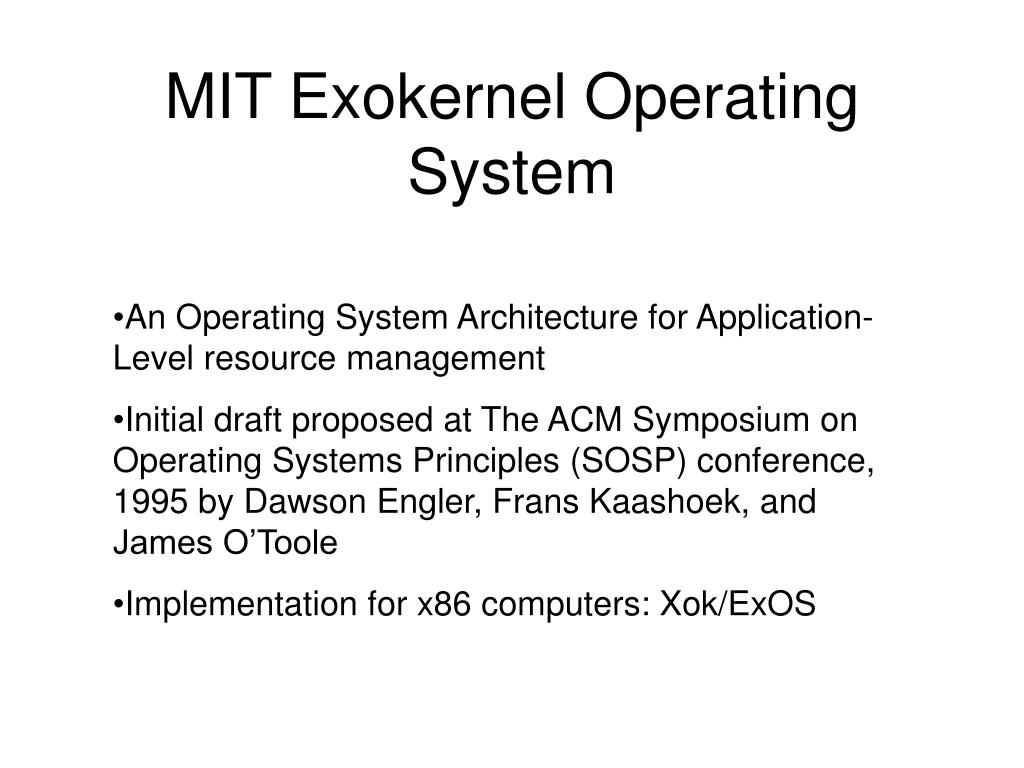

  2. MIT Exokernel Operating System • An Operating System Architecture for Application-Level resource management • Initial draft proposed at The ACM Symposium on Operating Systems Principles (SOSP) conference, 1995 by Dawson Engler, Frans Kaashoek, and James O’Toole • Implementation for x86 computers: Xok/ExOS

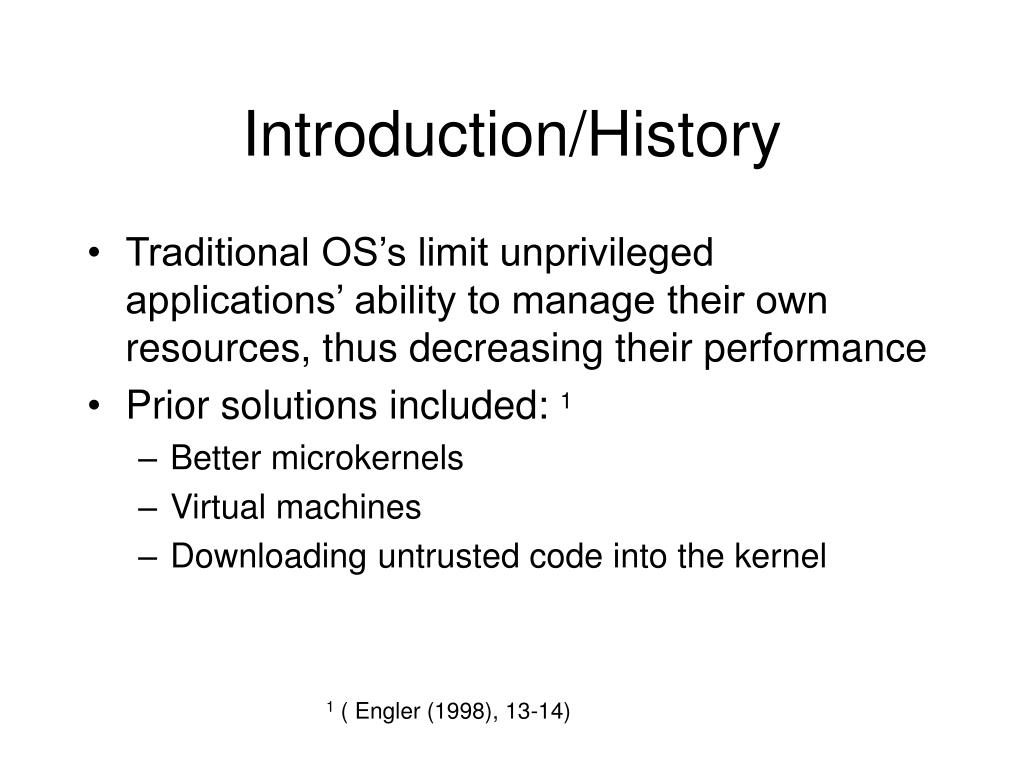

  3. Introduction/History Traditional OS’s limit unprivileged applications’ ability to manage their own resources, thus decreasing their performance Prior solutions included: 1 Better microkernels Virtual machines Downloading untrusted code into the kernel 1 ( Engler (1998), 13-14)

  4. The Exokernel Architecture (source: http://www.pdos.lcs.mit.edu/exo.html) Kernel for x86: Xok Default LibOS: ExOS

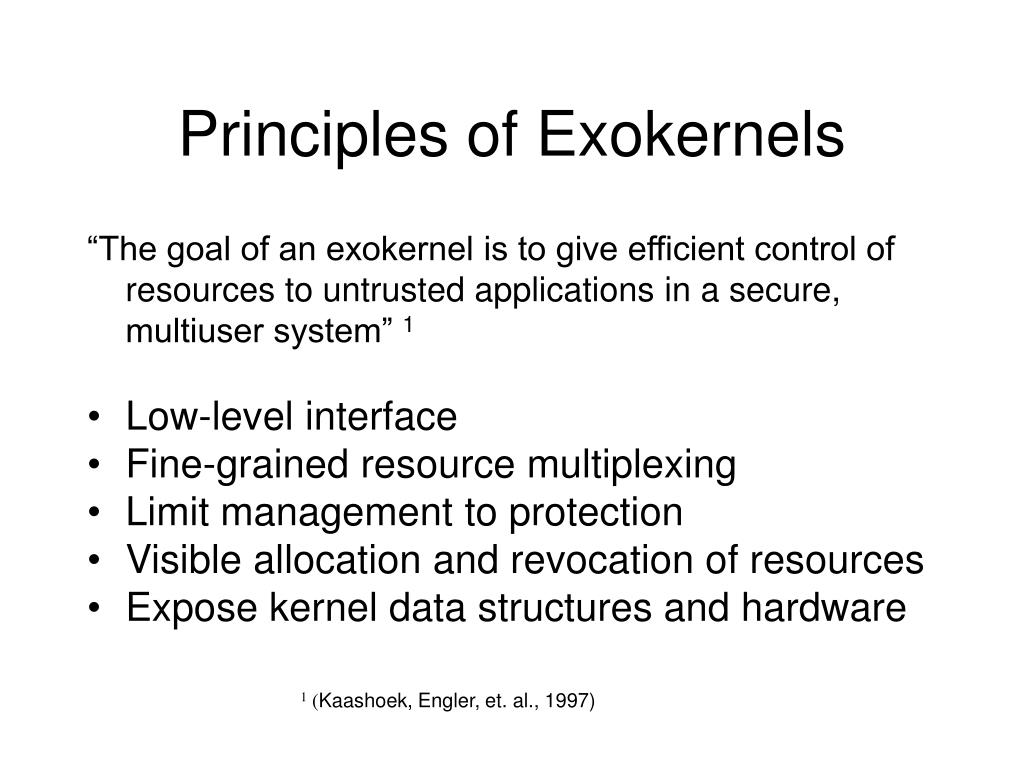

  5. Principles of Exokernels “The goal of an exokernel is to give efficient control of resources to untrusted applications in a secure, multiuser system” 1 Low-level interface Fine-grained resource multiplexing Limit management to protection Visible allocation and revocation of resources Expose kernel data structures and hardware 1 (Kaashoek, Engler, et. al., 1997)

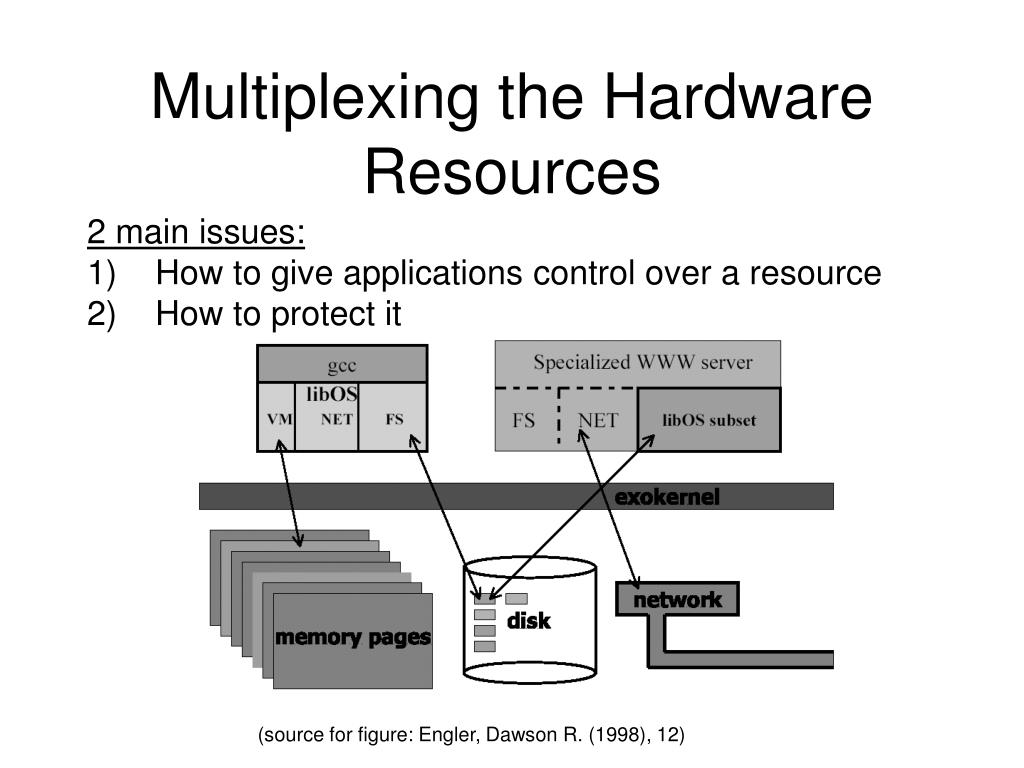

  6. Multiplexing the Hardware Resources 2 main issues: How to give applications control over a resource How to protect it (source for figure: Engler, Dawson R. (1998), 12)

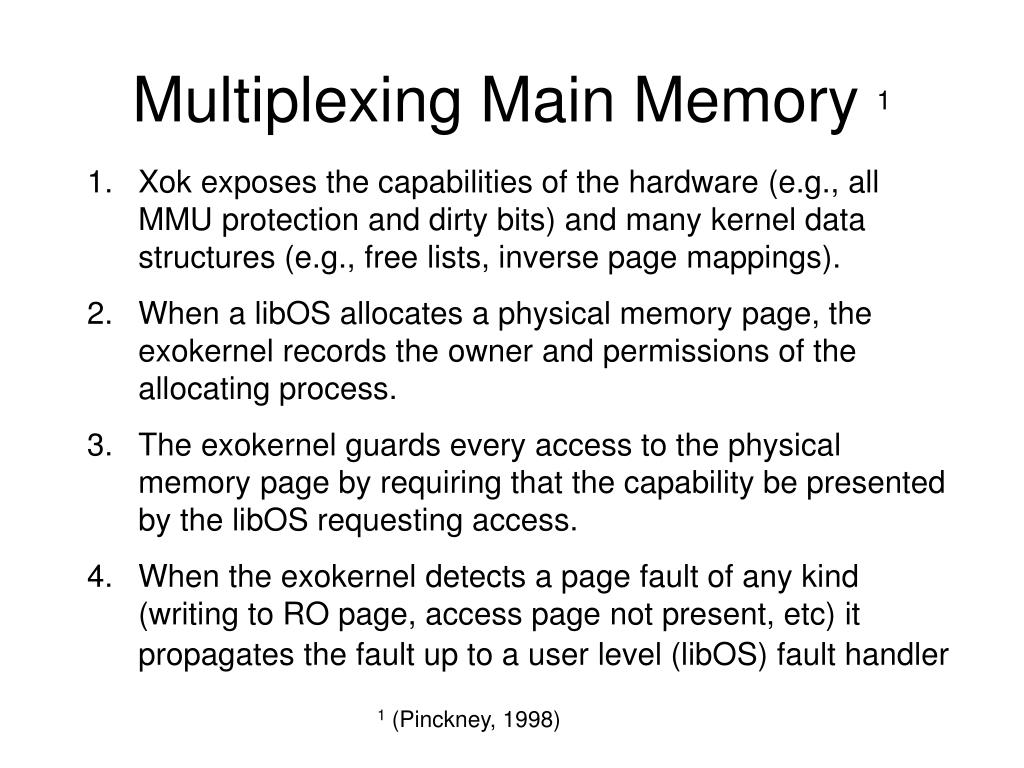

  7. Multiplexing Main Memory 1 • Xok exposes the capabilities of the hardware (e.g., all MMU protection and dirty bits) and many kernel data structures (e.g., free lists, inverse page mappings). • When a libOS allocates a physical memory page, the exokernel records the owner and permissions of the allocating process. • The exokernel guards every access to the physical memory page by requiring that the capability be presented by the libOS requesting access. • When the exokernel detects a page fault of any kind (writing to RO page, access page not present, etc) it propagates the fault up to a user level (libOS) fault handler 1 (Pinckney, 1998)

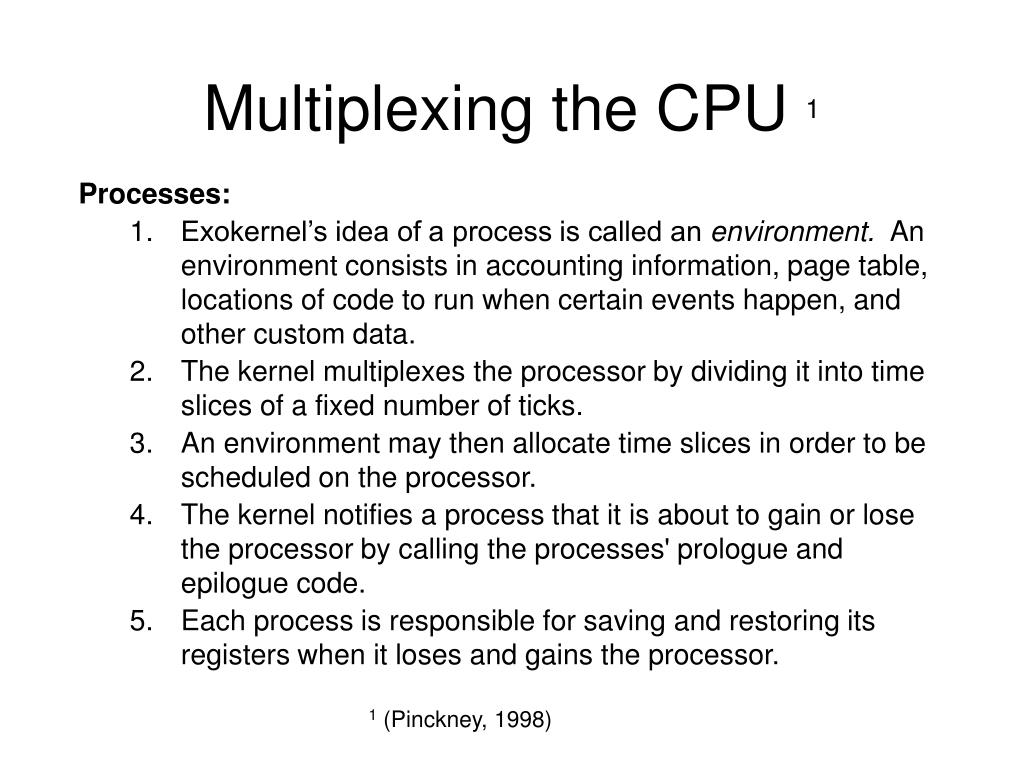

  8. Multiplexing the CPU 1 • Processes: • Exokernel’s idea of a process is called an environment. An environment consists in accounting information, page table, locations of code to run when certain events happen, and other custom data. • The kernel multiplexes the processor by dividing it into time slices of a fixed number of ticks. • An environment may then allocate time slices in order to be scheduled on the processor. • The kernel notifies a process that it is about to gain or lose the processor by calling the processes' prologue and epilogue code. • Each process is responsible for saving and restoring its registers when it loses and gains the processor. 1 (Pinckney, 1998)

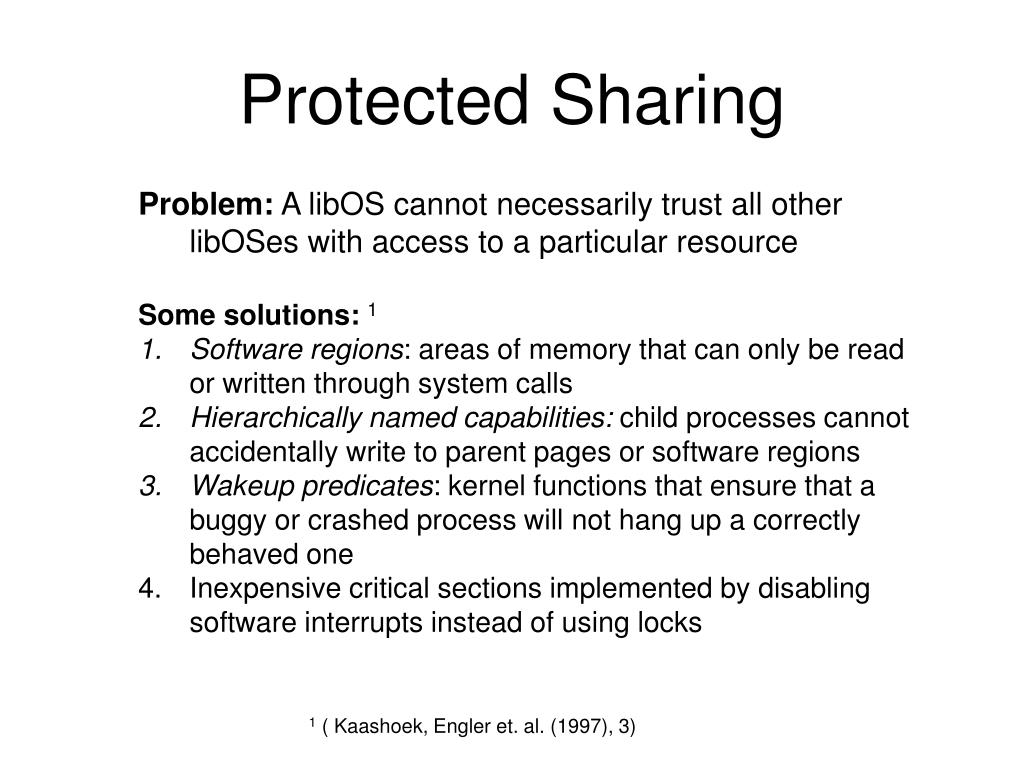

  9. Protected Sharing • Problem: A libOS cannot necessarily trust all other libOSes with access to a particular resource • Some solutions: 1 • Software regions: areas of memory that can only be read or written through system calls • Hierarchically named capabilities: child processes cannot accidentally write to parent pages or software regions • Wakeup predicates: kernel functions that ensure that a buggy or crashed process will not hang up a correctly behaved one • Inexpensive critical sections implemented by disabling software interrupts instead of using locks 1 ( Kaashoek, Engler et. al. (1997), 3)

  10. Multiplexing the Stable Storage 1 Each libOS contains one or more libFSes. Multiple libFSes can be used to share the same files with different semantics. The Challenge for exokernels is to provide a means to safely multiplex disks among multiple library file systems (libFSes); giving libFSes as much control over file management as possible while still protecting files from unauthorized access 1 (Engler (1998), 36)

  11. Xok’s File system: XN 1 • XN provides access to stable storage at the level of disk blocks with the goal of determining the access rights of a given principal to a given disk block as efficiently as possible. • XN Exports the following to the LibFS: • a buffer cache registry • free maps • other on-disk structures. 1 (Engler (1998), 42)

  12. C-FFS – ExOS’s default LibFS 1 • C-FFS (Co-locating fast file system) is faster than in-kernel file systems • C-FFS uses exokernel/XN control to: • Embed inodes in directories • Co-locate related files together on disk • Fetch large chunks of disk on every read • In addition, C-FFS guarantees metadata integrity by using “protected methods” to guard modifications 1 (Kaashoek, Engler et. al. (1998), [sld025.htm])

  13. Protected Abstractions 1 • Problem: Many of the resources protected by traditional operating systems are themselves high-level abstractions. • Example: Files consist of metadata, disk blocks, and buffer cache pages, all of which are guarded by access control on high-level file objects. • Xok uses 3 techniques. It: • Performs access control on all resources in the same manner • Provides software abstractions to bind hardware resources together. • Allows applications to download code for some abstractions 1 (Kaashoek, Engler, et. al., 1997)

  14. Protected Abstractions (cont.) “The key to these exokernel software abstractions is that they neither hinder low-level access to hardware resources nor unduly restrict the semantics of the protected abstractions they enable.” 1 Example: The Xok buffer cache registry binds disk blocks to the memory pages caching them. Applications have control over physical pages and disk I/O, but can also safely use each other’s cached pages. 1 (Kaashoek, Engler, et. al., 1997)

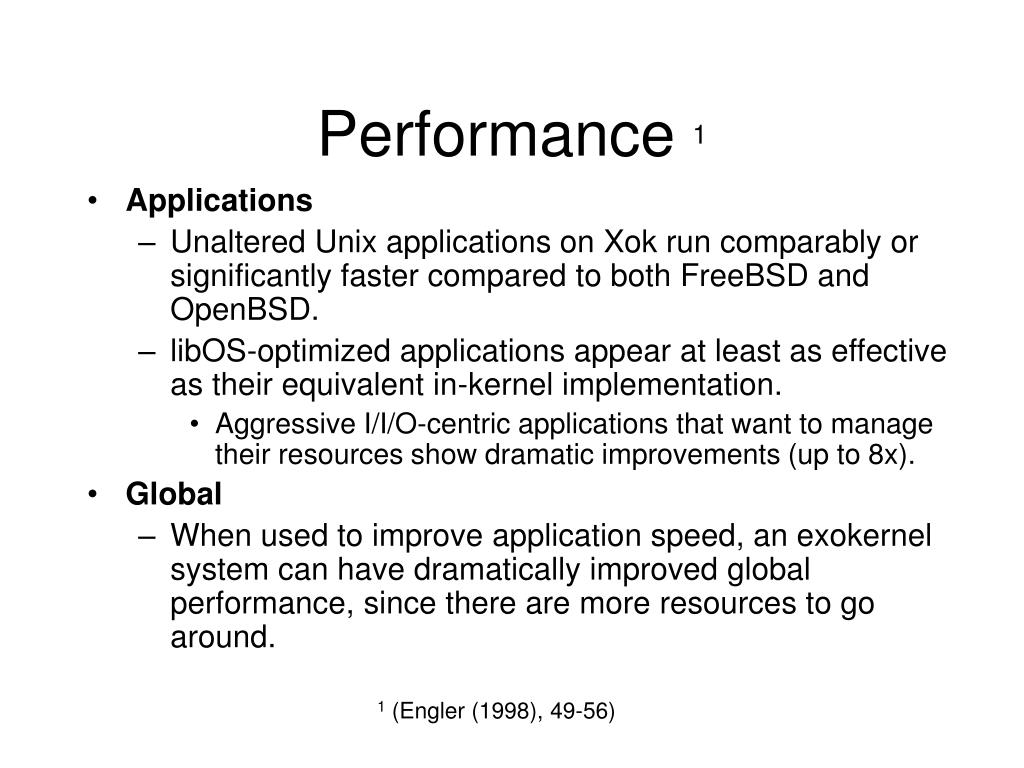

  15. Performance 1 Applications Unaltered Unix applications on Xok run comparably or significantly faster compared to both FreeBSD and OpenBSD. libOS-optimized applications appear at least as effective as their equivalent in-kernel implementation. Aggressive I/I/O-centric applications that want to manage their resources show dramatic improvements (up to 8x). Global When used to improve application speed, an exokernel system can have dramatically improved global performance, since there are more resources to go around. 1 (Engler (1998), 49-56)

  16. Generic Application Performance (source: Engler (1998), 50)

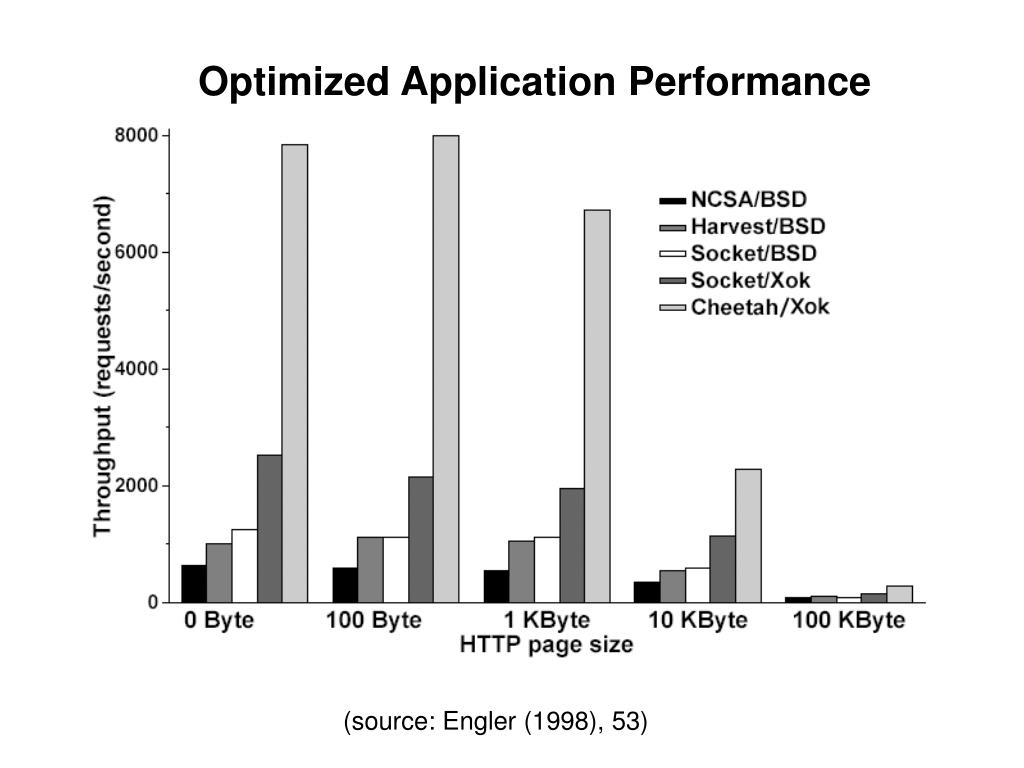

  17. Optimized Application Performance (source: Engler (1998), 53)

  18. Global (System) Performance Times are in seconds and on a log scale. number/number refers to the the total number of applications run by the script and the maximum number of jobs run concurrently. Total is the total running time of each experiment, Max is the longest runtime of any process in a given run (giving the worst latency). Min is the minimum. (source: Engler (1998), 54)

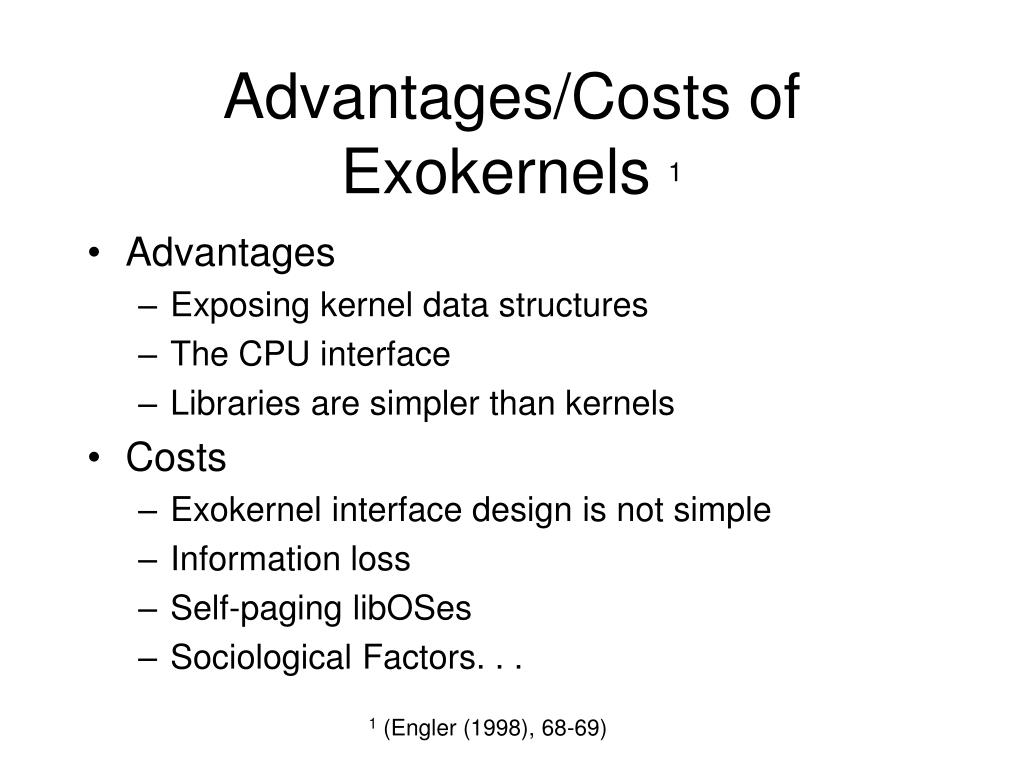

  19. Advantages/Costs of Exokernels 1 Advantages Exposing kernel data structures The CPU interface Libraries are simpler than kernels Costs Exokernel interface design is not simple Information loss Self-paging libOSes Sociological Factors. . . 1 (Engler (1998), 68-69)

  20. Lessons 1 • Some space for application data in kernel structures can be helpful • Simplifies the task of locating shared state; avoids awkward (and complex) replication of indexing structures at the application level. • Exokernels do not require fast microbenchmark performance • The main benefit of an exokernel is not that it makes primitive operations efficient, but that it gives applications control over expensive operations such as I/O. • Locks are costly • because of the trust, communication and complexity involved with different libOSes, disabling software interrupts for critical sections are used instead 1 (Engler (1998), 69)

  21. Bibliography • Engler, Dawson R. (1998). “The Exokernel Operating System • Architecture.” MIT Department of Electrical Engineering and Computer Science. • Engler, Dawson R., Kaashoek, Frans M. et. al. (1998). • “Exokernels (or, making the operating system just another application library).” MIT Lab for Computer Science. URL: http://amsterdam.lcs.mit.edu/exo/exo-slides/sld001.htm • Kaashoek, Frans M., Engler, Dawson R. et. al. (1997). • “Application Performance and Flexibility on Exokernel Systems”. Symposium on Operating Systems Principles (SOSP) 1997 conference. • MIT Lab for Computer Science (LCS) Parallel and Distributed • Operating Systems (PDOS) group (1998). “MIT Exokernel Operating System: Putting the Application in Control.” URL: http://www.pdos.lcs.mit.edu/exo.html • Pinckney, Thomas (1998). “Internal Structure of Xok/ExOS.” MIT • Laboratory for Computer Science. URL: http://www.pdos.lcs.mit.edu/exo/exo-internals/internals.html
