  1. JavaServerFaces

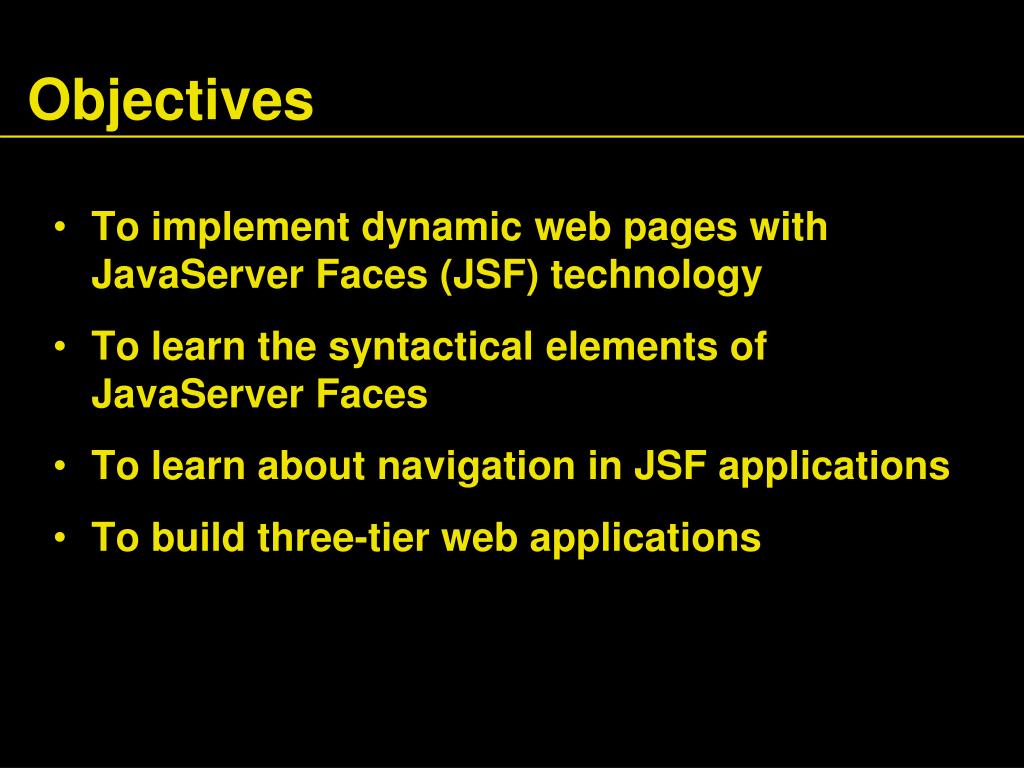

  2. Objectives • To implement dynamic web pages with JavaServer Faces (JSF) technology • To learn the syntactical elements of JavaServer Faces • To learn about navigation in JSF applications • To build three-tier web applications

  3. What is JSF? • Bring graphical components to the Web • Developers can think in terms of components, events, managed beans, and their interactions instead of request, responses, and markup language. • Facelets is preferred PDL (page description language) of JSF 2.0

  4. A Simple JSF Program • JSF: Java Server Faces • To develop a JSF application, you need a web server that is integrated with a JSF container • A JSF page contains HTML and JSF tags • The user interface of a JSF application is described by a set of JSF pages

  5. A Simple JSF Program • Each JSF page has the following structure: <html> <%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %> <f:view> <head> <title>Page title</title> </head> <body> <h:form> Page contents </h:form> </body> </f:view> </html>

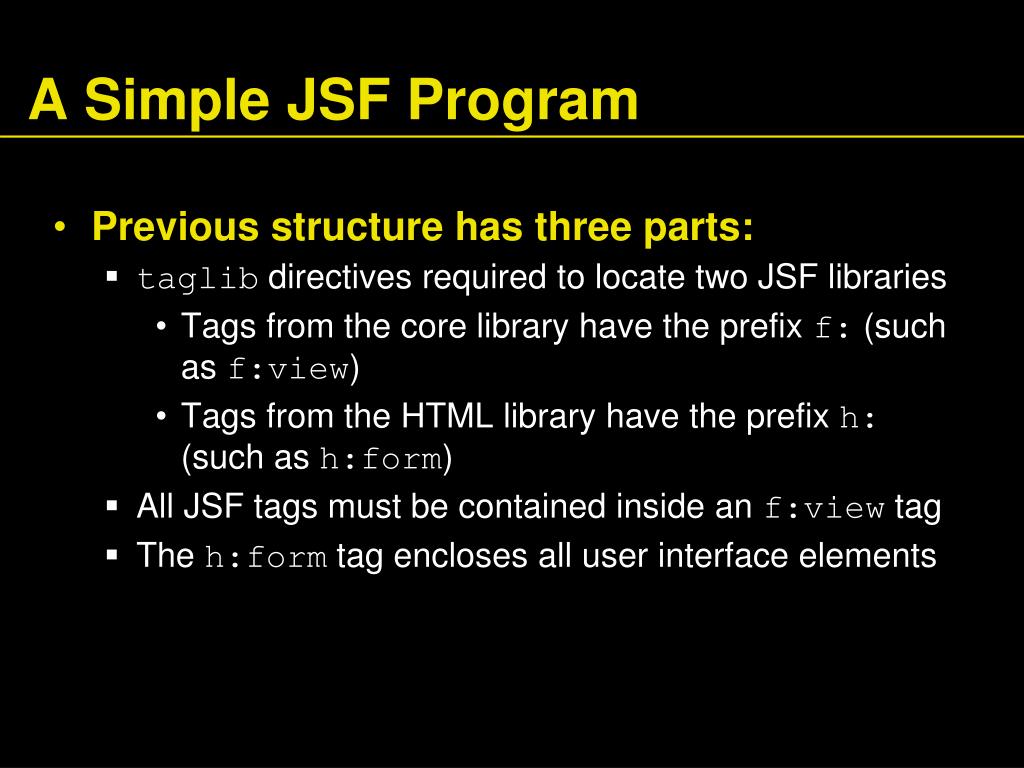

  6. A Simple JSF Program • Previous structure has three parts: • taglib directives required to locate two JSF libraries • Tags from the core library have the prefix f: (such as f:view) • Tags from the HTML library have the prefix h: (such as h:form) • All JSF tags must be contained inside an f:view tag • The h:form tag encloses all user interface elements

  7. File datetime/index.jsp 01:<html> 02: <%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> 03: <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %> 04: 05: <f:view> 06: <head> 07: <title>The datetime application</title> 08: </head> 09: <body> 10: <h:form> 11: <p>Number of milliseconds since January 1, 1970: 12: <h:outputText value="#{dateTime.time}"/> 13: </p> 14: </h:form> 15: </body> 16: </f:view> 17:</html>

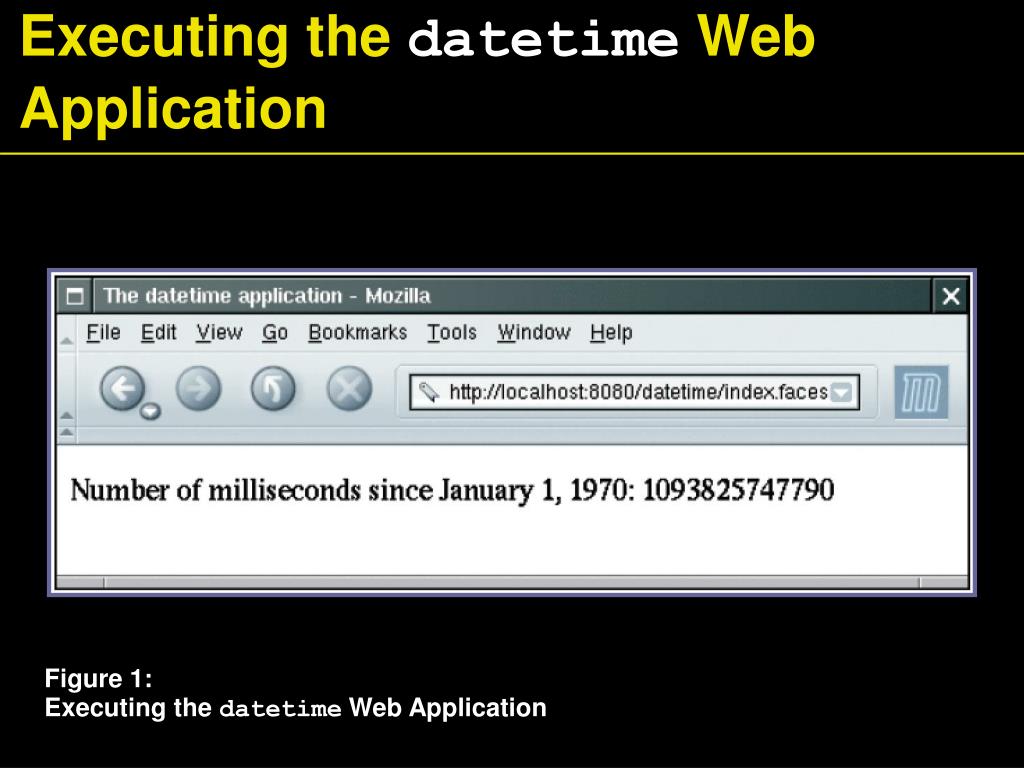

  8. Executing the datetime Web Application Figure 1:Executing the datetime Web Application

  9. A Simple JSF Program • Purpose of a JSF page is to generate an HTML page • Basic process: • HTML tags in the page are retained; they are the static part of the page • JSF tags are translated into HTML; translation is dynamic, it depends on the state of Java objects • The h: tags generate HTML • The f: describe structural information that the h: tags use • The taglib directives are stripped out

  10. The JSF Container Rewrites the Requested Page Figure 2:The JSF Container Rewrites the Requested Page

  11. The HTML Code That Is Generated by a JSF Page Figure 3:The HTML Code That Is Generated by a JSF Page

  12. A Simple JSF Program • The JSF container converts a JSF page to an HTML page, replacing JSF tags with text and HTML • In the example, the h:outputText tag has the value binding #{dateTime.time} • Value bindings link JSF pages with Java objects Continued

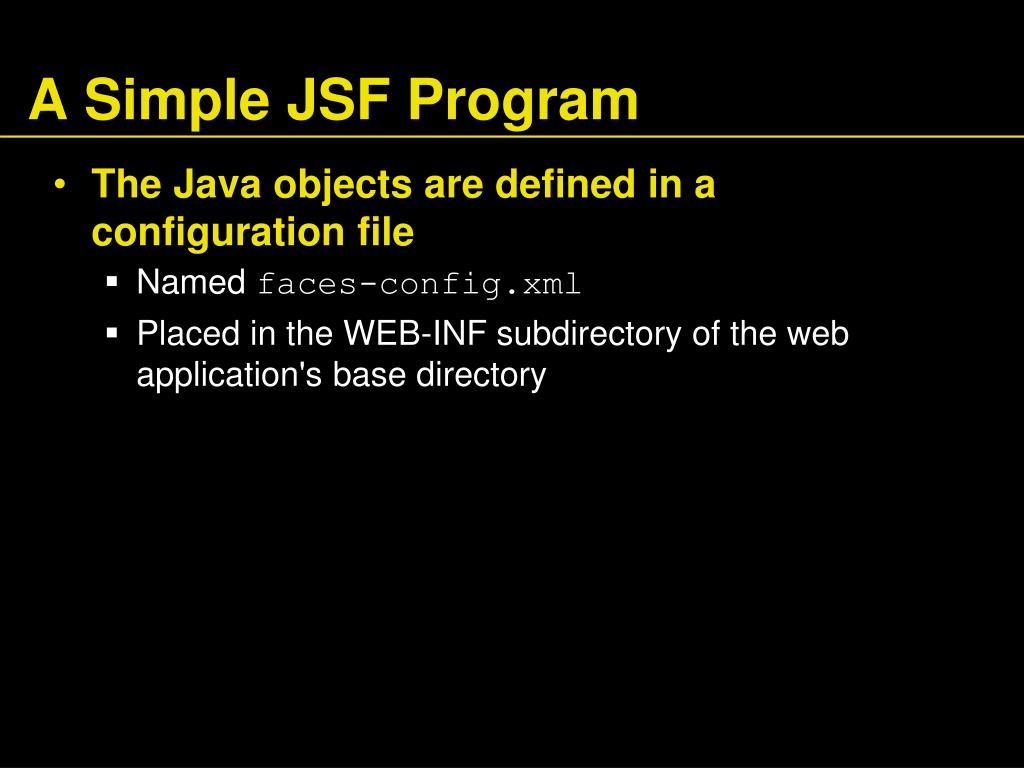

  13. A Simple JSF Program • The Java objects are defined in a configuration file • Named faces-config.xml • Placed in the WEB-INF subdirectory of the web application's base directory

  14. File datetime/WEB-INF/faces-config.xml 01:<?xml version="1.0"?>02: 03:<!DOCTYPE faces-config PUBLIC 04: "-//Sun Microsystems, Inc. //DTD JavaServer Faces Config 1.0//EN" 05: "http://java.sun.com/dtd/web-facesconfig_1_0.dtd"> 06: 07:<faces-config> 08: <managed-bean> 09: <managed-bean-name>dateTime</managed-bean-name> 10: <managed-bean-class>java.util.Date</managed-bean-class> 11: <managed-bean-scope>request</managed-bean-scope> 12: </managed-bean> 13:</faces-config>

  15. A Simple JSF Program • This file defines an object dateTime with type java.util.Date • A new object is constructed with each "request" • Whenever a browser requests the page, • A new Date object is constructed, and • It is attached to the dateTime variable • The Date constructor constructs an object with the current time Continued

  16. A Simple JSF Program • #{dateTime.time} calls getTime of dateTime • The h:outputText tag converts the result of that method call to text

  17. Important Design Principle of the JSF Technology • JSF enables the separation of presentation and business logic • Presentation logic: the user interface of the web application • Business logic: the part of the application that is independent of the visual presentation • JSF pages define the presentation logic • Java objects define the business logic • The value bindings tie the two together

  18. The Directory Structure of the datetimeApplication Figure 4:The Directory Structure of the datetime Application

  19. File datetime/WEB-INF/web.xml 01:<?xml version="1.0"?> 02: 03:<!DOCTYPE web-app PUBLIC 04: "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" 05:"http://java.sun.com/dtd/web-app_2_3.dtd"> 06: 07:<web-app> 08: <servlet> 09: <servlet-name>FacesServlet</servlet-name> 10: <servlet-class>javax.faces.webapp.FacesServlet </servlet-class> 11: <load-on-startup>1</load-on-startup> 12: </servlet> 13: 14: <servlet-mapping> 15: <servlet-name>FacesServlet</servlet-name> 16: <url-pattern>*.jsf</url-pattern> 17: </servlet-mapping> 18:</web-app>

  20. Self Check • What steps are required to add the image of a clock to the datetime application? (The clock doesn't have to show the correct time.) • Does a Swing program automatically separate presentation and business logic?

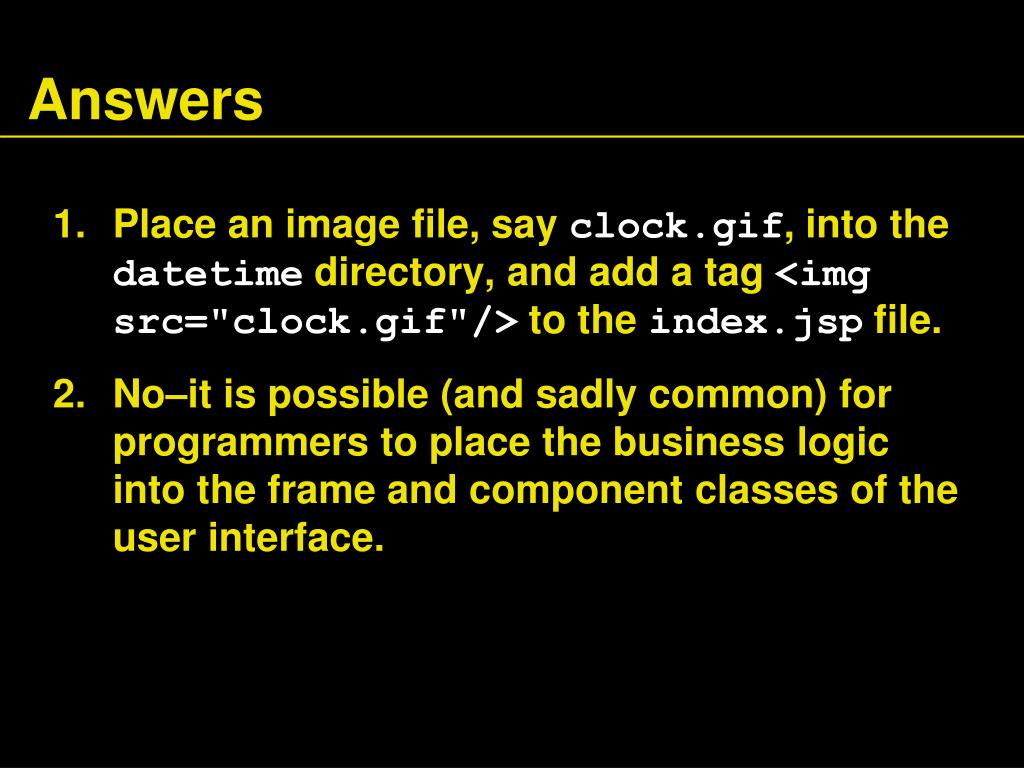

  21. Answers • Place an image file, say clock.gif, into the datetime directory, and add a tag <img src="clock.gif"/> to the index.jsp file. • No–it is possible (and sadly common) for programmers to place the business logic into the frame and component classes of the user interface.

  22. JSF Components • Each component has a value attribute to connect the component value with a bean property • h:inputTextArea has attributes to specify the rows and columns <h:inputSecret value="#{user.password}"/> <h:inputTextArea value="#{user.comment}" rows="10" cols="40"/> Continued

  23. JSF Components • Radio button and checkbox groups allow you to specify horizontal or vertical layout: <h:selectOneRadio value="#{burger.topping}" layout="lineDirection">

  24. JSF Components: Button Groups and Menus • Require two properties: • the collection of possible choices • the actual choice • The value attribute specifies the actual choice to be displayed • The collection of possible choices is defined by a nested f:selectItems tag <h:selectOneRadio value="#{creditCard.expirationMonth}" layout="pageDirection"> <f:selectItems value="#{creditCard.monthChoices}"/> </h:selectOneRadio> Continued

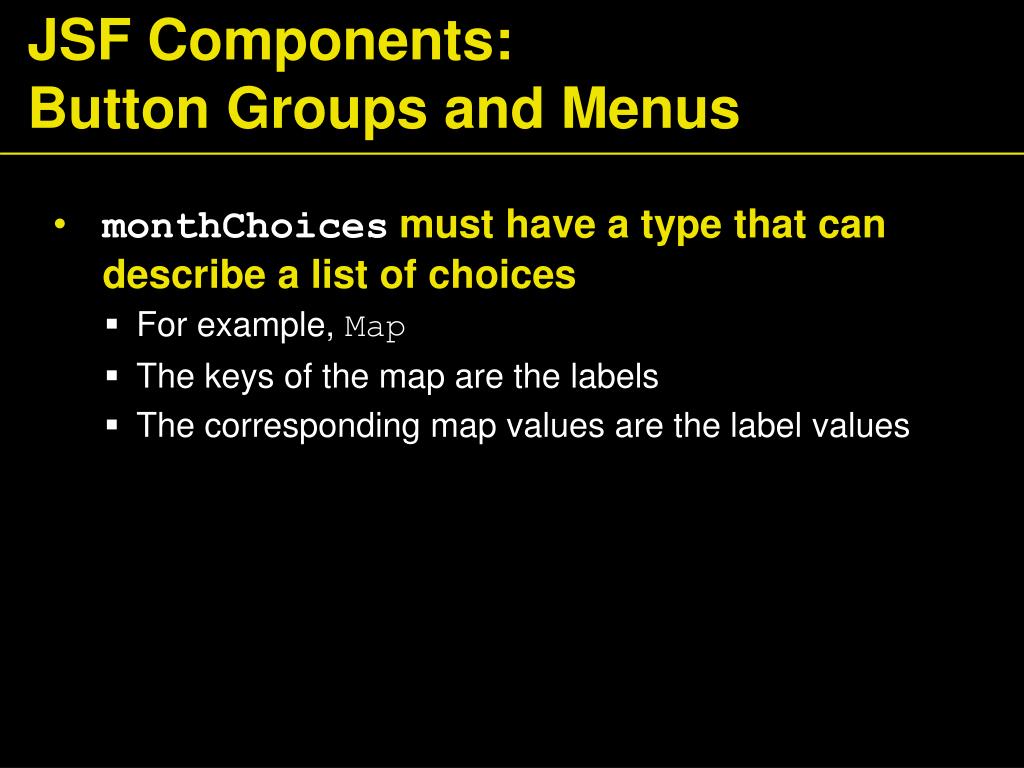

  25. JSF Components: Button Groups and Menus • monthChoices must have a type that can describe a list of choices • For example, Map • The keys of the map are the labels • The corresponding map values are the label values

  26. Example: Using a Map to Describe a List of Choices • To create the list of choices: public class CreditCardBean { . . . public Map<String, Integer> getMonthChoices() { Map<String, Integer> choices = new LinkedHashMap<String, Integer>(); choices.put("January", 1); choices.put("February", 2); . . . return choices; } } Continued

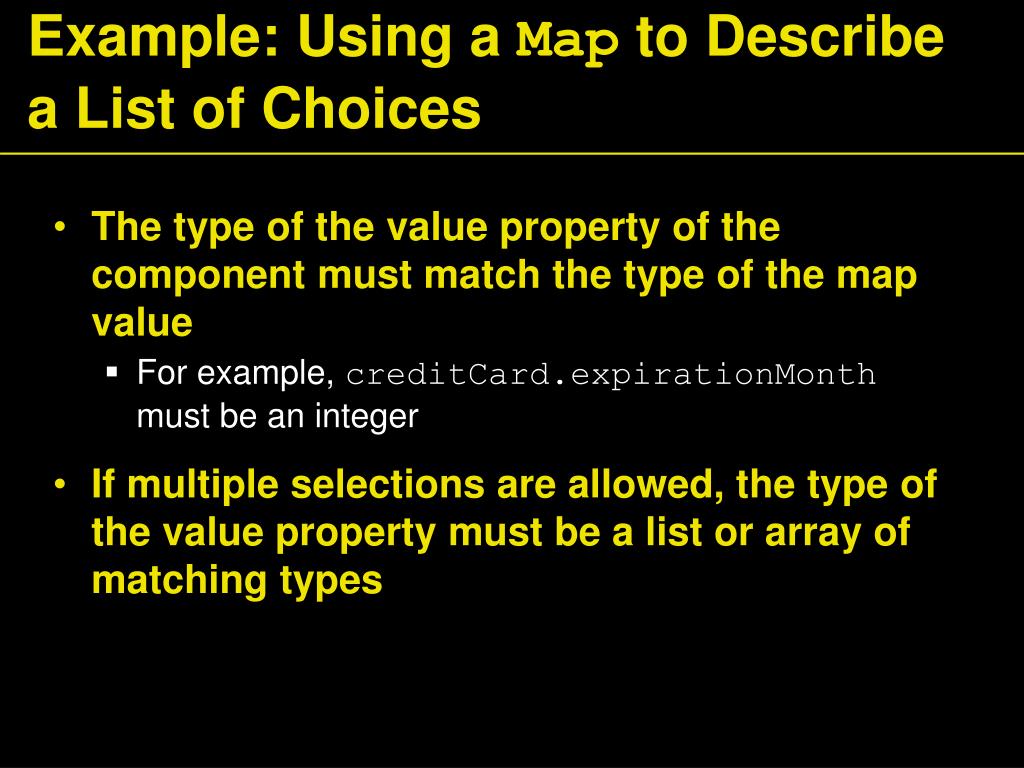

  27. Example: Using a Map to Describe a List of Choices • The type of the value property of the component must match the type of the map value • For example, creditCard.expirationMonth must be an integer • If multiple selections are allowed, the type of the value property must be a list or array of matching types

  28. Common JSF Components

  29. Self Check • Which JSF components can be used to give a user a choice between "AM/PM" and "military" time? • How would you supply a set of choices for a credit card expiration year to a h:selectOneMenu component?

  30. Answers • h:selectOneRadio, h:selectOneMenu, or h:selectOneCheckbox

  31. Answers • You would need a bean with a property such as the following: Then supply a tag public Map<String, Integer> getYearChoices() { Map<String, Integer> choices = new TreeMap<String, Integer>(); choices.put("2003", 2003); choices.put("2004", 2004); . . . return choices; } <f:selectItems value="#{creditCard.yearChoices}"/>

  32. Navigation Between Pages • Consider a timezone program • We start with a page that prompts the user to enter the name of a city • When the user clicks "Submit" a new page appears Continued

  33. Navigation Between Pages • Next page is either the page with the time display or an error page if no time zone is available • The JSF container needs to determine which page to show next

  34. Navigating Between Pages Figure 9:Navigating Between Pages

  35. Navigation Between Pages • Each button has an outcome, a string used to look up the next page • Generally, next page may depend on the result of some computation • We need different outcomes depending on the city entered Continued

  36. Navigation Between Pages • Specify a method binding as the action attribute: • A method binding consists of the name of a bean and the name of a method <h:commandButton value="Submit" action="#{zone.addCity}"/>

  37. Navigation Between Pages • When the form is submitted, the JSF engine calls zone.addCity() public class TimeZoneBean { . . . public String addCity() { if (zone == null) return "unavailable"; // Add the city . . . return "available"; } Continued

  38. Navigation Between Pages • If next page doesn't depend on a computation, you set the action attribute of the button to a fixed outcome string <h:commandButton value="Back" action="back"/>

  39. Navigation Between Pages • faces-config.xml contains a navigation rule that maps outcome strings to pages: <faces-config> <navigation-rule> <navigation-case> <from-outcome>available</from-outcome> <to-view-id>/next.jsp</to-view-id> </navigation-case> <navigation-case> <from-outcome>unavailable</from-outcome> <to-view-id>/error.jsp</to-view-id> </navigation-case> <navigation-case> <from-outcome>back</from-outcome> <to-view-id>/index.jsp</to-view-id> </navigation-case> </navigation-rule> . . . </faces-config> Continued

  40. Navigation Between Pages • Current page is redisplayed when • The button has no action attribute, or • The action outcome is not listed in the navigation rules

  41. Self Check • What tag would you need to add to error.jsp so that the user can click on a button labeled "Help" and see help.jsp? What other changes do you need to make to the web application? • Which page would be displayed if the addCity method returned null?

  42. Answers • Add the tag <h:commandButton value="Help" action="help"/> to error.jsp, and add a navigation rule to faces-config.xml: • The current page would be redisplayed. <navigation-case> <from-outcome>help</from-outcome> <to-view-id>/help.jsp</to-view-id> </navigation-case>
