Presentation Transcript
towards conversational human computer interaction

MOIS 466- Human Computer Interaction

Mini-Project 1

Dept. of Computer Science

University of Rochester

Rochester, NY 14627

By: James F. Allen, Donna K. Byron, Myroslava Dzikovska

George Ferguson, Lucian Galescu, Amanda Stent

Present By: Nourhan Younis

Towards Conversational Human Computer Interaction

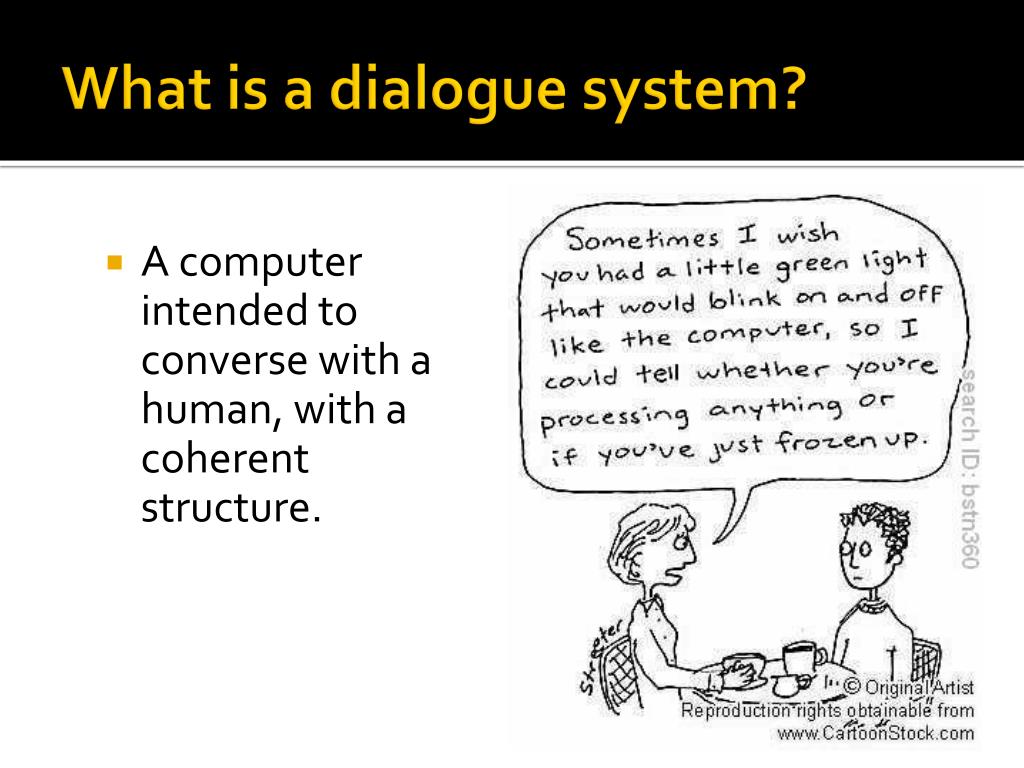

what is a dialogue system
What is a dialogue system?
  • A computer intended to converse with a human, with a coherent structure.
dialogue system

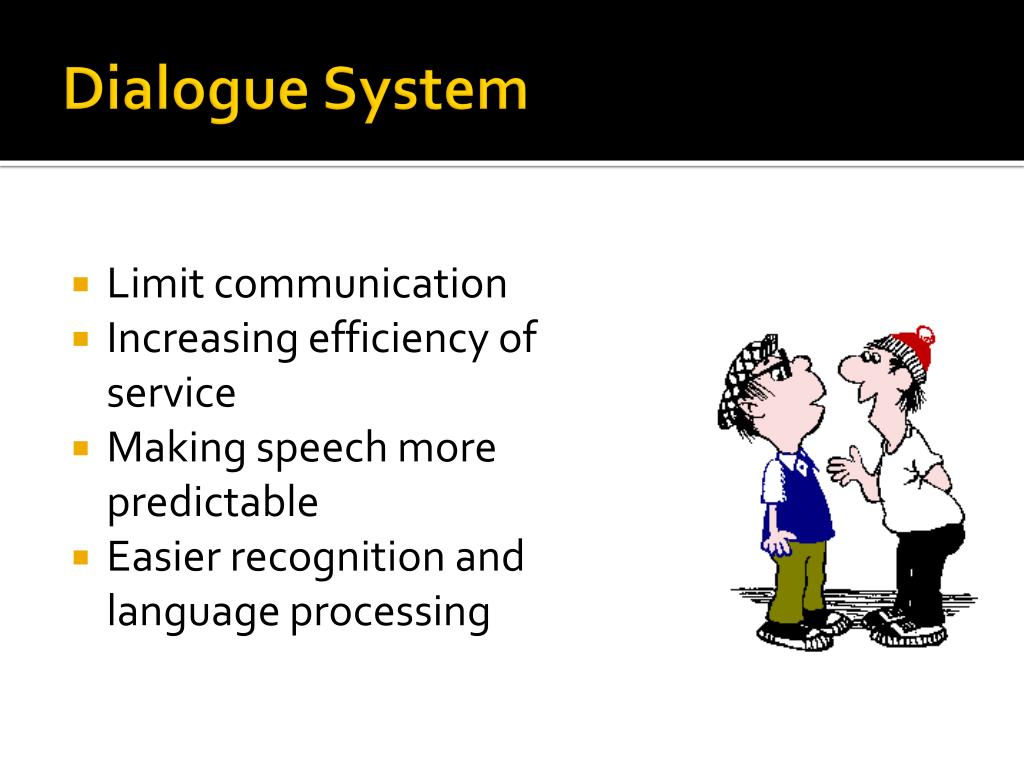

Dialogue System
  • Limit communication
  • Increasing efficiency of service
  • Making speech more predictable
  • Easier recognition and language processing
human conversation
Human Conversation
  • Basing HCI on human conversation
  • More interaction and complexity


  • People claim it won’t be as effective as graphic user interfaces (GUIs)

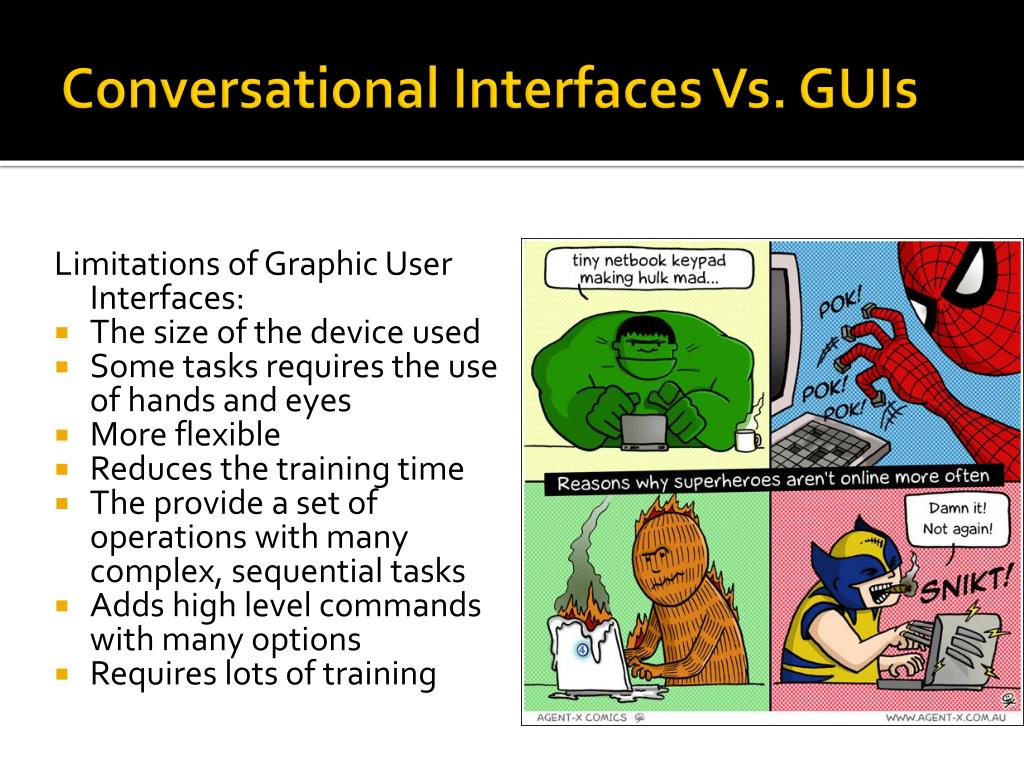

conversational interfaces vs guis
Conversational Interfaces Vs. GUIs

Limitations of Graphic User Interfaces:

  • The size of the device used
  • Some tasks requires the use of hands and eyes
  • More flexible
  • Reduces the training time
  • The provide a set of operations with many complex, sequential tasks
  • Adds high level commands with many options
  • Requires lots of training

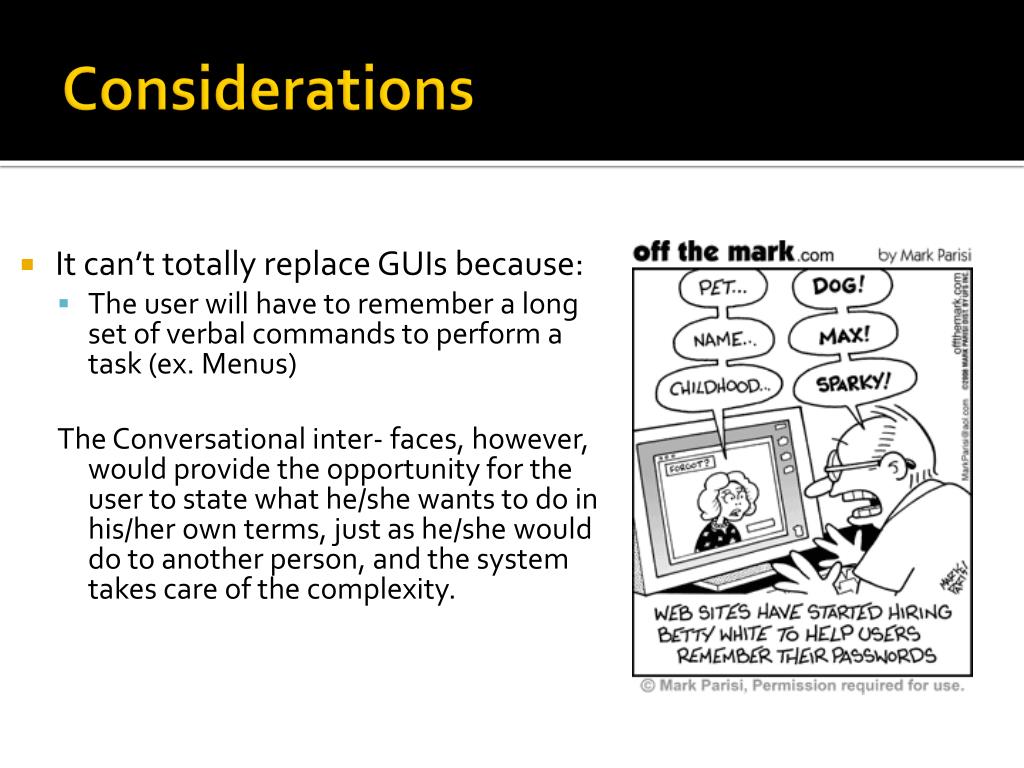

  • It can’t totally replace GUIs because:
    • The user will have to remember a long set of verbal commands to perform a task (ex. Menus)

The Conversational inter- faces, however, would provide the opportunity for the user to state what he/she wants to do in his/her own terms, just as he/she would do to another person, and the system takes care of the complexity.

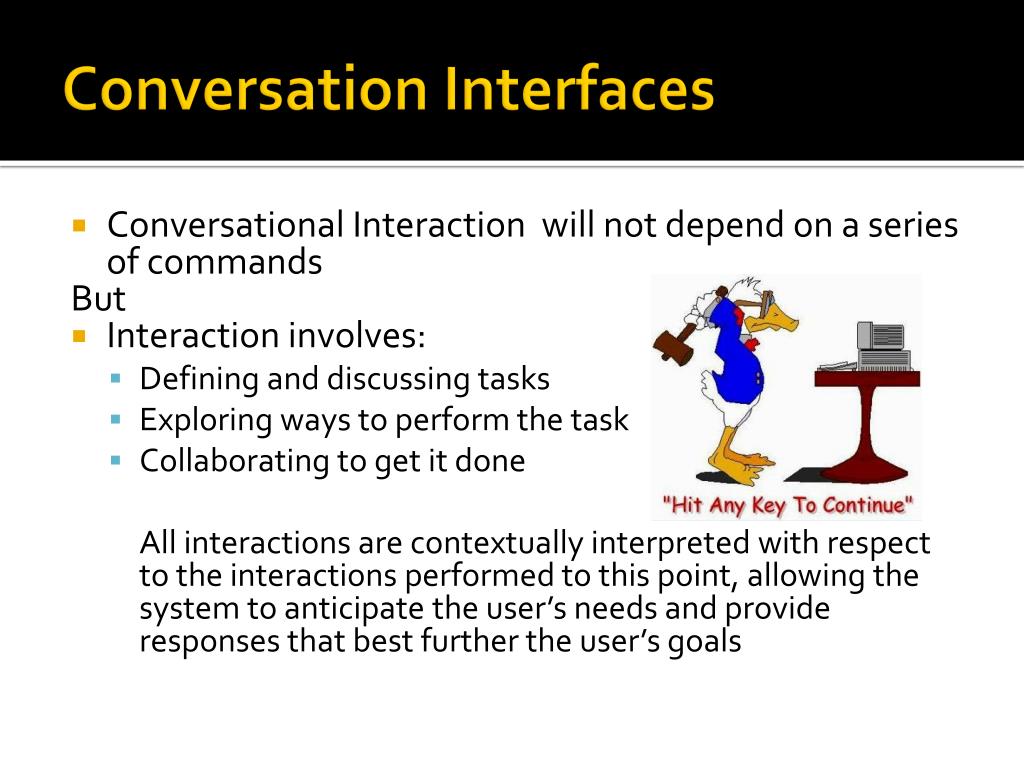

conversation interfaces
Conversation Interfaces
  • Conversational Interaction will not depend on a series of commands


  • Interaction involves:
    • Defining and discussing tasks
    • Exploring ways to perform the task
    • Collaborating to get it done

All interactions are contextually interpreted with respect to the interactions performed to this point, allowing the system to anticipate the user’s needs and provide responses that best further the user’s goals

  • H1: Practical Dialogues

Conversational competence required for practical dialogues, although still complex, is significantly simpler to achieve than general human conversational competence.

  • H2: The Domain Independence

Within the genre of practical dialogue, the bulk of the complexity in the language interpretation and dialogue management are independent of the task being performed

challenges for practical dialogue
Challenges For Practical Dialogue
  • Parsing language in practical dialogues
  • Integrating dialogue and task performance
  • Intention recognition
  • Mixed initiative dialogue

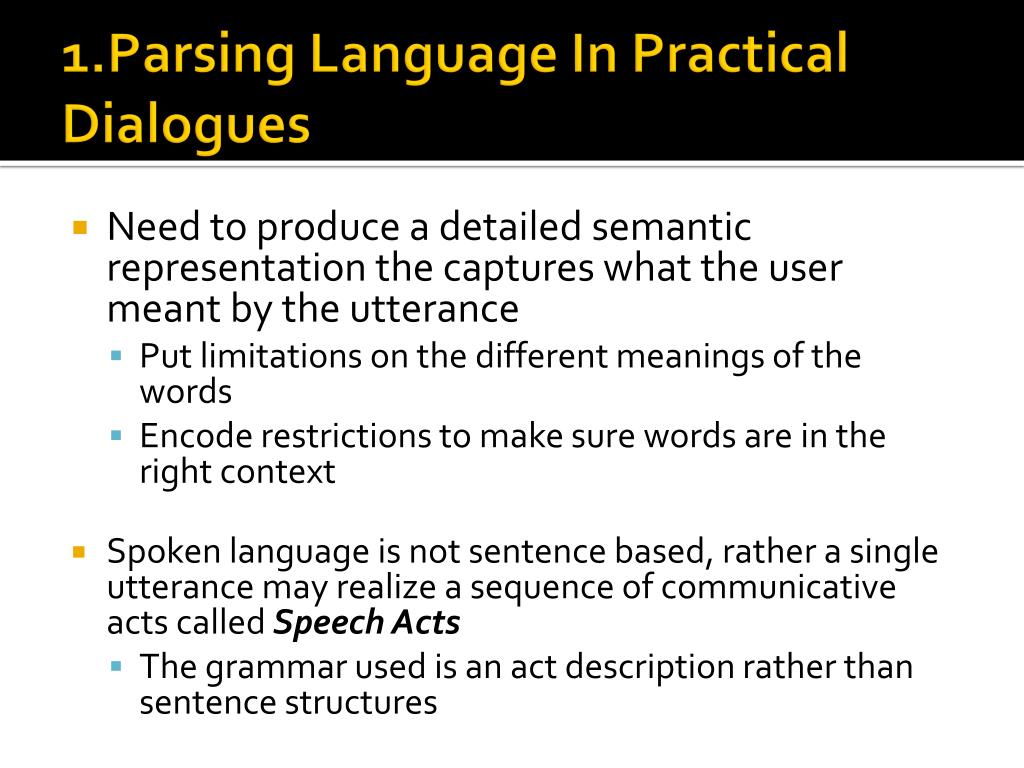

1 parsing language in practical dialogues
1.Parsing Language In Practical Dialogues
  • Need to produce a detailed semantic representation the captures what the user meant by the utterance
    • Put limitations on the different meanings of the words
    • Encode restrictions to make sure words are in the right context
    • Spoken language is not sentence based, rather a single utterance may realize a sequence of communicative acts called Speech Acts
    • The grammar used is an act description rather than sentence structures
speech acts
Speech Acts


“OK, let’s do that then send a truck to Avon”

  • OK: an acknowledgement
  • Let’s do that: an acceptance
  • Send a truck to Avon: a request
2 integrating dialogue and task performance

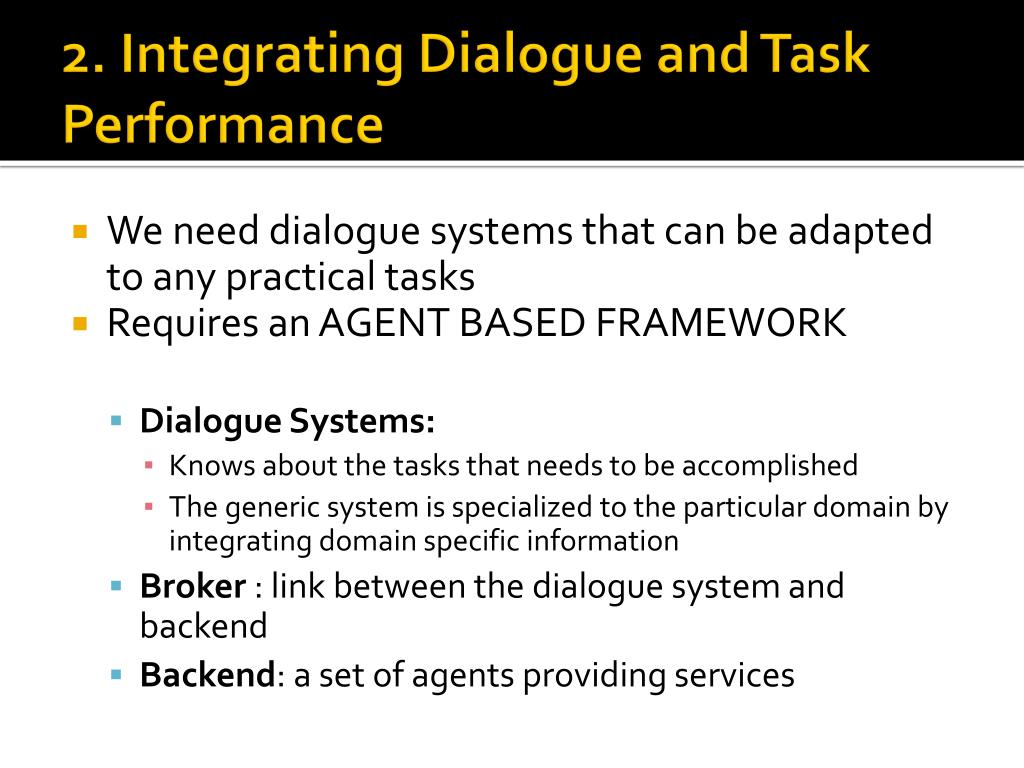

2. Integrating Dialogue and Task Performance
  • We need dialogue systems that can be adapted to any practical tasks
    • Dialogue Systems:
      • Knows about the tasks that needs to be accomplished
      • The generic system is specialized to the particular domain by integrating domain specific information

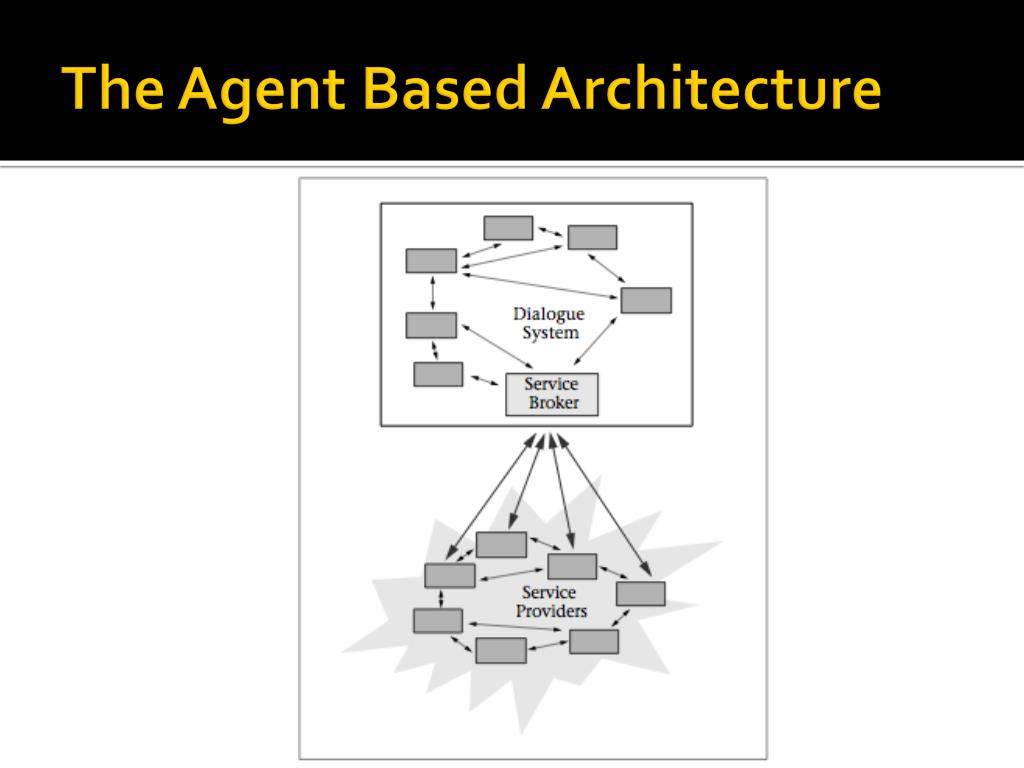

    • Broker : link between the dialogue system and backend
    • Backend: a set of agents providing services

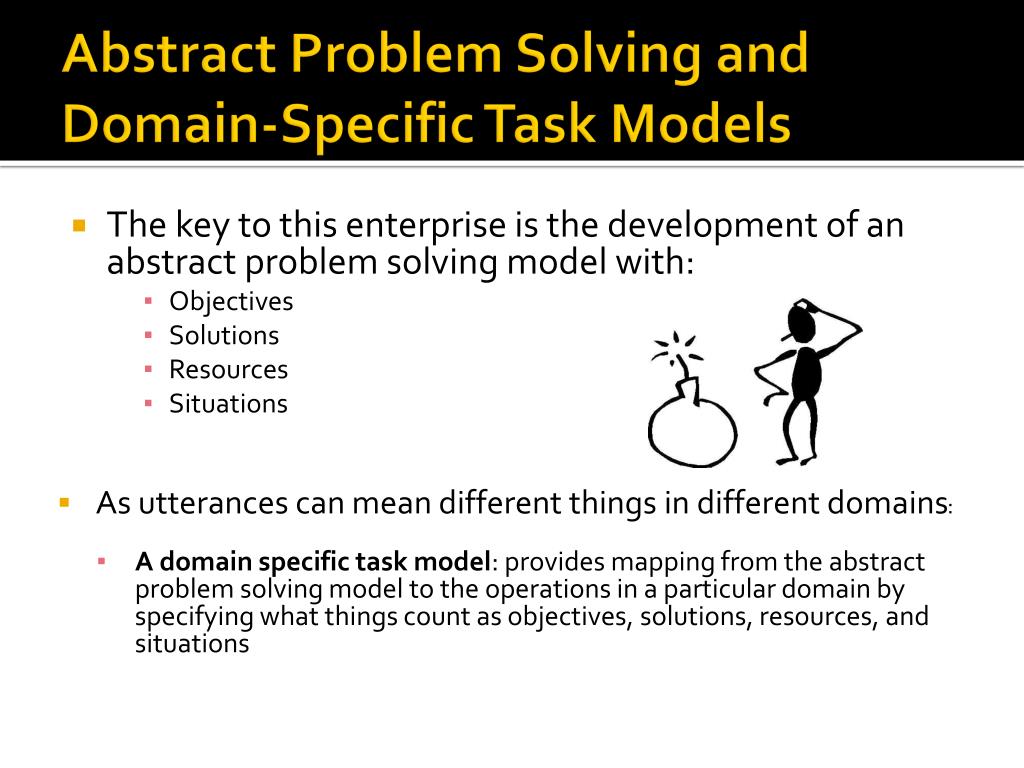

abstract problem solving and domain specific task models
Abstract Problem Solving and Domain-Specific Task Models
  • The key to this enterprise is the development of an abstract problem solving model with:
      • Objectives
      • Solutions
      • Resources
      • Situations
    • As utterances can mean different things in different domains:
      • A domain specific task model: provides mapping from the abstract problem solving model to the operations in a particular domain by specifying what things count as objectives, solutions, resources, and situations

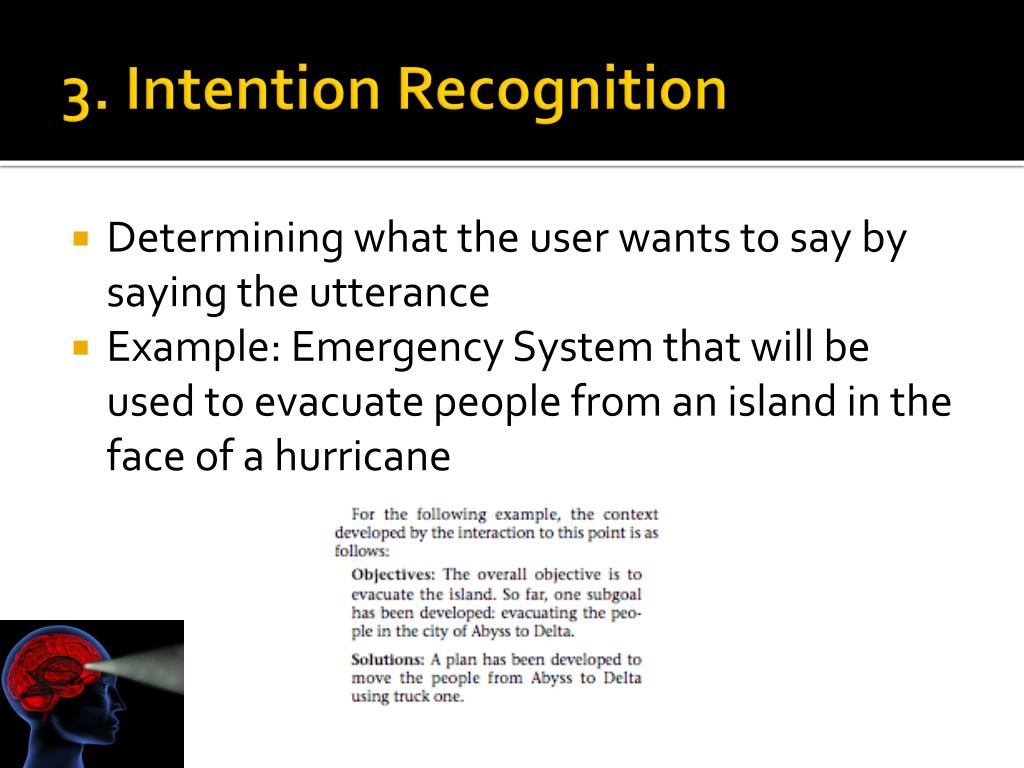

3 intention recognition
3. Intention Recognition
  • Determining what the user wants to say by saying the utterance
  • Example: Emergency System that will be used to evacuate people from an island in the face of a hurricane

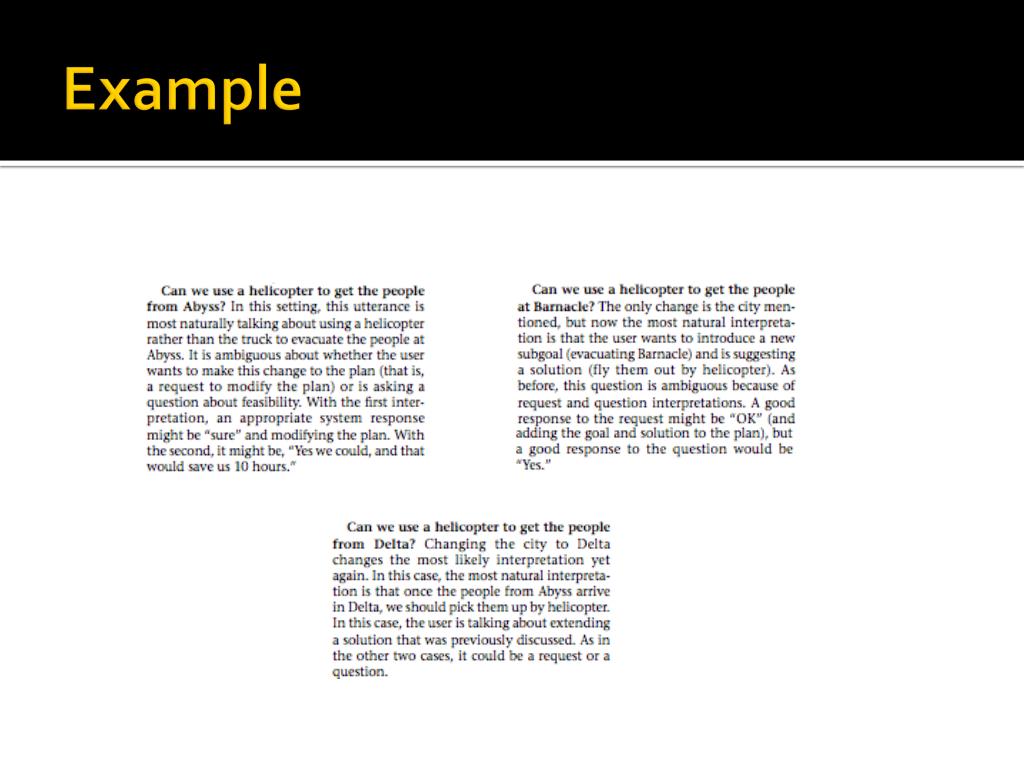

intention recognition cntd
Intention Recognition (Cntd)
  • That example shows different interpretations of those utterances
  • Reasoning used, requires information about the task to identify which makes sense rationally in the current situation
  • The challenge here is to match the intentions with the context of the the question asked
4 mixed initiative dialogue
4. Mixed Initiative Dialogue
  • Practical human dialogue involves mixed initiative interaction i.e. dynamic exchange of control of the dialogue flow, increasing efficiency, effectiveness; enabling both participants'’ needs to be met
  • For systems that ask questions it can work in simple tasks, like long distance dialing
  • For complex tasks: you may often need to get through irrelevant interactions before getting the information you need.
limitations of frame based system

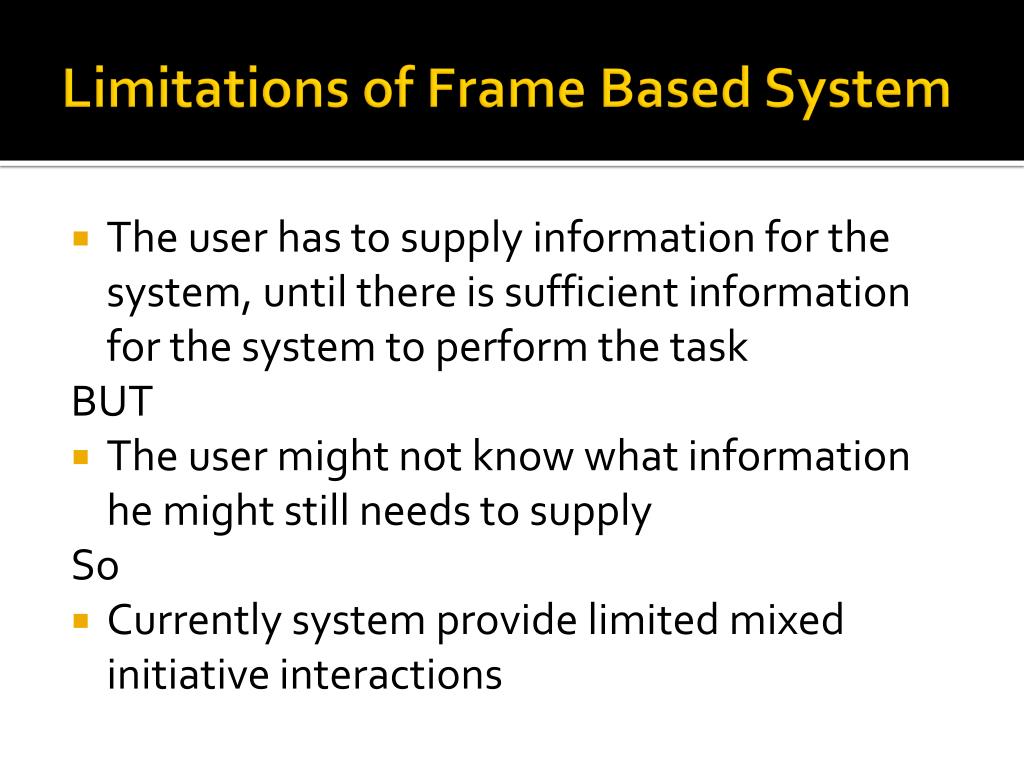

Limitations of Frame Based System
  • The user has to supply information for the system, until there is sufficient information for the system to perform the task


  • The user might not know what information he might still needs to supply


  • Currently system provide limited mixed initiative interactions

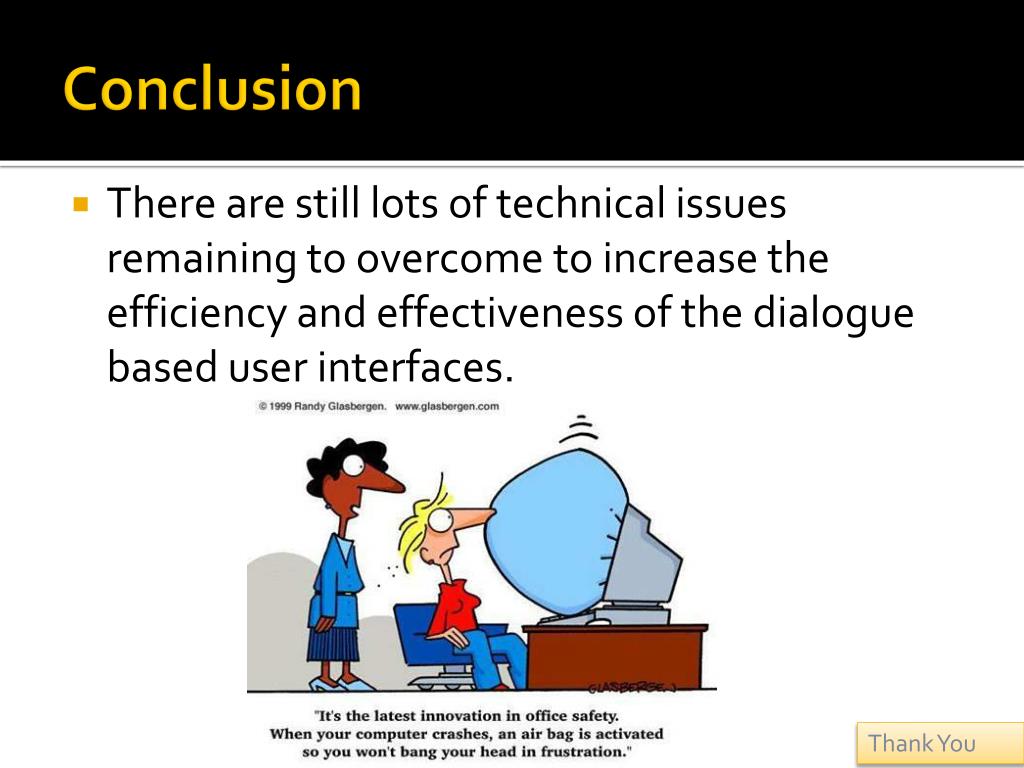

  • There are still lots of technical issues remaining to overcome to increase the efficiency and effectiveness of the dialogue based user interfaces.

Thank You
