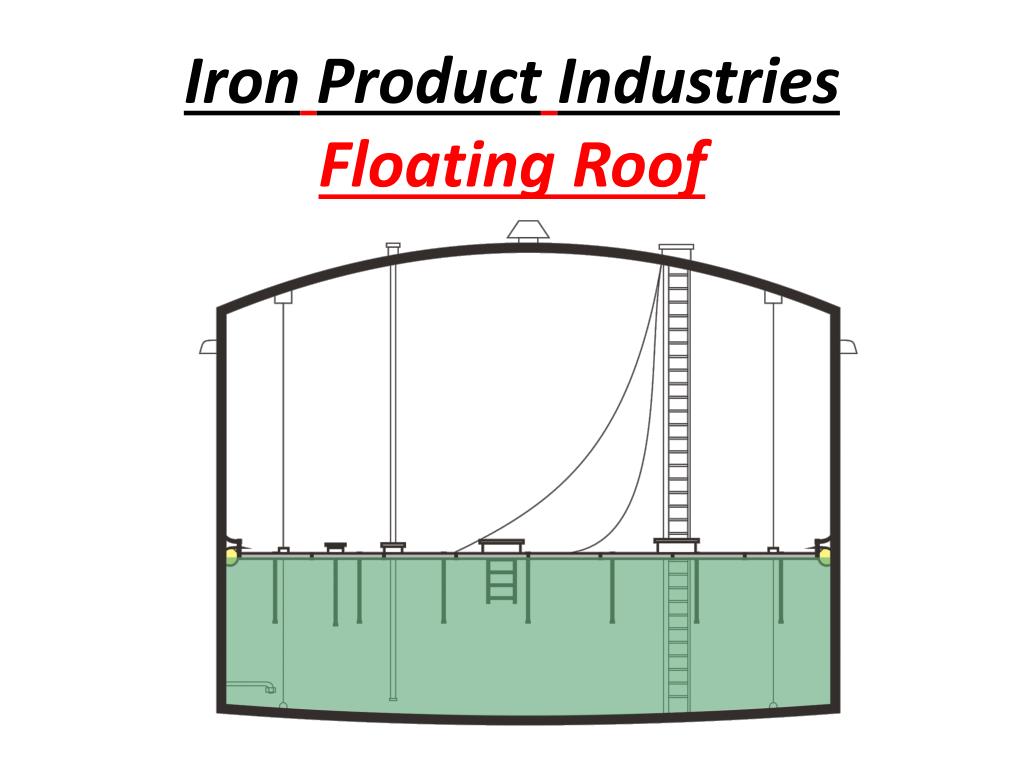

    1. IronProductIndustries Floating Roof

    2. Benefits- • Savings-Preventing evaporation of product, which will pay for itself in less than a year • Prevents Pollution - Prevents evaporation and harmful vapors from entering the atmosphere

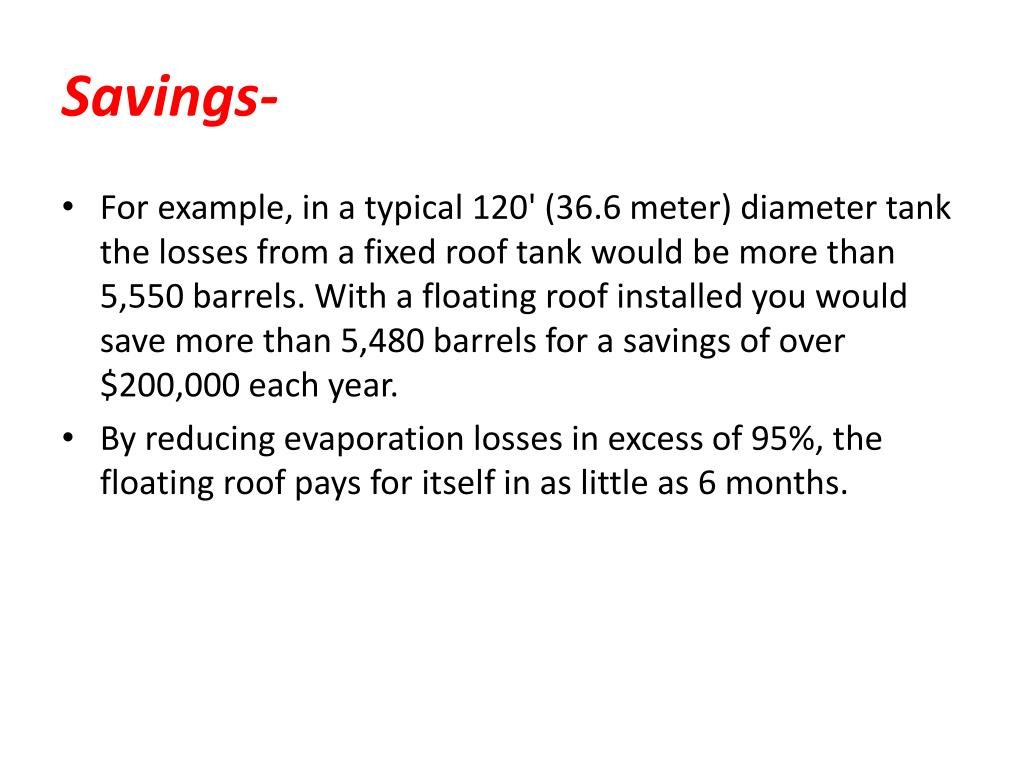

    3. Savings- • For example, in a typical 120' (36.6 meter) diameter tank the losses from a fixed roof tank would be more than 5,550 barrels. With a floating roof installed you would save more than 5,480 barrels for a savings of over $200,000 each year. • By reducing evaporation losses in excess of 95%, the floating roof pays for itself in as little as 6 months.

    4. Savings- • A Typical Uncovered Tank 1.7 Million pounds of pollution and $300,000 is lost annually on a typical uncovered 120 ft diameter gasoline tank

    5. Technology- • Design Strength:The floating roof is designed for a point load of 750 pounds which exceeds API Appendix H requirements by a full 50%. In fact, our roof has been field tested with a concentrated load exceeding 2,000 pounds without failure. • Pontoons: Our 10 inch diameter x 0.064 inch thick pontoons, utilizing aluminum alloy 3004-H36 are more than twice (225%) as strong as the competitor's 8 inch (0.050, alloy 5050 H38) pontoons. In addition, all automatic welding eliminates hand welding errors.

    6. Technology- • Pivot Joints:All floating roofs come equipped with unique pivot joint to allow flexural movement between adjacent main pontoons. • Clamp Beam:Perfected the vapor tight, metal-to-metal joint that recent API testing has shown to be critical for a good floating roof design.

    7. Technology- • Computer Technology: Each roof is custom designed for the planned service utilizing complex computer programming and the latest evaporation loss data available. Computerization of the design and production process allows very rapid response times, even for relatively non-standard application

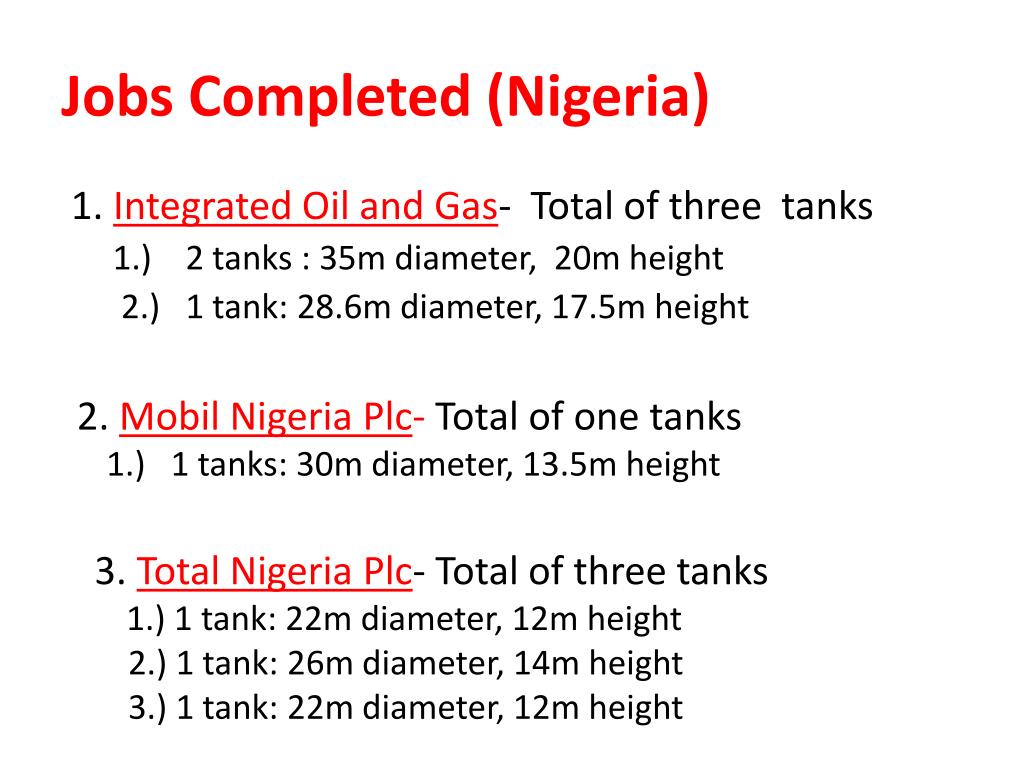

    8. Jobs Completed (Nigeria) 1.Integrated Oil and Gas- Total of three tanks 1.) 2 tanks : 35m diameter, 20m height 2.) 1 tank: 28.6m diameter, 17.5m height 2. Mobil Nigeria Plc- Total of one tanks 1.) 1 tanks: 30m diameter, 13.5m height 3. Total Nigeria Plc- Total of three tanks 1.) 1 tank: 22m diameter, 12m height 2.) 1 tank: 26m diameter, 14m height 3.) 1 tank: 22m diameter, 12m height

    9. Pictures of ongoing works:

    10. Ongoing Works:

    11. Ongoing Works:

    12. Video Floating Roof http://ultraflote.com/images/Ultraflote_Video_56k.WMV

    13. Thank You • Iron Products Industries provides complete turnkey services from budget preparation to installation. • Engineering • Construction • Inspections and Repairs • Technical Partners – (Houston, USA)
