Presentation Transcript
Slide1 l.jpg

Operations Management

Process Strategy

Alan D. Smith

© 2006 Prentice Hall, Inc.

Outline l.jpg

  • Global Company Profile: Dell Computer Co.

  • Four Process Strategies

    • Process Focus

    • Repetitive Focus

    • Product Focus

    • Mass Customization Focus

    • Comparison of Process Choices

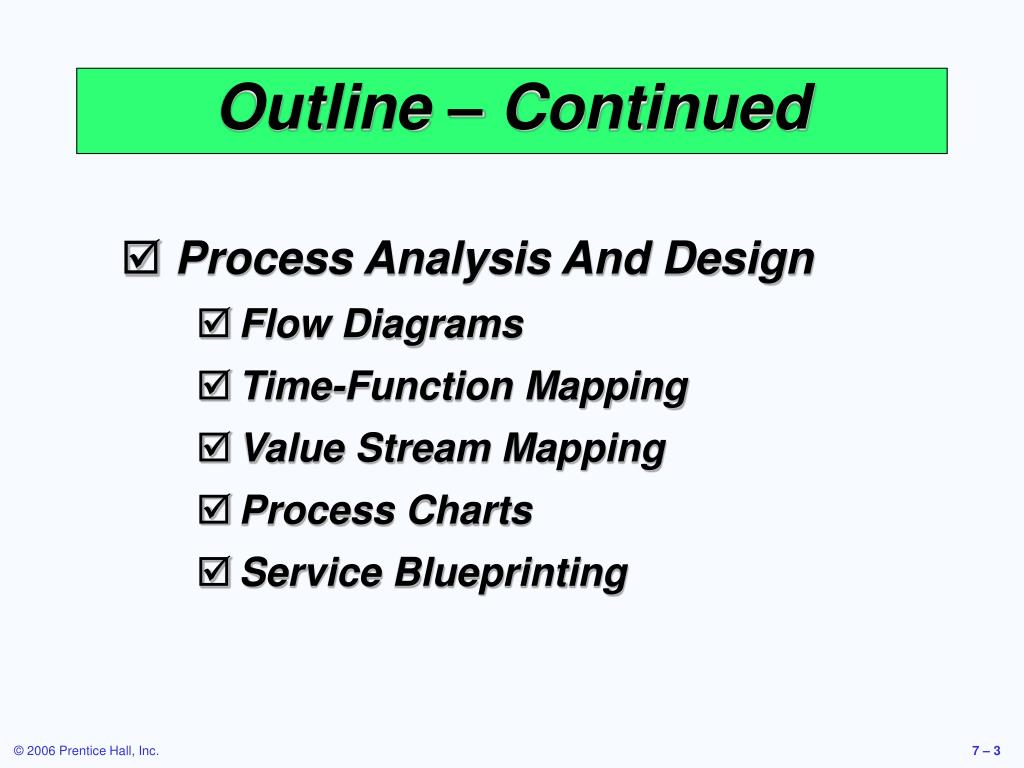

Outline continued l.jpg
Outline – Continued

  • Process Analysis And Design

    • Flow Diagrams

    • Time-Function Mapping

    • Value Stream Mapping

    • Process Charts

    • Service Blueprinting

Outline continued4 l.jpg
Outline – Continued

  • Service Process Design

    • Customer Interaction and Process Design

    • More Opportunities to Improve Service Processes

  • Selection Of Equipment And Technology

Outline continued5 l.jpg
Outline – Continued

  • Production Technology

    • Machine Technology

    • Process Control

    • Vision Systems

    • Automated Storage and Retrieval System

    • Automated Guided Vehicle (AGV)

    • Flexible Manufacturing System (FMS)

    • Computer-Integrated Manufacturing (CIM)

Outline continued6 l.jpg
Outline – Continued

  • Technology In Services

  • Process Redesign

  • Ethics And Environmentally Friendly Processes

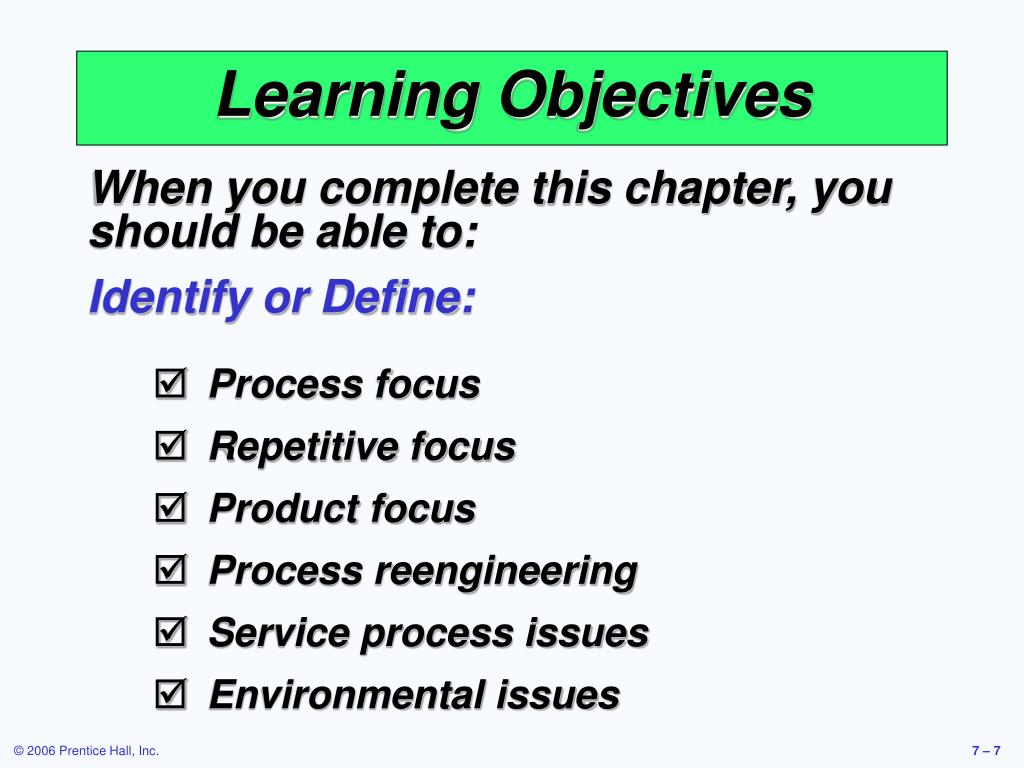

Learning objectives l.jpg
Learning Objectives

When you complete this chapter, you should be able to:

Identify or Define:

  • Process focus

  • Repetitive focus

  • Product focus

  • Process reengineering

  • Service process issues

  • Environmental issues

Learning objectives8 l.jpg
Learning Objectives

When you complete this chapter, you should be able to:

Describe or Explain:

  • Process Analysis

  • Service Design

  • Production Technology

  • Process Redesign

  • Ethics and Environmentally Friendly Processes

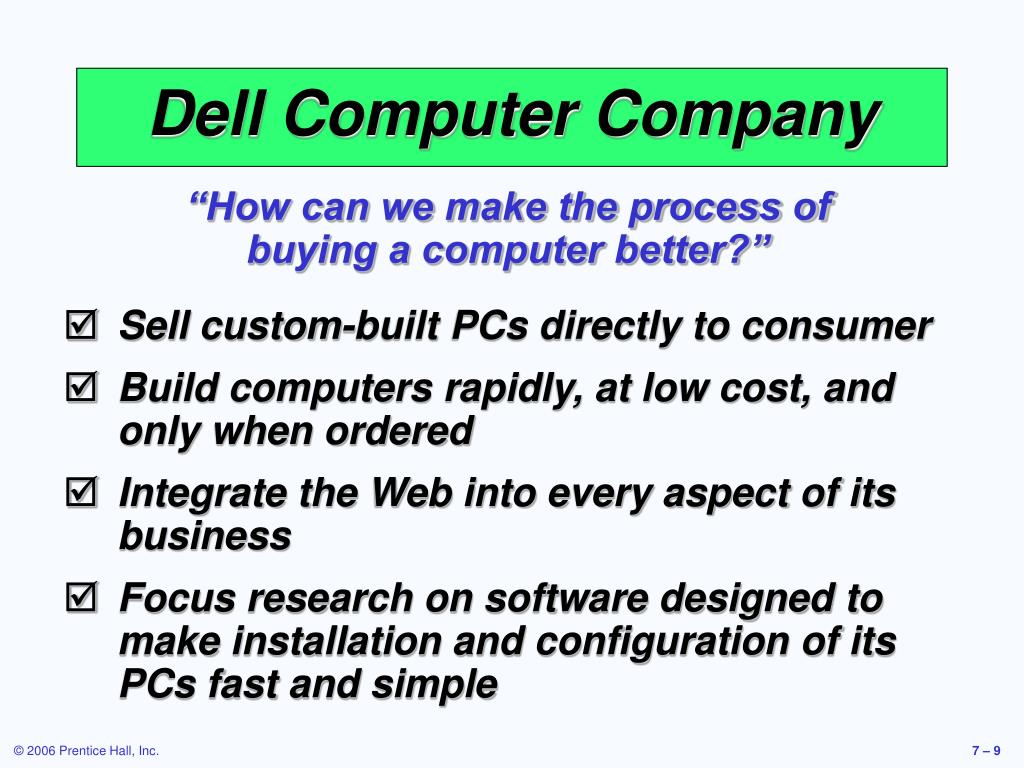

Dell computer company l.jpg
Dell Computer Company

“How can we make the process of buying a computer better?”

  • Sell custom-built PCs directly to consumer

  • Build computers rapidly, at low cost, and only when ordered

  • Integrate the Web into every aspect of its business

  • Focus research on software designed to make installation and configuration of its PCs fast and simple

Process volume and variety l.jpg


Low Volume

Repetitive Process

High Volume

Process, Volume, and Variety

Figure 7.1

High Variety

one or few units per run, high variety

(allows customization)

Process Focus

projects, job shops (machine, print, carpentry)

Standard Register

Mass Customization

(difficult to achieve, but huge rewards)

Dell Computer Co.

Changes in Modules

modest runs, standardized modules


(autos, motorcycles)

Harley Davidson

Changes in Attributes (such as grade, quality, size, thickness, etc.)

long runs only

Product Focus

(commercial baked goods, steel, glass)

Nucor Steel

Poor Strategy (Both fixed and variable costs are high)

Process flow diagram l.jpg


Customer sales representative










Information flow

Material flow



Process Flow Diagram

Figure 7.2

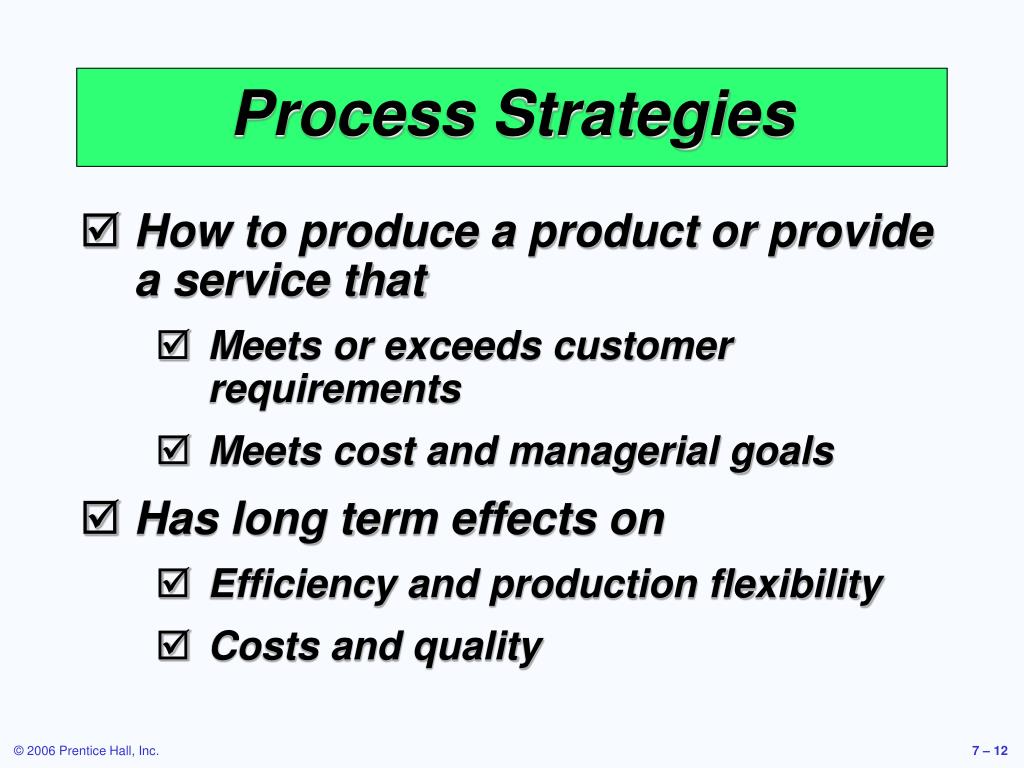

Process strategies l.jpg
Process Strategies

  • How to produce a product or provide a service that

    • Meets or exceeds customer requirements

    • Meets cost and managerial goals

  • Has long term effects on

    • Efficiency and production flexibility

    • Costs and quality

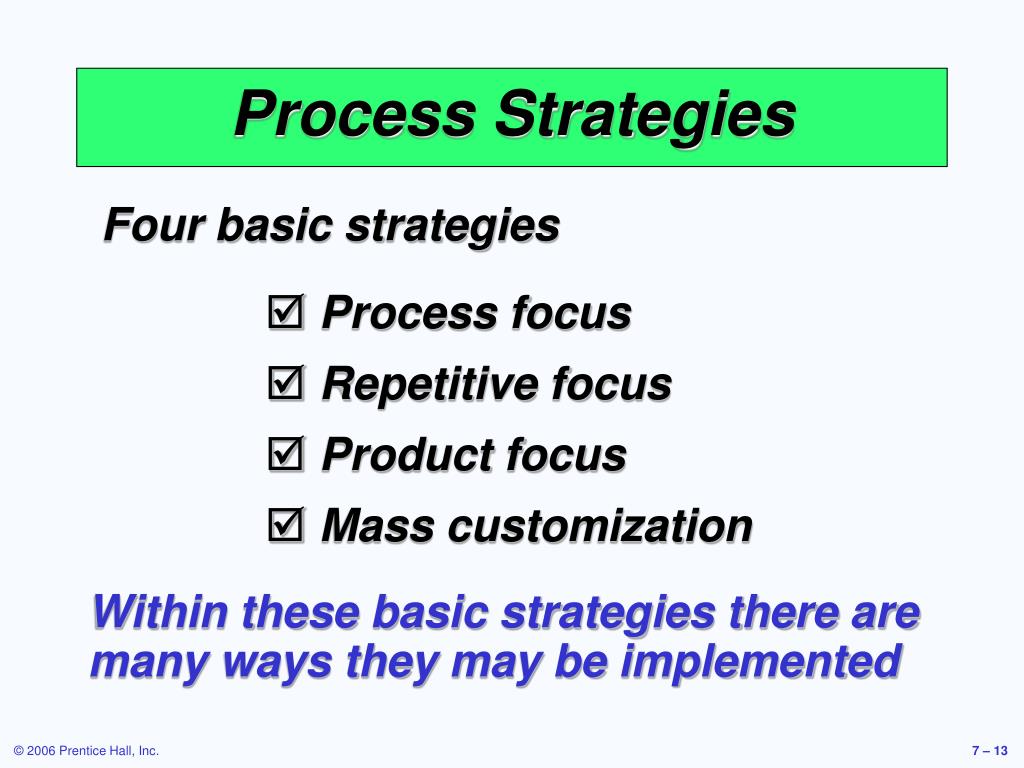

Process strategies13 l.jpg
Process Strategies

Four basic strategies

  • Process focus

  • Repetitive focus

  • Product focus

  • Mass customization

Within these basic strategies there are many ways they may be implemented

Process focus l.jpg
Process Focus

  • Facilities are organized around specific activities or processes

  • General purpose equipment and skilled personnel

  • High degree of product flexibility

  • Typically high costs and low equipment utilization

  • Product flows may vary considerably making planning and scheduling a challenge

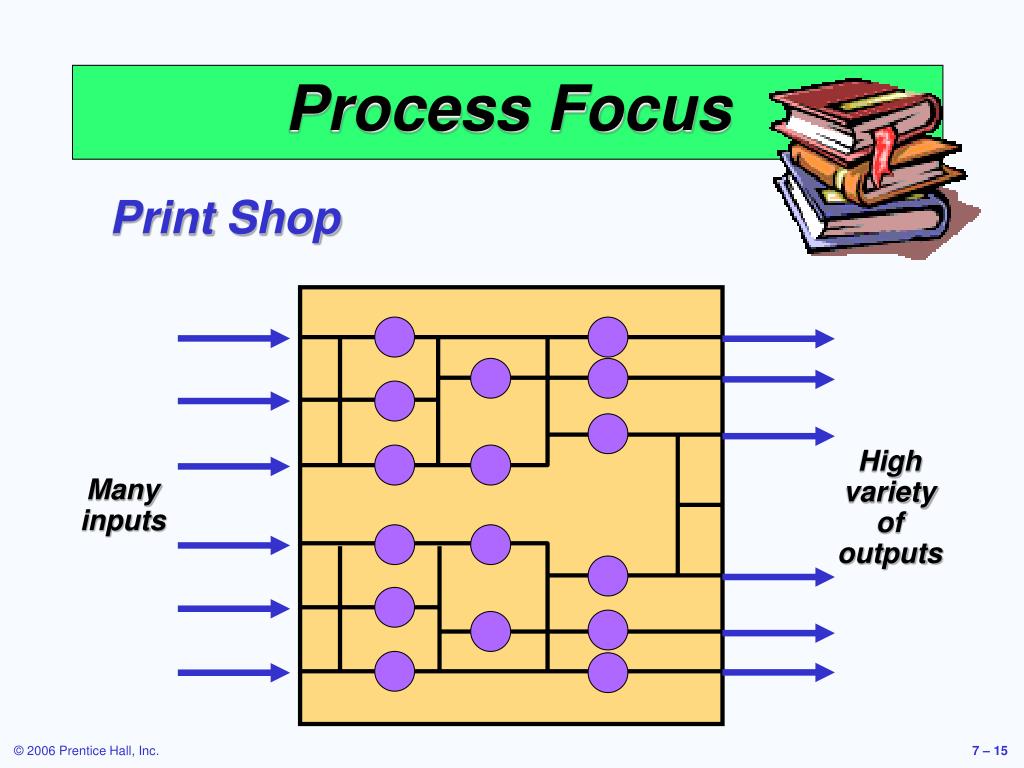

Process focus15 l.jpg

High variety of outputs

Many inputs

Process Focus

Print Shop

Repetitive focus l.jpg
Repetitive Focus

  • Facilities often organized as assembly lines

  • Characterized by modules with parts and assemblies made previously

  • Modules may be combined for many output options

  • Less flexibility than process-focused facilities but more efficient

Repetitive focus17 l.jpg

Modules combined for many output options

Raw materials and module inputs

Few modules

Repetitive Focus

Automobile Assembly Line

Process flow diagram18 l.jpg

Frame tube bending

Frame-building work cells

Frame machining


frame painting


Engines and transmissions


28 tests

Incoming parts

From Milwaukee on a JIT arrival schedule

Air cleaners

Oil tank work cell

Fluids and mufflers

Shocks and forks

Fuel tank work cell


Wheel work cell

Fender work cell

Roller testing


Process Flow Diagram

Figure 7.3

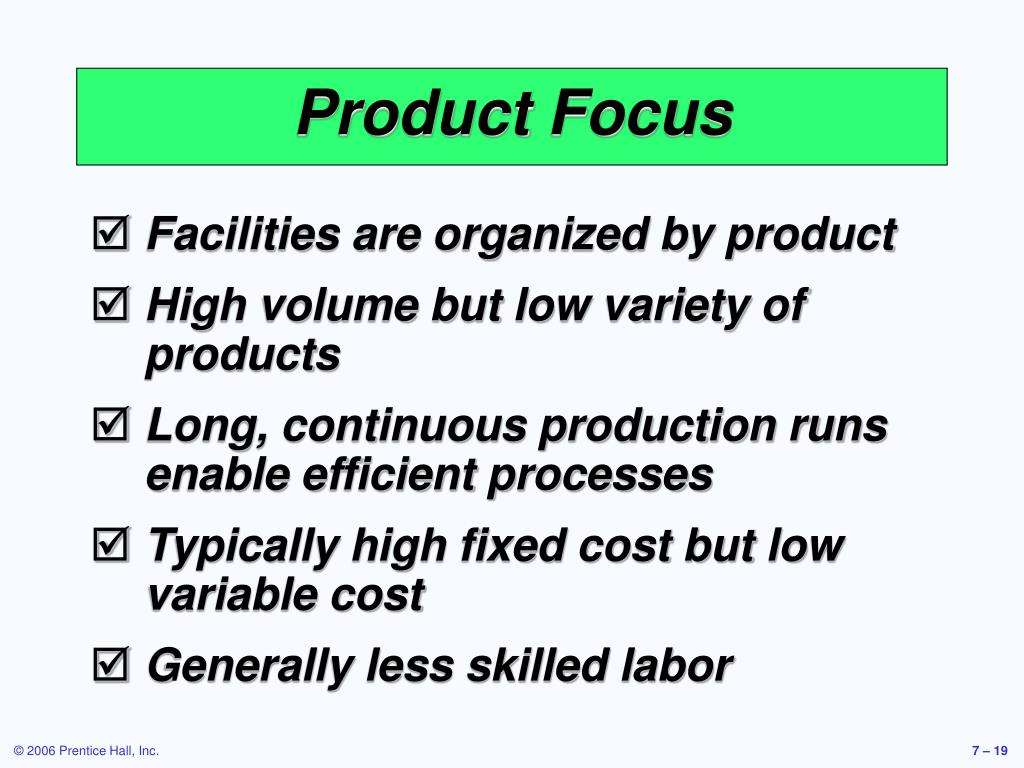

Product focus l.jpg
Product Focus

  • Facilities are organized by product

  • High volume but low variety of products

  • Long, continuous production runs enable efficient processes

  • Typically high fixed cost but low variable cost

  • Generally less skilled labor

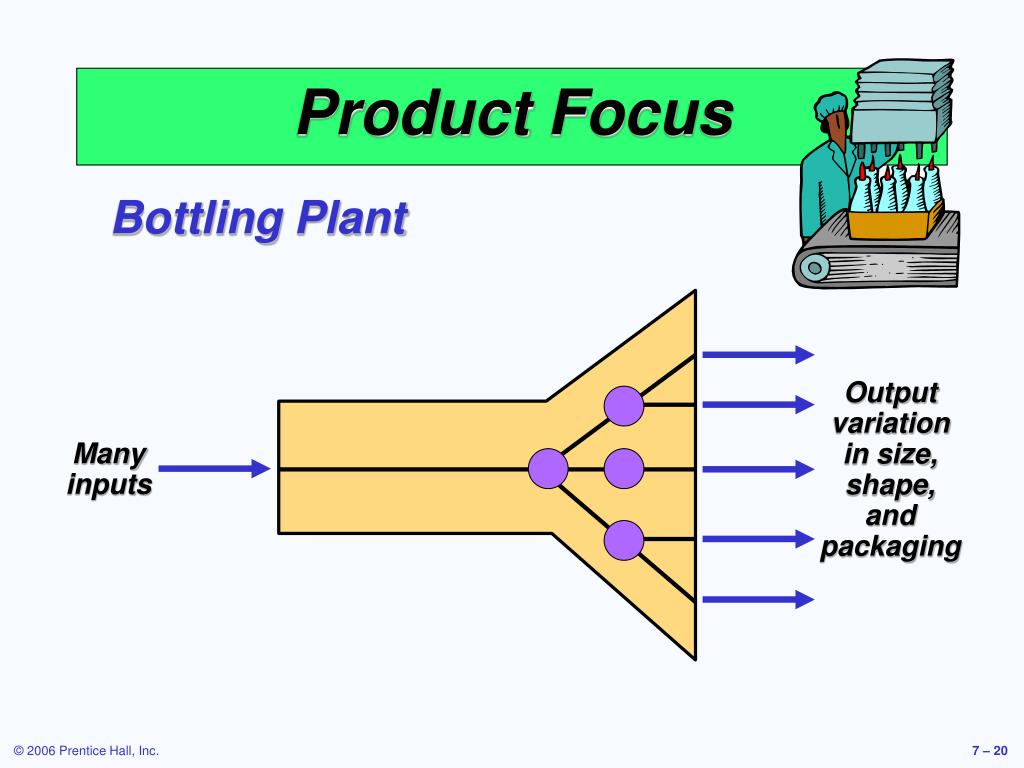

Product focus20 l.jpg

Output variation in size, shape, and packaging

Many inputs

Product Focus

Bottling Plant

Product focus21 l.jpg


Scrap steel




Electric furnace

Continuous caster

Ladle of molten steel

Continuous cast steel sheared into 24-ton slabs

Hot tunnel furnace - 300 ft



Hot mill for finishing, cooling, and coiling




Product Focus

Nucor Steel Plant

Mass customization l.jpg
Mass Customization

  • The rapid, low-cost production of goods and service to satisfy increasingly unique customer desires

  • Combines the flexibility of a process focus with the efficiency of a product focus

Mass customization29 l.jpg

Number of Choices

Early 21st Item Early 1970s Century

Vehicle models 140 260

Vehicle types 18 1,212

Bicycle types 8 19

Software titles 0 300,000

Web sites 0 46,412,165

Movie releases 267 458

New book titles 40,530 77,446

Houston TV channels 5 185

Breakfast cereals 160 340

Items (SKUs) in 14,000 150,000


Mass Customization

Table 7.1

Mass customization30 l.jpg

Repetitive Focus

Modular design

Flexible equipment

Mass Customization


High variety, low volume

Low utilization (5% to 25%)

General-purpose equipment


Low variety, high volume

High utilization (70% to 90%)

Specialized equipment

Mass Customization

Figure 7.5

Modular techniques

Effective scheduling techniques

Rapid throughput techniques

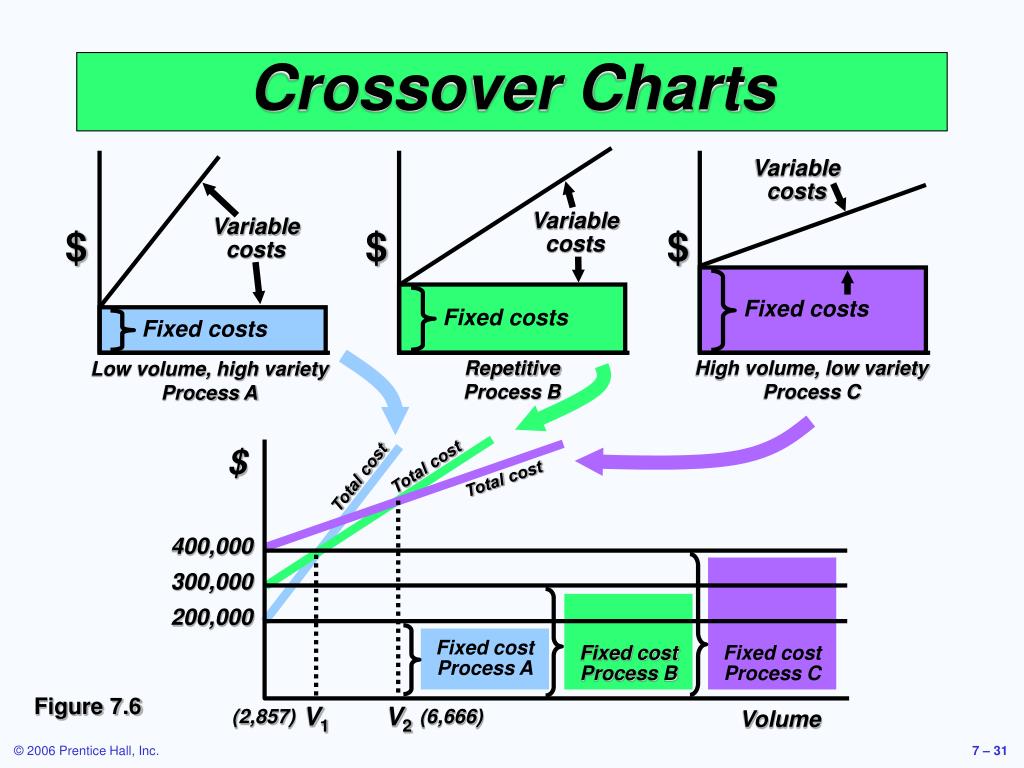

Crossover charts l.jpg

Variable costs

Variable costs

Variable costs




Fixed costs

Fixed costs

Fixed costs


Process B

High volume, low variety

Process C

Low volume, high variety

Process A


Total cost

Total cost

Total cost




Fixed cost Process C

Fixed cost Process B

Fixed cost Process A






Crossover Charts

Figure 7.6

Changing processes l.jpg
Changing Processes

  • Difficult and expensive

  • May mean starting over

  • Process strategy determines transformation strategy for an extended period

  • Important to get it right

Process analysis and design l.jpg
Process Analysis and Design

  • Flow Diagrams - Shows the movement of materials

  • Time-Function Mapping - Shows flows and time frame

  • Value Stream Mapping - Shows flows and time and value added beyond the immediate organization

  • Process Charts - Uses symbols to show key activities

  • Service Blueprinting - focuses on customer/provider interaction

Time function mapping l.jpg



Production control

Plant A


Order product

Process order









Receive product

Plant B


12 days

13 days

1 day

4 days

1 day

10 days

1 day

0 day

1 day

52 days

Time-Function Mapping

Figure 7.7

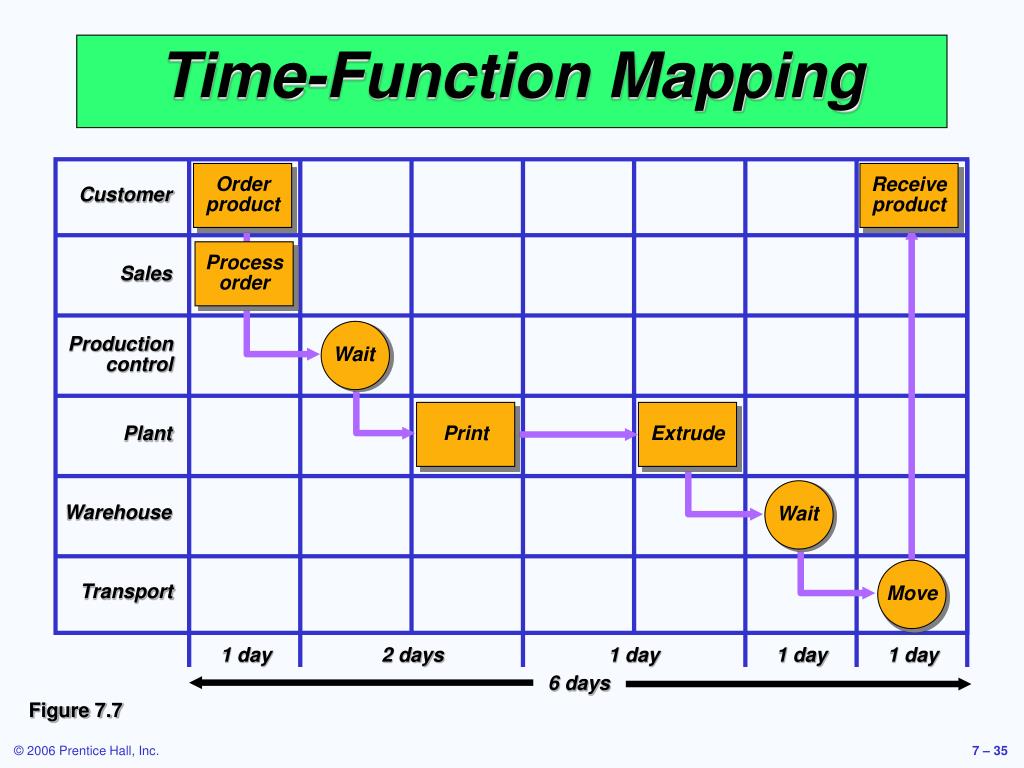

Time function mapping35 l.jpg

Order product

Receive product


Process order


Production control









1 day

2 days

1 day

1 day

1 day

6 days

Time-Function Mapping

Figure 7.7

Process chart l.jpg
Process Chart

Figure 7.8

Service blueprint l.jpg
Service Blueprint

  • Focuses on the customer and provider interaction

  • Defines three levels of interaction

  • Each level has different management issues

  • Identifies potential failure points

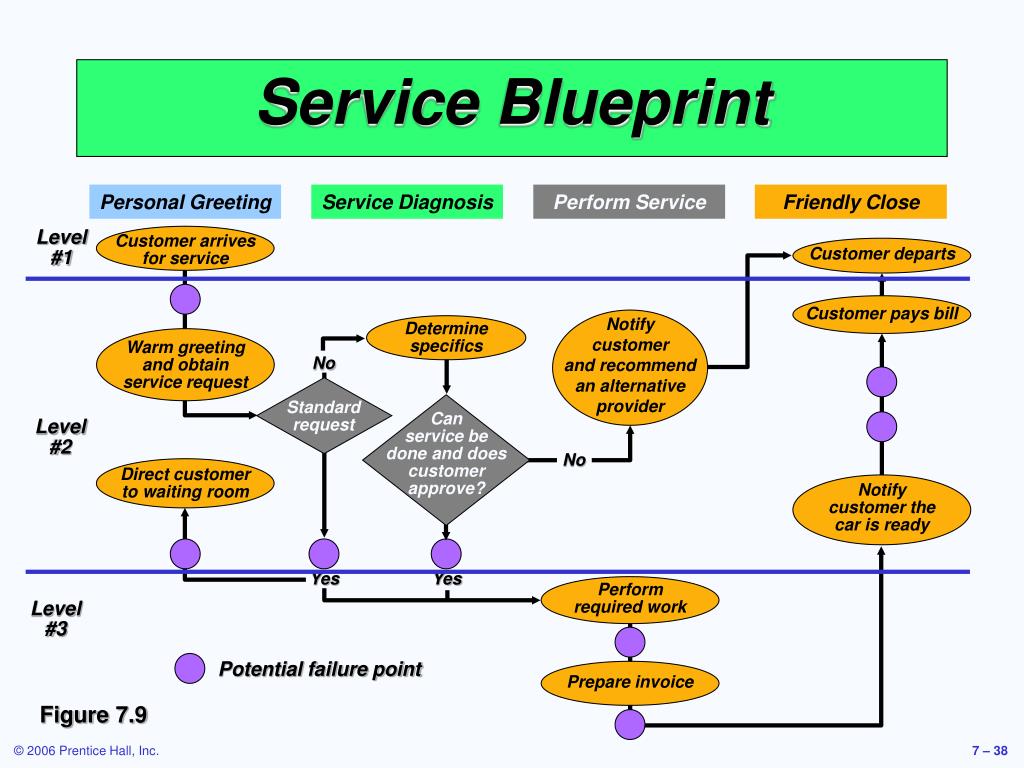

Service blueprint38 l.jpg

Personal Greeting

Service Diagnosis

Perform Service

Friendly Close



Customer arrives for service

Customer departs

Customer pays bill

Notifycustomerand recommendan alternativeprovider

Determine specifics

Warm greeting and obtain service request


Standard request

Canservice bedone and does customer approve?




Direct customer to waiting room

Notify customer the car is ready

Perform required work



Prepare invoice

Potential failure point

Service Blueprint



Figure 7.9

Process analysis tools l.jpg
Process Analysis Tools

  • Flowcharts provide a view of the big picture

  • Time-function mapping adds rigor and a time element

  • Value stream analysis extends to customers and suppliers

  • Process charts show detail

  • Service blueprint focuses on customer interaction

Service process matrix l.jpg

Degree of Customization



Mass Service

Professional Service

Private banking

Commercial banking



purpose law firms

Full-service stockbroker



Degree of Labor

Service Factory

Service Shop

Law clinics

Specialized hospitals

Limited-service stockbroker

Warehouse and catalog stores

Fine-dining restaurants

Fast food restaurants




No frills airlines

Service Process Matrix

Figure 7.10

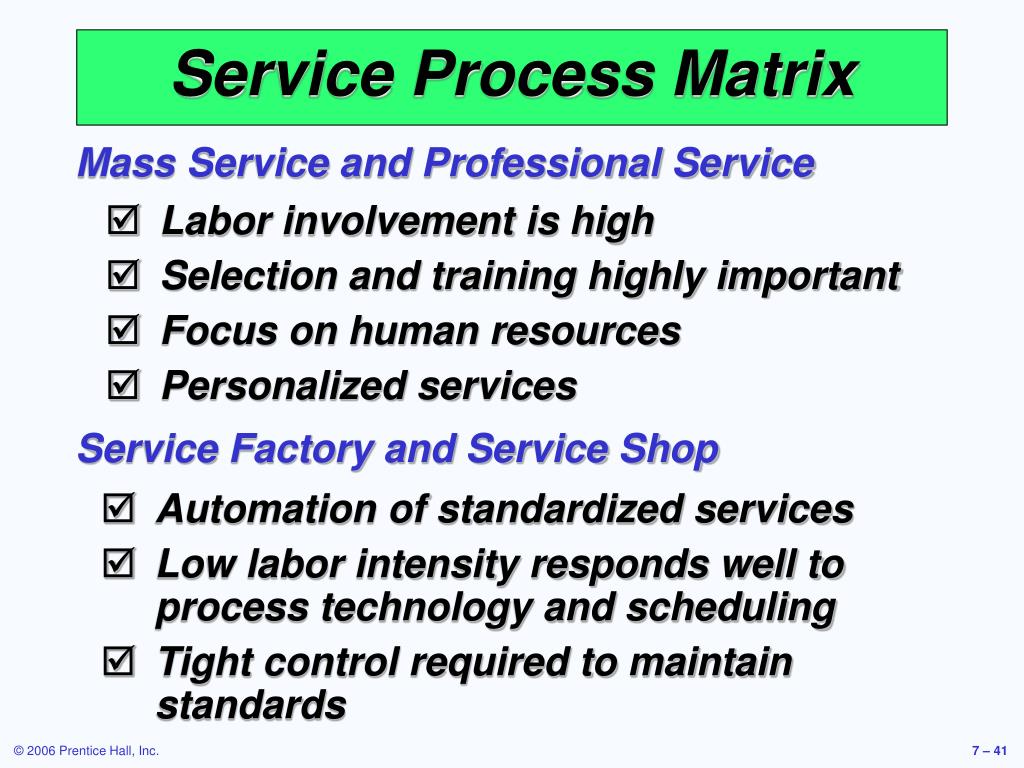

Service process matrix41 l.jpg

Mass Service and Professional Service

  • Labor involvement is high

  • Selection and training highly important

  • Focus on human resources

  • Personalized services

Service Factory and Service Shop

  • Automation of standardized services

  • Low labor intensity responds well to process technology and scheduling

  • Tight control required to maintain standards

Service Process Matrix

Equipment and technology l.jpg
Equipment and Technology

  • Often complex decisions

  • Possible competitive advantage

    • Flexibility

    • Stable processes

  • May allow enlarging the scope of the processes

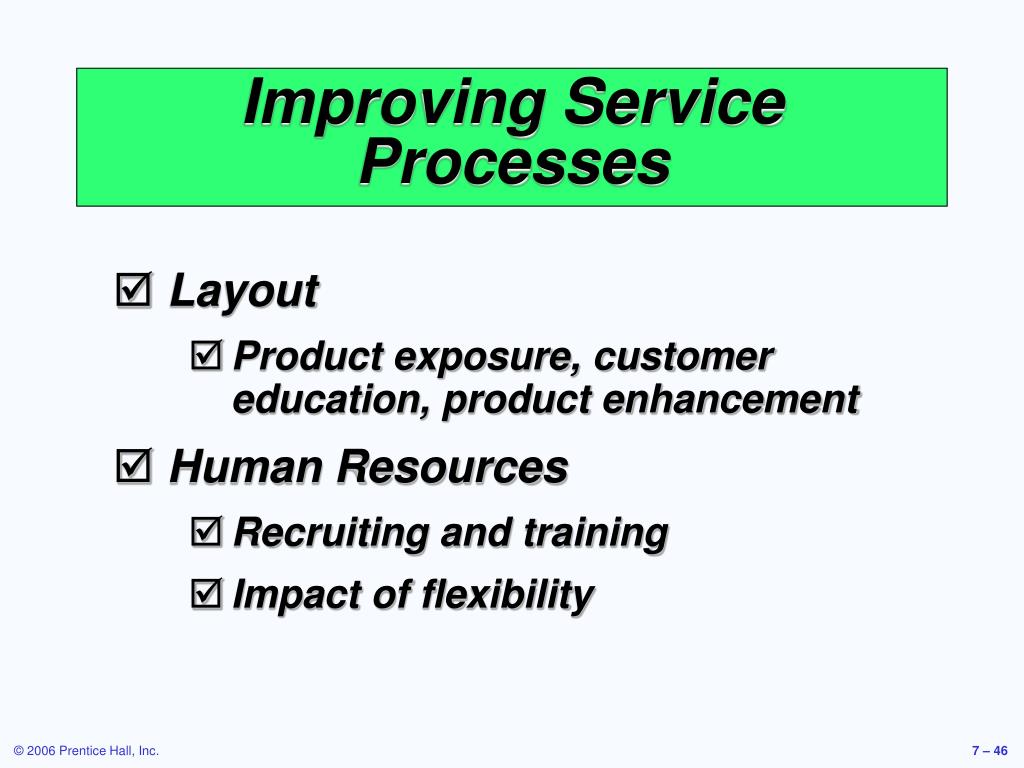

Improving service processes l.jpg
Improving Service Processes

  • Layout

    • Product exposure, customer education, product enhancement

  • Human Resources

    • Recruiting and training

    • Impact of flexibility

Production technology l.jpg
Production Technology

  • Machine technology

  • Automatic identification systems (AIS)

  • Process control

  • Vision system

  • Robot

  • Automated storage and retrieval systems (ASRS)

  • Flexible manufacturing systems (FMS)

  • Computer-integrated manufacturing (CIM)

Machine technology l.jpg
Machine Technology

  • Increased precision

  • Increased productivity

  • Increased flexibility

  • Improved environmental impact

  • Reduced changeover time

  • Decreased size

  • Reduced power requirements

Automatic identification systems ais l.jpg
Automatic Identification Systems (AIS)

  • Improved data acquisition

  • Reduced data entry errors

  • Increased speed

  • Increased scope of process automation

Process control l.jpg
Process Control

  • Increased process stability

  • Increased process precision

  • Real-time provision of information for process evaluation

  • Data available in many forms

Vision systems l.jpg
Vision Systems

  • Particular aid to inspection

  • Consistently accurate

  • Never bored

  • Modest cost

  • Superior to individuals performing the same tasks

Robots l.jpg

  • Perform monotonous or dangerous tasks

  • Perform tasks requiring significant strength or endurance

  • Generally enhanced consistency and accuracy

Automated storage and retrieval systems asrs l.jpg
Automated Storage and Retrieval Systems (ASRS)

  • Automated placement and withdrawal of parts and products

  • Reduced errors and labor

  • Particularly useful in inventory and test areas of manufacturing firms

Automated guided vehicle agv l.jpg
Automated Guided Vehicle (AGV)

  • Electronically guided and controlled carts

  • Used for movement of products and/or individuals

Flexible manufacturing systems fms l.jpg
Flexible Manufacturing Systems (FMS)

  • Computer controls both the workstation and the material handling equipment

  • Enhance flexibility and reduced waste

  • Can economically produce low volume at high quality

  • Reduced changeover time and increased utilization

  • Stringent communication requirement between components

Computer integrated manufacturing cim l.jpg
Computer Integrated Manufacturing (CIM)

  • Extension of flexible manufacturing systems

    • Backwards to engineering and inventory control

    • Forward into warehousing and shipping

    • Can also include financial and customer service areas

  • Reducing the distinction between low-volume/high-variety, and high-volume/low-variety production

Computer integrated manufacturing cim59 l.jpg

Top management decides to make a product

Computer-aided design (CAD) designs the product

OM runs the production process


Management Information System


Computer-aided manufacturing (CAM)

Automated storage and retrieval system (ASRS) and automated guided vehicles (AGVs)

Robots put the product together

Computer Integrated Manufacturing (CIM)

Figure 7.11

Process redesign l.jpg
Process Redesign

  • The fundamental rethinking of business processes to bring about dramatic improvements in performance

  • Relies on reevaluating the purpose of the process and questioning both the purpose and the underlying assumptions

  • Requires reexamination of the basic process and its objectives

  • Focuses on activities that cross functional lines

  • Any process is a candidate for redesign

Ethics and environmentally friendly processes l.jpg
Ethics and Environmentally Friendly Processes

Reduce the negative impact on the environment

  • Encourage recycling

  • Efficient use of resources

  • Reduction of waste by-products

  • Use less harmful ingredients

  • Use less energy
