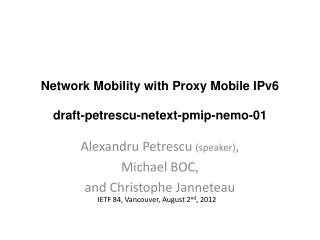

Network Mobilitywith Proxy Mobile IPv6draft-petrescu-netext-pmip-nemo-01

Alexandru Petrescu (speaker),

Michael BOC,

and Christophe Janneteau

IETF 84, Vancouver, August 2nd, 2012

problem of network mobility
Problem of Network Mobility
  • Problem of network mobility in a PMIP domain:
    • PMIP allocates a /64 prefix HNP to a Mobile Host
    • HNP topologicalcorrectnessonly on MH-MAG iface
    • HNP connected route on MAG
    • LFNsneedaddresses
    • MAG wouldneed a classical non-connected route for parts of HNP, towards MH interface
  • Needallocation of a MNP (MovingNetwork Prefix) to a MR
pmip network mobility problem
PMIP Network Mobilityproblem

Towards Internet

Towards Internet

PMIP Fixed

Infrastructure

LMA

LMA

MAG1

MAG2

MAG1

MAG2

Routing Table

[HNP, LLMH@]

Routing Table

[HNP, LLMR@]

[MNP, LLMR@]

(handover)

Moving Network

A1; LLMH@

Routing Table

[A1, egress]

[MNP, ingress]

A1;

LLMR@

Routing Table

[HNP, egress]

[A1, egress]

MH

(handover)

MR

MNP needed!

A6

LFN1

LFN1

A3

A5

PMIP HNP,with MH

Need MNP for LFNs

design considerations of delegating a prefix in a pmip context
Design Considerations of Delegating a Prefixin a PMIP context
  • Should MNP beallocated by whom?
    • DHCP?
    • PMIP?
    • Derivedfrom HNP?
  • Should LMA allocate a prefix?
    • or shoulditaccept a prefixallocated by DHCP?
  • Shouldhave support for shared links?
    • or for ptp links?
  • Should LMA beco-localizedwith a DHCP Server?
    • or shoulditbeseparated?
  • « Proxy »
    • should use proxy NeighborDiscovery on MR?
    • should use proxy DHCP on MR? On MAG? On LMA?
    • or shouldavoid use of proxiesand bridges?
  • How to auto-configure LFNs out of MNP?
    • will /65 workwith SLAAC and LFNs?
pmipv6 nemo with dhcpv6 pd 1 2
PMIPv6-NEMO with DHCPv6-PD (1/2)
  • Extension of I-D PD-PMIP?
  • What’sdifferent?
    • Prefixdelegationensured by DHCPv6-PD (vs. ensured by LMA)
      • Hintssupported
      • Multiple PDs in requestsupported (vs. only a single one, PBU MNP=0)
    • Mobilitymgmtof delegatedprefixesensured by PMIPv6
      • Prefixes are imposed by DR to LMA (vs. imposed by LMA to DR)
    • DHCP DelgRtrcanbeseparatedfrom LMA (vs. DR MUST beco-locatedwith LMA)
    • MAG changes DHCPv6’s DUID to PMIPv6’s MNID
      • MNID is a common identifier between PMIP and DHCP databases (vs. no linkbetwenDR and LMA’sdatabases)
    • Bit Q (vs. Bit R)
    • Lifetime management isnecessary (vs. permanent)
pmipv6 nemo with dhcpv6 pd 2 2
PMIPv6-NEMO with DHCPv6-PD (2/2)

MR

(Requ.Router)

DHCPv6 Relay

MAG

DHCPv6 Server

(Delegating Router)

LFN

LMA

CN

MR isregisteredat LMA (PMIPv6 normal procedure) and has HNP(s)

Delegating router

may not beco-located

with LMA

RA(MR=Default router)

DHCP Request (DUID,MNP/X)

DHCP Relay-forward

(DUID=MNID, MNP/X)

Provided IA PD hint

maybeconsidered

DHCP relay-reply

(MNID,MNP/Y)

PBU (MNID, MNP/Y)

DUID ischanged

to PMIPv6’s MNID

PBA (MNID, MNP/Y)

DHCP Reply

(DUID,MNP/Y)

RA(MNP/64) or

DHCPv6(MNP/128)

Data using

HNP & MNP

Tunnel IPv6-in-IPv6

PMIPv6’s MNID is

changed back to DUID

pmip network mobility hnp division
PMIP Network Mobility, HNP Division
  • Couldbe an extension to PMIP:
    • PBU tells LMA that a MNP isout of HNP
  • Self-form MNP out of HNP (alternative to use DHCP-PD )
  • Offer network mobility, without modification of PMIP messages
  • Works on ptp links, not on shared links
slide8

A011000

Example HNP division withhypothetical

5bit addresses

  • HNP/2  A/5, MNP1/4

and MNP2/3

  • HNP/64  A/128, MNP1/66 and MNP2/65.

A211010

To beused by LFNs

A311011

MNP1 /4

HNP Division

A11000

A1 11001

To beused by MR’segress

HNP /2

A411100

A511101

To beused by LFNs

A611110

A711111

MNP2 /3

slide9

SimilarPrefix Division concepts alluded to in:

    • draft-krishnan-intarea-pd-epc-00, « PrefixDelegation in EPC Networks », 2010.
    • draft-arkko-homenet-prefix-assignment-01, « PrefixAssignment in a Home Network », 2011.
  • There isimplementation of PMIP-NEMO
slide10

Questions to the group:

    • Is HNP Division an attractive way of creating MNP
    • Is separation of DHCP Server from LMA good for deployments
