  1. Hydrometeorological Prediction Center 2011 Review Kenny James Forecaster With contributions from Faye Barthold, Mike Bodner, Keith Brill, Mike Folmer, Jim Hoke, Dave Novak, Bob Oravec, Dan Petersen, and Mike Schichtel 1

  2. Objectives • Summary of HPC operations • Verification/Feedback/Future of • - QPF • - Winter weather • - Medium range • - Testbed activities 2

  3. Medium Range Hydrometeorological guidance for: HPC Operations QPF QPF Winter Weather Winter Weather Medium Range • NWS field offices • Other NCEP centers • Federal/state agencies • Aviation • Media • Private sector • International partners • Academic community • General public Model Diagnostics Model Diagnostics Short Term Weather Short Term Weather Surface Analysis Surface Analysis Tropical Tropical Alaska Med. Range Alaska Med. Range Daily Weather Map Daily Weather Map 3

  4. QPF Irene Mississippi Birds Point levee 4

  5. FY11 annual GPRA Goal 0.3, HPC 0.34 – 2nd highest ever % Improvement over NAM 31% % Improvement over GFS 25% % Improvement over ECMWF 13% 5

  6. 6

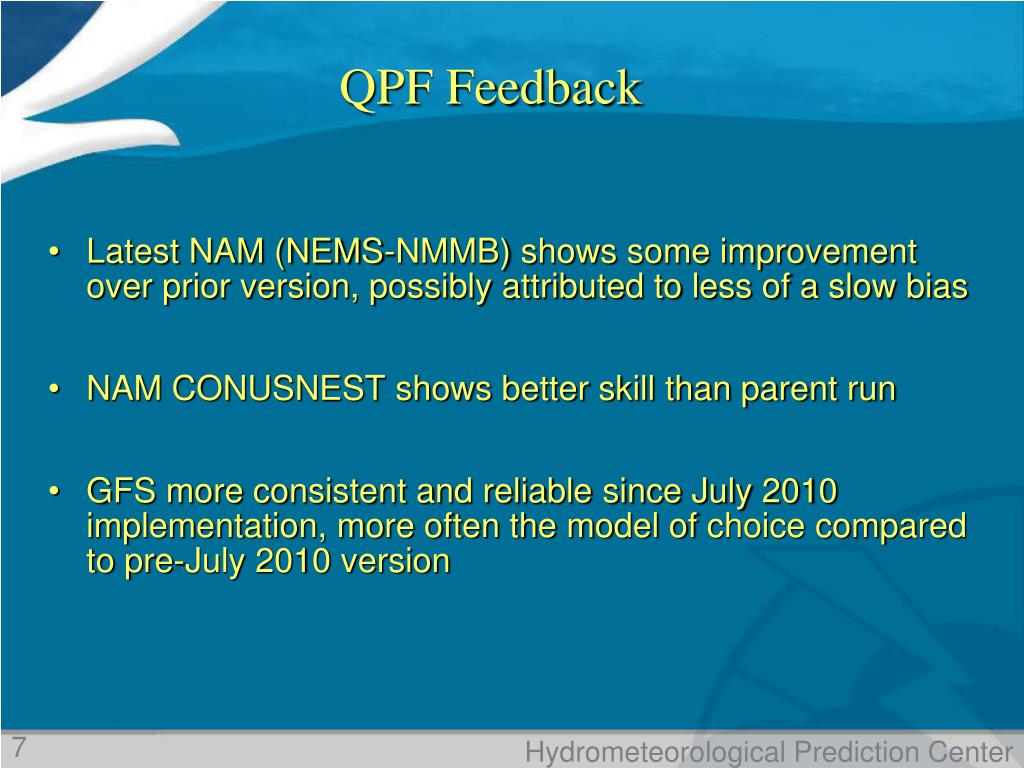

  7. QPF Feedback • Latest NAM (NEMS-NMMB) shows some improvement over prior version, possibly attributed to less of a slow bias • NAM CONUSNEST shows better skill than parent run • GFS more consistent and reliable since July 2010 implementation, more often the model of choice compared to pre-July 2010 version 7

  8. NAM & GFS Positional biases continue for MCSs From Yost and Schumacher, 2011 8

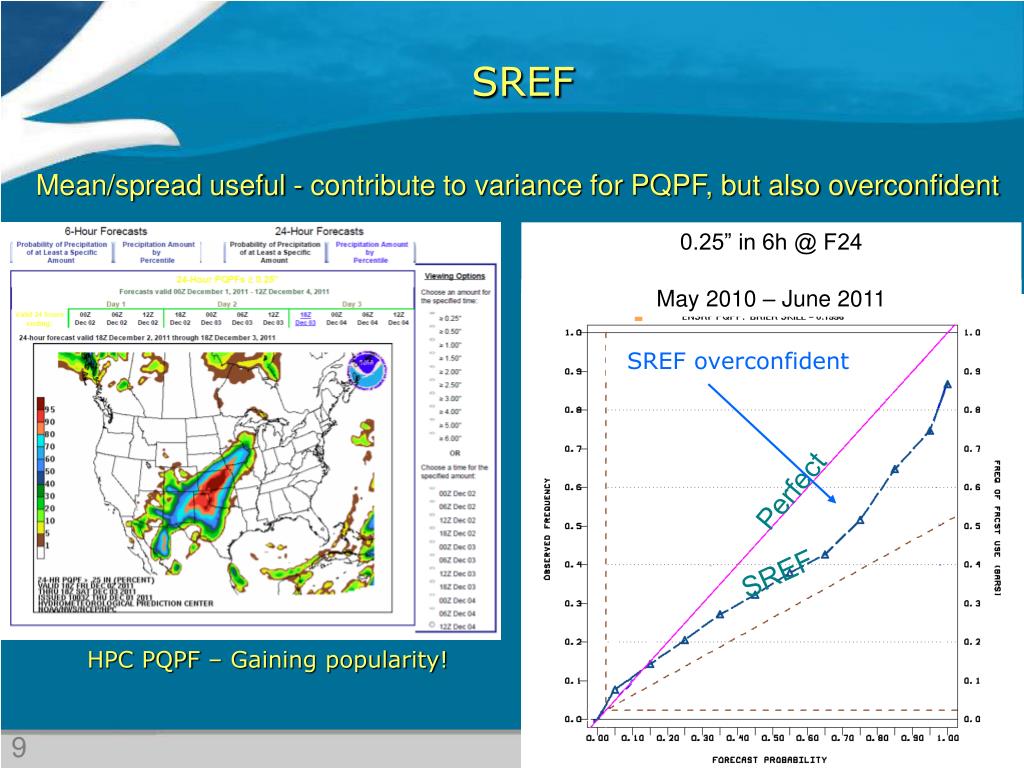

  9. 0.25” in 6h @ F24 May 2010 – June 2011 Perfect SREF SREF Mean/spread useful - contribute to variance for PQPF, but also overconfident SREF overconfident HPC PQPF – Gaining popularity! 9

  10. Hi-res NMM/ARW Often improve upon the north bias for MCSs Still a high bias with many false alarms Missed have them July 19/20 during record flooding due to preemption for tropical invest systems Contribute to a hi-res ensemble suite (SSEO) compiled at the SPC 10

  11. Winter Weather 11

  12. HPC Deterministic Snowfall East of the Rockies x 100 Heavily influenced by 2 major snowstorms, which models had difficulty with 12

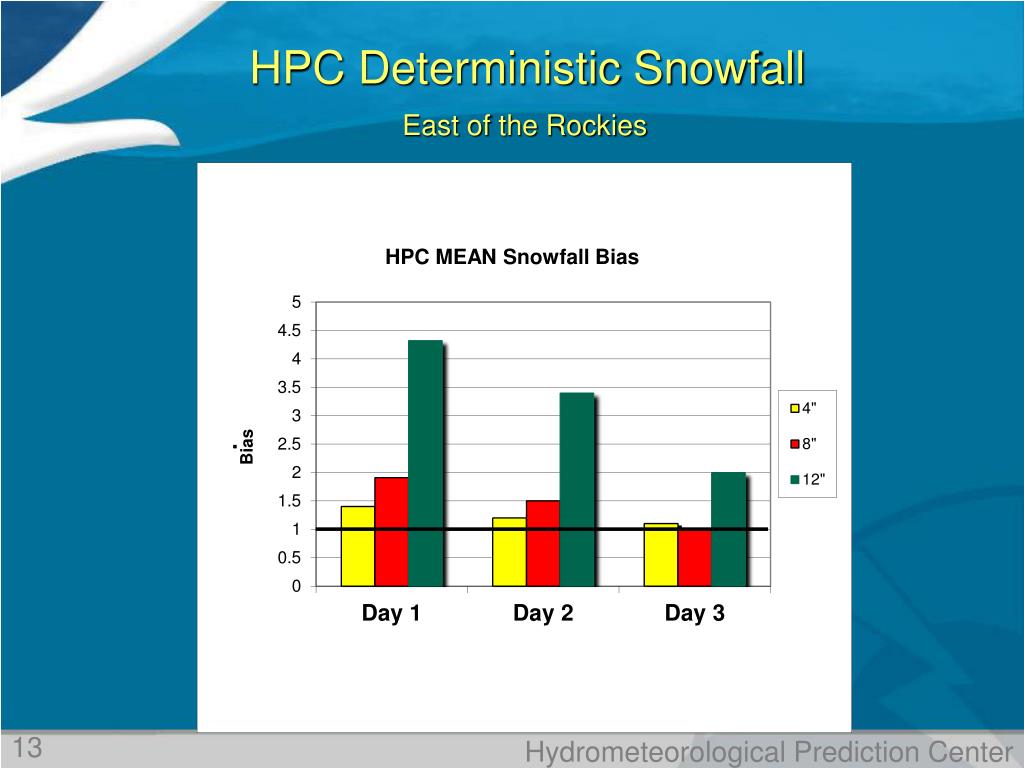

  13. HPC Deterministic Snowfall East of the Rockies . 13

  14. Winter Wx Feedback New NAM too deep with lows Oct 28, Nov 1, 8, 28 - influences precip type & snow amounts in our WWD blender, forecasters less confident - Image from WFO La Crosse 15

  15. Winter Wx Feedback Cont. P-type & SN based on microphysics/LSM data Would like additional parameters for our WWD blender - NAM CONEST 700 mb temps - UKMET 78 hr 2m/925/850/700 mb temps Impact-based guidance to assist in decision support and determining societal impacts - SREF prob of ZR (0.1, 0.10, 0.25, etc..), Max SN rate 16

  16. Medium Range 17

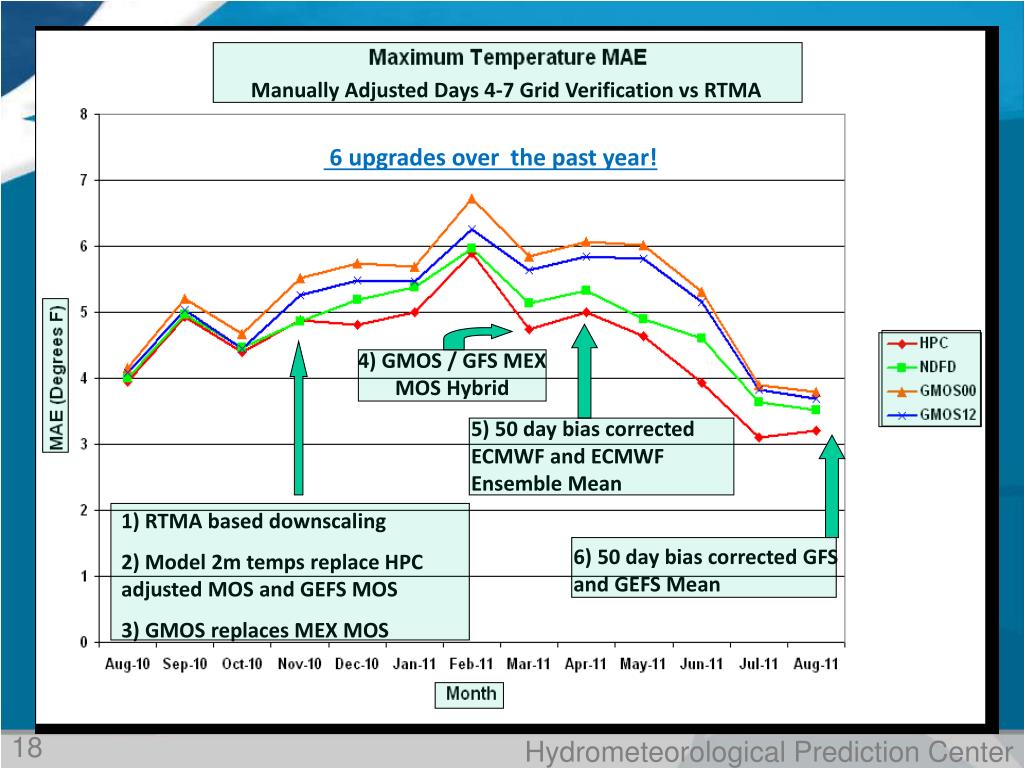

  17. Manually Adjusted Days 4-7 Grid Verification vs RTMA 6 upgrades over the past year! 4) GMOS / GFS MEX MOS Hybrid 5) 50 day bias corrected ECMWF and ECMWF Ensemble Mean • RTMA based downscaling • Model 2m temps replace HPC adjusted MOS and GEFS MOS • 3) GMOS replaces MEX MOS 6) 50 day bias corrected GFS and GEFS Mean 18

  18. Medium Range Feedback GFS/GEFS Fast Bias • Verification white • GFS yellow • GEFS members brown too fast 19

  19. Medium Range Feedback GFS MOS Max T day 7 possibly bogus Max T at Roswell, NM much higher 20

  20. Medium Range Feedback NAEFS grids for all NDFD parameters More model guidance for watch/warning decision support & for determining societal impacts - GEFS probs for SN > 4, 8, 12”, ZR > 0.01, 0.10, 0.25” - Heat index > 105, Wind Chill < -15, Wind Speed > 25 or 35 kts Access to parallel runs of the GFS/GEFS without adaptive sounding data Hopeful that the improved NAM leads to a better DGEX 21

  21. Testbed Interactions • Active collaboration with EMC and sister Testbeds • - Spring/Winter Experiments • - Verification & Tools • Helps diagnose model errors & • train forecasters • - Convection-allowing guidance • - Explicit microphysics diagnostics • - New models/post processing • Desire even closer coordination on model /MOS imp. GOES-R Proving Ground 22

  22. Final thoughts & plans • Interpreting hi-res guidance may require a paradigm shift • Native grid resolution desired by forecasters • Clearer file naming convention for models • 2012-16 HPC plans & activities include: - Expand decision support services for high impact events - Extend medium range, including adding probabilities - Increase automation for greater responsiveness 23

  23. Questions? kenneth.james@noaa.gov 24
