  1. Chapter 4: Dimensions, Hierarchies, Operations, Modeling Prof. Bayer, DWH, Ch.4, SS 2002

  2. Chapter 4.1 Hierarchical Dimensions Def: Hierarchical Dimensions are composite keys with an order on the key attributes. Prefixes are allowed as keys. Ex: dimension Time = ( Year, Month, Day) legal keys are: (Year) or (Year, Month) or (Year, Month, Day) Def: Basic facts are values in cells with full foreign keys Prof. Bayer, DWH, Ch.4, SS 2002

  3. Aggregations, Summaries Def: Aggregations are facts in cells with partial keys. These facts are derived by aggregation functions. In a cube with derived facts the aggregation function must be specified. Ex: Sales on a monthly basis Sales (Year, Month) = S Sales (Year, Month, Days) Aggregation Functions: count, sum, avg, min, max, ... Prof. Bayer, DWH, Ch.4, SS 2002

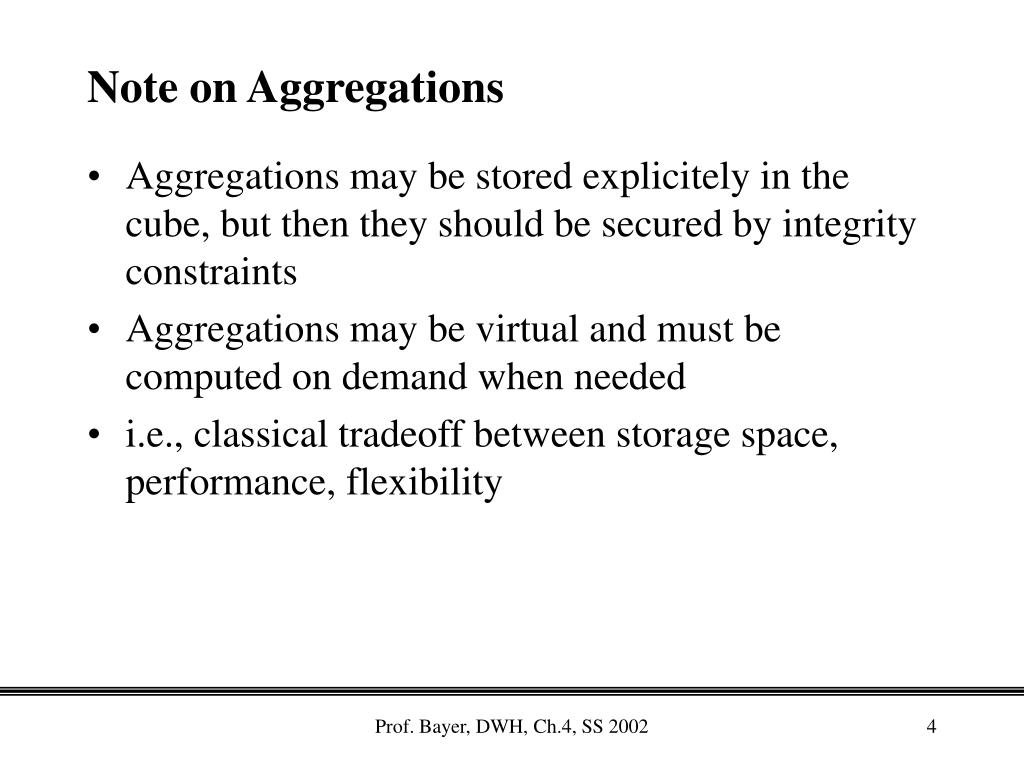

  4. Note on Aggregations • Aggregations may be stored explicitely in the cube, but then they should be secured by integrity constraints • Aggregations may be virtual and must be computed on demand when needed • i.e., classical tradeoff between storage space, performance, flexibility Prof. Bayer, DWH, Ch.4, SS 2002

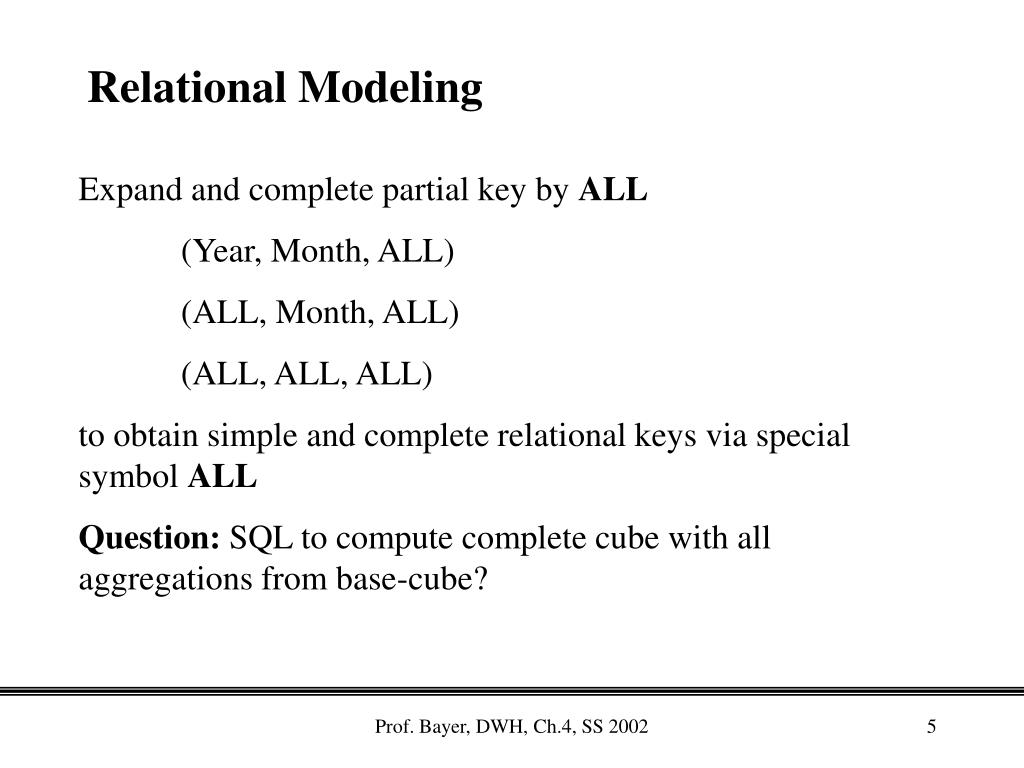

  5. Relational Modeling Expand and complete partial key by ALL (Year, Month, ALL) (ALL, Month, ALL) (ALL, ALL, ALL) to obtain simple and complete relational keys via special symbol ALL Question: SQL to compute complete cube with all aggregations from base-cube? Prof. Bayer, DWH, Ch.4, SS 2002

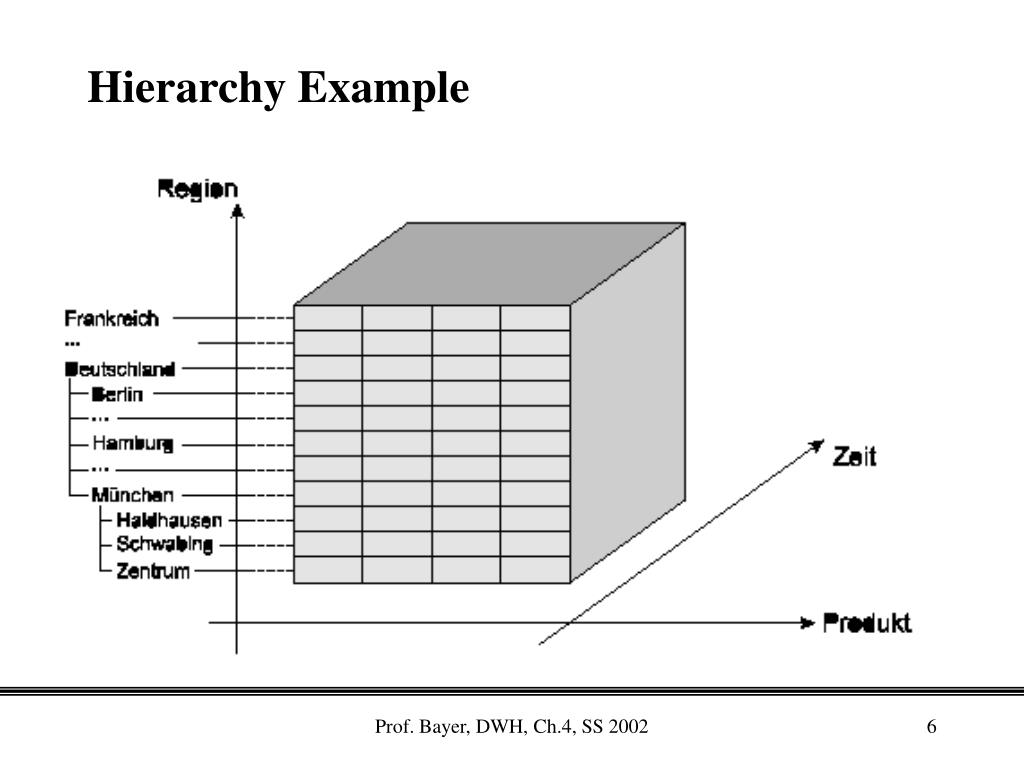

  6. Hierarchy Example Prof. Bayer, DWH, Ch.4, SS 2002

  7. Chapter 4.2: OLAP Operations Def: Roll-up computes higher aggregations from lower aggregations or base facts according to hierarchies Ex: for base facts (Year, Month, Day) there are 3 hierarchical roll-up functions: Roll-up (Year, Month, ALL) Roll-up (Year, ALL, ALL) Roll-up (ALL, ALL, ALL) which are supported in general (canonical roll-ups) Prof. Bayer, DWH, Ch.4, SS 2002

  8. Additional Roll-ups: (ALL, Month, ALL) etc. therefore 23 -1 aggregations or in general 2m -1 aggregations for m hierarchy levels Note: see later chapters for the support of arbitrary aggregations Note: for m dimensions with h1, h2, ...hm hierarchy levels there are different aggregations for a given aggregation function. Prof. Bayer, DWH, Ch.4, SS 2002

  9. Size of base cube 2-dim example Dim1: (4, 5) = cardinality of the dimension levels Dim2: (6, 7, 2) (4 5) ( 6 7 2) 1680 = Size of base cube 42 20 84 Prof. Bayer, DWH, Ch.4, SS 2002

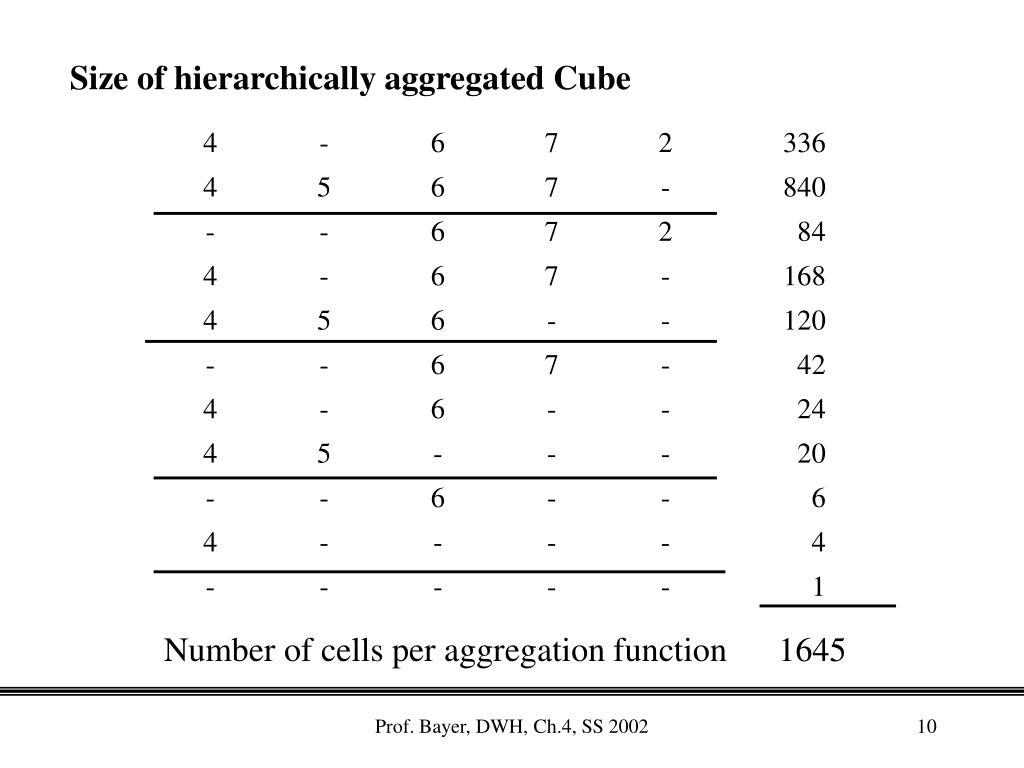

  10. Size of hierarchically aggregated Cube Number of cells per aggregation function 1645 Prof. Bayer, DWH, Ch.4, SS 2002

  11. Size of completely aggregated cube 12 7 14 24 24 x 6 =144 168 5 x 168 = 840 840 + 1686 x 168 10084 x 1008 = 40325 x 1008 = 4032 + 1008 = 5040 : : Prof. Bayer, DWH, Ch.4, SS 2002

  12. Computation with binary Tree 4 5 1 20 4 1 6 1 6 24 120 20 4 1 1 1 7 7 1 7 7 20 168 24 28 4 140 840 120 2 1 1 2 1 1 1 2 2 1 2 1 2 2 1 2 8 4 20 40 48 24 56 28 120 140 336 168 1680 840 240 280 Prof. Bayer, DWH, Ch.4, SS 2002

  13. Size of the Cube Lemma: Given a data cube with m dimensions with h1, ..., hm hierarchy levels resp. Let the hierarchy levels of dimension i have Then the base cube has and the cube with all aggregations has Prof. Bayer, DWH, Ch.4, SS 2002

  14. Size of the Cube (2) The aggregated cube is larger than the base cube by the factor Prof. Bayer, DWH, Ch.4, SS 2002

  15. Size of the hierarchically aggregated Cube For a hierarchy i with hi levels and there are hierarchical aggregation possibilities , i.e. Lemma: A hierarchically completely aggregated data cube has Prof. Bayer, DWH, Ch.4, SS 2002

  16. Ex: (4 5) (6 7 2) size of the hierarchically aggregated cube plus base cube = (1 + 4 + 20) * (1 + 6 + 42 + 84) = 25 * 133 = 3325 Ex: (4 5) (6 7 2) ( 8 3) size of base cube: 40,320 hierarchically aggregated cube plus base: = (1 + 4 + 20) * (1 + 6 + 42 + 84) * (1 + 8 + 24) = 3325 * 33 = 109,725 Prof. Bayer, DWH, Ch.4, SS 2002

  17. Ex: (4 5) (6 7 2) ( 8 3) (5 9) size of base cube: 1 814,400 hierarchically aggregated cube plus base: = 109,725 * (1 + 5 + 45) = 5 595,975 Prof. Bayer, DWH, Ch.4, SS 2002

  18. Additional comments on aggregations 1. In addition to the size of the complete cube there is a factor of 5 for the various aggregation functions, e.g. sum, avg, min, max, count, ... 2. So far we did not consider general restrictions, e.g. „all Saturdays in March“ or „vacation months July and August“, which cross bounds of hierarchy levels Interactive query formulation results in an unlimited number of aggregations Optimization: restrictions corresponding to hierarchy levels shoud be pushed down, since they lead to query boxes Prof. Bayer, DWH, Ch.4, SS 2002

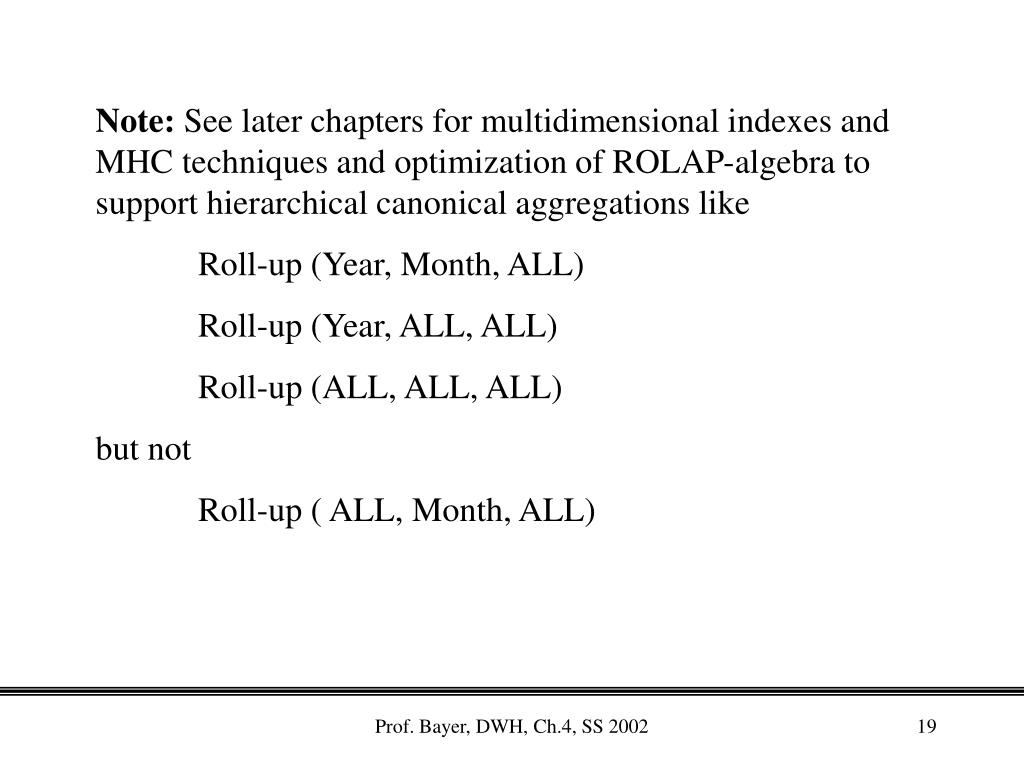

  19. Note: See later chapters for multidimensional indexes and MHC techniques and optimization of ROLAP-algebra to support hierarchical canonical aggregations like Roll-up (Year, Month, ALL) Roll-up (Year, ALL, ALL) Roll-up (ALL, ALL, ALL) but not Roll-up ( ALL, Month, ALL) Prof. Bayer, DWH, Ch.4, SS 2002

  20. Optimization Problem Non-hierarchical aggregation, e.g. March for all years decompose into union of several restrictions, e.g. S Sales (Year, Month, Day) where Month = March and (Year = 1996 or Year = 1997 or Year = 1998) see later for translation into ROLAP expression and transformations for optimization Prof. Bayer, DWH, Ch.4, SS 2002

  21. Multiple Hierarchies e.g. the time hierarchy Aggregation for month e.g. by covering QB of weeks and postfiltering Prof. Bayer, DWH, Ch.4, SS 2002

  22. Navigation Operations Drill Down: first show single result for aggregated value, e.g. sales per day, then show: hourly values for days with very high or very low sales in order to plan working hours for sales people better Other Examples: daily sales during Christmas season vacation bookings for skiing on fasching Prof. Bayer, DWH, Ch.4, SS 2002

  23. Roll-up: Compute Aggregations Prof. Bayer, DWH, Ch.4, SS 2002

  24. Slicing Selection of a smaller data cube or even reduction of a multidimensional datacube to fewer dimensions by a point restriction in some dimension (becomes pivot element) Prof. Bayer, DWH, Ch.4, SS 2002

  25. Dicing (würfeln) rotate result, to show another view, e.g. exchanging rows and columns Slice management precomputing and caching of several slices for later or special use, e.g. for a special sales person Prof. Bayer, DWH, Ch.4, SS 2002

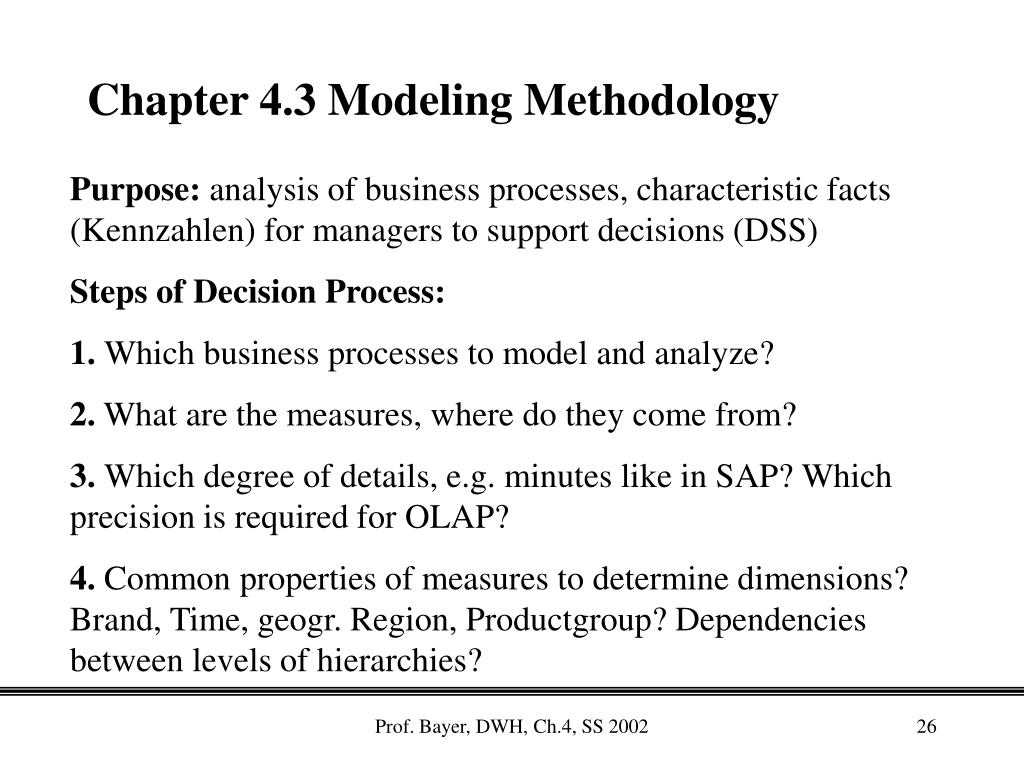

  26. Chapter 4.3 Modeling Methodology Purpose: analysis of business processes, characteristic facts (Kennzahlen) for managers to support decisions (DSS) Steps of Decision Process: 1. Which business processes to model and analyze? 2. What are the measures, where do they come from? 3. Which degree of details, e.g. minutes like in SAP? Which precision is required for OLAP? 4. Common properties of measures to determine dimensions? Brand, Time, geogr. Region, Productgroup? Dependencies between levels of hierarchies? Prof. Bayer, DWH, Ch.4, SS 2002

  27. 5. Attributes of dimensions, e.g. of products • screen size of TV & computers • cc and PS for cars • focal length for camera • Problem: how common are properties to dimensions? Non common properties cannot be modeled by levels of dimensions, are called features at GfK (up to 50), they are numbered, their meaning dependent on a specific dimension element, e.g. • TV: screen size color audio system • Car: transmissioncc PS #cyl ... Prof. Bayer, DWH, Ch.4, SS 2002

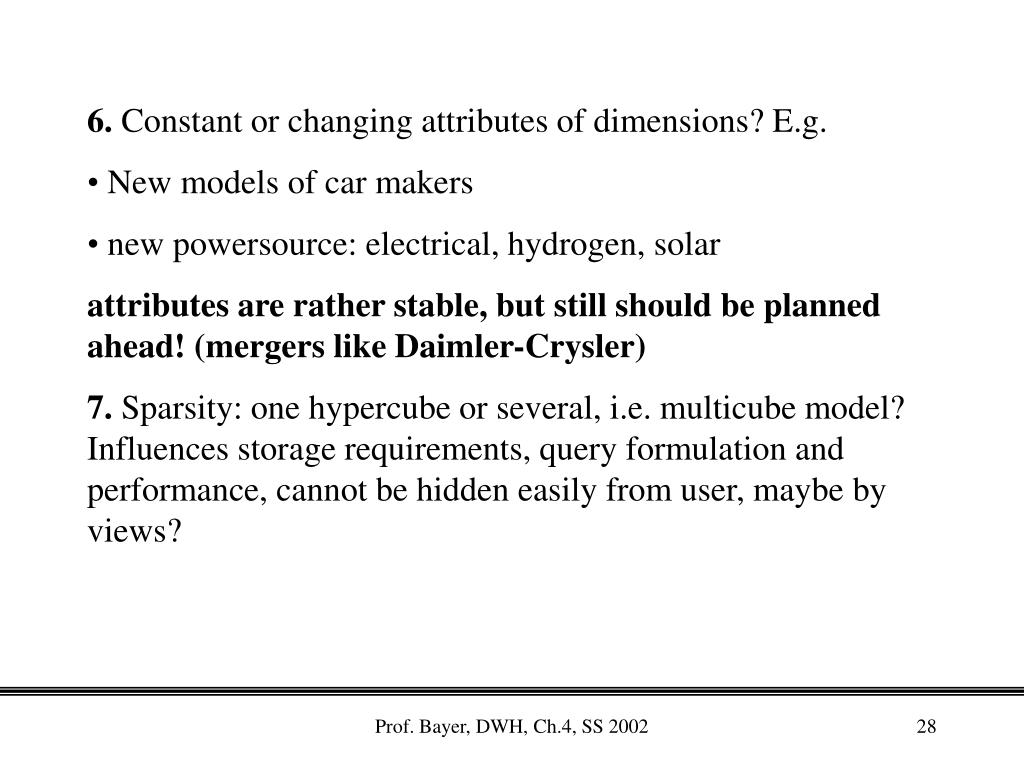

  28. 6. Constant or changing attributes of dimensions? E.g. • New models of car makers • new powersource: electrical, hydrogen, solar • attributes are rather stable, but still should be planned ahead! (mergers like Daimler-Crysler) • 7. Sparsity: one hypercube or several, i.e. multicube model? Influences storage requirements, query formulation and performance, cannot be hidden easily from user, maybe by views? Prof. Bayer, DWH, Ch.4, SS 2002

  29. Total costs Maintenance costs Avg. Response time 0% 100% Number of aggregates 8. Caching and management of aggregates? Time Optimal Number of aggregates Prof. Bayer, DWH, Ch.4, SS 2002

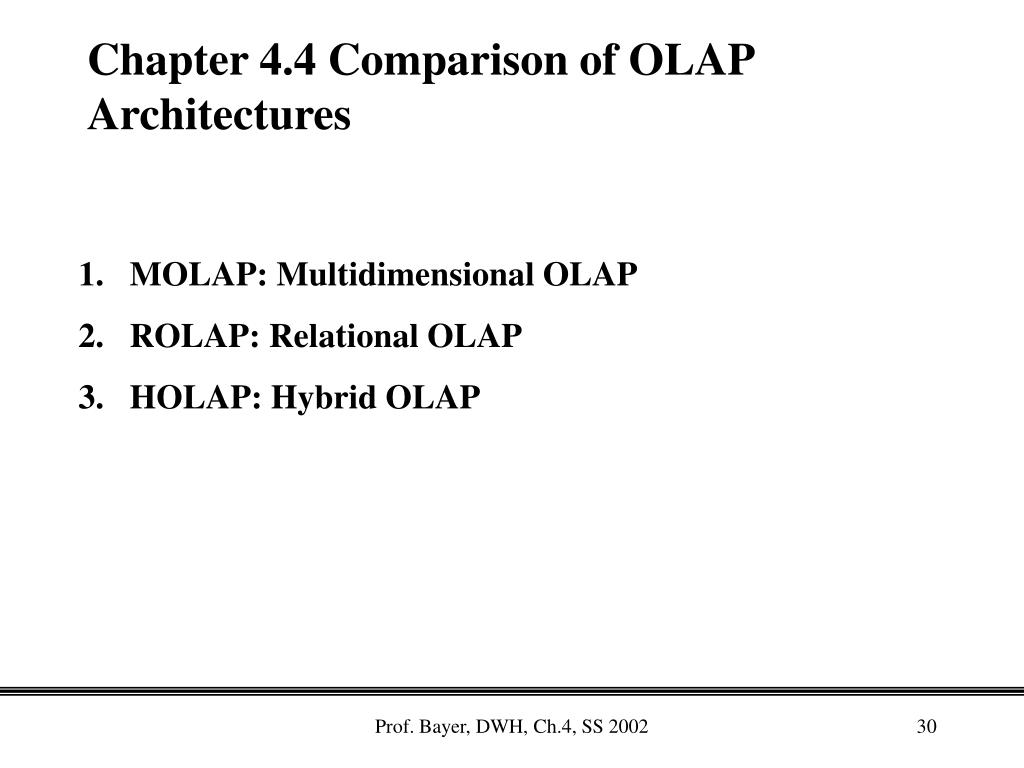

  30. Chapter 4.4 Comparison of OLAP Architectures • MOLAP: Multidimensional OLAP • ROLAP: Relational OLAP • 3. HOLAP: Hybrid OLAP Prof. Bayer, DWH, Ch.4, SS 2002

  31. MOLAP Architecture Prof. Bayer, DWH, Ch.4, SS 2002

  32. MDDBMS in ANSI-X3-Sparc Prof. Bayer, DWH, Ch.4, SS 2002

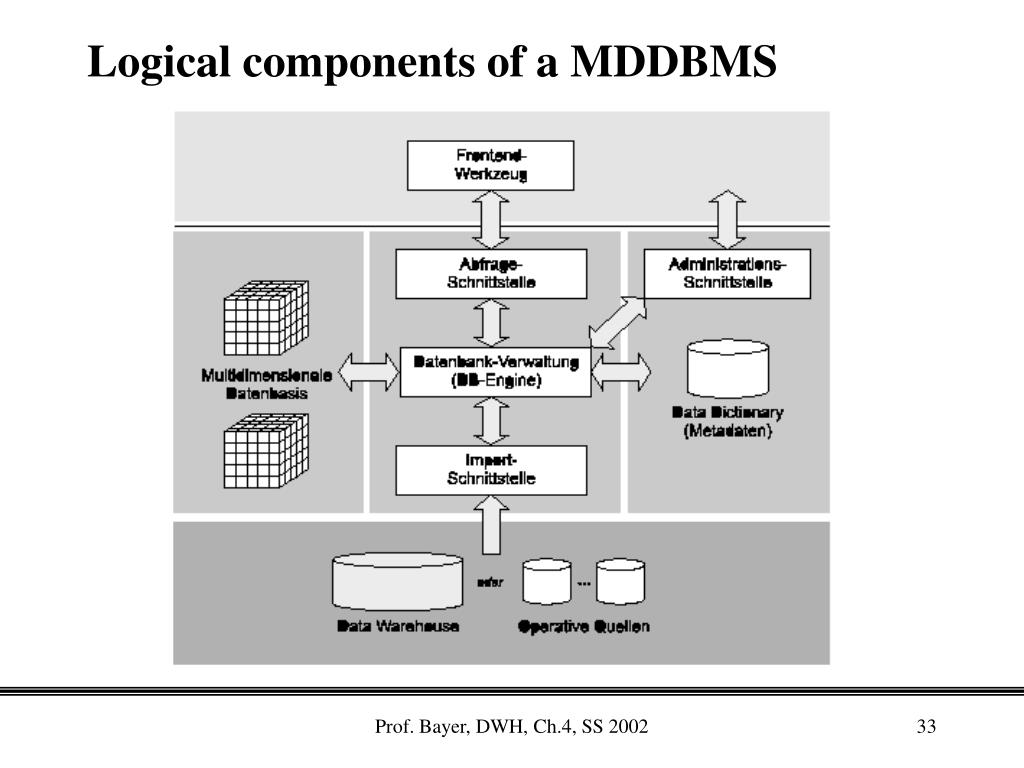

  33. Logical components of a MDDBMS Prof. Bayer, DWH, Ch.4, SS 2002

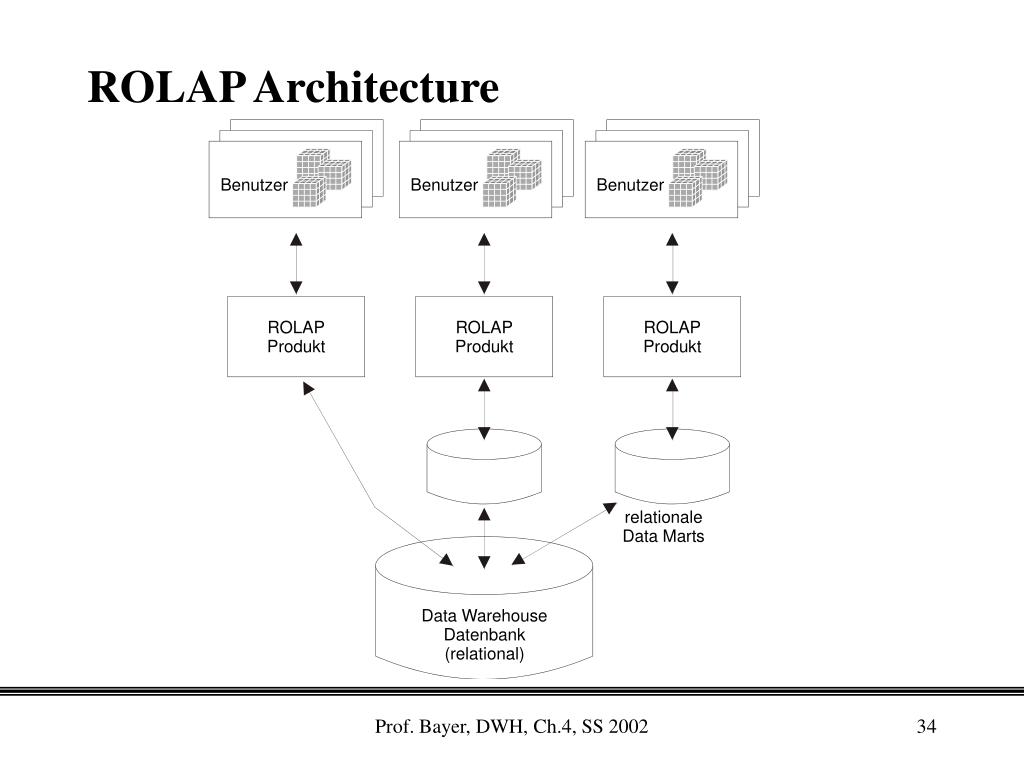

  34. ROLAP Architecture Prof. Bayer, DWH, Ch.4, SS 2002

  35. HOLAP Architecture Prof. Bayer, DWH, Ch.4, SS 2002

  36. Reasons for MOLAP • performance • write access • Data Marts • functional power • Reasons for ROLAP • scalability • flexible precomputations, partial aggregates • parallelism • DB-mamagement and ACID Prof. Bayer, DWH, Ch.4, SS 2002
