  1. Aerospace 410 Aerospace Propulsion

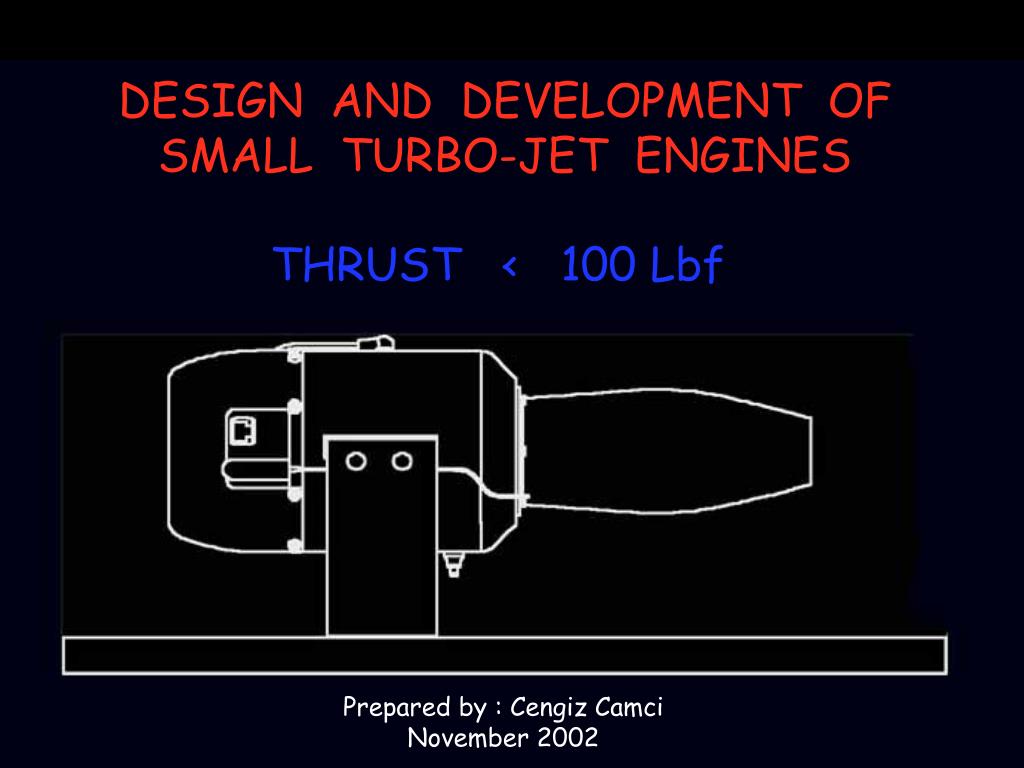

  2. DESIGN AND DEVELOPMENT OF SMALL TURBO-JET ENGINES THRUST < 100 Lbf Prepared by : Cengiz Camci November 2002

  3. A LABORATORY DEMONSTRATION IS SCHEDULED ON THIS FRIDAY 11/22/2002 12:00-1:10 pm Department of Aerospace Engineering

  4. There are two parts in this presentation General Small Engine Details Engines up to a few hundred pounds 2. Sophia J-850 lbs Turbo-jet Engine Used in our laboratory demonstration THIS FRIDAY !!! 12: 00 pm

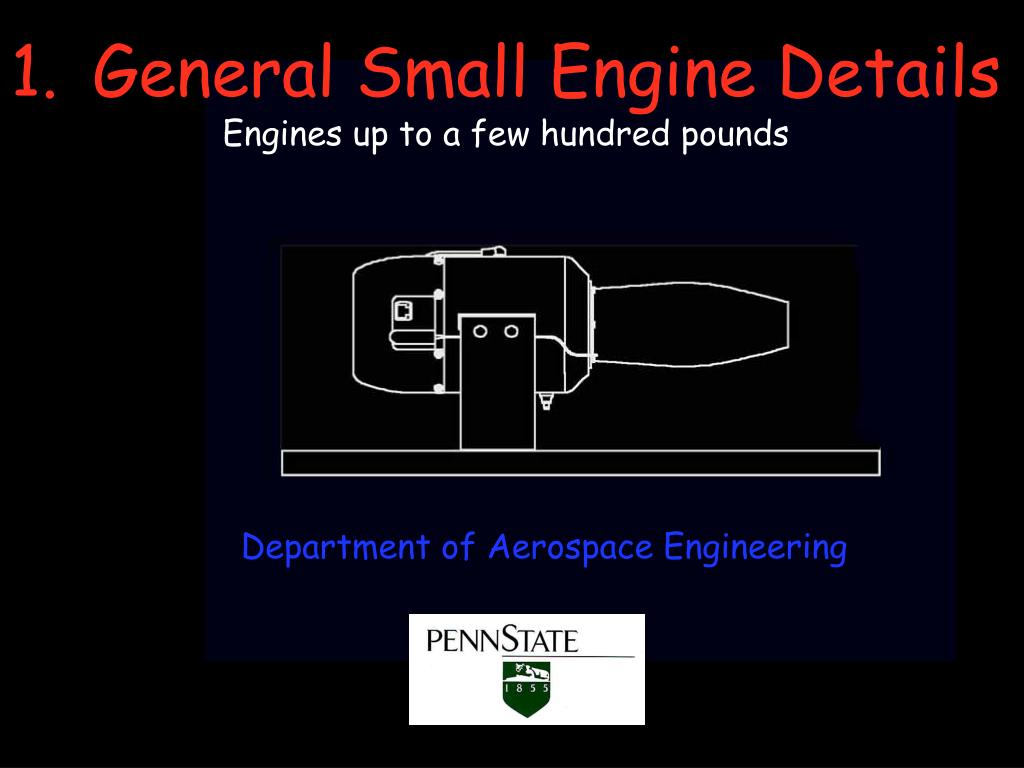

  5. 1. General Small Engine Details Engines up to a few hundred pounds Department of Aerospace Engineering

  6. 2. Sophia J-850 19 lbs Turbo-jet Engine Department of Aerospace Engineering

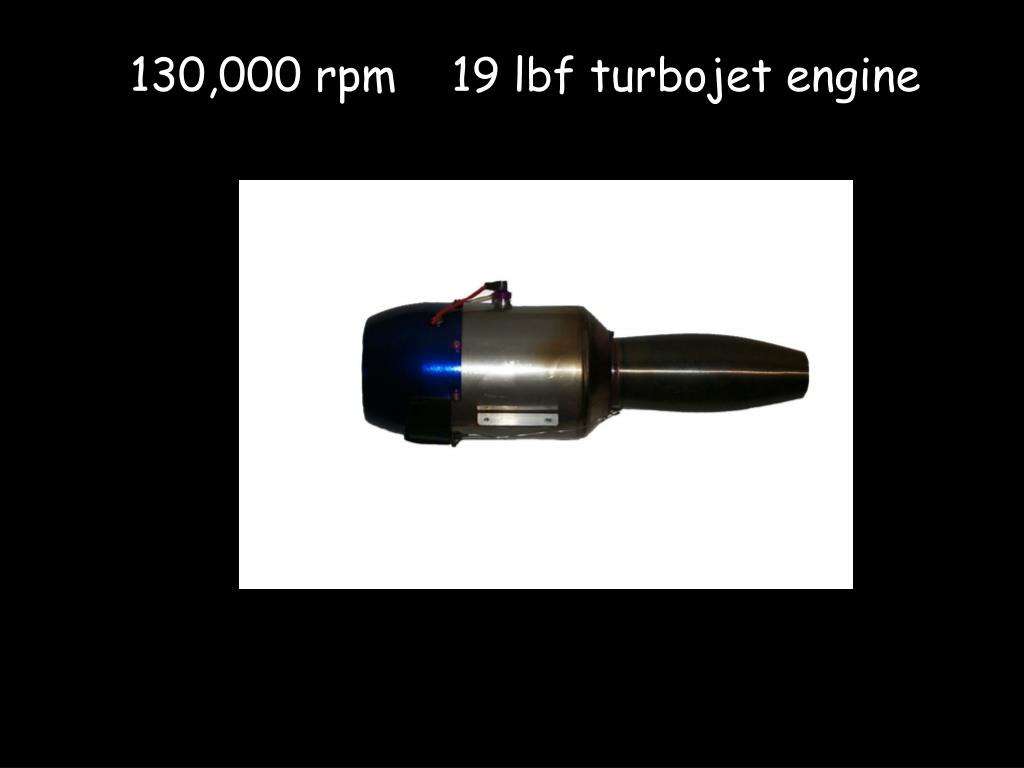

  7. 130,000 rpm 19 lbf turbojet engine

  8. Sophia J-850 Engine Compressor Single Centrifugal Turbine Single Radial Combustion chamber Annular Maximum Thrust 8.0 kgf 19.1 lbsf Maximum Rotor RPM 130,000 Maximum Airflow 0.15kg/sec Compressor Ration 2.70

  9. Maximum Exhaust Gas Temp. 800 C 1472°F Full Throttle Exhaust Gas Temp. 750 C 1382°F Low Throttle Exhaust Gas Temp. 450 C 842°F Maximum Fuel Consumption 270cc/min Fuel Feed Gear Pump with DC Motor Throttle Control Automatic Start/Shutdown, ECU-Controlled Lubrication Total Loss Oil ECU-Controlled Pump

  10. Ignition On Board ECU-Controlled Glow Ignition Fuel Cells 1.5 –2.0 Litters Recommended Oil Tank 180 – 250cc Recommended Starting Compressed Air (Scuba/Regulator, not supplied) Fuel JP-4,White Gas,Coleman Fuel Jet A-1 Oil Turbojet Oil Exxon 2380, Castrol 5000,MIL-L-23699E

  11. Sophia J850 Engine Compressor Single Centrifugal Turbine Single Radial Combustion chamber Annular Maximum Thrust 8.0 kgf 19.1 lbsf Maximum Rotor RPM 130,000 Maximum Airflow 0.15kg/sec Compressor Ration 2.70

  12. Aerospace 410 Aerospace Propulsion
