  1. KEY VALUE STORAGE IN THE CLOUD

  2. AGENDA • review cloud storage • review providers • review differences between storage clouds • jclouds

  3. review cloud storage

  4. what is key value storage? • global name space • key, value with metadata • http accessible • sites on demand • unlimited scaling

  5. key value storage concepts • GLOBAL NAME SPACE • organizes and sets boundaries for content • called a “bucket” or “container” • KEY/ VALUE • called objects, blobs, or files • unstructured content • can be small or large • can have metadata (key, value pairs)

  6. review vendors

  7. THE VENDORS

  8. review differences between storage clouds

  9. FILE SIZE • Can you store 5 GB or unlimited? • UPLOAD LARGE FILES • One shot or chunked? • DOWNLOAD LARGE FILES • One shot or chunked?

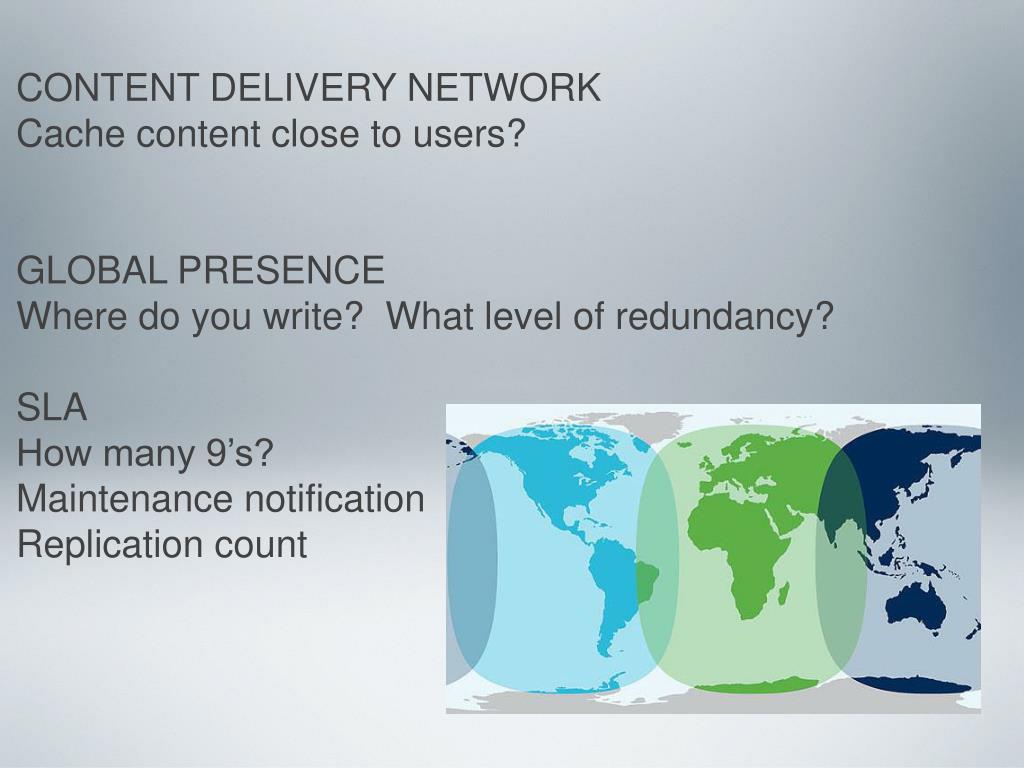

  10. CONTENT DELIVERY NETWORK Cache content close to users? GLOBAL PRESENCE Where do you write? What level of redundancy? SLA How many 9’s? Maintenance notification Replication count

  11. Consistency Model Immediate or Eventual?

  12. SUB-ACCOUNTS AND QUOTAS ACCESS CONTROLS AUTHORIZATION

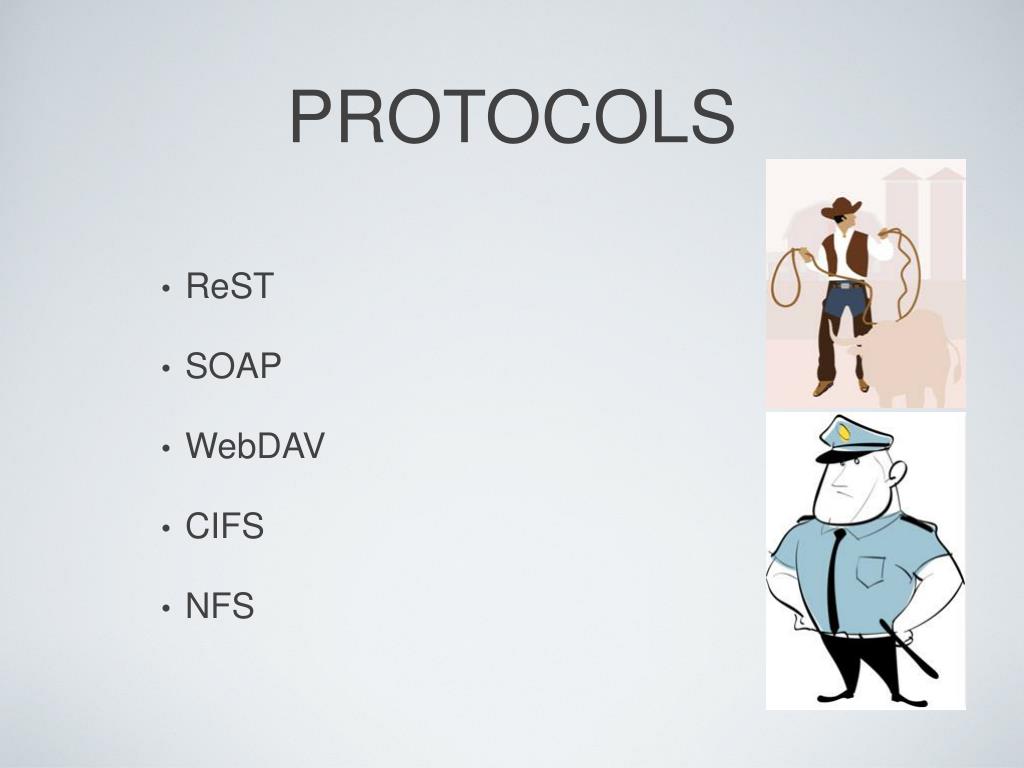

  13. PROTOCOLS • ReST • SOAP • WebDAV • CIFS • NFS

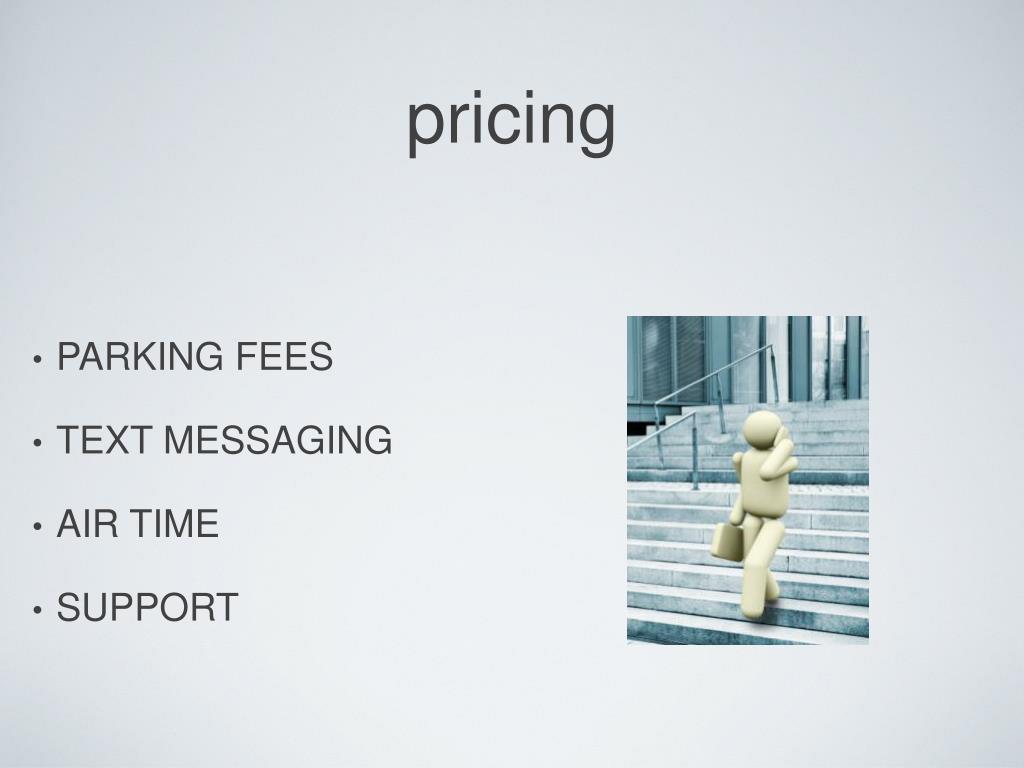

  14. pricing • PARKING FEES • TEXT MESSAGING • AIR TIME • SUPPORT

  15. Value Adds • Promotions with other services and tools

  16. api complexity • How difficult is it to use?

  17. code and sign the http request PUT /adriansmovies/sushi.avi HTTP/1.1 Host: <account>.blob.core.windows.netContent-Length: 734859264 Date: Wed, 01 Mar 2006 12:00:00 GMTAuthorization: SharedKey <app>:signature x-ms-meta-Chef: Kawasaki PUT /sushi.avi HTTP/1.1 Host: adriansmovies.s3.amazonaws.comContent-Length: 734859264Date: Wed, 01 Mar 2006 12:00:00 GMTAuthorization: signature x-amz-meta-Chef: Kawasaki POST /namespace/adriansmovies/sushi.avi HTTP/1.1 Content-Length: 734859264Date: Wed, 01 Mar 2006 12:00:00 GMT x-emc-uid: <uid> x-emc-signature: signature x-emc-meta: Chef=Kawasaki PUT /<api version>/<account>/adriansmovies/sushi.avi HTTP/1.1 Host: storage.clouddrive.com Transfer-Encoding: chunkedX-Auth-Token: session-token X-Object-Meta-Chef: Kawasaki

  18. CODE AND SIGN THE HTTP REQUEST GET /ws/IMFS/GetStorageNodeExtended.ashx?&fileOverwrite=true&ipRestricted=true&destFolderPath= adriansmovies&sizeBytes=734859264&firstByteExpiration=6000&lastByteExpiration=259200&sessionToken=session-token HTTP/1.1 POST /Upload.ashx?uploadToken=from_above&destFolderPath=adriansmovies HTTP/1.1 Host: from_above Content-Length: 734859382 Content-Type=multipart/form-data; boundary=--jclouds-- Authorization=Basic GpjbG9= ----jclouds-- Content-Disposition: form-data; name="sushi.avi"; filename="sushi.avi" Content-Type: application/octetstring ... PUT /ws/Metadata/SetMetadata.ashx?&path=Folders/adriansmovies/sushi.avi&sessionToken=session-token&metadata=Chef:Kawasaki HTTP/1.1

  19. CODE AND SIGN THE HTTP REQUEST POST /<api version>/containers/id_of_ adriansmovies/contents HTTP/1.1 Content-Length: 734859382 Content-Type=multipart/form-data; boundary=--jclouds-- Authorization=Basic GpjbG9= ----jclouds-- Content-Disposition: form-data; name="sushi.avi"; filename="sushi.avi" Content-Type: application/octetstring ... PUT /<api version>/files/from_above/metadata/Chef HTTP/1.1 Content-Length: 8 Content-Type: text/plain Authorization: Basic GpjbG9= Kawasaki

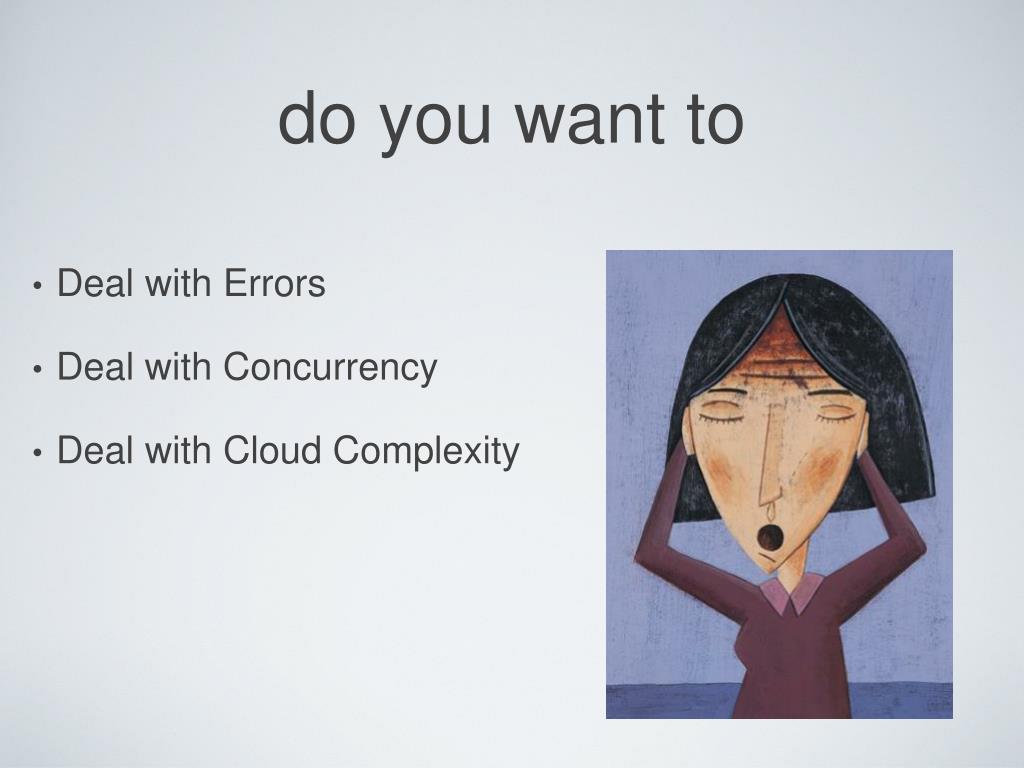

  20. do you want to • Deal with Errors • Deal with Concurrency • Deal with Cloud Complexity

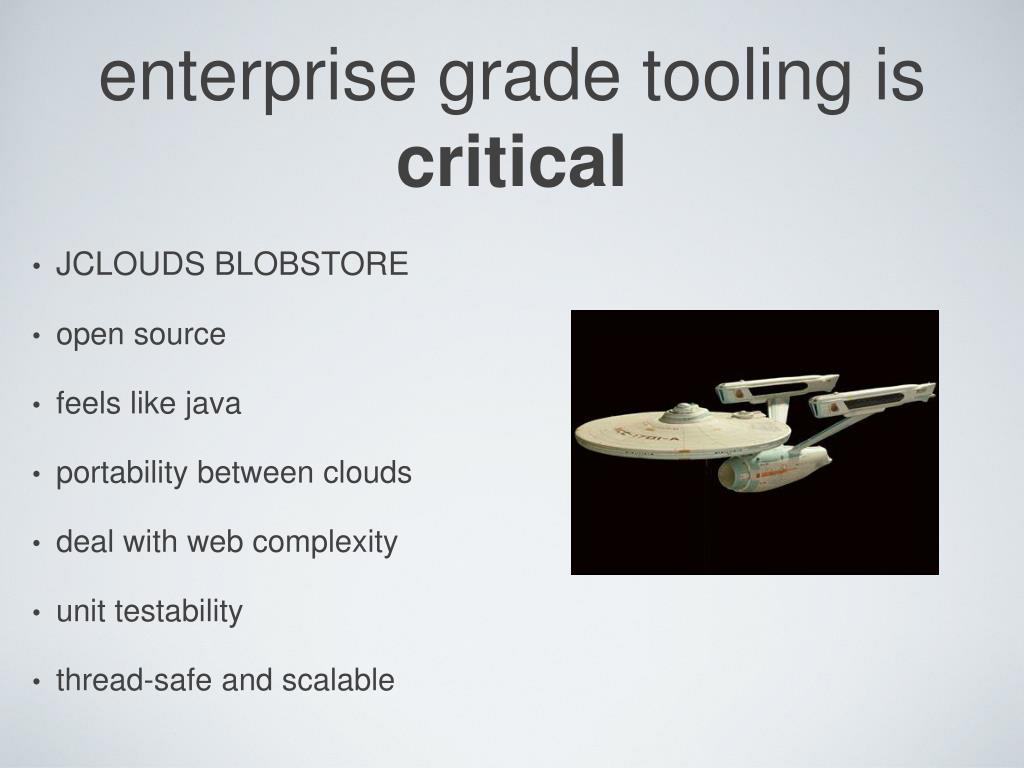

  21. enterprise grade tooling is critical • JCLOUDS BLOBSTORE • open source • feels like java • portability between clouds • deal with web complexity • unit testability • thread-safe and scalable

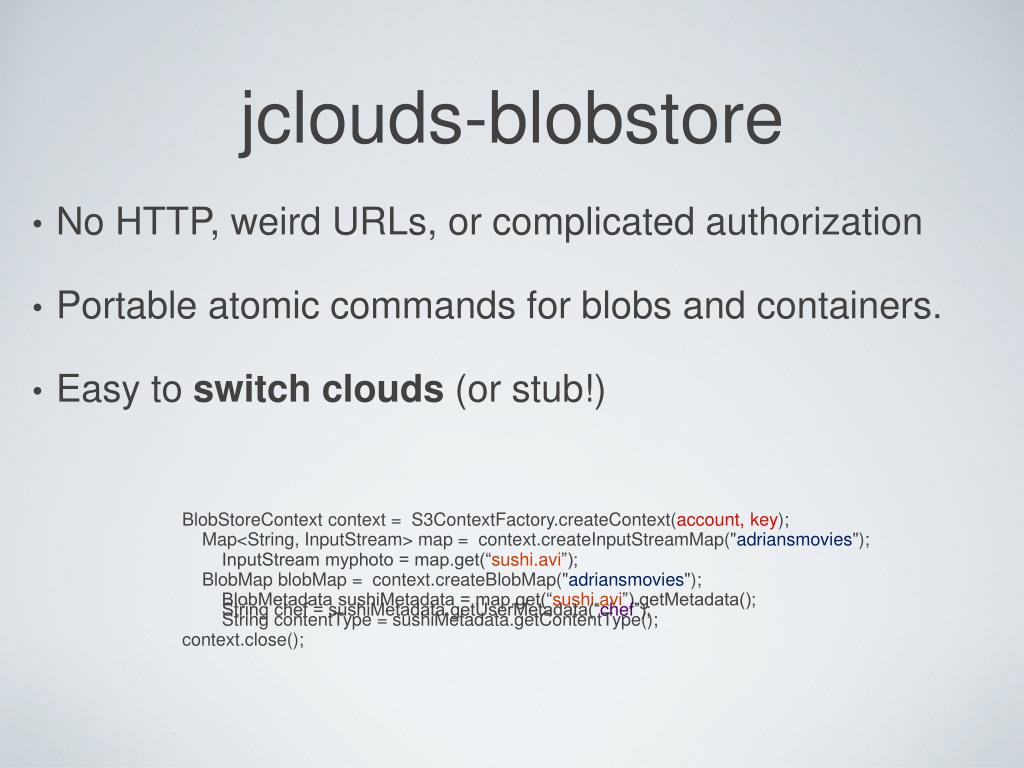

  22. jclouds-blobstore • No HTTP, weird URLs, or complicated authorization • Portable atomic commands for blobs and containers. • Easy to switch clouds (or stub!) BlobStoreContext context = S3ContextFactory.createContext(account, key); Map<String, InputStream> map = context.createInputStreamMap("adriansmovies"); InputStream myphoto = map.get(“sushi.avi”); BlobMap blobMap = context.createBlobMap("adriansmovies"); BlobMetadata sushiMetadata = map.get(“sushi.avi”).getMetadata(); String chef = sushiMetadata.getUserMetadata(“chef”); String contentType = sushiMetadata.getContentType(); context.close();

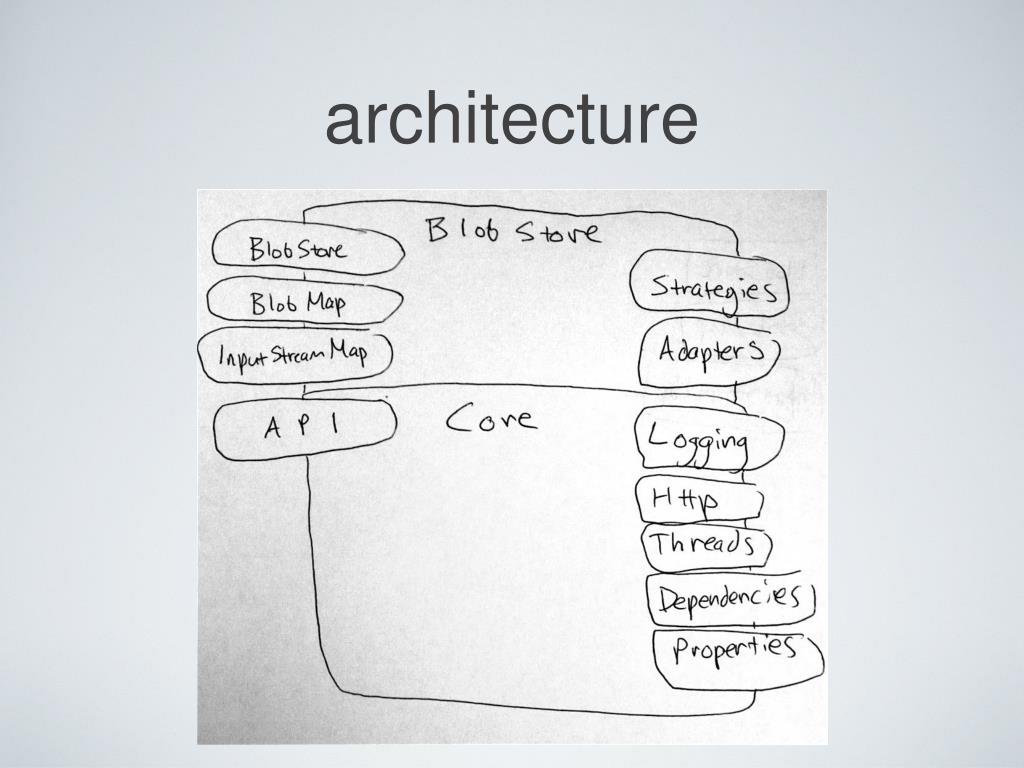

  23. architecture

  24. questions? • http://www.jclouds.org

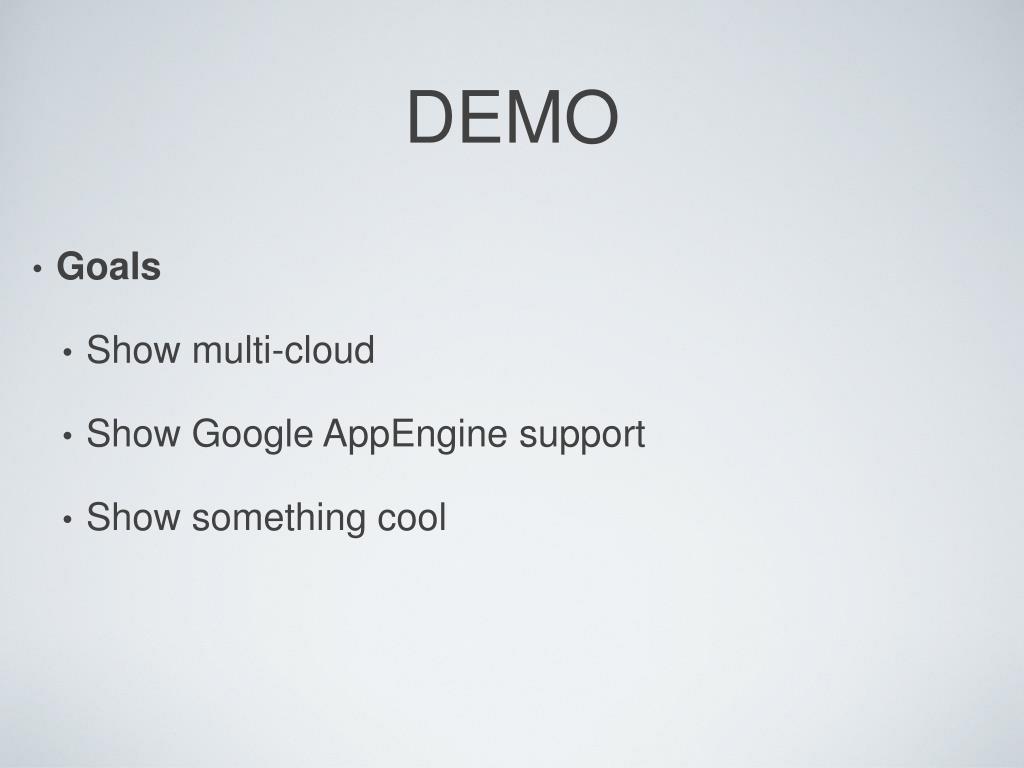

  25. DEMO • Goals • Show multi-cloud • Show Google AppEngine support • Show something cool

  26. DEMO architecture

  27. Lets try it out • Send a tweet @jclouds • Wait a minute • Check to see if it landed in the cloud • http://jclouds-tweetstore.appspot.com/tweets/get

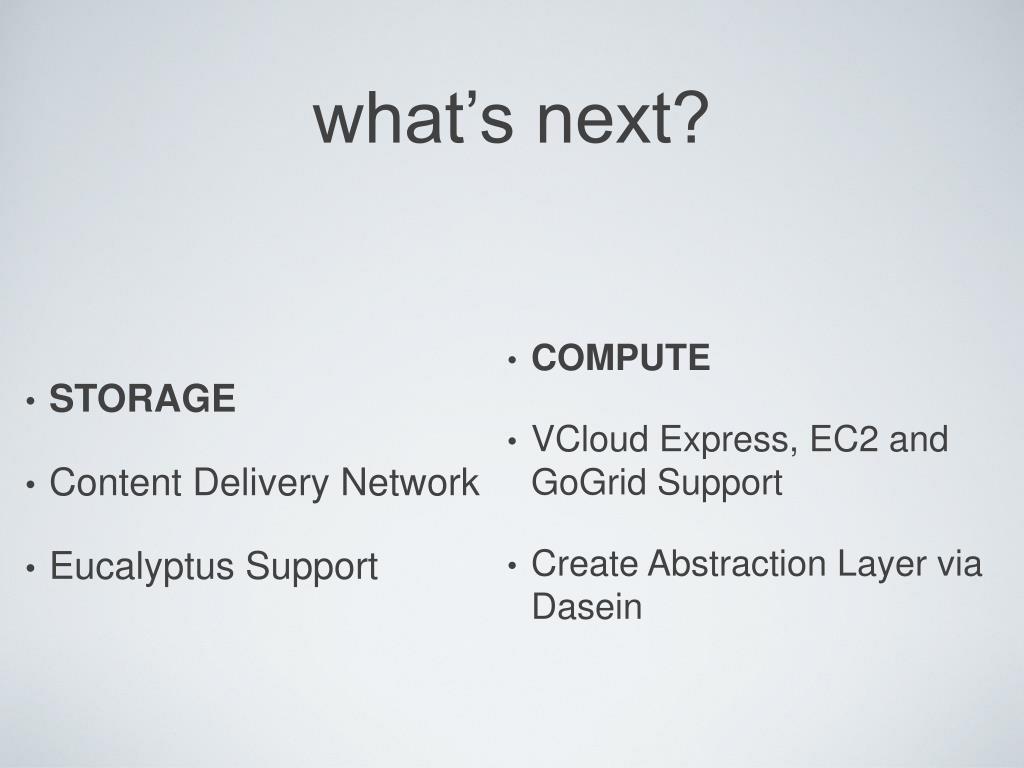

  28. what’s next? • COMPUTE • VCloud Express, EC2 and GoGrid Support • Create Abstraction Layer via Dasein • STORAGE • Content Delivery Network • Eucalyptus Support

  29. appendix • other notes of interest

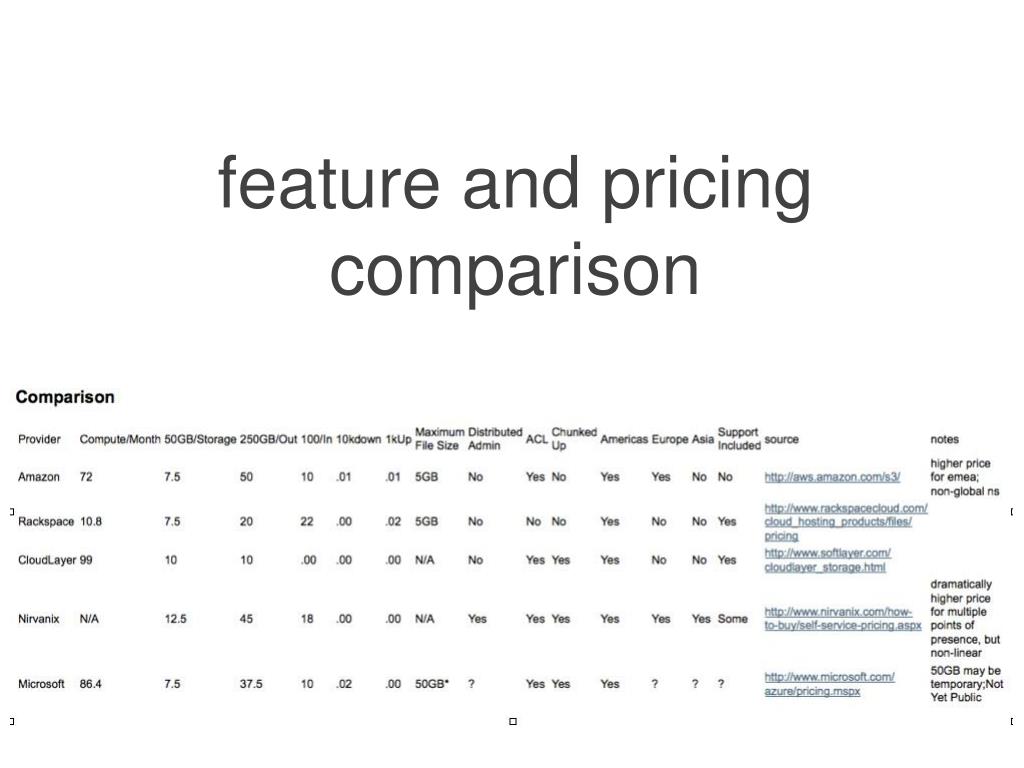

  30. feature and pricing comparison
