  1. EEA metadata catalogue for GIS datasets Paul Hasenohr, SEIS and SDI, European Environment Agency

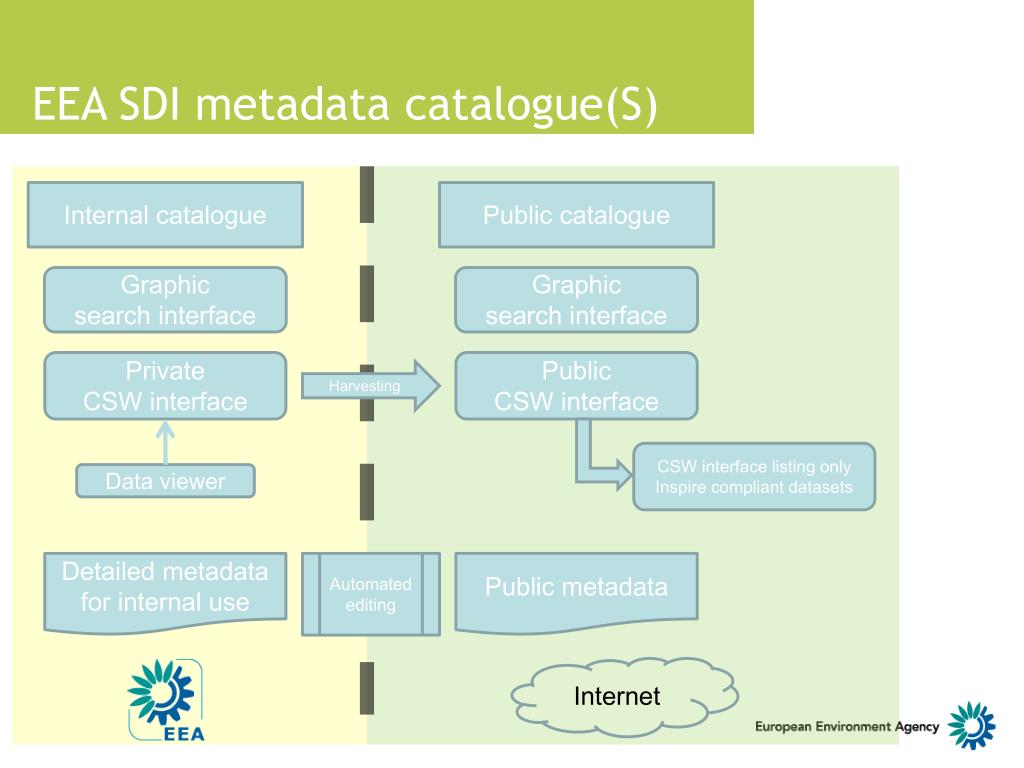

  2. EEA SDI metadata catalogue(S) Internal catalogue Public catalogue Graphic search interface Graphic search interface Private CSW interface Public CSW interface Harvesting CSW interface listing only Inspire compliant datasets Data viewer Detailed metadata for internal use Automated editing Public metadata Internet

  3. Elements required for datasets registered in the EEA SDI catalogue • EEA needs: • Metadata ISO19115 and INSPIRE compliant • Register additional information (dataset location, temporal extent…) • Have a consistent structure for metadata records stored in the catalogue • Allow for automated processing of metadata by CSW clients • Consequences: • Increase the number of mandatory ISO19115 elements • Define very strict guidelines for all elements to be processed automatically • Define editorial guidelines to ensure consistency of metadata records

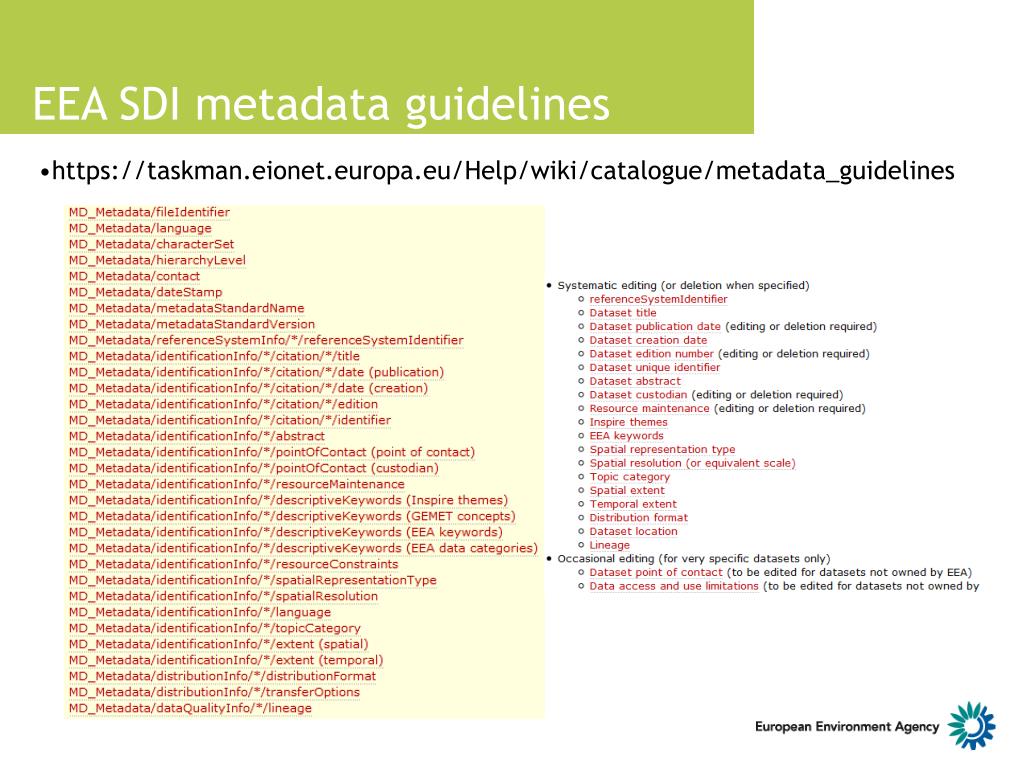

  4. EEA SDI metadata guidelines • https://taskman.eionet.europa.eu/Help/wiki/catalogue/metadata_guidelines

  5. EEA SDI metadata guidelines Example of specific requirements • distributionFormat (file format of the data) • Free text according to ISO19115 • Code list at EEA • transferOptions (means to access the data) • Linkage • Codified protocol (e.g. EEA:FILEPATH, WWW:LINK-1.0-http—link)

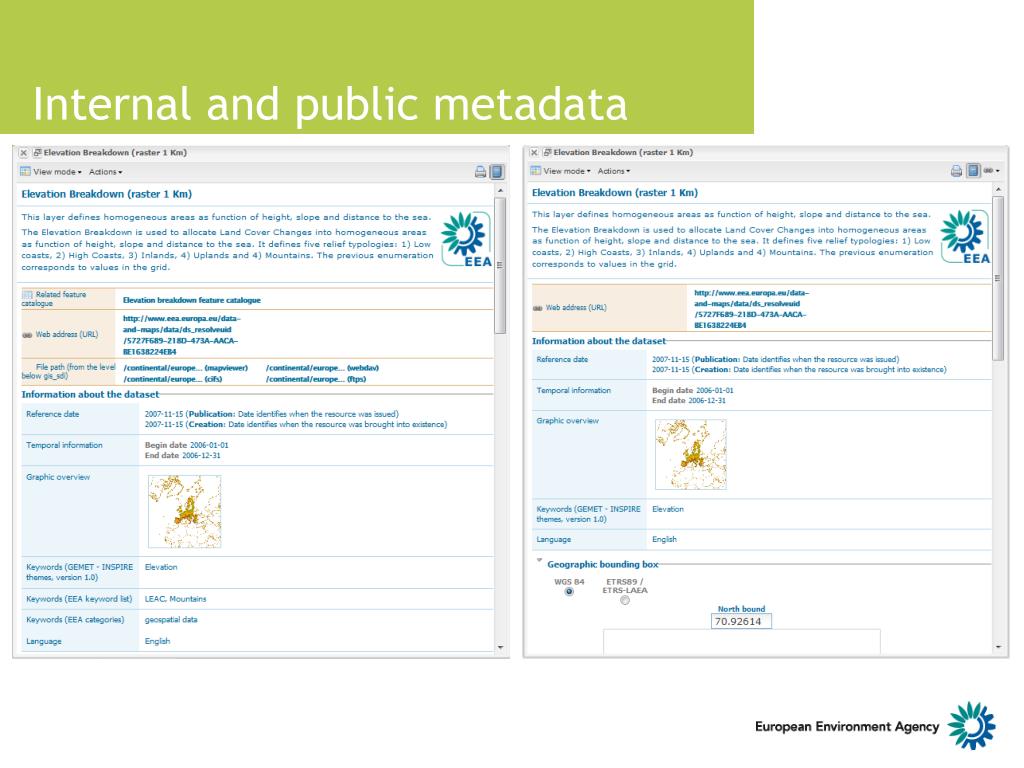

  6. Internal and public metadata

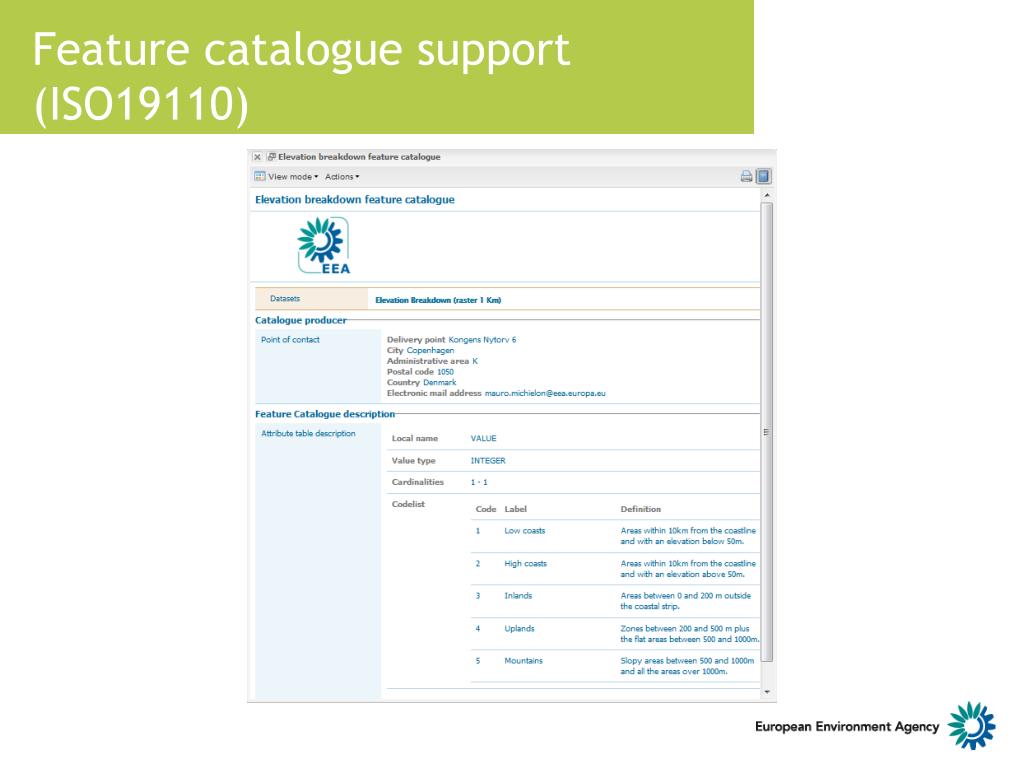

  7. Feature catalogue support (ISO19110)

  8. Geospatial data viewer An application using metadata • One parameter required by the application • One parameter required: metadata UUID • URL such as https://sdi.eea.europa.eu/eea/databrowser/?uuid=7353cada-14cf-4b0b-b46b-21702637497f • Metadata elements used by the application • Dataset title • Codified protocol (EEA:FILEPATH or EEA:DBPG) • Linkage (file path or database connection string) • Codified coordinate reference system • Spatial representation type • Metadata record and related feature catalogue • http://sdi.eea.europa.eu/internal-catalogue/eea/search/?uuid=7353cada-14cf-4b0b-b46b-21702637497f

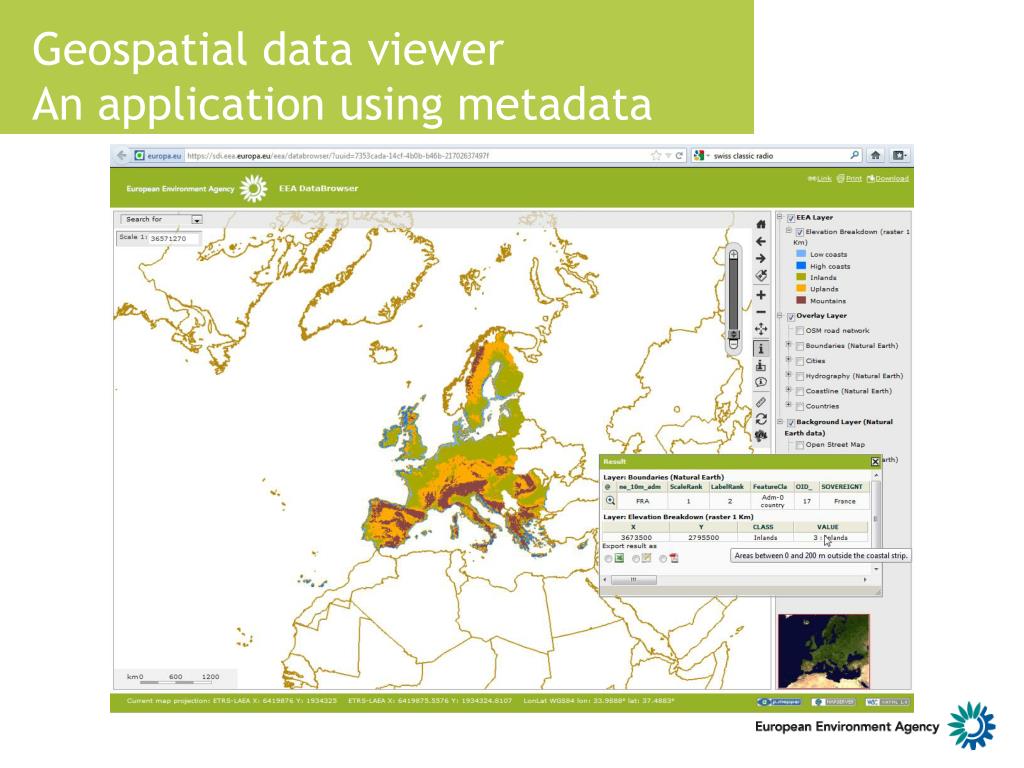

  9. Geospatial data viewer An application using metadata

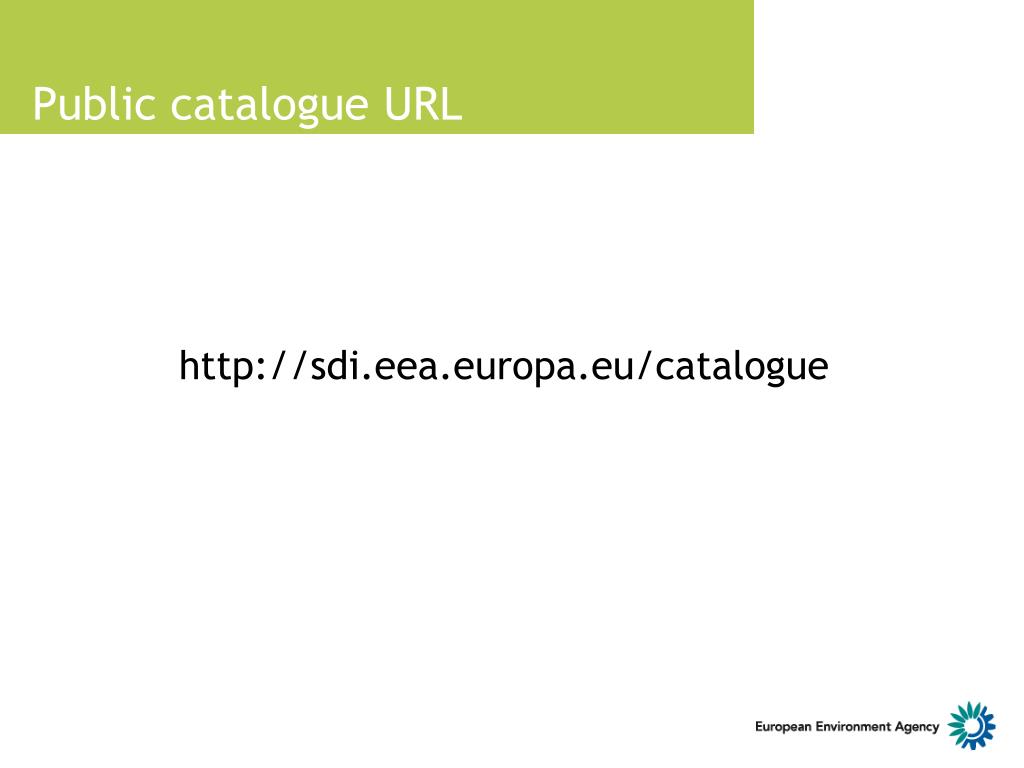

  10. Public catalogue URL http://sdi.eea.europa.eu/catalogue
