Presentation Transcript


  1. 11.5 Areas of Circles and Sectors CA State Standards Lesson Goals Find the area of a sector. • 8: Solve problems involving perimeter andarea. • 19: Use trigonometric functions • 21. Prove and solve problems regarding circle parts. ESLRs: Becoming Effective Communicators, Competent Learners and Complex Thinkers

  2. theorem Area of a Circle: Area of a circle is still measured in square units. r

  3. definition Sector of a Circle The region bounded by two radii and their intercepted arc. (like a piece of pie) r

  4. Theorem Area of a Sector The ratio of the area A of a sector of a circle to the area of the circle is equal to the ratio of the measure of the intercepted arc to 360°. or A B C

  5. example Find the area of the circle 3m

  6. example Find the area of the circle 18ft

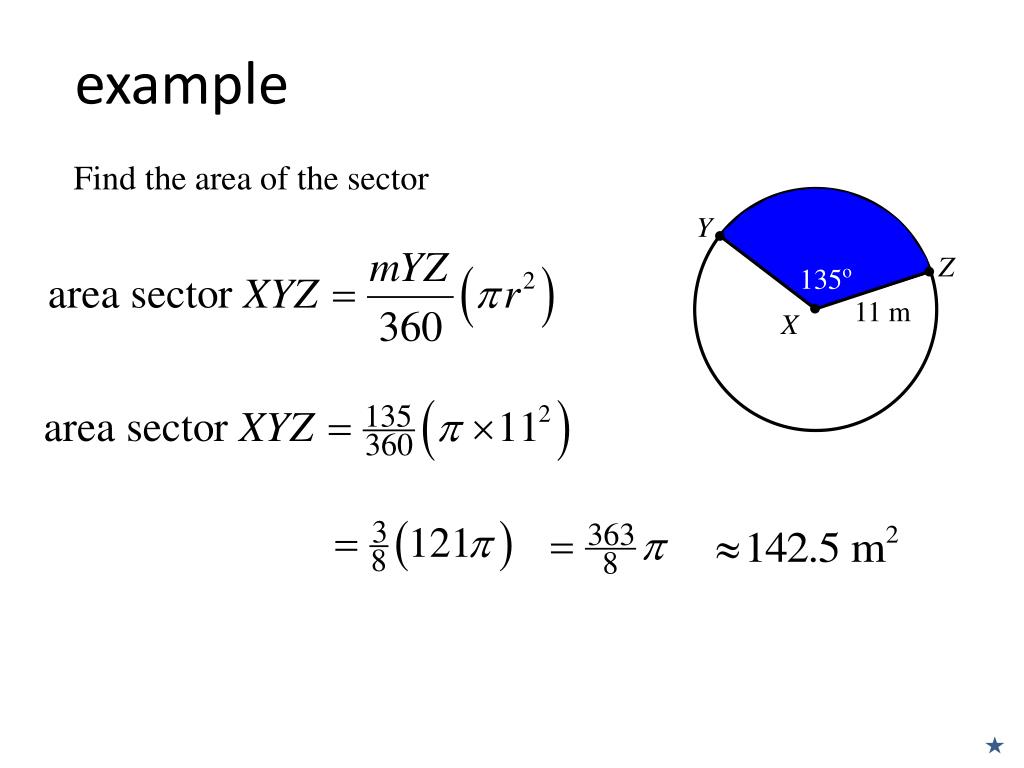

  7. example Find the area of the sector Y Z 135o 11 m X

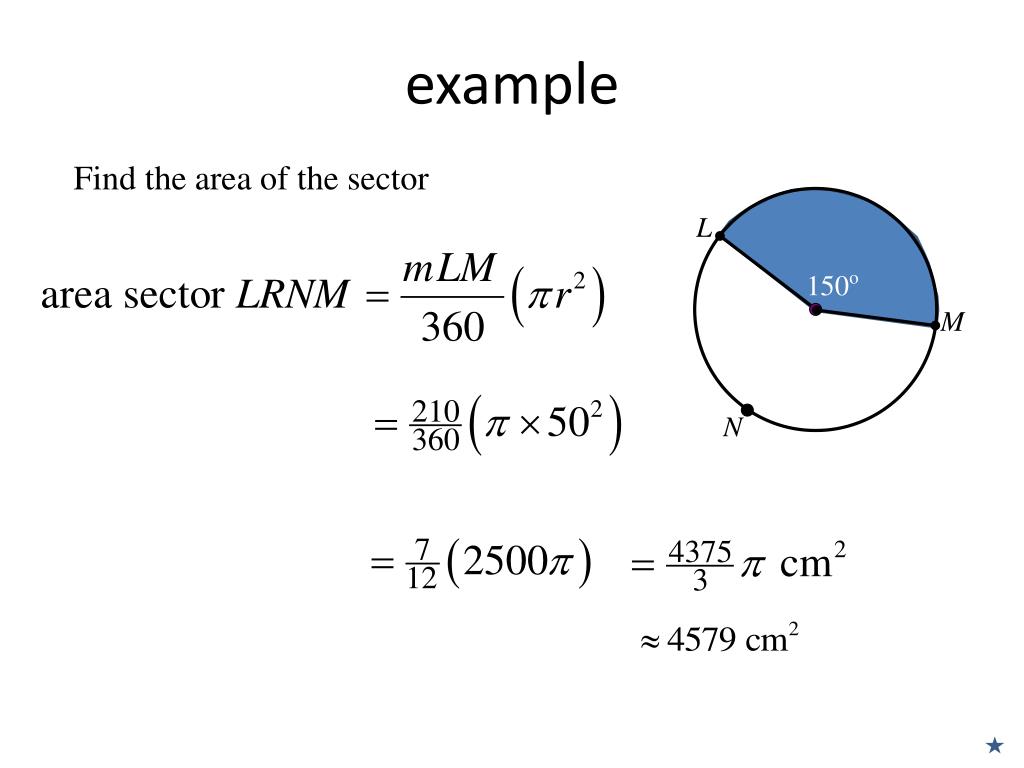

  8. example Find the area of the sector L 150o M R 50 cm N

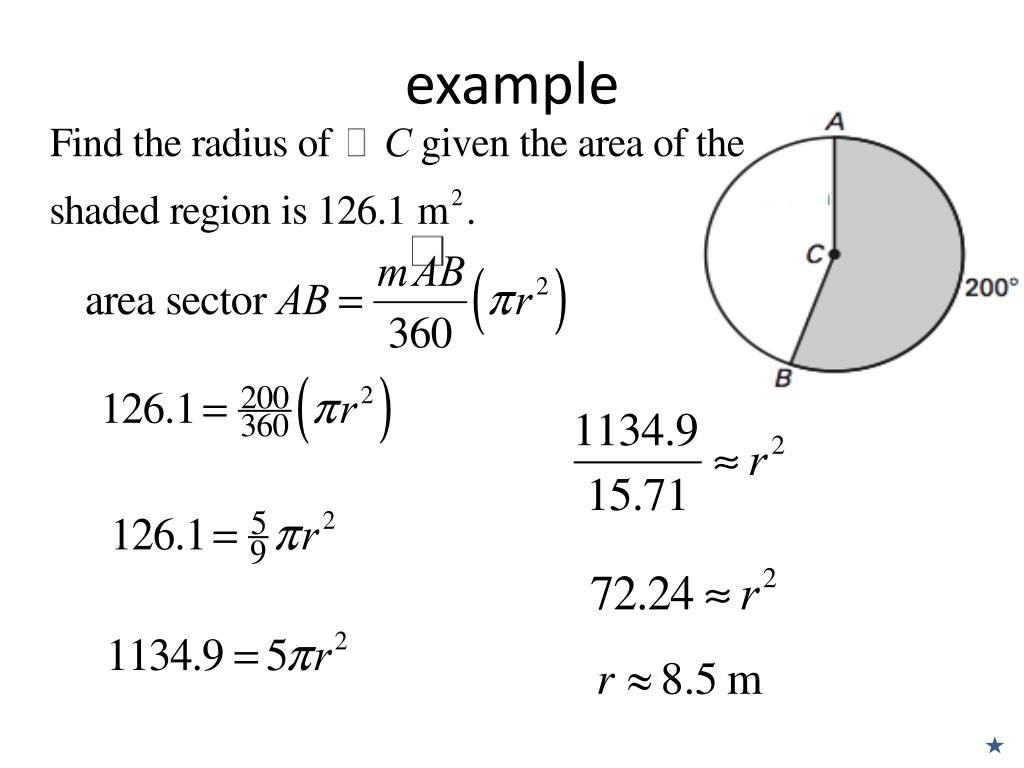

  9. example

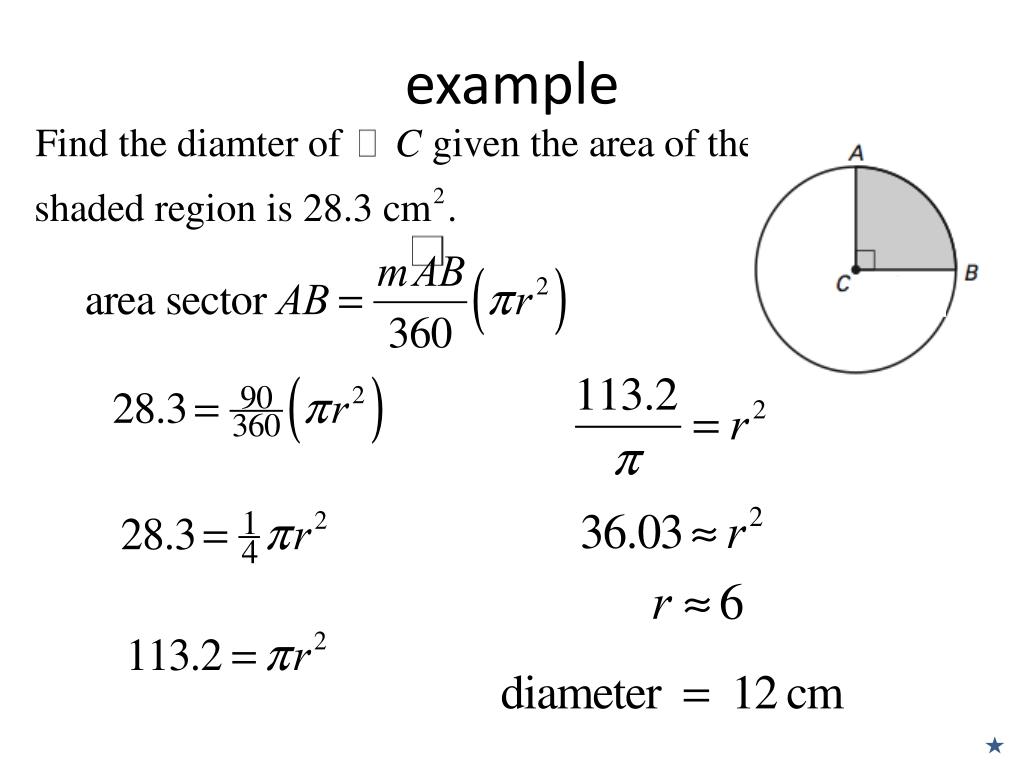

  10. example

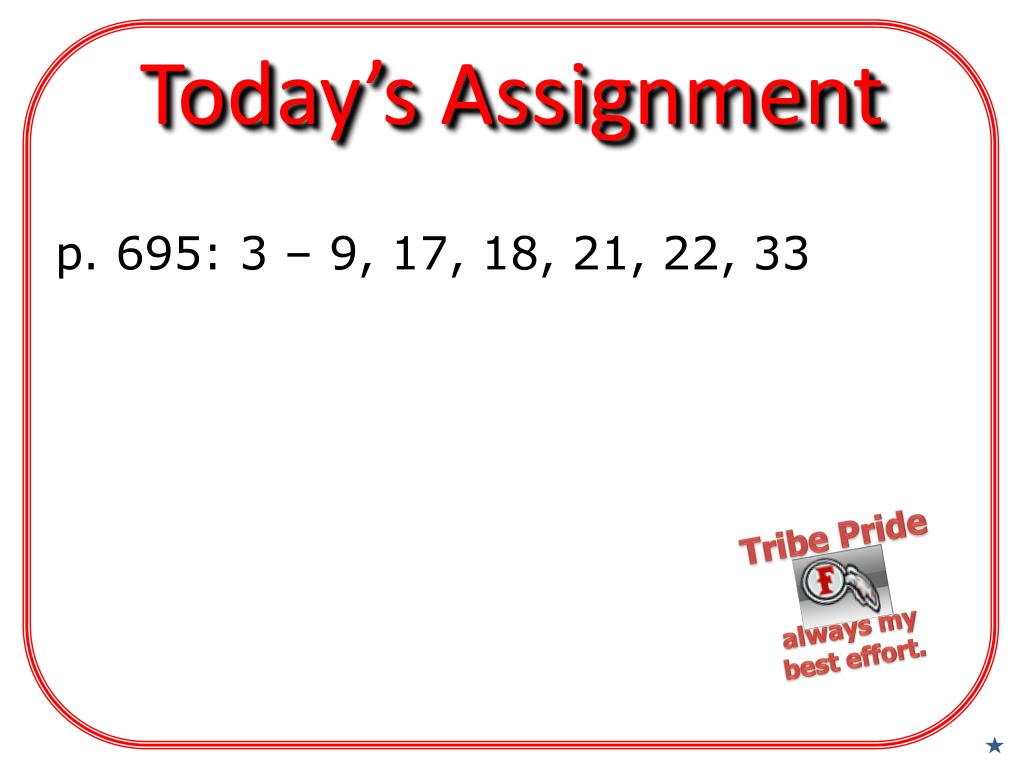

  11. Today’s Assignment p. 695: 3 – 9, 17, 18, 21, 22, 33
