running kliquefinder
Running KliqueFinder
  • Download KliqueFinder at
    • http://www.msu.edu/~kenfrank/software.htm#KliqueFinder_
  • Follow instructions to install

SKIP TO NEXT SECTION

kliquefinder
KliqueFinder
  • Click “Run Analysis”.
  • Once the analysis is finished, click “Clusters output” button to view the evidence of subgroups and performance of algorithm.
  • Close clusters output
  • Go to netdraw and open data file as file/open/vna textfile/complete
kliquefinder3
KliqueFinder
  • Click on “Browse…” button to specify the directory where the data file is located.
kliquefinder4
KliqueFinder

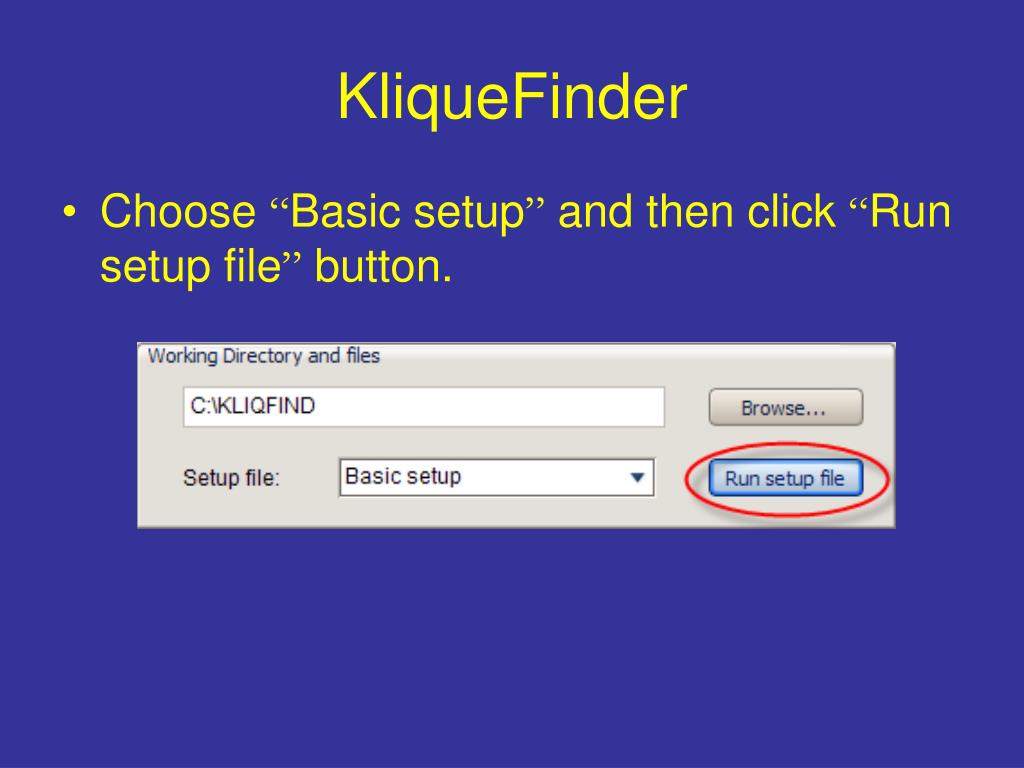

  • Choose “Basic setup” and then click “Run setup file” button.
kliquefinder5
KliqueFinder
  • Click on the “Browse” button to choose a data file.
sociomatrix for stanne list
Sociomatrix for “Stanne.list”

AFTER ASCENT

N Group And Actor Id

24 |AAAA|BBBBBB|CCCCCCCC|DDDDDD|

| | | | |

| 2 1|221 1| 11 2|111122|

Group ID|7445|612214|98133560|796037|

------------+----+------+--------+------+

1 A 7|A213|......|........|...1..|

1 A 24|4A3.|......|.4......|......|

1 A 4|33A.|......|........|......|

1 A 15|433A|......|........|......|

------------+----+------+--------+------+

2 B 26|.2..|B443..|........|......|

2 B 21|.1..|4B....|...4....|....2.|

2 B 12|....|4.B...|........|......|

2 B 2|....|33.B..|........|...1..|

2 B 1|..3.|3..3B.|........|.3..2.|

2 B 14|....|....1B|........|......|

------------+----+------+--------+------+

3 C 9|....|......|C...3.33|.3....|

3 C 8|.4..|..4...|.C.4..4.|4.....|

3 C 11|....|......|33C.4.3.|..4...|

3 C 13|.4..|.4....|444C....|......|

3 C 3|3...|.4....|4.44C...|......|

3 C 5|.1..|.....4|3.2.3C..|......|

3 C 6|....|......|444..4C4|......|

3 C 20|....|......|3..3.44C|......|

------------+----+------+--------+------+

4 D 17|.1..|......|.1......|D.1...|

4 D 19|....|......|4.3.....|3D4...|

4 D 16|....|......|4..4...4|44D...|

4 D 10|..3.|...1..|........|...D3.|

4 D 23|....|.3....|........|.343D.|

4 D 27|.1..|.1....|........|.3..3D|

slide9

PREDICTED THETA (1 base) BASED ON SIMULATIONS.

VALUE BASED ON UNWEIGHTED DATA.

0.76985

ESTIMATE OF THETA (1 subgroup processes)

0.40397

THE TOTAL THETA1 IS:

1.1738

THETA1 ALSO CAN BE INTERPRETED AS HALF THE

LOG-ODDS OF THE FOLLOWING TABLE,

INCLUDING OBSERVED AND (EXPECTED) VALUES:

TIE

NO YES

___________________

| | |

NO | 1604. | 92. |

|(1560.) |( 136.) |

IN SAME | | |

SUBGROUP |--------|--------|

| | |

YES | 320. | 192. |

|( 364.) |( 148.) |

| | |

-------------------

ODDS RATIO, LOG ODDS, (LOG ODDS/2)

-------------------------------------------

Observed| 10.46087 2.34764 1.17382

Expected| 4.66315 1.53969 0.76985

slide10

APPROXIMATE TEST OF CONCENTRATION OF TIES

WITHIN SUBGROUPS BASED ON

SIZE OF THETA1 subgroup processes:

THETA1 |

SUBGROUP | APPROX | APPROX

PROCESSES| LRT | P-VALUE

0.40 34.82 0.00

APPROXIMATE TEST OF CONCENTRATION OF TIES

WITHIN SUBGROUPS BASED ON CONSERVATIVE

PREDICTED VALUE FOR THETA1

THETA1 |

SUBGROUP | APPROX | APPROX

PROCESSES| LRT | P-VALUE

0.37 29.42 0.00

These p-values are based on a likelihood

ratio test between the models:

LOG P(Xii'=xii')=theta0+theta1base(samegroup)

LOG P(Xii'=xii')=theta0+theta1base(samegroup) +

theta1 subgroup processes(samegroup)

A SMALL P-VALUE INDICATES THAT ONE CAN

REJECT THE NULL HYPOTHESIS THAT

theta1 subgroup processes IS ZERO.

AND WE TAKE THIS AS EVIDENCE THAT ACTORS

ENGAGE IN EXCHANGES WITHIN SUBGROUPS AT

A RATE THAT IS UNLIKELY TO HAVE OCCURRED

BY CHANCE ALONE.

kliquefinder applications adding individual attributes
KliqueFinder Applications:Adding Individual Attributes:

run KliqueFinder

data file collt1.list

make graph

use ID from other file? Yes:

sas file name: c:\kliqfind\indiv

[be sure to include full path]

id variable: nominator

string variable: gradelev

Save

In sas, run socgramz in the working directory

kliquefinder applications adding individual attributes14

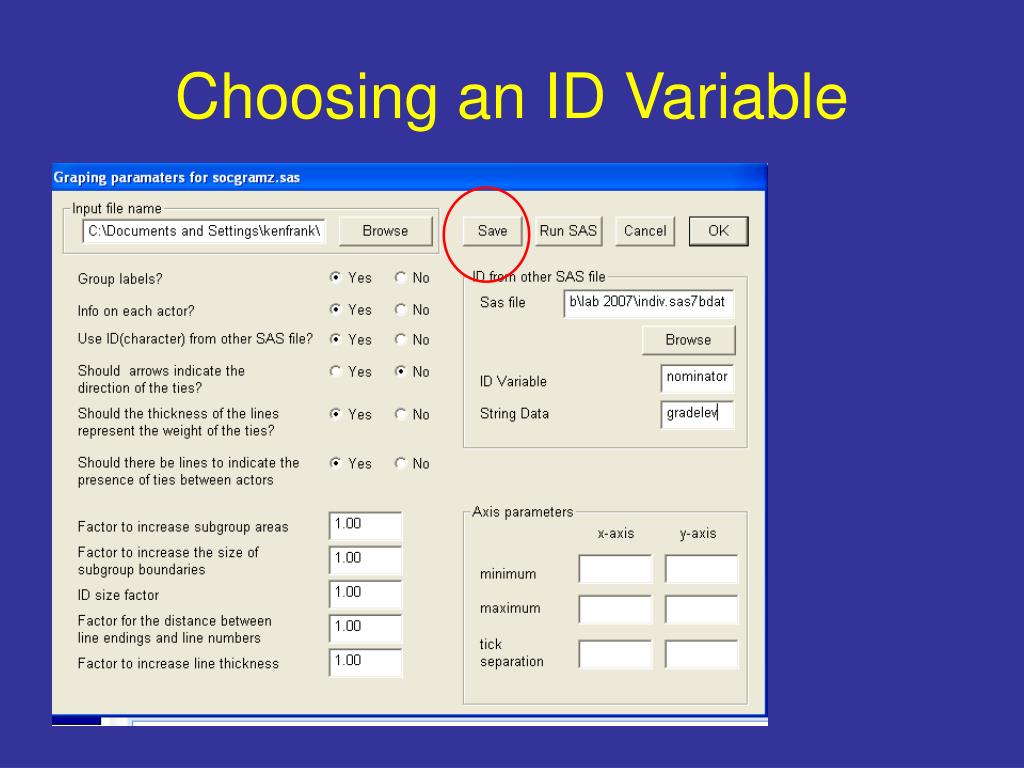

KliqueFinder Applications:Adding Individual Attributes:
  • Select “Yes” for “User ID (character) from other SAS file?”
kliquefinder applications adding individual attributes15
KliqueFinder Applications:Adding Individual Attributes:
  • Type the following information in the corresponding boxes
  • Then Click “Save”
kliquefinder applications replacing lines
KliqueFinder Applications:Replacing Lines

run KliqueFinder

data file collt1.list

make graph

save

retrieve socgramz.sas in the working directory

replace all occurrences of collt1.list with collt2.list

run
