seminar in bioinformatics winter 2011 network motifs

Seminar in Bioinformatics, Winter 2011Network Motifs

An Introduction to Systems Biology

Uri Alon

Chapters 5-6

By

EliadEini

&

Yasminadmon

chapter 5
Chapter 5

Temporal Programs and the Global Structure of Transcription Networks

a short remainder
A short remainder

We have seen that transcription networks contain recurring network motifs that can perform specific dynamical functions.

We examined two of this motifs in details: auto-regulation and feed-forward loop (FFL).

what s next
What’s next?

In this chapter we will complete our survey of motifs in sensory transcriptional networks.

We will see that sensory transcription networks are largely made of just four families of networks: auto-regulation and FFL (we have already studied), Single Input Module (SIM) and Dense Overlapping Regulons (DORs).

the single input module network motif sim
The Single-Input Module Network Motif (SIM)
  • In the SIM network motif, a master transcription factor X controls a group of target genes, , like we can see in the picture.
  • Each of the target genes has only one input.
  • No other transcription factors regulates any of the genes.
  • The regulation signs (activation/repression) are the same of all genes in the SIM.
  • The master transcription factor X is usually autoregulatory.
seems great but how do you know that sim is a motif
Seems great, but how do you know that SIM is a motif?

As we saw in the lecture of chapters 3-4, in order to recognize a pattern as a motif, we should compare it to a random network. A random network (ER) have a degree sequence (distribution of edges per node) that is Poisson, so there are exponentially few nodes that have many more edges than the mean connectivity Thus ER networks have very few large SIMs.

so what is the function of sims what can it d o
So what is the function of SIMs? What can it do?

The most important task of SIM is to

control a group of genes according to

the signal sensed by the master

regulator.

The genes in a SIM always have a

common biological function:

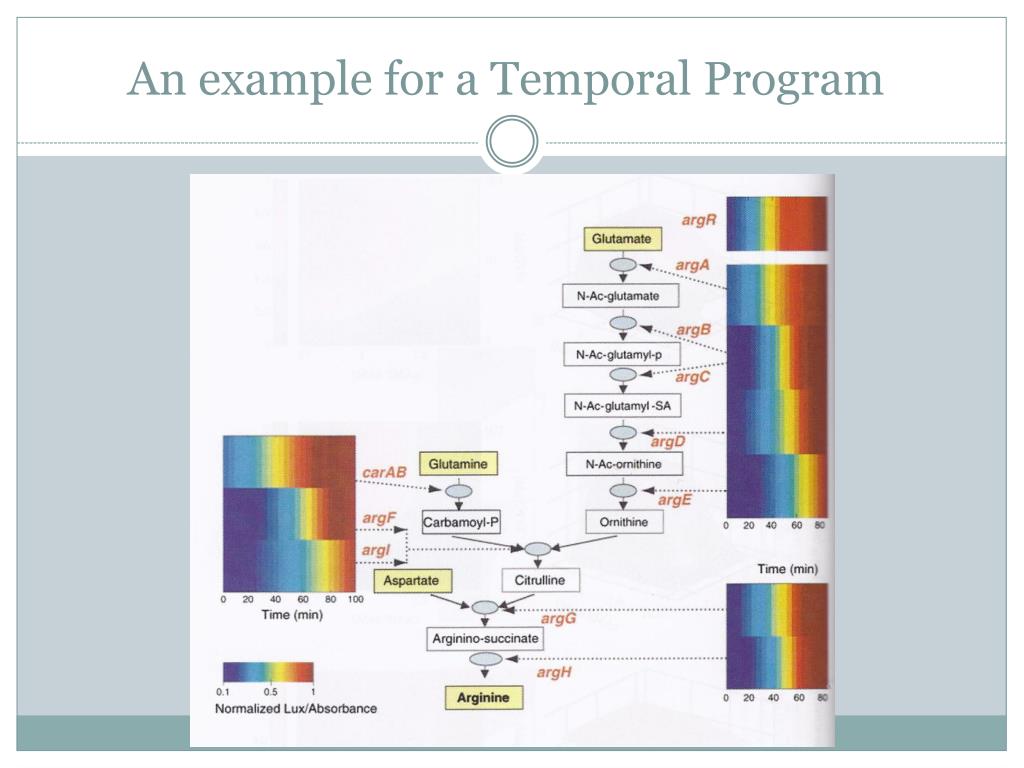

For example, SIMs often regulates genes that participate in specific metabolic pathways as shown in this figure.

Other SIMs control group of genes that respond to a specific stress (DNA damage, heat shock, etc.) These genes produce proteins that repair the different forms of damage caused by the stress.

SIMs can control group of genes that together make up a protein machine (such as ribosome).

few words about evolution
Few words about evolution

There are many examples of SIMs that regulate the same gene systems in different organisms.

The master regulator in the SIM is often different in each organism, despite the fact that the target genes are highly homologous.

what does it mean
What does it mean?

What happened in the evolution point of view?

It means that rather than duplication of ancestral SIM to create the modern SIM, since this mechanism is useful, it was kept during generations and preserved against mutations.

topological generalization of network motifs
Topological generalization of network motifs

It is very difficult to recognize motifs on large graphs:

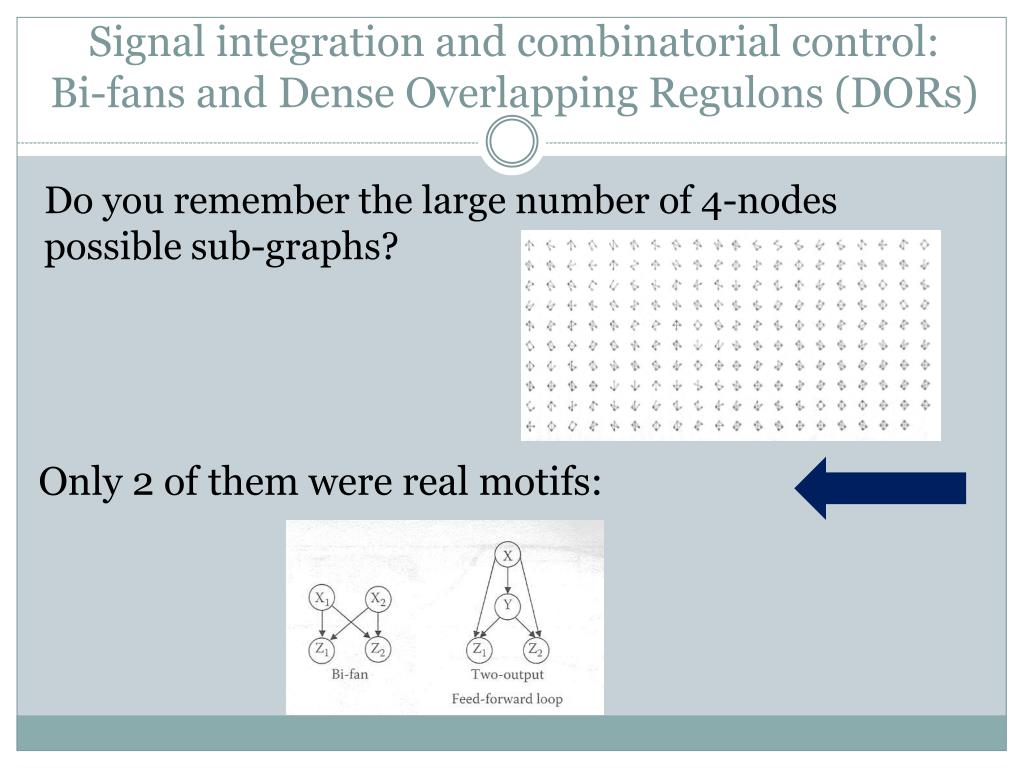

signal integration and combinatorial control bi fans and dense overlapping regulons dors
Signal integration and combinatorial control:Bi-fans and Dense Overlapping Regulons (DORs)

Do you remember the large number of 4-nodes possible sub-graphs?

Only 2 of them were real motifs:

network motifs and global structure of sensory transcription networks
Network motifs and global structure of sensory transcription networks

After we learnt about motifs, we can locate the motifs on E-coli’s network and draw it in a much simple way

network motifs in developmental transcription networks

Governs the fates of cells, as an egg develops into a multi-cellular organism.

  • In all Multi-cellular organisms and in many microorganisms, cells undergo differentiation process – they can change into other cell types.
  • Developmental transcription networks control these differentiation processes.
Network motifs in developmentalTranscription Networks

DevelopmentalTranscription Networks

network motifs in developmental transcription networks1

the Timescale on which the networks need to operate.

    • Sensory transcription networks need to make rapid decisions that are shorter then a cell generation time.
    • In Contrast, Transcription Networks works on a slow timescale of one or more cell generations.
  • The reversibility of the networks’ actions.
    • Sensory transcription networks need to make reversible decisions.
    • Developmental transcription networks often need to make irreversible decisions.

We will see that these differences lead to new network motifs, that appear in Developmental transcription networks, but not in Sensory transcription networks.

Network motifs in developmentalTranscription Networks

What is the difference between Sensory andDevelopmentalTranscription Networks?

slide27

Network motifs in developmentalTranscription Networks

  • Reminder: The response time of each stage in cascades is governed by the degradation/dilution rate of the protein at that stage:
  • For stable proteins, this response time is on the order of cell generation time.
  • Developmental networks work on this timescale, because cell fates are assigned with each cell division.

Long transcription cascades and developmental timing

interlocked feed forward loops
Interlocked Feed-Forward Loops

In developmental networks, FFLs often form parts of larger and more complex circuits.

Can we still understand the dynamics of such large circuits based on the behavior if the individual FFL?

Example - the well mapped B. subtilisSporulation network

b subtilis sporulation process
B. Subtilissporulation process

Bacillus subtilis– single celled bacterium. When starved, it stops dividing and turns into a durable spore.

The sporulation process involves hundred of genes that are turned ON and OFF in a series of temporal waves.

The network that regulates sporulation is made of several transcription factors arranged in a linked coherent and incoherent type-1 FFLs.

interlocked feed forward loops in b subtilis s porulation network
Interlocked Feed-Forward Loops In B. SubtilisSporulation Network

To initiate the sporulation process, a starvation signal Sx activates X1

Incoherent Type-1 FFL

Coherent Type-1 FFL

interlocked feed forward loops in b subtilis s porulation network1
Interlocked Feed-Forward Loops In B. SubtilisSporulation Network

Incoherent Type-1 FFL

Coherent Type-1 FFL

interlocked feed forward loops in b subtilis s porulation network2
Interlocked Feed-Forward Loops In B. SubtilisSporulation Network

Incoherent Type-1 FFL

Coherent Type-1 FFL

interlocked feed forward loops in b subtilis s porulation network3
Interlocked Feed-Forward Loops In B. SubtilisSporulation Network

Incoherent Type-1 FFL

Coherent Type-1 FFL

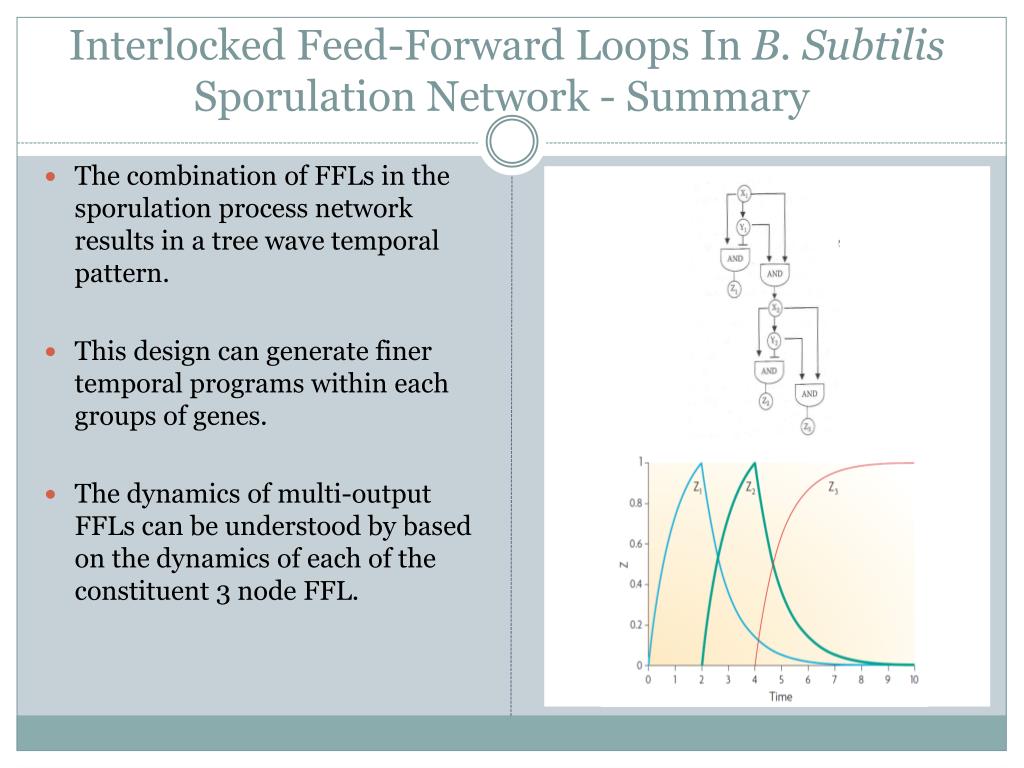

interlocked feed forward loops in b subtilis sporulation network summary
Interlocked Feed-Forward Loops In B. SubtilisSporulation Network - Summary

The combination of FFLs in the sporulation process network results in a tree wave temporal pattern.

This design can generate finer temporal programs within each groups of genes.

The dynamics of multi-output FFLs can be understood by based on the dynamics of each of the constituent 3 node FFL.

network motifs in signal transduction networks

Sense and process information from the environment, and accordingly regulate the activity of transcription factors or other effector proteins.

  • Elicit rapid responses.
  • Composed of interactions between signaling proteins, which are represented as nodes in the network, whereas the edges signify directed interaction.
  • The structure of signaling networks is a subject of current research, and yet fully understood. We will focus on one distinct motif that is found in signaling networks, and not in transcription networks.
Network motifs In Signal Transduction Networks

Signal Transduction Networks

network motifs in signal transduction networks1

Diamond

Network motifs In Signal Transduction Networks

Bi-fan

Signaling networks show two strong 4-node motifs

network motifs in signal transduction networks2
Network motifs In Signal Transduction Networks

Toy Model for protein kinase preceptrons

network motifs in signal transduction networks3

Protein kinase cascades are usually made of layers, usually three.

  • This forms multi-layer perceptronsthat can integrate input from several receptors
Network motifs In Signal Transduction Networks

Multi-layer perceptrons In protein kinase cascades
