  1. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

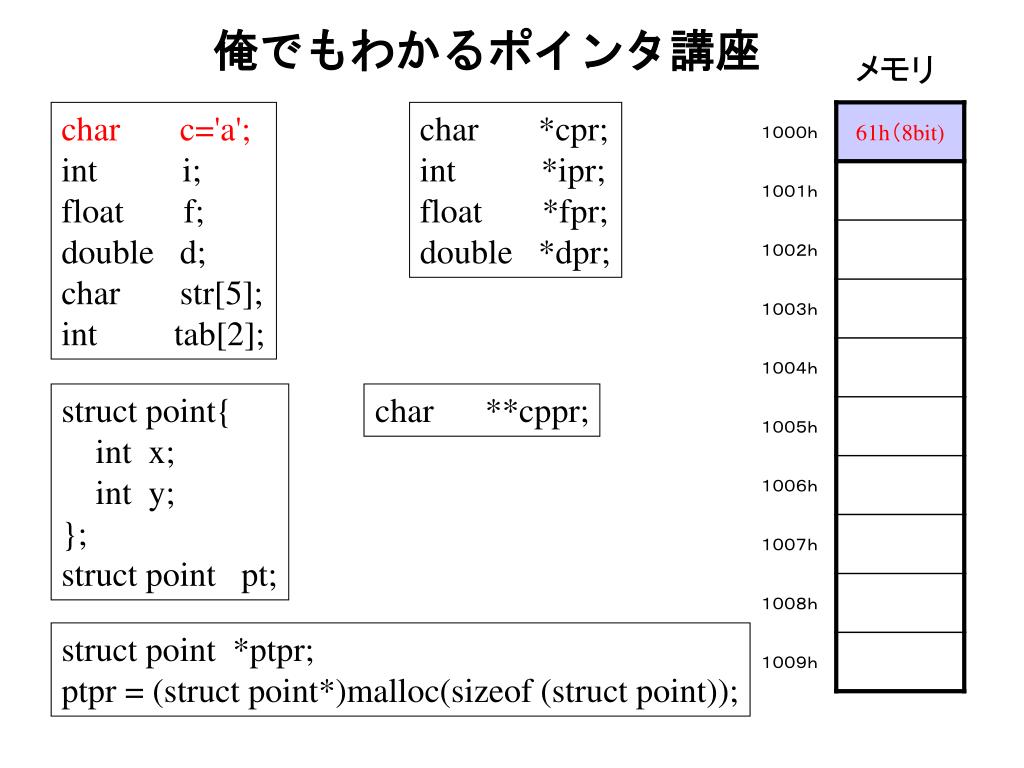

  2. 俺でもわかるポインタ講座 メモリ char c='a'; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  3. 俺でもわかるポインタ講座 メモリ char c; int i=256; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  4. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

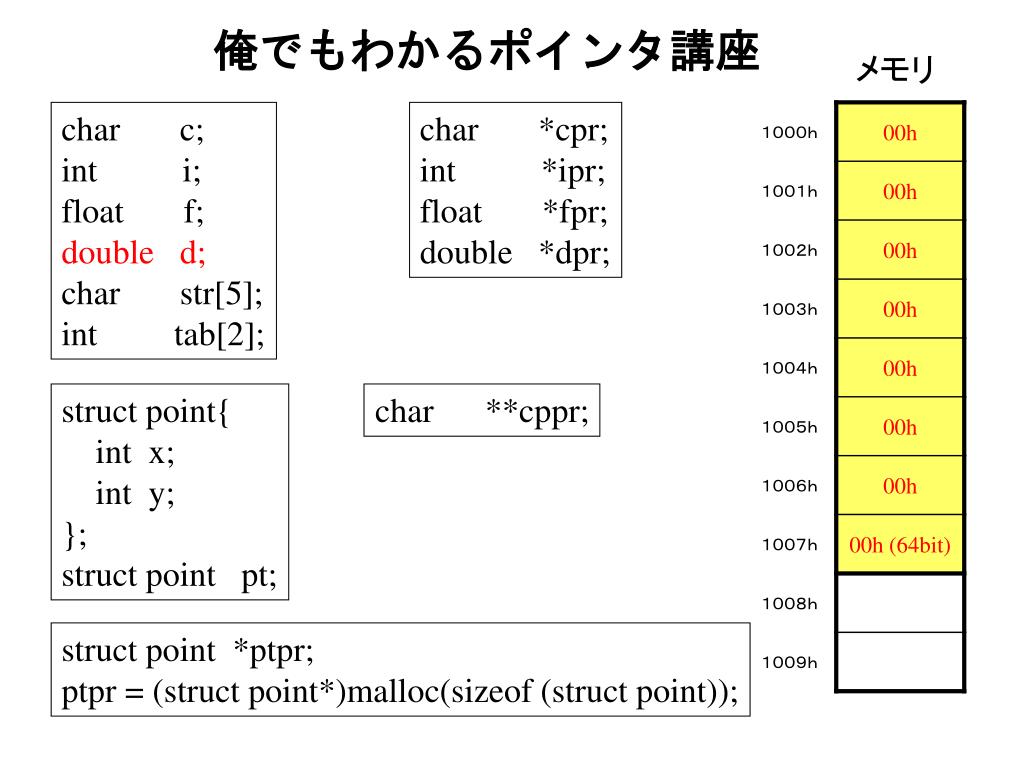

  5. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  6. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]="abc"; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  7. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]="abc"; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  8. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  9. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  10. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

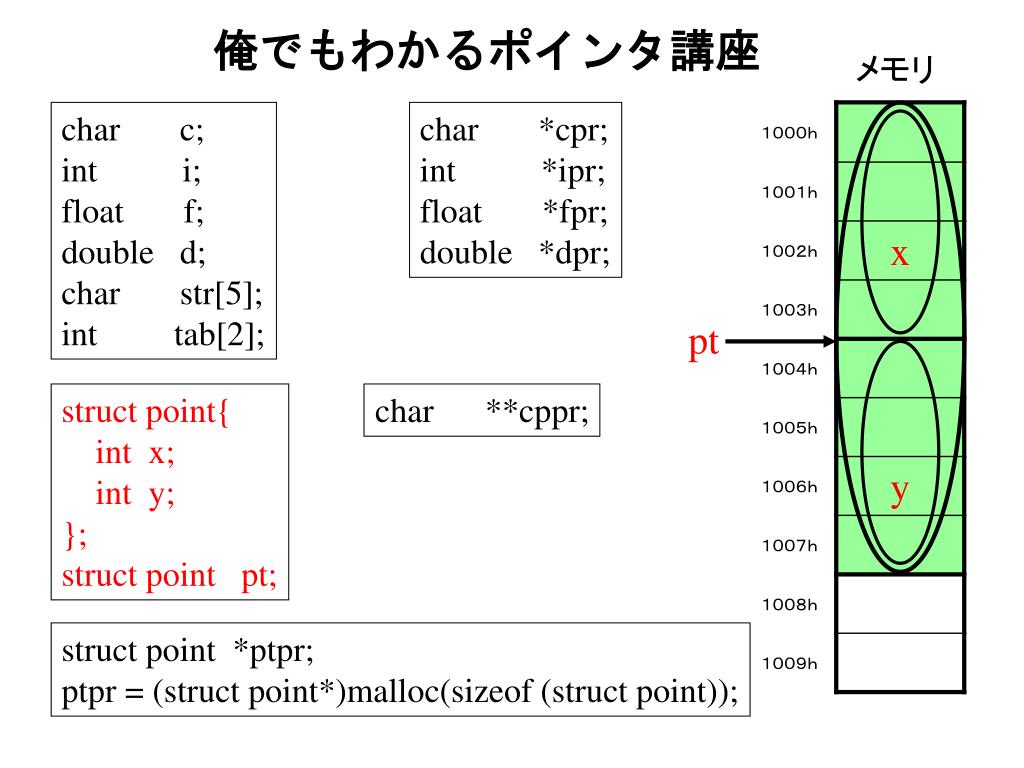

  11. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; pt struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  12. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; pt.x =1; pt.y=2; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  13. 俺でもわかるポインタ講座 メモリ char c='a'; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ポインター用メモリ確保 (多くは32ビット) struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  14. 俺でもわかるポインタ講座 メモリ char c='a'; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cpr = &c; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  15. 俺でもわかるポインタ講座 メモリ char c='a'; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cpr = &c; *cpr='b'; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  16. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ポインター用メモリ確保 (多くは32ビット) struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  17. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]=“abc”; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ポインター用メモリ確保 (多くは32ビット) struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

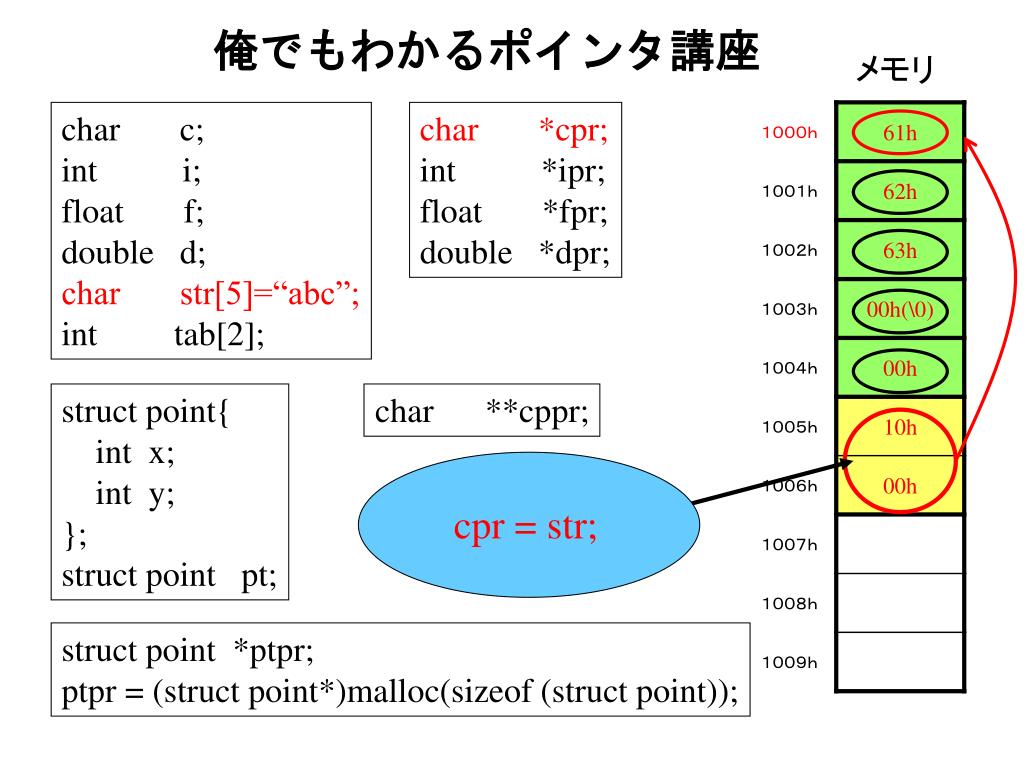

  18. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]=“abc”; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cpr = str; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  19. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]=“abc”; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cpr = &str[1]; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  20. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]=“abc”; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; cpr = &str[1]; (*cpr)++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  21. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]=“abc”; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; 1ずれた +1された struct point{ int x; int y; }; struct point pt; char **cppr; cpr = &str[1]; cpr++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  22. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ポインター用メモリ確保 (多くは32ビット) struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  23. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ipr = &tab[0]; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  24. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ipr = &tab[1]; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point)); 注意:+4されてる

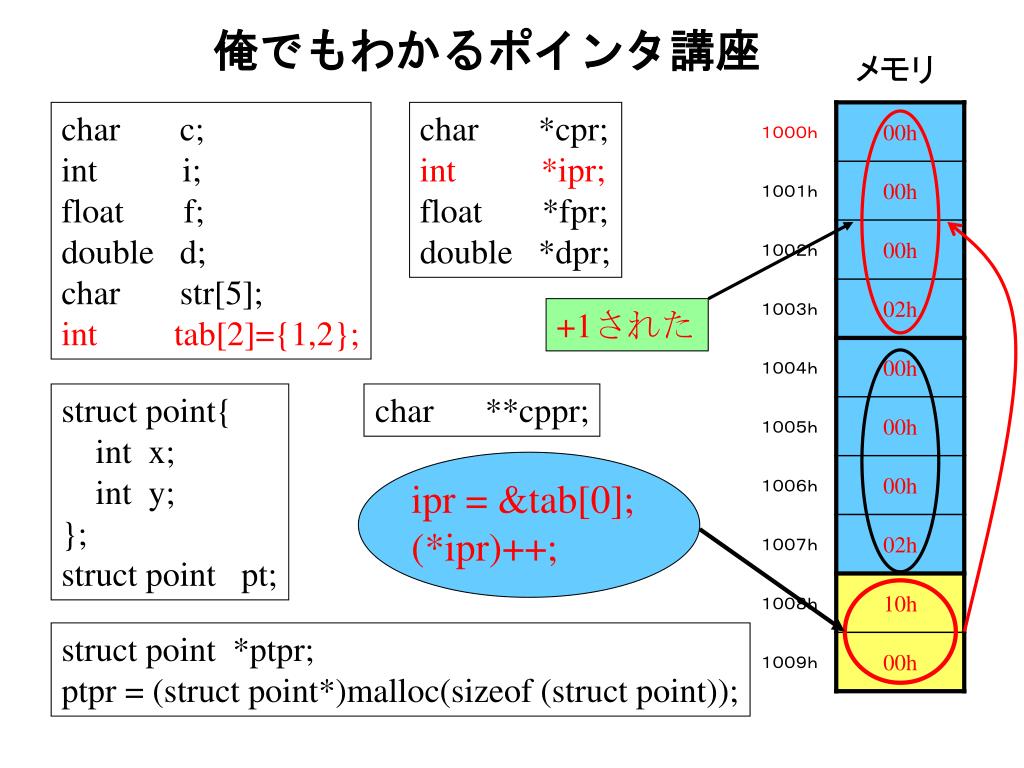

  25. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; ipr = &tab[0]; (*ipr)++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  26. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]={1,2}; char *cpr; int *ipr; float *fpr; double *dpr; +4された struct point{ int x; int y; }; struct point pt; char **cppr; ipr = &tab[0]; ipr++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  27. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; 以下同様 struct point{ int x; int y; }; struct point pt; char **c; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  28. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  29. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cpr[0]=c; cpr[1]=cc; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  30. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; cppr = cpr; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  31. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; **cppr++; [(*(*cppr))++] struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  32. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; *cppr++; [ (*cppr)++] struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  33. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; +2された struct point{ int x; int y; }; struct point pt; char **cppr; cppr++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  34. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; **cppr++; [(*(*cppr))++] struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

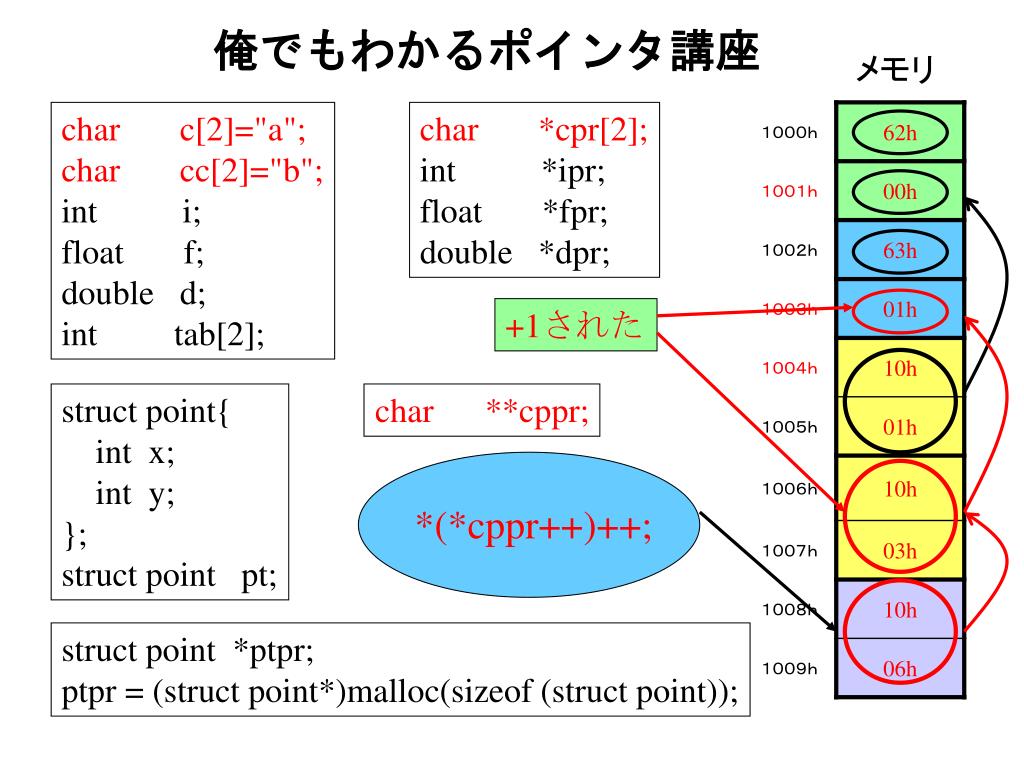

  35. 俺でもわかるポインタ講座 メモリ char c[2]="a"; char cc[2]="b"; int i; float f; double d; int tab[2]; char *cpr[2]; int *ipr; float *fpr; double *dpr; +1された struct point{ int x; int y; }; struct point pt; char **cppr; *(*cppr++)++; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

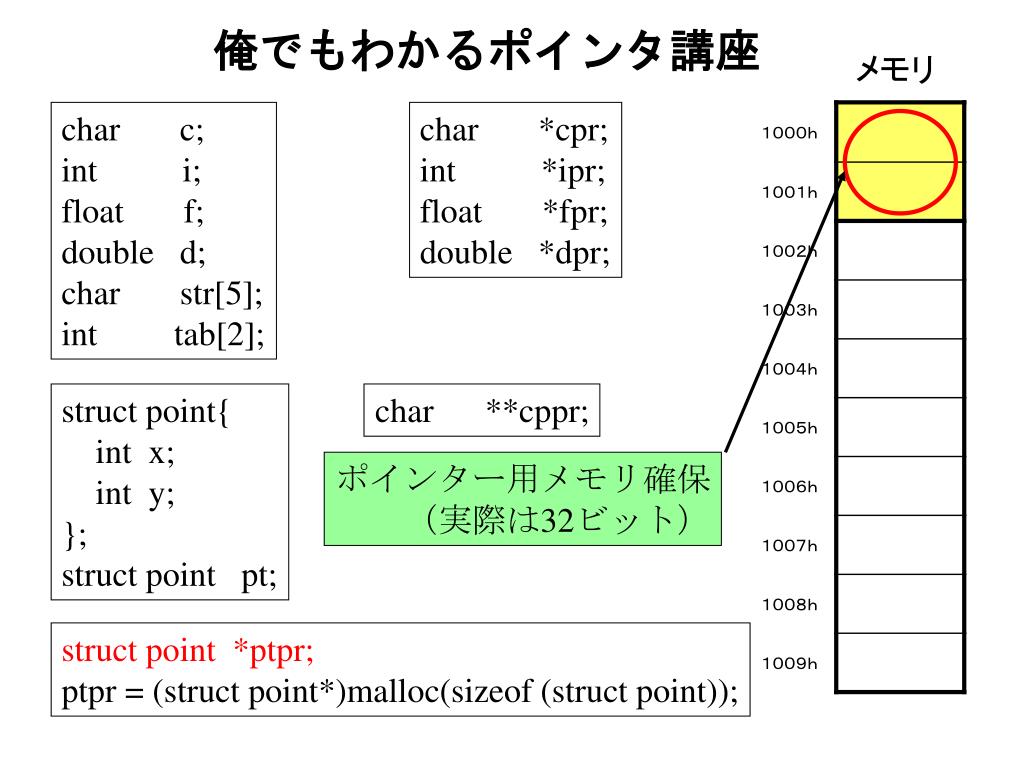

  36. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ポインター用メモリ確保 (実際は32ビット) struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  37. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; 確保したメモリの先頭番地が代入 struct point{ int x; int y; }; struct point pt; char **cppr; 構造体用メモリ確保 struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  38. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; (*ptpr).x=1; (*ptpr).y=2; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));

  39. 俺でもわかるポインタ講座 メモリ char c; int i; float f; double d; char str[5]; int tab[2]; char *cpr; int *ipr; float *fpr; double *dpr; struct point{ int x; int y; }; struct point pt; char **cppr; ptpr->x=1; ptpr->y=2; struct point *ptpr; ptpr = (struct point*)malloc(sizeof (struct point));
