fault tolerant computing basics

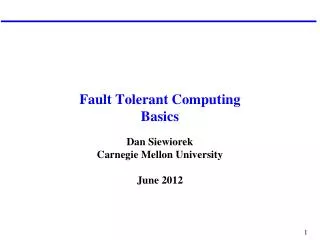

Fault Tolerant ComputingBasics

Dan Siewiorek

Carnegie Mellon University

June 2012

preview
Preview
  • Many terms have multiple usage that can lead to confusion when used out of context
    • Sources of error
  • Faults go through at least ten stages from inception to repair - so designer better plan for all ten stages
    • Relationship between sequence of events in handling a fault and mathematical measures
outline
Outline
  • Introduction
  • Definitions
  • Sources of Errors
why reliability
WHY RELIABILITY?
  • Three of the driving factors:
    • Critical applications
      • computer outage or error can cause loss of money, time, life
      • No longer just in aerospace, but in more mundane applications – customer expectations
    • Increasing system complexity
      • more components,  more likelihood of failure (counter: increased rel. of | VLSI)
      • Lower signal/noise ratios in ↑ VLSI speed  more likelihood of transient errors
      • Diagnosis more difficult, downtime is longer, repair costs ↑ increased inventory costs too
    • Relative cost is less
availability example
AVAILABILITY EXAMPLE
  • 90 MINUTES DOWNTIME PER WEEK
  • AVAILABILITY 0.991
  • RESERVATION SYSTEM -- $36,000/MINUTE DOWN
  • $3.24 MILLION PER WEEK
  • .1% AVAILABILITY = 10 MINUTES

= $360,000.00

univac i checkers
Univac I Checkers
  • Parity
    • Memory
    • Input to function table
    • Output from function table, odd number of selected gates. Dummy lines preserve parity
    • Unitypes
  • 1-of-n
    • Intermediate line function table
    • Memory bank select
univac i checkers cont d
Univac I Checkers (cont’d)
  • Duplication
    • Registers
    • Adder
    • Comparitor
    • Multiplier-quotient coupler
    • Bus amplifier
    • Bus interface
  • Automatic voltage monitoring system tests every DC voltage at rate of one per minute
  • “720 checker” counts 720 characters per I/O block
definitions
Definitions
  • RELIABILITY:SURVIVAL PROBABILITY
    • When repair is costly or function is critical
  • AVAILABILITY:THE FRACTION OF TIME A SYSTEM MEETS ITS SPECIFICATION
    • When service can be delayed or denied
  • REDUNDANCY:EXTRA HARDWARE, SOFTWARE, TIME
stages in the development of a system
Stages in the development of a system

STAGEERROR SOURCESERROR DETECTION

Specification Algorithm Design Simulation

& design Formal Specification Consistency checks,

model checking

Prototype Algorithm design Stimulus/response

Wiring & assembly testing

Timing

Component Failure

Manufacture Wiring & assembly System testing

Component failure Diagnostics

Installation Assembly System Testing

Component failure Diagnostics

Field Operation Component failure Diagnostics

Operator errors

Environmental factors

cause effect sequence
Cause-effect sequence
  • FAILURE: component does not provide service
  • FAULT:deviation of logic function from design value
    • Hard, Transient
  • ERROR: manifestation of a fault by incorrect value
fault classification
Fault Classification
  • DURATION:
    • Transient- design errors, environment
    • Intermittent- repair by replacement
    • Permanent- repair by replacement
  • EXTENT:
    • Local (independent)
    • Distributed (related)
  • VALUE:
    • Determinate (stuck at X)
    • Indeterminate (variable)
basic steps in fault handling
Fault Confinement -- contain it before it can spread

Fault Detection -- find out about it to prevent acting on bad data

Fault Masking -- mask effects

Retry -- since most problems are transient, just try again

Diagnosis -- figure out what went wrong as prelude to correction

Reconfiguration -- work around a defective component

Recovery -- resume operation after reconfiguration in degraded mode

Restart -- re-initialize (warm restart; cold restart)

Repair -- repair defective component

Reintegration -- after repair, go from degraded to full operation

Basic Steps in Fault Handling
mtbf mttd mttr
MTBF -- MTTD -- MTTR

Availability = MTTF

______________

MTTF + MTTR

error containment levels
Error Containment Levels
  • For distributed systems there are additional levels
    • Containment to a single node or FTU
    • Containment to a single bus or subsystem
    • Containment to a single vehicle/piece of equipment in a national infrastructure
mainframe outage sources
“Mainframe”Outage Sources

(* the sum of these sources was 0.75)

tandem causes of system failures
Tandem Causes of System Failures

(Up is good; down is bad)

tandem hardware causes of outage
Tandem Hardware Causes of Outage
  • Disks 49%
  • Communications 24%
  • Processors 18%
  • Timing 9%
  • Spares 1%
tandem operations causes of outage
Tandem Operations Causes of Outage
  • Procedures 42%
  • Configurations 39%
  • Move 13%
  • Overflow 4%
  • Upgrade 1%
tandem maintenance causes of outage
Tandem Maintenance Causes of Outage
  • Disk 67%
  • Communication 20%
  • Processor 13%
tandem environmental outages
Tandem Environmental Outages
  • Extended Power Loss 80%
  • Earthquake 5%
  • Flood 4%
  • Fire 3%
  • Lightning 3%
  • Halon Activation 2%
  • Air Conditioning 2%
  • Total MTBF about 20 years
  • MTBAoG* about 100 years
    • Roadside highway equipment will be more exposed than this

* (AoG= “Act Of God”)

cmu andrew file server study
CMU Andrew File Server Study
  • Configuration
    • 13 SUN II Workstations with 68010 processor
    • 4 Fujitsu Eagle Disk Drives
  • Observations
    • 21 Workstation Years
  • Frequency of events
    • Permanent Failures 29
    • Intermittent Faults 610
    • Transient Faults 446
    • System Crashes 298
  • Mean Time To
    • Permanent Failures 6552 hours
    • Intermittent Faults 58 hours
    • Transient Faults 354 hours
    • System Crash 689 hours
some interesting ratios
Some Interesting Ratios
  • Permanent Outages/Total Crashes = 0.1
  • Intermittent Faults/Permanent Failures = 21
    • Thus first symptom appears over 1200 hours prior to repair
  • (Crashes - Permanent)/Total Faults = 0.255
  • 14/29 failures had three or fewer error log entries
    • 8/29 had no error log entries
