P ulse S tart L aser S ynchro

100ms. FSL. n x FSL. QSL. n x QSL. Δ T. 230µs. FML. QML. 140µs. P ulse S tart L aser S ynchro. LabVIEW & F ield P rogrammable G ate A rray. MC68HC08. LabVIEW. USB/VPC. XILINX 255 cycles FSL 1µs < Δ T < 1s Précision = 1µs. FT232. DS1023-500 16,5 à 1292ns. ABEL. VHDL.

tate
Download Presentation

P ulse S tart L aser S ynchro

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

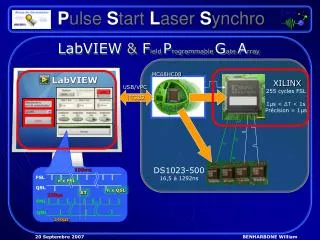

  1. 100ms FSL n x FSL QSL n x QSL ΔT 230µs FML QML 140µs PulseStartLaserSynchro LabVIEW & FieldProgrammableGateArray MC68HC08 LabVIEW USB/VPC XILINX 255 cycles FSL 1µs < ΔT < 1s Précision = 1µs FT232 DS1023-500 16,5 à 1292ns

  2. ABEL VHDL XABEL Very High Speed Integrated Circuit Hardware Description Language Advanced Boolean Expression Language Xilinx ABEL réseau de portes programmables in-situ >>>>>>>>> SPARTAN 3E <<<<<<<< — 500 000 Portes —232 E/S réseau de portes programmables in-situ >>>>>>>>> XCS30XL <<<<<<<<<< — 30 000 Portes —192 E/S Logique Programmable Haute-Densité >>>>>>> ISPLSI1032EA <<<<<<< — 6 000 portes — 64 E/S, 4 Entrées dédiées Logique Programmable Haute-Densité >>>>>>> ISPLSI1016E <<<<<<<< — 2 000 portes — 32 E/S, 4 Entrées dédiées CPLD&FPGA Historique LATTICE (CPLD) XILINX (FPGA) Portes Logiques 500 000 30 000 2 000 1998 2007

  3. Xilinx – Présentation Langage ABEL OPERATEURS STRUCTURE MODULEportes "Inputs A, B pin; "Outputs Y1,Y2,Y3,Y4,Y5,Y6,Y7 pin istype 'com'; out = [Y1..Y7]; Equations Y1 = A & B; "Et Y2 = A # B; "Ou Y3 = A $ B; "Ou Exclusif Y4 = !A; "Non Y5 = !(A & B); "Non et Y6 = !(A # B); "Non ou Y7 = !(A $ B); "Non ou Exclusif Test_vectors ([A,B] -> [out]) [0,0] -> [.X.]; [0,1] -> [.X.]; [1,0] -> [.X.]; [1,1] -> [.X.]; END Déclarations • Entrées/Sorties • Nœuds internes Equations • Sortie.__ = Opérations ; • Nœuds.__ = Opérations ; Simulation • test_vectors • trace_statement

  4. Xilinx - Déclarations Vue d’ensemble Entrées Horloge 8 MHz ______________ CLK RAZ du Xilinx _____________ RESET Ordre de lancement ________ START Bus de Donnée ________ HC08[7..0] Bus d’adresse __________ ADR[4..0] Ecriture ____________________ WR Sorties Etat _____________________ BUSY Impulsions _____________ FSL, QSL Impulsions _____________ FML, QML Nœuds Internes / Registres Période ______________ PER[7..0] Registre ΔT ___________ ADR[16.0] Polarité _____________ FSL ... QML Largeur des impulsions _ FSL … QML Compteurs ___________ FSL_à_QSL Compteurs ___________ FML_à_QML

  5. 100ms FSL n x FSL QSL n x QSL ΔT 230µs FML QML 140µs Xilinx - Fonctionnement

  6. Simulation Fonctionnelle

  7. 100ms FSL n x FSL QSL n x QSL ΔT 230µs FML QML 140µs LabVIEW – National Instrument ™ USB: Virtual Port Com n x FSL: Période (ms) ΔT: Delta T(µs)+Delta T (ns) n x QSL: Répétition Polarité: FSL,QSL,FML,QML

  8. LabVIEW – National Instrument ™

  9. Interface de commande LABVIEW d'un microscope

  10. 5ème Rencontre Régionale MERCI
