formal design review

Formal Design Review

Team 4

Limb-itless

Chris Bruce, Anna Chen, Grant Hofmeister

brief update
Brief Update
  • Went to Dr. Miller’s prosthetist in NH
  • Obtained plaster molds of Dr. Miller’s socket
  • Obtained chemical composition of Liner
problem statement

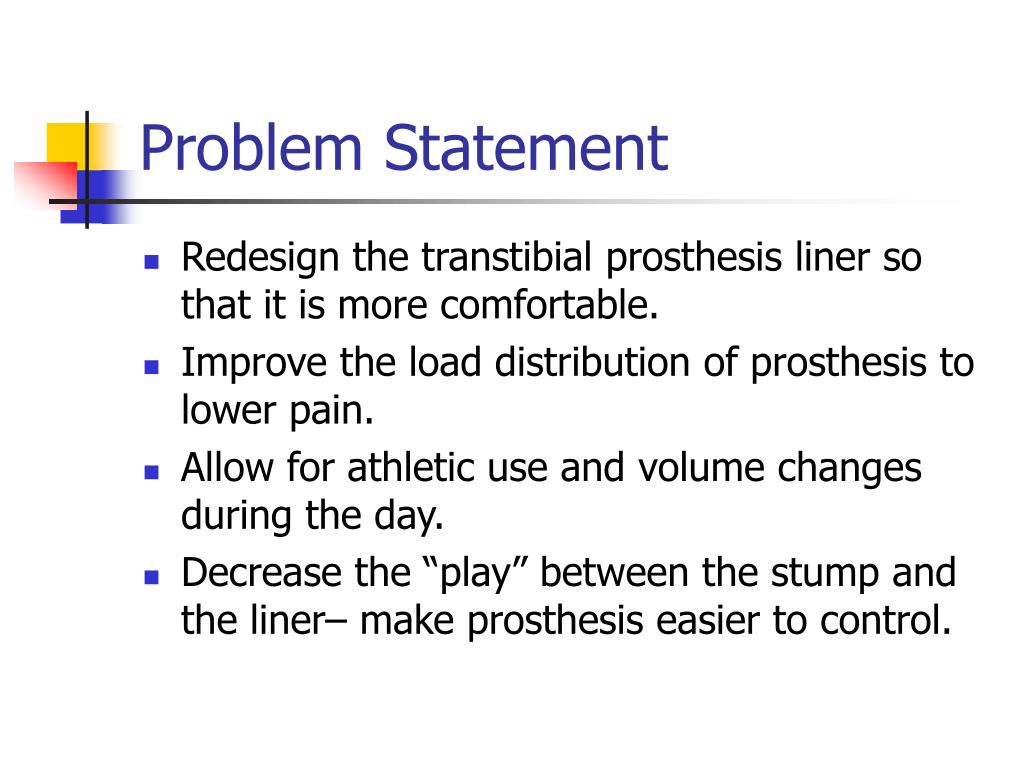

Problem Statement
  • Redesign the transtibial prosthesis liner so that it is more comfortable.
  • Improve the load distribution of prosthesis to lower pain.
  • Allow for athletic use and volume changes during the day.
  • Decrease the “play” between the stump and the liner– make prosthesis easier to control.
design focus
Design Focus
  • Focus on liner design
    • Socket redesign is not within our scope and timeframe.
    • Liner has more interesting material issues.
    • Great potential for advances in liner design.
  • Within liner, focus on suspension.
  • Less focus on accommodating volume change and other issues.
evolution of design

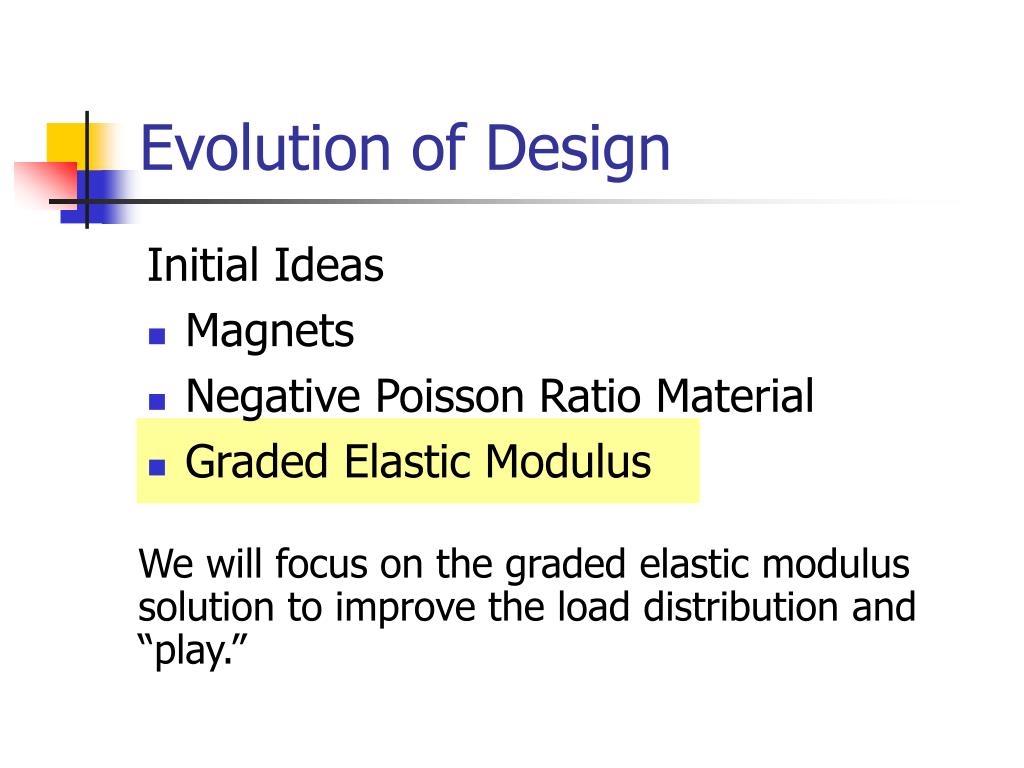

Evolution of Design

Initial Ideas

  • Magnets
  • Negative Poisson Ratio Material
  • Graded Elastic Modulus

We will focus on the graded elastic modulus solution to improve the load distribution and “play.”

design plan

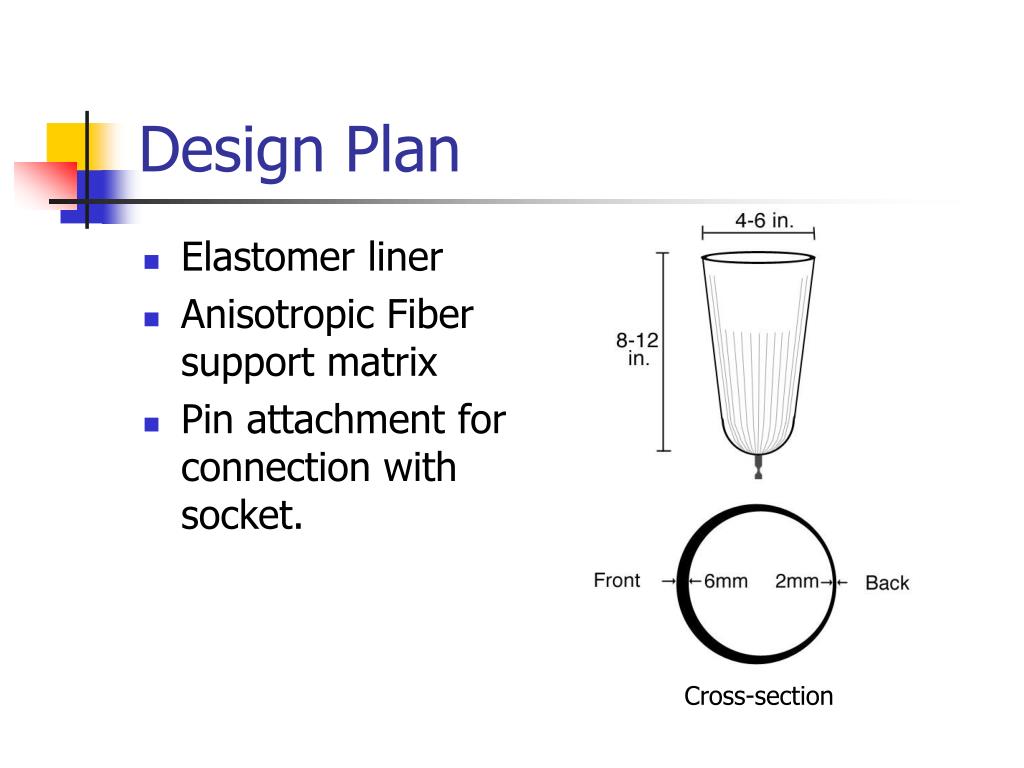

Design Plan
  • Elastomer liner
  • Anisotropic Fiber support matrix
  • Pin attachment for connection with socket.

Cross-section

elastomer liner

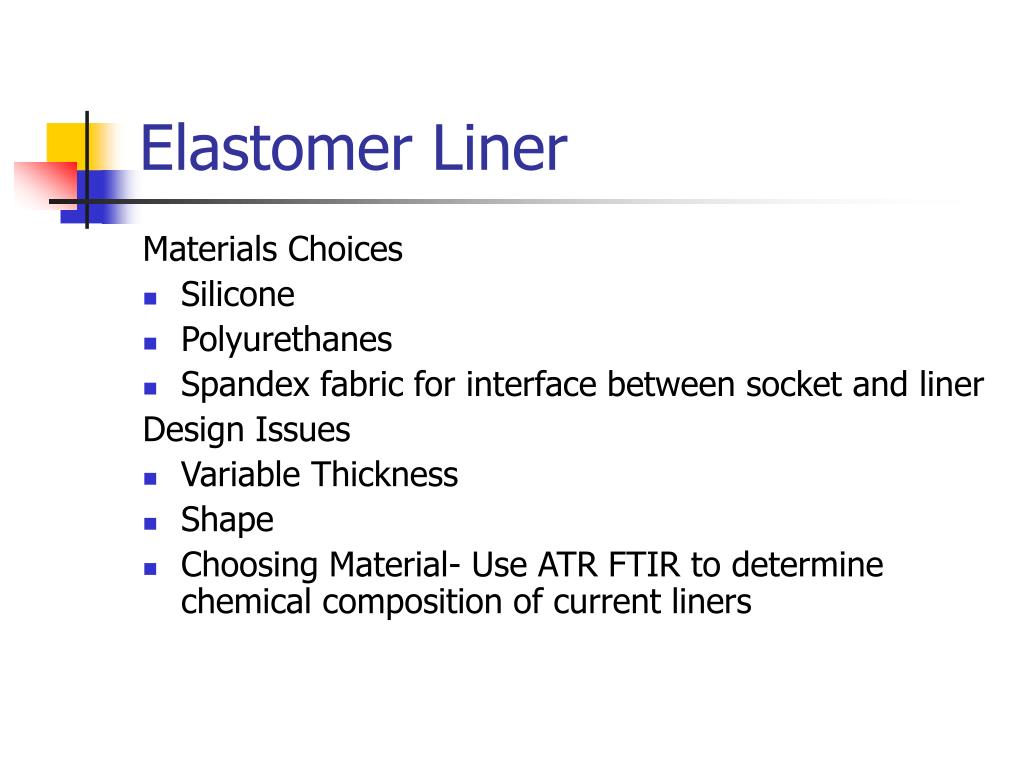

Elastomer Liner

Materials Choices

  • Silicone
  • Polyurethanes
  • Spandex fabric for interface between socket and liner

Design Issues

  • Variable Thickness
  • Shape

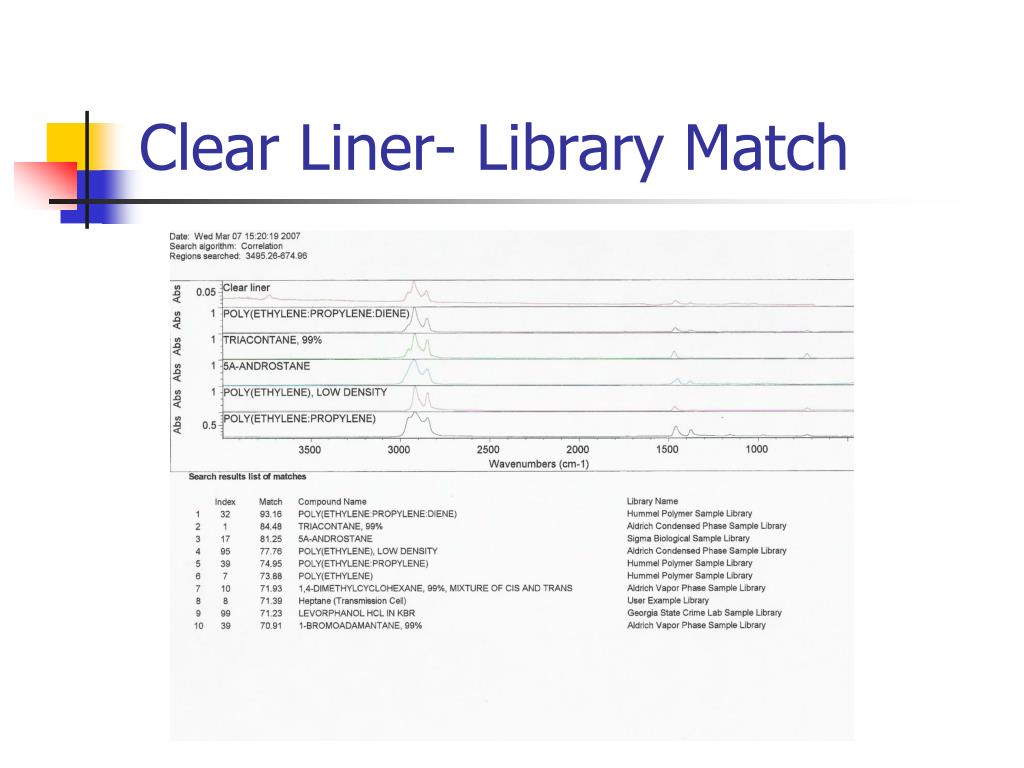

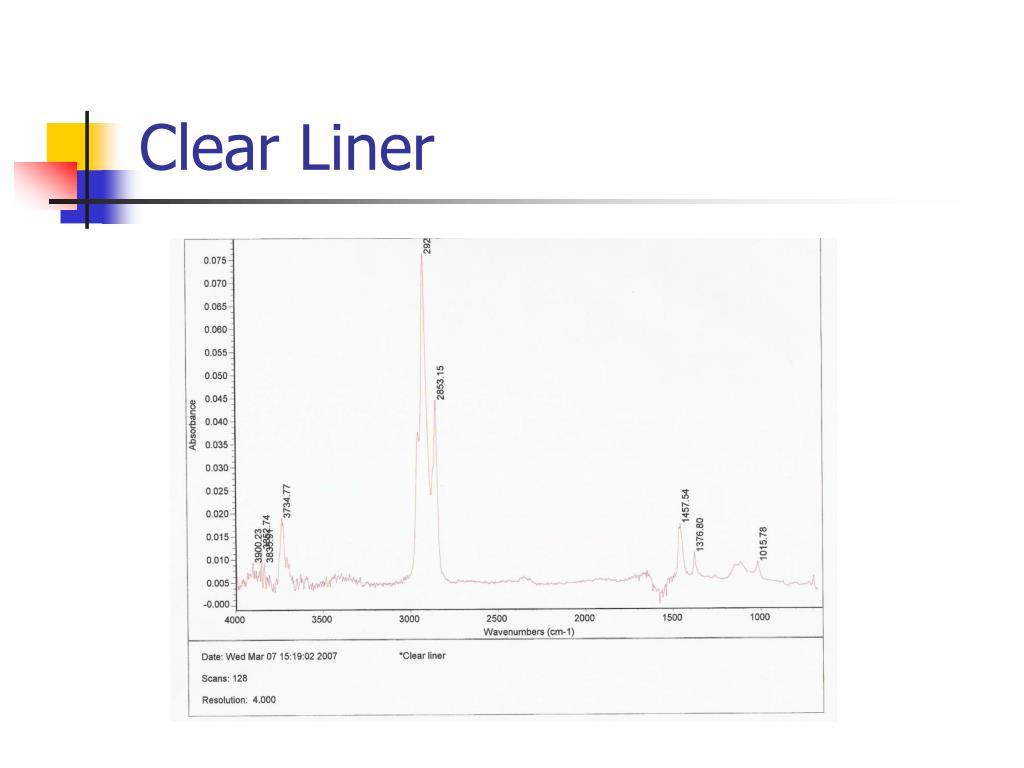

  • Choosing Material- Use ATR FTIR to determine chemical composition of current liners
fiber matrix
Materials Choices

Kevlar

Nylon

Carbon Fiber

Fiberglass

Design Issues

Density

Orientation

Adhesion to elastomer

Fiber Length

Fiber Matrix
pin attachment

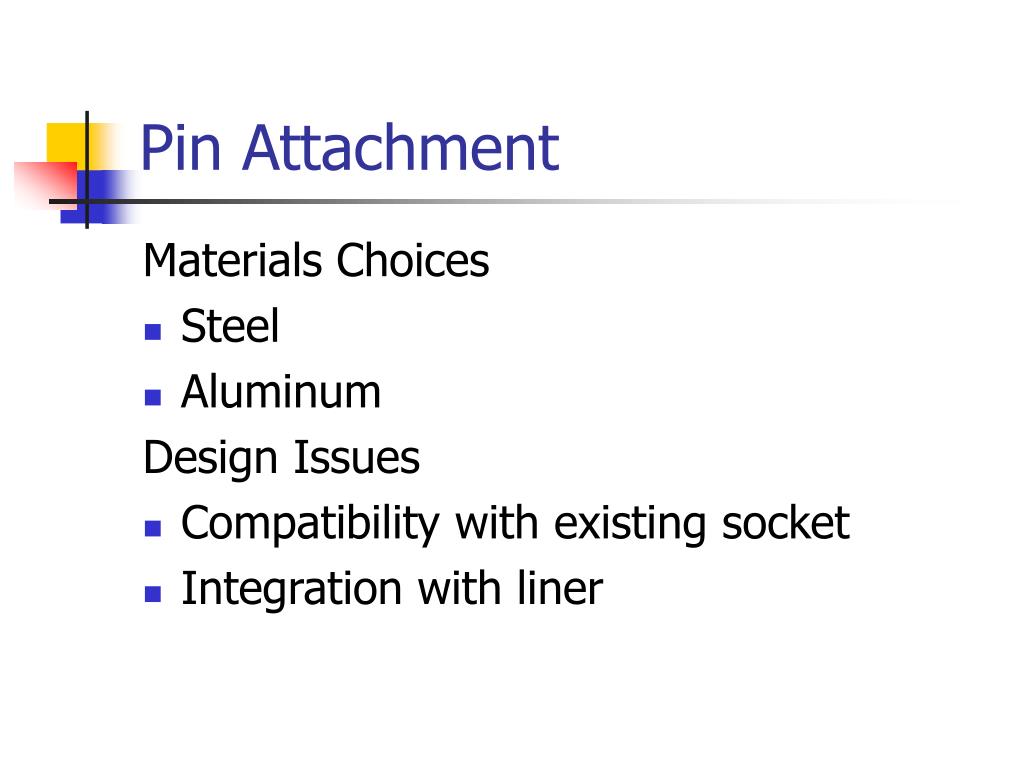

Pin Attachment

Materials Choices

  • Steel
  • Aluminum

Design Issues

  • Compatibility with existing socket
  • Integration with liner
production of liner

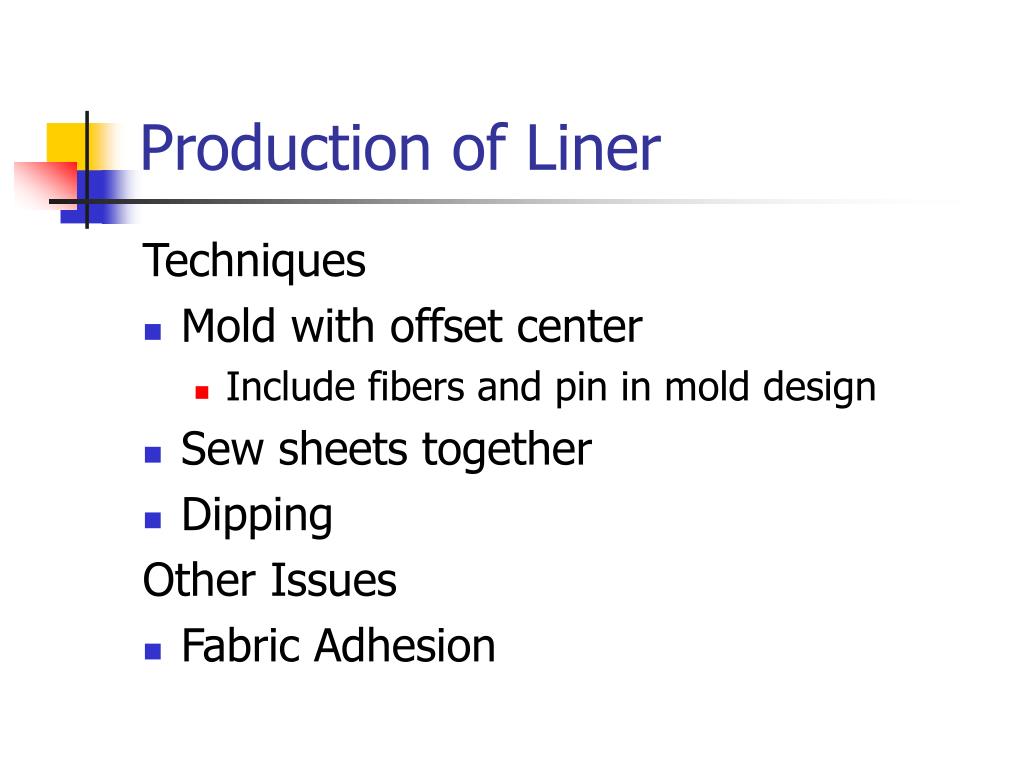

Production of Liner

Techniques

  • Mold with offset center
    • Include fibers and pin in mold design
  • Sew sheets together
  • Dipping

Other Issues

  • Fabric Adhesion
risks

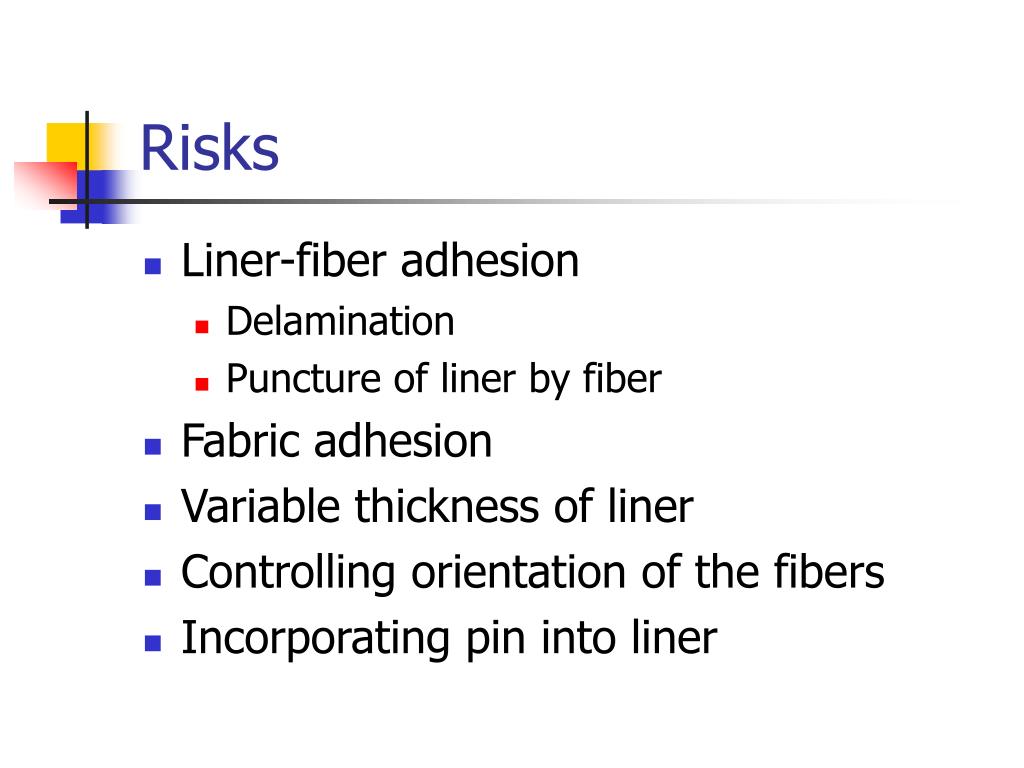

Risks
  • Liner-fiber adhesion
    • Delamination
    • Puncture of liner by fiber
  • Fabric adhesion
  • Variable thickness of liner
  • Controlling orientation of the fibers
  • Incorporating pin into liner
testing and analysis

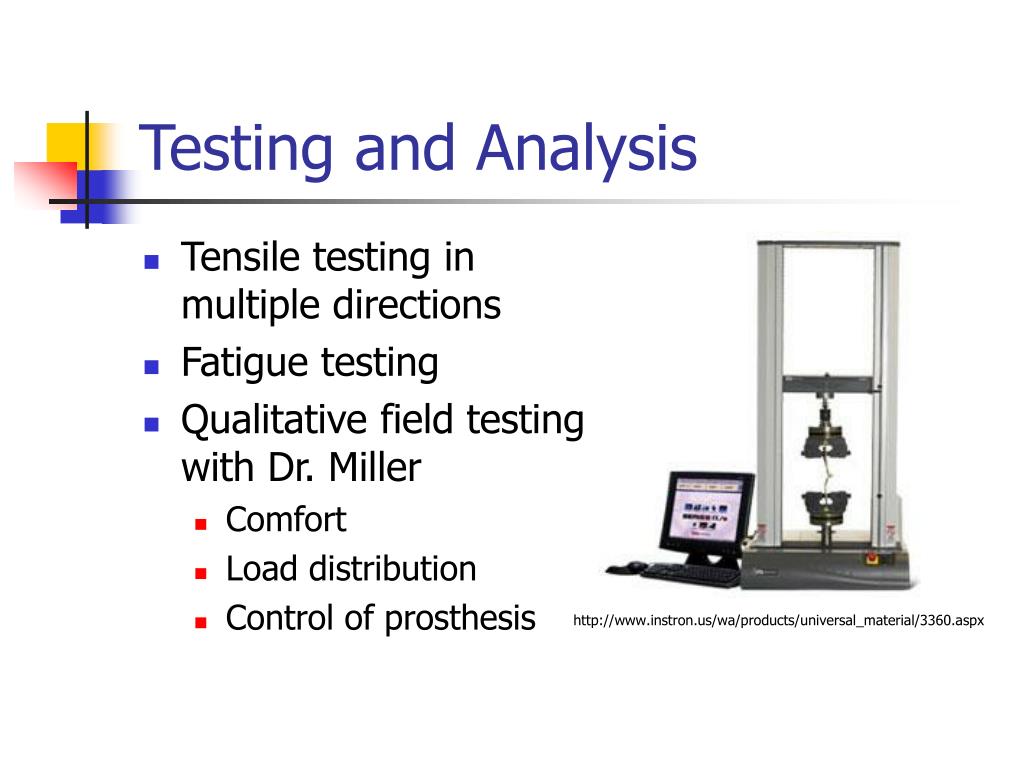

Testing and Analysis
  • Tensile testing in multiple directions
  • Fatigue testing
  • Qualitative field testing with Dr. Miller
    • Comfort
    • Load distribution
    • Control of prosthesis

http://www.instron.us/wa/products/universal_material/3360.aspx
