slide1

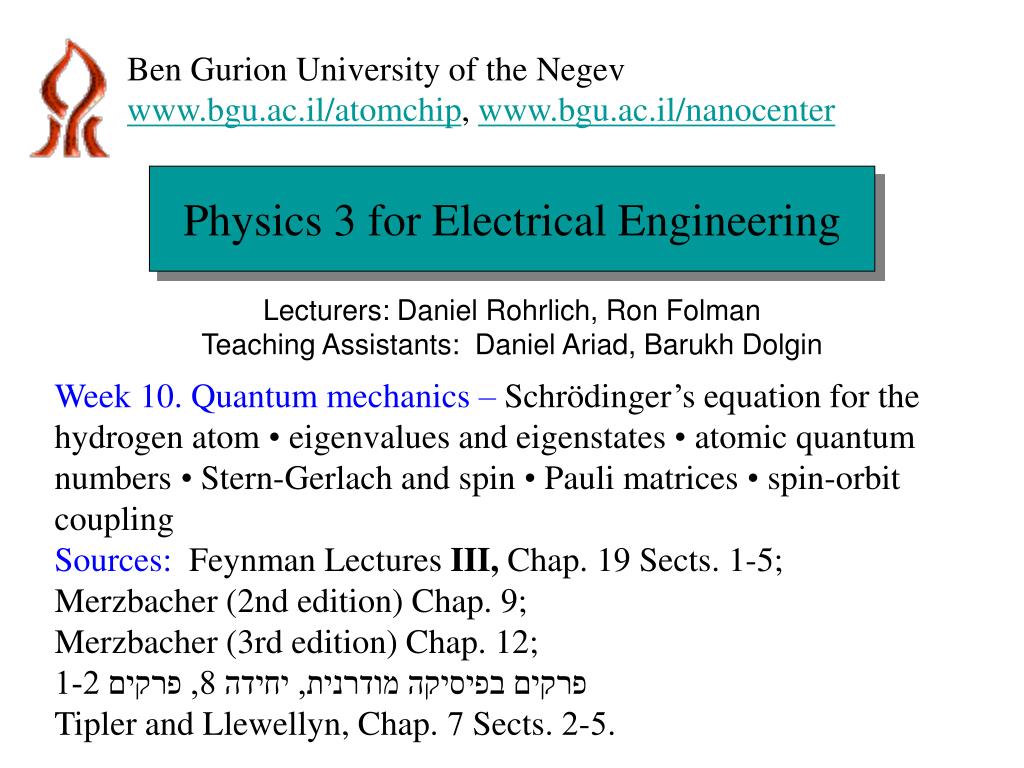

Ben Gurion University of the Negev

www.bgu.ac.il/atomchip,www.bgu.ac.il/nanocenter

Physics 3 for Electrical Engineering

Lecturers: Daniel Rohrlich, Ron Folman

Teaching Assistants: Daniel Ariad, Barukh Dolgin

Week 10. Quantum mechanics – Schrödinger’s equation for the hydrogen atom • eigenvalues and eigenstates • atomic quantum numbers • Stern-Gerlach and spin • Pauli matrices • spin-orbit coupling

Sources: Feynman Lectures III, Chap. 19 Sects. 1-5;

Merzbacher (2nd edition) Chap. 9;

Merzbacher (3rd edition) Chap. 12;

פרקים בפיסיקה מודרנית, יחידה 8, פרקים 1-2

Tipler and Llewellyn, Chap. 7 Sects. 2-5.

slide2

Schrödinger’s equation for the hydrogen atom

The most common isotope of hydrogen contains just one proton and one electron. Their potential energy is

so Schrödinger’s equation depends on rp and re , i.e. on six coordinates:

But a clever change of variables makes the equation simpler:

slide3

Schrödinger’s equation for the hydrogen atom

Let r = re – rpand then Schrödinger’s

equation becomes

where is called the reduced mass. For a proton

and an electron, the reduced mass is essentially the electron mass, since mp ≈ 2000 me. But for a positronium atom (which has a positron in the place of the proton), μ = me /2.

slide4

Schrödinger’s equation for the hydrogen atom

Let r = re – rpand then Schrödinger’s

equation becomes

where is called the reduced mass. There are

solutions of the form Ψ = T(t)χ(R)ψ(r), where T(t) is the usual time dependence and χ(R) is a solution to the free Schrödinger equation in R (the center-of-mass coordinate), which has no potential term.

slide5

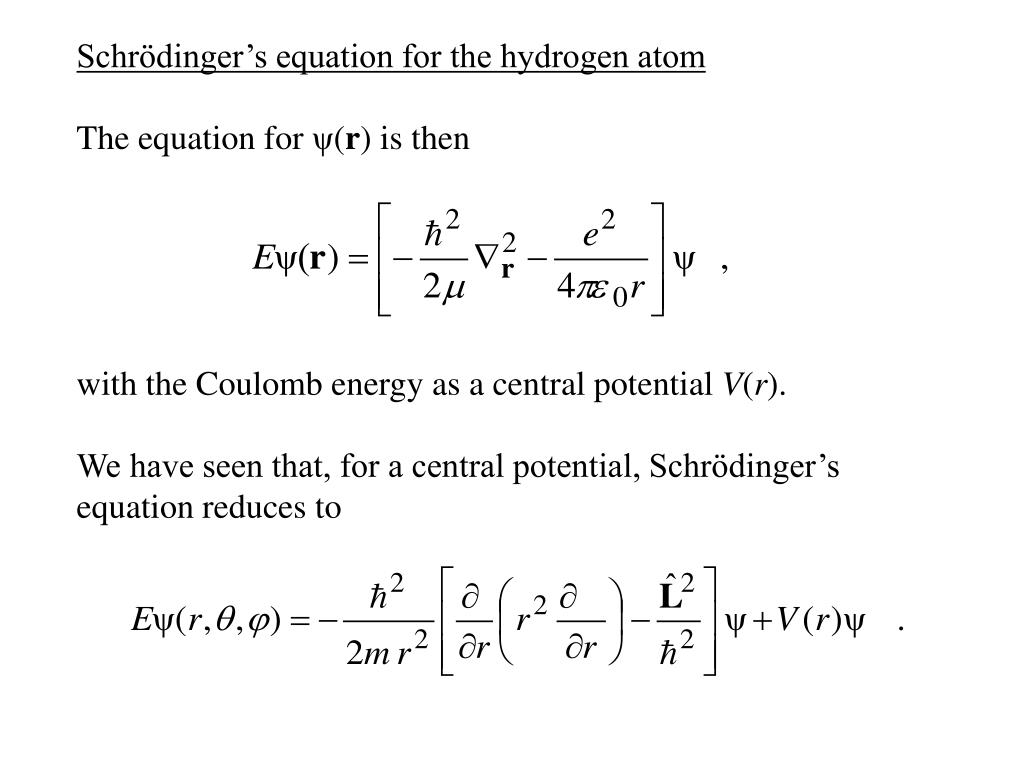

Schrödinger’s equation for the hydrogen atom

The equation for ψ(r) is then

with the Coulomb energy as a central potential V(r).

We have seen that, for a central potential, Schrödinger’s equation reduces to

slide6

We replace m by μ and V(r) by

and obtain the eigenvalues of ; they are . We solved this equation by expressing ψ(r,θ,φ) as a product of two functions:

ψ(r,θ,φ) = R(r)Ylm(θ,φ) ,

where

slide7

Eigenvalues and eigenstates

Hence the equation for R(r) is

The solutions Rnl(r) of this equation have the form

with Fnl(r/a0) a polynomial and n ≥ l + 1. The constant a0 is called the Bohr radius and equals

Å

slide8

Eigenvalues and eigenstates

The energies depend only on n:

where 1 eV = 1.602176 × 10-19 J.

Question: What is the normalization condition for ψnlm(r,θ,φ)?

slide9

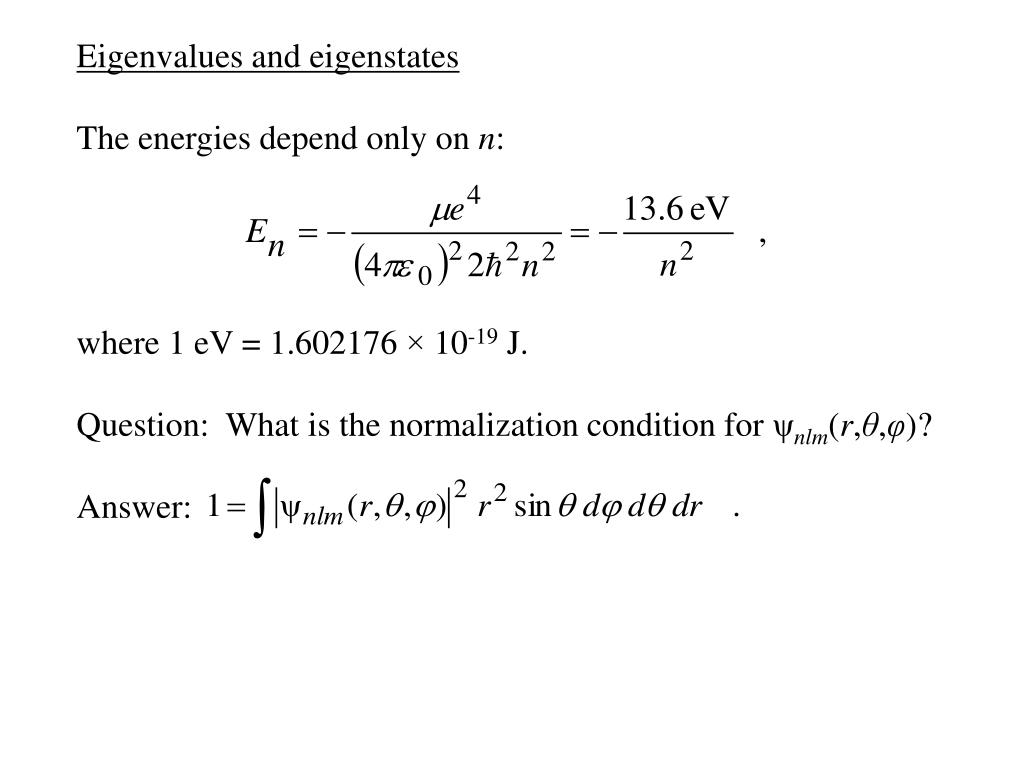

Eigenvalues and eigenstates

The energies depend only on n:

where 1 eV = 1.602176 × 10-19 J.

Question: What is the normalization condition for ψnlm(r,θ,φ)?

Answer:

slide10

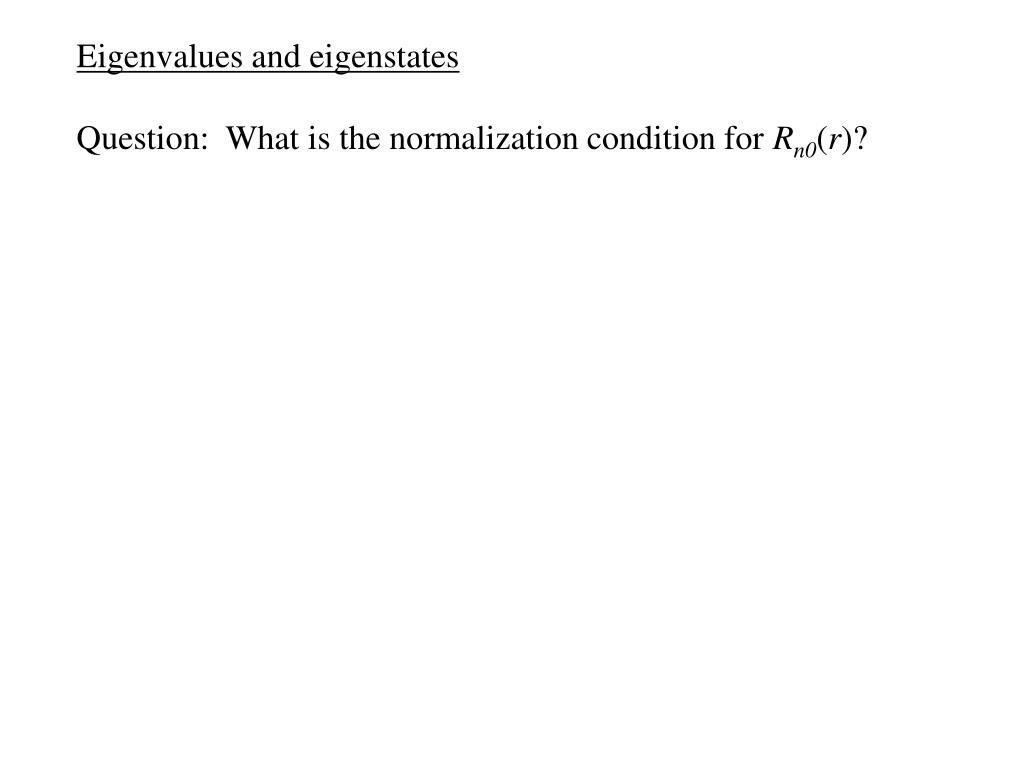

Eigenvalues and eigenstates

Question: What is the normalization condition for Rn0(r)?

slide11

Eigenvalues and eigenstates

Question: What is the normalization condition for Rn0(r)?

Answer:

slide12

n l m ψnlm

Eigenvalues and eigenstates

Here are the lowest normalized solutions ψnlm = Rnl(r)Ylm(θ,φ) of the hydrogen atom Schrödinger equation (see also here):

slide13

Radial eigenfunctions Rnl(r) and probability distributions Pnl(r) for the lowest eigenstates of the hydrogen atom.

From here.

Question: How can Pn0(r) vanish at r = 0 if Rn0(r) does not?

Pnl(r)

Rnl(r)

Radius (a0)

slide14

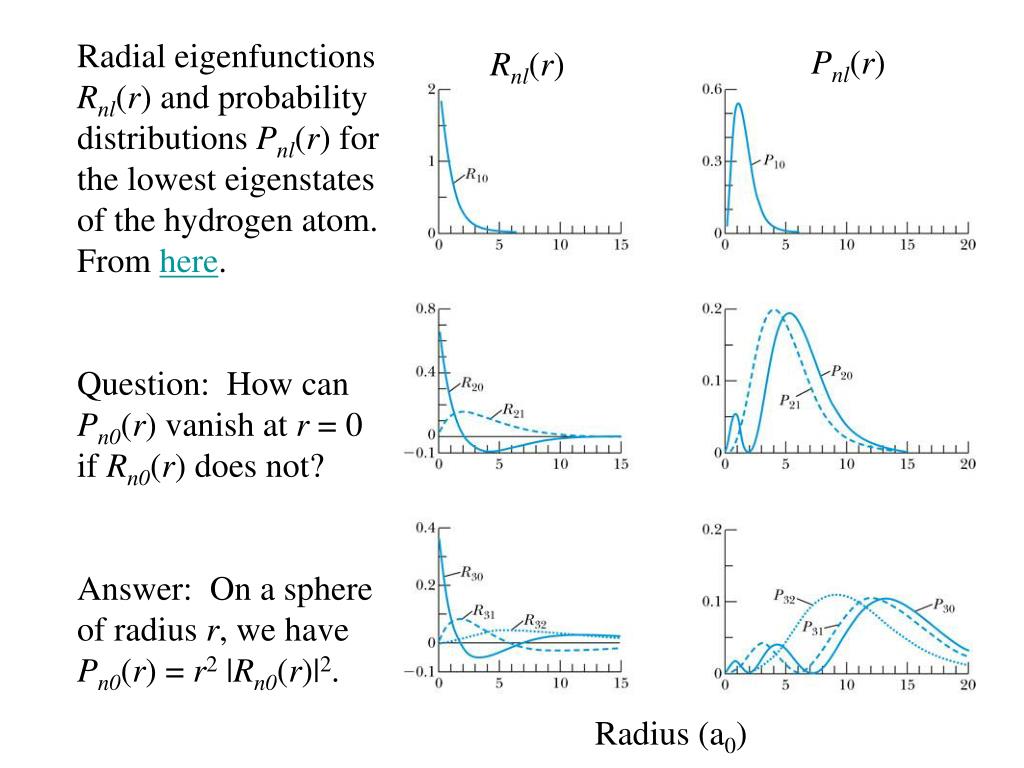

Radial eigenfunctions Rnl(r) and probability distributions Pnl(r) for the lowest eigenstates of the hydrogen atom.

From here.

Question: How can Pn0(r) vanish at r = 0 if Rn0(r) does not?

Answer: On a sphere of radius r, we have Pn0(r) = r2|Rn0(r)|2.

Pnl(r)

Rnl(r)

Radius (a0)

slide15

For a single electron bound by a nucleus containing Z protons, the solutions of Schrödinger’s equation are almost unchanged; the reduced mass μ is even closer to me, while the potential term is

Thus by replacing e2 with Ze2 in the eigenstates and eigenvalues we obtained for Z = 1, we obtain the Z > 1 eigenstates and eigenvalues.

For example, we obtain the energy eigenvalues

slide16

Exercise: Show that the energy of the ground state is half the expectation value of the potential energy in the ground state.

slide17

Exercise: Show that the energy of the ground state is half the expectation value of the potential energy in the ground state.

Solution: The ground state energy is

The expectation value of the potential energy is

slide18

Atomic quantum numbers

According to what we have seen so far, every eigenstate of the hydrogen atom can be associated with three quantum numbersn, l and m, where

n = 1, 2, 3, … “principle” quantum number

l = 0, …, n – 1;

m = –l, –l +1, …, l – 1, l .

The degeneracy of the energy eigenvalue En is therefore

1 + 3 + 5 + … + [2(n – 1) + 1] = n2 .

In atomic physics, the l quantum numbers have special names:

s for l = 0, p for l = 1, d for l = 2, f for l = 3, etc. Then 2s means n = 2 and l = 0; 3p means n = 3 and l = 1; and so on.

slide19

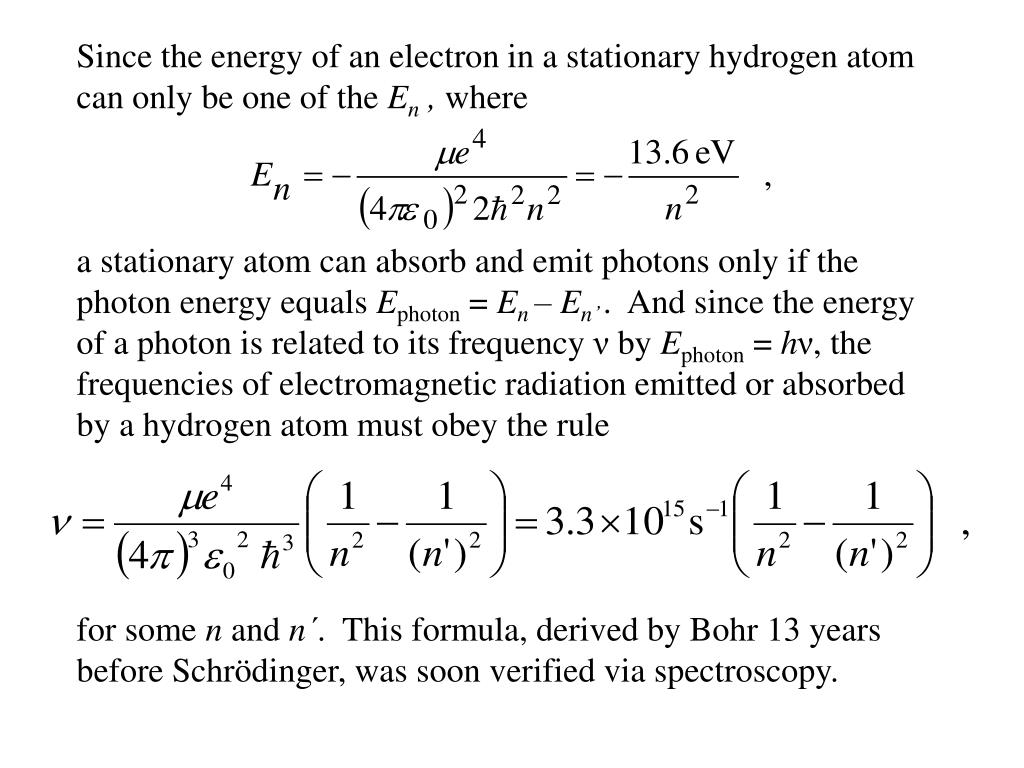

Since the energy of an electron in a stationary hydrogen atom can only be one of the En , where

a stationary atom can absorb and emit photons only if the photon energy equals Ephoton = En – En’ . And since the energy of a photon is related to its frequency ν by Ephoton = hν, the frequencies of electromagnetic radiation emitted or absorbed by a hydrogen atom must obey the rule

for some n and n´. This formula, derived by Bohr 13 years before Schrödinger, was soon verified via spectroscopy.

slide22

Light from source

Setup for emission spectroscopy:

slide23

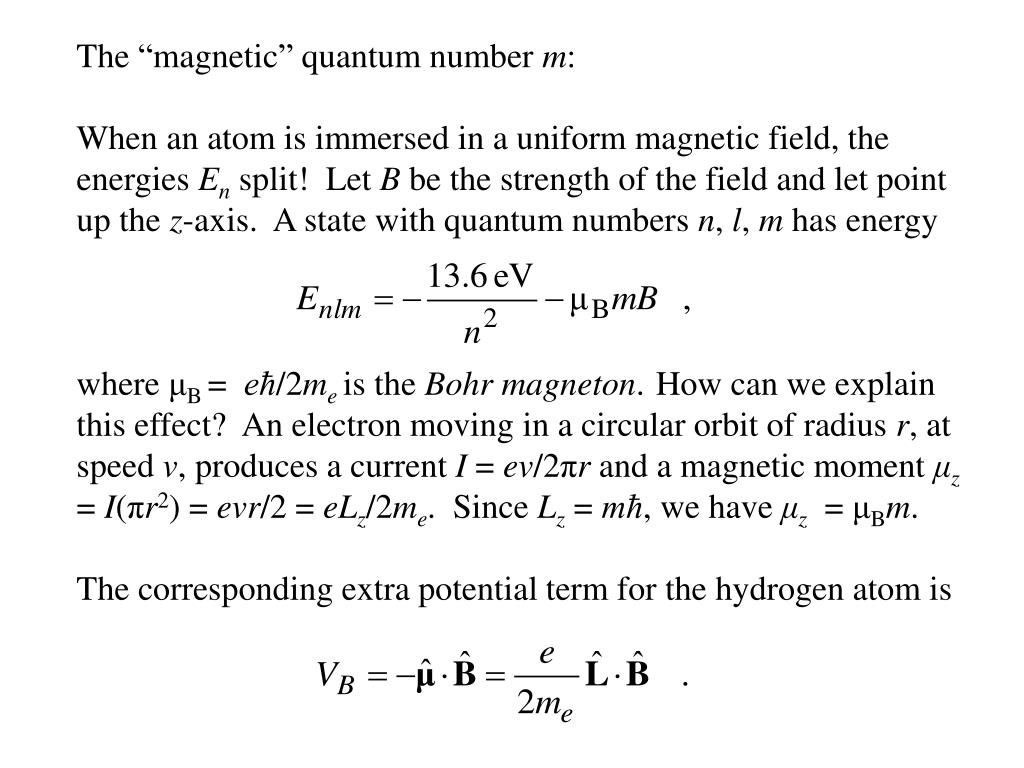

The “magnetic” quantum number m:

When an atom is immersed in a uniform magnetic field, the energies En split! Let B be the strength of the field and let point up the z-axis. A state with quantum numbers n, l, m has energy

where μB = eħ/2me is the Bohr magneton.How can we explain this effect? An electron moving in a circular orbit of radius r, at speed v, produces a current I = ev/2πr and a magnetic momentμz = I(πr2) = evr/2 = eLz/2me. Since Lz = mħ, we have μz = μBm.

The corresponding extra potential term for the hydrogen atom is

slide24

The “magnetic” quantum number m:

But this is not the only magnetic effect. In a uniform magnetic field, there is a torque on the atom (to make it anti-parallel to the magnetic field). But in a non-uniform magnetic field, there is also a force on the atom. Assume again that the field points up the z-axis, so that VB = –μz B. Then if dB/dz ≠ 0, the force is

So, what happens if a beam of neutral atoms with –lħ ≤ Lz ≤ lħ crosses a non-uniform magnetic field?

slide25

The “magnetic” quantum number m:

But this is not the only magnetic effect. In a uniform magnetic field, there is a torque on the atom (to make it anti-parallel to the magnetic field). But in a non-uniform magnetic field, there is also a force on the atom. Assume again that the field points up the z-axis, so that VB = –μz B. Then if dB/dz ≠ 0, the force is

So, what happens if a beam of neutral atoms with –lħ ≤ Lz ≤ lħ crosses a non-uniform magnetic field?

We expect the beam to split into 2l+1 beams, one for each value of μz. In some cases, the beam indeed splits into 2l+1 beams.

slide26

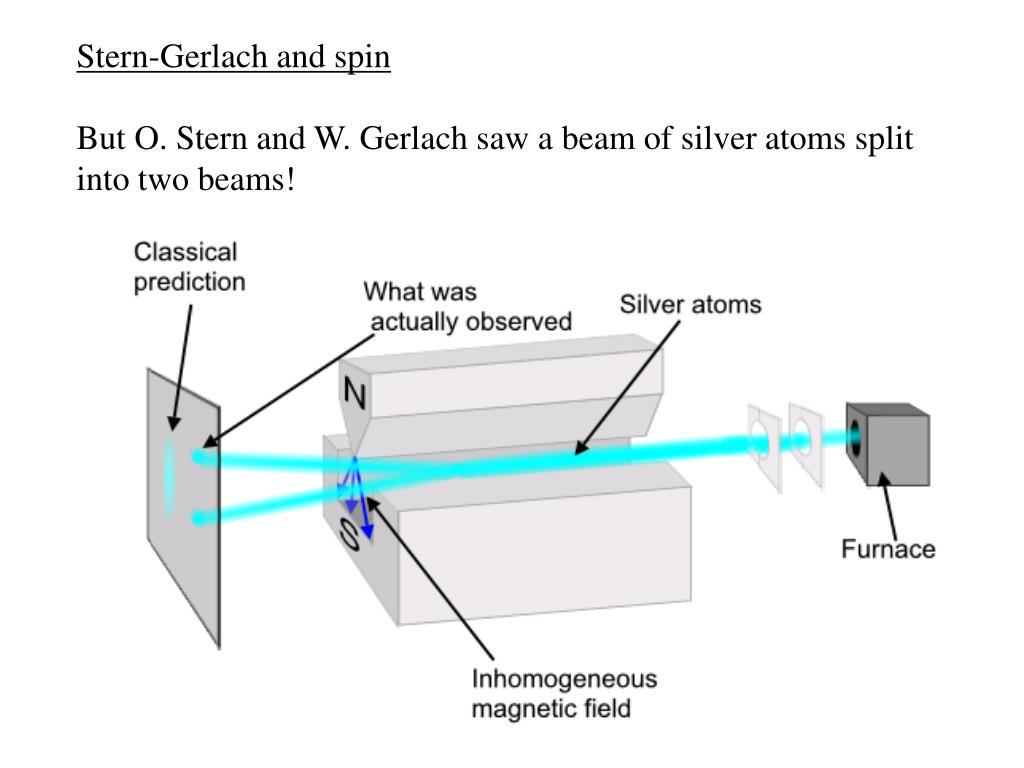

Stern-Gerlach and spin

But O. Stern and W. Gerlach saw a beam of silver atoms split into two beams!

slide27

Stern-Gerlach and spin

But O. Stern and W. Gerlach saw a beam of silver atoms split into two beams!

How can have an even number of eigenvalues?

G. Uhlenbeck and S. Goudsmit suggested that each electron has its own intrinsic angular momentum – “spin” – with only two eigenvalues.

But electron spin has odd features. For example, its magnitude never changes, just its direction – and it has only two directions.

slide28

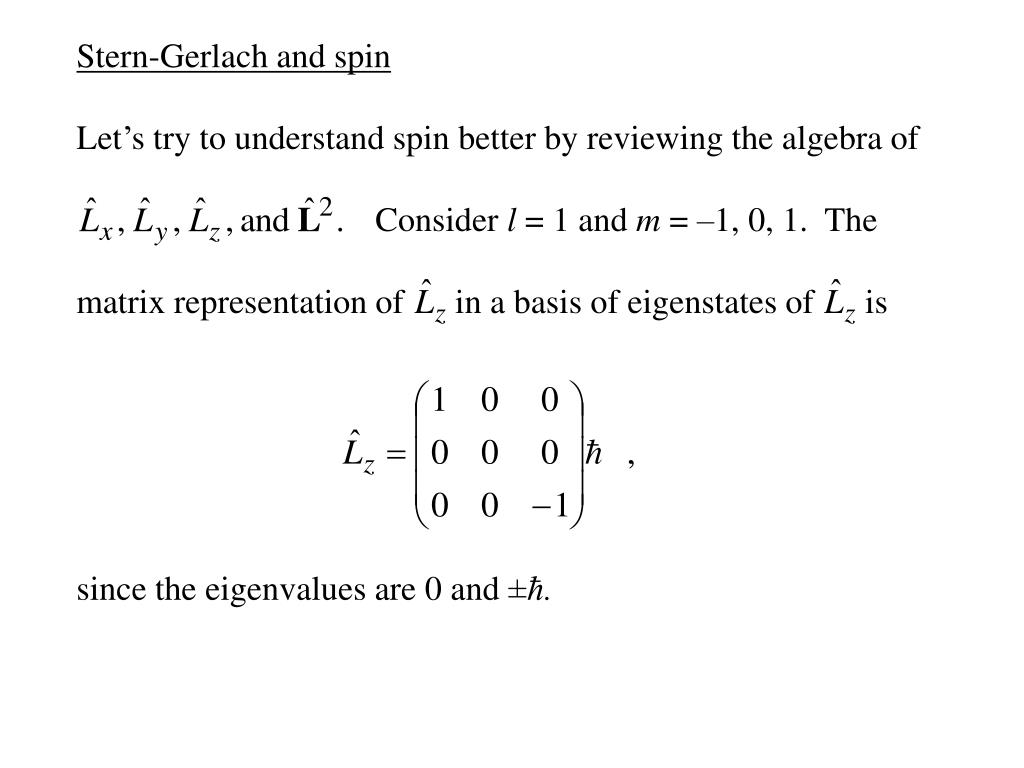

Stern-Gerlach and spin

Let’s try to understand spin better by reviewing the algebra of

Consider l = 1 and m = –1, 0, 1. The

matrix representation of in a basis of eigenstates of is

since the eigenvalues are 0 and ±ħ.

slide29

Stern-Gerlach and spin

What is ? We know it must equal but what is a?

We have

Hence , up to an overall phase. Similarly, we

can show that , hence

slide30

Stern-Gerlach and spin

Similarly, Now, since ,

we can write Since

we can write

slide31

Pauli matrices

It is straightforward to check that these matrix representations

have the correct commutation relations:

But Pauli discovered 2 × 2 matrices with the same commutation relations:

(The “Pauli matrices” are these matrices without the ħ/2 factors.)

These are the operators for the components of electron spin!

slide32

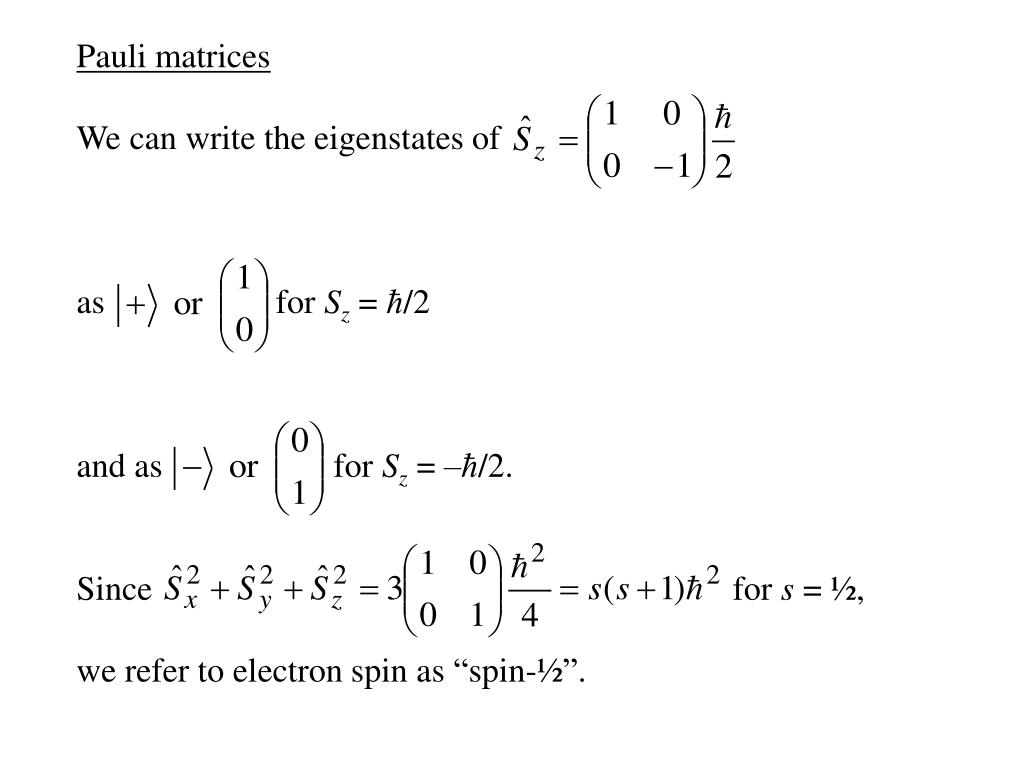

Pauli matrices

We can write the eigenstates of

as for Sz = ħ/2

and as for Sz = –ħ/2.

Since for s = ½,

we refer to electron spin as “spin-½”.

slide33

Stern-Gerlach and spin

More odd features of electron spin:

The eigenvalues of are ±ħ/2.

We can write an eigenstate of with eigenvalue mħ as

but an analogous eigenstate of , namely

, would not be single-valued. Yet experiments show

that these electron spin eigenstates are not invariant under rotation by 2π, but they are invariant under rotation by 4π!

This is reminiscent of a trick with a twisted ribbon….

slide34

Stern-Gerlach and spin

This is reminiscent of a trick with a twisted ribbon…one twist cannot be undone, but two twists are equivalent to no twist.

slide35

Stern-Gerlach and spin

One more odd feature of electron spin:

For orbital angular momentum, we found thatμz = eLz/2me.

For spin angular momentum, experiment shows that μz = eSz/me. That is, electronic spin produces an anomalous “double” magnetic moment.

Therefore, the total magnetic moment of an electron with orbital angular momentum mħ and spin angular momentum ±ħ/2 is

slide36

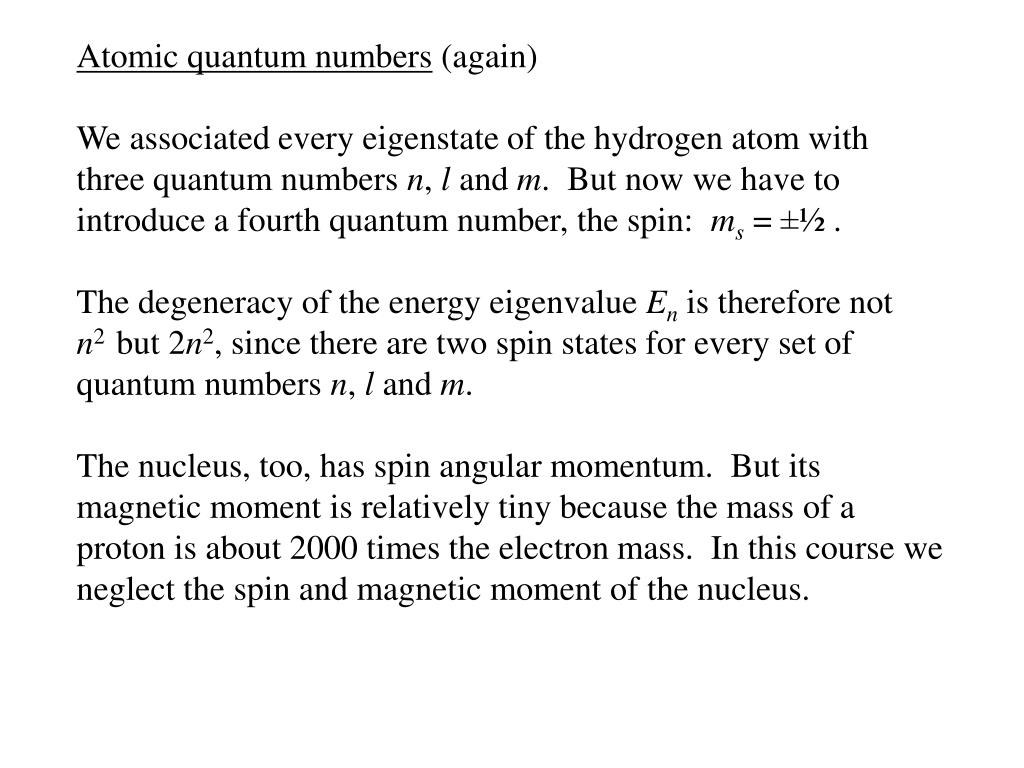

Atomic quantum numbers (again)

We associated every eigenstate of the hydrogen atom with three quantum numbers n, l and m. But now we have to introduce a fourth quantum number, the spin: ms = ±½ .

The degeneracy of the energy eigenvalue En is therefore not

n2 but 2n2, since there are two spin states for every set of quantum numbers n, l and m.

The nucleus, too, has spin angular momentum. But its magnetic moment is relatively tiny because the mass of a proton is about 2000 times the electron mass. In this course we neglect the spin and magnetic moment of the nucleus.

slide37

Exercise: Show that the superposition of wave functions

is normalized if each wave function is, and calculate

and ΔLz.

slide38

Exercise: Show that the superposition of wave functions

is normalized if each wave function is, and calculate

and ΔLz.

Solution: Since the components have different eigenvalues, they are orthonormal, and the normalization is obtained from the absolute value of the squares of the coefficients:

slide39

Exercise: Show that the superposition of wave functions

is normalized if each wave function is, and calculate

and ΔLz.

Solution:

slide40

Exercise: Show that the superposition of wave functions

is normalized if each wave function is, and calculate

and ΔLz.

Solution:

slide41

Exercise: What happens in a Stern-Gerlach experiment, if each electron in an incident beam of hydrogen atoms has l = 1?

slide42

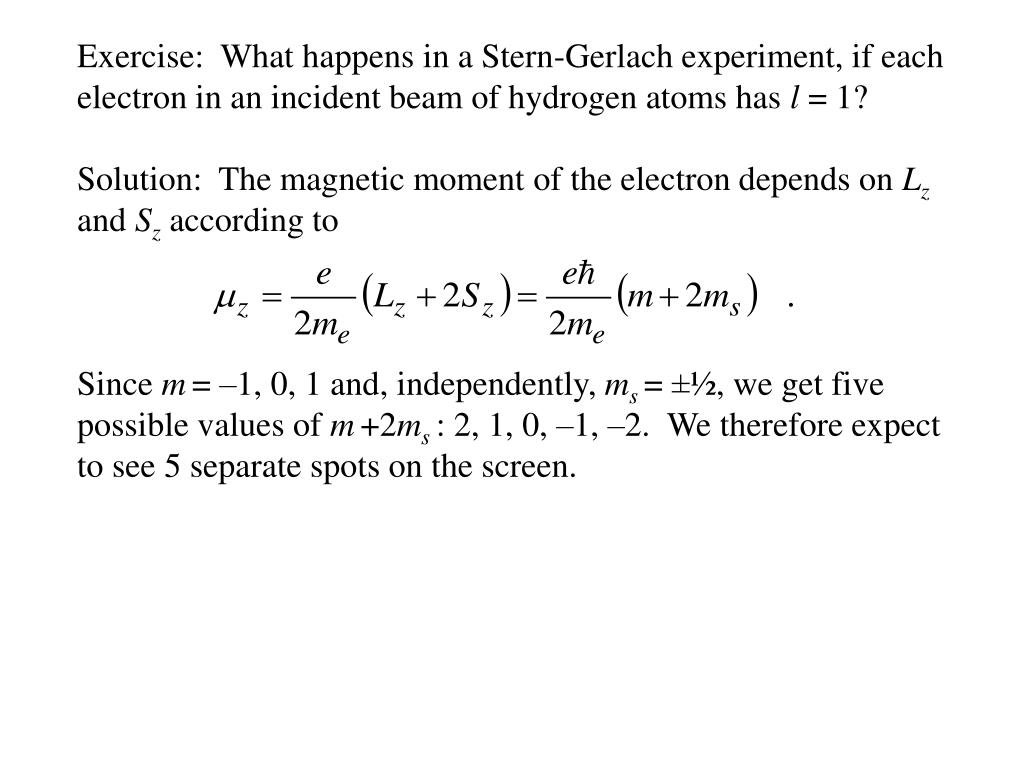

Exercise: What happens in a Stern-Gerlach experiment, if each electron in an incident beam of hydrogen atoms has l = 1?

Solution: The magnetic moment of the electron depends on Lz and Sz according to

Since m= –1, 0, 1 and, independently, ms = ±½, we get five possible values of m+2ms : 2, 1, 0, –1, –2. We therefore expect to see 5 separate spots on the screen.

slide43

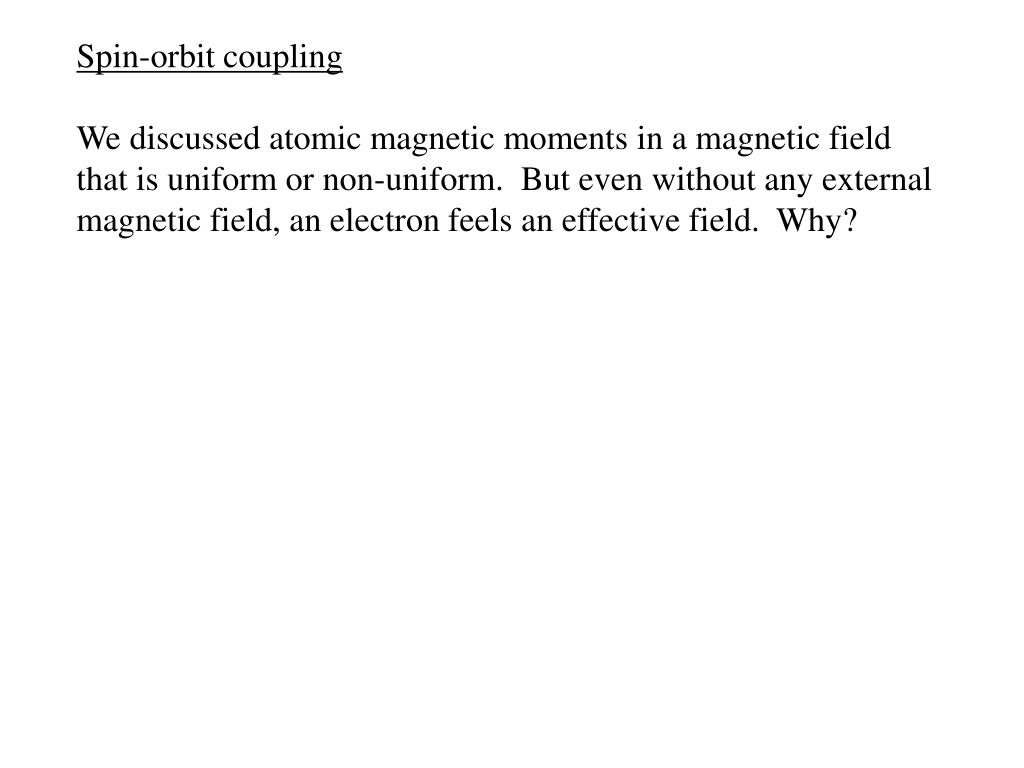

Spin-orbit coupling

We discussed atomic magnetic moments in a magnetic field that is uniform or non-uniform. But even without any external magnetic field, an electron feels an effective field. Why?

slide44

Spin-orbit coupling

We discussed atomic magnetic moments in a magnetic field that is uniform or non-uniform. But even without any external magnetic field, an electron feels an effective field. Why?

The electron moves relative to the nucleus. Transforming the Coulomb field to the electron’s rest frame yields a magnetic field B' = –v × E/c2. Since E is radial, –v × E/c2is –dV(r)/dr times r × p/emec2r = L/emec2r. Since the electron’s magnetic

moment e/me interacts with B', the spin-orbit interaction contains also . It enters the Hamiltonian as

where V(r) is the Coulomb potential.

slide45

Spin-orbit coupling

To compute the eigenvalues of , we must know how to add

angular momenta. Defining , we find that

and so on, i.e. the components of follow exactly the same algebra as the components of and . We immediately infer that the eigenvalues of are j(j+1)ħ2 and that the eigenvalues of are –jħ, (–j+1)ħ,…, (j–1)ħ,jħ.

slide46

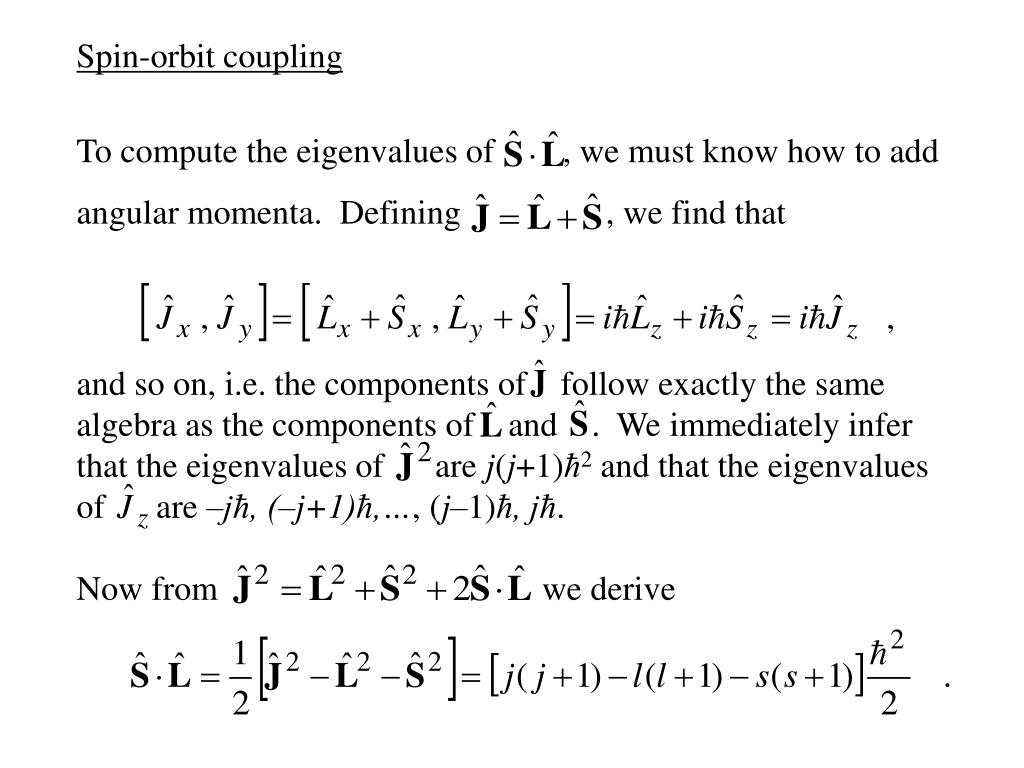

Spin-orbit coupling

To compute the eigenvalues of , we must know how to add

angular momenta. Defining , we find that

and so on, i.e. the components of follow exactly the same algebra as the components of and . We immediately infer that the eigenvalues of are j(j+1)ħ2 and that the eigenvalues of are –jħ, (–j+1)ħ,…, (j–1)ħ,jħ.

Now from we derive

slide47

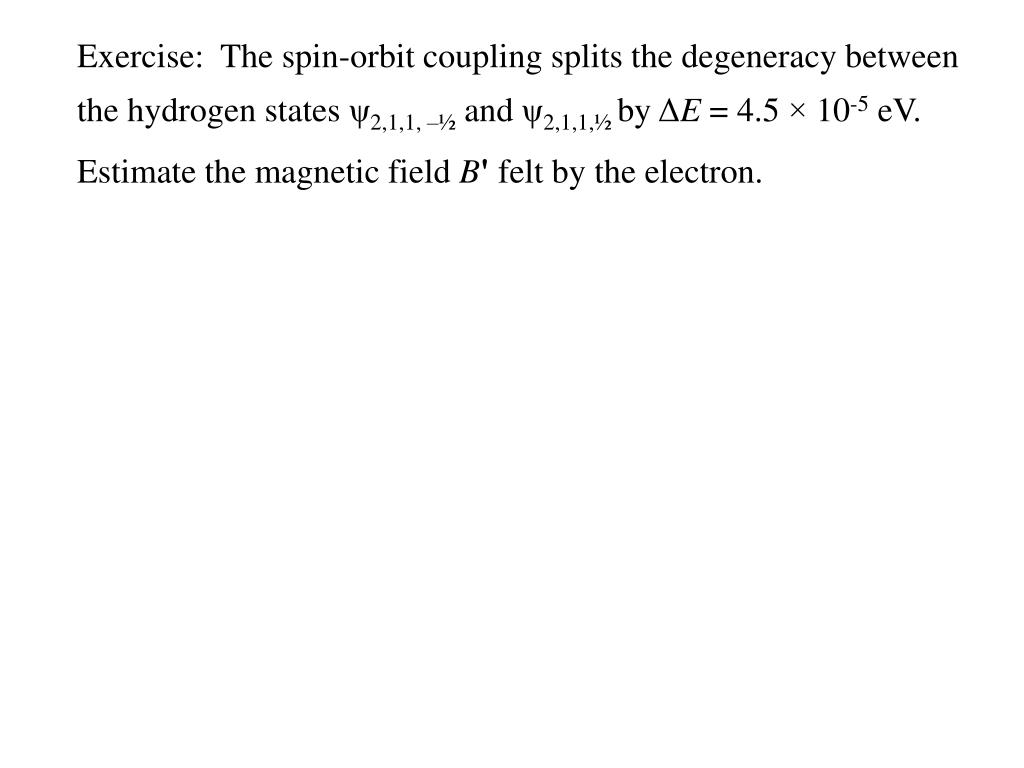

Exercise: The spin-orbit coupling splits the degeneracy between

the hydrogen states ψ2,1,1, –½ and ψ2,1,1,½ by ΔE = 4.5 × 10-5 eV. Estimate the magnetic field B' felt by the electron.

slide48

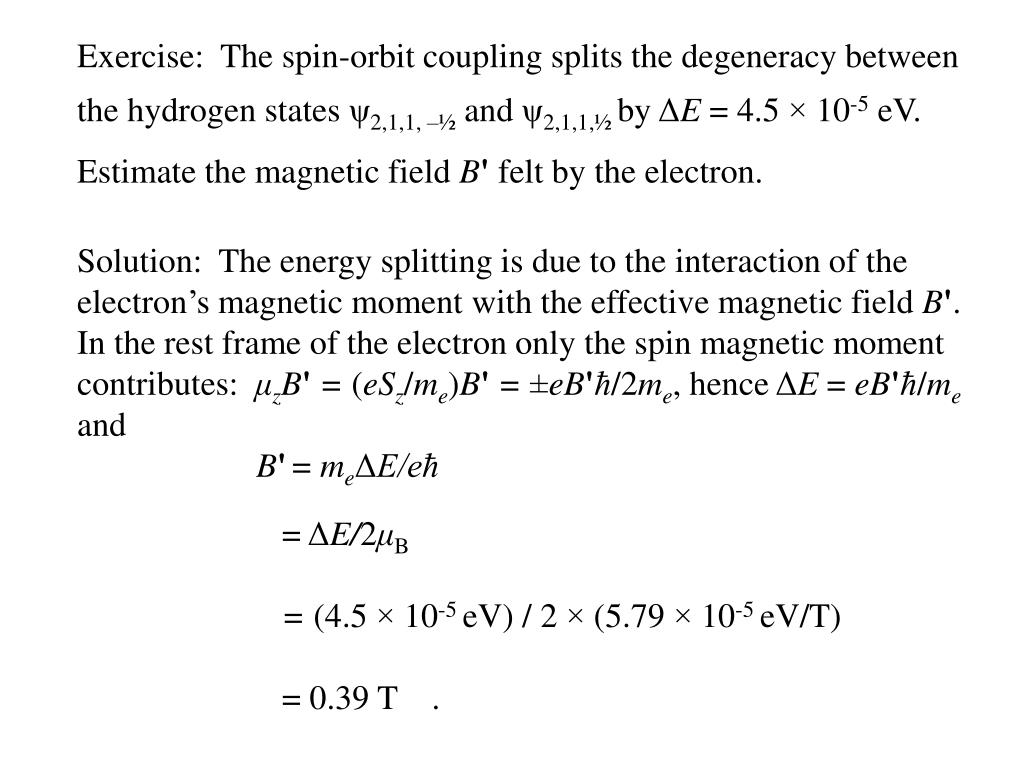

Exercise: The spin-orbit coupling splits the degeneracy between

the hydrogen states ψ2,1,1, –½ and ψ2,1,1,½ by ΔE = 4.5 × 10-5 eV. Estimate the magnetic field B' felt by the electron.

Solution: The energy splitting is due to the interaction of the electron’s magnetic moment with the effective magnetic field B'. In the rest frame of the electron only the spin magnetic moment contributes: μzB' = (eSz/me)B' = ±eB'ħ/2me, hence ΔE = eB'ħ/me and

B'= meΔE/eħ

= ΔE/2μB

= (4.5 × 10-5 eV) / 2 × (5.79 × 10-5 eV/T)

= 0.39 T .
