Receiver Design for Ultrawideband PPM Communication Systems

Receiver Design for Ultrawideband PPM Communication Systems. Vijay Ullal, Department of Electrical and Computer Engineering, Clemson University Faculty Advisor: Dr. Carl Baum 2004 Clemson SURE Program. Introduction What is an ultrawideband system?

taro
Download Presentation

Receiver Design for Ultrawideband PPM Communication Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

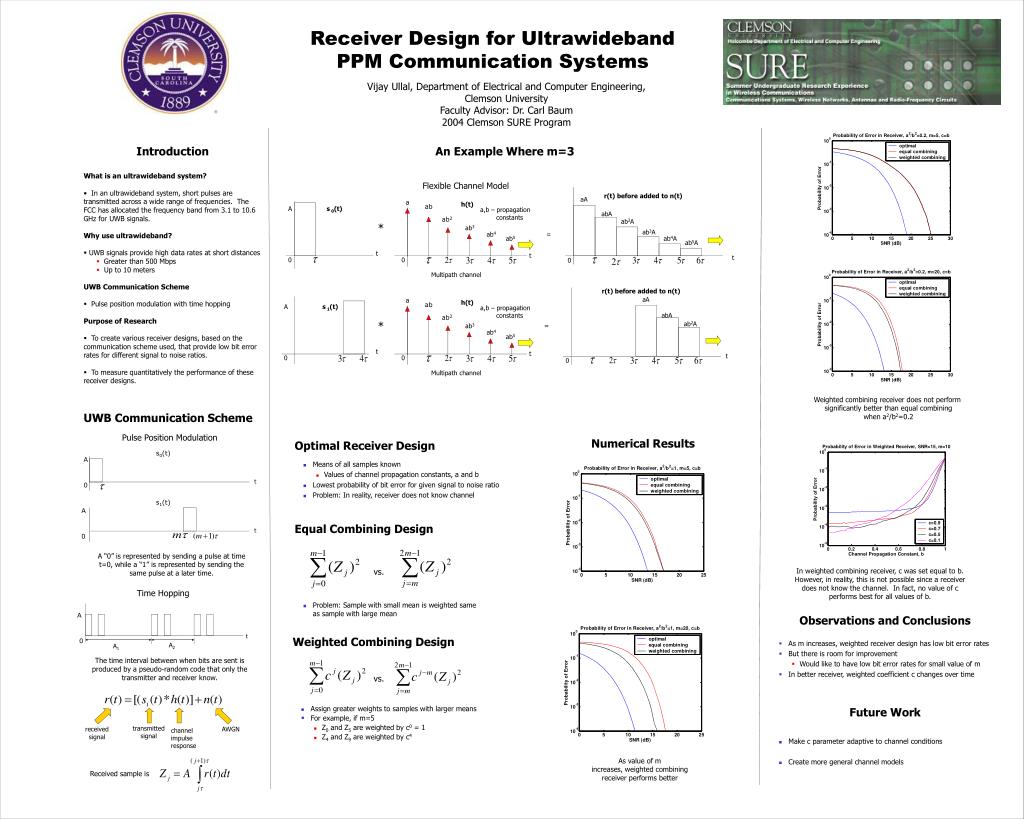

  1. Receiver Design for Ultrawideband PPM Communication Systems Vijay Ullal, Department of Electrical and Computer Engineering, Clemson University Faculty Advisor: Dr. Carl Baum 2004 Clemson SURE Program • Introduction • What is an ultrawideband system? • In an ultrawideband system, short pulses are transmitted across a wide range of frequencies. The FCC has allocated the frequency band from 3.1 to 10.6 GHz for UWB signals. • Why use ultrawideband? • UWB signals provide high data rates at short distances • Greater than 500 Mbps • Up to 10 meters • UWB Communication Scheme • Pulse position modulation with time hopping • Purpose of Research • To create various receiver designs, based on the communication scheme used, that provide low bit error rates for different signal to noise ratios. • To measure quantitatively the performance of these receiver designs. An Example Where m=3 Flexible Channel Model r(t) before added to n(t) aA a h(t) ab A s 0(t) a,b – propagation constants abA ab2 ab2A * ab3 ab3A ab4 = ab5 ab4A ab5A t t t 0 0 0 Multipath channel r(t) before added to n(t) aA a h(t) ab A s 1(t) a,b – propagation constants abA ab2 * ab2A ab3 = ab4 ab5 t t t 0 0 0 Multipath channel Weighted combining receiver does not perform significantly better than equal combining when a2/b2=0.2 UWB Communication Scheme Pulse Position Modulation Numerical Results Optimal Receiver Design s0(t) A • Means of all samples known • Values of channel propagation constants, a and b • Lowest probability of bit error for given signal to noise ratio • Problem: In reality, receiver does not know channel t 0 s1(t) A Equal Combining Design t 0 A “0” is represented by sending a pulse at time t=0, while a “1” is represented by sending the same pulse at a later time. vs. In weighted combining receiver, c was set equal to b. However, in reality, this is not possible since a receiver does not know the channel. In fact, no value of c performs best for all values of b. Time Hopping • Problem: Sample with small mean is weighted same as sample with large mean A Observations and Conclusions • As m increases, weighted receiver design has low bit error rates • But there is room for improvement • Would like to have low bit error rates for small value of m • In better receiver, weighted coefficient c changes over time t Weighted Combining Design 0 A2 A1 The time interval between when bits are sent is produced by a pseudo-random code that only the transmitter and receiver know. vs. • Assign greater weights to samples with larger means • For example, if m=5 • Z0 and Z5 are weighted by c0 = 1 • Z4 and Z9 are weighted by c4 Future Work • Make c parameter adaptive to channel conditions • Create more general channel models transmitted signal received signal AWGN channel impulse response As value of m increases, weighted combining receiver performs better Received sample is
