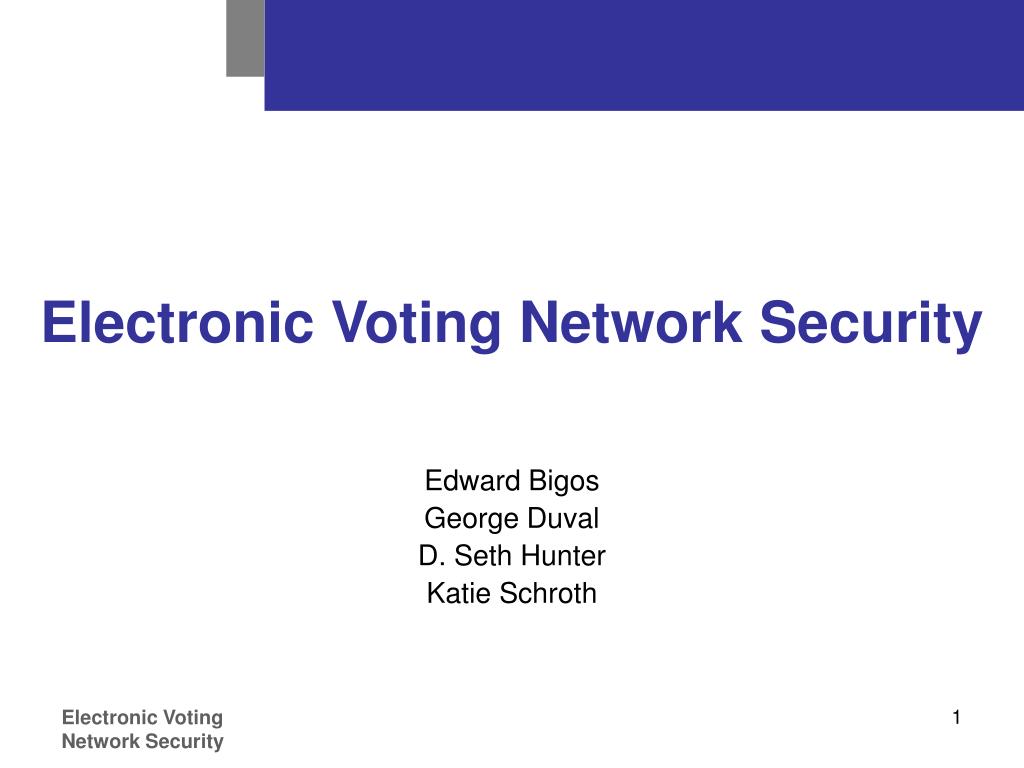

  1. Electronic Voting Network Security Edward Bigos George Duval D. Seth Hunter Katie Schroth

  2. Outline • Introduction & Overview • Network Definition • Funding & Certification • Security Concerns • Recommendations • Conclusion

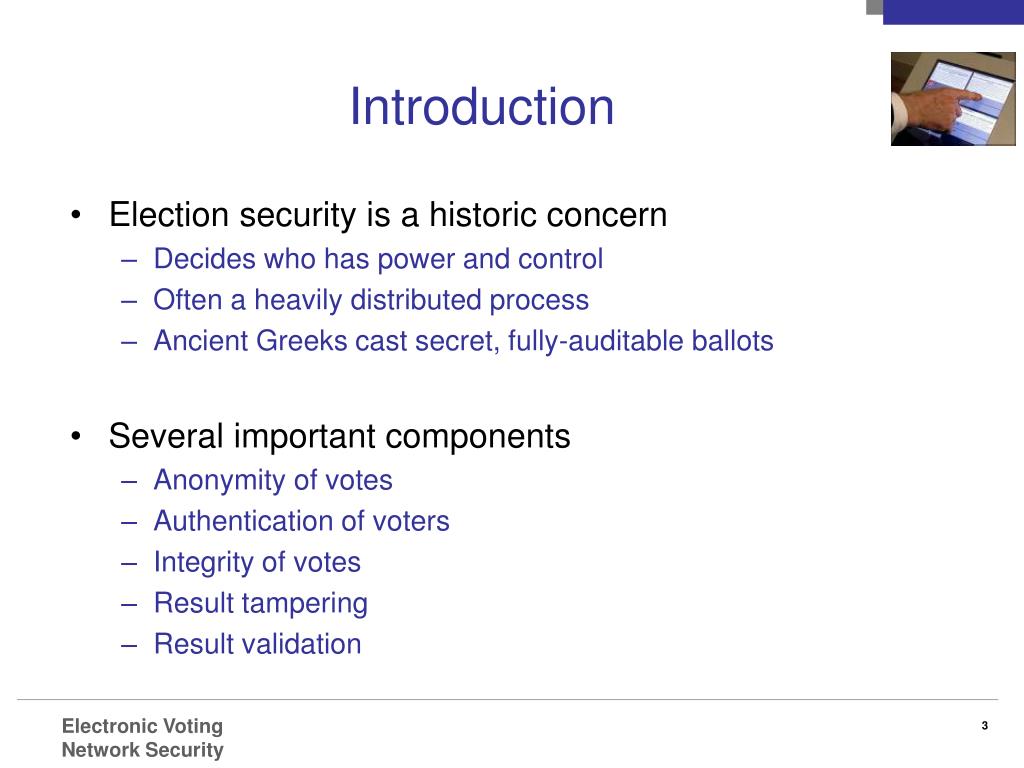

  3. Introduction • Election security is a historic concern • Decides who has power and control • Often a heavily distributed process • Ancient Greeks cast secret, fully-auditable ballots • Several important components • Anonymity of votes • Authentication of voters • Integrity of votes • Result tampering • Result validation

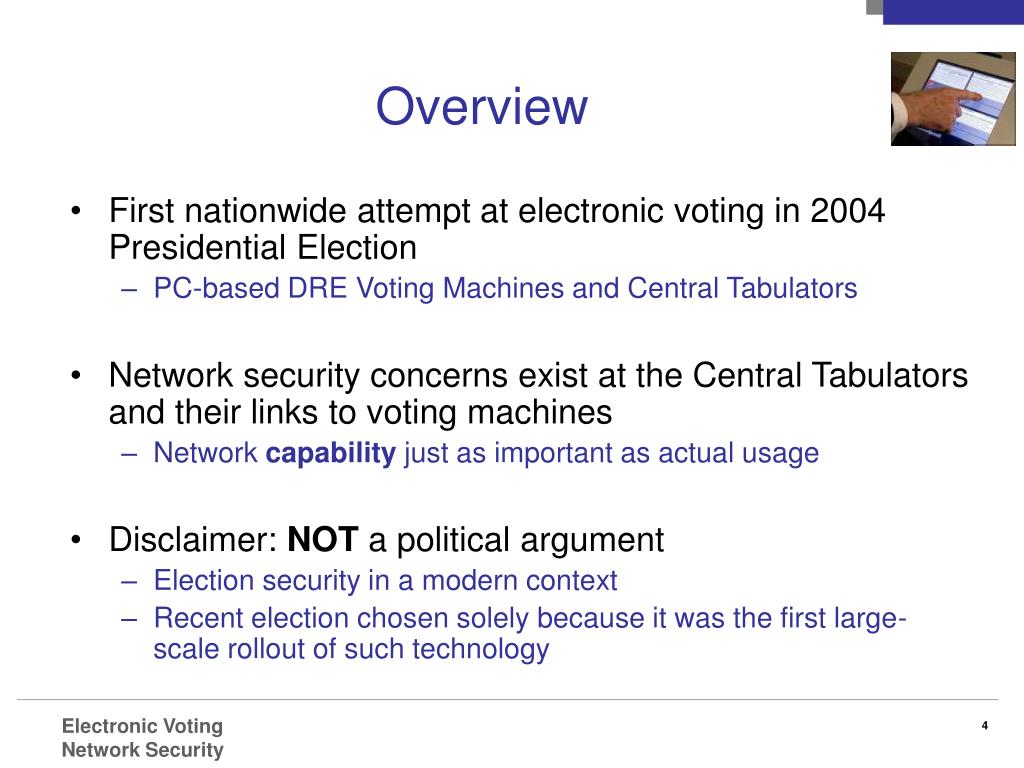

  4. Overview • First nationwide attempt at electronic voting in 2004 Presidential Election • PC-based DRE Voting Machines and Central Tabulators • Network security concerns exist at the Central Tabulators and their links to voting machines • Network capability just as important as actual usage • Disclaimer: NOT a political argument • Election security in a modern context • Recent election chosen solely because it was the first large-scale rollout of such technology

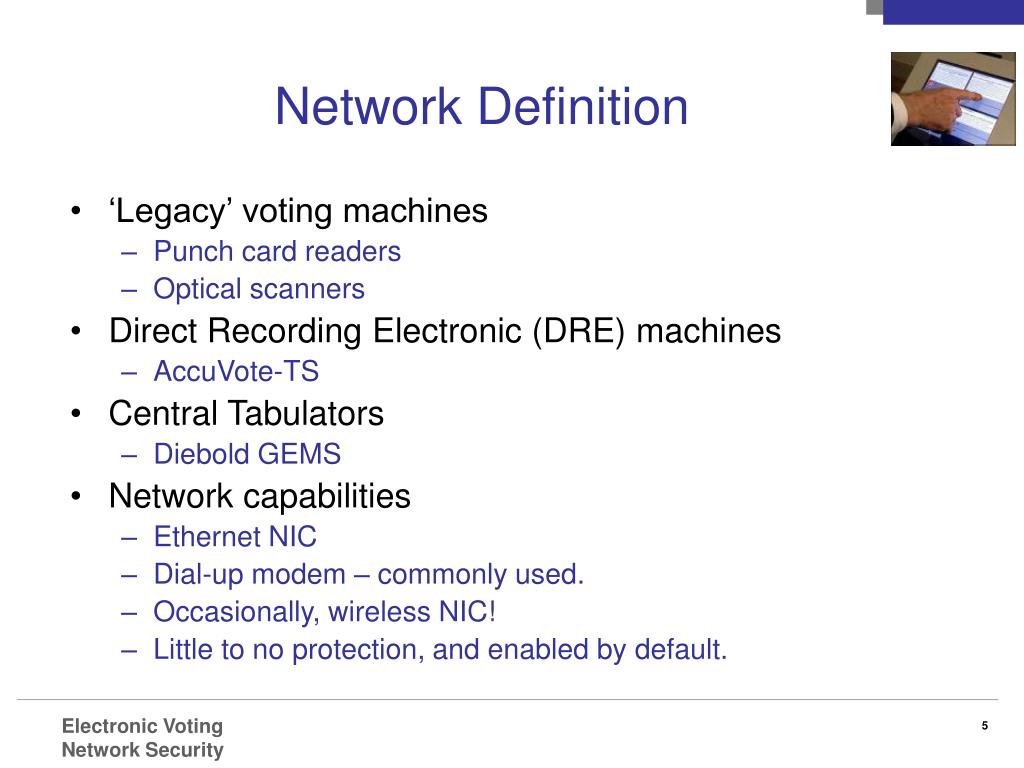

  5. Network Definition • ‘Legacy’ voting machines • Punch card readers • Optical scanners • Direct Recording Electronic (DRE) machines • AccuVote-TS • Central Tabulators • Diebold GEMS • Network capabilities • Ethernet NIC • Dial-up modem – commonly used. • Occasionally, wireless NIC! • Little to no protection, and enabled by default.

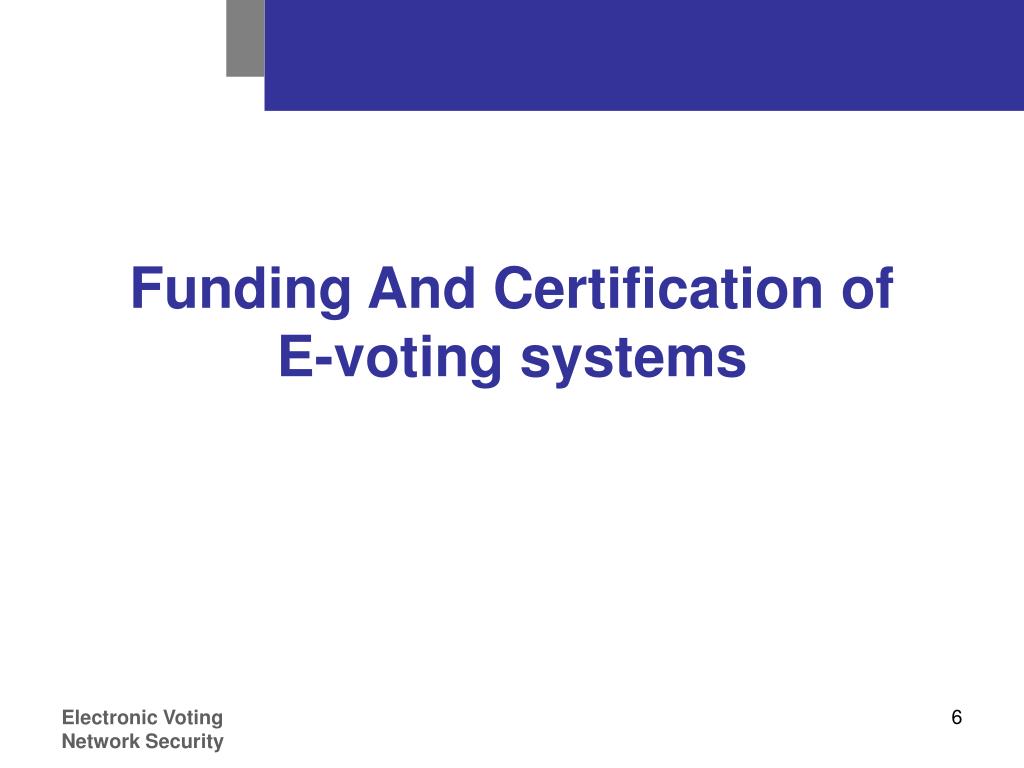

  6. Funding And Certification of E-voting systems

  7. Significance • Need to determine How and Where the money comes from to upgrade the voting systems. • Who and What establishes the Standard that the new machines are tested against

  8. HAVA, NASED and the ITA • Help America Vote Act (HAVA) • Formed from the Federal elections commission to funnel funds to upgrade voting equipment • National Association of State Election Directors (NASED) • Formed out of the Election Assistance Commission to help standardize the evaluation of Equipment • Independent Testing Authorities (ITA) • “Specialists” hired to test the HW and SW of the new Electronic Voting Equipment.

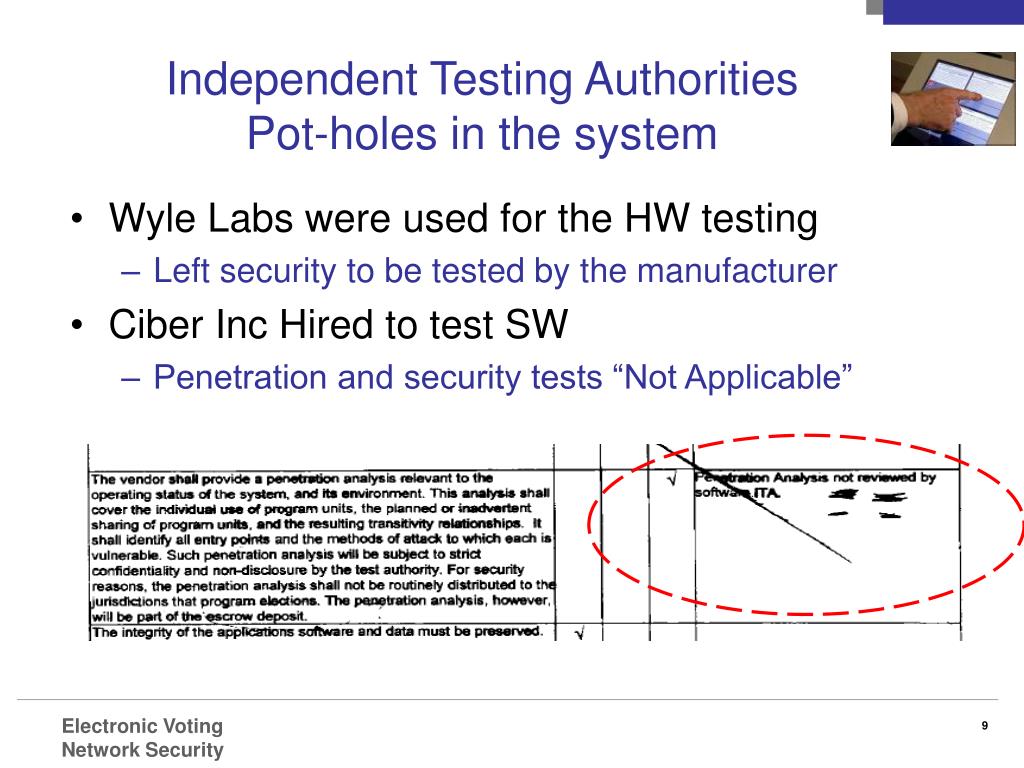

  9. Independent Testing AuthoritiesPot-holes in the system • Wyle Labs were used for the HW testing • Left security to be tested by the manufacturer • Ciber Inc Hired to test SW • Penetration and security tests “Not Applicable”

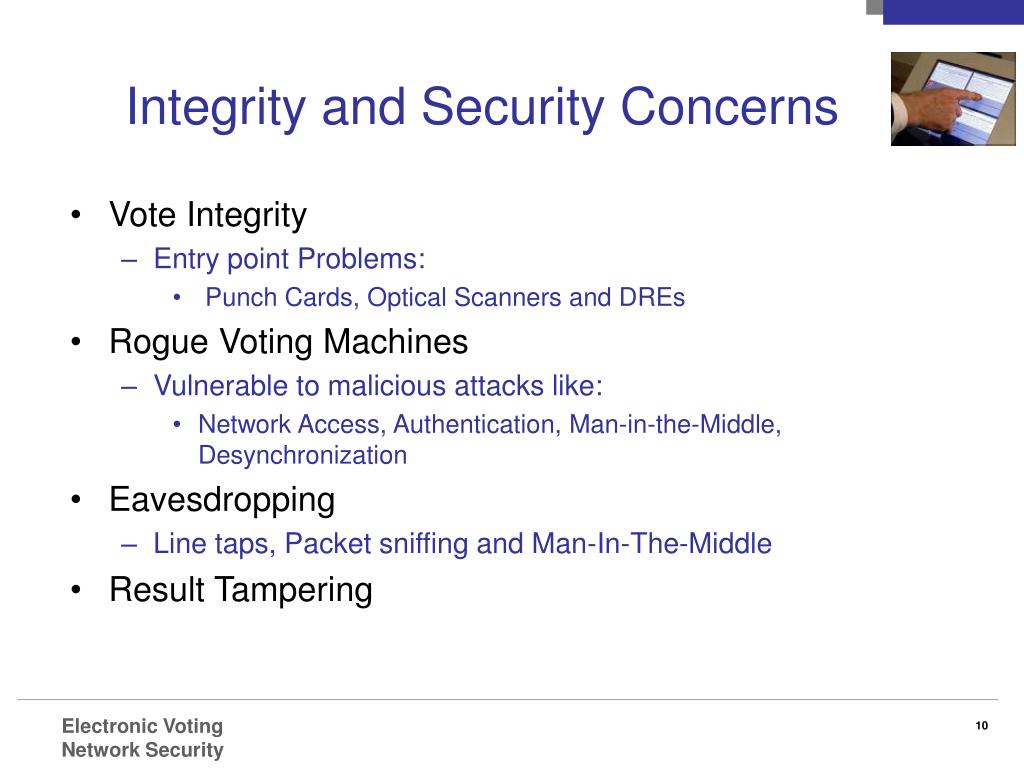

  10. Integrity and Security Concerns • Vote Integrity • Entry point Problems: • Punch Cards, Optical Scanners and DREs • Rogue Voting Machines • Vulnerable to malicious attacks like: • Network Access, Authentication, Man-in-the-Middle, Desynchronization • Eavesdropping • Line taps, Packet sniffing and Man-In-The-Middle • Result Tampering

  11. Hypothetical Tampering • Tampering with out notice • Point of Entry : National Election Poll • Assume a direct link to the Central Tabulators are accessible to NEP workers • Gains Access to the network • Accesses the Database • Likely Suspects: • NEP poll worker or a Technician familiar with the manufacturing of the voting equipment

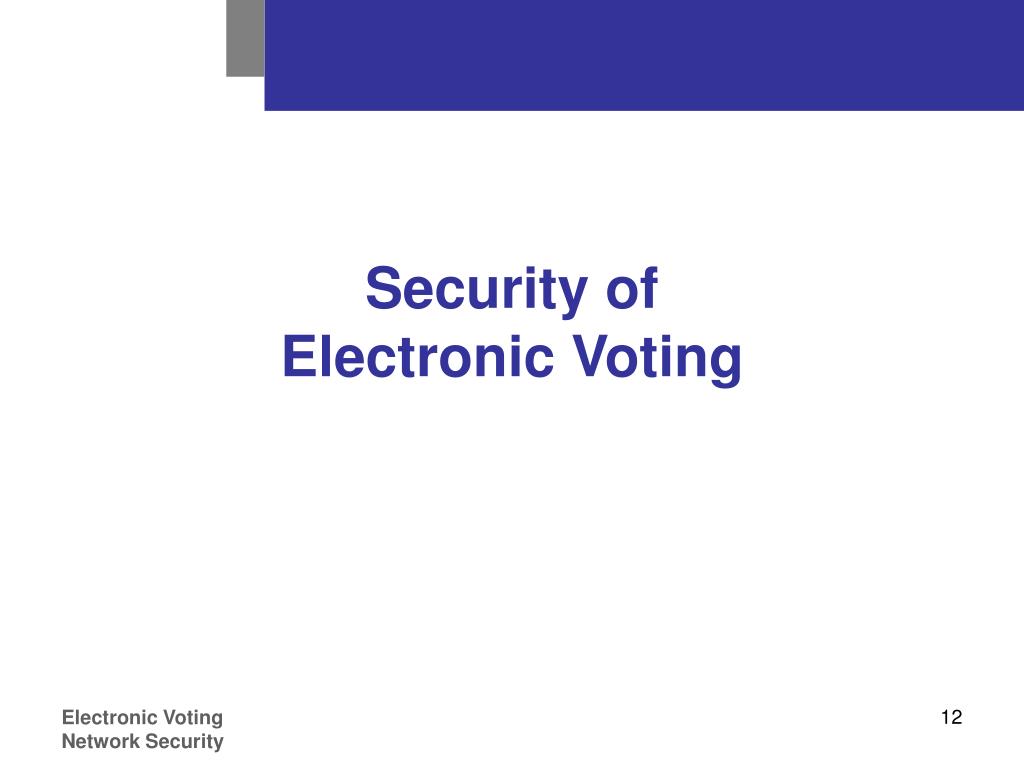

  12. Security ofElectronic Voting

  13. Notable Security Reviews • Hopkins Report • Review of voting terminal security. • SAIC Report • Management controls • RABA Report • Actual security tests.

  14. Hopkins Report • In depth review of C++ source code left on an open Diebold FTP server. • Suggested several potential attacks. • “cryptography, when used at all, is used incorrectly” • Hard coded encryption key = F2654hD4. Same since 1998 ! • “Even unsophisticated attackers can perform ‘untraceable’ man-in-the-middle attacks.”

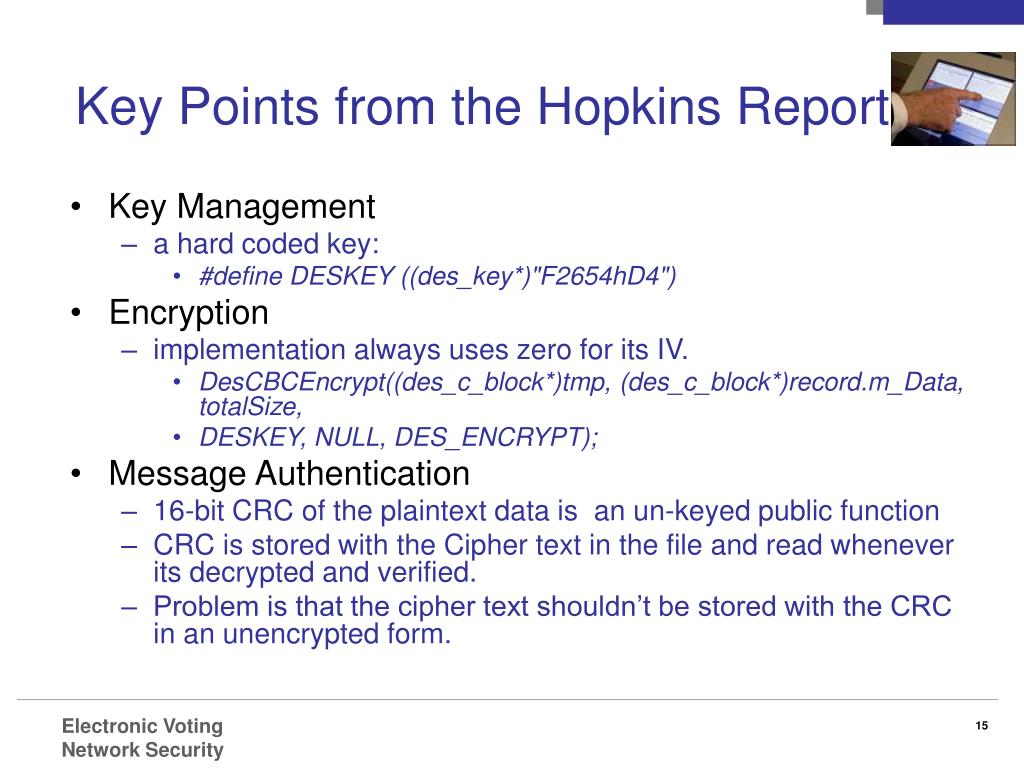

  15. Key Points from the Hopkins Report • Key Management • a hard coded key: • #define DESKEY ((des_key*)"F2654hD4") • Encryption • implementation always uses zero for its IV. • DesCBCEncrypt((des_c_block*)tmp, (des_c_block*)record.m_Data, totalSize, • DESKEY, NULL, DES_ENCRYPT); • Message Authentication • 16-bit CRC of the plaintext data is an un-keyed public function • CRC is stored with the Cipher text in the file and read whenever its decrypted and verified. • Problem is that the cipher text shouldn’t be stored with the CRC in an unencrypted form.

  16. SAIC Report • Management and policy, not a technical review. Commissioned by MD Governor Ehrlic. • Suggested the use of controls & “tamper tape”. • “Dr Rubin did not have a complete understanding of Maryland’s implementation, process, controls and environment.” • Conclusion: Systems at high risk, but risk could be mitigated by management controls.

  17. RABA Report • Reviewed & critiqued the Hopkins & SAIC. • Hopkins report substantially correct. • Agrees with the evaluation that the election station software code quality is poor. • RED TEAM laboratory exercise. • Used current Diebold source and actual AccuVote-TS hardware (January 2004). • Poor security related to DES key (F2654hD4) and administrative password (1111) still unchanged in newest versions.

  18. Recommendations

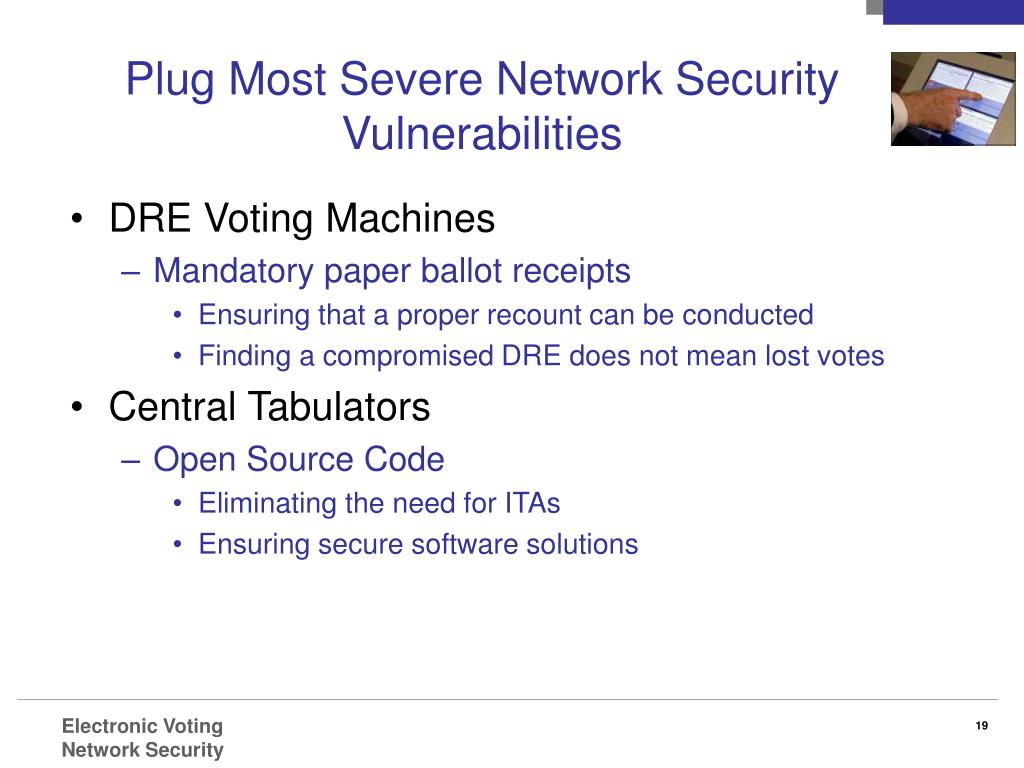

  19. Plug Most Severe Network Security Vulnerabilities • DRE Voting Machines • Mandatory paper ballot receipts • Ensuring that a proper recount can be conducted • Finding a compromised DRE does not mean lost votes • Central Tabulators • Open Source Code • Eliminating the need for ITAs • Ensuring secure software solutions

  20. Policies & Regulations • Audit Reform • Require a standard for recognizing the need for a recount • Prohibit Direct Feeds into Central Tabulators • Only as strong as the weakest link • Other network feeds increases vulnerability

  21. Conclusions • Defined the system components of the election network • Discussed financing and certification • Explained network security concerns for the system components • Suggested first steps to improving network security

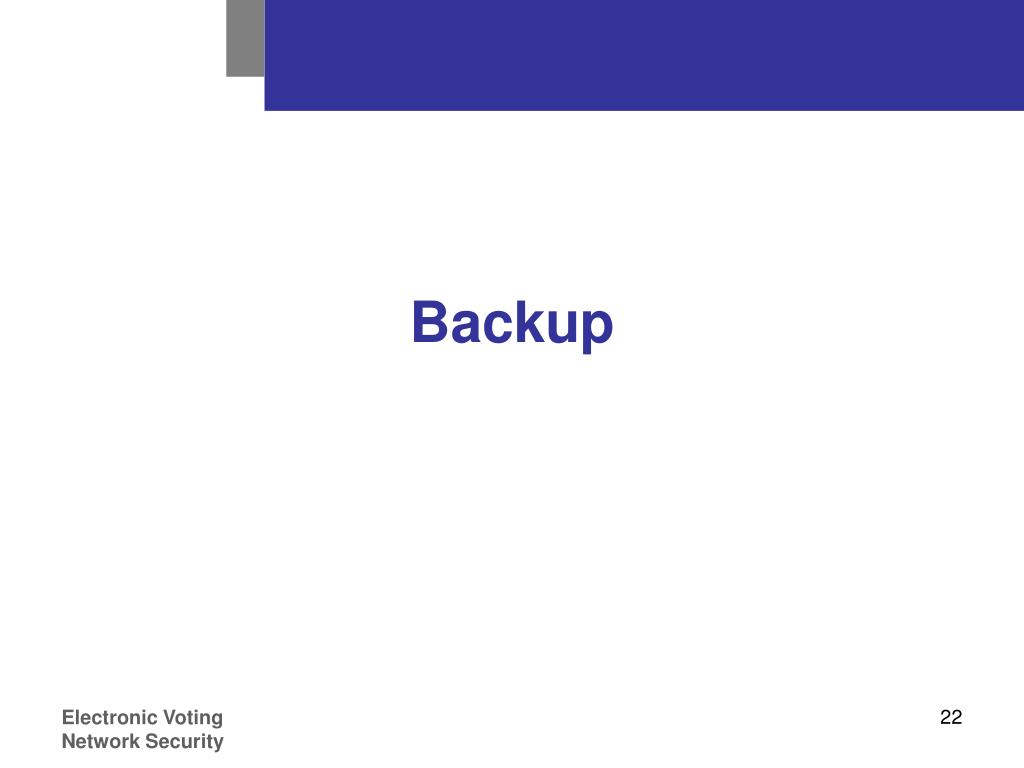

  22. Backup

  23. Key Management • Code snippet reveals a hard coded key: • #define DESKEY ((des_key*)"F2654hD4")[1] [1] Kohno, Stubblefield, Rubin, Wallach. “Analysis of an Electronic Voting System.” IEEE Symposium on Security and Privacy 2004. IEEE Computer Society Press, May 2004.

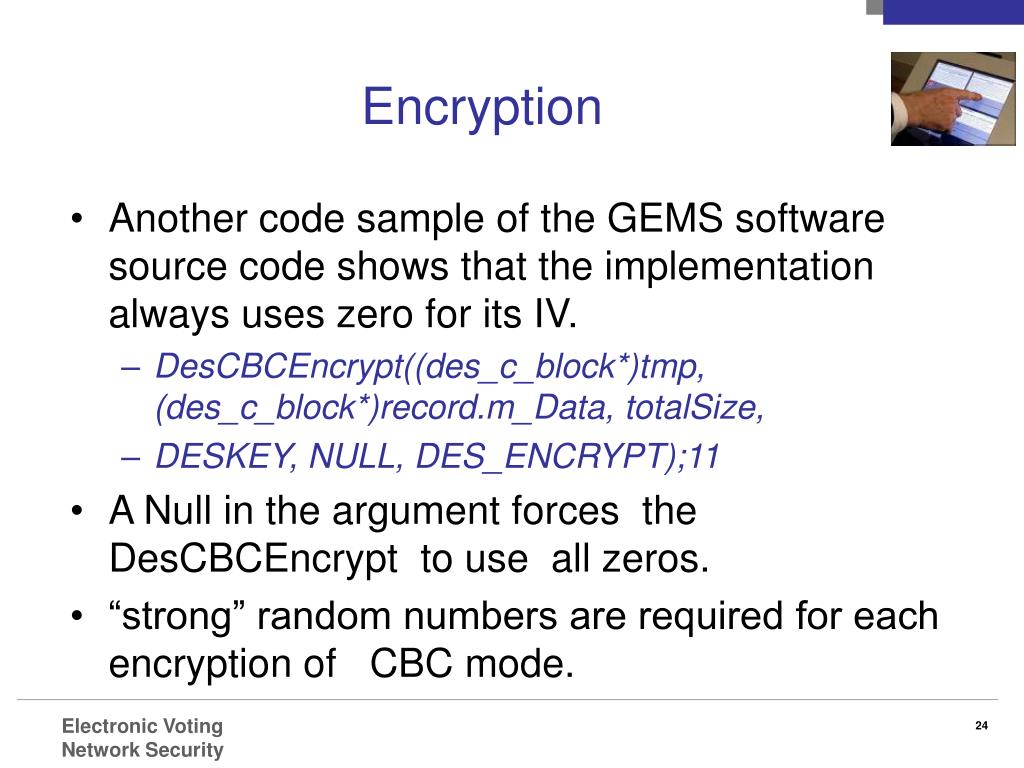

  24. Encryption • Another code sample of the GEMS software source code shows that the implementation always uses zero for its IV. • DesCBCEncrypt((des_c_block*)tmp, (des_c_block*)record.m_Data, totalSize, • DESKEY, NULL, DES_ENCRYPT);11 • A Null in the argument forces the DesCBCEncrypt to use all zeros. • “strong” random numbers are required for each encryption of CBC mode.

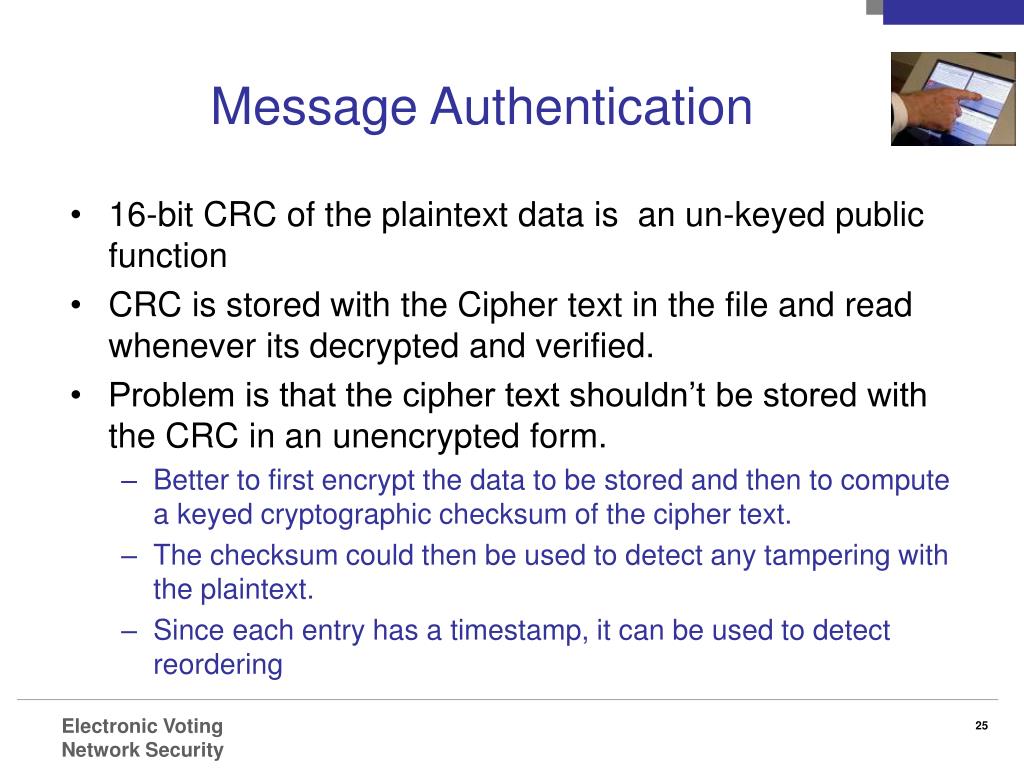

  25. Message Authentication • 16-bit CRC of the plaintext data is an un-keyed public function • CRC is stored with the Cipher text in the file and read whenever its decrypted and verified. • Problem is that the cipher text shouldn’t be stored with the CRC in an unencrypted form. • Better to first encrypt the data to be stored and then to compute a keyed cryptographic checksum of the cipher text. • The checksum could then be used to detect any tampering with the plaintext. • Since each entry has a timestamp, it can be used to detect reordering
