PATH TESTING An Example for White-Box Testing
Path testing • a form of white box testing • steps to complete: • derive the module’s flow diagram • describe all possible paths through the diagram (conditions, loops) • derive path predicates • derive test-cases & results per path
PROGRAM example_1 VAR x , y : NUMBER BEGIN <program> READ ( x , y ); IF ( x > 20) THEN BEGIN <nested if> WRITE abs ( x - y ); IF ( x < y ) THEN WRITE ( “ x smaller y ”) ELSE WRITE ( “ x greater or equal y ” ) END <nested if> ELSE WRITE ( “ x smaller or equal 20 ” ) END <program>
x > 20 x < y The Flow Diagram READ x and y TRUE FALSE “abs ( x - y )” “x smaller or equal 20” TRUE FALSE “x smaller y” “x greater or equal y”

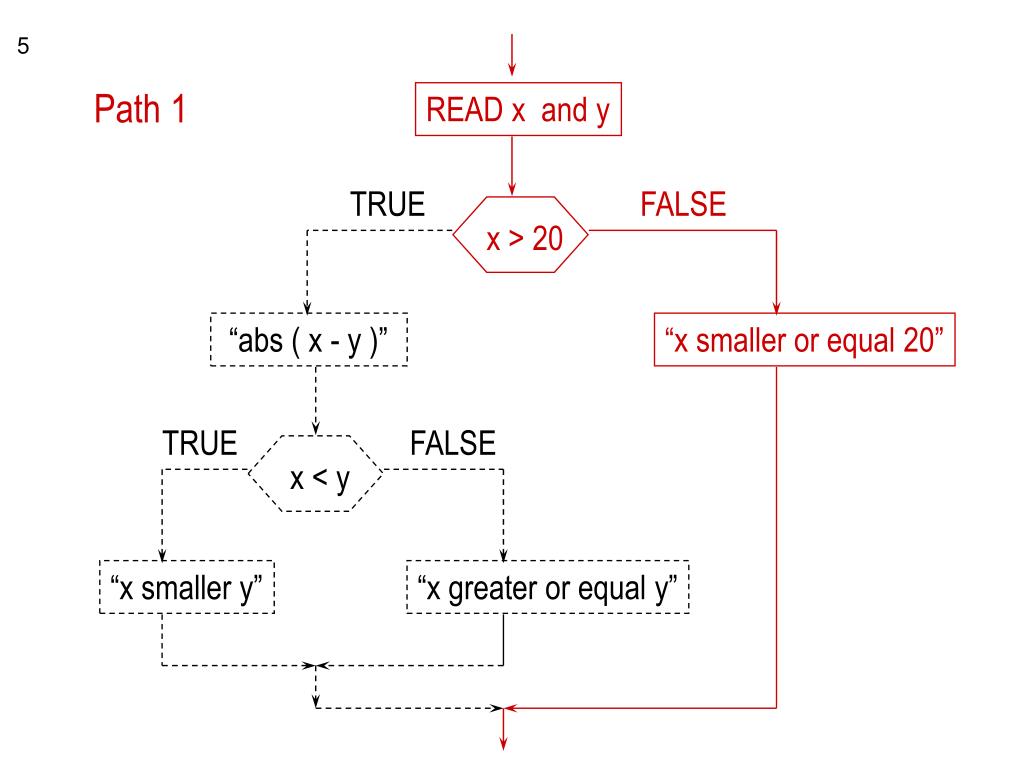

x < y Path 1 READ x and y TRUE FALSE x > 20 “abs ( x - y )” “x smaller or equal 20” TRUE FALSE “x smaller y” “x greater or equal y”
Path 2: READ x and y TRUE FALSE x > 20 “abs ( x - y )” “x smaller or equal 20” TRUE FALSE x < y “x smaller y” “x greater or equal y”
Path 3: READ x and y TRUE FALSE x > 20 “abs ( x - y )” “x smaller or equal 20” TRUE FALSE x < y “x smaller y” “x greater or equal y”

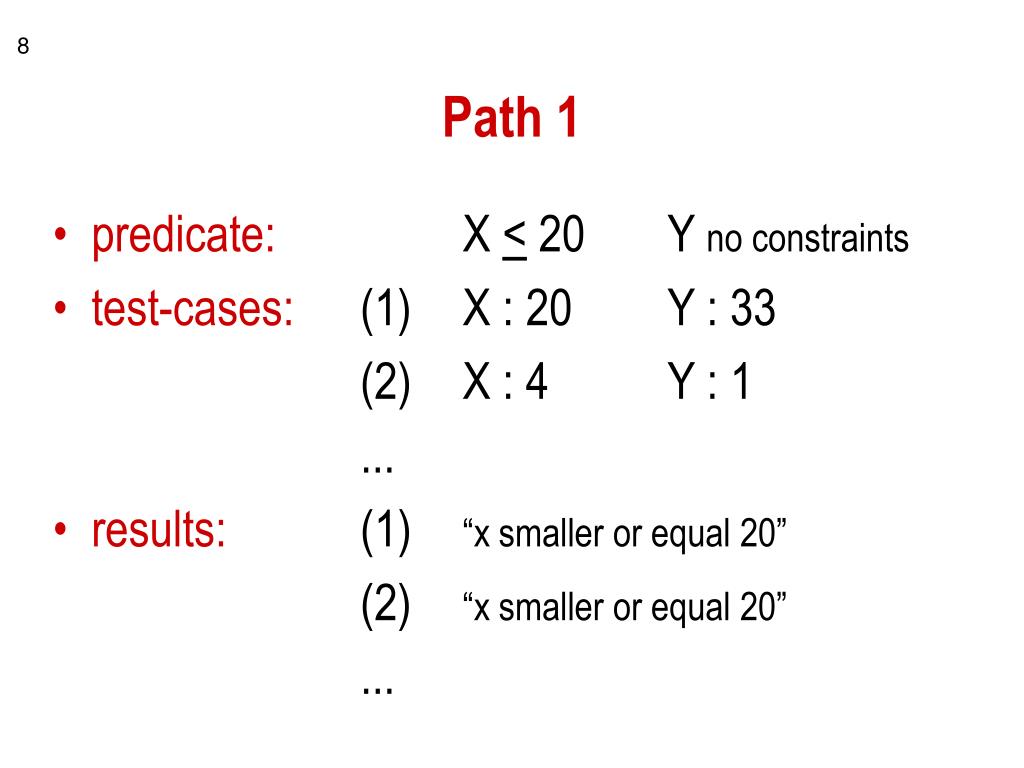

Path 1 • predicate: X < 20 Y no constraints • test-cases: (1) X : 20 Y : 33 (2) X : 4 Y : 1 ... • results: (1) “x smaller or equal 20” • (2) “x smaller or equal 20” • ...

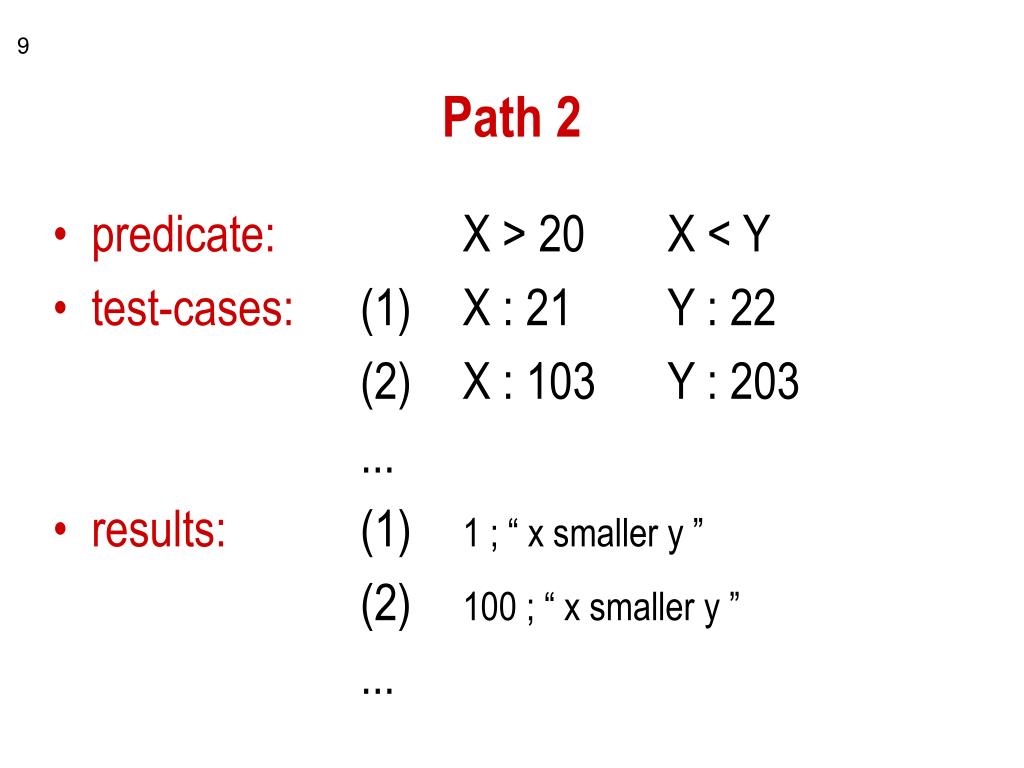

Path 2 • predicate: X > 20 X < Y • test-cases: (1) X : 21 Y : 22 (2) X : 103 Y : 203 ... • results: (1) 1 ; “ x smaller y ” • (2) 100 ; “ x smaller y ” • ...
Path 3 • predicate: X > 20 X > Y • test-cases: (1) X : 21 Y : 21 (2) X : 103 Y : 102 ... • results: (1) 0 ; “ x greater or equal y ” • (2) 1 ; “ x greater or equal y ” • ...

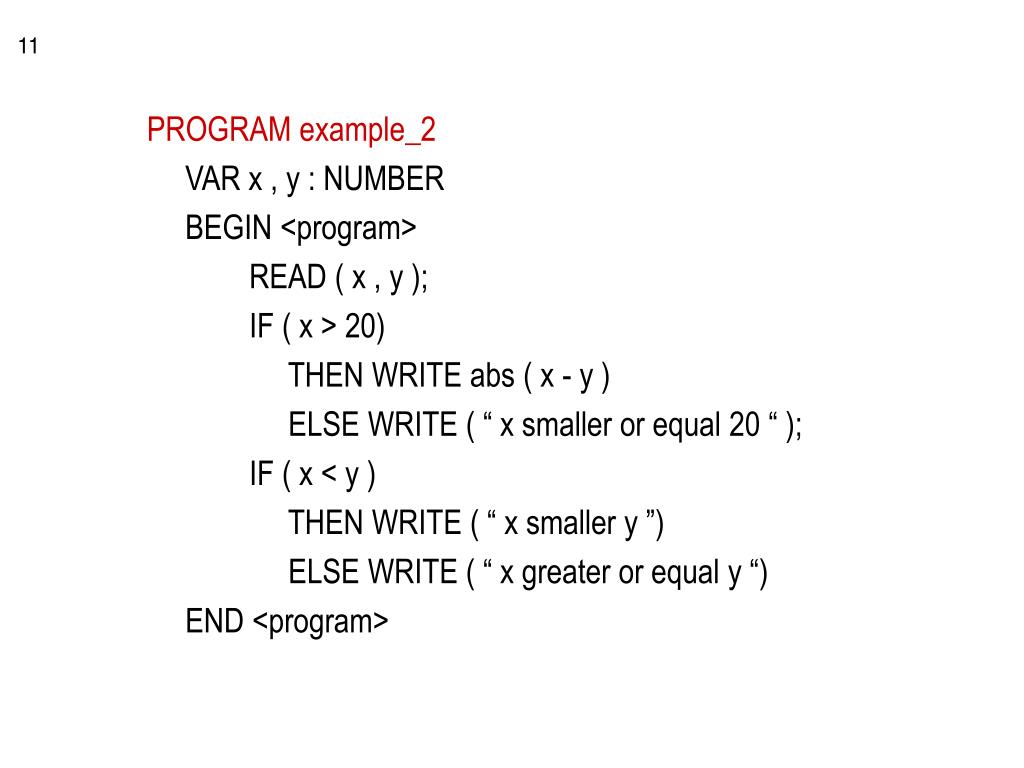

PROGRAM example_2 VAR x , y : NUMBER BEGIN <program> READ ( x , y ); IF ( x > 20) THEN WRITE abs ( x - y ) ELSE WRITE ( “ x smaller or equal 20 “ ); IF ( x < y ) THEN WRITE ( “ x smaller y ”) ELSE WRITE ( “ x greater or equal y “) END <program>
